Electrical junction
box 12" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure at
front

3-3/4" MIN.

clearance to

side wall

from cut-out

3-3/4" MIN.

clearance to

side wall

18" MIN.
to cabinet

2-1/4" to
rear wall

13" MAX.
depth

Cooktop

2-1/2"
(min.)

3-1/16

33-7/8

19-1/

8

36

21

30" MIN. to
unprotected
cabinet

3-3/4" MIN.

clearance to

side wall

18" MIN.
to cabinet

2-1/4" to
rear wall

13" MAX.
depth

Electrical
cord

Electrical
outlet

Shut-off

valve

Pressure
regulator

1/2" pipe

Coupling

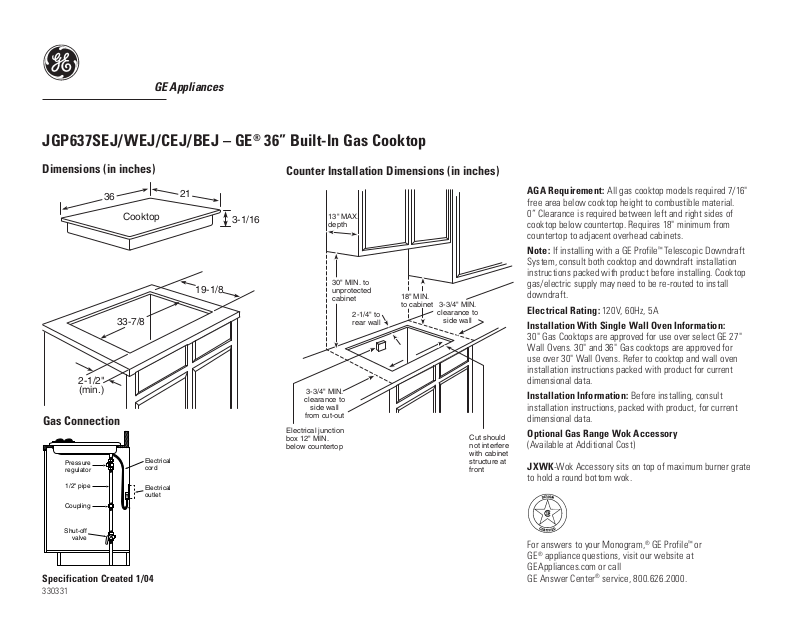

JGP637SEJ/WEJ/CEJ/BEJ – GE® 36” Built-In Gas Cooktop

Dimensions (in inches)

Gas Connection

Counter Installation Dimensions (in inches)

AGA Requirement: All gas cooktop models required 7/16"

free area below cooktop height to combustible material.
0” Clearance is required between left and right sides of
cooktop below countertop. Requires 18" minimum from
countertop to adjacent overhead cabinets.

™

Note: If installing with a GE Profile

Telescopic Downdraft
System, consult both cooktop and downdraft installation
instructions packed with product before installing. Cooktop
gas/electric supply may need to be re-routed to install
downdraft.

Electrical Rating : 120V, 60Hz, 5A
Installation With Single Wall Oven Information:

30" Gas Cooktops are approved for use over select GE 27"
Wall Ovens. 30" and 36" Gas cooktops are approved for
use over 30" Wall Ovens. Refer to cooktop and wall oven
installation instructions packed with product for current
dimensional data.

Installation Information: Before installing, consult
installation instructions, packed with product, for current
dimensional data.

Optional Gas Range Wok Accessory

(Available at Additional Cost)

JXWK-Wok Accessory sits on top of maximum burner grate
to hold a round bottom wok.

Specification Created 1/04

330331

For answers to your Monogram,® GE Profile™ or

®

appliance questions, visit our website at

GE
GEAppliances.com or call
GE Answer Center

®

service, 800.626.2000.

GE Appliances

JGP637SEJ/WEJ/CEJ/BEJ – GE® 36” Built-In Gas Cooktop

Features and Benefits

• Tempered glass cooktop – Delivers a smooth, uniform surface for an attractive
appearance that’s easy-to-clean

• Sealed cooktop burners – Eliminate the space between the burners and the cooktop to
help contain spills and boil over liquids, ensuring easy cleanup

• High output burner – Provides a powerful 12,000 BTU burner output for efficient
heat-up and boiling

• Precise simmer burner – Offers the low setting of 600 BTUs, ensuring more
temperature control for simmering

• Porcelain drip bowls –Contain minor spills and are removable for cleaning in the
sink or dishwasher

• Dishwasher safe grates – Durable grate construction can be placed into the
dishwashser for easy cleaning and maintenance

• Deluxe cast grates – Constructed from a premium cast iron material for a long-lasting
performance and durability

• Model JGP637SEJSS – Stainless steel

• Model JGP637WEJWW – White on white

• Model JGP637CEJCC – Bisque

• Model JGP637BEJBB – Black on black
