GE 36"" JP655TK, JP655BK, JP655TKWW, JP655BKBB Dimension Manual

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Listed by
Underwriters
Laboratories

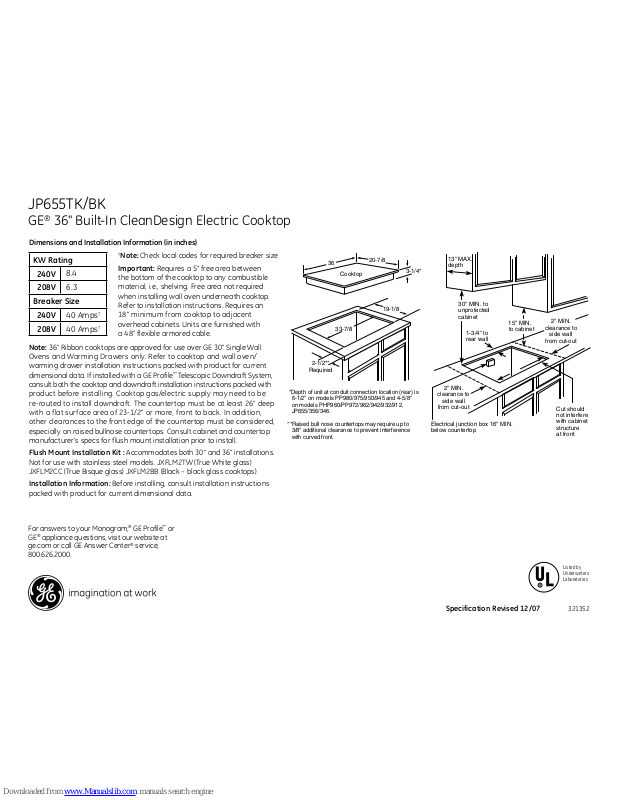

JP655TK/BK

GE® 36" Built-In CleanDesign Electric Cooktop

†

Note: Check local codes for required breaker size

Important: Requires a 5" free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires an
18" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with
a 48" flexible armored cable.

Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for current
dimensional data. If installed with a GE Profile™ Telescopic Downdraft System,
consult both the cooktop and downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply may need to be
re-routed to install downdraft. The countertop must be at least 26" deep
with a flat surface area of 23-1/2" or more, front to back. In addition,
other clearances to the front edge of the countertop must be considered,
especially on raised bullnose countertops. Consult cabinet and countertop
manufacturer’s specs for flush mount installation prior to install.

Flush Mount Installation Kit : Accommodates both 30" and 36" installations.
Not for use with stainless steel models. JXFLM2TW (True White glass)
JXFLM2CC (True Bisque glass) JXFLM2BB (Black – black glass cooktops)

Installation Information:

Before installing, consult installation instructions

packed with product for current dimensional data.

KW Rating

240V

8.4

208V

6.3

Breaker Size

240V

40 Amps

†

208V

40 Amps

†

3-1/4*

Cooktop

2-1/2**

Required

33-7/8

19-1/8

36

20-7/8

Electrical junction box 16" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure
at front

2" MIN.

clearance to

side wall

from cut-out

2" MIN.

clearance to

side wall

from cut-out

1-3/4" to
rear wall

13" MAX.
depth

* Depth of unit at conduit connection location (rear) is

6-1/2" on models PP980/975/950/945 and 4-5/8"
on models PHP960/PP972/962/942/932/912,
JP655/356/346.

**Raised bull nose countertops may require up to

3/8" additional clearance to prevent interference
with curved front.

15" MIN.
to cabinet

Specification Revised 12/07

321352

JP655TK/BK

GE® 36" Built-In CleanDesign Electric Cooktop

Features and Benefits

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning
quick and easy

• Ribbon Heating Elements - Provide powerful heat beneath a smooth glass surface
to ensure even heat and fast warm-up times

• Dual Size Ribbon Element - Offers a convenient choice of using a 6” or 9” heating
element, depending on the size of the pan

• Frameless Design - A smooth and seamless cooktop surface makes
cleaning quick and easy

• Hot Surface Indicator Lights - Illuminate when the cooking surface is active and
hot, adding convenience and safe caution

• Heating Element “On” Light - Illuminates when the cooking surface
is activated

• Model JP655TKWW - True white

• Model JP655BKBB - Black on black
