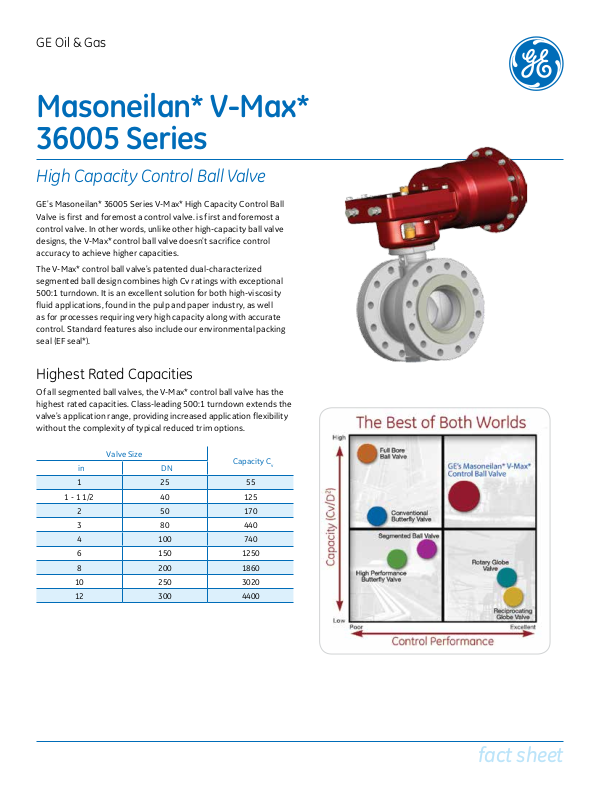

GE 36005 Fact Sheet

GE Oil & Gas

Masoneilan* V-Max*
36005 Series

High Capacity Control Ball Valve

GE's Masoneilan* 36005 Series V-Max* High Capacity Control Ball
Valve is first and foremost a control valve. is first and foremost a
control valve. In other words, unlike other high-capacity ball valve
designs, the V-Max* control ball valve doesn’t sacrifice control
accuracy to achieve higher capacities.

The V-Max* control ball valve's patented dual-characterized
segmented ball design combines high Cv ratings with exceptional
500:1 turndown. It is an excellent solution for both high-viscosity
fluid applications, found in the pulp and paper industry, as well
as for processes requiring very high capacity along with accurate
control. Standard features also include our environmental packing
seal (EF seal*).

Highest Rated Capacities

Of all segmented ball valves, the V-Max* control ball valve has the
highest rated capacities. Class-leading 500:1 turndown extends the
valve's application range, providing increased application flexibility
without the complexity of typical reduced trim options.

Valve Size

in DN

1 25 55

1 - 1 1/2 40 125

2 50 170

3 80 440

4 100 740

6 150 1250

8 200 1860

10 250 3020

12 300 4400

Capacity C

v

fact sheet

Advanced Diagnostics - GE's Masoneilan*
SVI* II AP Digital Valve Positioner

An optional SVI* II AP advanced performance, digital smart valve
positioner provides industry-leading control accuracy and resolution.
A non-contacting position sensor, directly coupled to the valve
shaft, eliminates external linkage to simplify installation. Auto-tune
and auto-calibration features minimize installation and startup
time, while ensuring consistent positioning accuracy. Advanced
diagnostics provide predictive maintenance functionality by warning
of impending problems or failure.

Tailored To Your Application Needs

Three seat types and two face-to-face options allow the
V-Max* contol ball valve to be tailored to your application
needs. Standard MN-7 soft-seat construction provides low
operating torque and consistent Class VI shutoff. Optional
flexible metal seats extend the temperature rating to
316° C (600° F) with Class IV shutoff. The optional heavy­duty seat provides increased durability in harsher service
environments

MN-7 Soft Seat design shown

with optional extended retainer

to meet ANSI B16.10 Short

Pattern Ball face to face

fact sheet

Optional Flexible Metal

Seat shown with standard

retainer meeting ISA

S74.04 face-to-face

EF Seal

The EF seal from GE's Masoneilan* products provides long-term,
reliable, extremely low- emission shaft-seal performance. This
economical solution to fugitive emissions won’t compromise control
performance and is suitable for use in environmentally sensitive
applications.

Heavy Duty Seat option

provides increased durability

in harsh services

O-RING

Standard V-Max Packing Arrangement

EF Seal (Emission Free)

Double O-Ring Seal-Packing Follower

Fugitive Emission-Containment Package for Zero Leakage

†

Factory Mutual certified report

PIN SHAFT

O-RING

†

24/7 customer support: [phone]
geoilandgas.com/

* Masoneilan, V-Max, SVI and EF Seal are trademarks of the General Electric Company.

© 2014 Genera l Electric Com pany. All rights re svered.

GEA19052A (07/2014)
