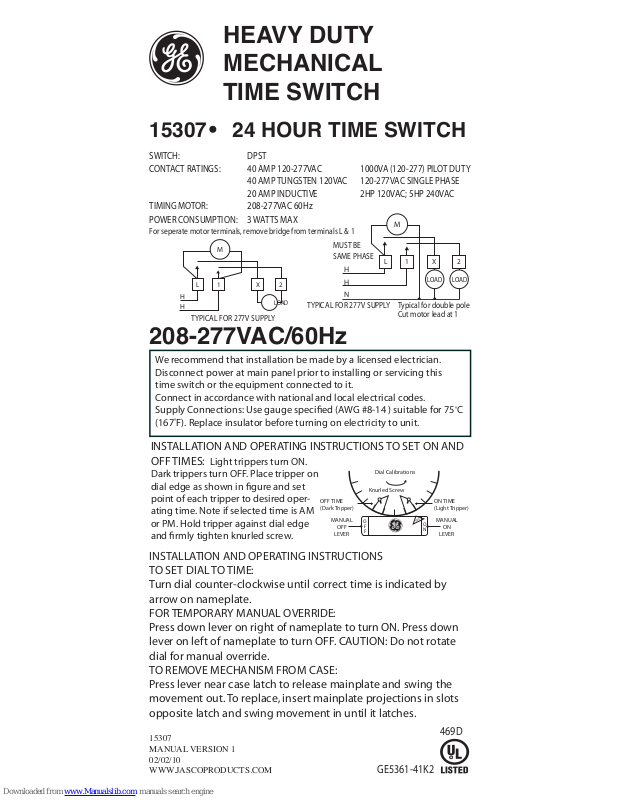

GE 15307 User Manual
We recommend that installation be made by a licensed electrician.
Disconnect power at main panel prior to installing or servicing this
time switch or the equipment connected to it.
Connect in accordance with national and local electrical codes.
Supply Connections: Use gauge specied (AWG #8-14 ) suitable for 75ºC
(167ºF). Replace insulator before turning on electricity to unit.
INSTALLATION AND OPERATING INSTRUCTIONS TO SET ON AND
OFF TIMES: Light trippers turn ON.
Dark trippers turn OFF. Place tripper on
dial edge as shown in gure and set
point of each tripper to desired operating time. Note if selected time is AM
or PM. Hold tripper against dial edge
and rmly tighten knurled screw.
208-277VAC/60Hz
O
F
F
O
N
T
I
M
E
ON TIME
(Light Tripper)
MANUAL
ON
LEVER
MANUAL
OFF
LEVER
OFF TIME
(Dark Tripper)
Knurled Screw
Dial Calibrations
HEAVY DUTY
MECHANICAL
TIME SWITCH
INSTALLATION AND OPERATING INSTRUCTIONS
TO SET DIAL TO TIME:
Turn dial counter-clockwise until correct time is indicated by
arrow on nameplate.
FOR TEMPORARY MANUAL OVERRIDE:
Press down lever on right of nameplate to turn ON. Press down
lever on left of nameplate to turn OFF. CAUTION: Do not rotate
dial for manual override.
TO REMOVE MECHANISM FROM CASE:
Press lever near case latch to release mainplate and swing the
movement out. To replace, insert mainplate projections in slots
opposite latch and swing movement in until it latches.
15307
•
24 HOUR TIME SWITCH
SWITCH: DPST
CONTACT RATINGS: 40 AMP 120-277VAC 1000VA (120-277) PILOT DUTY
40 AMP TUNGSTEN 120VAC 120-277VAC SINGLE PHASE
20 AMP INDUCTIVE 2HP 120VAC; 5HP 240VAC
TIMING MOTOR: 208-277VAC 60Hz
POWER CONSUMPTION: 3 WATTS MAX
For seperate motor terminals, remove bridge from terminals L & 1
GE5361-41K2
469D
15307
MANUAL VERSION 1
02/02/10
WWW.JASCOPRODUCTS.COM
L
H
H
N
M
1 X 2
TYPICAL FOR 277V SUPPLY
TYPICAL FOR 277V SUPPLY
Typical for double pole
Cut motor lead at 1
LOAD LOAD
MUST BE
SAME PHASE
L
H
H
M
1 X
2
LOAD
