Gateway NX860XL User Manual

HARDWARE REFERENCE

Gateway Notebook

Chapter 1: About this reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing the online User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Checking Out Your Gateway Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Identifying features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting to a cable or DSL modem or to an Ethernet network . . . . . . . . 13

Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Restarting (rebooting) your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Turning your wireless radio on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the CD or DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding and removing a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ordering accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents www.gateway.com

Chapter 3: Maintaining and Upgrading Your Notebook . . . . . . . . . . . . . . . . . . . . . . .31

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Adding or replacing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Replacing the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Removing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Installing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Appendix A: Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 45

Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Regulatory compliance statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Wireless guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

United States of America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Laser safety statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

EPA ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

CHAPTER 1

About this reference

•About this guide

• Accessing the online User Guide

• Gateway contact information

• Microsoft Certificate of Authenticity

•For more information

CHAPTER 1: About this reference www.gateway.com

About this guide

This guide includes information and maintenance instructions that are specific

to your model of Gateway notebook. For all other notebook information, see

your online User Guide.

Accessing the online User Guide

In addition to this guide, the online User Guide has been included on your hard

drive. The User Guide is an in-depth, easy-to-read guide that includes

information on the following topics:

■ Help and technical support

■ Using and customizing Windows and other software

■ Controlling audio and video settings

■ Using the Internet

■ Protecting your files

■ Playing and recording media

■ Networking

■ Maintenance and troubleshooting

To access the online User Guide:

■ Click Start, All Programs, then click Gateway Documentation.

Gateway contact information

Gateway model and serial number

The label shown in this section is for

informational purposes only. Label

information varies by model, features

Important

ordered, and location.

The label on the bottom of your notebook contains information that identifies

your notebook model and its features. Gateway Customer Care will need this

information if you call for assistance.

Online Support:

Tech Support Phone: Hours: Model:

S/No:

www.gateway.com

Microsoft Certificate of Authenticity

The Microsoft Certificate of Authenticity label found on the bottom of your notebook includes the product key code for your operating system.

For more information

For more information about your notebook, visit Gateway’s Support page at

support.gateway.com

Support page also has links to additional Gateway documentation and detailed specifications.

or the Web address shown on your notebook’s label. The

Microsoft Certificate of Authenticity

CHAPTER 1: About this reference www.gateway.com

CHAPTER 2

Checking Out Your Gateway Notebook

•Identifying features

• Connecting the AC adapter

• Connecting the dial-up modem

• Connecting to a cable or DSL modem or to an Ethernet network

• Starting your notebook

• Turning off your notebook

• Restarting (rebooting) your notebook

• Using the status indicators

•Using the keyboard

• Using the EZ Pad touchpad

•Adjusting the volume

• Turning your wireless radio on or off

• Using the CD or DVD drive

• Using the memory card reader

• Adding and removing a PC Card

• Changing batteries

• Recalibrating the battery

• Ordering accessories

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Identifying features

Front

Speaker

Microphone jack

Headphone jack

Memory card reade r

Battery

charge

indicator

LCD panel release latch

Speaker

Power indicator

Component Icon Description

Speakers Provide audio output when headphones or amplified speakers are not

Microphone jack Plug a microphone into this jack.

Headphone jack Plug amplified speakers or headphones into this jack. The built-in

Memory card reader Insert a memory card from a digital camera, MP3 player, PDA, or

Battery charge indicator

plugged in.

speakers are turned off when speakers or headphones are plugged into this jack.

cellular telephone into the memory card reader. For more information, see “Using the memory card reader” on page 25. The memory card reader supports Memory Stick®, Memory Stick Pro®, MultiMediaCard™, and Secure Digital™ cards.

■

LED blue - battery is fully charged.

■

LED purple - battery is charging.

■

LED blinking red - battery charge is very low.

■

LED solid red - battery is malfunctioning.

■

Power indicator

LED on - notebook is on.

■

LED blinking - notebook is in Standby mode.

■

LED off - notebook is off.

LCD panel release latch Slide to open the LCD panel.

www.gateway.com

Left

USB ports

Kensington lock slot

S-Video out jack

Ventilation fan

Component Icon Description

Identifying features

IEEE 1394 port PC Card slot

Kensington™ lock slot

USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera,

S-Video out jack Plug an S-Video device, such as a televisi on, into this jack. For more information,

Ventilation fan Helps cool internal components.

IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®) device (such as a digital

PC Card slot Insert one Type II PC Card into this slot. For more information, see “Adding and

Secure your notebook to an object by connecting a Kensington cab le lock to this slot.

keyboard, or mouse) into these ports.

see “Viewing the display on a television” in the online User Guide.

Warni ng: Do not work for long periods with the notebook resting on your lap. If the air vents are blocked, the notebook may become hot enough to harm your skin. Caution: Do not block or insert objects into these slots. If these slots are blocked, your notebook may overheat resulting in unexpected shutdown or permanent damage to the notebook. Caution: Provide adequate space around your notebook so air vents are not obstructed. Do not use the notebook on a bed, sofa, rug, or other similar surface.

camcorder) into this 4-pin IEEE 1394 port.

removing a PC Card” on page 26.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Right

Back

DVD drive

USB ports

Component Icon Description

DVD drive Insert CDs or DVDs into this drive. For more information, see “Using the CD

or DVD drive” on page23. To determine the type of drive in the notebook,

examine the drive tray’s plastic cover and compare the logo to those listed in

“Identifying drive types” on page 23.

USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner,

Ethernet jack

Modem jack

camera, keyboard, or mouse) into these ports.

Monitor port

Power connector

Component Icon Description

Ethernet jack Plug an Ethernet network cable into this jack. The other end of the cable

can be plugged into a cable modem, DSL modem, or an Ethernet network jack. For more information, see “Connecting to a cable or DSL modem or to

an Ethernet network” on page13.

Modem jack Plug a modem cable into this jack. For more information, see “Connecting

Monitor port Plug an analog VGA monitor or projector into this port. For more

Power connector Plug the AC adapter cable into this connector.

the dial-up modem” on page 12.

information, see “Viewing the display on a projector or monitor” in the online User Guide.

www.gateway.com

lock

Bottom

Identifying features

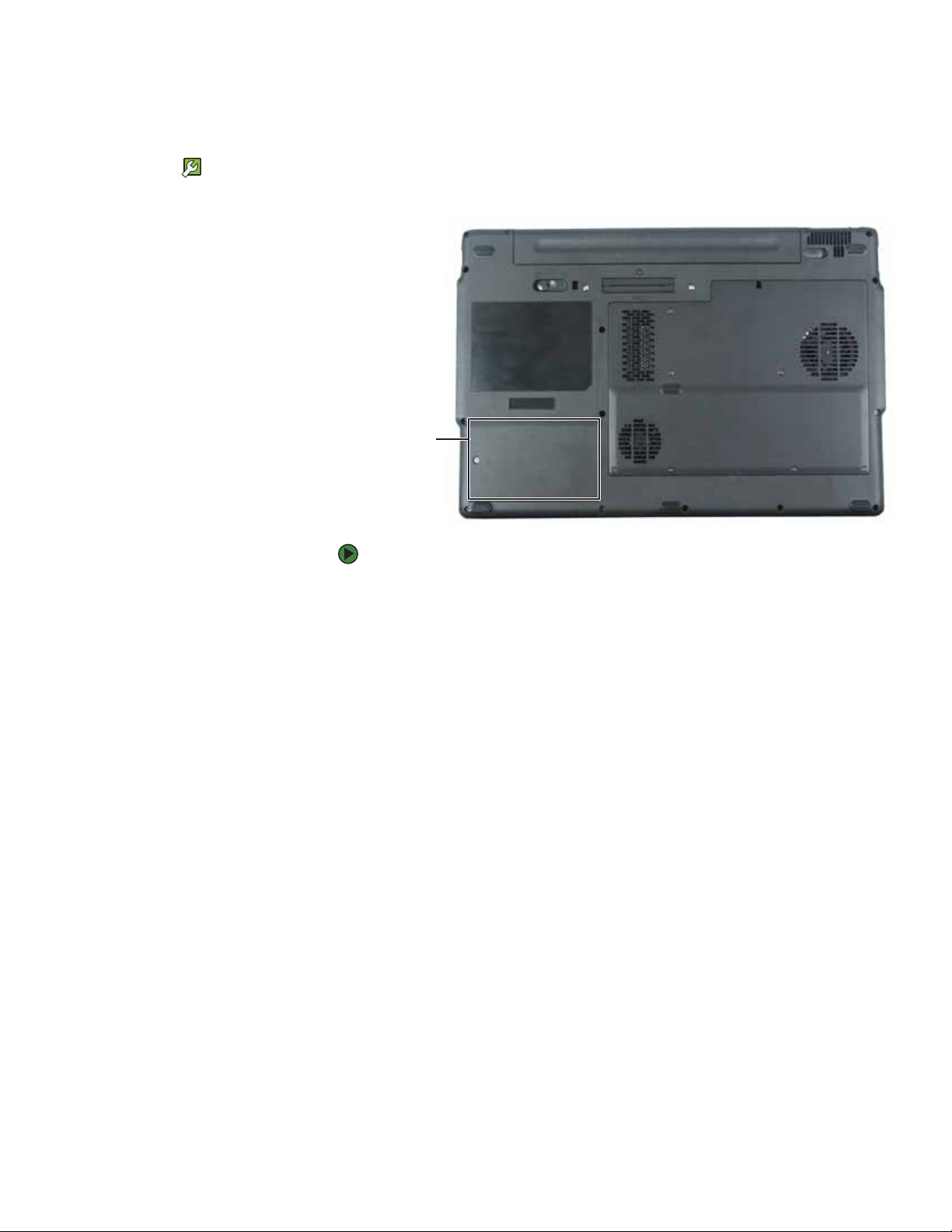

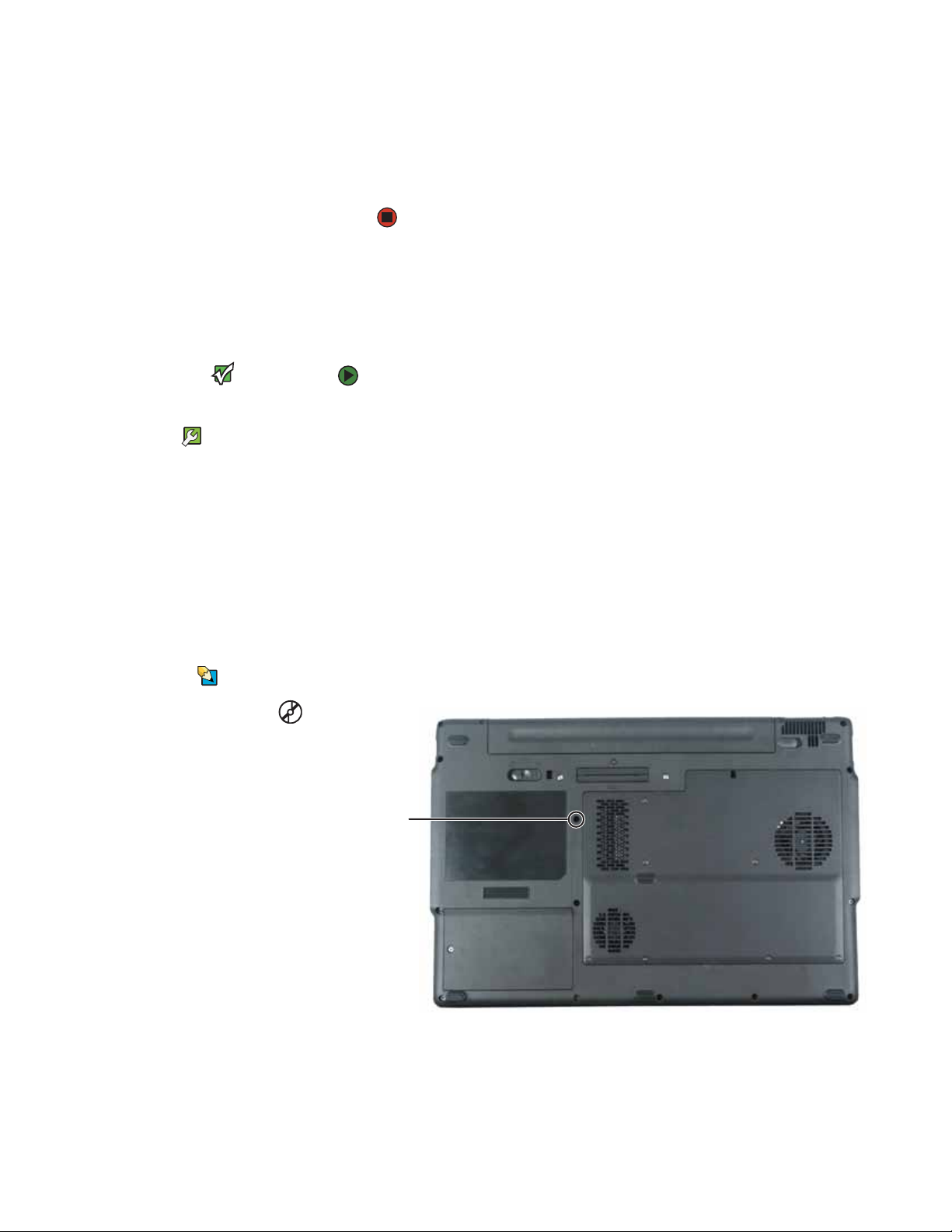

Battery

latch

System

label

Hard

drive

bay

Docking port

Battery

Component Icon Description

Docking port Connect the optional port replicator to this port.

Warni ng: Power is passed through this port. This docking connection is certified to UL 1950 for use only with port replicators designed for your Gateway notebook.

Memory bay

Battery Provides power when the notebook is not plugged into AC power.

Battery lock Slide to unlock the battery. For more information, see “Changing batteries”

Memory bay A memory module is installed in this bay. For more information, see “Adding

Hard drive bay The hard drive is located in this bay. For more information, see “Replacing

System label Includes the product model number. For more information, see “Gateway

Battery latch Slide to release the battery. For more information, see “Changing batteries”

on page 27.

or replacing memory” on page 32.

the hard drive kit” on page 37.

model and serial number” on page 2.

on page 27.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Keyboard area

Power button

Keyboard

Tou ch pa d

Status indicators

Component Icon Description

Power button Press to turn the power on or off. You can also configure the power button for

Keyboard Provides all the features of a full-sized, computer keyboard. For more

Status indicators Inform you when a drive is in use or when a button has been pressed that affects

Touchpad Provides all the functionality of a mouse. For more information, see “Using the

Standby/Resume mode. For more information on configuring the power button mode, see “Changing Power-Saving Settings” in the online User Guide.

information, see “Using the keyboard” on page 17.

how the keyboard is used. For more information, see “Using the status indicators”

on page 16.

EZ Pad touchpad” on page 20.

www.gateway.com

Connecting the AC adapter

Do not attempt to disassemble the AC

adapter. The AC adapter has no

user-replaceable or user-serviceable

parts inside. The AC adapter has

dangerous voltages that can cause serious injury or death. Contact Gateway at support.gateway.com

Make sure that you use the AC adapter

that came with your notebook or one of

the same type purchased from Gateway.

Replace the power cord if it becomes

damaged. The replacement cord must be

of the same type and voltage rating as

the original cord or your notebook may

about returning

defective AC adapters.

Caution

be damaged.

Important

Warnin g

If the battery charge indicator does not

turn blue after three hours, contact

Gateway Customer Care at

support.gateway.com

Important

If the battery is not fully charged before

you use your notebook on battery power

for the first time, the battery life may be

much shorter than you expect. If the

battery life seems short even after being

charged for three hours, the battery may

need to be recalibrated. For information

on recalibrating the battery, see

“Recalibrating the battery” on page 28.

You can run your notebook using an AC adapter or your notebook’s battery. The battery was shipped to you partially charged. You should use the AC adapter right away to fully charge the battery. Allow three hours for the battery to fully charge.

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

2 Connect the AC adapter to your notebook’s power connector.

3 Plug the power cord into a wall outlet. The battery charge indicator turns

on (see “Front” on page 6 for the location of the battery charge indicator). If the battery charge indicator does not turn on, complete the following steps until it turns on:

a Unplug the adapter from your notebook, then plug it back in.

b Press FN+F1 to toggle the status lights on and off.

4 When you finish using your notebook for the first time, turn off your

notebook and leave your notebook connected to AC power until the battery charge indicator turns blue.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Protecting from power source problems

High voltages can enter your notebook

through both the power cord and the

modem connection. To protect your notebook and avoid electrical shock, use a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem,

use a surge protector that has an

antenna/cable TV jack. During an

electrical storm, unplug both the surge

protector and the modem.

Warnin g

During a power surge, the voltage level of electricity coming into your notebook can increase to levels far above normal levels and cause data loss or system damage. Protect your notebook and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your notebook.

Connecting the dial-up modem

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

Warnin g

cord.

Your notebook has a built-in 56K modem that you can use to connect to a standard telephone line.

To connect the modem:

1 Insert one end of the modem cable into the modem jack on the back

of your notebook.

2 Insert the other end of the modem cable into a telephone wall jack. The

modem will not work with digital or PBX telephone lines.

3 Start your notebook, then start your communications program.

www.gateway.com

Connecting to a cable or DSL modem or to an Ethernet network

Your notebook has a network jack that you can use to connect to a cable or DSL modem or to an Ethernet network.

To connect to a cable or DSL modem or to an Ethernet network:

1 Insert one end of the network cable into the network jack on the back

of your notebook.

2 Insert the other end of the network cable into a cable modem, DSL

modem, or Ethernet network jack.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Starting your notebook

Do not work for long periods with the

notebook resting on your lap. If the air

vents are blocked, the notebook may

become hot enough to harm your skin.

Provide adequate space around your

notebook so air vents are not obstructed.

Do not use the notebook on a bed, sofa,

For more information about changing

the power button mode, see “Changing

Power-Saving Settings” in the online User

rug, or other similar surface.

Warnin g

Caution

Tips & Tricks

Guide.

To start your notebook:

1 Slide the latch on the front of your notebook, then lift the LCD panel.

2 Press the power button located above the keyboard.

3 If you are starting your notebook for the first time, follow the on-screen

instructions to set up your notebook.

Waking up your notebook

For more information about Standby

mode, see “Changing power modes” in

Tips & Tricks

the online User Guide.

When you have not used your notebook for several minutes or if you close the LCD panel without turning off your notebook, it may enter a power-saving mode called Standby. While in Standby, the power indicator flashes. If your notebook is in Standby mode, press the power button to “wake” it up.

T urning off your notebook

If for some reason you cannot use the

Turn Off Computer option in Windows to

turn off your notebook, press and hold

the power button for about five seconds,

Important

then release it.

To turn off your notebook:

1 Click Start, then click Turn Of f Computer. The Turn Off Computer dialog

box opens.

2 Click Turn O ff. Windows shuts down and turns off your notebook.

www.gateway.com

Restarting (rebooting) your notebook

If your notebook does not turn off

immediately, complete the following

steps until the notebook turns off:

1. Press and hold the power button for about five seconds, then release it.

2. Unplug the power cord and re move the battery for more than 10 seconds.

Important

If your notebook does not respond to keyboard, touchpad, or mouse input, you may have to close programs that are not responding. If closing unresponsive programs does not restore your notebook to normal operation, you may have to restart (reboot) your notebook.

To close unresponsive programs and restart your notebook:

1 Press CTRL+ALT+DEL. The Windows Security dialog box opens.

2 Click Task Man ager. The Windows Task Manager dialog box opens.

3 Click the program that is not responding.

4 Click End Task. 5 Click X in the top-right corner of the Windows Task Manager dialog box.

6 If your notebook does not respond, turn it off, wait ten seconds, then turn

it on again.

As a part of the regular startup process, a program to check the disk status runs automatically. When the checks are finished, Windows starts.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the status indicators

If none of the indicators are on, you may need to press F

N+F1 to toggle the status

indicators on.

Important

Status indicators inform you when a drive is being used or when a button has been pressed that affects how the keyboard is used. The status indicators are located below the touchpad.

Power

Caps lock

Num lockWireless network

Hard drive

Indicator Icon Description

■

Power

Wireless network (optional)

Caps lock

Num lock

LED on - Notebook is turned on.

■

LED off - Notebook is turned off or in standby mode.

■

LED on - Wireless radio is turned on.

■

LED off - Wireless radio is turned off.

■

LED on - Capslock is turned on.

■

LED off - Caps lock is turned off.

■

LED on - Numeric keypad is turned on.

■

LED off - Numeric keypad is turned off.

Hard drive

■

LED blinking - The hard drive is in use.

■

LED off - The hard drive is not in use.

www.gateway.com

Using the keyboard

You can attach an external keyboard to

the notebook using a USB port. You do

not need to shut down the notebook to

Tips & Tricks

connect a USB keyboard.

Key types

Your notebook features a full-size keyboard that functions the same as a desktop computer keyboard. Many of the keys have been assigned alternate functions, including shortcut keys for Windows, function keys for specific system operations, and the Num Lock keys for the numeric keypad.

Function keys/ System keys

Navigation keys

Numeric keypa d

N key Windows key

Application key

Arrow keys

The keyboard has several different types of keys. Some keys perform specific actions when pressed alone and other actions when pressed in combination with another key.

Key type Icon Description

Function keys Press these keys labeled F1 to F12 to perform ac tions in programs. For example,

pressing F1 may open help. Each program uses different function keys for different purposes. See the program documentation to find out more about the function key actions.

System keys Press these colored keys in combination with the F

Navigation keys Press these keys to move the cursor to the beginning of a line, to the end of a

Numeric keypad Use these keys to type numbers when the numeric keypad is turned on.

Arrow keys Press these keys to move the cursor up, down, right, or left.

Application key Press this key for quick access to shortcut menus and help assistants in Windows.

Windows key Press this key to open the Windows Start menu. This key can also be used in

N key Press the FN key in combination with a colored system key to perform a specific

actions. For more information, see “System key combinations” on page18.

line, up the page, down the page, to the beginning of a document, or to the end of a document.

combination with other keys to open utilities like F (Search utility), R (Run utility), and E (Explorer utility).

action.

N key to perform specific

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

System ke y combinat ions

When you press the FN key and a system key at the same time, your notebook performs the action identified by the text or icon on the key.

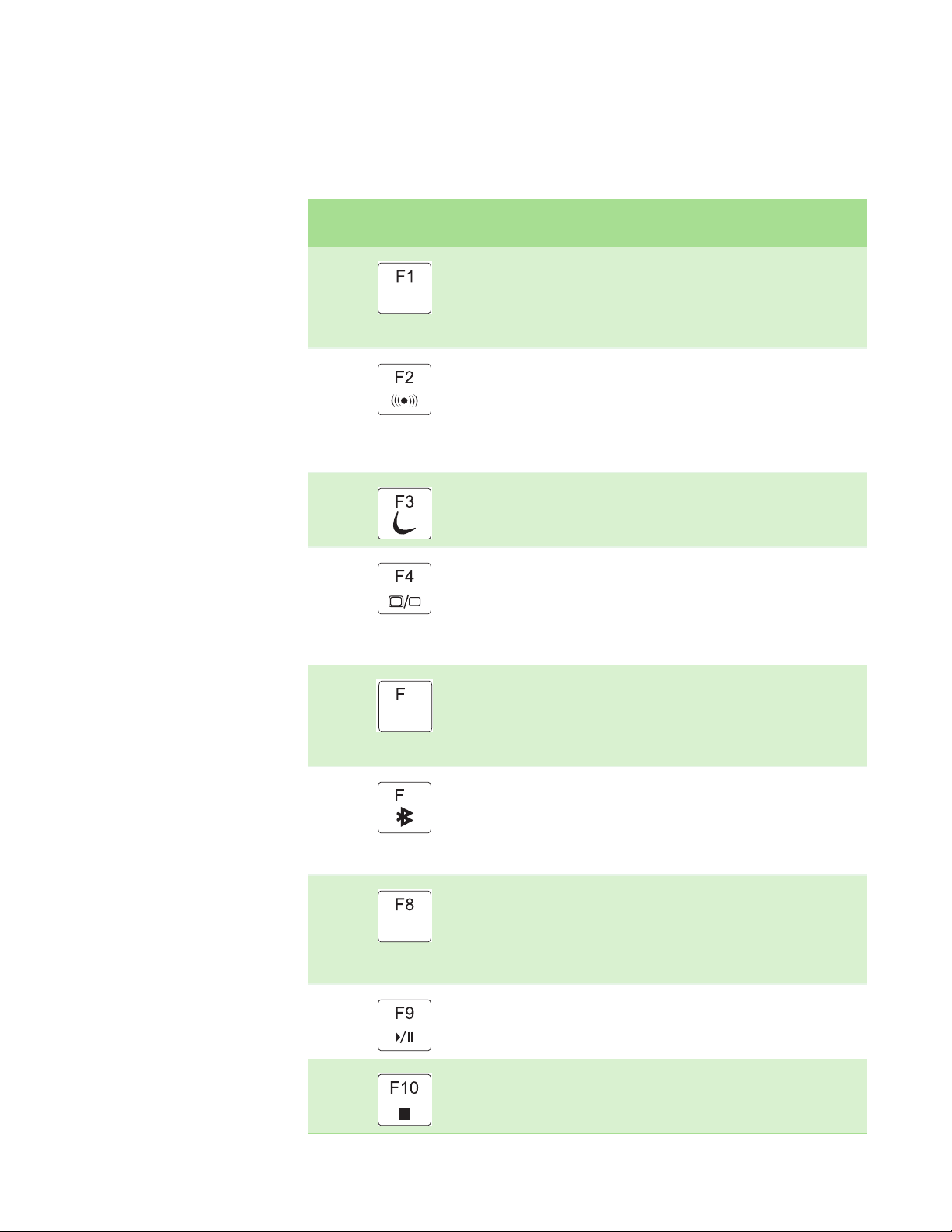

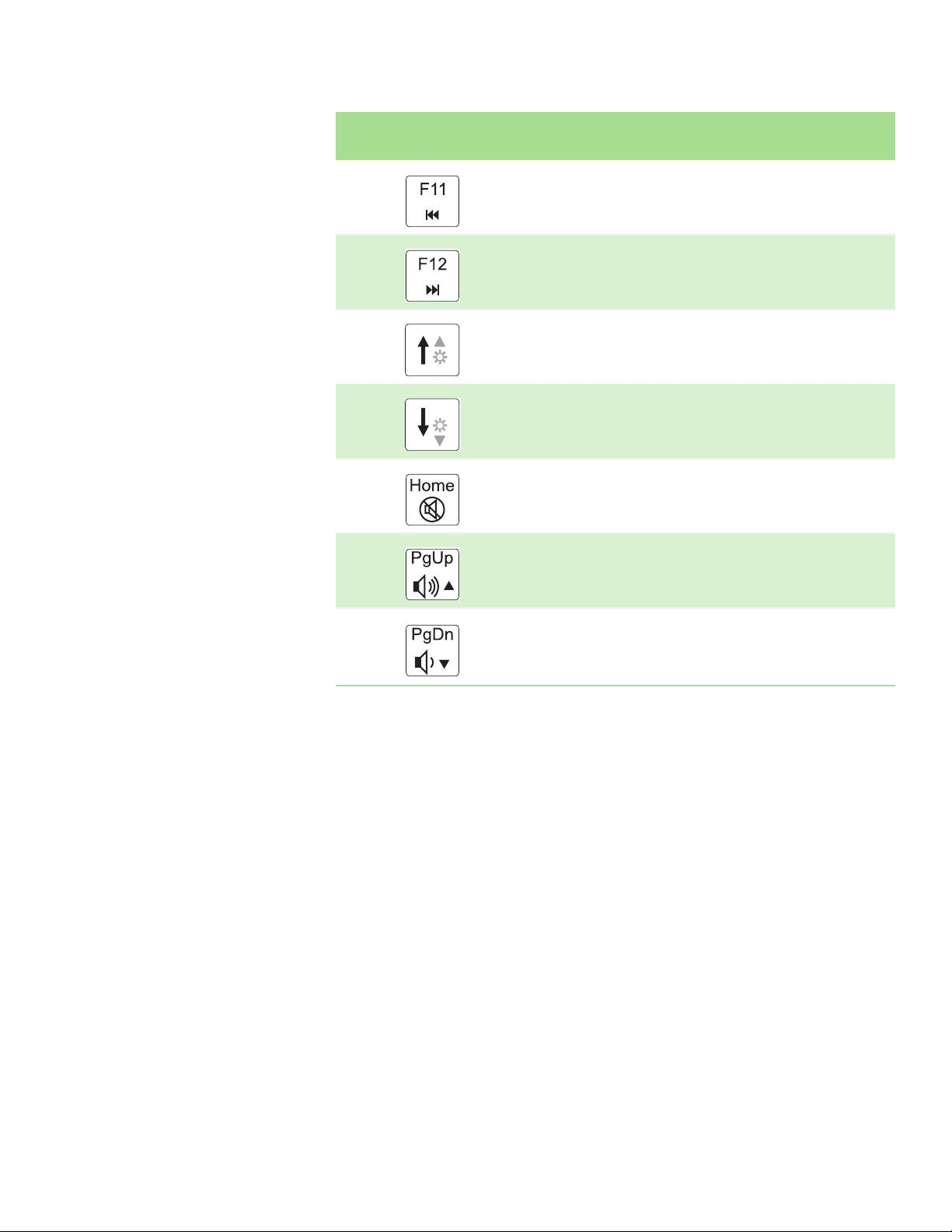

Press and hold FN, then press this system key...

To...

Toggle the status indicators on or off. For more information, see “Using

the status indicators” on page 16.

Turn the optional wireless network radio on or off. For more information, see “Wireless Networking” in your online User Guide. Warni ng: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a communication devices are examples of devices that provide wireless communication.

Enter Standby mode. Press the power button to leave Standby mode. For more information, see “Changing Power-Saving Settings” in your online User Guide.

Toggle the notebook display in the following order:

■

The LCD

■

An external monitor or projector (a monitor or projector must be plugged into the monitor port on your notebook)

■

Both displays at the same time

For more information, se e “Vie wing the display on a projector or mon itor” in the online User Guide.

Display the power status box in the upper-left corner of your display. The box shows the battery charge level, the BIOS version, and whether the optional wireless network radio is being used. Press the key combination again to close this box.

Turn the optional Bluetooth radio on or off. Warni ng: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. Bluetooth communication devices are examples of devices that provide wireless communication.

Increase the LCD panel brightness above the normal brightest setting. Use this feature in bright lighting situation s, such as outsid e in bright sunlight. Press a second time to decrease the brightness below the normal lowest brightness setting. Use this feature in dim lighting situations. Press a third time to return the display to the normal brightness setting. Important: Using this feature will affect battery performance.

Play or pause the CD or DVD.

Stop playing the CD or DVD.

www.gateway.com

Using the keyboard

Press and hold FN, then press this system key...

To...

Skip back one CD song or DVD track.

Skip ahead one CD song or DVD track.

Increase the brightness of the display.

Decrease the brightness of the display.

Mute the sound. Press the key combination again to restore the sound. For more information, see “Adjusting the volume” on page 22.

Increase volume. For more information, see “Adjusting the volume” on

page 22.

Decrease volume. For more information, see “Adj ust ing the vol ume” on

page 22.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the EZ Pad touchpad

For instructions on how to adjust the

double-click speed, pointer speed,

right-hand or left-hand configuration,

and other touchpad settings, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

You received your notebook with the EZ

Pad touchpad set to only accept clicking

by using the touchpad buttons. You can

change this feature to allow tapping on

the touchpad to simulate clicking the left

button. For more information, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

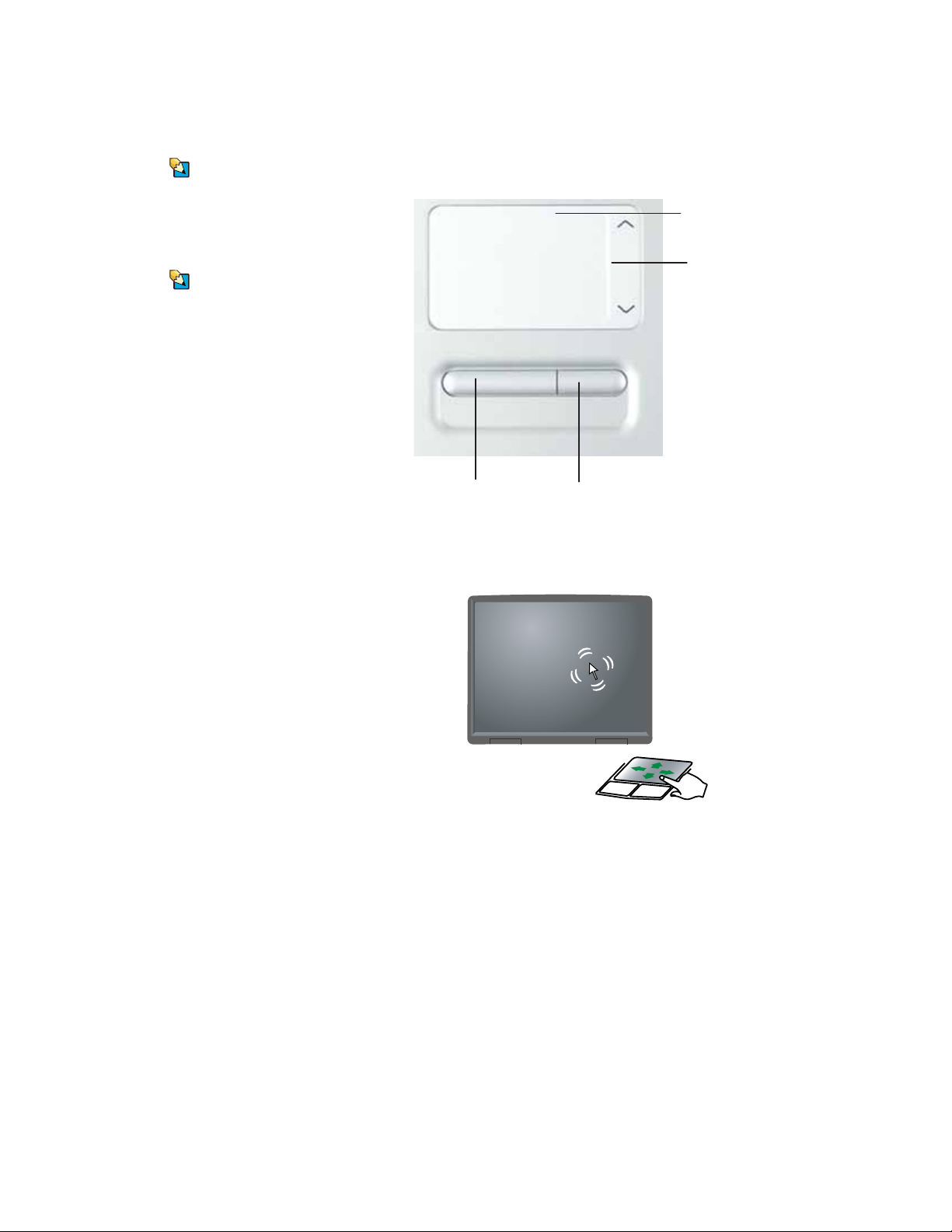

The EZ Pad™ consists of a touchpad, two buttons, and a scroll zone.

To uc h pa d

Scroll zone

Left button

Right button

When you move your finger on the touchpad, the pointer (arrow) on the screen moves in the same direction. You can use the scroll zone to scroll through documents. Use of the scroll zone may vary from program to program.

You can use the EZ-Pad left and right buttons below the touchpad to select objects.

www.gateway.com

Using the EZ Pad touchpad

To.. . Do this...

Move the pointer on the screen.

Select an object on the screen.

Start a program or open a file or folder.

Access a shortcut menu or find more information about an object on the screen.

Mo ve you r f in ge r a rou nd on the touchpad. If you run out of space and need to move the pointer farther, lift your finger, move it to the middle of the touchpad, then continue moving your finger.

Position the pointer over the object. Quickly press and release the left button once. This action is called clicking.

Position the pointer over the object. Press the left button twice in rapid succession. This action is called double-clicking.

Position the pointer over the object. Quickly press and release the right button once. This action is called right-clicking.

Move an object on the screen.

Position the pointer over the object. Press the left button and hold it down, then use the touchpad to move (drag) the object to the appropriate part of the screen. Release the button to drop the object where you want it.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Adjusting the volume

For instructions on how to adjust the

Tips & Tricks

volume in Windows, see “Adjusting the

Volume” in the online User Guide.

You can use the volume control to adjust the overall volume of your notebook.

To adjust the overall volume level using hardware controls:

■ If you are using external speakers, turn the knob on the front of the

speakers.

-OR-

Use the mute and volume control buttons on the keyboard. For more information, see “System key combinations” on page 18.

T urning your wireless radio on or off

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g,

and Bluetooth communication devices

are examples of devices that provide

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

hospitals, and oxygen or flammable gas

laden atmospheres are limited examples

where use of wireless devices may be

environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to using or turning on

wireless communication.

In environments where the risk of

restricted or eliminated. Airports,

restricted or eliminated. When in

the applicable authority for

Warnin g

the wireless device.

Your Gateway notebook may have a factory-installed wireless networking mini-PCI card.

To turn the IEEE 802.11 wireless radio on or off:

■ Press FN + F2. The wireless status indicator turns on or off. For the location

of the wireless status indicator, see “Using the status indicators” on

page 16.

To turn the Bluetooth wireless radio on or off:

■ Press FN + F6.

For more information about using your

notebook on a wireless network, see

“Wireless Networking” in the online User

Tips & Tricks

Guide.

www.gateway.com

Using the CD or DVD drive

You can use your notebook to enjoy a wide variety of multimedia features.

Identifying drive types

Your Gateway notebook may contain one of the following drive types. Look on the front of the drive for one or more of the following logos:

If your drive has this logo... This is your drive type... Use your drive for...

Using the CD or DVD drive

ROM/R/RW

DVD drive

Combination DVD/CD-RW drive

Multi-format double layer DVD±RW/CD-RW drive

Installing programs, playing audio CDs, playing DVDs, and accessing data. You cannot use this drive to create CDs or DVDs.

Installing programs, playing audio CDs, playing DVDs, accessing data, and recording music and data to recordable CDs. You cannot use this drive to create DVDs.

Installing programs, playing audio CDs, playing DVDs, accessing data, recording music and data to CD-R or CD-RW discs, and recording video and data to DVD-R, DVD+R, DVD-RW, DVD+RW, or double layer DVD+R discs. Note: To use the double layer capability of the double layer recordable DVD drive, the blank DVDs you purchase must state Double Layer, Dual Layer, or DL. Using other types of blank media will result in less capacity.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Inserting a CD or DVD

[

Eject button

Manual eject hole

To insert a CD or DVD:

1 Press the eject button on the CD or DVD drive. After the tray opens slightly,

pull the disc tray completely open.

When you place a single-sided disc in the

tray, make sure that the label side is

facing up. If the disc has two playable

sides, place the disc so the name of the

side you want to play is facing up.

Important

2 Place the disc in the tray with the label facing up, then press down carefully

on the disc until it snaps into place.

3 Push the tray in until it is closed.

www.gateway.com

Using the memory card reader

You can use memory cards to transfer pictures from a digital camera to your notebook. You can also use the memory card reader to transfer data between your notebook and a device that uses memory cards, such as a PDA, MP3 player, or cellular telephone.

Memory card types

The memory card reader supports Memory Stick®, Memory Stick Pro®, MultiMediaCard™, and Secure Digital™.

Inserting a memory card

To insert a memory card:

■ Insert the memory card into the memory card slot with the label facing

up and the arrow on the label pointing towards the notebook.

Using the memory card reader

Using a memory card

Removing a memory card

Important

hardware icon in the taskbar to

remove the memory card. If you use the

remove hardware icon, your notebook

may not recognize your memory card

reader until you restart your notebook.

Do not use the remove

To access a file on a memory card:

1 Click Start, then click My Computer.

2 Double-click the drive letter (for example, the E: drive), then double-click

the file name.

To remove a memory card:

1 Push the memory card into the notebook. The memory card pops out

slightly.

2 Pull the memory card out of the notebook.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Adding and removing a PC Card

Your notebook has a PC Card slot (also known as a PCMCIA card slot). This slot accepts one Type II card. You do not need to restart your notebook when changing most cards because your notebook supports hot-swapping. Hot-swapping means that you can insert a PC Card while your notebook is running. If your PC Card does not work after hot-swapping, see the PC Card manufacturer’s documentation for further information.

To insert a PC Card:

■ Push the card firmly into the PC Card slot, label-side up, until the outer

edge of the card is flush with the side of your notebook.

If the remove hardware icon does not appear on the taskbar, click the show

hidden icons button.

Important

To remove a PC Card:

1 Click the remove hardware icon in the taskbar, the PC Card name, then

click Stop.

-OR-

Turn off your notebook.

2 Release the eject button by pressing the PC Card eject button once.

3 Eject the PC Card by pressing the eject button again.

www.gateway.com

Changing batteries

Danger of explosion if battery is

Replace only with a battery specifically

manufactured for your Gateway

notebook. Discard used batteries

according to local hazardous material

The battery used in this device may

present a fire or chemical burn hazard if

mishandled. Do not disassemble, heat

above 212°F (100°C), or incinerate.

Dispose of used battery promptly. Keep

Warnin g

incorrectly replaced.

regulations.

away from children.

If your notebook is connected to AC power, you can change the battery while the notebook is turned on. If your notebook is not plugged into an AC outlet, you must turn the notebook off while changing the battery.

To replace the battery:

1 Disconnect your notebook from the optional port replicator.

2 If your notebook is on and is connected directly to AC power (not using

a port replicator), go to Step 3.

-OR-

If your notebook is on and is no t plug ged into an AC out let, save you r work and turn off the notebook.

3 Close the LCD panel.

4 Turn your notebook over so the bottom is facing up.

5 Slide the battery lock to the unlocked position.

6 Slide the battery release latch, then slide the battery out of the notebook.

7 Slide a recharged battery into the notebook until it snaps into place.

8 Slide the battery lock to the locked position.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

9 Turn your notebook over.

10 Reattach the optional port replicator.

11 Open the LCD panel and press the power button.

Recalibrating the battery

Do not interrupt the battery recalibration

process. If recalibration is interrupted,

you must start the process over again.

Important

If your notebook unexpectedly goes into Standby mode while you are using it but the battery charge is not low, you may need to recalibrate your battery. You should also recalibrate the battery periodically to maintain the accuracy of the battery gauge.

To recalibrate the battery:

1 Connect the AC adapter, then turn on your notebook.

2 As soon as it starts and you see a startup screen, press F2. The BIOS Setup

utility opens.

3 Open the Advanced menu.

4 Highlight Battery Auto Learning, then select Enabled by pressing the

spacebar.

5 Open the Exit menu, then highlight Exit Saving Changes and press ENTER.

6 Select Ye s , then press ENTER.

The battery recalibration process begins and a screen opens showing you the progress. The entire process will take several hours.

When the recalibration has finished, the message “Press [Esc] key to exit” appears.

7 Press ESC. The battery charge indicator now displays an accurate battery

charge. If the battery charge indicator does not show an accurate charge, contact Gateway Customer Care at support.gateway.com

www.gateway.com

Ordering accessories

To order accessories, visit the Accessory Store at accessories.gateway.com.

Batteries

If you run your notebook on battery power for extended periods, you may want to buy an additional battery so you can swap batteries when necessary. See

“Changing batteries” on page 27 for more information about using an

additional battery.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for accessories or supplies.

Memory

Large programs, such as multimedia games or graphics programs, use a lot of memory. If your programs are running more slowly than you think they should, try adding more memory. See “Adding or replacing memory” on page 32 for more information.

Port replicators

Although you can attach devices directly to your notebook, a port replicator lets you make all of those connections at one time. When you travel with your notebook, you merely disconnect from the port replicator instead of unplugging all the devices.

Ordering accessories

A port replicator also provides additional ports and other expansion features not included with your notebook. See the user guide for the port replicator for more information about using a port replicator with your notebook.

Printers

You can attach almost any type of printer to your notebook. The most common types are inkjet and laser printers, which print in color or black and white.

Inkjet printers and cartridges are relatively inexpensive, but they are slower than laser printers. Using an inkjet color printer, you can print pictures, banners, and greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but they print much faster than inkjet printers. Laser printers are better than inkjet printers when you are printing large documents.

USB flash drive

Use a USB flash drive for storing files or transferring files to another computer.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

CHAPTER 3

Maintaining and Upgrading Your Notebook

• Preventing static electricity discharge

• Adding or replacing memory

• Replacing the DVD drive

• Replacing the hard drive kit

• Replacing the keyboard

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Preventing static electricity discharge

To avoid exposure to dangerous electri cal voltages and moving parts, turn off your

notebook and unplug the power cord, modem cable, and network cable and

remove the battery before opening the

Warnin g

case.

The components inside your notebook are extremely sensitive to static electricity, also known as electrostatic discharge (ESD).

Before installing or replacing components, follow these guidelines:

■ Avoid static-causing surfaces such as carpeted floors, plastic, and packing

foam.

To prevent risk of electric shock, do not

insert any object in to the vent holes of the

Before installing or replacing

components, you should read and

understand the information in this

Warnin g

notebook.

Important

section.

■ Remove components from their antistatic bags only when you are ready

to use them. Do not lay components on the outside of antistatic bags because only the inside of the bags provide electrostatic protection.

■ Always hold components by their edges. Avoid touching the edge

connectors. Never slide components over any surface.

■ Wear a grounding wrist strap (available at most electronics stores) and

attach it to a bare metal part of your workbench or other grounded connection.

■ Touch a bare metal surface on your workbench or other grounded object.

Adding or replacing memory

Use only memory modules designed for

your Gateway notebook.

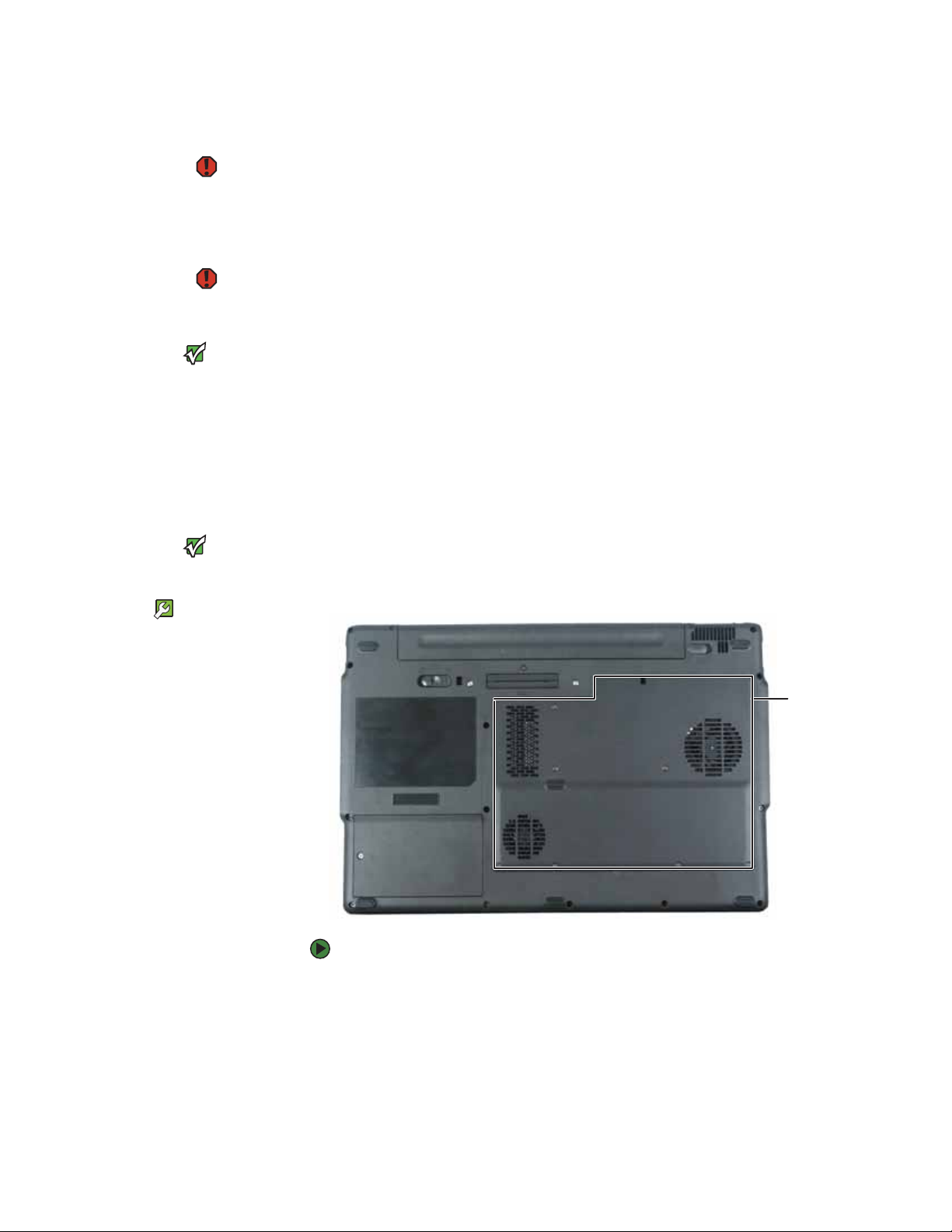

You need a small Phillips screwdriver to

Important

Tools Required

replace memory.

Your notebook uses memory modules called SO-DIMMs (Small Outline Dual Inline Memory Modules). The modules are available in various capacities and any module can be placed in the slot.

Memory bay

To add or replace memory modules:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

2 Turn off your notebook.

3 Disconnect from the optional port replicator.

4 Disconnect the AC adapter, modem cable, and network cable, if they are

connected to the notebook.

www.gateway.com

Adding or replacing memory

5 Disconnect all peripheral devices connected to the notebook and remove

any PC cards.

6 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

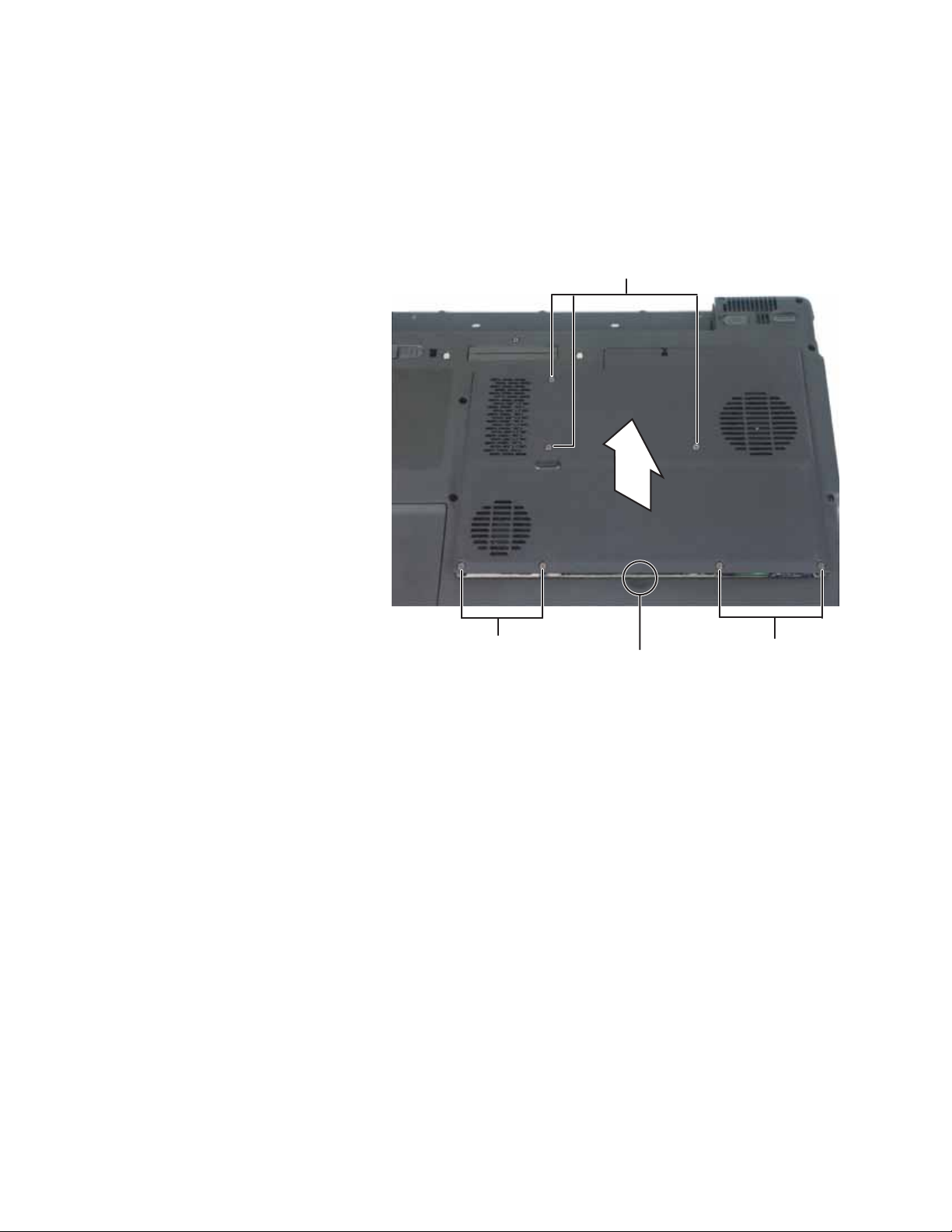

7 Loosen the seven memory bay cover screws (these screws cannot be

removed).

Screws

Thumb notch

8 Use the thumb notch to lift the memory bay cover, then remove it. Be

Screws

careful not to break off the tabs located on the end of the cover opposite of the thumb notch.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

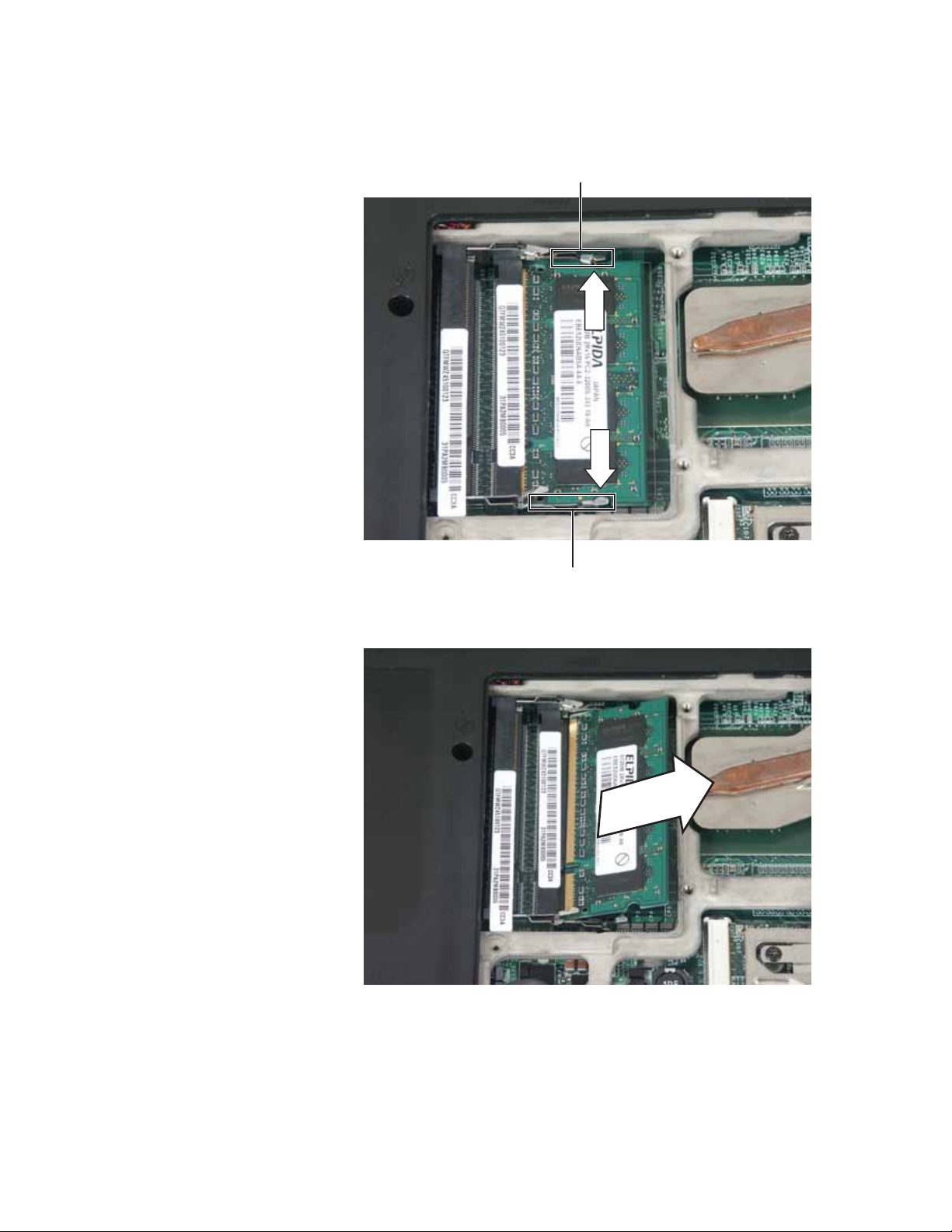

9 If you are removing a module, gently press outward on the clip at each

end of the memory module until the module tilts upward.

Clip

10 Pull the memory module out of the slot.

11 Hold the new or replacement module at a 30-degree angle and press it

into the empty memory slot. This module is keyed so it can only be inserted in one direction. If the module does not fit, make sure that the notch in the module lines up with the tab in the memory bay.

12 Replace the memory bay cover, then tighten the cover screws.

www.gateway.com

13 Insert the battery, then turn your notebook over.

14 Connect to the optional port replicator.

15 Reconnect the power adapter, modem cable, and network cable (if

disconnected in Step 4), then turn on your notebook.

Replacing the DVD drive

If your DVD drive becomes damaged, you can replace it with a similar drive obtained from Gateway.

Replacing the DVD drive

Replace the DVD drive only with a similar

drive provided by Gateway.

You need a small Phillips screwdriver to

The DVD drive screw hole is marked with

Important

Tools Required

replace the DVD drive.

Tips & Tricks

a .

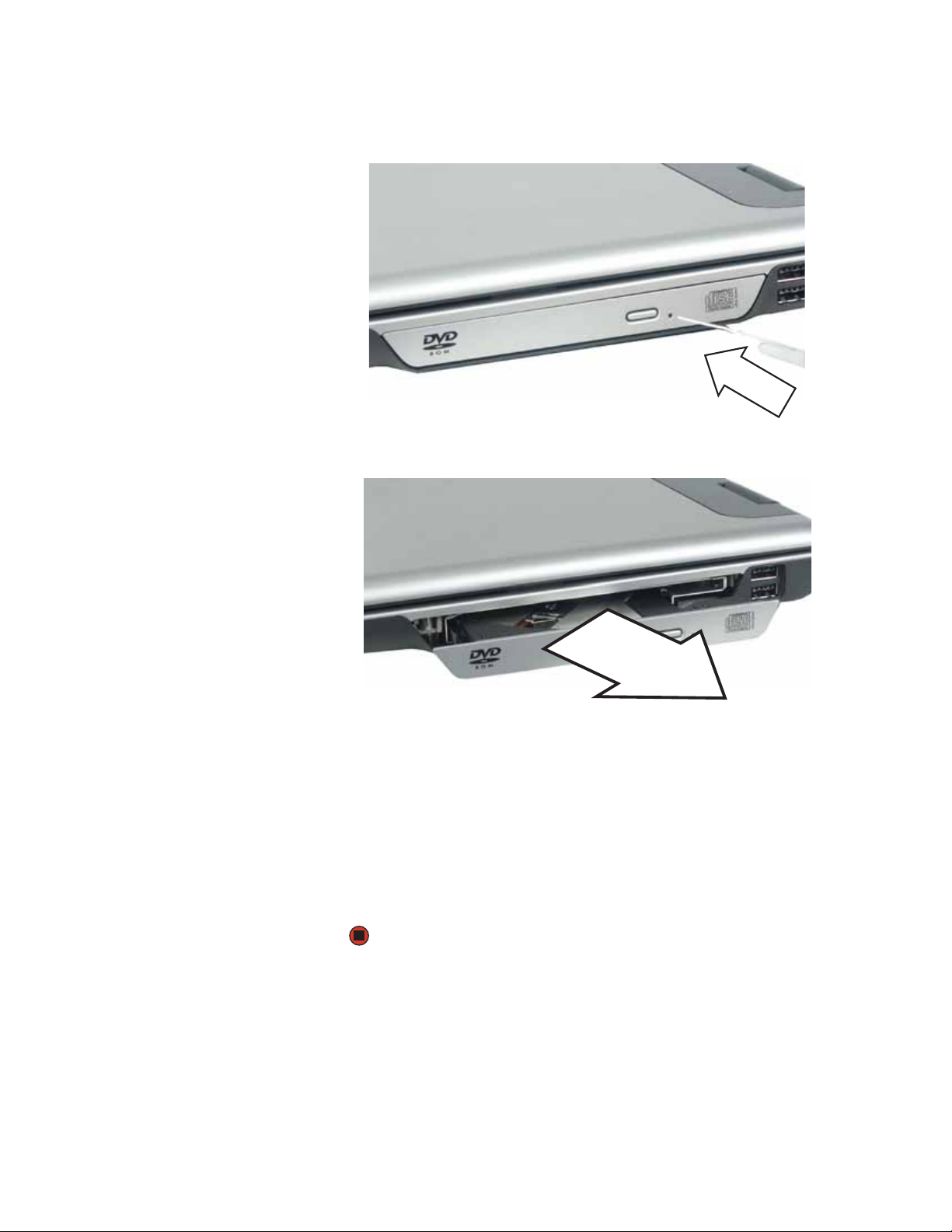

To replace the DVD drive:

1 Make sure that the DVD drive is empty.

2 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

3 Turn off your notebook.

4 Disconnect from the optional port replicator.

5 Disconnect the AC adapter, modem cable, and network cable, if they are

connected to the notebook.

6 Disconnect all peripheral devices connected to the notebook and remove

any PC cards.

7 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

8 Remove the DVD drive screw and put it in a safe place.

Screw

9 Turn your notebook over so the top is facing up.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

10 Insert a straightened paper clip into the DVD drive’s manual eject hole,

push in the paper clip to eject the drive tray, then pull the drive tray open.

11 Carefully slide the drive out of the drive bay.

12 Slide the new DVD drive into the drive bay. Make sure that the drive fits

securely in the bay.

13 Turn your notebook over so the bottom is facing up.

14 Secure the DVD drive with the screw removed in Step 8.

15 Insert the battery, then turn your notebook over.

16 Connect to the optional port replicator.

17 Reconnect the power adapter, modem cable, and network cable (if

disconnected in Step 5), then turn on your notebook.

www.gateway.com

Replacing the hard drive kit

You need a small Phillips screwdriver to

Tools Required

replace the hard drive kit.

If you would like more hard drive capacity, you can replace your original drive with a higher-capacity drive.

Hard drive bay

To replace the hard drive kit:

1 Create a Drivers and Applications Recovery disc. For more information, see

“Creating Drivers and Applications Recovery discs” in the online User Guide.

2 Print the “Recovering Your System” chapter from the online User Guide for

use in Step 23.

3 Back up any data you want to transfer to the new hard drive. For more

information, see “Backing up files” in the online User Guide.

4 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

5 Turn off your notebook.

6 Disconnect from the optional port replicator.

7 Disconnect the AC adapter, modem cable, and network cable, if they are

connected to the notebook.

8 Disconnect all peripheral devices connected to the notebook and remove

any PC cards.

9 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

10 Loosen the hard drive bay cover screw (this screw cannot be removed),

then remove the hard drive bay cover.

Screw

11 Pull on the black plastic tab to slide the old hard drive kit away from the

hard drive connector.

www.gateway.com

Replacing the hard drive kit

12 Lift the hard drive kit out of your notebook.

13 If your new hard drive already includes the hard drive kit bracket, go to

Step 18.

-OR-

If you need to move the hard drive kit bracket from your old hard drive to your new hard drive, go to Step 14.

14 Remove the four screws that secure the hard drive to the hard drive kit

bracket.

Screws

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

15 Remove the old drive from the bracket.

16 Place the new drive, label side up, onto the bracket so the screw holes line

up.

17 Replace the screws that secure the kit bracket to the drive.

18 Slide the new hard drive kit into your notebook.

19 Replace the hard drive bay cover, then tighten the cover screw.

20 Insert the battery, then turn your notebook over.

21 Connect to the optional port replicator.

22 Reconnect the power adapter, modem cable, and network cable (if

disconnected in Step 7), then turn on your notebook.

23 For instructions on installing Windows, your drivers, and your applications,

see the Recovering Your System chapter you printed in Step 2.

www.gateway.com

Replacing the keyboard

Replace the keyboard only with a similar

keyboard provided by Gateway.

You need a small Phillips and a small

flat-blade screwdriver to replace the

Important

Tools Required

keyboard.

Removing the keyboard

If your keyboard becomes damaged, you can replace it with a similar keyboard obtained from Gateway.

To remove the keyboard:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

2 Turn off your notebook.

3 Disconnect from the optional port replicator.

4 Disconnect the AC adapter, modem cable, and network cable, if they are

connected to the notebook.

5 Disconnect all peripheral devices connected to the notebook and remove

any PC cards.

6 Turn your notebook over so the bottom is facing up, then remove battery.

For more information, see “Changing batteries” on page 27.

7 Turn the notebook over so the top is facing up.

8 Remove the four hinge cover screws.

Screw Screw

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

9 Insert the small flat-blade screwdriver or non-marring tool under the

bottom of each hinge cover and gently pry it up.

10 Carefully open the LCD panel to the fully opened position.

Inserting a piece of cloth between the

screwdriver and keyboard will help

prevent damage to the notebook.

Tips & Tricks

11 Insert the small flat-blade screwdriver or non-marring tool under the right

end of the keyboard cover and gently pry it up.

12 Pull the cover off the notebook. You will hear small snapping sounds as

the cover comes away from the notebook.

www.gateway.com

Replacing the keyboard

The number of keyboard screws may

Important

vary.

13 Remove the keyboard screws.

ScrewScrew ScrewScrew Screw

14 Lay the piece of soft cloth on your LCD panel.

15 Lift the back edge of the keyboard slightly, then carefully push it toward

the LCD panel to release the keyboard retaining tabs. Be careful not to damage the LCD panel.

16 Slide the keyboard away from you so it lies on top of the cloth.

17 Lift the black keyboard connector clip, then remove the cable. Be careful

not to touch or damage any other components.

Keyboard connector clip

18 Lift the old keyboard away from the notebook. The keyboard is now

completely detached from the notebook.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Installing the keyboard

To install the keyboard:

1 Place the new keyboard keys-up on your soft cloth with the space bar

toward you.

The keyboard cable is correctly orien ted if

Important

the cable is not twisted.

2 Make sure the black keyboard connector clip is raised, insert the cable into

the connector, then lower the black clip to lock the connector in place.

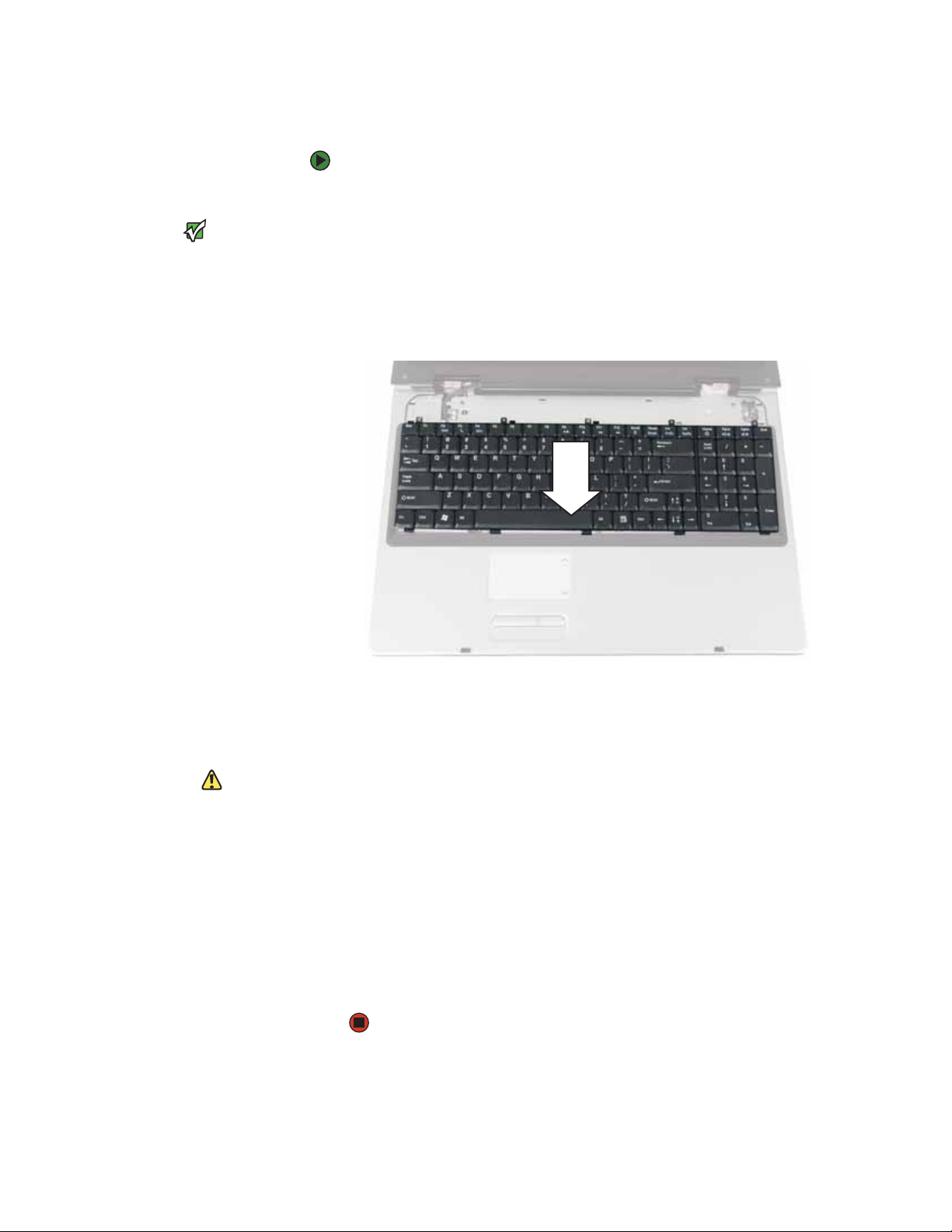

3 Insert the tabs on the front edge of the keyboard into the slots under the

palm rest. You may need to press down on the keyboard keys along the front edge of the keyboard to seat the retaining tabs into their corresponding slots.

If the keyboard cover is not correctly

replaced, your notebook could be

damaged when you try to close the LCD

Caution

panel.

4 Gently press the keyboard down until it is flat all the way across. The

keyboard should easily fall into place. Be careful not to damage the LCD panel.

5 Replace the keyboard screws removed in Step 13 on page 43.

6 Place the keyboard cover on the notebook, then press down on the cover

in several places until it clicks in place. The cover is correctly mounted when you can run you finger along the cover and find no loose spots. The cover should be flat all the way across.

7 Close the LCD panel.

8 Replace the four hinge cover screws removed in Step 8 on page 41.

9 Insert the battery, then turn your notebook over.

10 Connect to the optional port replicator.

11 Reconnect the power adapter, modem cable, and network cable (if

disconnected in Step 4), then turn on your notebook.

APPENDIX A

Safety, Regulatory, and Legal Information

• Important safety information

• Regulatory compliance statements

• Environmental information

•Notices

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Important safety information

Always follow these instructions to help

guard against personal injury and

damage to your Gateway system.

Warnin g

Do not use Gateway products in areas

classified as hazardous locations. Such

areas include patient care areas of

medical and dental facilities,

oxygen-laden environments, or

industrial facilities.

Warnin g

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

cord.

Your Gateway notebook is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this notebook, it is important that the safety instructions marked on the notebook and in the documentation are followed.

Setting up your system

■ Read and follow all instructions marked on the notebook and in the

documentation before you operate your notebook. Retain all safety and operating instructions for future use.

■ Do not use this notebook near water or a heat source such as a radiator.

■ Set up the notebook on a stable work surface.

■ The notebook should be operated only from the type of power source

indicated on the rating label.

■ If your notebook has a voltage selector switch, make sure that the switch

is in the proper position for your area. The voltage selector switch is set at the factory to the correct voltage.

■ Openings in the notebook case are provided for ventilation. Do not block

or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the notebook for ventilation when you set up your work area. Never insert objects of any kind into the notebook ventilation openings.

■ Some notebook are equipped with a three-wire power cord to make sure

that the notebook is properly grounded when in use. The plug on this cord will fit only into a grounding-type outlet. This is a safety feature. If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet.

■ If you use an extension cord with this notebook, make sure that the total

ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.

■ If your notebook is fitted with a TV Tuner, cable, or satellite receiver card,

make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and buildup of static charges.

Care during use

■ Do not walk on the power cord or allow anything to rest on it.

■ Do not spill anything on the notebook. The best way to avoid spills is to

avoid eating and drinking near your notebook.

■ Some notebooks have a replaceable CMOS battery on the system board.

There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions.

■ When the notebook is turned off, a small amount of electrical current still

flows through the notebook. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the notebook.

www.gateway.com

Important safety information

■ Unplug the notebook from the wall outlet and refer servicing to qualified

personnel if:

■ The power cord or plug is damaged.

■ Liquid has been spilled into the notebook.

■ The notebook does not operate properly when the operating

instructions are followed.

■ The notebook was dropped or the cabinet is damaged.

■ The notebook performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Regulatory compliance statements

Wireless guidance

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

802.11b (also known as wireless Ethernet

or Wifi) and Bluetooth communication

devices are examples of devices that

provide wireless communication.

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to use or turning on

the applicable authority for

Warnin g

the wireless device.

Warnin g

If your notebook came equipped with an

internal embedded wireless device, do

not operate the wireless device unless all

covers and shields are in place and the

notebook is fully assembled.

Caution

Wireless devices are not user serviceable.

Do not modify them in any way. Modification to a wireless d evice will void the authorization to use it . Please contact

Only use drivers approved for the country

in which the device will be used. See the

Gateway System Restoration Kit, or

contact Gateway Customer Care for

Gateway for service.

Caution

additional information.

Low power, Radio transmitting type devices (radio frequency (RF) wireless communication devices), may be present (e mbed ded) in yo ur no tebo ok s yste m. These devices may operate in the 2.4 GHz (i.e. 802.11b/g LAN & Bluetooth),

5.2 GHz (i.e. 802.11a LAN), and traditional cellular or PCS cellular bands (i.e. Cellular data modem). The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your notebook is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, Gateway believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

Measurements have been performed to show that the RF exposure is below what is considered safe limits; however care should be taken to make sure the user or bystanders keep the transmitter away from their body when the wireless device is transmitting. The transmitting antenna installed in the top third of the lid should be used in a manner to maintain 20 cm (8 inches) from user’s or bystander’s bodies.

The wireless devices installed in this system are intended to be used indoors. In some areas, use of these devices outdoors is prohibited.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed to the left.

Every country has different restrictions on

the use of wireless devices. Since your

notebook is equipped with a wireless device, when traveling between countries with your notebook, check with the local

Radio Approval authorities prior to any

move or trip for any restrictions on the

use of a wireless device in the destination

Important

count ry.

www.gateway.com

United States of America

Regulatory compliance statements

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than the one provided

In order to comply with FCC requirements this transmitter must not be operated (or co-located) in conjunction with any other

transmitter or antenna installed in the

Caution

Gateway for service.

Caution

with the notebook.

Caution

notebook.

Federal Communications Commission (FCC) Intentional emitter per FCC Part 15

Low power, Radio transmitter type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band and/or 5.15 – 5.35 GHz band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

The wireless devices installed in this system are intended to be used indoors. In some areas, use of these devices outdoors is prohibited.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna

■ Increase the separation between the equipment and receiver

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

■ Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are: shielded video cable when an external monitor is connected. These accessories are required to be used in order to ensure compliance with FCC rules.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

FCC declaration of conformity

Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to

Recycle or dispose of the used notebook

properly according to federal, state and

operate the notebook.

Caution

local laws.

Warnin g California Proposition 65 Warning

Responsible party:

Gateway Companies, Inc. 610 Gateway Drive, North Sioux City, SD 57049 (605) 232-2000 Fax: (605) 232-2023

Product:

■ Gateway 8000 series

■ Gateway E-8500N series

■ Gateway M680

■ Gateway M685

■ Gateway MX8000 series

■ Gateway NX850

■ Gateway S-7700N series

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warnin g

This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or reproductive harm.

Mercury Warning

The lamp in this display contains mercury. Do not put in trash. Recycle or dispose as hazardous waste.

Telecommunications per Part 68 of the Code of Federal Regulations (CFR47) (applicable to products fitted with USA modems)

Your modem complies with Part 68 of the Code of Federal Regulations (CFR 47) rules. On the computer or modem card is a label that contains the FCC registration number and Ringer Equivalence Number (REN) for this device. If requested, this information must be provided to the telephone company.

A telephone line cord with a modular plug is required for use with this device. The modem is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68-compliant. See installation instructions for details.

The Ringer Equivalence Number (REN) is used to determine the number of devices which may be connected to the telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

If this device causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. The telephone company may request that you disconnect the equipment until the problem is resolved.

www.gateway.com

Regulatory compliance statements

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of this equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

This equipment cannot be used on telephone company-provided coin service. Connection to party line service is subject to state tariffs. Contact the state public utility commission or public service commission for information.

When programming or making test calls to emergency numbers:

■ Remain on the line and briefly explain to the dispatcher the reason for the

call.

■ Perform such activities in the off-peak hours such as early morning or late

evenings.

The United States Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent, an identification of the business, other entity, or other individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual. Refer to your fax communication software documentation for details on how to comply with the fax-branding requirement.

Canada

To prevent radio interference to licensed

service or co-channel Mobile Satellite

systems, this device is intended to be

operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that

is installed outdoors is subject to

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than provide with the

The 802.11A radio LAN your notebook

may have been equipped with operates

in the same frequency range as high

power radar, which has priority use, and

may damage the radio LAN if both are

present and being used in the same area.

Gateway for service.

Caution

licensing.

Caution

notebook.

Caution

Industry Canada (IC) Intentional emitter per RSS 210

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant mo dem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

To avoid electrical shock or equipment

malfunction do not attempt to make

electrical ground connections by yourself.

Contact the appropriate inspection

authority or an electrician, as

Warnin g

appropriate.

Japan

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an inter face may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

www.gateway.com

Laser safety statement

Environmental information

Japanese Modem Notice

Use of controls or adjustments or

performance of procedures other than

those specified in this manual may result

in hazardous radiation exposure. To

prevent exposure to laser beams, do not

try to open the enclosure of a CD or DVD

Warnin g

drive.

All Gateway systems equipped with CD and DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

EPA ENERGY STAR

As an ENERGY STAR® Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energy efficiency when used with a computer equipped with a Display Power

ENERGY STAR

Management System.

Environmental information

The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product may contain substances known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, Gateway provides the following information on how you can responsibly recycle or reuse most of the materials in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste stream (residential garbage collection). The “Crossed-Out Waste Bin” label affixed to this product is your reminder to dispose of your “end of life” product properly.

Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and reusable. You can do your part for the environment by following these simple steps:

■ When your electrical or electronic equipment is no longer useful to you,

“take it back” to your local or regional waste collection administration for recycling.

■ In some cases, your “end of life” product may be “traded in” for credit

towards the purchase of new Gateway equipment. Call Gateway to see if this program is available in your area.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

■ If you need further assistance in recycling, reusing, or trading in your “end

of life” product, you may contact us at the Customer Care number listed in your product’s user guide and we will be glad to help you with your effort.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.

With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly.

Notices

This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.

In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it describes at any time, without notices or obligation.

. In no event will Gateway be liable for

Trademark Acknowledgments

Gateway and the Black-and-White Spot Design are trademarks or registered trademarks of Gateway, Inc. in the U.S. and other countries. SpotShop, Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside logo, and Pentium are registered trademarks and MMX is a trademark of Intel Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered trademarks of Microsoft Corporation. All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respective companies.

www.gateway.com

Notices

Macrovision statement

If your not ebook has a DVD d riv e and an analog TV Out port, the follo wing paragrap h applies:

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Index

AC adapter

connecting connector 8

accessories

purchasing

safety precautions 47 application key 17 arrow keys 17 audio

adjusting volume

back button 19

headphone jack 6

microphone jack 6

muting 19, 22

next button 19

pause button 18

play button 18

stop button 18

volume down button 19

volume up button 19

battery

bay

changing 27

charge indicator 6

charging 11

installing 27

latch 9

locating 9

purchasing 29

recalibrating 28

recharging 11

release latch 9

replacing 27 bays

battery

hard drive 9

memory 9, 32 BIOS Setup utility 28 Bluetooth 18, 22 brightness

adjusting 18, 19

keys 18, 19

cable lock 7 cable modem 13 Caps Lock indicator 16 cards

inserting memory card

inserting PC Card 26

19, 22

memory card slot 6, 25 memory cards supported 25 PC Card slot 7, 26 removing memory card 25 removing PC Card 26

slots 25, 26 carrying case 29 CD

inserting CD drive

See DVD drive cellular phone

memory cards 25 Certificate of Authenticity 3 clicking 21 closing unresponsive program 15 connecting

AC adapter

dial-up modem 12

external keyboard 17

keyboard 17

to cable modem 13

to DSL modem 13

to Ethernet 13

to network 13 connections

audio 6

broadband Internet 8, 13

cable modem 8, 13

dial-up modem 8, 12

digital camera 7, 8

digital video camera 7

docking 9

DSL modem 8, 13

Ethernet 8, 13

external audio 6

external diskette drive 7, 8

external speakers 6

Firewire 7

flash drive 7, 8

headphone 6

i.Link 7

IEEE 1394 7

keyboard 7, 8

microphone 6

modem (dial-up) 8, 12

monitor (VGA) 8

mouse 7, 8

network 8, 13

port replicator 9

power 8, 11

printer 7, 8

projector 8

scanner 7, 8

speaker 6 S-Video (TV) out 7 USB 7, 8 VGA 8 video camera 7

dial-up modem 8, 12 digital camera

memory cards 6, 25 USB port 7, 8

digital video camera

IEEE 1394 port directional keys 17 display

switching 18 docking port 9 double-clicking 21 dragging 21 drives

DVD 8, 23

DVD/CD-RW 8, 23

DVD±RW 8, 23

hard drive 9, 37

identifying drive types 23

multi-format DVD±RW 8, 23

replacing hard drive 37

status indicators 16

types 23 DSL modem 8, 13 DVD

inserting DVD drive

identifying

installing 35

locating 8

replacing 35

using 23 DVD/CD-RW drive

See DVD drive DVD±RW drive

See DVD drive

electrostatic discharge (ESD) 32 Ethernet

connecting

jack 8, 13 external monitor 8, 18 EZ Pad touchpad

See touchpad

Index www.gateway.com

fan 7 files

opening 21 Firewire port 7 Fn key 17, 18 folders

opening

function keys 17

Gateway

model number 2, 9

serial number 2

Support 3

hard drive

bay

indicator 16

installing 37

replacing 37 headphone jack 6 hot-swapping 26

i.Link port 7 IEEE 1394 port 7 indicators

See status indicators inkjet printer

installing

battery 27

DVD drive 35

hard drive 37

keyboard 41

memory 32

PC Card 26

jacks

See connections

Kensington cable lock

lock slot key combinations 18 keyboard

buttons 17

connecting 17

features 17

locating 10

USB port 7, 8 keys

application

arrow 17 battery status 18 brightness 18, 19 directional 17 Fn 17, 18 function 17 LCD brightness 18, 19 LCD/CRT 18 navigation 17 numeric keypad 17 power status 18 Standby 18 Status 18 system 17 system key combinations 18 toggle display 18 Windows 17

labels

Microsoft Certificate of

Authenticity model number 2, 9 serial number 2

laser printer 29 latch

battery

LCD panel release 6

LCD panel

release latch 6 switching display 18

LCD/CRT system key 18 lock

Kensington cable 7

memory

bay installing 32 purchasing 29 removing 32 replacing 32

memory card reader

locating memory cards supported 25 using 25

microphone jack 6 Microsoft Certificate of

model number 2 modem

cable connecting 12, 13 DSL 8, 13 jack (dial-up) 8, 12

monitor

Authenticity

8, 13

port using 18

mouse

USB port

7, 8

Gateway NX860XL User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

About this reference

About this guide

Accessing the online User Guide

Gateway contact information

Gateway model and serial number

Microsoft Certificate of Authenticity

For more information

Identifying features

Front

Left

Right

Back

Bottom

Keyboard area

Protecting from power source problems

Connecting the dial-up modem

Connecting to a cable or DSL modem or to an Ethernet network

Starting your notebook

Waking up your notebook

T urning off your notebook

Restarting (rebooting) your notebook

Using the status indicators

Using the keyboard

Key types

System ke y combinat ions

Adjusting the volume

T urning your wireless radio on or off

Using the CD or DVD drive

Identifying drive types

Inserting a CD or DVD

Using the memory card reader

Memory card types

Inserting a memory card

Using a memory card

Removing a memory card

Changing batteries

Recalibrating the battery

Ordering accessories

Maintaining and Upgrading Your Notebook

Preventing static electricity discharge

Adding or replacing memory

Replacing the DVD drive

Replacing the hard drive kit

Replacing the keyboard

Removing the keyboard

Installing the keyboard

Safety, Regulatory, and Legal Information

Important safety information

Setting up your system

Care during use

Replacement parts and accessories

Regulatory compliance statements

Wireless guidance

United States of America

FCC declaration of conformity

Responsible party:

Mercury Warning

Canada

Unintentional emitter per ICES-003

Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant mo dem)

Japan

Laser safety statement

Environmental information

Japanese Modem Notice

EPA ENERGY STAR

Notices

All Rights Reserved

Trademark Acknowledgments

Macrovision statement

Index
