Gateway NX500 Service Manual

Download
GATEWAY NOTEBOOK
SERVICEGUIDE
®

Contents

Replacing Notebook Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Identifying the notebook model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Identifying components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preparing your work space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparing the notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adding or replacing memory modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Replacing the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Replacing the cooling assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Replacing the processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacing the IEEE 802.11 wireless card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

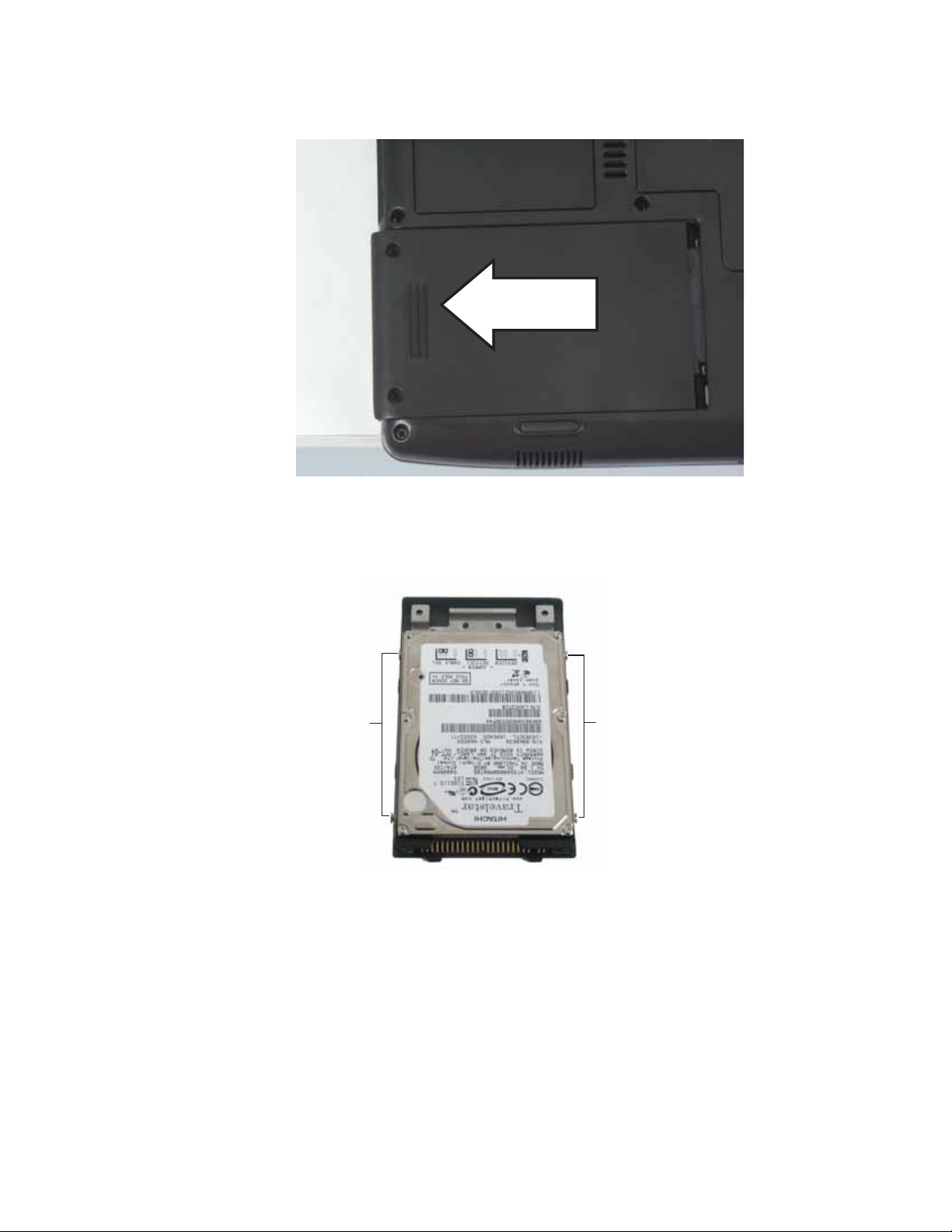

Replacing the hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacing the keyboard cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacing the CMOS battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

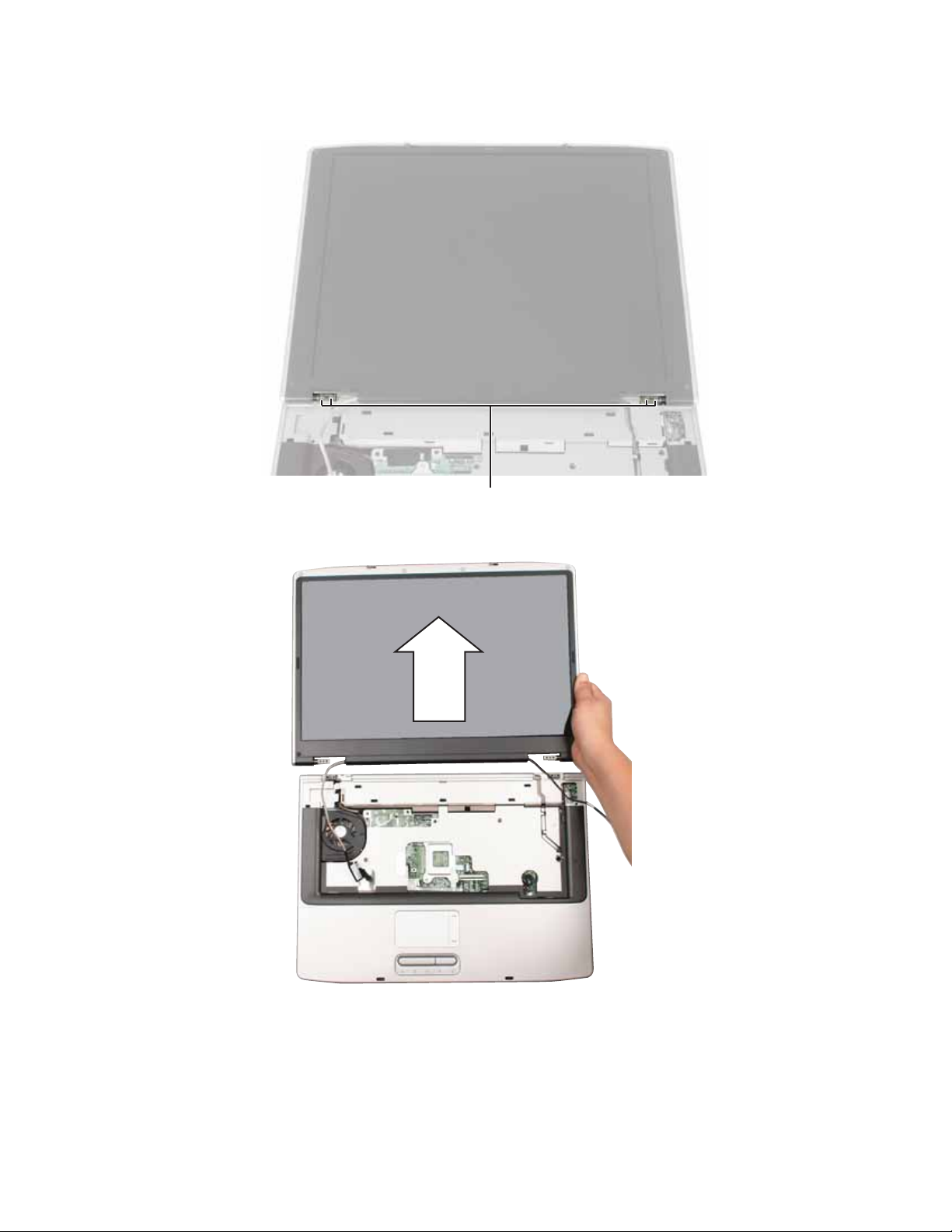

Replacing the LCD panel assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Replacing the LCD panel inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Replacing the LCD panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Replacing the LCD panel assembly lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Replacing the palm rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Replacing the modem card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Replacing the Bluetooth module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Replacing the system board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Replacing the external video board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Replacing the speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
i
Contents
ii

Replacing Notebook Components

• Identifying the notebook model
• Identifying components
• Preparing your work space
• Preventing static electricity discharge
• Preparing the notebook
• Adding or replacing memory modules
• Replacing the DVD drive
• Replacing the cooling assembly
• Replacing the processor
• Replacing the IEEE 802.11 wireless card
• Replacing the hard drive
• Replacing the keyboard cover
• Replacing the keyboard
• Replacing the CMOS battery
• Replacing the LCD panel assembly
• Replacing the LCD panel inverter
• Replacing the LCD panel
• Replacing the LCD panel assembly lid
• Replacing the palm rest
• Replacing the modem card
• Replacing the Bluetooth module
• Replacing the system board
• Replacing the external video board
• Replacing the speakers
1
Replacing Notebook Components
Important
The photographs in this guide may vary in appearance from the notebook. These
variations may include color and finishing of the case and the shape of the touchpad.
Important
This service guide is not intended to be provided to individual users or consumers.
It cannot be provided to anyone other than an authorized service provider.
Important
For information on the notebook’s general maintenance, technical support, safety
notices, and regulatory notices, see the notebook’s user guide.
Tip
If you have suggestions regarding the content of this guide, send an e-mail with
the subject “Service Guide Comments” to channel.services@gateway.com.
Use this service guide to help plan maintenance tasks for the following Gateway notebooks:
• 6000 series
• 6100 series
• 6500 series
• 6600 series
• M360
• MX6000 series
• MX6100 series
• MX6200 series
• MX6400 series
• MX6500 series
• MX6600 series
• MX6900 series
• NX500 series
All tasks covered in this guide can be performed by an authorized field technician without jeopardizing the notebook’s warranty.

Identifying the notebook model

Caution
It is important that you use the correct service guide for the notebook. Failure to
follow the approved tasks for the notebook model may result in damage to the notebook.
The label on the bottom of the notebook contains information that identifies the notebook model and its features.
Online Support: support.gateway.com Tech Support Phone: Hours: Model: S/No:
2
www.gateway.com

Identifying components

Use this chart to identify the main components of the notebook. For a complete list of replaceable parts, see “Contents” on page i.
LCD panel assembly
page 38
)
(see
Keyboard cover
(see
Keyboard
page 31
page 29
)
(see
)
(see
Palm rest
page 56
Cooling assembly
Processor
page 19
(see
)
(see
page 11
)
)
3
Replacing Notebook Components

Preparing your work space

Before performing maintenance on the notebook, make sure that your work space and the notebook are correctly prepared.
• Wear a grounding (ESD) wrist strap, and use a grounded or dissipative work mat.
• Use a stable and strong table, and make sure that the table top is large enough to hold
each component as you remove it.
• Use bright lighting to make part identification easier.
• Keep your work surface free from clutter and dust that may damage components.
• Use a magnetized screwdriver for removing screws.
• When removing components that are attached to the notebook by a cable, unplug the cable
before removing the screws, when possible, to avoid damaging the cable.
• As you remove components and screws, lay them toward the rear of your work surface
(behind the notebook) or far enough to the side that your arms do not accidentally brush them onto the floor.
• To help keep track of screws, try the following:
• Place each component’s screws in their own section of a parts sorter.
• Place each component’s screws next to the component on your work surface.
• Print the first page of each task, then place the page toward the rear of your work
surface. As you remove screws, place the screws in their respective boxes on the page.
• After loosening screws that are deeply recessed in a hole (for example, on the bottom
of the base assembly), you can leave the screws in the holes if you place small pieces of masking tape over the hole openings. When reassembling the component, just remove the tape and tighten the screws.
• When you place flat-headed screws on your work surface, stand them on their heads
to prevent the screws from rolling off the table.
4
www.gateway.com

Preventing static electricity discharge

Warning
To avoid exposure to dangerous electrical voltages and moving parts, turn off the notebook, remove the battery, and unplug the power cord, modem cable, and network cable before opening the case.
Warning
To prevent risk of electric shock, do not insert any object into the vent holes of the notebook.
Important
Before performing maintenance on the notebook, you should read and understand the information in this section.
The components inside the notebook are extremely sensitive to static electricity, also known as electrostatic discharge (ESD).
Before performing maintenance on the notebook, follow these guidelines:
• Avoid static-causing surfaces such as carpeted floors, plastic, and packing foam.
• Remove components from their antistatic bags only when you are ready to use them. Do
not lay components on the outside of antistatic bags because only the inside of the bags provide electrostatic protection.
• Always hold components by their edges. Avoid touching the edge connectors. Never slide
components over any surface.
• Wear a grounding wrist strap (available at most electronics stores) and attach it to a bare
metal part of your workbench or other grounded connection.
• Touch a bare metal surface on your workbench or other grounded object.

Tape

Some of the procedures in this guide involve removing tape that holds cables or components. Two types of tape are used in this Gateway notebook:
• Mylar, non-conductive tape is typically transparent, with a red or brown tint.
• Conductive tape is typically grey or silver.
If the existing tape cannot be reused, replace it with the same type (conductivity) of tape. Both types of replacement tape should be non-ESD generating tape.
Do not use cellophane tape.
5
Replacing Notebook Components

Preparing the notebook

Warning
To avoid exposure to dangerous electrical voltages and moving parts, turn off the notebook, remove the battery, and unplug the power cord, modem cable, and network cable before opening the case. Replace the cover before you restore power or reconnect the modem and network cables.
To prepare the notebook for maintenance:
1 Make sure that the DVD drive does not contain a disc. 2 Disconnect all peripheral devices and remove any PC Cards and memory cards. 3 Turn off the notebook and unplug the power cord, modem cable, and network cable. 4 Remove the battery. For more information, see “Removing the battery” on page 6.

Removing the battery

To remove the battery:
1 Turn the notebook over so the bottom is facing up. 2 Slide the battery lock to the unlock position.
3 Slide and hold the battery release latch, then slide the battery out of the notebook.
6
www.gateway.com

Adding or replacing memory modules

Important
Use only memory modules designed for this Gateway notebook.
Tools you need to complete this task:
Phillips #0 screwdriver
Screws removed during this task:
1 black (keyboard)
Memory bay
To add or replace memory modules:
1 Complete the steps in “Preparing the notebook” on page 6.
7
Replacing Notebook Components
2 Remove the keyboard screw.
Tip
The screw hole is marked with a K.
Keyboard screw
3 Loosen the six memory bay cover screws (these screws cannot be removed).
Tip
Depending on your model, not all screws may be captive.
Screws
Screws
8
www.gateway.com
4 Use the thumb notch to lift the memory bay cover, then remove it. Be careful not to break
off the tabs located on the end of the cover opposite of the thumb notch.
Thumb notch
5 If you are removing a module, gently press outward on the clip at each end of the memory
module until the module tilts up.
9
Replacing Notebook Components
6 Pull the memory module out of the slot.
7 Hold the new or replacement module at a 30-degree angle and press it into the empty
memory slot. This module is keyed so it can only be inserted in one direction. If the module does not fit, make sure that the notch in the module lines up with the tab in the memory bay.
8 Replace the memory bay cover, then tighten the cover screws. 9 Replace the keyboard screw.
Tip
The screw hole is marked with a K.
10
www.gateway.com

Replacing the DVD drive

Tools you need to complete this task:
Phillips #0 screwdriver
Screws removed during this task:
1 black (keyboard) 1 black (DVD drive)
To replace the DVD drive:
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the keyboard screw.
Tip
The screw hole is marked with a K.
Keyboard screw
11
Replacing Notebook Components
3 Loosen the six memory bay cover screws (these screws cannot be removed).
Tip
Depending on your model, not all screws may be captive.
Screws
Screws
4 Use the thumb notch to lift the memory bay cover, then remove it. Be careful not to break
off the tabs located on the end of the cover opposite of the thumb notch.
Thumb notch
12
www.gateway.com
5 Remove the DVD drive screw.
Screw
6 Slide the DVD drive out of the drive bay by pushing on the DVD bracket.
DVD bracket
7 Slide the new DVD drive into the drive bay. Make sure that the drive fits securely in the bay. 8 Secure the DVD drive with the screw removed in Step 5. 9 Replace the memory bay cover, then tighten the cover screws.
10 Replace the keyboard screw.
Tip
The screw hole is marked with a K.
13
Replacing Notebook Components

Replacing the cooling assembly

Tools you need to complete this task:
Phillips #0 screwdriver
Additional materials you may need to complete this task:
• X-23-7762 thermal grease
Screws removed during this task:
1 black (keyboard)
To replace the cooling assembly:
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the keyboard screw.
Tip
The screw hole is marked with a K.
Keyboard screw
14
www.gateway.com
3 Loosen the six memory bay cover screws (these screws cannot be removed).
Tip
Depending on your model, not all screws may be captive.
Screws
Screws
4 Use the thumb notch to lift the memory bay cover, then remove it. Be careful not to break
off the tabs located on the end of the cover opposite of the thumb notch.
Thumb notch
15
Replacing Notebook Components
5 Loosen the three or four screws (these screws cannot be removed) that secure the cooling
assembly to the system board. Use the numbers stamped in the metal next to each screw and loosen the screws in reverse numerical order (start with 4, then 3, then 2, then 1).
Caution
When loosening the cooling assembly’s screws in the numbered holes,
loosen them in reverse numerical order.
Important
The number of screws varies by model.
Screw
Screw
Screw
-OR-
Screw
Screw
Screw
Screw
16
www.gateway.com
6 .At the same time as you lift, move the cooling assembly away from the side of the
notebook, then remove it. The cooling assembly cable is attached to the system board at this point. Be careful not to break the cable.
Caution
The cooling assembly cable is attached to the system board at this point.
Be careful not to break the cable.
7 Unplug the old cooling fan.
8 If your cooling assembly uses a thermal pad, go to Step 10.
-OR-
If your cooling assembly uses thermal grease, remove any thermal grease residue from the processor using a soft cloth and isopropyl alcohol.
9 If the new cooling assembly did not ship to you with thermal grease already applied, place
new thermal grease on the processor. Use only enough to cover the CPU die.
10 Plug in the new cooling fan. 11 Insert the new cooling assembly into the notebook.
17
Replacing Notebook Components
12 Tighten the three or four screws, in numerical order, in the holes that are stamped with
the numbers 1 through 4 next to them.
Caution
When tightening the cooling assembly’s screws in the numbered holes,
tighten them in numerical order.
Important
The number of screws varies by model.
13 Replace the memory bay cover, then tighten the cover screws. 14 Replace the keyboard screw.
Tip
The screw hole is marked with a K.
18
www.gateway.com

Replacing the processor

Tools you need to complete this task:
Phillips #0 screwdriver
Additional materials you may need to complete this task:
• X-23-7762 thermal grease
Screws removed during this task:
1 black (keyboard)
To replace the processor:
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the cooling assembly by following the instructions in “Replacing the cooling
assembly” on page 14.
19
Replacing Notebook Components
3 Use a flat-blade screwdriver to turn the processor lock screw ¼-turn counter-clockwise.
-OR-
Use a flat-blade screwdriver to turn the processor lock screw ½-turn counter-clockwise. You will hear a click when the processor lock is unlocked.
20
www.gateway.com
4 Remove the old processor from the system board.
5 Install the new processor onto the system board making sure that Pin 1 on the processor
(indicated by the silk-screened arrow on the corner of the processor) aligns with Pin 1 on the processor socket (indicated by the absence of a pin hole in the processor socket), then use a flat-blade screwdriver to turn the processor lock screw ¼-turn to ½-turn clockwise.
6 If your cooling assembly uses a thermal pad, go to Step 8.
-OR-
If your cooling assembly uses thermal grease, remove any thermal grease residue from the cooling assembly using a soft cloth and isopropyl alcohol.
7 Place new thermal grease on the processor. Use only enough to cover the CPU die. 8 Replace the cooling assembly by following the instructions in “Replacing the cooling
assembly” on page 14.
21
Replacing Notebook Components

Replacing the IEEE 802.11 wireless card

Caution
By law, only approved wireless modules provided by Gateway, or a Gateway authorized representative, explicitly for this Gateway notebook may be installed in this notebook.
Caution
Legal requirements dictate the wireless cover be in place during any and all operation of the notebook’s wireless feature.
Tools you need to complete this task:
Phillips #0 screwdriver
Screws removed during this task:
1 black (wireless card) Select models only
Wireless bay
To replace the 802.11 wireless card:
1 Complete the steps in “Preparing the notebook” on page 6.
22
www.gateway.com
2 Loosen the wireless bay cover screw (this screw cannot be removed), then remove the
wireless bay cover.
Screw
3 Unplug the two antenna cables.
4 Move the antenna cables out of the way.
23
Replacing Notebook Components
5 If the wireless card is held by clips, press outward on the clip at each side of the card until
the card tilts up.
-OR-
If the wireless card is held by a screw, remove the screw.
Screw
24
www.gateway.com
6 Pull the old card out of the slot.
7 Hold the new card at a 30-degree angle and slide it into the empty slot. This card is keyed
so it can only be inserted in one direction. If the card does not fit, make sure that the notch in the card lines up with the tab in the card slot.
8 Move the antenna cables out of the way. 9 If the wireless card is held by clips, press the card down until it clicks into place.
-OR-
If the wireless card is held by a screw, replace the screw.
10 Reattach the light gray antenna cable to the connector labelled MAIN or M, then reattach
the black antenna cable to the connector labelled AUX or A.
11 Replace the wireless bay cover, then tighten the screw.
25
Replacing Notebook Components

Replacing the hard drive

Tools you need to complete this task:
Phillips #0 screwdriver
Screws removed during this task:
2 black (hard drive kit)
Hard drive kit
To replace the hard drive:
4 chrome (hard drive cover)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the two hard drive kit screws.
26
www.gateway.com
3 Slide the old hard drive kit out of the notebook.
4 If the hard drive shipped to you already attached to a new cover, go to Step 8.
-OR-
If the hard drive shipped to you without a new cover, remove the four screws that secure the hard drive to the hard drive bay cover.
Screws
Screws
27
Replacing Notebook Components
5 Remove the cover from the old drive.
6 Place the new drive, label side up, onto the cover so the screw holes line up. 7 Replace the screws that secure the cover to the drive. 8 Slide the new hard drive kit into the notebook, then replace the kit screws.
28
www.gateway.com

Replacing the keyboard cover

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
To replace the keyboard cover:
1 Complete the steps in “Preparing the notebook” on page 6. 2 Turn the notebook over so the top is facing up. 3 Remove the two keyboard cover screws.
Screw Screw
4 Insert the small flat-blade screwdriver under the bottom of each hinge cover and gently
pry it up.
5 Carefully open the LCD panel to the fully opened position.
29
Replacing Notebook Components
6 Insert the small, flat-blade screwdriver or non-marring tool under the bottom of the right
hinge cover, then gently pry it up.
7 Pull the old cover off the notebook. You will hear small snapping sounds as the cover comes
away from the notebook.
30
8 Place the new cover on the notebook, then press down on the cover in several places until
it clicks in place. The cover is correctly mounted when you can run you finger along the cover and find no loose spots. The cover should be flat all the way across.
Caution
If the cover is not correctly replaced, the notebook could be damaged when
you try to close the LCD panel.
9 Close the LCD panel.
10 Press down on the hinge covers, then replace the two keyboard cover screws.
www.gateway.com

Replacing the keyboard

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
To replace the keyboard:
1-3 black (keyboard)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
3 Remove the keyboard screw.
Tip
The screw hole is marked with a K.
Keyboard screw
4 Gently lift the back edge of the keyboard.
• If the keyboard does not lift, go to Step 5.
• If the keyboard lifts, go to Step 10.
31
Replacing Notebook Components

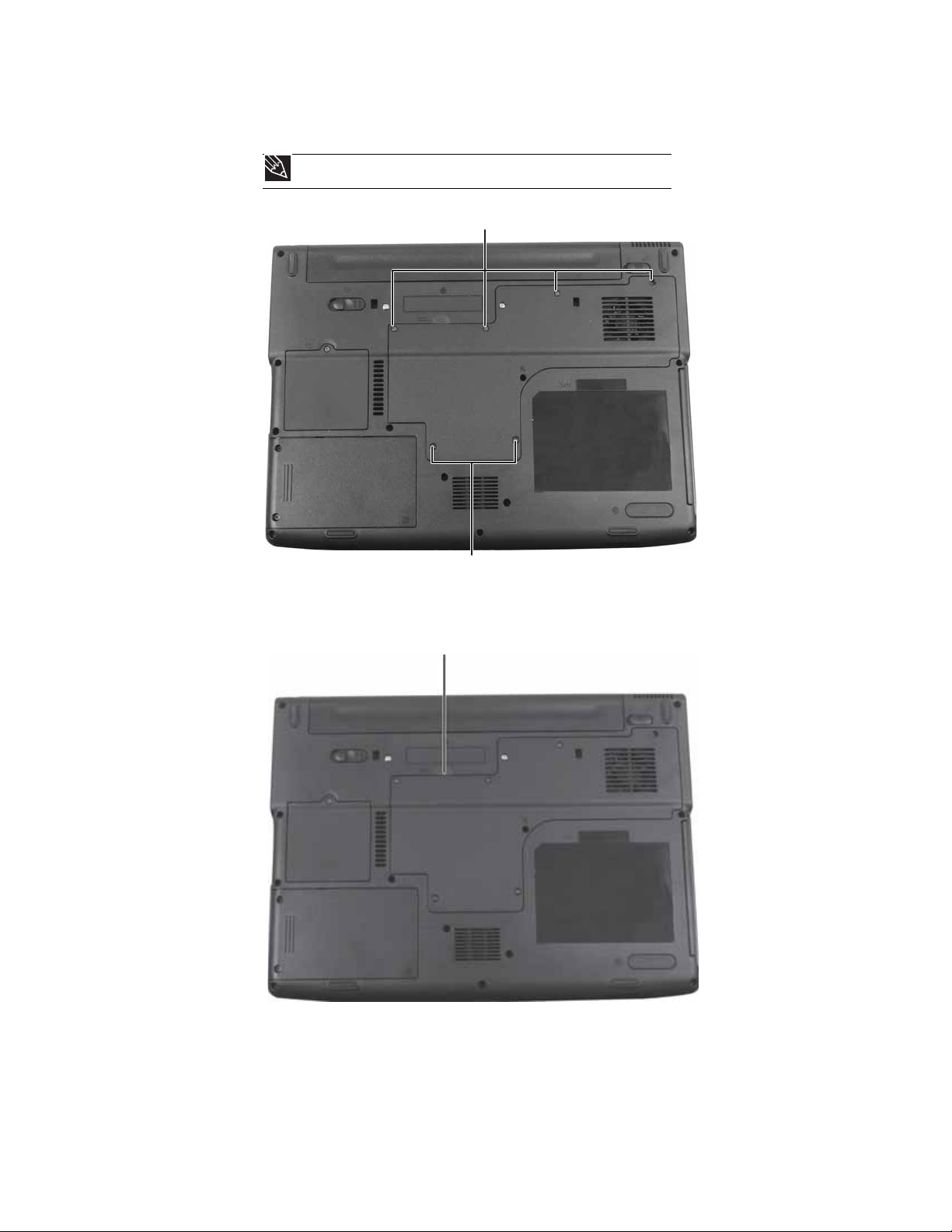

5 Close the LCD panel, turn the notebook over so the bottom is facing up, then loosen the
six memory bay cover screws (these screws cannot be removed).
Tip
Depending on your model, not all screws may be captive.
Screws
Screws
6 Use the thumb notch to lift the memory bay cover, then remove it. Be careful not to break
off the tabs located on the end of the cover opposite of the thumb notch.
Thumb notch
32
www.gateway.com
7 Loosen the wireless bay cover screw (this screw cannot be removed), then remove the
wireless bay cover.
Screw
8 Remove the two optional keyboard screws.
Tip
Depending on the keyboard features, one or both of these screws may be
absent.
Screw
Screw
9 Turn the notebook over so the top is facing up, then open the LCD panel to the fully opened
position.
10 With the back edge of the keyboard raised, carefully push it toward the LCD panel to release
the keyboard retaining tabs. Be careful not to damage the LCD panel.
33
Replacing Notebook Components
11 Carefully rotate the keyboard toward you so it lies keys-down on top of the notebook.
Be careful not to damage the LCD panel.
12 Lift the black keyboard connector clip, then remove the cable. Be careful not to touch or
damage any other components.
Keyboard connector clip
13 Lift the old keyboard away from the notebook. The keyboard is now completely detached
from the notebook.
14 Place the new keyboard keys-down on the notebook with the space bar away from you. 15 Make sure the black keyboard connector clip is fully raised, insert the cable into the
connector, then lower the black connector clip to lock the cable in place.
Important
The keyboard cable is correctly oriented if the cable is not twisted.
16 Rotate the keyboard toward the LCD panel until the keyboard is almost face-up.
34
www.gateway.com
17 Insert the tabs on the front edge of the keyboard into the slot under the palm rest. You
may need to press down on the keyboard keys along the front edge of the keyboard to seat the retaining tabs into their corresponding slots.
18 Gently press the keyboard down until it is flat all the way across. The keyboard should
easily fall into place. Be careful not to damage the LCD panel.
19 Reattach the keyboard cover by following the instructions in “Replacing the keyboard
cover” on page 29.
20 Turn the notebook over so the bottom is facing up, then replace the keyboard screws
removed in Step 8.
21 Replace the memory bay cover and wireless network bay cover. 22 Replace the keyboard screw removed in Step 3.
Tip
The screw hole is marked with a K.
35
Replacing Notebook Components

Replacing the CMOS battery

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
To replace the CMOS battery:
1-3 black (keyboard)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
3 Open the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
Tip
You do not need to unplug the keyboard from the notebook.
4 Locate the old battery on the system board. If you have access to the battery connector
on the system board, go to Step 5.
-OR-
If you do not have access to the battery connector on the system board, complete the following:
a Remove the LCD panel by following the instructions in “Replacing the LCD panel
assembly” on page 38.
b Remove the palm rest by following the instructions in “Replacing the palm rest” on
page 56, then go to Step 5.
36
www.gateway.com
5 Use your fingers to unplug the CMOS battery connector from the system board. Be careful
not to touch or damage any other components.
6 Plug the new battery into the system board.
Important
Use only CMOS batteries designed for this Gateway notebook. The
non-conductive sleeve and wires are not reusable.
7 Replace the palm rest (if removed) by following the instructions in “Replacing the palm
rest” on page 56.
8 Remove the LCD panel (if removed) by following the instructions in “Replacing the LCD panel
assembly” on page 38.
9 Close the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
10 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
37
Replacing Notebook Components

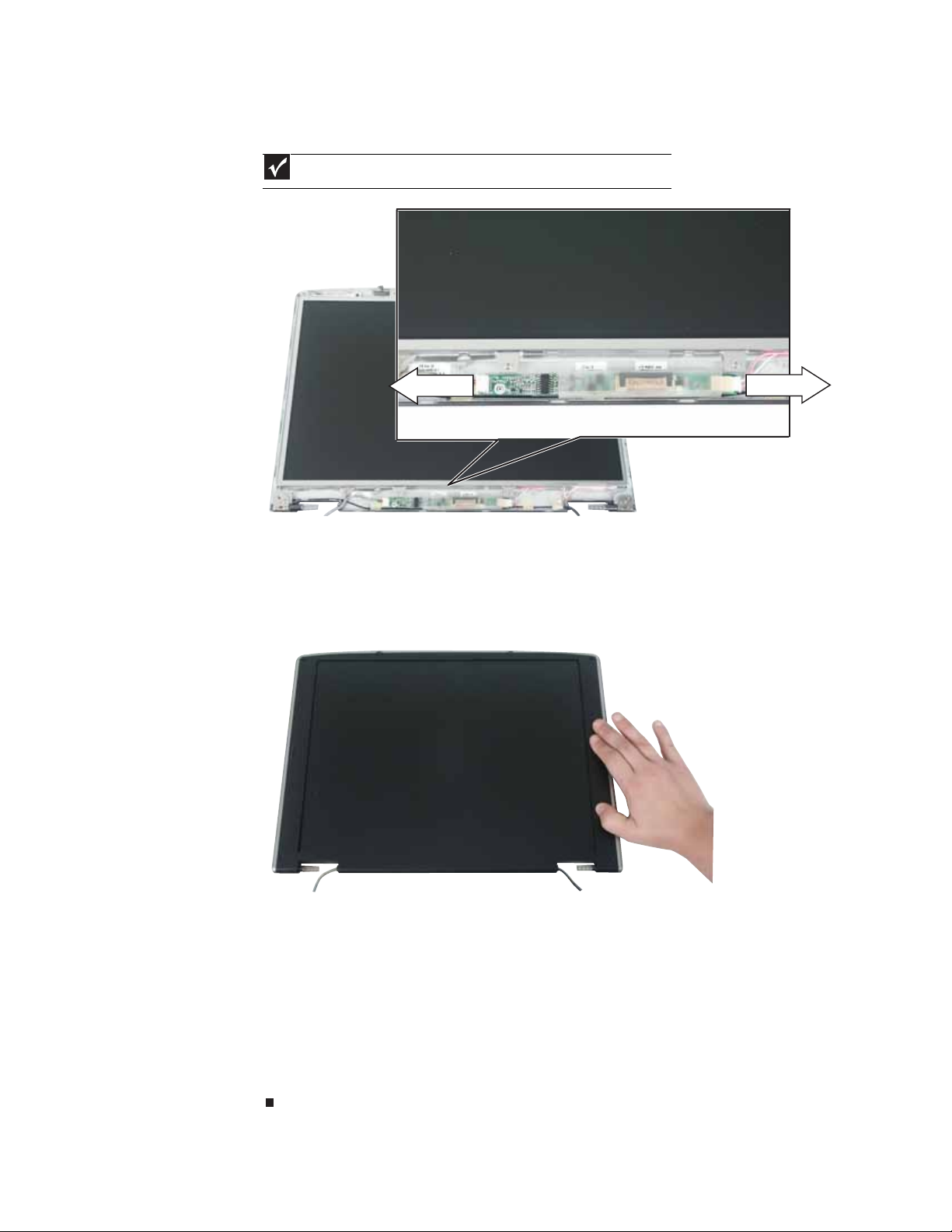

Replacing the LCD panel assembly

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
To replace the LCD panel assembly:
1-3 black (keyboard)
4 black (LCD panel hinges)
1 Complete the steps in “Preparing the notebook” on page 6. 2 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
3 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
4 Open the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
Tip
You do not need to unplug the keyboard from the notebook.
38
www.gateway.com
5 Carefully unplug the LCD video cable from the notebook. Make sure you grasp the
connector, not the cable.
Retaining clips Connector
6 Lift up on the video cable retaining clips slightly, then slide the video cable out from under
the clips.
7 Taking care to note the cables’ routing and positions as they are installed from Gateway,
pull the antenna wires out from under the system board, then slide the wires out from under the retaining clips.
39
Replacing Notebook Components
8 Remove the four hinge screws that secure the LCD panel to the notebook.
Screws
9 Lift the LCD panel assembly away from the notebook. The LCD panel assembly is now
completely detached from the notebook.
40
10 Place the new LCD panel assembly onto the notebook, then replace the four hinge screws.
www.gateway.com
11 Slide the antenna cables through the retaining clips, under the system board, then into
the wireless card area.
12 Slide the LCD video cable under the retaining clips, then plug the LCD video connector into
the notebook.
13 Close the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
14 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
15 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
41
Replacing Notebook Components

Replacing the LCD panel inverter

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
4 or 6 chrome (LCD panel assembly)
To replace the LCD panel inverter:
1-3 black (keyboard)
2 chrome (bracket) Select models only
4 black (LCD panel hinges)
1 Complete the steps in “Preparing the notebook” on page 6. 2 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
3 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
4 Open the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
Tip
You do not need to unplug the keyboard from the notebook.
5 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
42
www.gateway.com
6 Remove the four or six rubber inserts from the front of the LCD panel assembly.
Rubber insert
Rubber insert
Rubber insert Rubber insertRubber insert
Rubber insert
7 Remove the four or six screws from the front of the LCD panel assembly.
Tip
On select models, you may be able to access the inverter by removing only
the bottom two screws.
Screw
Screw
Screw Screw Screw
Screw
43
Replacing Notebook Components
8 Carefully separate the front and back of the LCD panel assembly.
Tip
If you only removed the bottom two screws in the previous step, separate
only the lower half of the LCD panel assembly.
9 Locate the inverter. Depending on LCD panel size, it is either at the bottom or side of the
LCD panel assembly. If the inverter is located at the bottom of the LCD panel assembly, you may need to remove the two screws holding the bracket to the LCD panel assembly, then remove the bracket.
44
Screw
Screw
www.gateway.com
10 Unplug both cables from the inverter.
11 Remove the old inverter, then insert the new one. 12 Connect the cables to the new inverter. 13 If you removed the bracket in Step 9, replace it, then replace the two screws. 14 Press the front and back of the LCD panel together in several places until they click in place.
You should find no loose spots or spots where the two halves do not meet.
15 Replace the four or six screws from the front of the LCD panel assembly removed in Step 7. 16 Replace the four or six rubber inserts onto the front of the LCD panel assembly. 17 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
18 Close the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
19 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
20 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
45
Replacing Notebook Components

Replacing the LCD panel

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
4 or 6 chrome (LCD panel assembly)
To replace the LCD panel:
1-3 black (keyboard)
6 chrome (LCD panel)
4 black (LCD panel hinges)
1 Complete the steps in “Preparing the notebook” on page 6. 2 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
3 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
4 Open the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
Tip
You do not need to unplug the keyboard from the notebook.
5 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
46
www.gateway.com
6 Remove the four or six rubber inserts from the front of the LCD panel assembly.
Rubber insert
Rubber insert
Rubber insert Rubber insertRubber insert
Rubber insert
7 Remove the four or six screws from the front of the LCD panel assembly.
Screw
Screw
Screw
Screw
Screw
Screw
47
Replacing Notebook Components
8 Carefully separate the front and back of the LCD panel assembly.
9 Remove the two screws holding the bracket to the LCD panel assembly, then remove the
bracket.
48
Screw
Screw
www.gateway.com
10 Remove the four screws connecting the LCD panel to the LCD panel assembly.
Screw
Screw
11 Remove the LCD panel from the LCD panel assembly.
Screw
Screw
49
Replacing Notebook Components
12 Unplug both cables from the LCD panel inverter on the old panel, then transfer the inverter
to the new panel. Plug both cables into the inverter.
Important
The inverter may be either at the side of the LCD panel or at the bottom.
13 Place the new LCD panel into the existing LCD panel assembly lid. 14 Replace the four screws removed in Step 10. 15 Replace the bracket and the two screws removed in Step 9. 16 Press the front and back of the LCD panel together in several places until they click in place.
You should find no loose spots or spots where the two halves do not meet.
17 Replace the four or six LCD panel assembly screws. 18 Replace the four or six rubber inserts. 19 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
20 Close the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
21 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
22 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
50
www.gateway.com

Replacing the LCD panel assembly lid

Caution
LCD panel assembly lids vary by model. Do not force a new lid to connect to an
existing LCD front if the new lid does not match. You may need to order a different lid.
Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
2 black (keyboard cover)
4 or 6 chrome (LCD panel assembly)
To replace the LCD panel assembly lid:
1-3 black (keyboard)
6 chrome (LCD panel)
4 black (LCD panel hinges)
1 Complete the steps in “Preparing the notebook” on page 6. 2 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
3 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
4 Open the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
Tip
You do not need to unplug the keyboard from the notebook.
5 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
51
Replacing Notebook Components
6 Remove the four or six rubber inserts from the front of the LCD panel assembly.
Rubber insert
Rubber insert
Rubber insert Rubber insertRubber insert
Rubber insert
7 Remove the four or six screws from the front of the LCD panel assembly.
Screw
Screw
Screw
Screw
52
Screw
Screw
www.gateway.com
8 Carefully separate the front and back of the LCD panel assembly.
9 Remove the two screws holding the bracket to the LCD panel assembly, then remove the
bracket.
Screw
Screw
53
Replacing Notebook Components
10 Remove the four screws connecting the LCD panel to the LCD panel assembly.
Screw
Screw
11 Remove the LCD panel from the LCD panel assembly.
12 Place the LCD panel into the new LCD panel assembly lid. 13 Replace the four screws removed in Step 10. 14 Replace the bracket and the two screws removed in Step 9.
Screw
Screw
54
www.gateway.com
15 Press the front and back of the LCD panel together in several places until they click in place.
You should find no loose spots or spots where the two halves do not meet.
16 Replace the four or six LCD panel assembly screws. 17 Replace the four or six rubber inserts. 18 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
19 Close the keyboard compartment by following the instructions in “Replacing the keyboard”
on page 31.
20 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
21 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
55
Replacing Notebook Components

Replacing the palm rest

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
To replace the palm rest:
2 black (hard drive kit)
4 black (LCD panel hinges)
2 black (keyboard cover)
4 black (palm rest - top)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
3 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
4 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
5 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
6 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31. 7 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
56
www.gateway.com
8 Lift the black touchpad connector clip, then remove the touchpad cable. Be careful not to
touch or damage any other components.
9 Remove the four screws from the top of the palm rest.
Screws
57
Replacing Notebook Components
10 Turn the notebook over so the bottom is facing up. Remove the 17 bottom palm rest screws.
Note the location of the six short screws.
Short screws
Screws
Screws
Short screw
Short screw
Screws
11 Turn the notebook over so the top is facing up, then lift the palm rest assembly completely
from the notebook.
58
12 Place the new palm rest assembly onto the notebook, then snap the assembly into place. 13 Replace all of the palm rest screws. 14 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
15 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 16 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
17 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
18 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
19 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
www.gateway.com

Replacing the modem card

This procedure applies to select models only. Some models of the notebook have the modem built into the system board. To replace the modem on these models, you must replace the system board. For more information, see “Replacing the system board” on page 64.
Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
To replace the modem card:
2 black (hard drive kit)
4 black (LCD panel hinges)
2 chrome (modem card)
2 black (keyboard cover)
4 black (palm rest - top)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
3 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
4 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
5 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
6 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31.
59
Replacing Notebook Components
7 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
8 Remove the palm rest by following the instructions in “Replacing the palm rest” on page 56. 9 Remove the two screws that secure the modem card to the system board.
10 Lift the modem card from the system board.
Screws
60
www.gateway.com
11 Unplug the modem cable from the old modem card and plug it into the new modem card.
12 Install the new modem card onto the system board. 13 Replace the palm rest by following the instructions in “Replacing the palm rest” on page 56. 14 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
15 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 16 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
17 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
18 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
19 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
61
Replacing Notebook Components

Replacing the Bluetooth module

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
To replace the Bluetooth module:
2 black (hard drive kit)
4 black (LCD panel hinges)
2 black (keyboard cover)
4 black (palm rest - top)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
3 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
4 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
5 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
6 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31. 7 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
8 Remove the palm rest by following the instructions in “Replacing the palm rest” on page 56.
62
www.gateway.com
9 Disconnect the Bluetooth cable from the system board, then slide the Bluetooth module
from the notebook.
Bluetooth module
10 Slide the new Bluetooth module into the notebook. 11 Connect the Bluetooth cable to the system board. 12 Replace the palm rest by following the instructions in “Replacing the palm rest” on page 56. 13 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
14 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 15 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
16 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
17 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
18 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
63
Replacing Notebook Components

Replacing the system board

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Additional materials you may need to complete this task:
• X-23-7762 thermal grease
Screws removed during this task:
2 black (keyboard cover)
4 black (palm rest - top)
2 black (hard drive kit)1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
1 black (wireless card) Select models only
4 black (LCD panel hinges)
2 chrome (modem) Select models only
64
4 black (system board)
To replace the system board:
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the memory from the old system board and install it on the new system board
by following the instructions in “Adding or replacing memory modules” on page 7.
www.gateway.com
3 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
4 Remove the cooling assembly by following the instructions in “Replacing the cooling
assembly” on page 14.
5 If your new system board does not include a processor, remove the processor from the
old system board and install it on the new system board by following the instructions in
“Replacing the processor” on page 19.
6 If the notebook has IEEE 802.11 wireless networking built in, remove the IEEE 802.11
wireless card from the old system board and install it on the new system board by following the instructions in “Replacing the IEEE 802.11 wireless card” on page 22.
7 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
8 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
9 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31.
10 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
11 Remove the palm rest by following the instructions in “Replacing the palm rest” on page 56. 12 If your new system board does not have a built-in modem and did not ship to you with
a new modem card (see page 60 for a picture of a modem card), remove the modem card from the old system board and install it on the new system board by following the instructions in “Replacing the modem card” on page 59.
13 Disconnect the Bluetooth module by following the instructions in “Replacing the Bluetooth
module” on page 62.
14 Disconnect the speakers.
65
Replacing Notebook Components
15 Remove the four screws that secure the system board to the notebook.
Screw Screw
Screw
Screw
16 Turn the system board over and disconnect the external video board cable from the old
system board and connect it to the new system board.
17 Install the new system board into the notebook, then replace the screws you removed in
Step 15.
18 Replace the palm rest by following the instructions in “Replacing the palm rest” on page 56. 19 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
20 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 21 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
22 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
23 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
24 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
66
www.gateway.com

Replacing the external video board

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver 5.0 mm hex nutdriver
Screws removed during this task:
1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
To replace the external video board:
2 black (hard drive kit)
4 black (LCD panel hinges)
2 chrome hexnut (external video board)
2 black (keyboard cover)
4 black (palm rest - top)
2 black (external video board)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
3 Remove the cooling assembly by following the instructions in “Replacing the cooling
assembly” on page 14.
4 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
5 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
6 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
7 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31. 8 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
67
Replacing Notebook Components
9 Remove the palm rest by following the instructions in “Replacing the palm rest” on page 56.
10 Remove the two hex nuts that secure the external video board to the notebook.
Hex nuts
11 Remove the two screws that secure the external video board to the notebook.
Screw
Screw
68
12 Install the new external video board into the notebook, then replace the screws removed
in Step 11.
13 Replace the two hex nuts removed in Step 10. 14 Replace the palm rest by following the instructions in “Replacing the palm rest” on page 56. 15 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
16 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 17 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
18 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
19 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
20 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
www.gateway.com

Replacing the speakers

Tools you need to complete this task:
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
Screws removed during this task:
1 black (DVD drive)
1-3 black (keyboard)
17 black (palm rest - bottom)
To replace the speakers:
2 black (hard drive kit)
4 black (LCD panel hinges)
4 black (system board)
2 black (keyboard cover)
4 black (palm rest - top)
2 chrome (speakers)
1 Complete the steps in “Preparing the notebook” on page 6. 2 Remove the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
3 Remove the cooling assembly by following the instructions in “Replacing the cooling
assembly” on page 14.
4 If the notebook has IEEE 802.11 wireless networking built in, unplug the antenna cables
from the IEEE 802.11 wireless card by following the instructions in “Replacing the IEEE
802.11 wireless card” on page 22.
5 Remove the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
6 Remove the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
7 Remove the keyboard by following the instructions in “Replacing the keyboard” on page 31. 8 Remove the LCD panel by following the instructions in “Replacing the LCD panel assembly”
on page 38.
69
Replacing Notebook Components
9 Remove the palm rest by following the instructions in “Replacing the palm rest” on page 56.
10 Remove the system board by following the instructions in “Replacing the system board”
on page 64.
11 Remove the two screws that secure the speakers to the notebook.
Screw
Screw
12 Lift the speakers out of the notebook.
13 Install the new speakers into the notebook, then replace the screws removed in Step 11. 14 Replace the system board by following the instructions in “Replacing the system board”
on page 64.
15 Replace the palm rest by following the instructions in “Replacing the palm rest” on page 56. 16 Replace the LCD panel assembly onto the notebook by following the instructions in
“Replacing the LCD panel assembly” on page 38.
17 Replace the keyboard by following the instructions in “Replacing the keyboard” on page 31. 18 Replace the keyboard cover by following the instructions in “Replacing the keyboard cover”
on page 29.
19 Replace the hard drive kit by following the instructions in “Replacing the hard drive” on
page 26.
20 Replace the DVD drive by following the instructions in “Replacing the DVD drive” on
page 11.
21 Plug the antenna cables into the IEEE 802.11 wireless card, then replace the wireless bay
cover.
70
Copyright
www.gateway.com
© 2006 Gateway, Inc. All rights reserved. Gateway, Gateway Country, the Gateway stylized logo, and the black-and-white spot design are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries. All other brands and product names are trademarks or registered trademarks of their respective companies.
71
Replacing Notebook Components
72
MAN BLADE/OAS SVC GDE R3 12/06
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
