Gateway MX7110, MX7120, MX7310, MX7520, MX7530 Quick Reference Guide

HARDWARE REFERENCE

Gateway Notebook

Chapter 1: About this reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing the online User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Checking Out Your Gateway Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Identifying features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting to a cable or DSL modem or to an Ethernet network . . . . . . . . 14

Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Restarting (rebooting) your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using the multi-function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Turning your wireless radio on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Adding and removing a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Ordering accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Contents www.gateway.com

Chapter 3: Maintaining and Upgrading Your Notebook . . . . . . . . . . . . . . . . . . . . . . .33

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Adding or replacing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Replacing the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Removing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Installing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Appendix A: Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 47

Important safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Regulatory compliance statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Wireless guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

United States of America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Laser safety statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

EPA ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

CHAPTER 1

About this reference

•About this guide

• Accessing the online User Guide

• Gateway contact information

• Microsoft Certificate of Authenticity

•For more information

CHAPTER 1: About this reference www.gateway.com

About this guide

This guide includes information and maintenance instructions that are specific

to your model of Gateway notebook. For all other notebook information, see

your online User Guide.

Accessing the online User Guide

In addition to this guide, the online User Guide has been included on your hard

drive. The User Guide is an in-depth, easy-to-read manual that includes

information on the following topics:

■ Help and technical support

■ Using and customizing Windows and other software

■ Controlling audio and video settings

■ Using the Internet

■ Protecting your files

■ Playing and recording media

■ Networking

■ Maintenance and troubleshooting

To access the online User Guide:

■ Click Start, All Programs, then click Gateway Documentation.

Gateway contact information

Gateway model and serial number

The label shown in this section is for

informational purposes only. Label

information varies by model, features

Important

ordered, and location.

The label on the bottom of your notebook contains information that identifies

your notebook model and its features. Gateway Customer Care will need this

information if you call for assistance.

Online Support:

Tech Support Phone: Hours: Model:

S/No:

www.gateway.com

Microsoft Certificate of Authenticity

The Microsoft Certificate of Authenticity label found on the bottom of your notebook includes the product key code for your operating system.

For more information

For more information about your notebook, visit Gateway’s Support page at

support.gateway.com

Support page also has links to additional Gateway documentation and detailed specifications.

or the Web address shown on your notebook’s label. The

Microsoft Certificate of Authenticity

CHAPTER 1: About this reference www.gateway.com

CHAPTER 2

Checking Out Your Gateway Notebook

•Identifying features

• Connecting the AC adapter

• Connecting the dial-up modem

• Connecting to a cable or DSL modem or to an Ethernet network

• Starting your notebook

• Turning off your notebook

• Restarting (rebooting) your notebook

• Using the status indicators

•Using the keyboard

• Using the EZ Pad touchpad

•Adjusting the volume

• Turning your wireless radio on or off

• Using the DVD drive

• Using the memory card reader

• Adding and removing a PC Card

• Changing batteries

• Recalibrating the battery

• Ordering accessories

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Identifying features

Front

Speaker SpeakerPower

indicator

LCD panel release latch

Battery charge indicator

Component Icon Description

Speakers Provide audio output when headphones or amplified speakers are not

Power indicator

LCD panel release latch Slide to open the LCD panel.

Battery charge indicator

plugged in.

■

LED on - notebook is on.

■

LED blinking - notebook is in Standby mode.

■

LED off - notebook is off.

■

LED on - battery is charging.

■

LED blinking - battery charge is very low.

■

LED off - battery is fully charged.

This LED only lights when the notebook is connected to AC power or the battery charge is very low.

www.gateway.com

Left

Identifying features

Memory card reader

Ventilation fan IEEE 1394 port PC Card slot

USB ports

Component Icon Description

Memory card reader

Ventilation fan Helps cool internal components.

Insert a memory card from a digital camera, MP3 player, PDA, or cellular telephone into the memory card reader. For more information, see “Using the

memory card reader” on page 27. The memory card reader supports

CompactFlash®, IBM Microdrive™, Memory Stick®, Memory Stick PRO® MultiMediaCard™ (MMC), and Secure Digital™ (SD) cards.

Warni ng: Do not work for long periods with the notebook resting on your lap. If the air vents are blocked, the notebook may become hot enough to harm your skin. Caution: Do not block or insert objects into these slots. If these slots are blocked, your notebook may overheat resulting in unexpected shutdown or permanent damage to the notebook. Caution: Provide adequate space around your notebook so air vents are not obstructed. Do not use the notebook on a bed, sofa, rug, or other similar surface.

Memory card reader

IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®) device (such as a digital

USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera,

PC Card slot Insert one Type II PC Card into this slot. For more information, see “Adding and

camcorder) into this 4-pin IEEE 1394 port.

keyboard, or mouse) into these ports.

removing a PC Card” on page 28.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Right

DVD drive

Component Icon Description

DVD drive Insert CDs or DVDs into this drive. For more information, see “Using the DVD

drive” on page 25. To determine the type of drive in the notebook, examine

the drive tray’s plastic cover and compare the logo to those listed in

“Identifying drive types” on page 25.

www.gateway.com

Back

Identifying features

Ethernet jack

Modem jack

Power connector

Microphone jack

Headphone jack

Monitor port USB ports S-Video

out jack

Ventilation fan

Kensington lock slot

Component Icon Description

Modem jack Plug a modem cable into this jack. For more information, see “Connecting

the dial-up modem” on page 13.

Ethernet jack Plug an Ethernet net work cable into this jack. Plug the other end of the cable

Power connector Plug the AC adapter cable into this connector.

Microphone jack Plug a microphone into this jack.

Headphone jack Plug amplified speakers or headphones into this jack. The built-in speakers

Monitor port Plug an analog VGA monitor or projector into this port. For more

USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner,

into a cable modem, DSL modem, or an Ethernet network jack. For more information, see “Connecting to a cable or DSL modem or to an Ethernet

network” on page 14.

are turned off when speakers or headphones are plugged into this jack.

information, see “Viewing the display on a projector or monitor” in the online User Guide.

camera, keyboard, or mouse) into these ports.

S-Video out jack Plug an S-Video device, such as a television, into this jack. For more

information, see “Viewing the display on a television” in the online User Guide.

Ventilation fan Helps cool internal components.

Warnin g: Do not work for long periods with the notebook resting on your lap. If the air vents are blocked, the notebook may become hot enough to harm your skin. Caution: Do not block or insert objects into these slots. If these slots are blocked, your notebook may overheat resulting in unexpected shutdown or permanent damage to the notebook. Caution: Provide a dequate space around your notebook so air vents are not obstructed. Do not use the notebook on a bed, sofa, rug, or other similar surface.

Kensington™ lock slot Secure your notebook to an object by connecting a Kensington cable lock

to this slot.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Bottom

Battery

lock

Battery

latch

System label

Memory bay

Battery

Hard drive bay

Component Icon Description

Battery lock Slide to unlock the battery. For more information, see “Changing batteries”

Battery latch Slide to release the battery. For more information, see “Changing batteries”

Battery Provides power when the notebook is not plugged into AC power.

Hard drive bay The hard drive is located in this bay. For more information, see “Replacing

Memory bay Install a memory module into this bay. For more information, see “Adding

System label Includes the product model number. For more information, see “Gateway

on page 29.

the hard drive kit” on page 38.

or replacing memory” on page 34.

model and serial number” on page 2.

www.gateway.com

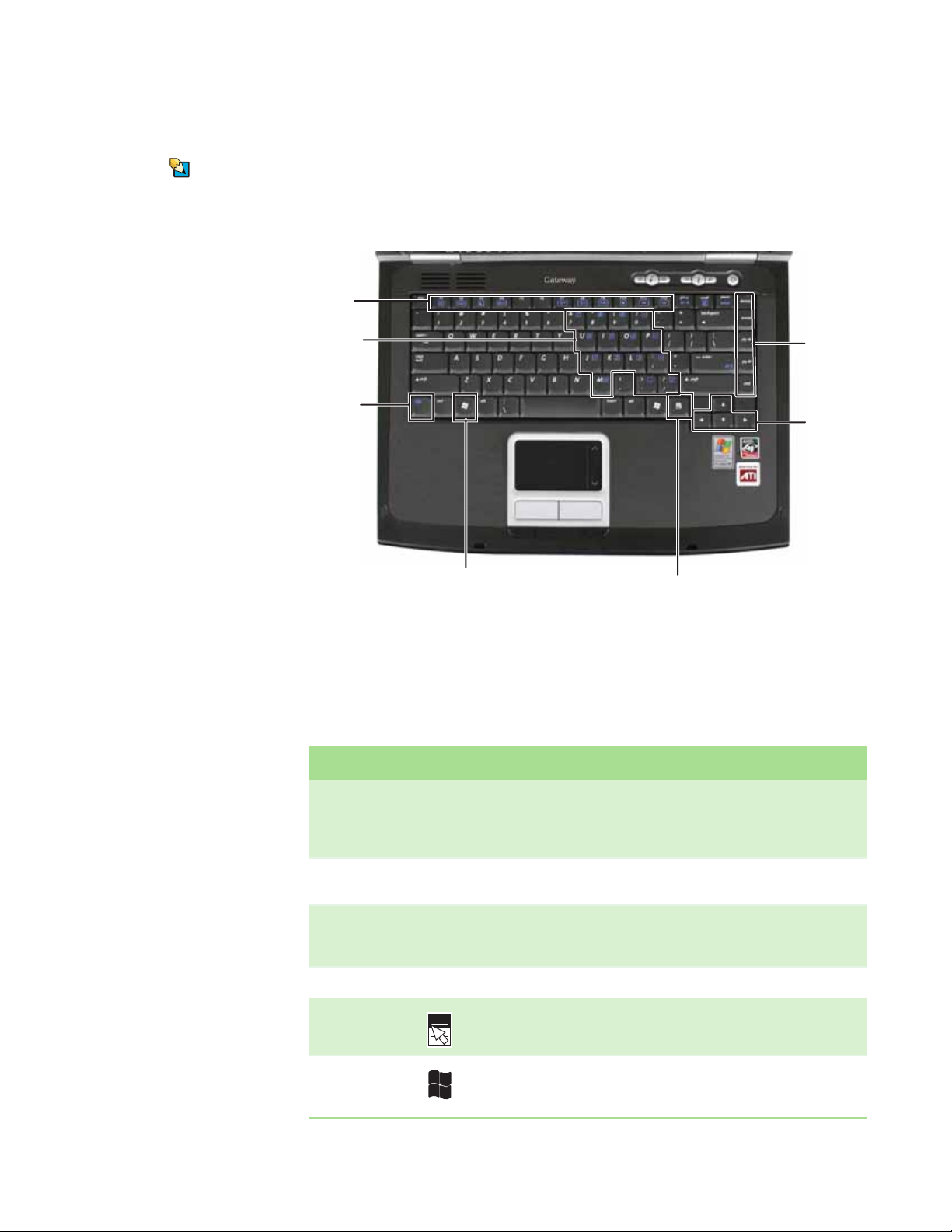

Keyboard area

Identifying features

Multi-function

buttons

Power button

Keyboard

Status indicators

To uc h pa d

Component Icon Description

Multi-function buttons

Status indicators Inform you when a drive is in use or when a button has been pressed that affects

Press these buttons to open programs assigned to them or control the volume. For more information, see “Using the multi-function buttons” on page 21.

how the keyboard is used. For more information, see “Using the status indicators”

on page 17.

To uc h pa d Provides all the functionality of a mouse. For more information, see “Using the

Keyboard Provides all the features of a full-sized, computer keyboard. For more

Power button Press to turn the power on or off. You can also configure the power button for

EZ Pad touchpad” on page 22.

information, see “Using the keyboard” on page 18.

Standby/Resume mode. For more information on configuring the power button mode, see “Changing Power-Saving Settings” in the online User Guide.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Connecting the AC adapter

Do not attempt to disassemble the AC

adapter. The AC adapter has no

user-replaceable or user-serviceable

parts inside. The AC adapter has

dangerous voltages that can cause

serious injury or death. Contact Gateway

about returning defective AC adapters.

Caution

Warnin g

Make sure that you use the AC adapter

that came with your notebook or one of

the same type purchased from Gateway.

Replace the power cord if it becomes

damaged. The replacement cord must be

of the same type and voltage rating as

the original cord or your notebook may

If the battery charge indicator does not

turn off after three hours, contact

Gateway Customer Care at

be damaged.

Important

support.gateway.com

Important

If the battery is not fully charged before

you use your notebook on battery power

for the first time, the battery life may be

much shorter than you expect. If the

battery life seems short even after being

charged for three hours, the battery may

need to be recalibrated. For information

on recalibrating the battery, see

“Recalibrating the battery” on page 31.

You can run your notebook using an AC adapter or your notebook’s battery. The battery was shipped to you partially charged. You should use the AC adapter right away to fully charge the battery. Allow three hours for the battery to fully charge.

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

2 Connect the AC adapter to your notebook’s power connector.

3 Plug the power cord into a wall outlet. The AC power indicator turns on

(see “Using the status indicators” on page 17 for the location of the AC power indicator). If the AC power indicator does not turn on, complete the following steps until it turns on:

a Unplug the adapter from your notebook, then plug it back in.

b Press FN+F1 to toggle the status lights on and off.

4 When you finish using your notebook for the first time, turn off your

notebook and leave your notebook connected to AC power until the battery charge indicator turns off.

www.gateway.com

Protecting from power source problems

Connecting the dial-up modem

High voltages can enter your notebook

through both the power cord and the

modem connection. To protect your notebook and avoid electrical shock, use a surge protector. If you have a telephone modem, use a surge protector that has a modem jack. If you have a cable modem,

use a surge protector that has an

antenna/cable TV jack. During an

electrical storm, unplug both the surge

protector and the modem.

Warnin g

During a power surge, the voltage level of electricity coming into your notebook can increase to levels far above normal levels and cause data loss or system damage. Protect your notebook and peripheral devices by connecting them to a surge protector, which absorbs voltage surges and prevents them from reaching your notebook.

Connecting the dial-up modem

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

Warnin g

cord.

Your notebook has a built-in 56K modem that you can use to connect to a standard telephone line.

To connect the modem:

1 Insert one end of the modem cable into the modem jack on the back

of your notebook.

2 Insert the other end of the modem cable into a telephone wall jack. The

modem will not work with digital or PBX telephone lines.

3 Start your notebook, then start your communications program.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Connecting to a cable or DSL modem or to an Ethernet network

Your notebook has a network jack that you can use to connect to a cable or DSL modem or to an Ethernet network.

To connect to a cable or DSL modem or to an Ethernet network:

1 Insert one end of the network cable into the network jack on the back

of your notebook.

2 Insert the other end of the network cable into a cable modem, DSL

modem, or Ethernet network jack.

www.gateway.com

Starting your notebook

Do not work for long periods with the

notebook resting on your lap. If the air

vents are blocked, the notebook may

become hot enough to harm your skin.

Provide adequate space around your

notebook so air vents are not obstructed.

Do not use the notebook on a bed, sofa,

For more information about changing

the power button mode, see “Changing

Power-Saving Settings” in the online User

rug, or other similar surface.

Warnin g

Caution

Tips & Tricks

Guide.

To start your notebook:

1 Slide the latch on the front of your notebook, then lift the LCD panel.

2 Press the power button located above the keyboard.

3 If you are starting your notebook for the first time, follow the on-screen

instructions to set up your notebook.

Waking up your notebook

For more information about Standby

mode, see “Changing power modes” in

Tips & Tricks

the online User Guide.

When you have not used your notebook for several minutes or if you close the LCD panel without turning off your notebook, it may enter a power-saving mode called Standby. While in Standby, the power indicator flashes. If your notebook is in Standby mode, press the power button to “wake” it up.

T urning off your notebook

If for some reason you cannot use the

Turn Off Computer option in Windows to

turn off your notebook, press and hold

the power button for about five seconds,

Important

then release it.

To turn off your notebook:

1 Click Start, then click Turn Of f Computer. The Turn Off Computer dialog

box opens.

2 Click Turn O ff. Windows shuts down and turns off your notebook.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Restarting (rebooting) your notebook

If your notebook does not turn off

immediately, complete the following

steps until the notebook turns off:

1. Press and hold the power button for about five seconds, then release it.

2. Unplug the power cord and re move the battery for more than 10 seconds.

Important

If your notebook does not respond to keyboard, touchpad, or mouse input, you may have to close programs that are not responding. If closing unresponsive programs does not restore your notebook to normal operation, you may have to restart (reboot) your notebook.

To close unresponsive programs and restart your notebook:

1 Press CTRL+ALT+DEL. The Windows Security dialog box opens.

2 Click Task Man ager. The Windows Task Manager dialog box opens.

3 Click the program that is not responding.

4 Click End Task. 5 Click X in the top-right corner of the Windows Task Manager dialog box.

6 If your notebook does not respond, turn it off, wait ten seconds, then turn

it on again.

As a part of the regular startup process, a program to check the disk status runs automatically. When the checks are finished, Windows starts.

www.gateway.com

Using the status indicators

If none of the indicators are on, you may need to press F

N+F1 to toggle the status

indicators on and off.

Important

Status indicators inform you when a drive is being used or when a button has been pressed that affects how the keyboard is used. The status indicators are located below the touchpad.

Hard driveAC power

Wireless network

Num lock

Caps lock

Indicator Icon Description

■

AC power

Wireless network (optional)

LED on - AC power is connected.

■

LED off - AC power is not connected.

■

LED on - Wireless network is turned on.

■

LED off - Wireless network is turned off.

Caps lock

Num lock

Drive

■

LED on - Caps lock is turned on.

■

LED off - Caps lock is turned off.

■

LED on - Numeric keypad is turned on.

■

LED off - Numeric keypad is turned off.

■

LED blinking - The hard drive or DVD drive is in use.

■

LED off - The hard drive or DVD drive is not in use.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the keyboard

You can attach an external keyboard to

the notebook using a USB port. You do

not need to shut down the notebook to

Tips & Tricks

connect a USB keyboard.

Your notebook features a full-size keyboard that functions the same as a desktop computer keyboard. Many of the keys have been assigned alternate functions, including shortcut keys for Windows, function keys for specific system operations, and the Num Lock keys for the numeric keypad.

Function keys/

System keys

Numeric

keypa d

N key

Windows key

Application key

Navigation keys

Arrow keys

Key types

The keyboard has several different types of keys. Some keys perform specific actions when pressed alone and other actions when pressed in combination with another key.

Key type Icon Description

Function keys Press these keys labeled F1 to F12 to perform actions in programs. For example,

pressing F1 may open help. Each program uses different function keys for different purposes. See the program documentation to find out more about the function key actions.

System keys Press these colored keys in combination with the F

actions. For more information, see “System key combinations” on page19.

Navigation keys Press these keys to move the cursor to the beginning of a line, to the end of a

line, up the page, down the page, to the beginning of a document, or to the end of a document.

Arrow keys Press these keys to move the cursor up, down, right, or left.

Application key Press this key for quick access to shortcut menus and help assistants in Windows.

Windows key Press this key to open the Windows Start menu. This key can also be used in

combination with other keys to open utilities like F (Search utility), R (Run utility), and E (Explorer utility).

N key to perform specific

www.gateway.com

Using the keyboard

Key type Icon Description

System ke y combinat ions

FN key Press the FN key in combination with a colored system key to perform a specific

action.

Numeric keypad Use these keys to type numbers when the numeric keypad is turned on. Press

N+ to turn on the numeric keypad.

When you press the FN key and a system key at the same time, your notebook performs the action identified by the text or icon on the key.

Press and hold FN, then

To...

press this system key...

Toggle the status indicators on or off. For more information, see “Using

the status indicators” on page 17.

Turn the optional wireless network on or off. For more information, see the printed network guide that came with your notebook. Warni ng: Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. 802.11G (also known as wireless Ethernet or Wifi) communication devices are examples of devices that provide wireless communication.

Enter Standby mode. Press the power button to leave Standby mode. For more information, see “Changing Power-Saving Settings” in the online

User Guide.

Toggle the notebook display in the following order:

■

The LCD

■

An external monitor or projector (a monitor or projector must be plugged into the monitor port on your notebook)

■

Both displays at the same time

■

S-Video

For more information, see Viewing the display on a projector or monitor and Viewing the display on a television in the User’s Guide.

Decrease the LCD panel brightness.

Increase the LCD panel brightness.

Play or Pause the CD or DVD.

Stop playing the CD or DVD.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Press and hold FN, then press this system key...

To...

Skip back one CD song or DVD track.

Skip ahead one CD song or DVD track.

Turn on NumLock so you can use the numeric keypad. Press this key combination again to turn off Num Lock. The Num Lock status indicator appears when this function is turned on.

www.gateway.com

Using the multi-function buttons

Press the multi-function buttons to open the programs associated with them.

Using the multi-function buttons

Music player

Volume down

Volume up

E-mail

Button Icon Press to...

Volume down Turn the volume d own.

Press the Volume Up and Volume Down buttons at the same time to mute or un-mute the sound.

Internet

Music player Open your default music player.

Volume up Turn the volume up.

E-mail Open your default e-mail program.

Internet Open your default Web browser.

Search Open the Search Results window.

Press the Volume Up and Volume Down buttons at the same time to mute or un-mute the sound.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the EZ Pad touchpad

For instructions on how to adjust the

double-click speed, pointer speed,

right-hand or left-hand configuration,

and other touchpad settings, see

“Changing the mouse or touchpad

settings” in the online User Guide.

You received your notebook with the EZ

Pad touchpad set to only accept clicking

by using the touchpad buttons. You can change this feature to allow tapping on

the touchpad to simulate clicking the left

button. For more information, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

The EZ Pad™ consists of a touchpad, two buttons, and a scroll zone.

To uc h pa d

Scroll zone

Right button

Left button

When you move your finger on the touchpad, the pointer (arrow) on the screen moves in the same direction. You can use the scroll zone to scroll through documents. Use of the scroll zone may vary from program to program.

You can use the EZ-Pad left and right buttons below the touchpad to select objects.

To.. . Do this...

Move the pointer on the screen.

Mo ve you r f in ge r a rou nd on the touchpad. If you run out of space and need to move the pointer farther, lift your finger, move it to the middle of the touchpad, then continue moving your finger.

www.gateway.com

Adjusting the volume

To.. . Do this...

Select an object on the screen.

Start a program or open a file or folder.

Access a shortcut menu or find more information about an object on the screen.

Move an object on the screen.

Position the pointer over the object. Quickly press and release the left button once. This action is called clicking.

Position the pointer over the object. Press the left button twice in rapid succession. This action is called double-clicking.

Position the pointer over the object. Quickly press and release the right button once. This action is called right-clicking.

Position the pointer over the object. Press the left button and hold it down, then use the touchpad to move (drag) the object to the appropriate part of the screen. Release the button to drop the object where you want it.

Adjusting the volume

For instructions on how to adjust the

volume in Windows, see “Adjusting the

Volume” in the online User Guide.

Tips & Tricks

You can use the volume control to adjust the overall volume of your notebook.

To adjust the overall volume level using hardware controls:

■ If you are using external speakers, turn the knob on the front of the

speakers.

-OR-

Use the volume control multi-function buttons. For more information, see

“Using the multi-function buttons” on page 21.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

T urning your wireless radio on or off

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

IEEE 802.11a, IEEE 802.11b, and IEEE

802.11g communication devices are

examples of devices that provide wireless

communication.

Warnin g

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports,

hospitals, and oxygen or flammable gas

laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in

environments where you are uncerta in of

Warnin g

the sanction to use wireless devices, ask

authorization prior to use or turning on

For more information about using your

“Wireless Networking” in the online User

the applicable authority for

the wireless device.

Tips & Tricks

notebook on a wireless network, see

Guide.

Your Gateway notebook may have a factory-installed wireless networking mini-PCI card.

To turn the wireless radio on or off:

■ Press FN + F2. The wireless status indicator turns on or off. For the location

of the wireless status indicator, see “Using the status indicators” on

page 17.

www.gateway.com

Using the DVD drive

Identifying drive types

Using the DVD drive

You can use your notebook to enjoy a wide variety of multimedia features.

Your Gateway notebook may contain one of the following drive types. Look on the front of the drive for one or more of the following logos:

If your drive has this logo... This is your drive type... Use your drive for...

ROM/R/RW

DVD drive

Combination DVD/CD-RW drive

Multi-format double layer DVD±RW/CD-RW drive

Installing programs, playing audio CDs, playing DVDs, and accessing data. You cannot use this drive to create CDs or DVDs.

Installing programs, playing audio CDs, playing DVDs, accessing data, and recording music and data to recordable CDs. You cannot use this drive to create DVDs.

Installing programs, playing audio CDs, playing DVDs, accessing data, recording music and data to CD-R or CD-RW discs, and recording video and data to DVD-R, DVD+R, DVD-RW, DVD+RW, or double layer DVD+R discs. Note: To use the double layer capability of the double layer recordable DVD drive, the blank DVDs you purchase must state Double Layer, Dual Layer, or DL. Using other types of blank media will result in less capacity.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Inserting a CD or DVD

Eject button

Activity indicator

To insert a CD or DVD:

1 Press the eject button on the DVD drive. After the tray opens slightly, pull

the disc tray completely open.

Manual eject hole

When you place a single-sided disc in the

tray, make sure that the label side is

facing up. If the disc has two playable

sides, place the disc so the name of the

side you want to play is facing up.

Important

2 Place the disc in the tray with the label facing up, then press down carefully

on the disc until it snaps into place.

3 Push the tray in until it is closed.

www.gateway.com

Using the memory card reader

You can use memory cards to transfer pictures from a digital camera to your notebook. You can also use the memory card reader to transfer data between your notebook and a device that uses memory cards, such as a PDA, MP3 player, or cellular telephone.

Using the memory card reader

Memory card types

Left slot

Left slot eject button

The memory card reader supports the following card types.

Card Type Slot

CompactFlash® left

Right slot

Inserting a memory card

IBM Microdrive™ left

Memory Stick® right

Memory Stick Pro® right

MultiMediaCard™ right

Secure Digital™ right

Each slot is assigned a different drive letter (for example, the E: and F: drives) so data can be transferred from one media type to another.

To insert a memory card:

1 Remove the protector from the memory card slot. To remove the

protector, follow the steps in “Removing a memory card” on page 28.

2 Insert the memory card into the memory card slot with the label facing

up and the arrow on the label pointing towards the notebook.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using a memory card

To access a file on a memory card:

1 Click Start, then click My Computer.

2 Double-click the drive letter (for example, the E: drive), then double-click

the file name.

Removing a memory card

Important

hardware icon in the taskbar to

remove the memory card. If you use the

remove hardware icon, your notebook

may not recognize your memory card

reader until you restart your notebook.

Do not use the remove

To remove a memory card:

1 If you are removing a card from the left slot, press the eject button. The

memory card pops out slightly.

-OR-

If you are removing a card from the right slot, push the memory card into the notebook. The memory card pops out slightly.

2 Pull the memory card out of the notebook.

3 Insert the protector into the memory card slot.

Adding and removing a PC Card

Your notebook has a PC Card slot (also known as a PCMCIA card slot). This slot accepts one Type II card. You do not need to restart your notebook when changing most cards because your notebook supports hot-swapping. Hot-swapping means that you can insert a PC Card while your notebook is running. If your PC Card does not work after hot-swapping, see the PC Card manufacturer’s documentation for further information.

To insert a PC Card:

■ Push the card firmly into the PC Card slot label-side up until the outer edge

of the card is flush with the side of your notebook.

www.gateway.com

If the remove hardware icon does not appear on the taskbar, click the show

hidden icons button.

Important

Changing batteries

To remove a PC Card:

1 Click the remove hardware icon in the taskbar, the PC Card name, then

click Stop.

-OR-

Turn off your notebook.

2 Release the eject button by pressing the PC Card eject button once.

3 Eject the PC Card by pressing the eject button again.

Changing batteries

Danger of explosion if battery is

Replace only with a battery specifically

manufactured for your Gateway

notebook. Discard used batteries

according to local hazardous material

The battery used in this device may

present a fire or chemical burn hazard if

mishandled. Do not disassemble, heat

above 212°F (100°C), or incinerate.

Dispose of used battery promptly. Keep

Warnin g

incorrectly replaced.

regulations.

away from children.

If your notebook is connected to AC power, you can change the battery while the notebook is turned on. If your notebook is not plugged into an AC outlet, you must turn the notebook off while changing the battery.

To change the battery:

1 If your notebook is on and is connected to AC power, go to Step 2.

-OR-

If your notebook is on and is no t plug ged into an AC out let, save you r work and turn off your notebook.

2 Close the LCD panel.

3 Turn your notebook over so the bottom is facing up.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

4 Slide the battery lock to the unlocked position, then slide and hold the

battery release latch.

5 Lift the battery out of the bay.

6 Place a recharged battery into the bay and press down until it snaps into

place.

7 Slide the battery lock to the lock position.

8 Turn your notebook over.

9 Open the LCD panel.

www.gateway.com

Recalibrating the battery

Do not interrupt the battery recalibration

process. If recalibration is interrupted,

you must start the process over again.

Important

If your notebook unexpectedly goes into Standby mode while you are using it but the battery charge is not low, you may need to recalibrate your battery. You should also recalibrate the battery periodically to maintain the accuracy of the battery gauge.

To recalibrate the battery:

1 Close all open files and programs.

2 Connect your notebook to AC power and let the battery charge

completely.

3 Disconnect the AC power and restart your notebook.

4 Completely discharge the battery by doing the following:

a From the desktop, right-click on the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

Always On.

d Click the Alarms tab.

e Click to clear the Low battery alarm and Critical battery alarm

check boxes. Let the battery drain until your notebook automatically turns off.

f Click OK.

5 After the battery is completely drained, reconnect your notebook to AC

power.

6 Charge the battery completely until the battery status indicator turns blue.

7 When you are ready to use your notebook again, do the following:

a From the desktop, right-click the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

Portable/Laptop.

d Click the Alarms tab.

e Click to select the Low battery alarm and Critical battery alarm

check boxes.

f Click OK.

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Ordering accessories

To order accessories, visit the Accessory Store at accessories.gateway.com.

Batteries and automobile/airplane power adapters

If you run your notebook on battery power for extended periods, you may want to buy an additional battery so you can swap batteries when necessary. See

“Changing batteries” on page 29 for more information about using an

additional battery.

With an automobile/airplane power adapter, you can save battery power by plugging your notebook into an automobile cigarette lighter or an airplane in-flight power receptacle.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for accessories or supplies.

Memory

Large programs, such as multimedia games or graphics programs, use a lot of memory. If your programs are running more slowly than you think they should, try adding more memory. See “Adding or replacing memory” on page 34 for more information.

Printers

You can attach almost any type of printer to your notebook. The most common types are inkjet and laser printers, which print in color or black and white.

Inkjet printers and cartridges are relatively inexpensive, but they are slower than laser printers. Using an inkjet color printer, you can print pictures, banners, and greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but they print much faster than inkjet printers. Laser printers are better than inkjet printers when you are printing large documents.

USB flash drive

Use a USB flash drive for storing files or transferring files to another computer.

CHAPTER 3

Maintaining and Upgrading Your Notebook

• Preventing static electricity discharge

• Adding or replacing memory

• Replacing the DVD drive

• Replacing the hard drive kit

• Replacing the keyboard

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Preventing static electricity discharge

To avoid exposure to dangerous electri cal voltages and moving parts, turn off your

notebook and unplug the power cord,

modem cable, and network cable before

To prevent risk of electric shock, do not

insert any object in to the vent holes of the

Warnin g

opening the case.

Warnin g

notebook.

The components inside your notebook are extremely sensitive to static electricity, also known as electrostatic discharge (ESD).

Before installing or replacing components, follow these guidelines:

■ Avoid static-causing surfaces such as carpeted floors, plastic, and packing

foam.

■ Remove components from their antistatic bags only when you are ready

to use them. Do not lay components on the outside of antistatic bags because only the inside of the bags provide electrostatic protection.

Before installing or replacing

components, you should read and

understand the information in this

Important

section.

■ Always hold components by their edges. Avoid touching the edge

connectors. Never slide components over any surface.

■ Wear a grounding wrist strap (available at most electronics stores) and

attach it to a bare metal part of your workbench or other grounded connection.

■ Touch a bare metal surface on your workbench or other grounded object.

Adding or replacing memory

Use only memory modules designed for

your Gateway notebook.

You need a small Phillips screwdriver to

Important

Tools Required

replace memory.

Your notebook uses memory modules called SO-DIMMs (Small Outline Dual Inline Memory Modules). The modules are available in various capacities and any module can be placed in the slot.

Memory bay

To add or replace memory modules:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 34.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

4 Disconnect all peripheral devices and remove any PC cards.

www.gateway.com

Adding or replacing memory

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 29.

6 Remove the memory bay cover screw.

Screw

7 Open the memory bay cover, then remove it.

8 Gently press outward on the clip at each end of the memory module until

the module tilts upward.

Clip

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

9 Pull the memory module out of the slot.

10 Hold the new or replacement module at a 30-degree angle and press it

into the empty memory slot. This module is keyed so it can only be inserted in one direction. If the module does not fit, make sure that the notch in the module lines up with the tab in the memory bay.

11 Replace the memory bay cover, then replace the cover screw.

12 Insert the battery, then turn your notebook over.

13 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

Replacing the DVD drive

If your DVD drive becomes damaged, you can replace it with a similar drive obtained from Gateway.

Replace the DVD drive only with a similar

drive provided by Gateway.

You need a small Phillips screwdriver to

Important

Tools Required

replace the DVD drive.

To replace the DVD drive:

1 Make sure that the DVD drive is empty.

2 Follow the guidelines under “Preventing static electricity discharge” on

page 34.

3 Turn off your notebook.

4 Disconnect the AC adapter, modem cable, and network cable.

5 Disconnect all peripheral devices and remove any PC Cards.

6 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 29.

www.gateway.com

Replacing the DVD drive

7 Remove the two DVD drive screws.

Screw

8 Insert a straightened paper clip into the DVD drive’s manual eject hole,

push in the paper clip to eject the drive tray, then pull the drive tray open.

9 Carefully slide the drive out of the drive bay.

10 Slide the new DVD drive into the drive bay. Make sure that the drive fits

securely in the bay.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

11 Secure the DVD drive with the two screws removed in Step 7.

12 Insert the battery, then turn your notebook over.

13 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

Replacing the hard drive kit

You need a small Phillips screwdriver to

Tools Required

replace the hard drive kit.

If you would like more hard drive capacity, you can replace your original drive with a higher-capacity drive.

Hard drive bay

To replace the hard drive kit:

1 Create a Drivers and Applications Recovery disc. For more information, see

“Creating Drivers and Applications Recovery discs” in the online User Guide.

2 Print the “Recovering Your System” chapter from the online User Guide for

use in Step 19.

3 Back up any data you want to transfer to the new hard drive. For more

information, see “Backing up files” in the User Guide.

4 Follow the guidelines under “Preventing static electricity discharge” on

page 34.

5 Turn off your notebook.

6 Disconnect the AC adapter, modem cable, and network cable.

7 Disconnect all peripheral devices and remove any PC cards.

8 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 29.

www.gateway.com

Replacing the hard drive kit

9 Remove the hard drive kit screw.

Screw

10 Slide the hard drive kit to remove it.

11 If your new hard drive already includes the hard drive bracket, go to

Step 16.

-OR-

If you need to move the hard drive bracket from your old hard drive to your new hard drive, go to Step 12.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

12 Remove the four screws that secure the hard drive to the hard drive kit

bracket.

Screw

www.gateway.com

Replacing the hard drive kit

13 Remove the bracket from the old drive.

14 Insert the new drive into the bracket with the label side up and so the

screw holes line up.

15 Replace the four screws that secure the bracket to the drive.

16 Slide the new hard drive kit into your notebook, then replace the screw

that secures the hard drive kit to your notebook.

17 Insert the battery, then turn your notebook over.

18 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

19 For instructions on installing Windows, your drivers, and your applications,

see the Recovering Your System chapter you printed in Step 2.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Replacing the keyboard

Replace the keyboard only with a similar

keyboard provided by Gateway.

You need a small Phillips and a small

flat-blade screwdriver to replace the

Important

Tools Required

keyboard.

Removing the keyboard

If your keyboard becomes damaged, you can replace it with a similar keyboard obtained from Gateway.

To remove the keyboard:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 34.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

4 Disconnect all peripheral devices and remove any PC Cards.

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 29.

6 Remove the two keyboard cover screws.

Screw Screw

7 Turn the notebook over so the top is facing up.

8 Open the LCD panel to the fully open position.

www.gateway.com

Replacing the keyboard

9 Insert the small flat-blade screwdriver under the bottom of each hinge

cover and gently loosen them.

Inserting a piece of cloth between the

screwdriver and keyboard will help

prevent damage to the notebook.

Important

10 Insert the small flat-blade screwdriver under the bottom of the keyboard

cover and gently pry it up.

11 Remove the two keyboard screws.

Screw Screw

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

12 Lift the back edge of the keyboard slightly, then carefully push it toward

the LCD panel to release the keyboard retaining tabs. Be careful not to damage the LCD panel.

13 Lay the keyboard face down on the palm rest.

www.gateway.com

Replacing the keyboard

14 Lift the brown keyboard connector clip and remove the keyboard cable.

Be careful not to touch or damage any other components.

Keyboard

connector

clip

Installing the keyboard

Important

The keyboard cable is correctly orien ted if

it is not twisted.

15 Lift the old keyboard away from the notebook. The keyboard is now

completely detached from the notebook.

To install the keyboard:

1 Place the new keyboard keys-down on your notebook with the space bar

away from you.

2 Make sure that the brown keyboard connector clip is raised, insert the

cable into the connector, then slide the clip down to lock the connector in place.

3 Rotate the keyboard toward the LCD panel until the keyboard is

almost face-up.

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

4 Insert the tabs on the front edge of the keyboard into the slot under the

palm rest. It may be necessary to press down on the keyboard keys along the front edge of the keyboard to seat the retaining tabs into their corresponding slots.

5 Gently press the keyboard down until it is flat all the way across. The

keyboard should easily fall into place. Be careful not to damage the LCD panel.

6 Secure the keyboard with the two screws removed in Step 11.

If the cover is not correctly replaced, your

notebook could be damaged when you

try to close the LCD panel.

Caution

7 Place the keyboard cover on the notebook. Press down on the cover in

several places until it clicks in place.

The keyboard cover is correctly mounted when you can run your finger along the cover and find no loose spots. The cover should be flat all the way across.

8 Press down on the hinge covers until they click in place.

9 Secure the keyboard cover with the two screws removed in Step 6.

10 Insert the battery, then turn your notebook over.

11 Connect the power adapter, the modem cable, and the network cable,

then turn on your notebook.

APPENDIX A

Safety, Regulatory, and Legal Information

• Important safety information

• Regulatory compliance statements

• Environmental information

•Notices

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Important safety information

Always follow these instructions to help

guard against personal injury and

damage to your Gateway system.

Warnin g

Do not use Gateway products in areas

classified as hazardous locations. Such

areas include patient care areas of

medical and dental facilities,

oxygen-laden environments, or

industrial facilities.

Warnin g

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

cord.

Your Gateway notebook is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this notebook, it is important that the safety instructions marked on the notebook and in the documentation are followed.

Setting up your system

■ Read and follow all instructions marked on the notebook and in the

documentation before you operate your notebook. Retain all safety and operating instructions for future use.

■ Do not use this notebook near water or a heat source such as a radiator.

■ Set up the notebook on a stable work surface.

■ The notebook should be operated only from the type of power source

indicated on the rating label.

■ If your notebook has a voltage selector switch, make sure that the switch

is in the proper position for your area. The voltage selector switch is set at the factory to the correct voltage.

■ Openings in the notebook case are provided for ventilation. Do not block

or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the notebook for ventilation when you set up your work area. Never insert objects of any kind into the notebook ventilation openings.

■ Some notebook are equipped with a three-wire power cord to make sure

that the notebook is properly grounded when in use. The plug on this cord will fit only into a grounding-type outlet. This is a safety feature. If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet.

■ If you use an extension cord with this notebook, make sure that the total

ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.

■ If your notebook is fitted with a TV Tuner, cable, or satellite receiver card,

make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and buildup of static charges.

Care during use

■ Do not walk on the power cord or allow anything to rest on it.

■ Do not spill anything on the notebook. The best way to avoid spills is to

avoid eating and drinking near your notebook.

■ Some notebooks have a replaceable CMOS battery on the system board.

There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions.

■ When the notebook is turned off, a small amount of electrical current still

flows through the notebook. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the notebook.

www.gateway.com

Important safety information

■ Unplug the notebook from the wall outlet and refer servicing to qualified

personnel if:

■ The power cord or plug is damaged.

■ Liquid has been spilled into the notebook.

■ The notebook does not operate properly when the operating

instructions are followed.

■ The notebook was dropped or the cabinet is damaged.

■ The notebook performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Regulatory compliance statements

Wireless guidance

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

802.11b (also known as wireless Ethernet

or Wifi) and Bluetooth communication

devices are examples of devices that

provide wireless communication.

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to use or turning on

the applicable authority for

Warnin g

the wireless device.

Warnin g

If your notebook came equipped with an

internal embedded wireless device, do

not operate the wireless device unless all

covers and shields are in place and the

notebook is fully assembled.

Caution

Wireless devices are not user serviceable.

Do not modify them in any way. Modification to a wireless d evice will void the authorization to use it . Please contact

Only use drivers approved for the country

in which the device will be used. See the

Gateway System Restoration Kit, or

contact Gateway Customer Care for

Gateway for service.

Caution

additional information.

Low power, Radio transmitting type devices (radio frequency (RF) wireless communication devices), may be present (e mbed ded) in yo ur no tebo ok s yste m. These devices may operate in the 2.4 GHz (i.e. 802.11b/g LAN & Bluetooth),

5.2 GHz (i.e. 802.11a LAN), and traditional cellular or PCS cellular bands (i.e. Cellular data modem). The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your notebook is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, Gateway believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

Measurements have been performed to show that the RF exposure is below what is considered safe limits; however care should be taken to make sure the user or bystanders keep the transmitter away from their body when the wireless device is transmitting. The transmitting antenna installed in the top third of the lid should be used in a manner to maintain 20 cm (8 inches) from user’s or bystander’s bodies.

The wireless devices installed in this system are intended to be used indoors. In some areas, use of these devices outdoors is prohibited.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed to the left.

Every country has different restrictions on

the use of wireless devices. Since your

notebook is equipped with a wireless device, when traveling between countries with your notebook, check with the local

Radio Approval authorities prior to any

move or trip for any restrictions on the

use of a wireless device in the destination

Important

count ry.

www.gateway.com

United States of America

Regulatory compliance statements

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than the one provided

In order to comply with FCC requirements this transmitter must not be operated (or co-located) in conjunction with any other

transmitter or antenna installed in the

Caution

Gateway for service.

Caution

with the notebook.

Caution

notebook.

Federal Communications Commission (FCC) Intentional emitter per FCC Part 15

Low power, Radio transmitter type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band and/or 5.15 – 5.35 GHz band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

The wireless devices installed in this system are intended to be used indoors. In some areas, use of these devices outdoors is prohibited.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna

■ Increase the separation between the equipment and receiver

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

■ Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are: shielded video cable when an external monitor is connected. These accessories are required to be used in order to ensure compliance with FCC rules.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

FCC declaration of conformity

Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to

Recycle or dispose of the used notebook

properly according to federal, state and

operate the notebook.

Caution

local laws.

Warnin g California Proposition 65 Warning

Warnin g Mercury Warning

Responsible party:

Gateway Companies, Inc. 610 Gateway Drive, North Sioux City, SD 57049 (605) 232-2000 Fax: (605) 232-2023

Product:

■ Gateway 7000 series

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or reproductive harm.

The lamp in this display contains mercury. Do not put in trash. Recycle or dispose as hazardous waste.

Telecommunications per Part 68 of the Code of Federal Regulations (CFR47) (applicable to products fitted with USA modems)

Your modem complies with Part 68 of the Code of Federal Regulations (CFR 47) rules. On the computer or modem card is a label that contains the FCC registration number and Ringer Equivalence Number (REN) for this device. If requested, this information must be provided to the telephone company.

A telephone line cord with a modular plug is required for use with this device. The modem is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68-compliant. See installation instructions for details.

The Ringer Equivalence Number (REN) is used to determine the number of devices which may be connected to the telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

If this device causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. The telephone company may request that you disconnect the equipment until the problem is resolved.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of this equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

This equipment cannot be used on telephone company-provided coin service. Connection to party line service is subject to state tariffs. Contact the state public utility commission or public service commission for information.

www.gateway.com

Canada

To prevent radio interference to licensed

service or co-channel Mobile Satellite

systems, this device is intended to be

operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that

is installed outdoors is subject to

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than provide with the

The 802.11A radio LAN your notebook

may have been equipped with operates

in the same frequency range as high

power radar, which has priority use, and

may damage the radio LAN if both are

present and being used in the same area.

Gateway for service.

Caution

licensing.

Caution

notebook.

Caution

Regulatory compliance statements

When programming or making test calls to emergency numbers:

■ Remain on the line and briefly explain to the dispatcher the reason for the

call.

■ Perform such activities in the off-peak hours such as early morning or late

evenings.

The United States Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent, an identification of the business, other entity, or other individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual. Refer to your fax communication software documentation for details on how to comply with the fax-branding requirement.

Industry Canada (IC) Intentional emitter per RSS 210

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant mo dem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

To avoid electrical shock or equipment

malfunction do not attempt to make

electrical ground connections by yourself.

Contact the appropriate inspection

authority or an electrician, as

Warnin g

appropriate.

Japan

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an inter face may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

Japanese Modem Notice

www.gateway.com

Laser safety statement

Environmental information

Use of controls or adjustments or

performance of procedures other than

those specified in this manual may result

in hazardous radiation exposure. To

prevent exposure to laser beams, do not

try to open the enclosure of a CD or DVD

Warnin g

drive.

All Gateway systems equipped with CD and DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

EPA ENERGY STAR

As an ENERGY STAR® Partner, Gateway has determined that this product meets the ENERGY STAR guidelines for energy efficiency when used with a computer equipped with a Display Power

ENERGY STAR

Management System.

Environmental information

The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product may contain substances known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, Gateway provides the following information on how you can responsibly recycle or reuse most of the materials in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste stream (residential garbage collection). The “Crossed-Out Waste Bin” label affixed to this product is your reminder to dispose of your “end of life” product properly.

Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and reusable. You can do your part for the environment by following these simple steps:

■ When your electrical or electronic equipment is no longer useful to you,

“take it back” to your local or regional waste collection administration for recycling.

■ In some cases, your “end of life” product may be “traded in” for credit

towards the purchase of new Gateway equipment. Call Gateway to see if this program is available in your area.

■ If you need further assistance in recycling, reusing, or trading in your “end

of life” product, you may contact us at the Customer Care number listed in your product’s user guide and we will be glad to help you with your effort.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly.

Notices

This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.

. In no event will Gateway be liable for

In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it describes at any time, without notices or obligation.

Trademark Acknowledgments

Gateway and the Black-and-White Spot Design are trademarks or registered trademarks of Gateway, Inc. in the U.S. and other countries. SpotShop, Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside logo, and Pentium are registered trademarks and MMX is a trademark of Intel Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered trademarks of Microsoft Corporation. All other product names mentioned herein are used for identification purposes only, and may be the trademarks or registered trademarks of their respective companies.

www.gateway.com

Notices

Macrovision statement

If your not ebook has a DVD d riv e and an analog TV Out port, the follo wing paragrap h applies:

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Index

AC adapter

connecting connector 9

accessories

purchasing

safety precautions 49 airplane power adapter 32 application key 18 arrow keys 18 audio

adjusting volume 23

back button 20

headphone jack 9

microphone jack 9

muting 23

next button 20

pause button 19

play button 19

stop button 19 automobile power adapter 32

battery

bay

changing 29

charge indicator 6

charging 12

installing 29

latch 10

locating 10

purchasing 32

recalibrating 31

recharging 12

release latch 10

replacing 29 bays

battery 29

hard drive 10

memory 10, 34 brightness

adjusting

system keys 19

cable lock 9 cable modem 14 Caps Lock indicator 17 cards

inserting memory card

inserting PC Card 28

memory card slot 7

PC Card slot 7

removing memory card 27 removing PC Card 28 slots 27, 28 types of memory cards

supported carrying case 32 CD

inserting

CD drive

See DVD drive

cellular phone

memory cards Certificate of Authenticity 3 clicking 23 closing unresponsive program 16 connecting

AC adapter

dial-up modem 13

external keyboard 18

keyboard 18

to cable modem 14

to DSL modem 14

to Ethernet 14

to network 14 connections

audio

broadband Internet 9, 14

cable modem 9, 14

dial-up modem 13

digital camera 7, 9

digital video camera 7

DSL modem 9, 14

Ethernet 9, 14

external audio 9

external diskette drive 7, 9

external speakers 9

Firewire 7

flash drive 7, 9

headphone 9

i.Link 7

IEEE 1394 7

keyboard 7, 9

microphone 9

modem 9, 13

monitor (VGA) 9

mouse 7, 9

network 9, 14

power 9, 12

printer 7, 9

scanner 7, 9

speaker 9

S-Video (TV) out 9

USB 7 , 9

VGA 9

video camera 7

dial-up modem 13 digital camera

USB port

digital video camera

IEEE 1394 port directional keys 18 display

switching double-clicking 23 dragging 23 drives

DVD

DVD/CD-RW 8, 25

DVD±RW 8, 25

hard drive 10, 38

identifying drive types 25

multi-format DVD±RW 8, 25

replacing hard drive 38

types 25 DSL modem 14 DVD

drive

inserting 26 DVD drive

identifying 25

installing 36

locating 8

replacing 36

using 25 DVD/CD-RW drive

See DVD drive DVD±RW drive

See DVD drive

7, 9

electrostatic discharge (ESD) 34 e-mail

button Ethernet

connecting

jack 9, 14 external monitor 9, 19 EZ Pad touchpad

See touchpad

fan 7, 9 files

Index www.gateway.com

opening 23 Firewire port 7 Fn key 19 folders

opening

function keys 18

Gateway

model number

serial number 2

Support 3

hard drive

bay 10

indicator 17

installing 38

replacing 38 headphone jack 9 hot-swapping 28

i.Link port 7 IEEE 1394 port 7 indicators

See status indicators inkjet printer

installing

battery

DVD drive 36

hard drive 38

memory 34

PC Card 28 Internet

button

jacks

See connections

Kensington cable lock

lock slot key combinations 19 keyboard

buttons 18

connecting 18

features 18

locating 11

USB port 7, 9 keys

application

arrow 18

2, 10

brightness

directional 18 Fn 19 function 18 LCD brightness 19 LCD/CRT 19 navigation 18 numeric keypad 19 Pad Lock 20 Standby 19 system 18 system key combinations 19 toggle display 19 Windows 18

label

model number

labels 2, 3 laser printer 32 latch

battery 10 LCD panel release 6

LCD panel

release latch

switching display 19 LCD/CRT system key 19 lock

Kensington cable

memory

bay

installing 34

purchasing 32

removing 34

replacing 34 memory card reader

locating

memory card types supported

using 27 microphone jack 9 Microsoft

Certificate of Authenticity model number 2 modem

cable

connecting 13, 14

DSL 14

jack 9, 13 monitor

port mouse

USB port moving

7, 9

pointer

screen objects 23

MP3 player

memory cards

multi-function buttons 11, 21 multimedia

adjusting volume

using DVD drive 25

muting sound 23

navigation keys 18 network

jack 9, 14

networking

turning off wireless network 24 turning on wireless network 24

Num Lock

status indicator

17, 20

system key 20

numeric keypad

status indicator

using 19

opening

files 23 folders 23 LCD panel 6 notebook 6 programs 23 shortcut menu 23

PC Card

adding eject button 28 inserting 28 installing 28 removing 28 slot 28

PCMCIA card

See PC Card

PDA

memory cards

pointer

identifying 22 moving 22

power

AC adapter battery 29, 31 button 11, 19 connector 9, 12 indicator 6, 15 source problems 13 Standby mode 15, 19

www.gateway.com

Index

status indicator 6 turning off notebook 15 turning on notebook 15

power adapter

airplane 32 automobile 32

printer

inkjet

laser 32 USB port 7, 9

programs

closing unresponsive 16 opening 23

RAM

See memory

rebooting notebook

recalibrating battery 31 replacing

See installing

resetting notebook

restarting notebook 16 right-clicking 23 rocker switch 22

safety

general precautions static electricity 34

scanner

USB port

7, 9

screen objects

getting information moving 23 selecting 23

security features

Kensington cable lock serial number 2 setting up

safety precautions 48 shortcut menus

accessing 23 shortcuts

opening menu shutting down notebook 15, 16 SO-DIMM

See memory sound

adjusting 23

controls 23

muting 23 speakers

built-in

jack 9

Standby

mode

15, 19

system key 19

starting

notebook 15

programs 23 static electricity 34 status indicators

battery charge 6

Caps Lock 17

drive activity 17

hard drive 17

location 11

Num Lock 20

numeric keypad 17, 20

Pad Lock 17

power 6

toggle on or off 19 surge protector 13 Suspend 19 S-Video (TV) out

jack

turning off 19

turning on 19 system identification label 2, 10 system keys

combinations

locating 18

technical support

Support 3 television

turning off 19

turning on 19

TV out jack 9 touchpad

buttons

clicking 23

double-clicking 23

dragging screen objects 23

locating 11

moving pointer 22

moving screen objects 23

opening files, folders, and

opening shortcut menu 23

right-clicking 23

rocker switch 22

selecting screen objects 23 turning off

notebook

S-Video 19

television 19

wireless network 19, 24 turning on

notebook

programs

15, 16

S-Video 19 television 19 wireless network 19, 24

TV out (S-Video out) jack 9

upgrading 33 USB port 7, 9

VGA port 9 video

monitor port

S-Video out jack 9 VGA port 9

volume

adjusting

controls 23 muting 23

waking up notebook 15 Web browser button 21 Windows

key Product Key Code 3

wireless network

button turning off 24 turning on 24

Index www.gateway.com

MAN SHADOW E/K8 HW REF R0 11/05

Gateway MX7110, MX7120, MX7310, MX7520, MX7530 Quick Reference Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

About this reference

About this guide

Accessing the online User Guide

Gateway contact information

Gateway model and serial number

Microsoft Certificate of Authenticity

For more information

Identifying features

Front

Left

Right

Back

Bottom

Keyboard area

Protecting from power source problems

Connecting the dial-up modem

Connecting to a cable or DSL modem or to an Ethernet network

Starting your notebook

Waking up your notebook

T urning off your notebook

Restarting (rebooting) your notebook

Using the status indicators

Using the keyboard

Key types

System ke y combinat ions

Using the multi-function buttons

Adjusting the volume

T urning your wireless radio on or off

Using the DVD drive

Identifying drive types

Inserting a CD or DVD

Using the memory card reader

Memory card types

Inserting a memory card

Using a memory card

Removing a memory card

Changing batteries

Recalibrating the battery

Ordering accessories

Maintaining and Upgrading Your Notebook

Preventing static electricity discharge

Adding or replacing memory

Replacing the DVD drive

Replacing the hard drive kit

Replacing the keyboard

Removing the keyboard

Installing the keyboard

Safety, Regulatory, and Legal Information

Important safety information

Setting up your system

Care during use

Replacement parts and accessories

Regulatory compliance statements

Wireless guidance

United States of America

FCC declaration of conformity

Warnin g Mercury Warning

Responsible party:

Canada

Unintentional emitter per ICES-003

Telecommunications per Industry Canada CS-03 (for products fitted with an IC-compliant mo dem)

Japan

Japanese Modem Notice

Laser safety statement

Environmental information

EPA ENERGY STAR

Notices

All Rights Reserved

Trademark Acknowledgments

Macrovision statement

Index
