Gateway LT31 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made to this service guide.

Date

Chapter

Updates

























II

Copyright

Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation. Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

Denotes actual messages that appear



on screen.





NOTE

Gives bits and pieces of additional



information related to the current



topic.





WARNING

Alerts you to any damage that might



result from doing or not doing specific



actions.





CAUTION

Gives precautionary measures to



avoid possible hardware or software



problems.





IMPORTANT

Reminds you to do specific actions



relevant to the accomplishment of



procedures.





IV

Preface

Before using this information and the product it supports, please read the following general information.

1.This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

V

VI

Table of Contents

System Specifications

1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Your Gateway Notebook tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Closed Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Rear and Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 TouchPad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Lock Keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Special Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

System Utilities

21

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

WinFlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Remove HDD/BIOS Password Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Machine Disassembly and Replacement

35

Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.35

Related Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.35

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.36

Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.36

Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36

External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

Removing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

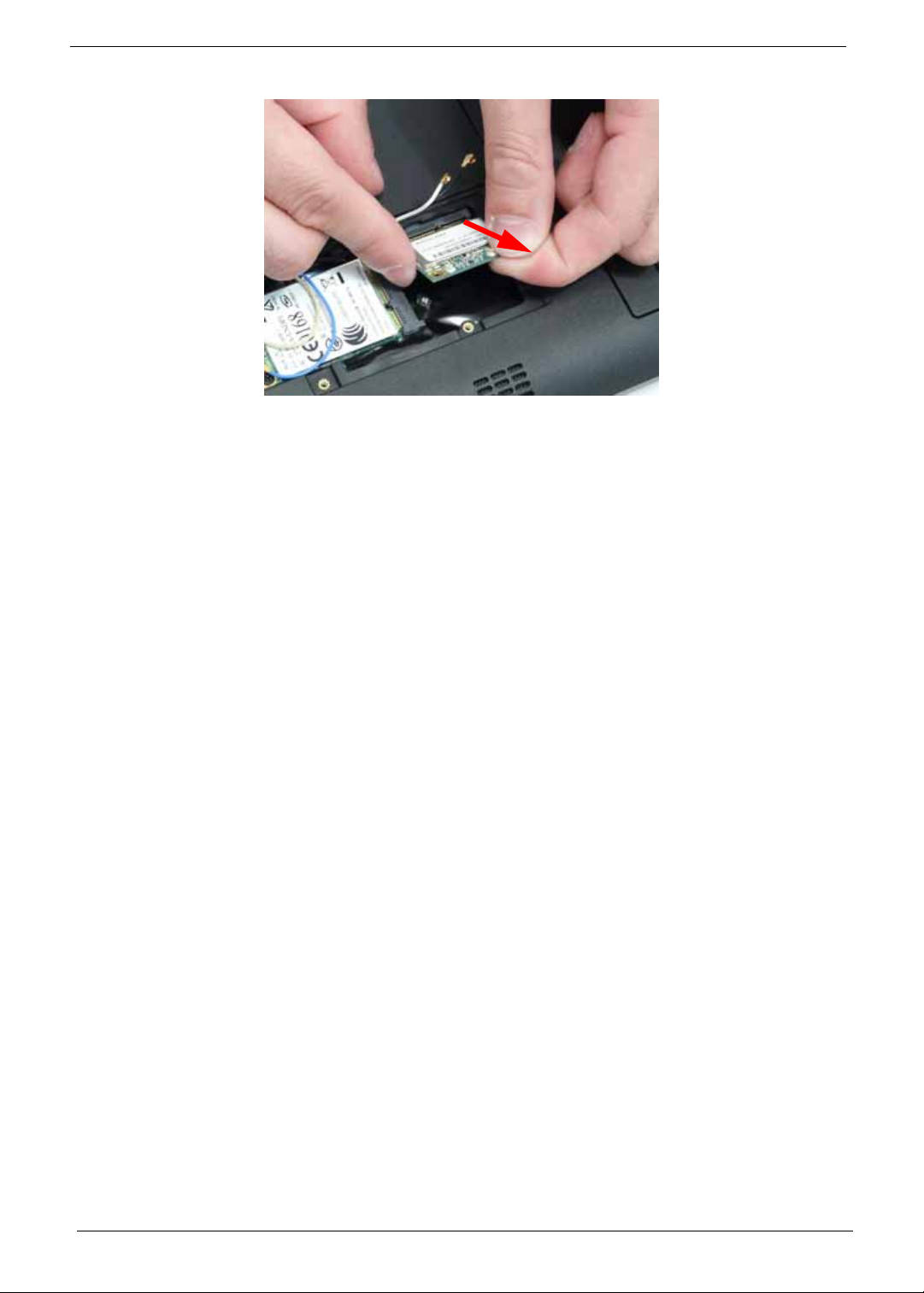

Removing the WLAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Removing the 3g Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Removing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

Removing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

53

Removing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56

Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60

Removing the Card Reader Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

Removing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

63

VII

Table of Contents

Removing the VGA Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 Removing the LAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67 Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69 Removing the Hinge Wells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71 Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75 Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 Removing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80 Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81 Removing the LCD Brackets and FPC Cable . . . . . . . . . . . . . . . . . . . . . . . . . . .83 Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

LCD Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Replacing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Replacing the LCD Cable and Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89 Replacing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Replacing the Camera Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91 Replacing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Main Module Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 Replacing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 Replacing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96 Replacing the Hinge Wells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99 Replacing the LCD module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99 Replacing the LAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101 Replacing the VGA Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102 Replacing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104 Replacing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106 Replacing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107 Replacing the Card Reader Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108 Replacing the Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 Replacing the Upper Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111 Removing the Hinge Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114 Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Reassembling External Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116 Replacing the WLAN Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116 Replacing the 3G Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 Replacing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119 Replacing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119 Replacing the Lower Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121 Replacing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Troubleshooting

125

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125

Power On Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

No Display Issue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Random Loss of BIOS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128

LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Built-In Keyboard Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

TouchPad Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Internal Speaker Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

VIII

Table of Contents

Internal Microphone Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133 HDD Not Operating Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134 USB Failure (Right up/down side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135 Other Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135 Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136 Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136 POST Code Reference Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Jumper and Connector Locations

141

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.141

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.142

Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . .

.143

Motherboard CMOS Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.143

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.144

FRU (Field Replaceable Unit) List

147

Gateway LT31 Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.148

Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.148

LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.149

Gateway LT Series FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.150

Model Definition and Configuration

156

Gateway LT31 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.156

Test Compatible Components

161

Windows XP Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

.162

Online Support Information

165

Index

167

IX

Table of Contents

X

Chapter 1

System Specifications

Features

Below is a brief summary of the computer’s many features:

Operating System

Genuine Windows® XP Home (Service Pack 3)

Genuine Windows Vista™

Platform

AMD Athlon™ 64 Processor L110

Cache size:512KB, Frequency:1.2G (No P-state)

TDP:13W

Package 638-pin lidless micro PGA package.

System Memory

DDRII 667MHz

1 DDR2 SODIMM slot

Maximum memory size up to 2GB-SODIMM

Display and graphics

11.6" HD WXGA high-brightness (typical 200-nit) Acer CrystalBrite™ TFT LCD, 1366 x 768 pixel resolution

Storage subsystem

2.5" 9.5 mm 160 GB or larger hard disk drive

4-in-1 Card Reader (xD, SD, MMC, MS) with push-push type

Audio subsystem

High-definition audio support

Two built-in stereo speakers

MS-Sound compatible

Built-in digital microphone

1 analog microphone jack, one headphone jack

Communication

Integrated webcam, supporting 0.3-megapixel resolution

WLAN: 802.11b/g

Chapter 1

1

LAN: 10/100 Mbps Fast Ethernet

WPAN: Bluetooth® 2.0 or 2.1+EDR

WWAN: GSM/GPRS/EDGE/(WCDMA) (for 3G models)

Privacy control

Kensington lock slot

Dimensions and Weight

286 (W) x 203 (D) x 29 (H) mm

1.3 kg (2.86 lbs.) with 3-cell battery pack

1.46 kg (3.21 lbs.) with 6-cell battery pack

Power subsystem

24.4 W 2200 mAh 3-cell Li-ion battery pack

• 4-hour battery life

-or-

57.7 W 5200 mAh 6-cell Li-ion battery pack

• 8-hour battery life

30 W adapter with power cord

Special keys and controls

86/87/91-key keyboard

Touchpad pointing device with two buttons

I/O interface

Multi-in-1 card reader

Three USB 2.0 ports

External display (VGA) port

Headphone/speaker/line-out jack

Microphone-in jack

Ethernet (RJ-45) port

DC-in jack for AC adapter

Environment

Temperature:

Operating: 5 °C to 35 °C

Non-operating: -20 °C to 65 °C

Humidity (non-condensing):

Operating: 20% to 80%

Non-operating: 20% to 80%

2

Chapter 1

System Block Diagram























































































































X'TAL













































































































HOST 200MHz









14.318MHz







































































































































LED D/B





CHARGER







































































































































































































































PCIE 100MHz

CLOCK GENERATOR









ISL88731





































































































USB 48MHz





WLAN/3G SW



+3VPCU





















































AMD S1g1

















Thermal Sensor















Silego:SLG84605TTR





BT SW



+3V_S5

3V/5V













DDRII-SODIMM1







DDR II 667 MHz





















REF 14.318MHz



IDT:ICS951462









ISL6237





































G781













WLAN/WiMax LED



+3VSUS

































Channel A

























































































































































HTREF 66MHz

















3G LED



+3V

























































































































































































































































BT LED



+5VPCU





































































































































































































































































+5V







































































































X'TAL

















































Side port











































































25MHz

























CPU_CORE

CPU CORE







































HT1 800MHz

























































































memory





















































PCIE-2









LAN(10/100)





Transformer



RJ45











ISL6264A

































16bit DDR2















































RTL8103EL

























+NB_CORE

NB CORE





















































































































































































RS690E





































































UP6111AQDD

































LVDS(1ch)



















PCIE-1 (Reserve)

























































LED Panel





















465 FCBGA









































3G Card











SIM CARD





+1.8VSUS

DDR

































































































































































































































+1.8V















































































PCIE-3











































+SMDDR_VTERM

TPS51116









































































































































































































































































































21mm*21mm

























































+SMDDR_VREF























CRT













































































Mini Card (WLAN)



































































































































































































































Port 7





































+2.5V

+2.5V









































X'TAL



A_LINK (X4)









































































+1.5V

RT9025









































25MHz



















































































+1.5V























































































Port 5







































RT9025



































































































































































































































































































































































































+1.2V_S5

+1.2V_S5















SATA - HDD









SATA0







SB600























Port 3







CCD



























+1.2V

RT9025













































































Port 6









































































































































































































































































































































































































































































USB2.0





Port 0







BT

























































































































































Azalia Audio Codec











































































USB2.0 I/O Ports X1

















Thermal

















Azalia

23mm*23mm





































































Protection

































































































ALC272

































Port 1/2



































































































































































































X'TAL























USB2.0 I/O Ports X2







































































LPC















32.768KHz





Port 8





























































































































































































































































Card Reader controller





4 in 1













H.P



MIC





AMP





Int. MIC



































































RTS5159



























JACK



JACK





G1453L





Digital































































































































































































































































EC

























































































































































































































































WPCE775L

























































































Speaker





































































































































































































































































































































































































































































X'TAL











































































































SPI



PS/2

32.768KHz



















































































































































































































FAN













Keyboard

Flash









Touch























































































(PWM)



ROM

Pad





















































































































































TP D/B

Chapter 1

3

Your Gateway Notebook tour

After learning about your computer features, let us show you around your new computer.

Front View

No.

Icon

Item

Description









1



Acer Crystal Eye

Web camera for video communication.





Webcam



2



Microphone

Internal microphone for sound recording.









3



Display screen

Also called Liquid-Crystal Display (LCD), displays







computer output.









4



Keyboard

For entering data into your computer.









5



TouchPad

Touch-sensitive pointing device which functions like







a computer mouse.

6



Battery/

Indicates the status of Battery/Bluetooth/3G/





Bluetooth/3G/

Wireless LAN communication.









Wireless LAN

(only for certain models)





communication







indicator









7

Click buttons (left

The left and right buttons function like the left and



and right)

right mouse buttons.

4

Chapter 1

No.

Icon

Item

Description









8



Status indicators

Light-Emitting Diodes (LEDs) that light up to show







the status of the computer's functions and







components.









9



Power button/

Turns the computer on and off while indicating the





indicator

computer’s power status.









Closed Front View

No.

Icon

Item

Description









1



Bluetooth

Enables/disables the Bluetooth function.





communication







switch











2



3G/Wireless LAN

Enables/disables the 3G/Wireless LAN





communication







switch











Left View































1

2

3

4

5

































No.



Icon





Item





Description

























1

















Ethernet (RJ-45)

Connects to an Ethernet 10/100-based



















port





network.

























2

















DC-in jack

Connects to an AC adapter





















































































































3

















USB 2.0 ports

Connect to USB 2.0 devices (e.g. USB mouse).































Chapter 1

5

Right View





















1

2

3

4

5

6























No.

Icon



Item







Description













1





Multi-in-1 card

Accepts Secure Digital (SD), MultiMediaCard







reader



(MMC), Memory Stick (MS), Memory Stick













PRO (MS PRO), xD-Picture Card (xD).













Note: Push to remove/install the card. Only













one card can operate at any given time.













2





Microphone-in

Accepts input from external microphones.







jack



























3





Headphones/



Connects to line-out audio devices







speaker/line-out

(e.g. speakers, headphones).







jack













4





USB 2.0 port



Connects to USB 2.0 devices (e.g. USB













mouse).



















5





Kensington lock

Connects to a Kensington-compatible







slot





computer security lock.













6





External display

Connects to a display device







(VGA) port



(e.g. external monitor, projector).





















6

Chapter 1

Rear and Base View

1

2

8

7

3



4

6



5



No.

Icon

Item

Description









1



Battery bay

Houses the computer's battery pack.







Note: The battery shown is for reference only. Your







PC may have a different battery, depending on the







model purchased.

2



Battery release

Releases the battery for removal.





latch











3



Hard disk bay

Houses the computer's hard disk (secured with







screws).









4



3G module bay

Houses the computer's 3G communication module.









5



Ventilation slots

Vents enable the computer to stay cool, even after





and/or cooling fan

prolonged use.







Note: Do not cover or obstruct the cooling vents.









6



Memory

Houses the computer's main memory.





compartment











7



Battery lock

Locks the battery in position.









8



3G SIM card slot

Accepts a 3G SIM card for 3G connectivity (only for







certain models).









Chapter 1

7

Indicators

The computer has several easy-to-read status indicators. The battery indicator is visible even when the computer cover is closed.

Icon

Function

Description

















Bluetooth

Indicates the status of Bluetooth communication.

















Wireless LAN

Indicates the status of Wireless LAN communication.

















3G communication

Indicates the status of 3G communication.

















HDD

Indicates when the hard disk drive is active.

















Num Lock

Lights up when Num Lock is activated.



























Caps Lock

Lights up when Caps Lock is activated.

















Battery

Indicates the computer's battery status.











NOTE: 1. Charging: The battery light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

8

Chapter 1

TouchPad Basics

The following items show you how to use the TouchPad:

1

2

3

Move your finger across the TouchPad (1) to move the cursor.

Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the TouchPad is the same as clicking the left button.

Function

Left Button (2)

Right Button (3)

Main TouchPad (1)









Execute

Quickly click twice.



Tap twice (at the same speed







as double-clicking a mouse







button).









Select

Click once.



Tap once.









Drag

Click and hold, then use



Tap twice (at the same speed



finger on the TouchPad to



as double-clicking a mouse



drag the cursor.



button); rest your finger on







the TouchPad on the second







tap and drag the cursor.









Access



Click once.



context menu















NOTE: When using the TouchPad, keep it - and your fingers - dry and clean. The TouchPad is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping too hard will not increase the TouchPad’s responsiveness.

Chapter 1

9

Using the Keyboard

Your Packard Bell dot Series has a close-to-full-sized keyboard and an embedded numeric keypad, separate cursor, lock, function and special keys.

Lock Keys and embedded numeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock key

Description





Caps Lock

When Caps Lock is on, all alphabetic characters typed are in uppercase.

Num Lock

When Num Lock is on, the embedded keypad is in numeric mode. The keys

<Fn> + <F11>

function as a calculator (complete with the arithmetic operators +, -, *, and /). Use



this mode when you need to do a lot of numeric data entry. A better solution



would be to connect an external keypad.





Scroll Lock <Fn> +

When Scroll Lock is on, the screen moves one line up or down when you press

<F12>

the up or down arrow keys respectively. Scroll Lock does not work with some



applications.





The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access

Num Lock on

Num Lock off







Number keys on

Type numbers in a normal manner.



embedded keypad











Cursor-control keys on

Hold <Shift> while using cursor-

Hold <Fn> while using cursor-

embedded keypad

control keys.

control keys.







Main keyboard keys

Hold <Fn> while typing letters on

Type the letters in a normal



embedded keypad.

manner.







10

Chapter 1

Windows Keys

The keyboard has two keys that perform Windows-specific functions.







Key

Description

















Windows key

Pressed alone, this key has the same effect as clicking on the Windows Start button;









it launches the Start menu. It can also be used with other keys to provide a variety of









functions:









< >: Open or close the Start menu









< > + <D>: Display the desktop









< > + <E>: Open Windows Explore









< > + <F>: Search for a file or folder









< > + <L>: Lock your computer (if you are connected to a network domain), or









switch users (if you're not connected to a network domain)









< > + <M>: Minimizes all windows









< > + <R>: Open the Run dialog box









< > + <U>: Open Ease of Access Center









< > + <BREAK>: Display the System Properties dialog box









< > + <TAB>: Cycle through programs on the taskbar









<CTRL> + < > + <F>: Search for computers (if you are on a network)









Note: Depending on your edition of Windows XP, some shortcuts may not function









as described.

















Application

This key has the same effect as clicking the right mouse button; it opens the













key

application's context menu.

















Chapter 1

11

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

Hotkey

Icon

Function

Description











<Fn> + <F1>





Power Options

Display the Power Options Properties











dialog box.











<Fn> + <F2>





System Properties

Display the System Properties dialog box.











<Fn> + <F3>





Bluetooth

Enables/disables the Bluetooth function.









communication switch













<Fn> + <F4>





Sleep

Puts the computer in Sleep mode.











<Fn> + <F5>





Display toggle

Switches display output between the display











screen, external monitor (if connected) and































both.











<Fn> + <F6>





Screen blank

Turns the display screen backlight off to save











power. Press any key to return.











<Fn> + <F7>





TouchPad toggle

Turns the internal TouchPad on and off.











<Fn> + <F8>





Speaker toggle

Turns the speakers on and off.













<Fn> + <

>





Brightness up

Increases the screen brightness.













<Fn> + <

>





Brightness down

Decreases the screen brightness.













<Fn> + <

>





Volume up

Increases the sound volume.













<Fn> + <

>





Volume down

Decreases the sound volume.













12

Chapter 1

Special Keys

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1.Open a text editor or word processor.

2.Hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard.

NOTE: Some fonts and software do not support the Euro symbol. See www.microsoft.com/typography/faq/ faq12.htm for more information.

The US dollar sign

1.Open a text editor or word processor.

2.Hold <Shift> and then press the <4> key at the upper-center of the keyboard. NOTE: This function varies according to the language settings.

Chapter 1

13

Hardware Specifications and Configurations

Processor





Item















Specification























CPU type







AMD Athlon™ 64 Processor L110



























CPU package







638-pin lidless micro PGA package.



























Core Logic







North Bridge-RS690E

















South Bridge SB600































Chipset









• Mobile Intel® US15W Express Chipset

























Features









• Cache size: 512 KB, Frequency:1.2G (No P-state)













TDP:13W





















Execute Disable Bit































Processor Specifications













































Item



CPU

Cores

Mfg



Cache



Package

Core

Acer P/N





Speed

Tech



Size



Voltage











































L110



1.2 GHz

1

65 nm



512



Micro-

Variable

KC.AL002.110

















KB



PGA







CPU Fan True Value Table









































CPU Temperature of Diode



Fan Speed (RPM)

































40.3













4900





































39.1













4400





































36.3













4000































North Bridge Specifications

















































Item















Specification



















Chipset









North Birdge-RS690E























Package









465-Pin FCBGA (21 x 21 mm)

















Features









• Supports the mobile and desktop Athlon 64/Athlon 64 FX/















Athlon X2/AMD Sempron/AMD Turion 64 processors, including















both AM2 and S1 socket CPUs.

















• Supports 200, 400, 600, 800, and 1000MHz HyperTransport















(HT) interface speeds.

















• Supports LDTSTP interface, CPU throttling, and stutter mode.













• Supports ATI HyperMemory™* technology.













• Supports Side-port GDDR 128M

















• Compliant with the PCI Express (PCI-E) 1.1a Specification.













• A four-port, x4 PCI Express general purpose interface.













• One x4 A-Link Express II interface (PCI Express 1.1 compliant)















for connection to an AMD Southbridge













Multiple Display Features(LCD+CRT)













• Integrated LVDS-Integrated dual-link 24-bit LVDS interface















Power +1.2V,+3V, +1.8V, +NB_

















TDP:8W





























South Bridge Specifications

















































Item















Specification



















Chipset









South Bridge SB600







Package









549-FCBGA ( 23mm x 23mm)































14

Chapter 1





Item







Specification





























Features







• Support PCI bus at 33MHz

















• Supports four SATA ports, complying with the SATA 1.0a













specification

















• 5 OHCI and 1 EHCI Host controllers to support 10 USB ports,











audio























• 4 Independent output stream(DMA).

















• 4 Independent input stream(DMA).

















• Up to 16 channels of audio output per stream.













• Support up to 4 Codecs.



















• Up to 192Khz sample.

















IDE Controller



















• Single PATA Channel support.

















• Supports PIO, Multi-word DMA, and Ultra DMA 33/66/100/













133.





















AC Link Interface



















• Support for both audio and modem Codecs.













• 6/8 channel support on audio codec.

















• Power +3V,+1.2V, +3V_S5, +1.2V_S5, +1.8V, VCC_SB











TDP:4W



































System Memory











































Item







Specification





























Memory size







Up to 2GB



































DIMM socket number



1





































Supports memory size per socket



2GB





































Supports maximum memory size



2GB



































Supports DIMM type



DDR2

































Supports DIMM Speed



667MHz



































Hard Disk Drive Interface











































Item











Specification

































Vendor &



Hitachi

Hitachi



Hitachi



Seagate

Seagate





Model Name



HTS543216L9

HTS545016B9

HTS545025B9



ST9160310AS

ST9160315AS









SA00

A300



A300

































Capacity (GB)



160

160



250



160

250



























Bytes per



512

512



512



512

512





sector













































Data heads



2

2



2



2

2





























Drive Format











































Disks



1

1



2



1

1



























Spindle speed



5400

5400



5400



5400

5400





(RPM)













































Performance Specifications









































Buffer size



8 MB

8 MB



8 MB



8 MB

8 MB



























Interface



SATA

SATA



SATA



SATA

SATA



























Fast data



1500

3000



3000



3000

3000





transfer rate























(Mbits/sec,























max)













































Chapter 1

15

Item





Specification

















Media data

830

729

775

830

830

transfer rate











(Mbytes/sec











max)























DC Power Requirements





















Voltage

5V ±5%

5V ±5%

5V ±5%

5V ±5%

5V ±5%

tolerance

























Item









Specification









































Vendor & Model



WD



WD



Toshiba





Toshiba





Name



WD1600BEVT



WD2500BEVT

MK1655GSX



MK2555GSX

































Capacity (GB)



160



250



160







250

































Bytes per sector



512



512



512







512

































Data heads



2



2



2







2



































Drive Format



















































Disks



1



1



1







1



































Spindle speed (RPM)



5400



5400



5400







5400































Performance Specifications

















































Buffer size



8 MB



8 MB



8







8



































Interface



SATA



SATA



SATA





SATA

































Fast data transfer



3000



3000



3000







3000





rate (Mbits/sec, max)





















































Media data transfer



850



850



363 - 952 typical



363 - 952 typical





rate



























(Mbytes/sec max)























































DC Power Requirements



















































Voltage tolerance



5V ±5%



5V ±5%



5V ±5%





5V ±5%

































BIOS



















































Item









Specification

































BIOS vendor



Phoenix BIOS











































BIOS Version



V0.2105











































BIOS ROM type



Flash













































LED 11.6”



















































Item









Specifications































Vendor/model name



AUO

CMO





LG



Samsung











B11.6XW02

N116B6-L02



LP116WH1-



LTN116AT01-





















TLA1



A01

























Screen Diagonal (mm)

11.6”

11.6”





11.6”



11.6”

























Active Area (mm)



256.125 x

256.125 x 144



256.13 x 144



256.125 x 144











144







































Display resolution (pixels)

1366 x 768

1366 x 768



1366 x 768



1366 x 768



























Pixel Pitch (mm)



0.1875 x

0.1875 x





0.1875 x



0.2265(H) x











0.1875

0.1875





0.1875





0.2265(V)





























Typical White Luminance (cd/m2)

200



200





200





200





also called Brightness

















































Contrast Ratio



500:1

500:1





500:1





500:1





























Response Time (Optical Rise

8



7





8





8





Time/Fall Time) msec























16

Chapter 1



Item









Specifications





























Typical Power Consumption



4.0



4



4

2.85





(watt)















































Weight (without inverter)



255g

225g



255g

255g





























Physical Size (mm)





268 (L) x

268 x 161.5 x



268.0 x 161.5

268.0 x 161.5















161.5 (W)

5



































Electrical Interface





LVDS

LVDS



LVDS

LVDS



























Viewing Angle (degree)



















Horizontal (Right) / (Left)



45/45



45/45



45/45

TBD





Vertical (Upper) / (Lower)



20/40



20/45



20/40

































Bluetooth















































Item









Specification

























Bluetooth Controller



T60H928.11 miniUSB module









Features







• Bluetooth 2.0 plus EDR qualified Embedded USB Module













• Extremely small size (26mmX 14mm)















• Class 2 specification RF output power















• Full piconet and scatternet operation

















• Full Bluetooth data rate

















• USB 2.0 full-speed compliant interface















• F/W upgrade via Flash download

















• Very low power consumption

















• Support AFH (Adaptive Frequency Hopping)















• Support BCM WLAN co-existence































Audio Codec and Amplifier













































Item













Specification

























Audio



Realtek ALC272 Azalia Codec and Amplifier G1454









Controller















































Features



HD Audio

















• SNR > 85,High-performance DACs with 95dB SNR (A-Weighting), ADCs with











85dB SNR (A-Weighting)

















Internal Digital Microphone

















• Two speakers, max. 1W output each



































LAN Interface



















































Item







Specification





























LAN Chipset











Realtek RTL8103EL































Package











48pin-LQFP package





























Features











• Integrated 10/100 BASE -T transceiver



















• PCIe V1.1 compliant supports



















• Wake on LAN and remote wake-up support































Keyboard



















































Item







Specification





























Type











New Acer flat keyboard

























Total number of keypads





86/87/91

































Windows logo key







Yes







































Chapter 1

17

Item











Specification





































Internal & external keyboard work

Yes



















simultaneously















































Features





• Supports Application keys for Windows XP version

































Mini Card





















































Item











Specification







































Number Supported





2















































Features





• 1 for 3G (full size)























• 1 for WLAN (half size)







































Camera





















































Item



Specifications









































Vendor and model



Chicony CNF9011

Liteon 09P2SF001



SuyinCN0316-S30C-





















OV06-1





























Type



640 x 480 VGA (0.3M)

640 x 480 VGA (0.3M)



640 x 480 VGA (0.3M)









size 1/6” CMOS



size 1/6” CMOS



size CMOS































Interface



USB 2.0



USB 2.0





USB 2.0



































Optical aperture



F2.4 ± 5%











F2.4





























Focusing range



17.4cm ~ Infinity, focus

18.65cm~Infinite, focus



40 cm ~ infinity









on 40cm



on 48cm





































Dimensions (L x W x H



64.8±0.3 X 7.9±0.1 X

65 x 8 x 3.84 ± 0.25(H)



65X 7.9X 3.8+/-0.2mm



mm)



3.64+0.15/-0.25 mm

mm,











































Sensor type



CMOS



CMOS





CMOS































Pixel resolution



640 x 480



640 x 480





640 x 480



























Pixel size



TBD



TBD





3.6um x 3.6um



























Image size



TBD



TBD





2.36mm(H) x





















1.76mm(V)































Wireless LAN



















































Item





Specification

Specification



Specification



Specification

















Type



Atheros HB63

Atheros HB95



Atheros XB63



Broadcom 4312H

802.11g















































Radio Technology



IEEE 802.11g standard compliant







































Operating



2412 ~ 2484MHz ISM band



















Frequency















































Modulation



OFDM, DQPSK, DBPSK and CCK















Schemes















































Channel Numbers



• 1---11 channels for active channels



















• 12 13 channels--- for passive channels



























Data Rate



54Mbps with fall back rates of 48, 36, 24, 18, 12, 9 and 6Mbps

































Media Access



CSMA/CA with ACK





















Protocol



















































Transmitter Output



Typical 13.5 dBm for 54Mbps



















Power























































802.11b











































Radio Technology



IEEE 802.11b Direct Sequence Spread Spectrum



































Operating



2412 ~ 2484MHz ISM band



















Frequency























































18

Chapter 1

Item



Specification

Specification



Specification



Specification

















Modulation



DQPSK, DBPSK and CCK









Schemes



































Channel Number



• 1---11 channels for active channels













• 12---13 channels for passive channels























Data Rate



11Mbps with fall back rates of 5.5, 2, and 1Mbps

























Media Access



CSMA/CA with ACK













Protocol







































Transmitter Output



18dBm typically













Power







































3G Module

















Battery





































Item





Specification









3 Cell

6 Cell



























Vendor & model name



Sanyo UM-2009A/AW

Sanyo UM-2009B 2.2/2.6









Sony UM-2009A/AW

Sony UM-2009B 2.2/2.6









Panasonic UM-2009A/AW

Panasonic UM-2009B











Simplo UM-2009A/AW

Simplo UM-2009B





















Battery Type



Li-ion





Li-ion





















Pack capacity



2200 mAh





4400/5200 mAh























Number of battery cell



3





6























Package configuration



3S1P





3S2P

























Chapter 1

19

20

Chapter 1

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/ Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4 Troubleshooting when problem arises.

To activate the BIOS Utility, press F2 during POST (when Press <F2> to enter Setup message is prompted on the bottom of screen).

Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Navigating the BIOS Utility

There are six menu options: Information, Main, Advanced, Security, Power, Boot, and Exit. Follow these instructions:

To choose a menu, use the left and right arrow keys.

To choose an item, use the up and down arrow keys.

To change the value of a parameter, press F5 or F6.

A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.

Press Esc while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing F9. You can also press F10 to save any changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item Specific Help part of the screen. Read this carefully when making changes to parameter values. Please note that system information is subject to different models.

Chapter 2

21

Information

The Information screen displays a summary of your computer hardware information.











PhoenixBIOS Setup Utility





Information



Main

Security

Boot

Exit























CPU Type:



AMD Athlon(tm)

Processor L110







CPU Speed:



1200 MHz











IDE Model Name:

Hitachi HTS543216L9A300







IDE Serial Number:

090210FB2206LCJZ4V3H







System BIOS Version:

V0.11T04_C-Build







VGA BIOS Version:

ATi 010.055.000.051.032329







Serial Number::

ZA80SK02B1917060592500







Asset Tag Number













Product Name:













Manufacturer Name:

Gateway











UUID:



40735D1C78DADD11A9D700238BB0B8D4







































F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Defaults

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

NOTE: The system information is subject to different models.

Parameter

Description





CPU Type

This field shows the CPU type and speed of the system.





CPU Speed

This field shows the speed of the CPU.





IDE0 Model Name

This field shows the model name of HDD installed on primary IDE master.





IDE0 Serial Number

This field displays the serial number of HDD installed on primary IDE master.





System BIOS Version

Displays system BIOS version.





VGA BIOS Version

This field displays the VGA firmware version of the system.





Serial Number

This field displays the serial number of this unit.





Asset Tag Number

This field displays the asset tag number of the system.





Product Name

This field shows product name of the system.





Manufacturer Name

This field displays the manufacturer of this system.





UUID

Universally Unique Identifier (UUID) is an identifier standard used in software



construction, standardized by the Open Software Foundation (OSF) as part of



the Distributed Computing Environment (DCE).





22

Chapter 2

Main

The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery.













PhoenixBIOS Setup Utility











Information

Main



Security

Boot

Exit





































System Time:

[19:10:59]







Item

Specific Help





































System Date:

[05/12/2009]





<Tab>, <Shift-Tab>, or



























Total Memory:

1024 MB







<Enter> selects field.





















Video Memory:

[256MB]

















Quiet Boot:





[Enabled]

















Network Boot:

[Enabled]

















F12 Boot Menu:

[Disabled]

















D2D Recovery:

[Enabled]









































































F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Defaults



Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

NOTE: The screen above is for your reference only. Actual values may differ.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Description

Format/Option







System Time

Sets the system time. The hours are displayed with 24-

Format: HH:MM:SS



hour format.

(hour:minute:second)







System Date

Sets the system date.

Format MM/DD/YYYY





(month/day/year)







System Memory

This field reports the total memory size of the system.

N/A



Memory size is fixed to 1015 MB.









Primary Master

Specifies the primary IDE master.

N/A







Quiet Boot

Allows startup to skip normal POST messages while

Option: Enabled or Disabled



booting, decreasing the time needed to boot the





system.









Network Boot

Enables, disables the system boot from LAN (remote

Option: Enabled or Disabled



server).









F12 Boot Menu

Enables, disables Boot Menu during POST.

Option: Enabled or Enabled







D2D Recovery

Enables, disables D2D Recovery function. The function

Option: Enabled or Disabled



allows the user to create a hidden partition on hard disc





drive to store operation system and restore the system





to factory defaults.









Chapter 2

23

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.







PhoenixBIOS Setup Utility







Information

Main

Security

Boot

Exit







Supervisor Password Is:

Clear



Item

Specific Help









User Password Is:



Clear



Supervisor Password

HDD0 Password Is:



Clear



Set Supervisor Password

[Enter]



controls access to the



setup utility. It can

Set User Password



[Enter]



be used to boot up when

Set SATA Port 0 HDD Password

[Enter]



Pawword on boot is















enabled.



Password on Boot:



[Disabled]









F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Defaults

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Description

Option







Supervisor Password Is

Shows the setting of the Supervisor password

Clear or Set

User Password Is

Shows the setting of the user password.

Clear or Set







HDD0 Password IS

Shows the setting of the HDD password

Clear or Set







Set Supervisor Password

Press Enter to set the supervisor password. When





set, this password protects the BIOS Setup Utility





from unauthorized access. The user can not either





enter the Setup menu nor change the value of





parameters.









Set User Password

Press Enter to set the user password. When user





password is set, this password protects the BIOS





Setup Utility from unauthorized access. The user can





enter Setup menu only and does not have right to





change the value of parameters.









Set HDD0 Password

Enter HDD password.









Password on Boot

Defines whether a password is required or not while

Enabled or



the events defined in this group happened. The

Disabled



following sub-options are all requires the Supervisor





password for changes and should be grayed out if the





user password was used to enter setup.









NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

24

Chapter 2

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Supervisor Password box appears:

Set Supervisor Password

Enter

New

Password

[



]



Confirm

New

Password

[



]

2.Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3.Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.

4.If desired, you can opt to enable the Password on boot parameter.

5.When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears:

Set Supervisor Password

Enter Current Password

[



]



Enter New Password

[



]

Confirm New Password

[

]

2.Type the current password in the Enter Current Password field and press Enter.

3.Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields. The computer then sets the Supervisor Password parameter to “Clear”.

4.When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Chapter 2

25

Changing a Password

1.Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears.

Set Supervisor Password

Enter Current Password

[



]



Enter New Password

[



]

Confirm New Password

[

]

2.Type the current password in the Enter Current Password field and press Enter.

3.Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

4.Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.

5.If desired, you can enable the Password on boot parameter.

6.When you are done, press F10 to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

Setup Notice

Changes have been saved.

[Continue]

The password setting is complete after the user presses Enter.

If the current password entered does not match the actual current password, the screen will show you the Setup Warning.

Setup Warning

Invalid Password.

[Continue]

If the new password and confirm new password strings do not match, the screen displays the following message.

Setup Warning

Passwords do not match. Re-enter password.

[Continue]

26

Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay.









PhoenixBIOS Setup Utility









Information

Main

Security

Boot



Exit























Boot priority order:









Item Specific Help

































1

: IDE0: Hitachi HTS543216L9A300







Keys used to view or





2

: CD/DVD











configure devices:





3

: PCI LAN: Realtek Boot Agent







Up and Down arrows





4

: USB HDD:









select a device.





5

: USB FDD:















6

: USB KEY:









<F6> and <F5> moves





7

: USB CD/DVD:









the device up or down.





8

:























































F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Defaults

Es c

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

Chapter 2

27

Exit

The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility.







PhoenixBIOS Setup Utility



Information

Main

Security

Boot

Exit























Exit Saving Changes







Item Specific Help





























Exit Discarding Changes







Exit System Setup and





Load Setup Defaults











Discard Changes









save your changes to





Save Changes









CMOS.









































F1

Help

Select

Item

F5/F6

Change Values

F9

Setup

Default



ESC

Exit

Select

Menu

Enter

Execute Command

F10

Save

and Exit



The table below describes the parameters in this screen.































Parameter







Description



















Exit Saving Changes

Exit System Setup and save your changes to CMOS.



















Exit Discarding

Exit utility without saving setup data to CMOS.









Changes

































Load Setup Default

Load default values for all SETUP item.



















Discard Changes

Load previous values from CMOS for all SETUP items.



















Save Changes

Save Setup Data to CMOS.































28

Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

New versions of system programs

New features or options

Restore a BIOS when it becomes corrupted. Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Chapter 2

29

DOS Flash Utility

Perform the following steps to use the DOS Flash Utility:

1.Copy the flash utilities to the bootable diskette.

2.Press F2 during boot to enter the Setup Menu.

3.Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move USB HDD to position 1.

IMPORTANT:Please use a device that can be booted in DOS mode (FAT 16 or FAT 32 partitions only)











PhoenixBIOS Setup Utility







Information

Main

Security

Boot



Exit























Boot priority order:









Item Specific Help



























1

: IDE0: Hitachi HTS543216L9A300







Keys used to view or



2

: CD/DVD













configure devices:





3

: PCI LAN: Realtek Boot Agent







Up and Down arrows



4

: USB HDD:























select a device.





5

: USB FDD:















6

: USB KEY:









<F6> and <F5> moves



7

: USB CD/DVD:









the device up or down.



8

:





























































F1

Help

Select

Item

F5/F6

Change

Values

F9

Setup

Defaults

Esc

Exit

Select

Menu

Enter

Select

Sub-Menu

F10

Save

and Exit

4.Execute the BIOS.BAT batch file to update BIOS.

The flash process begins as shown.

30

Chapter 2

5.In flash BIOS, the message Please do not remove AC Power Source displays. If the AC adapter is not plugged in the following message appears.

Plug in the AC adapter and rerun the Phlash utility if the above message appears.

6.If the AC adapter is connected, the following screen appears.

7.Flash is complete when the message Flash programming complete displays.

Chapter 2

31

WinFlash Utility

The Winflash utility consists of two files:

ZA8_3101.WPH (BIOS ROM file)

WinPhlash2.0.3.4 (BIOS windows flash tool) Perform the following steps to use the WinFlash Utility:

1.Double click the WinFlash executable (WinPhlash2.0.3.4) to run the program.

2.In the Specify New BIOS file field, enter the BIOS ROM file name and path.

IMPORTANT:Be sure the AC power is plugged in. If not, the following error message displays:

3.Click OK to begin the update. A progress screen displays.

4.When the process is complete the system will reboot automatically.

32

Chapter 2

Remove HDD/BIOS Password Utilities

This section provides you with details about removing HDD/BIOS password methods:

Removing HDD Password:

If you key in the wrong HDD password three times, an error code is generated.

To reset the HDD password, perform the following steps:

1.On a different machine, run the HDD_PW.EXE file along with the error code generated. For example: hdd_pw 15494 0

2.Select an option to generate upper case or lower case ASCII code for unlocking the HDD.

3.Two strings are generated as output. Select and note down either one of the strings.

4.Reboot the machine with the locked HDD and then use either one of the strings as the HDD user password.

Chapter 2

33

Removing BIOS Passwords:

If you key in the wrong Supervisor password three times, an error code is generated and system is disabled.

To unlock the BIOS, perform the following steps:

1.On a different machine, run the BIOS_PW.EXE file along with the error code generated. For example: bios_pw 14452 0

2.Four ASCII strings are generated as output. Select and note down any one of the strings.

3.Reboot the machine with the locked BIOS and then use either any of the strings as the BIOS user password.

34

Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

Disassembly Requirements

To disassemble the computer, you need the following tools:

Wrist grounding strap and conductive mat for preventing electrostatic discharge

Flat screwdriver

Philips screwdriver

Plastic flat screwdriver

Plastic tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

Related Information

The product previews seen in the disassembly procedures may not represent the final product color or configuration.

IMPORTANT: Cable paths and positioning may not represent the actual model. During the removal and replacement of components, ensure all available cable channels and clips are used and that the cables are replaced in the same position.

Chapter 3

35

General Information

Pre-disassembly Instructions

Before proceeding with the disassembly procedure, make sure that you do the following:

1.Turn off the power to the system and all peripherals.

2.Unplug the AC adapter and all power and signal cables from the system.

3.Place the system on a flat, stable surface.

4.Remove the battery pack.

Disassembly Process

The disassembly process is divided into the following sections:

External components disassembly

Main unit disassembly

LCD module disassembly

The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence. Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you want to remove the Mainboard, you must first remove the Keyboard, and LCD Module then disassemble the inside assembly frame in that order.

Main Screw List

Screw

Quantity

Part Number







M2.0*3.0-I IRON

29

86.S0207.001







2.0*4.0

12

86.W0107.003







M2.0*6.0-I

7

86.S6507.001







M3*0.5+3.5I

4

86.TDY07.003







M2.0*4-I(BZN)(NYLOK)IRON



86.S6507.003







M2*5-I(BZN)(NYLOK)

6

86.TG607.004







M2*10

2

MM20100IL61







36

Chapter 3

External Module Disassembly Process

NOTE: The product previews seen in the disassembly procedures may not represent the final product color or configuration.

External Modules Disassembly Flowchart

Turn off system and peripherals power

Disconnect power and signal cables from system

Remove

Battery

Remove

Lower Covers

Remove



Remove



Remove



Remove

HDD



DIMM



WLAN Board



3g Board















Screw List

Step

Screw

Quantity

Part No.









HDD Carrier

M3*0.5+3.5I

4

86.TDY07.003









WLAN Board

M2*3

1

86.S0207.001









HDD Module

M2*3

2

86.S0207.001









3g Card

M2*3

2

86.S0207.001









Chapter 3

37

Removing the Battery Pack

1.Turn the computer over.

2.Slide the battery lock/unlock latch to the unlock position.

3.Slide and hold the battery release latch to the release position (1), then slide out the battery pack from the main unit (2).

2

1

38

Chapter 3

Removing the Hard Disk Drive Module

1.See “Removing the Battery Pack” on page 38.

2.Loosen the three captive screws in the HDD Cover.

3.Lift the HDD cover up to remove.

Chapter 3

39

4.Remove the single screw securing the HDD Module in place.

Step



Size

Quantity

Screw Type











HDD Module

M2*3



2













5.Slide the HDD in the direction of the arrow to disconnect the HDD from the interface connector.

40

Chapter 3

+ 130 hidden pages
