GASTROBACK

Operation instructions

DESIGN TOASTER ADVANCED AUTOMATIC

Art.-Nr. 42407 Design Toaster Advanced Automatic

The electronic controlled Design Toaster Advanced Automatic toasts slices (max. 3 cm
thick) of bread, yeast-risen pastry and similar cakes and pastries quickly and evenly. The
slices are automatically lowered by pressing the button and centred in the slots. Some
special functions for crisping up cold toast and halved rolls and toasting frozen bread
are part of the particular features of the Design Toaster Advanced Automatic.

Important Safeguards

Carefully read all instructions before operating this appliance and save
the instructions for further reference. Do not attempt to use this appliance for any

other than the intended use, described in these instructions. Any other use, especially
misuse, can cause severe injuries or damage by electric shock, heat or fire.

Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service centre.
Please contact your vendor.

Important Safeguards for Daily Operation

• This appliance is for household use only and NOT intended for use in moving vehicles.
Do not operate or store the appliance in humid or wet areas or outdoors. Do not attempt
to operate the appliance using any parts or accessories not recommended by the manufacturer.

• Check the entire appliance regularly for proper operation–especially the power cord.
The pins of the power cord must be clean, smooth, and without discolouration. Do not
operate the appliance, when the appliance or any part of it is likely to be damaged, to
avoid risk of fire, electric shock or any other damage or injuries to persons. The appliance is
likely to be damaged if the appliance was subject to inadmissible strain (i.e. overheating,
mechanical or electric shock, moisture) or if there are any cracks, excessively frayed
parts, or distortions. In this case, immediately unplug the appliance and return the entire
appliance (including all parts and accessories) to an authorised service centre for
examination and repair.

• Bread, cakes and pastries can catch fire, when overheated! During operation keep the
appliance in an appropriate distance of at least 20 cm on each side to furniture, walls,
boards, curtains and other objects. Do not operate the appliance near inflammable liquids (i.e.
high-proof alcohol) or beneath any heat-sensitive or moisture-sensitive materials or beneath
boards or drop-lights to avoid damage caused by steam, condensate or fire. Before
operating, always ensure that there are no foreign objects in the slots. Do not insert
wrapped foods (i.e. kitchen foil), to avoid risk of fire, electric shock, and damage.

Immediately unplug the appliance, if there is any kind of malfunction or
problem (i.e. overheating or smoke is coming from the slots).

• Close supervision is necessary when the appliance is used near young children. Do
not let young children play with any parts of the appliance. The appliance is not intended
for use by children or infirm persons without supervision. For storage always keep the

14

entire appliance dry and clean and where young children cannot reach it. Do not place
any hard and/or heavy objects on the appliance or any part of it.

• Operate the appliance on a well accessible, stable, level, dry, and suitable large table
or counter. Do not place any cloth or tissue beneath or on the appliance, to avoid any
risk of fire, electric shock and overheating. Do not place any objects (i.e. cold toast) on
the appliance during operation. Always keep the table or counter clean and dry and
immediately wipe off spilled liquids. Do not place the appliance near the edge of the
table or counter or on inclined or wet surfaces or where it can fall.

• Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill or oven).

• During toasting, cakes and pastries can fall to pieces, bend and catch fire when overheated.

Do not leave the appliance unattended, when connected to the power
supply. Always disconnect the appliance from the power supply, when the appliance

is not in use and before cleaning or moving. Always allow the appliance to cool down
before cleaning. Always grasp the appliance on its side walls for moving or lifting it.

• Only toast slices of simple cakes and pastries without any filling or glaze (i.e. jam,
mayonnaise, or icing) and of suitable size (13 cm x 13 cm; 1/2 to 3 cm thick). The slices
may not protrude the slots or stick or jam in the slots. Do not use the toaster for toasting or
cooking of very dry cakes and pastries (i.e. cookies) filled rolls or sandwiches.

• Never use abrasive cleaners, cleaning pads or any hard and sharp objects (i.e. metal
scouring pads) for cleaning. Clean the toaster with a damped sponge or tissue and carefully
dry the exterior of the toaster after cleaning. Do not handle the appliance or any part of
it with violence. Never place the appliance or any part of it in an automatic

dishwasher.

• Do not immerse the toaster or power cord in water, or allow moisture to come in contact
with the appliance. Do not insert any foreign objects in the slots and do not poke in
the slots, to avoid risk of electric shock and damage of the heating elements.
If smoke comes out of the slots or the bread crumbles or bends in the slots, then immediately
cancel the toasting process by pressing the TOAST/STOPP button and unplug the toaster. Wait
for the toaster to cool down, before carefully removing jammed bread slices. Ensure not to
damage the heating elements on each side of the slots.

Always operate the toaster with the crumb tray in place.

Hot Surfaces – Risk of Burns

• During operation do not place any objects (i.e. cold bread slices) or tissue on the
appliance, to avoid overheating of the heating elements.

• Always keep your hands, face and arm as well as any clothing and other heat-sensitive
objects away from the slots during operation.

15

Important Safeguards for Electrical Appliances

• Ensure that the voltage rating of your mains power supply corresponds to the voltage
requirements of the appliance (220/240 V, 50 Hz, AC, rated for 16 A). Always connect
the appliance directly to a separately protected mains power supply wall socket with
protective conductor (earth/ground) connected properly. Before operation completely
unwind the power cord. Do not use any extension cord or multi socket outlet.
The installation of a residual current safety switch with a maximum rated residual operating
current of 30 mA in the supplying electrical circuit is recommended. If in doubt, contact
your electrician for further information.

• Always handle the power cord with care. The power cord may never be knotted, twisted
or squeezed. Do not pull or strain the power cord. Do not let the plug or power cord
hang over the edge of the table or counter. Take care that no one will pull the appliance by
the power cord, especially when young children are near. Always grasp the plug to
disconnect the appliance from the power outlet. Do not touch the plug or appliance with
wet hands, when the plug is connected to the power supply.

• Always switch off (TOAST/STOPP button) and unplug the appliance

when not in use and before moving or cleaning the appliance. Do not
leave the appliance unattended while connected to the power supply.

• Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill or oven). Do not place the appliance on the power cord. If the power cord warms
up during operation or is likely to be damaged, it must be replaced by an authorised
service centre. Do not attempt to repair the power cord!

• Do not immerse the toaster or power cord in water or any other liquid. Do not spill or
drip any liquids on the toaster or power cord to avoid risk of fire and electric shock.
When liquids are spilled on the exterior of the appliance, immediately press the
TOAST/STOPP button, unplug the power cord and dry the appliance.

• Do not place the appliance or any part of it in an automatic dishwasher.

16

Knowing Your Design Toaster Advanced Automatic

Extra-wide and extra-deep slots-automatically centres the bread slices

Menu

Cool touch exterior

Browning control slide

Crumb tray–
simply pull out the tray to
remove crumbs

Cord storage in the bottom Variable browning control slide Rolls tray

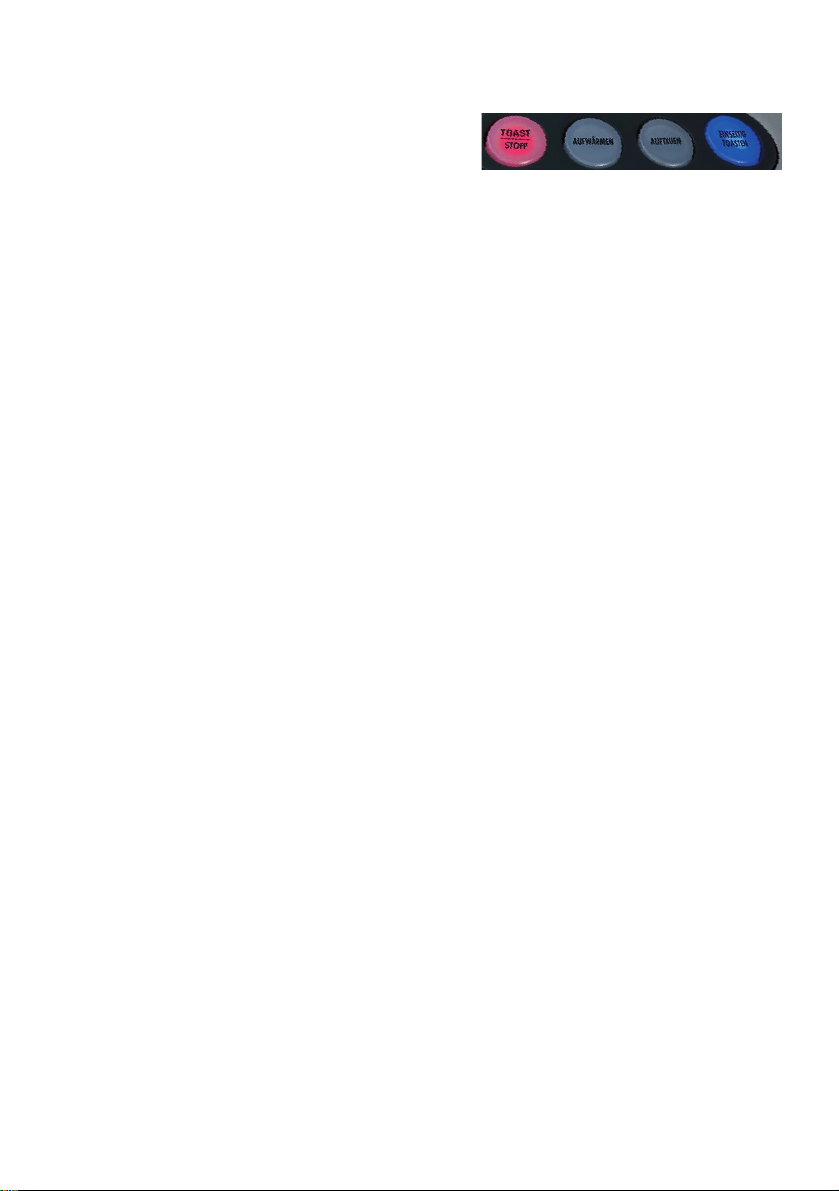

Menu:
TOAST / STOPP: the bread will automatically be lowered and raised in the toasting slots
Aufwärmen: to reheat toasted bread
Auftauen: to defrost and toast frozen bread
Einseitiges Toasten: the heating elements in the middle of toaster are additionally heated to cook one side of the bread

After the desired toasting time elapsed the toaster automatically switches off. There is no need to keep a watch on the toasting process.
You may cancel the toasting process at any time, pressing the TOAST/STOPP button.

stronger then the other

17

First use

Unpack the appliance carefully and check, if there are any parts damaged or missing.
CAUTION: It is important to carefully remove all packing and shipping materials (in the

slots) as well as any price-tags, but do not remove any warning or model labels on the
appliance. Ensure that there are no foreign objects (i.e. packing materials) in the slots before
operating the appliance.

Important: Note: The TOAST/STOPP button only operates when the appliance is
connected to the power supply.

When using the toaster for the first time, you may notice a fine smoke haze, because of
the first heating of some of the components. There is no need for concern. To prevent
smell and taste of your food from being affected, you should heat the appliance on browning
level 7 before placing any cakes and pastries in the slots (see: Operating Your Design
Toaster Advanced Automatic’). If the burnt smell occurs again on later use, clean the
toaster (see: ‘Care and Cleaning’). If the burnt smell persists stubbornly even after
thoroughly cleaning the appliance, return the appliance to an authorised service centre
for examination and repair.

Operating Your Design Toaster Advanced Automatic

WARNING: Always completely unwind the power cord, before connecting the appliance

to the power supply. Ensure, that there are no foreign objects (i.e. shipping material) in
the slots. Do not insert any foreign objects as knives, spoons, or other cooking utensils
in the slots, to avoid risk of fire, electric shock, burns or damage. Always handle with
care, especially, when removing jammed bread slices.

Important: Ensure, that the crumb tray is in place before operating the toaster.
Otherwise crumbs may become charred on the bottom of the toaster and stick to the surfaces.

1. Prepare the toaster for use:
Completely unwind the power cord, place the toaster on an appropriate surface (level,
dry, and heat-resistant) and connect the power plug to an appropriate power outlet (see:
‘Important Safeguards for Electrical Devices’).

2. Using a sharp knife, cut the food (bread or similar cakes and pastries) in slices of
even thickness and appropriate size: max. 13 x 13 cm; 1/2 to 3 cm thick. Try to get
a smooth cut and remove the crumbs.

3. Insert a slice of bread in each slot of the toaster.

light

dark

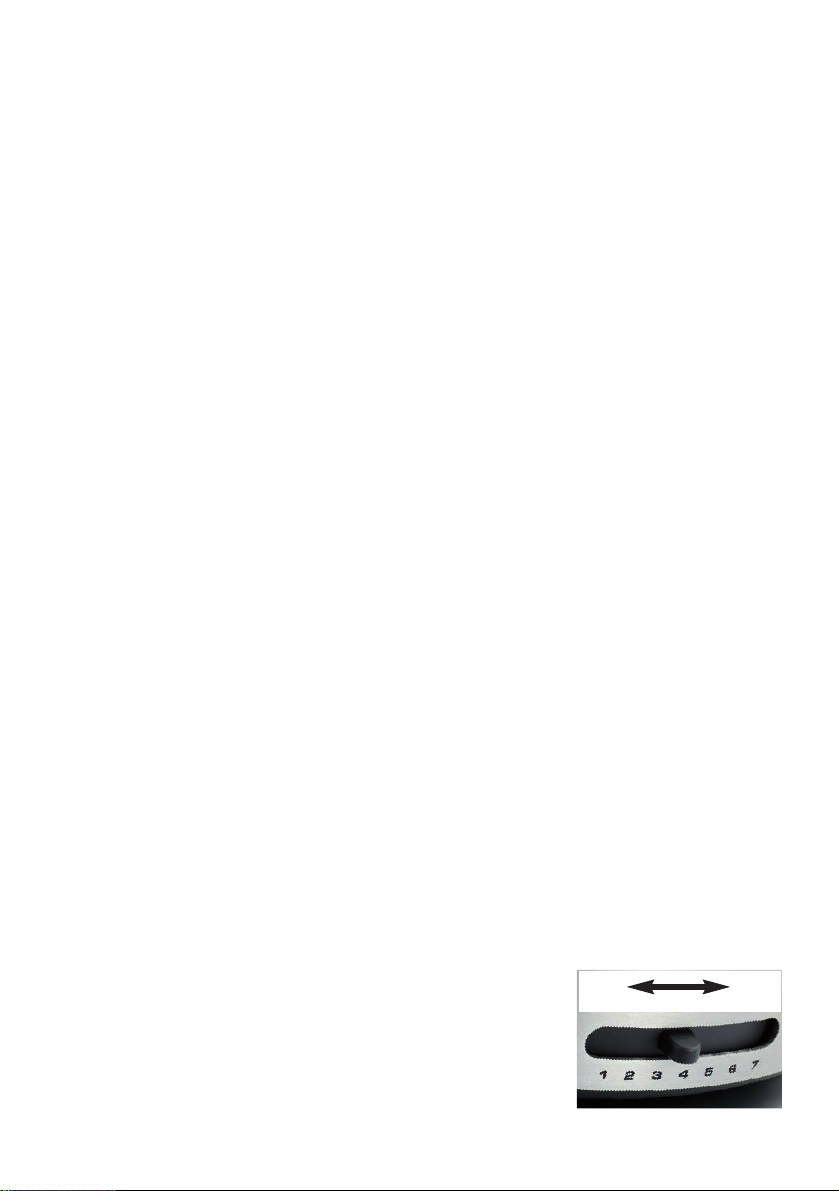

4. Turn the browning control to select the desired browning: 1
(light) to 7 (very dark). For the first use, it is recommended to
select a low browning level (example: 1-2; see: ‘Tips for Best
Results’).

18

5. Press the TOAST/STOPP button and the bread

A

will automatically be lowered and centred in the slot
(picture A). The TOAST/STOPP button illuminates red.

Note: The TOAST/STOPP- button only operates when the appliance is connected to
the power supply. Pulling the plug during operation the bread remains in the slots.
Reconnecting the appliance the bread automatically raises.

The toasting process is automatically controlled. Shortly before the toasting process is finished
the power indicator of the TOAST/STOPP button will start blinking. When the selected
browning level is reached, the toaster switches off automatically, and the power indicator of
the TOAST/STOPP button eliminates.

Tips for Best Results

• You may cancel the toasting process at any time; simply press the TOAST/STOPP button.

• The required browning level depends on your special liking and the type and freshness of
the toasted cakes and pastries. For example: a short toasting time (low browning level)
is sufficient for toasting raisin pastry and fine white bread; but for toasting rye bread you
must select a higher browning level to get a similar result.

• You can crisp up rolls by cutting the rolls in halves, using a sharp knife, and activating the
EINSEITIG TOASTEN function. Ensure, that the slices are max. 3 cm thick and will not
stick in the slots (see: ‘The EINSEITIG TOASTEN Function’). Alternatively, to toast rolls as
a whole, place the rolls tray on the toaster and then place the rolls on the rolls tray.

• Ensure to make an even and smooth cut. Use a sharp bread knife for cutting. Remove
crumbs and protruding rims, especially when crisping up halved rolls.

WARNING: Never insert your fingers in the slots, while the toaster is connected to the
power supply. Always switch off and unplug the appliance and wait for the appliance
to cool, before removing any jammed bread or crumbs.

• If bread sticks or jams in the slots, switch off (TOAST/STOPP button) and unplug the
toaster and let the toaster cool down. Then remove the bread slices carefully and without
violence. Ensure not to touch the heating elements on the sides of the slots to avoid damage.

• To check the doneness during the toasting process, just press the TOAST/STOPP button.
The toasting process will get stopped. When pressing the TOAST/STOPP button again
you start a new toasting process. Ensure to lower the browning control level to prevent
the bread from burning.

• If the toaster is not operated for a few minutes the buttons illuminate goes out. Using
one of the buttons of the toaster will illuminate the selected button again.

• It is recommended to empty the crumb tray after each use to avoid crumbs becoming
charred and sticking on the crumb tray (see: ‘Care and Cleaning’). Do not use the toaster
without the crumb tray in place.

19

• If one of the function buttons (AUFTAUEN, AUFWÄRMEN, or EINSEITIG TOASTEN)
was pressed, the toaster switches back to normal operation automatically after the function
program has finished.

The defrost function - AUFTAUEN

The defrost function enhances the toasting time for toasting frozen bread.

1. Insert the frozen bread slices in the slots and select the desired browning.

2. Press the TOAST/STOPP button and the bread will automatically be lowered and centred
in the slot. The TOAST/STOPP button illuminates red.

3. Press the AUFTAUEN button. The power indicator
of the button illuminates blue (picture B).

The toasting process is automatically controlled. Shortly before the toasting process is finished
the power indicator of the TOAST/STOPP button will start blinking. When the selected
browning level is reached, the toaster switches off automatically, and the power indicator of
the TOAST/STOPP button and the AUFTAUEN button eliminates.

The reheat function - AUFWÄRMEN

The reheat function shortens the toasting time for crisping up toast.

1. Insert the bread slices in the slots.

2. Press the TOAST/STOPP button and the bread will automatically be lowered and cen­tred in the slot. The TOAST/STOPP button illuminates red.

3. Press the AUFWÄRMEN button. The power
indicator of the button illuminates blue (picture C).

B

C

The toasting process is automatically controlled. Shortly before the toasting process is finished
the power indicator of the TOAST/STOPP button will start blinking. When the selected
browning level is reached, the toaster switches off automatically, and the power indicator of
the TOAST/STOPP button and the AUFWÄRMEN button eliminates.

The one side toasting function - EINSEITIG TOASTEN

The one side toasting function activates additional heating power for the heating elements
in the centre strip. Use the EINSEITIG TOASTEN function for crisping up halved rolls,
with the soft inner side of the sliced rolls facing to the centre strip of the toaster.

ATTENTION: The heating elements in the centre get very hot. Ensure not to burn the toast and
use browning control level 1 or 2 only.

1. Use a sharp knife to cut the rolls in halves and remove crumbs. Important: ensure,
that the halves are up to a maximum of 3 cm thick; otherwise the rolls could stick in the slots.

2. Insert the halved rolls in the slots.
Important: The soft inner side of the rolls must face to the centre strip of the toaster.

20

3. Press the TOAST/STOPP button and the bread will automatically be lowered and cen­tred in the slot (picture A). The TOAST/STOPP button illuminates red.

4. Press the CRUMPET button. The power indicator

D

of the button illuminates blue (picture D).
The toasting process is automatically controlled. Shortly before the toasting process is finished

the power indicator of the TOAST/STOPP button will start blinking. When the selected
browning level is reached, the toaster switches off automatically, and the power indicator of
the TOAST/STOPP button and the EINSEITIG TOASTEN button eliminates.

Care and Cleaning

WARNING: Always switch off the toaster (using the TOAST/STOPP button), unplug the

power cord and allow the toaster to cool down, before removing the crumb tray or
cleaning or moving the toaster. Do not immerse or place the toaster or power cord in
any liquids or drip any liquids on the toaster to avoid risk of electric shock and damage.

Do not place the appliance or any part of it in an automatic dishwasher.

Do not use abrasive cleaners, cleaning pads or any hard and sharp objects (i.e. metal
scouring pads) for cleaning. Clean the toaster and power cord with a damped sponge
or tissue and carefully dry the appliance after cleaning. Do not handle the appliance or
any part of it with violence. Do not insert any foreign objects into the slots.

1. Switch off the toaster, pressing the TOAST/STOPP button, unplug the power connector
and allow the toaster to cool down.

2. Pull out the crumb tray and empty the crumb tray.
You may clean the crumb tray and rolls tray in warm dish-water. Thoroughly dry the trays

after cleaning and leave the trays dry naturally for some minutes.

3. Grasp the toaster on both sides and hold the toaster over a sink or large bowl and
turn it upside down. Carefully shake the crumbs out of the toaster while turning the toaster
in all directions.

4. Wipe the exterior of the toaster with a damp soft cloth. Take care not to spill or drip
water or any other liquids in the toaster. If necessary, clean the power cord in the same
way. Then thoroughly dry the toaster and power cord with a dry soft cloth.

5. Insert the crumb tray in the bottom of the toaster.
CAUTION: Do not insert the crumb tray, when it is still wet or damp.

21

Storage

Store the entire appliance on a clean and dry surface, where it may not tilt or fall and
no other objects could fall on it and where it is safe from frost and inadmissible strain
(mechanical or electric shock, heat, moisture, direct sunlight) and where it is out of reach
of young children. Do not place any hard or heavy objects on the appliance or any parts
of it.

Always switch OFF the appliance by pressing the TOAST/STOPP button
and unplug the power connector, if the appliance is not in use.

If the appliance is not in use for a long period of time, clean the appliance before storage
(see ‘Care and Cleaning’). If required, wind the power cord around the cord storage in
the bottom of the appliance.

Warranty

We guarantee that all our products are free of defects at the time of purchase. Any
demonstrable manufacturing or material defects will be to the exclusion of any further
claim and within 2 years after purchasing the appliance free of charge repaired or substituted.

There is no Warranty claim of the purchaser if the damage or defect of the appliance is
caused by inappropriate treatment, over loading or installation mistakes.

The Warranty claim expires if there is any technical interference of a third party without
an written agreement.

The purchaser has to present the sales slip in assertion-of-claims and has to bear all
charges of costs and risk of the transport.

Waste Disposal

The appliance has to be deposed by the definition of the regional waste disposal of
electricalscrap. If necessary get information of the regional waste management enterprise.

22

Notes

23

GASTROBACK GmbH

Gewerbestraße 20 • D-21279 Hollenstedt/Germany

http://www.gastroback.de • E-Mail: [e-mail]
