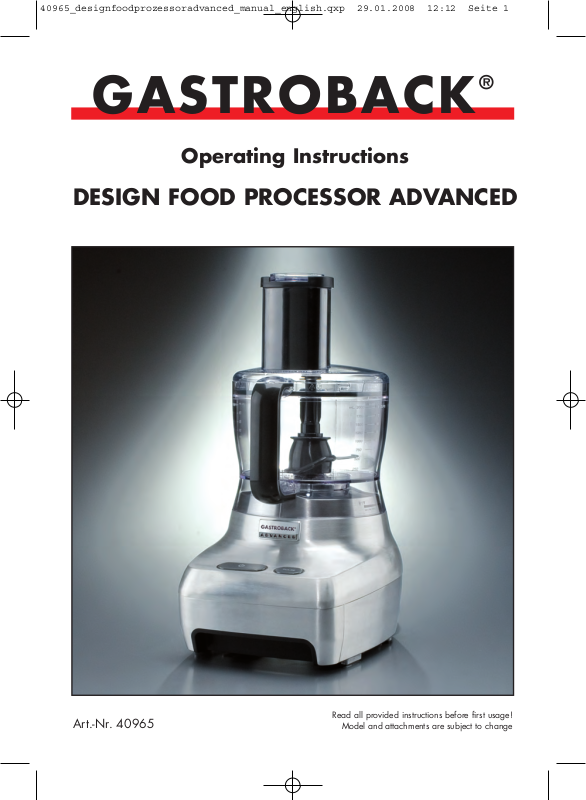

GASTROBACK

Operating Instructions

DESIGN FOOD PROCESSOR ADVANCED

Art.-Nr. 40965

Read all provided instructions before first usage!

Model and attachments are subject to change

Carefully read all provided instructions before you start running the

appliance and pay regard to the warnings mentioned in these

!

instructions.

IMPORTANT INSTRUCTIONS

• WARNING: To avoid injury to persons and damage, always turn the appliance OFF, wait for
the motor to stop completely and unplug the appliance, immediately after operation and
before assembling/disassembling or cleaning the appliance.

• WARNING: The blades and discs are very sharp. Pay attention when handling the units. Only
touch the discs and blades on the edge and handle with care when cleaning.

• Note: All attachments must be firmly attached to the spindle. Always adjust the

attachments until you are sure that they are correctly fitted.

• ATTENTION: If the ON-/OFF-button is pressed and the processing bowl is not locked onto the
motorblock yet the ON-/OFF-button does not illuminate. Placing the processing bowl onto the motorblock
while the ON-/OFF-button is pressed the motor starts running immediately.

• While proceeding do not push the food pusher too hard down to avoid overloading the motor. If
the motor stalls or stucks during operation or if the fibre of the food blocks the blade, immediately
turn ´OFF` the appliance and unplug the power cord. Check whether there is any obstruction in the
processing bowl, and remove it (see ‘Care and Cleaning’).

• WARNING: Do not push products into the feed chute with your fingers or foreign objects.
Always use the food pusher provided. Never use force.

• NOTE: The appliance will not turn ‘ON` unless the appliance is properly assembled.

• ´Pulse` button: The appliance is working in intervals. The motor is only running as long as you hold
the button down. Releasing the button the motor turns ´OFF` automatically.

• button: ´ON`: the button illuminates in orange, the motor is running permanently until you
press the On/Off button again to turn the appliance ´OFF`.

• ATTENTION: Do not use the appliance in continuous operation for more than 4 minutes to avoid
overheating. If processing large quantities of food, regularly interrupt operation and unplug the
appliance for at least 1 minute, to let the motor cool down.

• WARNING: With the blade mounted in the processing bowl, do not insert your fingers in the
processing bowl. Always use a wooden or plastic spoon or similar cooking utensils for filling in
and taking out your food.

• ATTENTION: Never hold your face or other body parts over the feed chute when the motor
is running because little pieces of food could be thrown out of the feed chute.

• ATTENTION: Never fill boiling food into the processing bowl. Always let the food cool down
before processing.

• Do not chop extremely hard food, such as ice, coffee beans or nutmeg.

• WARNING: Do not overfill the processing bowl or food collector. Possibly, take some food out,
using a wooden or plastic spoon, before starting the appliance again.

• CAUTION: DO NOT place the appliance in an automatic dishwasher or pour boiling water
over it. The accessories are dishwasher safe (only place them on top shelf of the dishwasher).
ATTENTION: The plastic parts can tarnish in the dishwasher.

• To prevent the sealing ring on the lid from getting brittle take the sealing ring out after multiple usage
of the appliance and brush on some vegetable oil before putting it back in position.

The Gastroback Design Food Processor Advanced delivers quality, style and superior
performance. Advanced technology and functional design guarantee the performance
of each product will exceed expectations. Food preparation has never been easier with
the Gastroback Design Food Processor Advanced. The powerful heavy-duty induction motor
will ensure that every processing task delivers professional results at the touch of a button.

The Design Food Processor Advanced is designed for chopping, shredding and slicing
fruit, vegetables, meat, herbs, nuts and almonds and for stirring batter, making ice
cream, milkshakes or soups and for cutting julienne. The Design Food Processor
Advanced is perfectly suited for processing raw fruit and vegetables and for a time-saving
preparation of the ingredients for your meals.

Important Safeguards

Carefully read all instructions before operating and save the instructions for further
reference. Do not attempt to use this appliance for any other than the intended use,
described in these instructions. Any other use, especially misuse, can cause severe injury or
damage by electric shock, fire or moving mechanical parts. these instructions are an
essential part of the appliance. When passing on the appliance to a third person, ensure
to include these instructions. Never leave the appliance unattended when in

operational mode.

Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service
centre. Please contact your vendor.

Safeguards for Daily Operation

• The appliance is designed for normal household quantities. Do not operate or store
the appliance outdoors or in damp or wet areas. Do not operate the appliance in
continuous operation for more than 4 minutes to avoid overheating. If processing large
quantities of food, regularly interrupt operation and unplug the appliance for at least 1
minute, to let the motor cool down and avoid overheating.

• Do not attempt to operate the appliance using any parts or accessories not
recommended by the manufacturer (i.e. knife insert). Do not operate the appliance,
when the appliance or any part of it is likely to be damaged, to avoid risk of fire, electric
shock or any other damage or injury to persons. Do not attempt to open the motor housing
or to repair the power cord. Check the entire appliance regularly for proper operation.
The appliance is likely to be damaged if the appliance was subject to inadmissible strain (i.e.
overheating, mechanical, or electric shock) or if there are any cracks, excessively frayed
parts, distortions or the motor stalls or sticks. In this case, immediately unplug the appliance
and return the entire appliance (including all parts and accessories) to an authorised
service centre for examination and repair.

• Do not lift, pull or carry the appliance by the power cord. To move or operate the
appliance, always grasp the motor housing by the dark non-slip grips.

3

• Close supervision is necessary when the appliance is used near young children. Do
not let young children play with any parts of the appliance or the packing. The blades

of the discs and the universal ´S` blades are extremely sharp. The appliance is NOT
intended for use by children or infirm persons without supervision. Take care that no one
will pull the appliance by the power cord, especially when young children are near.
Always place the appliance on a clean, dry and stable surface where it is protected from
inadmissible strain (i.e. mechanical or electric shock, overheating, frost, moisture) and
where young children cannot reach it.

• Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill, or oven). Do not place the appliance near the edge of the table or counter or on
inclined or wet surfaces or where it can fall. Keep the entire appliance away from direct
sunlight and sharp edges.

• Always IMMEDIATELY turn the appliance ´OFF` (pressing the On-/Off-button. The
appliance is turned ´OFF` when the button is eliminated), wait for the disc or blade to
stop completely, and then unplug the appliance, if the appliance is not in use (even for
a short break) and before assembling, disassembling or cleaning.

• Do not push products into the feed chute with your fingers or foreign objects. Always
use the food pusher provided. While proceeding do not push the food pusher too hard down.

• Do not immerse the motor housing or power cord in water or any other liquid. Do
not pour or drip any liquids on the motor housing or power cord. When liquids are spilled
on the motor housing, immediately unplug the appliance and dry the motor housing to
avoid risk of electric shock or fire. Do not attempt to operate the appliance, when liquids are
on or in the motor housing.

• Do not place the appliance in an automatic dishwasher!

• To avoid damage, do not use any abrasive cleaners, corrosive chemicals (i.e.
disinfectants, bleach) or cleaning pads for operation or cleaning. Do not use any hard
or sharp utensils for operation or cleaning.

• The appliance is intended for cutting and chopping food. Do not use the appliance for
any other purpose. Do not chop extremely hard food, such as ice, coffee beans or nutmeg.

• Before use, always make sure that the appliance is assembled properly and completely
(see Operation). Do not leave any food dry on the surfaces of the appliance. Always
handle the entire appliance and all parts of it with care and without violence.

• Always make sure the appliance is properly and completely assembled before connecting to
power outlet and operating. The unit will not turn ‘ON’ unless properly assembled.

• Reparation and technical maintenance of the appliance or line cord are just allowed
to be accomplished by an authorised specialist reparation shop.

• Do not use the appliance if it is damaged or units of the appliance are damaged. Do
not use the appliance if it does not function properly or if it was excessively loaded.

4

The appliance is likely damaged if the appliance or units of the appliance show cracks,
exorbitant wearing down, alterations or leaks. It is also likely damaged if the drive wheel of the
motorblock moves slowly. Take the appliance for technical maintenance and repair to an
authorised specialised reparation shop.

• Only use units, spare parts and supplies which are provided and recommended by
the manufacturer. Damaged or improper units may break in use, damage the appliance
or cause injury.

Important Safeguards for all Electrical Appliances

• Always operate the appliance near a suitable wall power outlet and connect the appliance
directly to the power outlet. Do not use any extension cords or a multiple desk outlet.

• Ensure that the voltage rating of your mains power supply corresponds to the voltage
requirements of the appliance (220/230 V, 50 Hz, AC). Always connect the appliance
directly to a mains power supply wall socket with protective conductor (earth/ground)
connected properly. The installation of a residual current safety switch with a maximum
rated residual operating current of 30 mA in the supplying electrical circuit is strongly
recommended. If in doubt, contact your local electrician for further information.

• Do not leave the appliance unattended while connected to the power supply and

while in operational mode.

unplug the appliance after operation and if it is not in use (even for a short break) and
before cleaning and/or assembling or disassembling. Always grasp the plug to disconnect the
appliance from the power outlet.

Always turn the appliance ´OFF` and IMMEDIATELY

• Always handle the power cord with care. Do not pull or strain the power cord. The
power cord may never be knotted or squeezed. Do not let the power cord hang over
the edge of the table or counter. Take care not to entangle in the power cord. Always
completely unwind the power cord before usage.

• Do not touch the appliance with wet hands to avoid risk of electric shock. Do not
touch the appliance, if it is damp or wet or is touching wet surfaces while connected to
the mains power supply. In this case, immediately unplug the appliance and dry the
appliance (see ‘Care and Cleaning’).

Movable and sharp-edged units – risk of injury

• Never put fingers, wooden spoons or other foreign substance (such as hair, clothing,
brushes, cloths) into the feed chute when the appliance is plugged into the power outlet.

• Only use the provided food pusher to push food through the feed chute.

• Always turn the appliance off, wait for the motor to stop moving and then pull the
plug before taking off the lid of the appliance.

• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.

5

• The blades and discs are very sharp. Pay attention when handling the units. Only touch
the discs on the edge and blades by its central plastic section and handle with care when
cleaning. The motor pursues running for a little while after turning the appliance off. Wait
until the motor stops running completely before you open or move the appliance. Only
store the appliance completely assembled. This way the blades and discs will be out of reach.

• Never put foreign substance or hard objects into the feed chute. Remove all
inedible parts (such as stem, hard peeling and seeds) of the food before putting
them into the feed chute.

Know your Gastroback Design Food Processor Advanced

Twin food pusher:

food pusher and

internal pusher

with measuring

scale

Feed chute

Lid with feed chute

2 litre processing bowl
with chute

Food collector

Handle

ON-/OFF button

2 litre processing bowls
without chute

- All processing bowls are
waterproof!

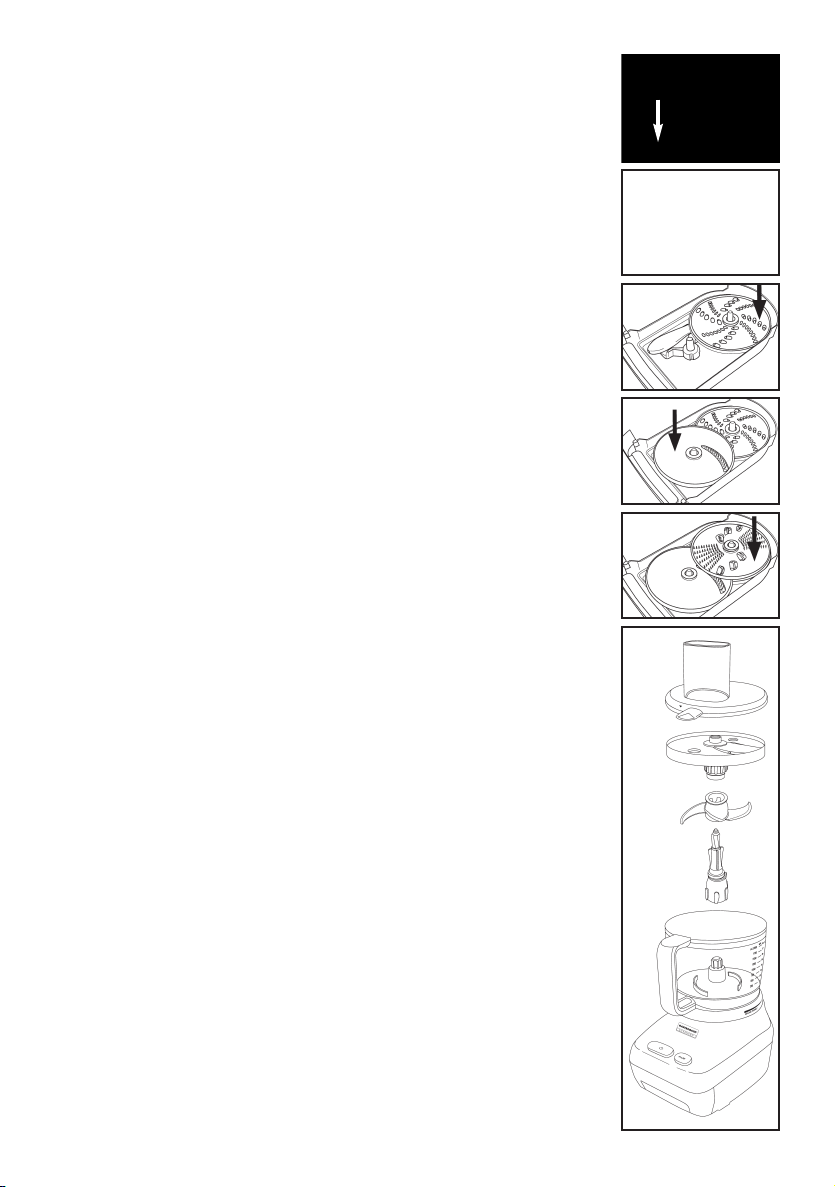

Storage drawer:
enables attachment to
be stored within the
appliance when in use.

6

Pulse button

Cord storage facility

Motorblock with 1.100
Watt induction motor

Non slip feet

Further accessories

A

BC

D

E

A: Variable slicing blade: The variable stainless steel slicing

blade allows foods to be sliced to a variety of thickness,
from 0 mm - 7 mm. - for fine and coarse vegetable slices.

B: Reversible grating and shaving disc: Unique to processing

is the shaving blade. It does lovely thin flakes, great for
parmesan and sweet potato crisps. The other side will
achieve finely grated results, ideal for hard cheeses and
chocolate.

C: Julienne disc: The stainless steel julienne blade is perfect

for achieving consistent julienne cut food, perfect for salad,
stir fry or garnishing.

D: Reversible shredding disc - fine and coarse: Ideal control,

the reversible stainless steel shredding blades allow for the
choice of fine or coarse results.

E: Ejector disc: The disc features direct food from food collector.

F

F: Spindle: Drives all the food processing attachments. The

spindle must be in place to operate the food processor.

G: Universal ‘s’ blade: Stainless steel smooth edged processing

blade is designed for cutting, kneading, whisking and
emulsifying.

G

H

H/I: Additional mini processing bowl with small universal ‘s’

blade and lid - for cutting and kneading small portions
and for storage.

I

J

J: Spatula: The spatula is ideal for assisting with all food

processing tasks.

7

Operating

The Design Food Processor Advanced works extremely quick; most kinds of food are
processed within some seconds. The Food Processor is designed only for short time operation
of max. 4 minutes. If you need it for longer, switch it off after 4 minutes and allow the
motor to cool for 1 minute.

The appliance has a safety contact, which allows the motor to start running only if the
bowl is positioned correctly on the motorblock. If the motor stalls or sticks during operation,
immediately turn ´OFF` the appliance and unplug the power connector. Check whether
there is any obstruction in the processing bowl, and remove it (see ‘Care and Cleaning’).
Do not overfill the processing bowl. Possibly, take some food out of the processing bowl,
using a wooden or plastic spoon, before starting the appliance again. Do not insert your
fingers in the processing bowl. Important: The Food Processor is fitted with a safety
thermal cut-out device and will shut off in the event of overload. If this occurs, switch the
appliance ´OFF` and it will automatically reset when cool.

• Operating the discs: remove the fibre of the discs when the openings are blocked.
Always use the food pusher when operating and gently guide food down the feed
chute.

• Operating the universal ´s` blade: Remove all inedible hard parts (such as stem, hard
peeling and seeds) of the food before putting them into the feed chute. The food could wedge
the blade. Pay attention that the bowl does not get overloaded and if necessary turn the
appliance ´OFF` and remove some food of the bowl with a spoon before continuing to operate.

• WARNING: Do not overfill the processing bowl or food collector. Possibly, take some

food out, using a wooden or plastic spoon, before starting the appliance again.

Before first use

WARNING: The blades and discs are very sharp. Pay attention when handling the units.

Only touch the discs and blades on the edge and handle with care when cleaning. Do
not leave young children play with the appliance or any part of it or the packing material.

After unpacking, remove all promotional and packing materials as well as any foreign objects.

Before first use and after a long period of storage, clean the appliance with a damp soft
cloth and warm soapy water (see ‘Care and Cleaning’).

Operating with the normal processing bowl

WARNING: Always turn the appliance ´OFF`, wait until the motor stops and unplug the

appliance before assembling/disassembling. Always completely assemble your appliance
before you plug the plug into the power outlet and ensure no foreign substance is in the
feed chute. Only touch the discs on the edge and blades by its central plastic section and
handle with care when cleaning.

8

1. Place the motor block on a suitable, stable, dry, and clean
working surface. (see: ‘Safeguards for Daily Operation’). The control
panel has to face the front.

2. Place the bowl on the motorblock turning it anticlockwise until it is
securely locked in position. Do not use any force. The handle should be
facing the front which is above the control panel (picture A).

3. Fit the spindle onto the drive shaft, in the middle of the processing
bowl (picture B). The long shaft of the spindle has to slide over the
drive shaft and the end with the aglet should face upright. If
necessary turn the spindle a little to fit in position. The spindle sticks
out of the bowl for 1 or 2 cm.

A

Note: All attachments must be firmly attached to the
spindle. Always adjust the attachments until you are
sure that they are correctly fitted.

4. Put the disc or blade you want to use on top of the spindle turning

the disc until the hexagonal nut of the disc fits on the hexagon bolt of
the spindle (picture C/D). The side which you want to use has to face
upwards.

Operating the different discs and blade

Reversible grating and shaving disc (picture E)

For grating (i. e. carrots) use the grating and shaving disc. To
achieve finely grated results, the side with the arched blades has
to face upwards. To achieve finely grated flakes the side with the
small blades has to face upwards.

Reversible shredding disc - fine and coarse (picture F)

To achieve fine and coarse shredding results use the shredding
disc (i.e. cucumber) and put it onto the top of the spindle. For
coarse shredding results, the side with the bigger arched blades
has to face upwards. For fine shredding results, the side with the
smaller arched blades has to face upwards.

B

C

D

E

F

G

Julienne disc (picture G)

To cut food in consistent julienne, perfect for salad, stir fry or garnishing use the julienne
disc. The side with the blades has to face upwards.

9

Variable slicing blade (picture H, I and J)

It allows foods to be sliced to a variety of thickness, from 0 mm ­7 mm. To adjust the blade you have to turn the shaft which is located
on the bottom side of the disc.

For thinner slices turn the shaft counterclockwise (picture I) and for thick­er slices turn the shaft clockwise (picture J).

Note: There are two holes in the disc to ease disassembling. Put your
fingers through the holes and slightly pull the disc upwards to remove
it. Pay attention not to cut yourself.

Universal ‘s’ blade (picture K)

For cutting vegetables, fish or meat, kneading batter or making
shakes, soups or ice cream use the universal ‘s’ blade.

Warning: Use caution, as blades are sharp. Always
handle the processing blade by its central plastic section.

Fit the universal 's' blade onto the spindle and press firmly into place.
Ensure the blade is securely locked on the spindle. The blade is correct
assembled if the central plastic section faces upwards and flushes with
the wider part of the spindle. The blade is placed a few millimetres
above the bottom of the processing bowl.

5. Position the lid onto the processing bowl (picture L). You will
notice a solid grey arrow to the left of the holding lip on the lid,
when placing the lid onto the bowl this arrow needs to align with
the solid grey arrow on the handle of the bowl (picture M). To
lock, turn the lid clockwise.

H

shaft to adjust the
thickness of the slices

I

J

K

The lid has four guiding pins which have to fit into the cannelure
of the processing bowl (picture N) in order to lock the lid. Turn
the lid clockwise and push up against. The lid is securely locked
in position if the arrow on the handle is facing the line on the lid.

Note: If the processing bowl and cover are not correctly assembled,
the Food Processor will not operate. This is a safety feature.

6. Prepare your food and fill it in the processing bowl. If necessary
cut the food in proper size to fit through the feed chute (see ´Tips
for preparing the food`).

7. Note: For maximum control when using your food processor,
before turning on your food processor load the feed tube and fit
the food pusher on top.

Note: The food pusher consists of two parts: the food pusher and
an internal pusher with measuring scale (picture O).

10

L

lock

M

guiding pins

cannalure

N

Ensure the internal pusher is inserted an locked within the food
pusher before using the food pusher.

8. To insert the internal pusher pay attention to the guiding pins on
the edge of the internal pusher and the line mark on the top of the
pusher. The food pusher has matching cannelures and a line mark
as well. Place the internal pusher inside the food pusher and turn
it until the line marks are facing each other.

WARNING: Do not push products into the feed chute with your

O

fingers or foreign objects. Always use the food pusher provided.
While proceeding do not push the food pusher too hard down.

WARNING: To refill the feed chute always remove the food pusher first.

8. Connect the power plug to a suitable wall power outlet.

9. Start the appliance pressing the ´ON` button. The motor starts working, the food

is getting processed and gathered at the base of the bowl. While proceeding do not
push the food pusher too hard down to avoid overloading the motor. If the motor stalls or
stucks during operation or if the fibre of the food blocks the blade, immediately turn
´OFF` the appliance and unplug the power cord. Check whether there is any obstruction
in the processing bowl, and remove it (see ‘Care and Cleaning`).

ATTENTION: Do not use the appliance in continuous operation for more than 4 minutes
to avoid overheating. If processing large quantities of food, regularly interrupt operation
and unplug the appliance for at least 1 minute, to let the motor cool down.

Important: The Food Processor is fitted with a safety thermal cut-out device and will
shut off in the event of overload. If this occurs, switch the appliance off and it will
automatically reset when cool.

10. You can continue to fill the feed chute as soon as the feed chute is empty.

ATTENTION: Never hold your face or other body parts over the feed chute when the

motor is running because little pieces of food could be thrown out of the feed chute.

WARNING: Do not overfill the processing bowl. Possibly, take some food out of the
processing bowl, using a wooden or plastic spoon, before starting the appliance again.

Note: Very stringily food can block the blades. In this case turn the appliance off, wait
for the disc to stop moving and remove the plug from the power outlet. Take off the lid
by turning it counterclockwise. Remove the disc. Rinse the disc thoroughly under running
water and remove food residues. Assemble the appliance and continue to operate.

11. As soon as the food has the right consistency turn the appliance ´OFF`. Always turn
the appliance ´OFF` and pull the plug when the appliance is not in use and you finished
the operation.

12. Empty the bowl. Clean the appliance in accordance to the instructions in chapter
‘Care and Cleaning`. Do not leave any food dry on the surfaces of the appliance.

11
