Gastroback 40963 User Manual
Operating Instructions
Design Food Processor S
Art.-No. 40963 Design Food Processor S
Read all provided instructions before first usage!
Model and attachments are subject to change!
For household use only!
Carefully read all provided instructions before you start running
the appliance and pay regard to the warnings mentioned in these
instructions.
Table of Contents
Knowing your Design Food Processor S ...........................................35
Important safeguards .....................................................................37
General safety instructions ...........................................................37
Important safeguards for electrical appliances ................................38
Moving parts - Risk of injuries .....................................................39
Technical specifications ..................................................................40
Before first use ..............................................................................40
Properties of the Design Food Processor S ........................................41
Safety interlocks ..........................................................................41
Modes of operation .....................................................................41
Selecting the appropriate tools .....................................................42
Lid for continuous feeding ............................................................42
Tips for best results ........................................................................43
General .....................................................................................43
Using the universal ‘s’ blade.........................................................43
Using the feed tube and cutting discs ............................................43
Operation ....................................................................................44
Preparing the appliance ...............................................................44
Chopping, kneading, mixing or puréering ......................................45
Processing with the universal ‘s’ blade ...........................................46
Grating, shredding and slicing using the cutting discs .....................48
Working with the lid for continuous feeding ...................................50
After processing ..........................................................................52
Solving problems ..........................................................................53
Care and cleaning ........................................................................54
Disassembling the appliance ........................................................54
Cleaning the appliance................................................................55
Storage ........................................................................................56
Notes for disposal .........................................................................57
Information and service ..................................................................57
Warranty .....................................................................................57
Index ...........................................................................................58
Dear customer!
Congratulations! A variety of new possibilities for delicious meals comes with your new
Gastroback Design Food Processor S. Different sets of tools are designed to meet all your
requirements for time-saving preparation of the ingredients for your dishes, salads, desserts,
and drinks. Effortless and within seconds you prepare the ingredients for delicious meals.
The Food Processor is intended for cutting and grating of fruits and vegetables, for mincing
meat and chopping herbs and for grinding and mixing.
These instructions for use will inform you about the various functions and features, which
make it easy to take pleasure in your Food Processor.
We hope that you will enjoy the Design Food Processor S.
Your Gastroback GmbH
Knowing your Design Food Processor S
Disc for continuous feeding – The disc
features direct food from food collector.
Slider – must be pulled
up during operation.
Food collector
Shaft
ON/OFF button – switching
on the motor for continuous
operation; indicator is
illuminated when switched ON.
Drawer – for storing most
of the cutting tools safely.
Pusher – for pushing the
food down in the feed
tube; including a scale for
measuring small amounts
of liquids, flour and similar foodstuffs.
Feed tube – here you
add the prepared food.
Bowl – stands firmly on the
motor base by means of the
safety interlock.
Pulse button – the motor
will run only as long as you
press the button down; with
indicator.
Motorbase – with nonslip rubber legs, standing
firmly and stable.
w/o figure:
· Power cord
· Safety interlocks – switch OFF the motor, when bowl and/or lid are not assembled and locked correctly
35

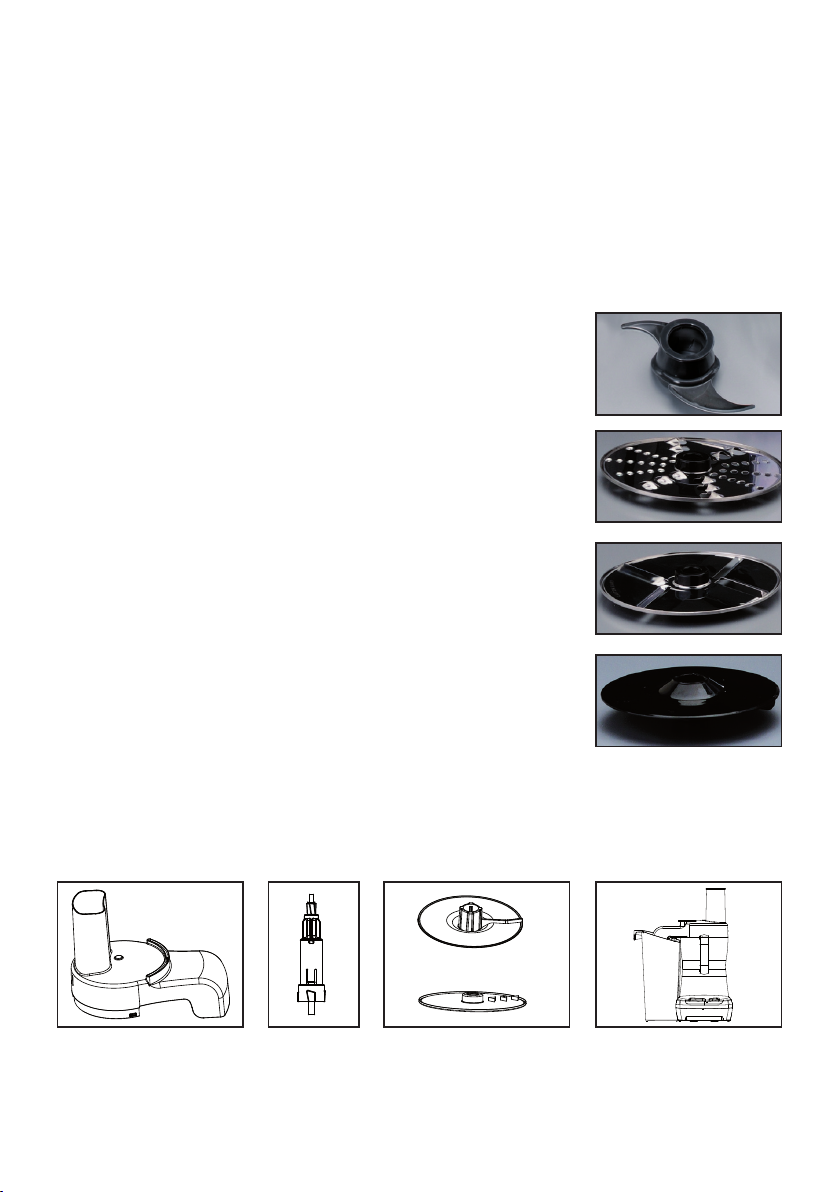

Tools
6
7
8
4
5
1
3
1 Universal ‘s’ blade – the work horse blade used most often for most tasks of chopping, mincing
and mixing in a matter of seconds
2 Shredding disc – shreds and grates quickly to even and uniform pieces.
3 Slicing disc – for even cuts.
4 Disc for continous feeding – the sliced food will be transported over the disc for continous
feeding into the food collector.
5 Regular feed
6 Lid for continuous feeding
7 Food collector
8 Pusher with scale
Long and short shaft
2
36
Important safeguards
Carefully read all instructions before operating this appliance and save for further reference.
Do not attempt to use this appliance for any other than the intended use, described in these
instructions. Any other use, especially misuse, can cause severe injuries or damage by electric shock, moving parts, heat or fire.
These instructions are an essential part of the appliance. Do not pass the appliance without
this booklet to third parties.
Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service centre.
Please contact your vendor.
General safety instructions
• This appliance is for household use only and NOT intended for use in moving vehicles. Do
not operate or store the appliance in humid or wet areas or outdoors. Any use of accessories, attachments or spare parts that are not recommended by the manufacturer or damaged
in any way may result in damage and/or injuries to persons.
• Check the entire appliance regularly for proper operation – especially the power cord. Do
not operate the appliance, when the appliance or any part of it is likely to be damaged, to
avoid risk of fire, electric shock or any other damage and/or injuries to persons. The appliance is likely to be damaged if the appliance has been subject to inadmissible strain (e.g.
overheating, mechanical or electric shock), or if there are any cracks, excessively frayed or
melted parts, or distortions, or if the appliance is not working properly. In this case, immediately unplug the appliance and return the entire appliance (including all parts and accessories) to an authorised service centre for examination and repair.
• Operate the appliance on a well accessible, stable, level, dry, water-resistant, and suitable
large table or counter. Always keep the appliance and the table or counter clean and dry,
and wipe off spilled liquids immediately. Always remove the bowl from the motor base,
before taking food out of the bowl. Do not place any clothes or tissue or other objects under
or on the motor base during operation, to avoid risk of fire, electric shock and overheating.
Do not place the appliance over a power cord, or near the edge of the table or counter, or
on wet or inclined surfaces, or where it can fall.
• During operation keep the appliance in an appropriate distance of at least 20 cm on each
side and 50 cm above to furniture, walls, boards, curtains, and any delicate objects. Exclusively use the appliance for processing edible food and domestic use. Immediately unplug
the appliance, if there is any kind of malfunction or problem (e.g. the motor gets stuck, liquid
running out, overheating). Do not needlessly operate the appliance continuously. Always
switch OFF the motor even when making short brakes (e.g. for preparing further ingredients).
• This appliance is NOT intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children must be supervised to ensure that they do
not play with the appliance or any parts of the appliance or the packaging.
Always keep the appliance where it is dry, frost-free, and clean, and where young children
cannot reach it. Do not leave the appliance or any part of it unattended, when it is in reach
of young children.
37
37
• Do not place the appliance or any part of it on or near hot surfaces (e.g. burner, heater or
oven). Do not use any parts or tools of the appliance with any other device or for any other
purpose.
• Before operation, always ensure that the appliance is assembled completely and correctly
according to the instructions in this booklet. Do not use violence.
• Do not insert your fingers or any foreign objects (e.g. clothes, cooking utensils) in the
feed tube, with the appliance connected to the power supply. Do not use any hard, sharp
or edged objects (e.g. knives, forks) with the appliance. Only use the provided pusher for
feeding food into the feed tube. Do not handle the appliance or any part of it with violence.
• Always use only one matching set of tools according to the instructions in this booklet to
avoid damage. Do not process bones, nutshells or any other extremely hard items.
• Do not overfill the bowl. If the maximum filling level is reached, empty the bowl, before
continuing processing your food. When processing liquids (e.g. cream), do not fill in more
than up to filling level 500 ml. Otherwise, liquids could run out from under the lid. If liquids
run out or are spilled on the motor base, immediately unplug the appliance.
• Do not leave the appliance unattended, when it is connected to the power supply. Always
switch OFF (ON/OFF button; indicator goes out) at first, then unplug the appliance, and
wait until the motor comes to a standstill, before moving, or cleaning the appliance, or assembling or disassembling any parts, or when the appliance is not in use. Always grasp the
motor base at both sides near the bottom for moving or lifting. Do not hold the appliance at
the bowl, lid, or power cord for moving the appliance. Do not place any hard and/or heavy
objects on the appliance or any part of it. Take care that no one will pull the appliance by
the power cord.
• Do not use any abrasive cleaners, cleaning pads (e.g. metal scouring pads), or any corrosive chemicals (e.g. bleach) for cleaning. Do not immerse the motor base or power cord in
water or any other liquid. Do not spill or drip any liquids on the motor base, or on the power
cord to avoid risk of fire and electric shock.
• Do not place the motor base or power cord in an automatic dishwasher.
• Do not leave any food dry on the appliance. Always clean the appliance after each use to
prevent a build up of baked-on foods (see Care and Cleaning). Always keep the appliance
and the tools clean.
Important safeguards for electrical appliances
The appliance is driven electrically. Place the appliance near a suitable wall power socket
to connect the appliance directly to a protected mains power supply with protective conductor (earth/ground) connected properly. Ensure that the voltage rating of your mains power
supply corresponds to the voltage requirements of the appliance (230 V, 50 Hz, AC, rated
for at least 8 A).
The installation of a residual current operated circuit breaker (r.c.c.b.) with a maximum rated
residual operating current of 30 mA in the supplying electrical circuit is strongly recommended. If in doubt, contact your electrician for further information.
In various foreign countries, the specifications for power supplies are subject to incompatible
norms. Therefore it is possible that power supplies in foreign countries do not meat the requi-
38
rements for safe operation of the appliance. Thus, before operating the appliance abroad,
ensure that safe operation is possible.
• Do not to use any extension cords or desk top multi socket outlets.
• Always handle power cords with care. Always completely unwind the power cord before
use. Do not place the appliance on a power cord. Power cords may never be knotted, twisted, pulled, strained or squeezed. Do not let the plug or power cord hang over the edge of
the table or counter. The power cord may not touch hot surfaces or sharp edges. Ensure that
no one will pull the appliance by the power cord. Take care not to entangle in the power
cord. Always grasp the plug to disconnect the power cord. Do not touch the power plug with
wet hands when the appliance is connected to the power supply.
• When liquids are spilled on the motor base or power cord, immediately unplug the
appliance. Thereafter, clean the appliance and let it dry for at least 1 day. See: Care and
Cleaning
Moving parts — Risks of injuries
The appliance is intended for cutting, chopping and mixing food. Thus,
moving/cutting parts of the appliance can cause severe injuries, when used
contrary to these instructions.
• Do not insert your hands, hair, clothes, brushes, or other foreign objects (e.g. bones, stalks
of vegetables, cooking utensils) in the feed tube of the appliance or in the outlet of the bowl,
when the appliance is connected to the power supply. Only use the provided pusher to push
down the ingredients. Do not push with violence, to avoid that the motor gets blocked.
• The blades of the tools are very sharp. Handle with care! Only touch the cutting
tools at the black plastic parts to avoid injuries. Do not attempt to use more than one set of
cutting tools simultaneously, unless it is described in the instructions in this booklet this way.
• Do not hold your face over the feed tube, while the motor is agitating, because food and
liquids could splash through the feed tube. Moreover, splinters could escape from the feed
tube, if you failed to see small pieces of bones or other hard parts (e.g. shells, stones) while
preparing the foods. DO NOT push the foods with your hands down in the feed tube, or
poke in the feed tube!
• Always assemble the appliance according to the instructions in this booklet completely and
correctly, before connecting the appliance to the power supply. Doing so, be aware, that
the motor will start IMMEDIATELY, if the ON/OFF button is set to ON at this moment. Thus,
always ensure that the appliance is always ready for working, before connecting to the power supply. Always switch OFF (indicator in the ON/OFF button goes out) the appliance via
the ON/OFF button first, when setting it out of operation. This holds also, when the motor
suddenly stops agitating due to overheating or braking of a safety interlock.
3939
Technical specifications
Model: Art. No. 40963 Design Food Processor S
Power supply: 230-240 V AC, 50/60 Hz
Power consumption: 450 - 500 W
Length of power cord: ca. 1 m
Weight: ca. 0.75 kg
Dimensions: ca. 16.5 cm x 19.8 cm x 36.0 cm (width x depth x height)
Maximum filling level: 0.75 Litre
Certification:
Before first use
WARNING: DO NOT let young children play with the appliance, or any part
of it, or the packaging! The cutting tools are very sharp. Ensure not to get injured when
unpacking the tools. The length of the power cord is about 1 m. Do not attempt to pull out
the power cord any further than this.
1. Unpack the appliance and all accessories carefully.
2. Some cutting blades are placed in the drawer in the motor base. Pull out the drawer and
avoid cutting yourself, when taking out the tools. Thus, always grasp the tools only at the
black plastic parts.
3. Probably, the power cord is inserted in the back of the motor base. Carefully, pull out the
power cord without using violence. The power cord is about 1 m in length. Do not attempt to
pull out the power cord any further than this.
4. Check that no parts are damaged or missing. See: Knowing Your Design Food Processor
Pro
5. Carefully remove all shipping materials and promotional materials, but DO NOT remove
any warning labels or the model label. Especially ensure that there are no foreign objects
(e.g. packaging) in the interior of the bowl.
WARNING! Always switch OFF (ON/OFF button; indicator goes out) and unplug the
appliance, before cleaning. Do not immerse the motor base or power cord in water or other
liquids or spill any liquids on the motor base or power cord. Do not place the motor base or
power cord in an automatic dishwasher.
6. Before first use and after a longer period of storage, clean the appliance and all tools.
(See: „Care and Cleaning“)
40
Properties of the Design Food Processor S
Your new Food Processor processes your food in only a few seconds. For most purposes there is no need to continuously operate the appliance for more than a few minutes. Even heavy
dough (e.g. yeast dough) is processed in 2 or 3 minutes (at the maximum). Also when using
a cutting blade and adding your food via the feed tube, you should switch off the motor for
filling the feed tube anew. This way you get better results. Additionally, you should not press
too violently on the pusher, when processing your food. See: Safety interlocks
If you wish to process your food for a elongated time (e.g. mixing dough using the universal
‘s’ blade), always make brakes in between times, switching the motor OFF to avoid overheating.
The appliance is NOT suited for grinding very hard parts of foods (e.g. stones, woody
shells, bones).
The appliance is delivered with a lot of useful tools. Only use the designated tools for the
various tasks to avoid damage. (See: „Selecting the Appropriate Tools“)

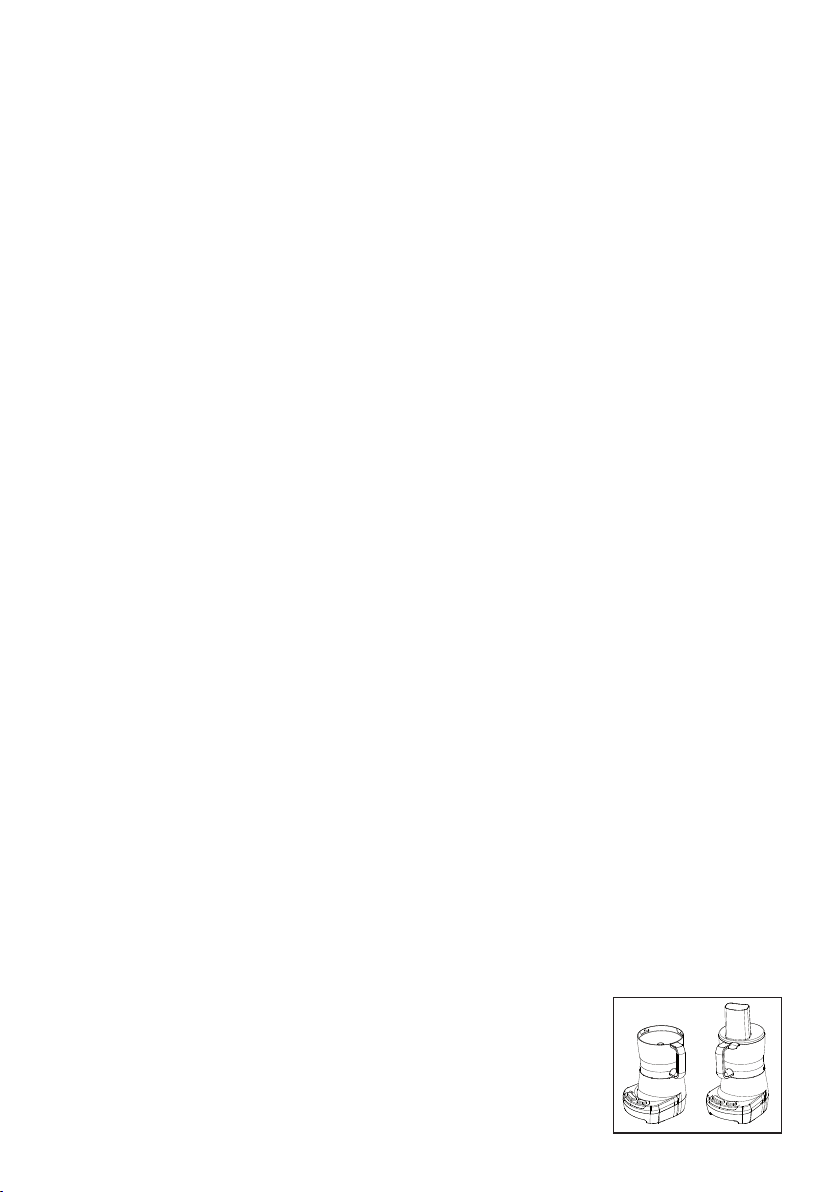

Safety interlocks
WARNING: Do not attempt to damage or by-pass the safety interlocks!
Your new Design Food Processor Pro is equipped with various safety features for your protection.
• Safety interlocks switch OFF the motor, if the bowl or the lid is not assembled and locked
correctly, to avoid injuries due to the cutting blades and other moving parts.
• The automatic brake stops the motor almost immediately, as soon as the appliance is switched OFF.
• The appliance is provided with a safety thermal cut-out device and will shut off, when overloaded. If the appliance suddenly stops during operation, immediately switch OFF (indicator
goes out) and unplug. Then wait for about 15 minutes to let the motor cool down. Thereafter,
you can operate the appliance quite as usual. (See: „Operation“) However, to avoid that
overheating occurs again, you should repeatedly make brakes during working—depending
on the load (e.g. for kneading heavy dough).
• The motor base is mounted on rubber legs, ensuring a stable, non-slip stand on smooth
surfaces (e.g. glass, metal, painted surfaces).
• For storage you can place the cutting tools in the bowl and in a drawer in the motor base,
thus avoiding injuries. Additionally, this way the tools are always at hand.
(See: „Storage“)
Modes of operation
The appliance can be operated in two operating modes: continuously and pulse.
• Press the ON/OFF button for continuous operation.
An indicator in the ON/OFF button is illuminated, if the appliance is switched on. If the
indicator is illuminated but the motor does not work, first press the ON/OFF button to switch
OFF the appliance (indicator goes out), then check, if you assembled the appliance completely and correctly. (See: Operation) Thereafter try again. (See also: „Solving Problems“)
4141
Loading...
