GASTROBACK

INSTRUCTIONS FOR USE & RECIPES

DESIGN MULTI JUICER DIGITAL

Art.-Nr. 40128 Design Multi Juicer Digital

Read all provided instructions before first usage!

Model and attachments are subject to change

Carefully read all provided instructions before you start running the

appliance and pay regard to the warnings mentioned in these

!

instructions.

Important Instructions

• Never leave the appliance unattended when in operational mode.

• Always make sure the appliance is properly and completely assembled before connecting to
power outlet and operating. The unit will not turn ‘ON’ unless properly assembled.

• Do not let the motor run permanently for longer then 7 minutes to avoid overheating.

• Do not operate the appliance continuously on heavy loads for more than 10 seconds. If this
is the case the motor slows down because the appliance is overloaded or the fruit chunks are too
big. Cut the fruit in smaller pieces and try smaller amounts at one time. To continue juicing turn the
appliance OFF and then ON again. (None of the recipes in this book are considered a heavy load.)

• ATTENTION: Extra wide feed chute. Never put fingers, wooden spoons or other
foreign substance (such as hair, clothing, brushes, cloths) into the feed chute when the appliance is
plugged into the power point. Do not push products into the feed chute with your fingers or other
foreign substances. Always use the food pusher provided. Always turn the appliance off, wait
for the motor to stop moving and then pull the plug before taking off the lid of the juicer.

• Do not push products into the feed chute with your fingers or foreign objects. Always use
the food pusher provided.

• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.

• The blades on the base of the stainless steel micro mesh filter and inside the feed chute
are very sharp. Pay attention when handling the units. Only touch the stainless steel micro mesh
filter on the edge and handle with care when cleaning with the nylon bristle brush.

• ATTENTION: Ensure that the filter basket is clean before starting to operate the appliance. Do
not leave food leftovers dehumidify on the appliance or units of the appliance. If pulp dehumidifies
on the micro mesh filter it may clog the fine pores of the micro mesh filter thereby lessening the
effectiveness of the juicer.

• Note: The juice jug lid can be used to avoid any splatter. Alternatively you can fit the
custom-designed juice nozzle over the juice spout and place a glass underneath. The juice nozzle
will prevent splatter, ensuring mess free juicing.

• ATTENTION: Empty the pulp container and juice jug in time to avoid run-over and splatter which
might causes damages to the appliance.

• Never clean the motor block in the dishwasher.

• Always turn the appliance off and pull the plug when the appliance is not in use or
when disassembling, moving or cleaning the appliance.

The current interest in fresh and unprocessed food is the reason for fresh fruit and vegetable
juices to become a favourite component of our daily food and well balanced diet.

The Design Multi Juicer Digital has a special designed large feed chute, a 3 litre pulp container,
a big juice jug and a stainless steel titanium reinforced micro mesh filter. It operates with a
high performance 1.300 watt motor which makes the juice production easy and efficient.

The units have a smooth surface with no grooves and rough edges and can be cleaned easily
after use. The provided juice jug finishes with the juice run-out and therefore eliminates
any splatter during operation. It has a volumetric capacity of 1.200 ml and a nice grip
for easy and comfortable handling.

Please read all the advice and instructions with care and keep the manual. Only use the
appliance to process fresh food.

Important safeguards

Carefully read all instructions before operating and save the instructions for further reference.
Do not attempt to use this appliance for any other than the intended use, described in these
instructions. Any other use, especially misuse, can cause severe injury or damage by electric
shock, fire or moving mechanical parts. This instruction is an essential part of the appliance.
When passing on the appliance to a third person, ensure to include these instructions.

Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service
centre. Please contact your vendor.

Safeguards for Daily Operation

• Only use the appliance for the intended purpose. Any non-appropriate use and misusage can
cause damages and heavy personal injuries through voltage, fire and moving units.
Only proceed the appliance as described in the directions.

• Do not use the appliance in moving vehicles or boats. Only use the appliance indoors.

• Store and use the appliance in a clean, frost free environment where it is protected
from dampness, moist and immoderate and extraordinary burden (such as: downfall, beat,
overheating, moisture in the motorblock) .

• Do not use or store the appliance outdoors.

• Store appliance and units out of reach of children.

• The work space has to be easily accessible, solid, even, dry and of sufficient size.
Do not use the appliance in moist and wet areas.

• Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill, or oven). Do not place the appliance near the edge of the table or counter or on
inclined or wet surfaces or where it can fall.

3

• Repair and technical maintenance of the appliance or line cord are just allowed to
be accomplished by an authorised specialist reparation shop.

• Do not use the appliance if it is damaged or units of the appliance are damaged.
Do not use the appliance if the rotating sieve is damaged. Do not use the appliance if it
does not function properly or if it was excessively loaded. The appliance is likely damaged if the
appliance or units of the appliance show cracks, exorbitant wearing down, alterations or leaks.
It is also likely damaged if the drive wheel of the motorblock moves slowly. Take the appliance
for technical maintenance and repair to an authorised specialised reparation shop.

• Only use units, spare parts and supplies which are provided and recommended by
the manufacturer. Damaged or improper units may break in use, damage the appliance
or cause injury.

• Do not push products into the feed chute with your fingers or foreign objects.
Always use the food pusher provided.

• Do not touch the small cutting blades in the base of the stainless steel filter basket.

• Always make sure the appliance is properly and completely assembled before connecting to
power outlet and operating. The unit will not turn ‘ON’ unless properly assembled.

• Do not let the motor run permanently for longer then 7 minutes to avoid overheating.

• Do not operate the appliance continuously on heavy loads for more than 10 seconds.
In this case the appliance is overloaded or the fruit chunks are too big. Cut the fruit in
smaller pieces and try smaller amounts at one time. To continue juicing turn the appliance OFF
and then ON again. (None of the recipes in this book are considered a heavy load.)

• While proceeding Do not push the food pusher too hard down. Empty the pulp container
and juice jug in time to avoid run-over and splatter which might causes damages to the
appliance. When proceeding hard or stringily food or if you press the stamp down too
hard the motor could stop or slow down. In this case turn off the appliance immediately
and pull the plug to avoid overheating. Operate according to the instructions ´Trouble
shooting guide`.

• Do not leave food leftovers dehumidify on the appliance or units of the appliance.
If pulp dehumidifies on the micro mesh filter it may clog the fine pores of the micro mesh
filter thereby lessening the effectiveness of the juicer. Remove such dirt immediately and operate
according to the instructions ´Care and cleaning` before you continue to proceed.

• Never clean or operate the appliance or units of the appliance with abrasive or hard
sharp-edged items.

• Never clean the motor block in the dishwasher.

• Never use force operating the appliance to avoid damage of the units of the appliance.

• The appliance is not suitable for mincing nuts, chocolate or similar ingredients. The
appliance is not suitable to make minced meet or to blend food.

• Do not use the appliance in moist and wet areas.

4

• Do not put any cloth or napkins underneath the appliance to avoid endangering by fire
and electric shocks.

• Never situate the appliance close to the edge of the working area.

• Never let water or other liquids run into the motorblock.

• Never clean the line cord or the motorblock in the dishwasher, pour liquids over the
appliance or douse or dip it in water or other liquids. In case that water or other liquids
ran into the motorblock while operating turn off the appliance immediately, pull the plug
and dry the appliance with a clean cloth.

• Never situate the appliance close to a strong heat source or a hot surface (for example:
heater, stove or grill)

• Never leave children unsupervised when the appliance or units of the appliance are in reach.

• Never let children play with the appliance or units of the appliance. Children and invalid
people have to be supervised using the appliance.

• Never leave the appliance unattended, when the plug is plugged into the power point.

• Always turn the appliance off and pull the plug when the appliance is not in use or
when disassembling, moving or cleaning the appliance.

• Make sure that the appliance is turned off before pulling the plug out of the power point.

• To avoid damage, do not use any abrasive cleaners, corrosive chemicals (i.e.
disinfectants, bleach) or cleaning pads for operation or cleaning. Do not use any hard
or sharp utensils for operation or cleaning.

Important Safeguards for all Electrical Appliances

• Always uncoil the line cord completely before installing the appliance.

• Place the appliance close to a power point and connect it directly without using any
extension cords to avoid additional risks of injury through fire or voltage.

• Only install the appliance in proper form secure grounding receptacle with adequate
electric power supply (alternating current; 230/240 V, 50 Hz) and ground fault circuit
interrupter. The maximum power consumption of the appliance is 1.300 Watt. You should also
install a fuse with a release current of maximum 30mA. If necessary ask your electrician for help.

• Never pull, rip, bend, clamp, squish or knot the line cord. Pay attention to the line cord
not hanging of the table. Attend to nobody getting caught in loops of the line cord or
pulling the appliance of the work space. When pulling the plug always catch hold of the
enclosure of the plug.

• Do not immerse the motor housing or power cord in water or any other liquid. Do
not pour or drip any liquids on the motor housing or power cord. When liquids are spilled
on the motor housing, immediately unplug the appliance and dry the motor housing to
avoid risk of electric shock or fire. Do not attempt to operate the appliance, when liquids are
on or in the motor housing.

5

Movable and sharp-edged units – risk of injury

• The feed chute is designed exceedingly large. Never put fingers, wooden spoons or other
foreign substance (such as hair, clothing, brushes, cloths) into the feed chute when the
appliance is plugged into the power point.

• Always turn the appliance off, wait for the motor to stop moving and then pull the
plug before taking off the lid of the juicer.

• Only use the provided food pusher to push food through the feed chute.

• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.

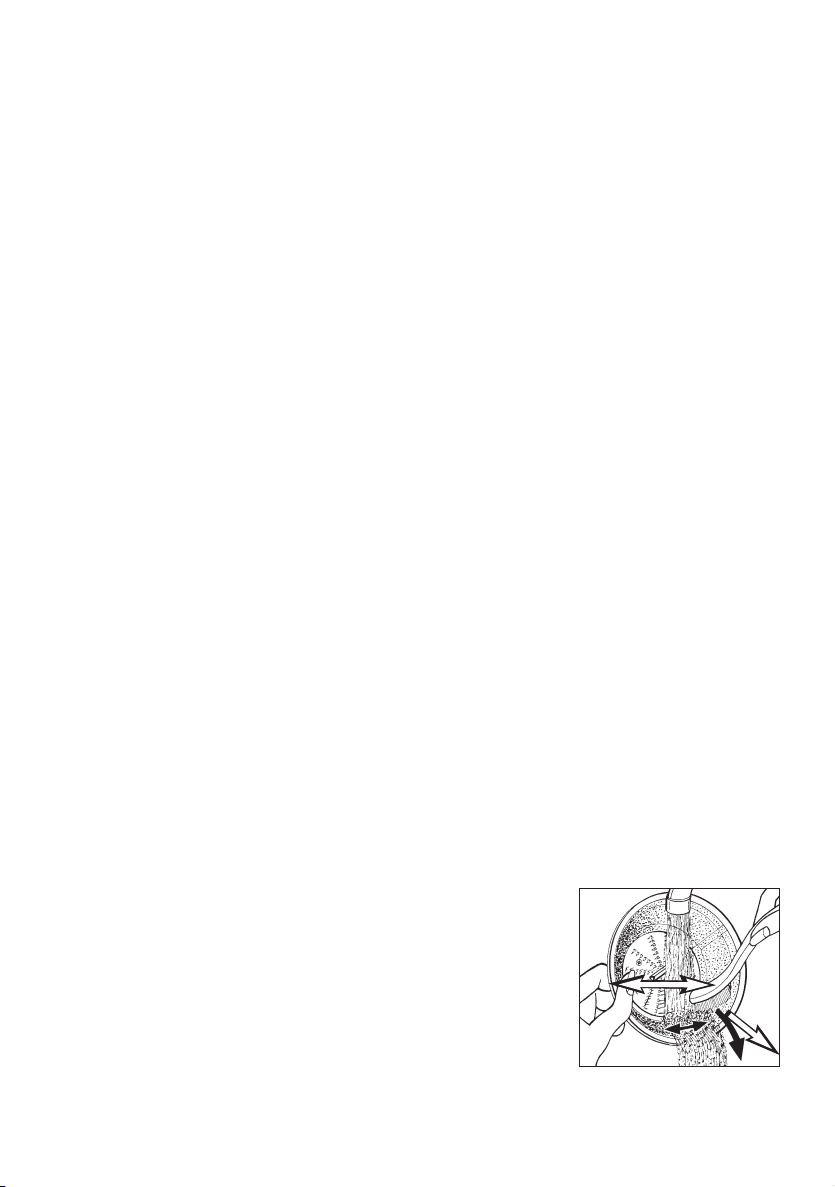

• The blades on the base of the stainless steel micro mesh filter and inside the feed
chute are very sharp. Pay attention when handling the units. Only touch the stainless steel
micro mesh filter on the edge and handle with care when cleaning with the nylon bristle brush.
Only store the appliance completely assembled. This way the blades will be out of reach.

• Never put foreign substance or hard objects into the feed chute. Remove all
inedible parts (such as stem, hard peeling and seeds) of the food before putting
them into the feed chute.

• The motor pursues running for a little while after turning the appliance off. Wait until
the motor stops running completely before you open or move the appliance.

6

Get to know your Gastroback juicer

Patented extra wide feed chute:
You can fill in whole fruit such as
apples, carrots, tomatoes and
peeled oranges. For quick and easy
juicing of fruit and vegetables.

Juicer cover (dishwasher proofed)
with interlocking safety arm: stops the
juicer operating without the juicer
cover locked in place.

Stainless steel, titanium reinforced
mocro mesh filter basket (dishwasher
proofed)

3 litre pulp container (dishwasher
proofed)

Customer designed juice nozzle:
perfect for mess free juicing straight
into a glass (dishwasher proofed)

On-/Off-switch
Digital Display:

Shows selected speed and recom­mends fruit or vegetables

for pushing whole fruit and vegetables down the

food pusher with cannelure:

feed chute (dishwasher proofed)

Heavy duty 1300 watt motor

Speed control:
for juicing soft fruit with a lot of moist
up to hard fruit and vegetables
(view ´speed selector table`)

Cord storage:
cord wraps into position under base
and clips into place

Nylon cleaning brush: flat end of the
brush assists in removal of pulp from the pulp
container when juicing large quantities,
nylon brush end for easy cleaning of the
stainless steel filter basket
(dishwasher proofed)

1,2 litre juice jug with handle and lid (dishwasher proofed)

Built in froth separator lid: ensures juice froth is separated from
juice when poured into a glass (if preferred)

Lid: Using the lid you avoid splatter while operating or to stor the
juice in the fridge

7

Assembling the appliance

Step1:

Place the filter bowl surround on the motorblock. Locate the
filter bowl surround so that the spout fits through the hole on
the front of the motor base (picture A).

Step2:
WARNING: Handle the units with care and do not use any

force. Pay attention to the sharp blades on the stainless steel
micro mesh filter and the feed chute to avoid injury. Always
completely assemble your juicer before you plug the plug into
the power point.

ATTENTION: Ensure the stainless steel filter basket is clean
before assembling. Any dehumidified left over food on the
basket will block the fine mesh holes. If necessary remove
excess fibre build up (from fruit or vegetables) according to
the instructions ´Care and Cleaning`.

Align the arrows on the stainless steel filter basket with the
arrows on the motor drive coupling and push down until it
clicks into place. Ensure the stainless steel filter basket is fitted
securely inside the integrated pulp container and onto the
motor base (picture B).

Step 3:

Place the juicer cover over the stainless steel filter on top of
the filter bowl surround (picture C). The feed chute has to be
positioned in the middle of the filter basket and the pulp
spouting of the cover has to face away from the interlocking
safety arm.

A

B

C

Step 4:

Raise the safety locking arm straight up and lock into the two
grooves on either side of the juicer cover. The safety locking
arm should now be in a vertical position and locked into place
on top of the juicer cover (picture D).

Important: If the safety locking arm is not in the right position
the motor will not start moving and the display shows “Lockbar”.

Step 5:

Slide the food pusher down the feed chute by aligning the
groove of the food pusher with the small protrusion on the
inside of the top of the feed chute. Continue to slide the
food pusher down the feed chute (picture E)

8

D

Step 6:

Place the pulp container into position by tilting the motor base
slightly to the right. Insert the container under the juicer cover
on the left-hand side ensuring it is supported by the container
support extending from under the motor base (picture F).
Note: To minimise cleaning, line the pulp container with a plastic
freezer bag to collect the pulp (picture G). Pulp can then be used
in other dishes, or as compost for the garden or discarded.

Step 7:

Place the juice jug provided under the spout on the right-hand
side of the appliance. The juice jug lid can be used to avoid
any splatter.

Alternatively you can fit the custom-designed juice nozzle over the
juice spout and place a glass underneath. The juice nozzle
will prevent splatter, ensuring mess free juicing (picture H).

Operating your Design Multi Juicer Digital

E

F

Step 1:

Wash selection of fruit and vegetables to be juiced and

H

G

remove if necessary the peel (oranges, citrus fruit), stems
and stones (nectarines, peaches, plums) and all inedible
elements. NOTE: Most fruit and vegetables such as
apples, carrots and cucumber will not need to be cut or
trimmed to size as these will fit whole into the feed chute. Ensure vegetables such as beetroot,
carrots, etc. have all soil removed, are well washed and trimmed of leaves before juicing.
When juicing carrots place the tip of the carrot into the feed chute last.

Step 2:

Ensure the Design Multi Juicer Digital is correctly assembled and that there are no foreign
objects in the feed chute before putting the plug into the power point. Ensure the stainless
steel filter is thoroughly cleaned before each use (refer to ´Care and cleaning`). Ensure you
place the juice jug with lid fitted (or glass) under spout before commencing juicing.

Step 3:

Plug the power cord into a 230/240V power outlet and turn the power ‘ON’. Push the
‘ON/OFF’ button to ‘ON’. Adjust the variable speed control dial to the desired setting
depending on the type of fruit or vegetable being juiced. Use the speed selector table
as a guide for juicing different fruit and vegetables.

Note: Hard fruit and vegetables will put excess strain onto the motor if a low speed is
selected. Please refer to the speed selector table to determine the correct speed for the
fruit and vegetables being juiced.

9

Speed selector table

Fruit / Vegetables Suggested Speed

Apples 5
Beetroot (cleaned, trimmed) 5
Brussel sprouts (trimmed) 5
Carrots (cleaned) 5
Celery 5
Fennel 5
Pears hard (stalks removed) 5
Pineapple (peeled) 5
Broccoli 4
Cabbage 4
Cauliflower 4
Cucumber, soft skinned 4
Oranges (peeled) 3
Apricots (stone removed) 2
Cucumber, peeled 2
Kiwi fruit (peeled) 2
Mangoes (peeled, stone removed) 2
Nectarines (stone removed) 2
Peaches (stone removed) 2
Pears soft (stalks removed) 2
Plums (stone removed) 2
Melons (peeled) 1
Tomatoes 1
Watermelon (peeled) 1

Marking of display

Stufe Marking

Stufe 1 Soft Fruit
Stufe 2 Soft Fruit, Citrus
Stufe 3 Citrus
Stufe 4 Pineapple, Apple
Stufe 5 Pineapple, Apple, Hard Veg

Step 4:
WARNING: The feed chute is extra large! Never put fingers, wooden spoons or other

foreign substances (such as hair, clothing, brushes, cloth) into the feed chute. Never use fingers
to push food down the feed chute or to clear the feed chute. Always use the food pusher

10
