Introduction

Manual Conventions

When you are instructed to “touch”

something, use your nger to touch an item

on the screen.

The small arrows (>) used in the text indicate that you should touch a series of items. For example, if you see “touch Where To? >

Favorites” you should touch Where To?,

and then touch Favorites.

zūmo Tips and Shortcuts

To quickly return to the Menu page, touch

• and hold Back.

Touch and to see more choices.

• Touch and hold to scroll faster.

Pages appear differently based on your

• usage mode and settings.

Contact Garmin

Contact Garmin if you have any questions

while using your zūmo. In the USA, go

to www.garmin.com/support, or contact Garmin USA by phone at (913) 397-8200 or (800) 800-1020.

In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000.

In Europe, go to www.garmin.com

/support and click Contact Support for

in-country support information, or contact Garmin (Europe) Ltd. by phone at +44 (0)

870.8501241.

See the Important Safety and Product

Information guide in the product box for product warnings and other important information.

myGarmin™

Go to http://my.garmin.com to access the latest services for your Garmin products:

•

Subscribe to online services for safety

• camera information (see page 38).

Unlock optional maps.

•

zūmo 600 Series Owner’s Manual i

Introduction

Table of Contents

Introduction ............................................i

Manual Conventions ................................... i

zūmo Tips and Shortcuts ............................ i

Contact Garmin ........................................... i

myGarmin™ ................................................i

Getting Started ......................................5

Your zūmo ..................................................5

Installing the Battery ..................................6

Mounting Your zūmo in an Automobile .......6

Mounting Your zūmo on a Motorcycle ........ 7

Using the Menu Page ................................9

Selecting a Usage Mode ............................ 9

Conguring Your zūmo ............................... 9

Acquiring Satellites ....................................9

Finding Your Destination ..........................10

Following Your Route ............................... 11

Adjusting the Volume ............................... 11

Where To? ...........................................12

Finding an Address ..................................12

Searching Near Another Location ............ 12

Go! Page Options ....................................12

Setting a Home Location .......................... 13

Finding a Place by Spelling the Name ....13

Finding Recently Found Places ............... 13

ii zūmo 600 Series Owner’s Manual

Using Favorites ........................................14

Using Photo Navigation ...........................14

Using Extras ............................................. 14

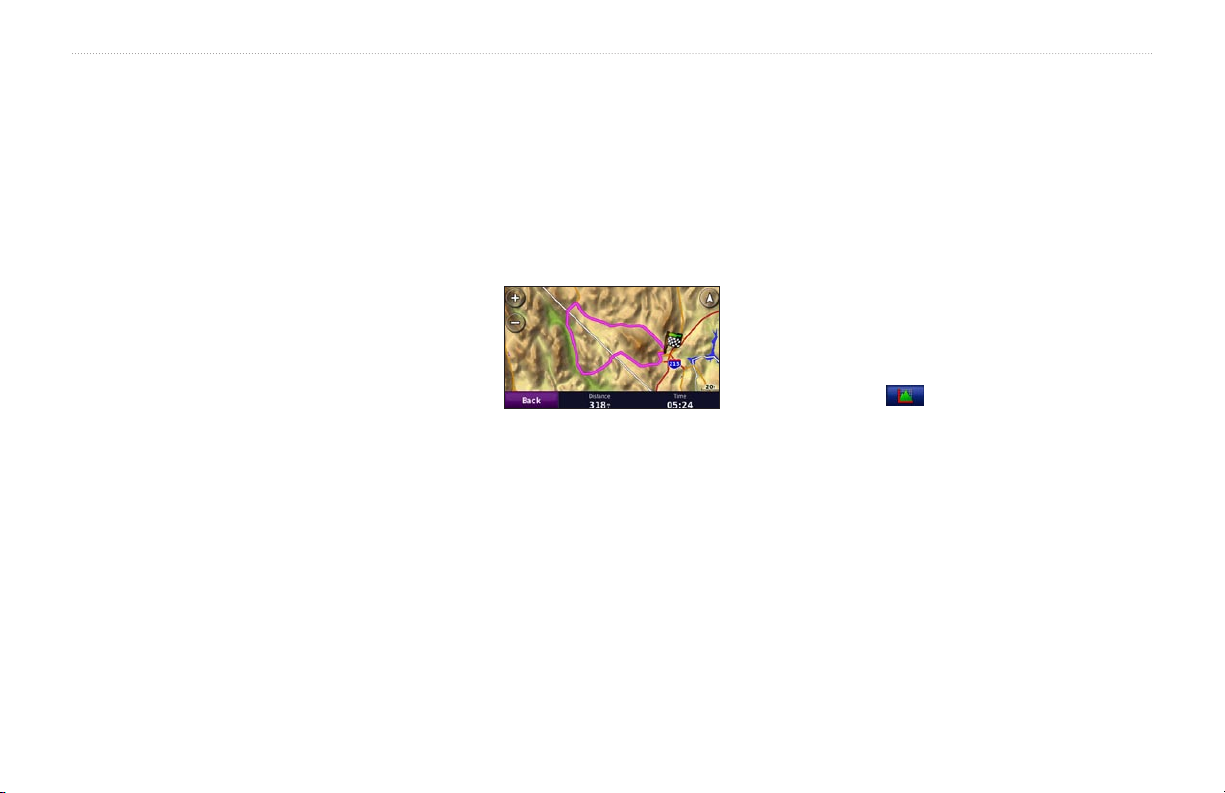

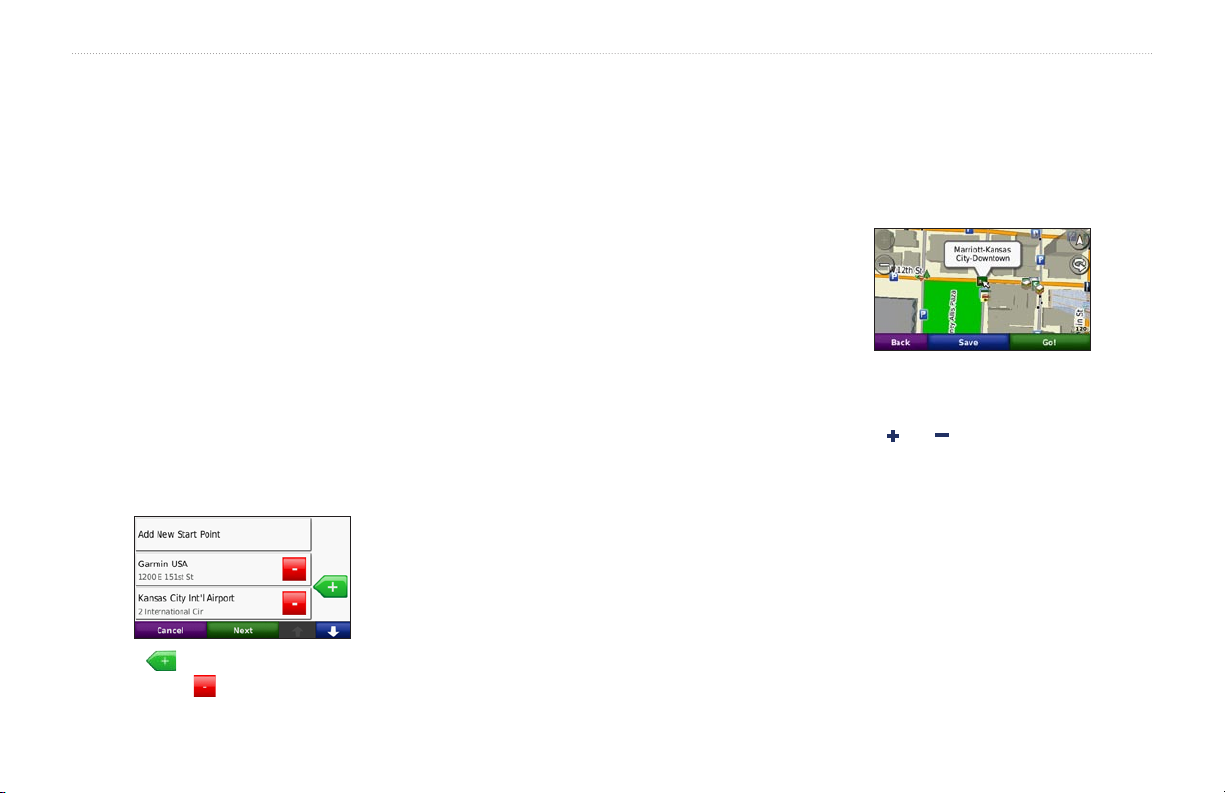

Using Custom Routes ..............................15

Finding a Place Using the Map ................15

Entering Coordinates ............................... 16

Using the Main Pages ........................17

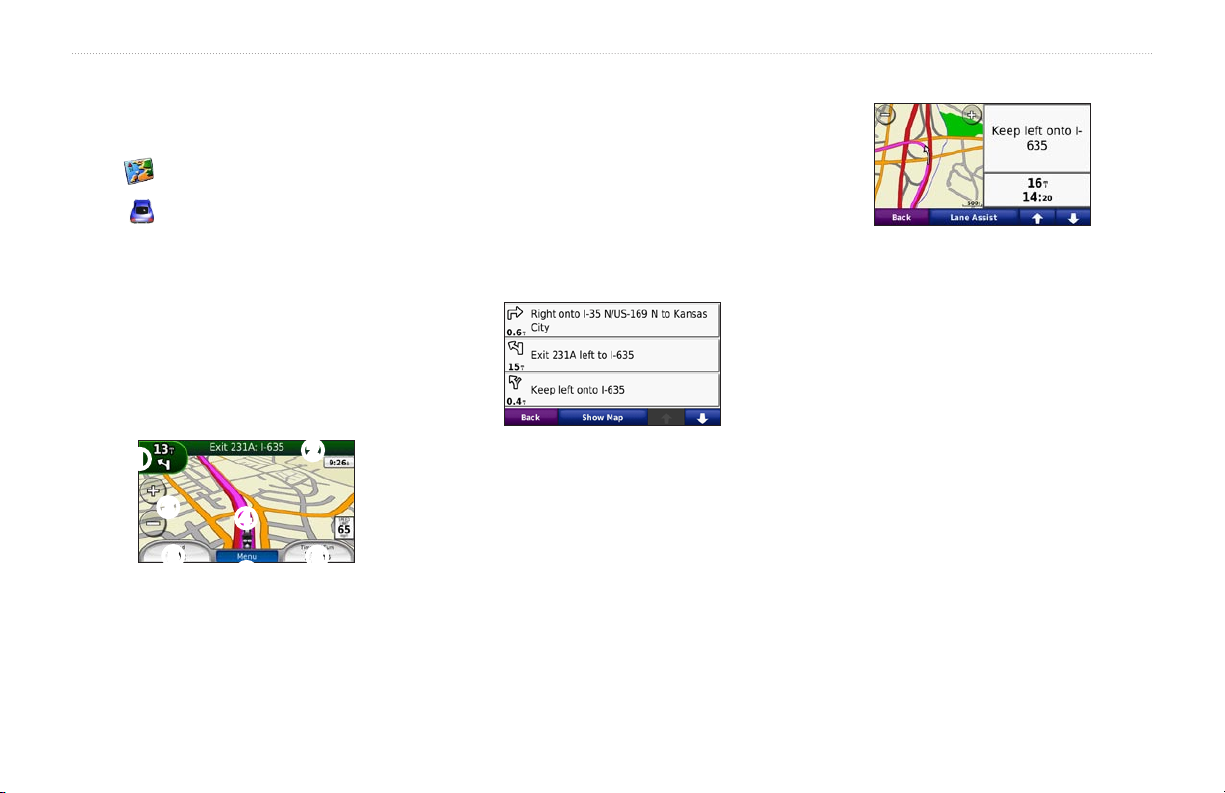

Map Page ................................................. 17

Turn List Page .......................................... 17

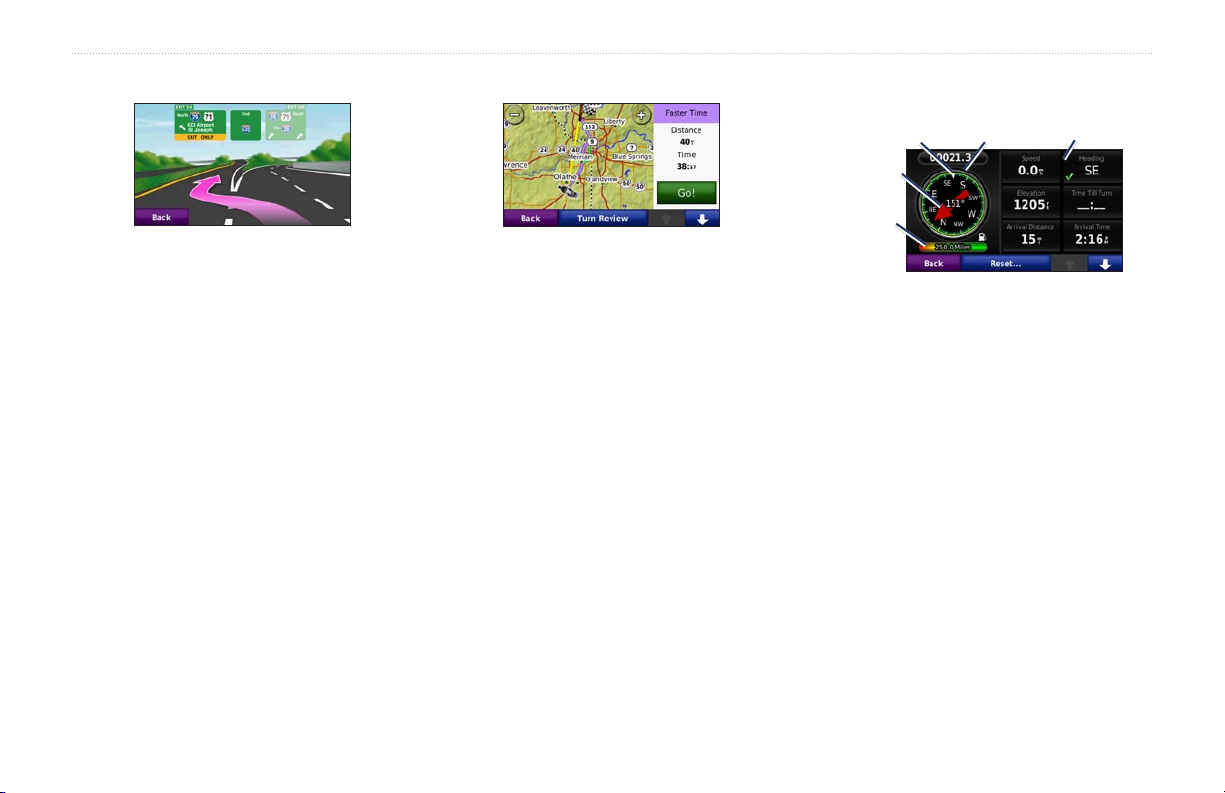

Next Turn Page ........................................ 17

Lane Assist Page .....................................18

Routes Page ............................................ 18

Trip Computer Page ................................. 18

Compass .................................................. 19

Enabling Fuel Tracking ............................ 19

Using Hands-free Calling ...................20

Pairing Your Devices ................................ 20

Receiving a Call ......................................21

In a Call ................................................... 21

Phone Menu ............................................. 21

Using Trafc Information ...................23

Trafc .......................................................23

MSN® Direct .............................................23

Receiving Trafc Information ................... 23

Trafc in Your Area ................................... 23

Severity Color Code ................................. 23

Trafc on Your Route ............................... 24

Viewing the Trafc Map ............................ 24

Using the Media Players ....................25

Using a Wireless Headset ........................ 25

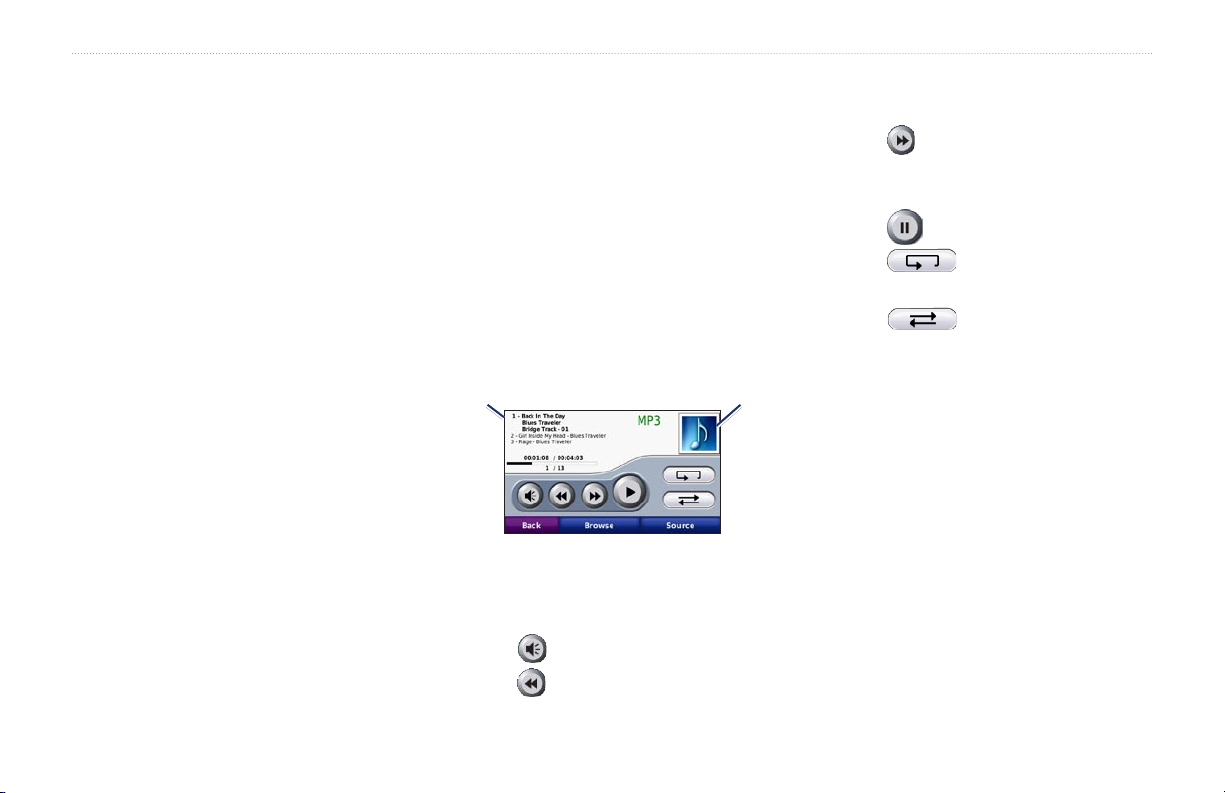

Playing Music ........................................... 25

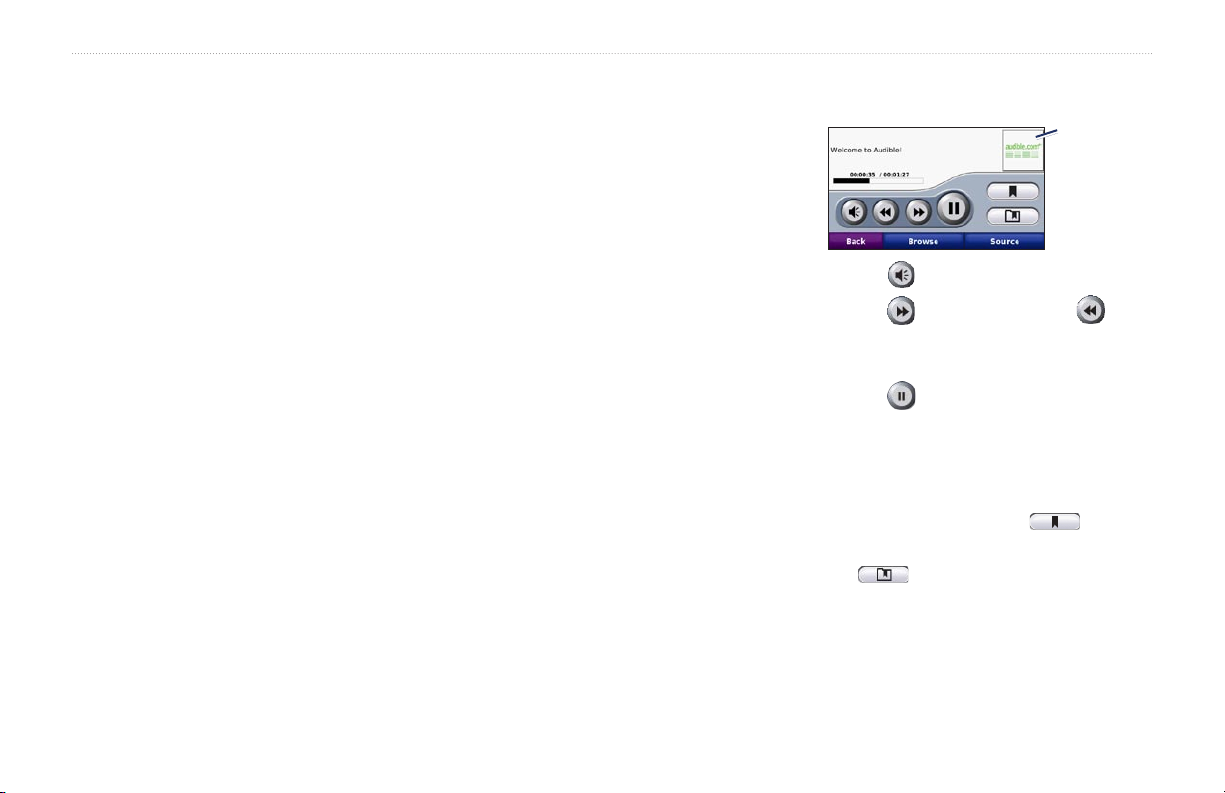

Listening to Audible Books ....................... 26

Managing Files ....................................27

Loading Files ............................................ 27

Supported File Types ............................... 27

Deleting Files .......................................... 27

Using the Tools ...................................28

Settings ....................................................28

Where Am I? ............................................28

Help .......................................................... 28

Media Player ............................................28

MSN® Direct .............................................28

Picture Viewer .......................................... 28

Custom Routes ........................................ 28

My Data .................................................... 29

Managing Trip Logs ................................. 29

World Clock ............................................. 30

Language Guide ......................................30

Calculator ................................................ 31

Unit Converter ......................................... 31

Offers ....................................................... 31

Introduction

Customizing the zūmo .......................32

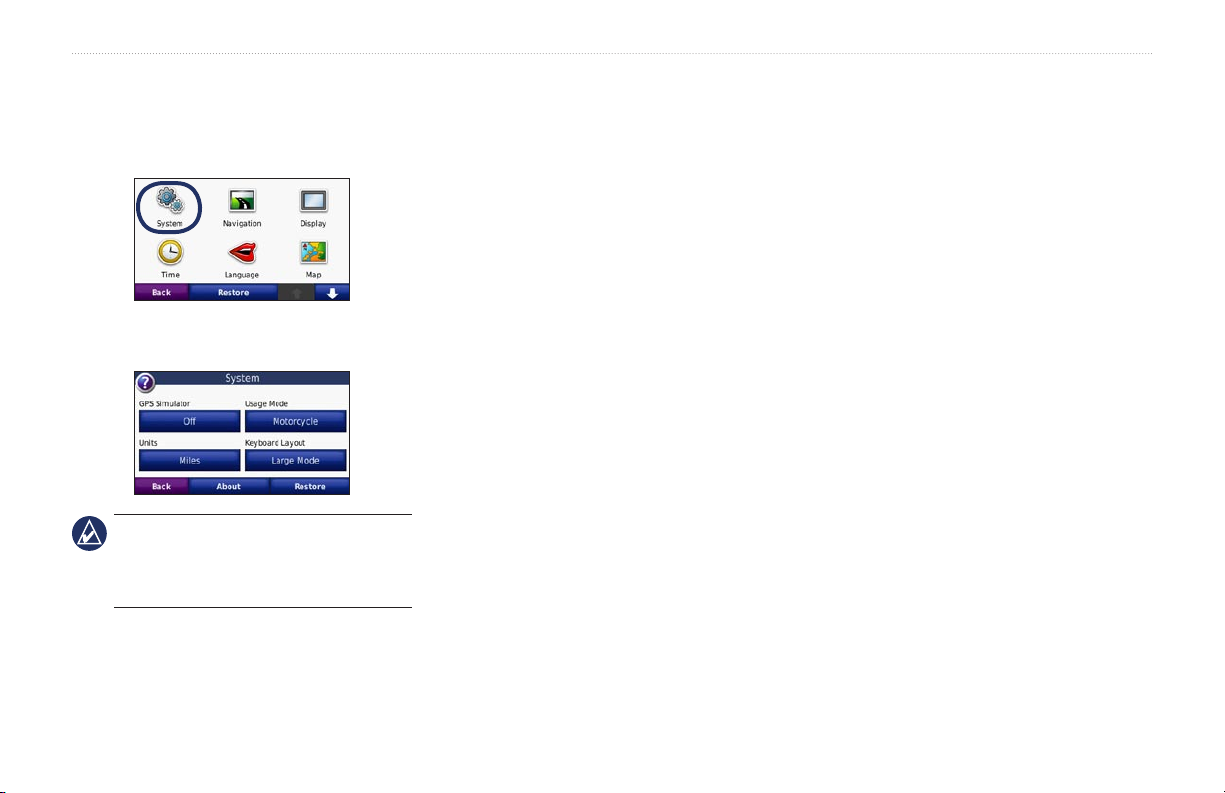

Changing the System Settings ................. 32

Changing the Navigation Settings ............ 32

Adjusting the Display Settings .................33

Updating the Time Settings ...................... 33

Setting the Languages .............................33

Changing the Map Settings ...................... 34

Adding Security ........................................ 34

Viewing FM TMC Trafc Subscription

Information ............................................34

Changing Bluetooth Technology

Settings .................................................35

Changing the Proximity Points Settings ... 35

Restoring All Settings ............................... 36

Clearing User Data ..................................36

Appendix .............................................37

Ways to Charge Your zūmo ..................... 37

Resetting the zūmo ..................................37

Calibrating the Screen .............................37

Locking Your zūmo ................................... 37

nüMaps Guarantee™ ...............................37

Additional Maps .......................................37

Updating the Software .............................38

Extras and Optional Accessories .............38

Battery Information .................................. 39

Replacing the Battery in the zūmo ...........39

Charging Your zūmo ................................39

Changing the Fuse ................................... 40

About GPS Satellite Signals ....................40

Mounting on Your Dashboard ..................40

Removing the zūmo and Mounts ............. 41

Caring for Your zūmo .............................. 41

Declaration of Conformity ........................42

Software License Agreement ................... 42

Specications ........................................... 43

Troubleshooting ....................................... 44

Index ....................................................46

zūmo 600 Series Owner’s Manual iii

Getting Started

Your zūmo

Power button: Press and hold to turn the zūmo on/off. Press quickly to adjust the volume and the backlight brightness.

Mini-USB

connector

Getting Started

GPS antenna

microSD™

Headphone/

audio-out jack

(under weather cap)

Microphone

External antenna

connector

(under weather cap)

zūmo 600 Series Owner’s Manual 

slot

Battery contacts

Release key: Slide and

release to open the

battery cover

Serial number

(under the battery)

Speaker

Getting Started

Installing the Battery

1. Locate the lithium‑ion battery that came in the product box.

2. Slide the release key until the battery cover on the back of the zūmo pops up.

3. Locate the metal contacts on the end of the lithium‑ion battery.

4. Insert the battery so that the metal contacts on the battery align with the metal contacts inside the battery compartment.

5. Replace the battery cover.

CAUTION: Always keep the battery

installed when the zūmo is on.

Mounting Your zūmo in an Automobile

1. Plug the automotive power cable into the

2. Remove the clear plastic from the suction

WARNING: Do not use the suction cup

mount on a motorcycle.

power connector on the right side of the cradle.

Release button

Cradle

Automotive

power cable

cup. Clean and dry your windshield and the suction cup with a lint‑free cloth.

Suction cup mount

3. Place the suction cup on the windshield.

4. Flip the lever back, toward the windshield.

5. Snap the cradle onto the suction cup arm.

6. Fit the bottom of your zūmo into the cradle.

7. Tilt the zūmo back until it snaps into place.

8. Plug the other end of the automotive power cable into a power outlet in your car.

9. If you are using a trafc receiver in Europe, secure the antenna on the trafc receiver to the windshield using the suction cups.

WARNING: This product contains a lithium-

ion battery. To prevent damage, remove the unit from the vehicle when exiting or store it out of direct sunlight.

6 zūmo 600 Series Owner’s Manual

Getting Started

Mounting Your zūmo on a Motorcycle



WARNING: Incorrectly wiring the power cable with bare wire leads can result in damage to the vehicle or the battery and can cause bodily injury. Garmin strongly recommends having an experienced installer with the proper knowledge of electrical systems install the unit.

Step 1: Connecting Power to the

Mount

Select a suitable and secure location to

mount the zūmo on your motorcycle based

on available power sources and safe cable routing.

Cradle

Headphone/audio out jack (3. mm)

Bare wires with

inline fuse for

power connection

Power cable

Microphone jack (2. mm)

Mini-USB connector

(for trafc receiver)

zūmo 600 Series Owner’s Manual 

Step 2: Installing the Handlebar Base

The zūmo includes parts for two handlebar

installation solutions. Custom mounts can require additional hardware (www.ram

-mount.com).

A) To install the U-bolt and handlebar base:

1. Place the U‑bolt around the handlebar, and thread the ends through the handlebar base.

2. Tighten the nuts to secure the base. Do not overtighten.

NOTE: The recommended torque is 50

lbf-in. Do not exceed torque of 80 lbf-in.

Handlebar

base

U-bolt

Handlebar

B) To install the handlebar base to the clutch/brake clamp bracket:



NOTE: Both 1/4” standard and M6 bolts are included. Match the size of the factory bolts on your clutch/brake clamp bracket.

1. Remove the two factory bolts on your clutch/brake clamp bracket.

2. Thread the new bolts through the handlebar base, spacers, and clamp bracket.

3. Tighten the bolts to secure the base.

Handlebar

base

Clutch/brake

clamp bracket

Spacers

Getting Started

Step 3: Attaching the Base Plate to Your zūmo Mount

1. Thread the M4 pan head screws through

Step 4: Attaching the Base Plate to the Handlebar Base

1. Align the ball of the handlebar base and the washers, the cradle, the spacers, and the base plate.

2. Tighten the nuts to secure the base plate.

Washers

Pan head screws

Cradle

Base plate

Spacers

Nuts

2. Tighten the knob slightly.

3. Adjust for better viewing and operation.

4. Tighten the knob to secure the mount.

Cradle

the ball of the base plate with the double‑ socket arm.

Base plate

Double-socket arm

Power cable

Handlebar base

Knob

Step 5: Installing Your zūmo in the Mount

1. Fit the bottom of your zūmo into the cradle.

2. Tilt the zūmo back until it snaps into place.

Cradle

Release button

Power

cable

 zūmo 600 Series Owner’s Manual

Getting Started

Using the Menu Page

➋

➌

➐

➍

➒➑

➎

➓

➊

➏

➊

GPS satellite strength.

➋

Bluetooth® technology status.

➌

Touch to select motorcycle, scooter,

automobile, or pedestrian mode.

➍

Battery status.

➎

Current time. Touch to change settings.

➏

Touch to nd a destination.

➐

Touch to view the map.

➑

Touch to make a call when connected to

a compatible mobile phone.

➒

Touch to adjust the volume.

➓

Touch to use the tools such as settings, Where Am I?, Help, and routes.

Selecting a Usage Mode

Motorcycle

Scooter

Pedestrian

Your zūmo offers several usage modes for different modes of transportation. Routing and navigation are calculated differently based on your usage mode. For example, one-way streets are treated differently in walking mode than they are in driving mode.

When you place your zūmo in a mount that

does not correspond to its current usage

mode, the zūmo will ask you whether you

want to change usage modes.

To change your usage mode:

1. Touch the usage mode icon.

2. Select a mode, and touch OK.

3. Touch Yes, and follow the on‑screen

instructions to congure your settings.

Automobile

Conguring Your zūmo

Your unit should turn on automatically if it is plugged in and your vehicle is running.

To manually turn on your zūmo, press

the Power key. Follow the on-screen instructions.

Acquiring Satellites

1. Go outdoors to an open area, out of

2. Stop your vehicle, and turn on the zūmo.

Acquiring satellite signals may take a few minutes. The bars indicate GPS satellite strength. When one bar is green, the

zūmo has acquired satellite signals. Now you

can select a destination and navigate to it.

garages, and away from tall buildings.

zūmo 600 Series Owner’s Manual 

Getting Started

Finding Your Destination

The Where To? menu provides several different categories for you to use when searching for addresses, cities, and other locations. The detailed

map loaded in your zūmo contains millions of points of interest, such as restaurants, hotels, and auto services.

1. Touch Where To?.

4. Select a destination.

10 zūmo 600 Series Owner’s Manual

2.Select a category.

5.Touch Go!. 6Enjoy the route!

3.Select a subcategory.

Getting Started

Following Your Route

Your route is marked with a magenta line.

As you travel, your zūmo guides you to your

destination with voice prompts, arrows on the map, and directions at the top of the map.

Adding a Via Point

You can add a stop (via point) to your route.

The zūmo gives you directions to the stop and then to your nal destination.

1. With a route active, touch Menu > Where

The upper-left corner indicates the distance to your next maneuver and the lane you should be in for the maneuver.

If you deviate from the original route, your

2. Search for the extra stop.

3. Touch Go!.

4. Touch Add As a Via Point to add this

zūmo recalculates the route and provides

new directions.

A speed limit icon could appear as you travel on major roadways.

If you want to add more than one stop to the route, edit the current route. See page 15.

Taking a Detour

If a road on your route is closed, you can take a detour.

1. With a route active, touch Menu.

2. Touch Detour.

The zūmo attempts to get you back on your

original route as quickly as possible. If the route you are currently taking is the only

reasonable option, the zūmo might not

calculate a detour.

To?.

stop before your destination.

Stopping the Route

1. With a route active, touch Menu.

2. Touch Stop.

Adjusting the Volume

From the Menu page, touch Volume. Touch

and to adjust the master volume.

Touch Mute to mute all audio.

To adjust the volume levels for the voice prompts, the media player, and the phone, touch Mixer. Adjust the levels as needed. Touch Restore to return the volume settings to the original levels.

NOTE: Press and release the power

button to quickly access the volume and brightness settings.

zūmo 600 Series Owner’s Manual 11

Where To?

The Where To? menu provides several different categories you can use to search for locations. To learn how to perform a standard search, see page 10.

Finding an Address

The steps to nd an address can vary

depending on the maps that are loaded on your zūmo. Not all map data provides postal code searching.

1. Touch Where To? > Address.

2. Touch Change State or Country, if necessary.

3. Touch Search All.

Touch Spell City or Spell Postal Code,

enter the city/postal code, and touch

Done. Select the city/postal code in the

list.

4. Enter the number of the address, and touch Done.

5. Enter the street name, and touch Done.

12 zūmo 600 Series Owner’s Manual

6. Select the correct street in the list, if necessary.

7. Touch the address, if necessary.

Searching Near Another

Location

Your zūmo automatically searches for places

near your current location.

1. Touch Where To? > Near.

2. Select an option:

Where I Am Now—search near your

•

current location.

A Different City—search near the city

•

you enter.

My Current Route—search along

•

your route.

My Destination—search near your

•

current destination.

3. Touch OK.

Go! Page Options

Touch an item in the search results list to view the Go! page.

➊

➌➋

➍

➊

Touch to call this location, if a mobile

phone with Bluetooth wireless technology is connected.

➋

Touch to view the route on a map. See

page 32

➌

Touch to create a turn-by-turn route to this location.

➍

Touch to view this location on the map.

➎

Touch to save this location to your Favorites. See page 14.

➎

Setting a Home Location

You can set a Home location for the place you return to most often.

1. Touch Where To? > Go Home.

2. Select an option.

Going Home

After you set your Home location, you can route to it at any time. Touch Where To? >

Go Home.

Changing Your Home Location

To set a new location as your Home location, use the Tools menu.

1. Touch Tools > My Data >

Set Home Location.

2. Select an option.

Finding a Place by Spelling the Name

If you know the name of the location you are looking for, you can spell it using the onscreen keyboard. You can also enter letters contained in the name to narrow the search.

1. Touch Where To? > Points of Interest >

2. Using the on‑screen keyboard, enter

3. Touch Done.

Using the On-Screen Keyboard

When an on-screen keyboard appears, touch a letter or number to enter it.

Spell Name.

letters in the name.

Where To?

Touch to select words you have

• recently typed and selected.

Touch Lang. to change the keyboard

• language mode.

Touch to enter special characters.

•

Finding Recently Found Places

Your zūmo stores the last 50 of your recent nds in the Recently Found list. The most-

recently viewed places appear at the top of the list. Touch Where To? > Recently

Found to view your recently found items.

Clearing Recently Found Places

To remove all places from the Recently Found list, touch Clear > Yes. All items from the list are removed, but this does not

delete the actual place from your zūmo.

Touch to add a space.

•

Touch to delete the character.

•

zūmo 600 Series Owner’s Manual 13

Where To?

Using Favorites

You can save places in your Favorites, so

you can quickly nd them and create routes

to them. Your home location is also stored in

Editing Saved Places

1. Touch Where To? > Favorites.

2. Touch the location you want to edit.

3. Touch Edit.

Favorites.

Saving Your Current Location

From the Map page, touch the vehicle icon. Touch Save Location to save your current location.

Saving Places You Find

1. After you have found a place you want to save, touch Save on the Go! page.

2. Touch OK. The place is saved in

Favorites.

Finding Saved Places

1. Touch Where To?.

2. Touch Favorites.

3. Touch a category. Your saved locations are listed.

Change Name—enter a new name,

•

and touch Done.

Attach Photo—select a picture to

•

assign to the location. To load pictures on your zūmo or memory card, see

page 27.

Change Map Symbol—touch a new

•

symbol.

Change Phone Number—enter a

•

phone number, and touch Done.

Change Categories—create and

•

change the category in which this location is saved.

Delete—touch Yes to remove this item

•

from the Favorites list.

Using Photo Navigation

You can load pictures that include location

information on your zūmo or on a memory

card, and then create routes to them.

1. Go to http://connect.garmin.com

/photos to download pictures with location

information.

2. Follow the instructions on the Web site to select and load pictures.

3. Touch Where To? > Favorites >

Panoramio™ Photos. Pictures with

location information are listed.

4. Touch a picture.

Using Extras

For information about extras such as safety camera information and Garmin Travel Guide, see pages 38–39.

14 zūmo 600 Series Owner’s Manual

+ 36 hidden pages
