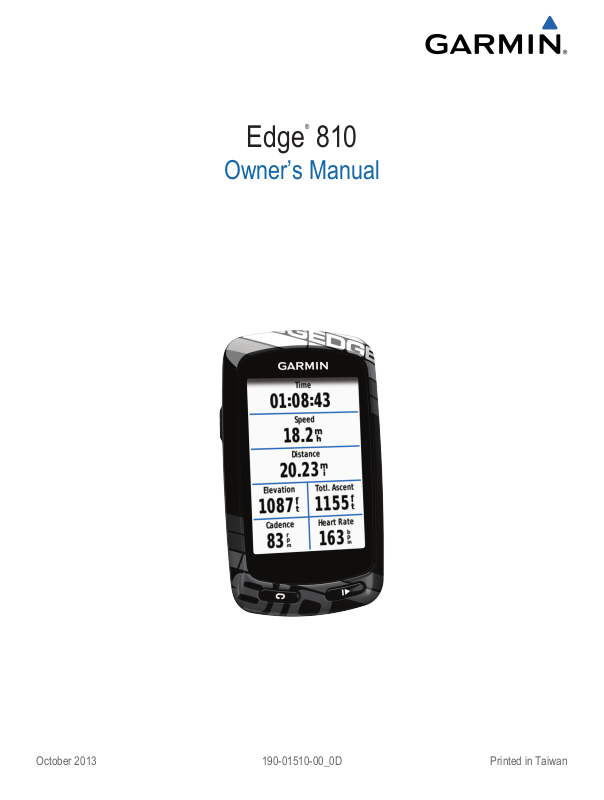

Garmin 810 Instruction Manual

Edge® 810

Owner’s Manual

October 2013 190-01510-00_0D Printed in Taiwan

All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin®, the Garmin logo, Auto Lap®, Auto Pause®, City Navigator®, Edge®, and Virtual Partner® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. ANT+™, BaseCamp™,Garmin Connect™, and GSC™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Mac® is a registered trademark of Apple Computer, Inc. microSD™ is a trademark of SD-3C, LLC. New Leaf® is a registered trademark of the Angeion Corporation. Training Stress Score™ (TSS), Intensity Factor™ (IF), and Normalized Power™ (NP) are trademarks of Peaksware, LLC. Windows® is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks and trade names are those of their respective owners.

This product is ANT+™ certified. Visit www.thisisant.com/directory for a list of compatible products and apps.

Introduction.................................................................... 1

Getting Started........................................................................... 1

Charging the Device.................................................................. 1

About the Battery.................................................................. 1

Installing the Standard Mount.................................................... 1

Installing the Out-Front Mount................................................... 1

Releasing the Edge............................................................... 2

Turning On the Device............................................................... 2

Keys...................................................................................... 2

Acquiring Satellite Signals......................................................... 2

Training........................................................................... 3

Going for a Ride......................................................................... 3

Alerts.......................................................................................... 3

Setting Range Alerts............................................................. 3

Setting a Recurring Alert....................................................... 3

Workouts.................................................................................... 3

Following a Workout From the Web...................................... 3

Creating a Workout............................................................... 3

Repeating Workout Steps..................................................... 4

Starting a Workout................................................................ 4

Stopping a Workout............................................................... 4

Editing a Workout.................................................................. 4

Deleting a Workout................................................................ 4

Using Virtual Partner®............................................................... 4

Courses...................................................................................... 4

Creating a Course on Your Device....................................... 4

Following a Course From the Web........................................ 4

Tips for Training with Courses.............................................. 4

Displaying a Course on the Map........................................... 4

Changing the Course Speed................................................. 5

Stopping a Course................................................................ 5

Deleting a Course................................................................. 5

Personal Records...................................................................... 5

Restoring Your Personal Records......................................... 5

Training Zones........................................................................... 5

Setting Your Speed Zones.................................................... 5

ANT+ Sensors................................................................ 5

Putting On the Heart Rate Monitor............................................. 5

Setting Your Heart Rate Zones............................................. 5

About Heart Rate Zones....................................................... 6

Fitness Goals........................................................................ 6

Installing the GSC 10................................................................. 6

About the GSC 10................................................................. 6

Data Averaging for Cadence or Power................................. 6

Training with Power Meters....................................................... 7

Setting Your Power Zones.................................................... 7

Calibrating Your Power Meter............................................... 7

Pairing Your ANT+ Sensors....................................................... 7

Pairing a Heart Rate Monitor..................................................... 7

Using the Weight Scale.............................................................. 7

History.............................................................................7

Viewing Your Ride..................................................................... 7

Viewing Data Totals.............................................................. 7

Sending Your Ride to Garmin Connect...................................... 7

Garmin Connect.................................................................... 8

Connected Features.............................................................. 8

Deleting History.......................................................................... 8

Data Recording.......................................................................... 8

Changing the Data Storage Location.................................... 8

Installing a Memory Card...................................................... 8

Data Management..................................................................... 8

Connecting the Device to Your Computer............................. 8

Transferring Files to Your Device.......................................... 9

Deleting Files

Disconnecting the USB Cable............................................... 9

........................................................................ 9

Navigation.......................................................................9

Locations.................................................................................... 9

Saving Your Location............................................................ 9

Saving Locations from the Map............................................. 9

Navigating to a Location........................................................ 9

Navigating to Known Coordinates......................................... 9

Navigating Back to Start........................................................ 9

Stopping Navigation.............................................................. 9

Projecting a Location............................................................. 9

Editing Locations................................................................. 10

Deleting Locations............................................................... 10

Route Settings......................................................................... 10

Selecting an Activity for Route Calculation......................... 10

Purchasing Additional Maps.................................................... 10

Finding an Address............................................................. 10

Finding a Point of Interest................................................... 10

Finding Nearby Locations................................................... 10

Topographical Maps............................................................ 10

Map Settings............................................................................ 10

Advanced Map Settings...................................................... 10

Changing the Map Orientation............................................ 10

Customizing Your Device............................................11

Profiles..................................................................................... 11

Updating Your Bike Profile.................................................. 11

Updating Your Activity Profile.............................................. 11

Setting Up Your User Profile............................................... 11

About Lifetime Athletes....................................................... 11

Bluetooth Settings.................................................................... 11

About Training Settings............................................................ 11

Customizing the Data Pages............................................... 11

Using Auto Pause............................................................... 11

Marking Laps by Position.................................................... 12

Marking Laps by Distance................................................... 12

Using Auto Scroll................................................................. 12

Changing the Start Notice................................................... 12

System Settings....................................................................... 12

GPS Settings....................................................................... 12

Display Settings.................................................................. 12

Data Recording Settings..................................................... 12

Changing the Units of Measure........................................... 12

Changing the Configuration Settings.................................. 13

Changing the Device Language.......................................... 13

Setting the Device Tones.................................................... 13

Time Zones......................................................................... 13

Device Information.......................................................13

Specifications........................................................................... 13

Edge Specifications............................................................. 13

Heart Rate Monitor Specifications....................................... 13

GSC 10 Specifications........................................................ 13

Device Care............................................................................. 13

Cleaning the Device............................................................ 13

Caring for the Heart Rate Monitor....................................... 13

Heart Rate Monitor Battery...................................................... 13

Replacing the Heart Rate Monitor Battery.......................... 13

Replacing the GSC 10 Battery................................................. 14

Troubleshooting...........................................................14

Resetting the Device................................................................ 14

Clearing User Data.................................................................. 14

Maximizing Battery Life............................................................ 14

Decreasing the Backlight.................................................... 14

Adjusting the Backlight Timeout.......................................... 14

Using the Auto Power Down Feature.................................. 14

Calibrating the Touchscreen.................................................... 14

Table of Contents i

Locking the Touchscreen......................................................... 14

Unlocking the Touchscreen................................................. 14

Getting More Information......................................................... 14

Temperature Readings............................................................ 14

Viewing Device Information..................................................... 14

Updating the Software............................................................. 14

Appendix.......................................................................14

Registering Your Device.......................................................... 14

Data Fields............................................................................... 15

Heart Rate Zone Calculations.................................................. 16

Wheel Size and Circumference............................................... 16

Software License Agreement................................................... 16

Index..............................................................................18

ii Table of Contents

Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Always consult your physician before you begin or modify any exercise program.

Getting Started

When using your device the first time, you should complete these tasks to set up the device and learn about the basic features.

Charge the device (page 1).

Install your device using the standard mount (page 1) or

the out-front mount (page 1).

Turn on the device (page 2).

Locate satellites (page 2).

Go for a ride (page 3).

Upload your ride to Garmin Connect™ (page 7).

Charging the Device

NOTICE

To prevent corrosion, thoroughly dry the mini-USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.

NOTE: The device will not charge when outside the temperature range of 32° to 113°F (0° to 45°C).

Pull up the weather cap À from the mini-USB port Á.

Installing the Standard Mount

For the best GPS reception, position the bike mount so the front of the Edge is oriented toward the sky. You can install the bike mount on the stem or the handlebars.

Select a secure location to mount the Edge where it does not

interfere with the safe operation of your bike. Place the rubber disk À on the back of the bike mount.

The rubber tabs align with the back of the bike mount so it stays in place.

Place the bike mount on the bike stem.

Attach the bike mount securely using the two bands Á.

Align the tabs on the back of the Edge with the bike mount

notches Â. Press down slightly and turn the Edge clockwise until it locks

into place.

Plug the small end of the USB cable into the mini-USB port.

Plug the USB end of the cable into the AC adapter or a

computer USB port.

Plug the AC adapter into a standard wall outlet.

When you connect the device to a power source, the device

turns on.

Charge the device completely.

A fully charged battery can run for up to 15 hours before it must be recharged.

About the Battery

WARNING

This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for

product warnings and other important information.

Installing the Out-Front Mount

Select a secure location to mount the Edge where it does not

interfere with the safe operation of your bike. Use the hex key to remove the screw À from the handlebar

connector Á.

If you want to change the orientation of the mount, remove

the two screws on the back side of the mount Â, rotate the connector Ã, and replace the screws.

If the handlebar diameter is 26 mm, place the rubber pad

around the handlebar. Place the handlebar connector around the rubber pad or

handlebar (31.8 mm diameter). Replace the screw.

NOTE: Garmin® recommends a torque specification of 7 lbf-

in. (0.8 N-m). Check the tightness of the screw periodically.

Introduction 1

Align the tabs on the back of the Edge with the bike mount

notches Ä.

Press down slightly and turn the Edge clockwise until it locks

into place.

Releasing the Edge

Turn the Edge clockwise to unlock the device.

Lift the Edge off the mount.

Turning On the Device

The first time you turn on the device, you are prompted to configure system settings and profiles (page 11).

Hold .

Follow the on-screen instructions.

If your device included a heart rate monitor and a GSC™ 10,

activate the ANT+™ sensors during configuration.

For more information about ANT+ sensors, see page 5.

Keys

Using the Touchscreen

• When the timer is running, tap the screen to view the timer overlay.

The timer overlay allows you to use the settings and search features during a ride.

• Select to save your changes and close the page.

• Select to close the page and return to the previous page.

• Select to return to the previous page.

• Select to return to the home screen.

• Select and to scroll.

• Select to view the connections page.

• Select to search for a location.

• Select to search near a location.

• Select to search by name.

• Select to delete an item.

Viewing the Connections Page

The connections page displays the status of the satellite signals, ANT+ sensors, and your smartphone.

From the home screen, select the status bar at the top of the page.

Home Screen Overview

The home screen gives you quick access to all the features of the Edge.

Bike 1 Select to change your bike profile.

RIDE Select to go for a ride.

Road Select to change your activity profile.

Select to turn the backlight on and off. Hold to turn the device on and off.

Select to mark a new lap.

Select to start and stop the timer.

Select to manage your history, courses, workouts, and personal records.

Select to view the map.

Select to view the setup menu.

The connections page appears. A flashing icon means the device is searching. You can select any icon to change the settings.

Using the Backlight

• At any time, select anywhere on the screen to turn on the backlight.

• Select to adjust the backlight brightness and timeout.

Acquiring Satellite Signals

Before you can use the GPS tracking and navigation features, you must acquire satellite signals.

The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position.

2 Introduction

Go outdoors to an open area.

The front of the device should be oriented toward the sky. From the home screen, select RIDE.

Wait while the device locates satellites.

It may take 30–60 seconds to locate satellite signals. TIP: Do not begin moving until the timer page appears

(page 3).

Training

Going for a Ride

Before you can record speed and distance, you must locate satellite signals (page 2) or pair your device with an optional ANT+ sensor.

NOTE: History is recorded only while the timer is running.

From the home screen, select RIDE.

Wait while the device locates satellites.

Select to start the timer.

Swipe the screen for additional data pages.

If necessary, tap the screen to view the timer overlay.

Select to stop the timer.

Select Save.

Alerts

You can use alerts to train toward specific time, distance, calorie, heart rate, cadence, and power goals. Alert settings are saved with your activity profile.

Setting Range Alerts

If you have an optional heart rate monitor, GSC 10, or power meter, you can set up range alerts. A range alert notifies you any time the device is above or below a specified range of values. For example, you can set the device to alert you when your heart rate is below 60 beats per minute (bpm) and over 210 bpm. You can also use a training zone (page 5) for the range alert.

From the home screen, select > Activity Profiles.

Select a profile.

Select Alerts.

Select Heart Rate, Cadence, or Power.

Turn on the alert.

Enter the minimum and maximum values or select a zone.

Select .

Each time you exceed or drop below the specified range, a message appears. The device also beeps if audible tones are turned on (page 13).

Setting a Recurring Alert

A recurring alert notifies you every time the device records a specified value or interval. For example, you can set the device to alert you every 30 minutes.

From the home screen, select > Activity Profiles.

Select an activity profile.

Select Alerts.

Select Time, Distance, or Calorie.

Turn on the alert.

Enter a value.

Select .

Each time you reach the alert value, a message appears. The device also beeps if audible tones are turned on (page 13).

Workouts

You can create custom workouts that include goals for each workout step and for varied distances, times, and calories. You can create workouts using Garmin Connect, and transfer them to your device. You can also create and save a workout directly on your device.

You can schedule workouts using Garmin Connect. You can plan workouts in advance and store them on your device.

Following a Workout From the Web

Before you can download a workout from Garmin Connect, you must have a Garmin Connect account (page 8).

Connect the device to your computer.

Go to www.garminconnect.com/workouts.

Create a new workout.

Select Send to Device.

Disconnect the device, and turn it on.

Select > Workouts.

Select the workout.

Select Do Workout.

Creating a Workout

From the home screen, select > Workouts > .

A new workout appears. The first step is open by default, and it can be used as a warmup step.

Select Name, and enter a workout name.

Select Add New Step.

Select a step, and select Edit Step.

Select Duration to specify how the step is measured.

For example, select Distance to end the step after a specific distance.

If you select Open, you can select at anytime to end the step.

If necessary, enter a value in the field below Duration.

Select Target to choose your goal during the step.

For example, select Heart Rate to maintain a consistent heart rate during the step.

If necessary, select a target zone or enter a custom range.

For example, you can select a heart rate zone. Each time you exceed or drop below the specified heart rate, the device beeps and displays a message.

If necessary, select in the Rest Lap field.

During a rest lap, the timer continues to run and data is recorded.

Select to save the step.

Select to save the workout.

Training 3

Repeating Workout Steps

Before you can repeat a workout step, you must create a workout with at least one step.

Select Add New Step.

Select Duration.

Select an option:

• Select Repeat to repeat a step one or more times. For

example, you can repeat a 5-mile step ten times.

• Select Repeat Until to repeat a step for a specific

duration. For example, you can repeat a 5-mile step for 60 minutes or until your heart rate reaches 160 bpm.

Select Back to Step, and select a step to repeat.

Select to save the step.

Starting a Workout

From the home screen, select > Workouts.

Select a workout.

Select Do Workout.

After you begin a workout, the device displays each step of the workout, the target (if any), and current workout data. An audible alarm sounds when you are about to finish a workout step. A message appears, counting down the time or distance until a new step begins.

Stopping a Workout

• At any time, select to end a workout step.

• At any time, select to stop the timer.

• At any time, select > > Workouts > Stop Workout to

end the workout.

Editing a Workout

From the home screen, select > Workouts.

Select a workout.

Select .

Select a step, and select Edit Step.

Change the step attributes, and select .

Select to save the workout.

Deleting a Workout

From the home screen, select > Workouts.

Select a workout.

Select > > .

Using Virtual Partner

Your Virtual Partner is a training tool designed to help you meet your goals.

Go for a ride.

Scroll to the Virtual Partner page to see who is leading.

If necessary, use and to adjust the speed of the Virtual

Partner during your ride.

Courses

Following a previously recorded activity: You can follow a

saved course simply because it is a good route. For example, you can save and follow a bike friendly commute to work.

Racing against a previously recorded activity: You can also

follow a saved course, trying to match or exceed previously set performance goals. For example, if the original course was completed in 30 minutes, you can race against a Virtual Partner trying to complete the course in under 30 minutes.

Following an existing ride from Garmin Connect: You can

send a course from Garmin Connect to your device. Once it is saved to your device, you can follow the course or race against the course.

Creating a Course on Your Device

Before you can create a course, you must have history with GPS track data saved to your device.

From the home screen, select > Courses > .

Select an activity on which to base your course.

Enter a name for the course.

Select .

The course appears in the list. Select the course, and review the course data.

If necessary, select Settings to edit the course features.

For example, you can change the name of the course or turn on Virtual Partner.

Select > RIDE.

Following a Course From the Web

Before you can download a course from Garmin Connect, you must have a Garmin Connect account (page 8).

Connect the device to your computer.

Go to www.garminconnect.com.

Create a new course or select an existing course.

Select Send to Device.

Disconnect the device, and turn it on.

Select > Courses.

Select the course.

Select RIDE.

Tips for Training with Courses

• Use turn-by-turn navigation prompts by turning on Guide Text (page 10).

• If you include a warmup, select to begin the course, and warm up as normal.

• Stay away from your course path as you warm up. When you are ready to begin, head toward your course. When you are on any part of the course path, a message appears.

NOTE: As soon as you select , your Virtual Partner starts the course and does not wait for you to warm up.

• Scroll to the map to view the course map. If you stray from the course, the device displays a message.

Displaying a Course on the Map

For each course saved to your device, you can customize how it appears on the map. For example, you can set your commute course to always display on the map in yellow. You can have an alternate course display in green. This allows you to see the courses while you are riding, but not follow or navigate a particular course.

4 Training
