Introduction
Why should you register your GPS 72?
• Notifi cation of New Products
• Lost or Stolen Unit Tracking
Connect to our Web Site (www.garmin.com) and look for the Product Registration link
on the home page.
Thanks for choosing the GARMIN GPS 72. If you have any questions or comments regarding the use of the GPS 72 you can visit our Web Site or contact our Customer Service Department M-F, 8:00-5:00 CST (except holidays) at 1-800-800-1020.
If you have previously registered a GARMIN product purchase using
)
a mail-in registration card, we invite you to reregister that product using our NEW on-line system. Many services provided by our new product registration system are now being automated and reregis­tering your purchase ensures you the best possible support from GARMIN.
Registration
POWER
1
Introduction
Warnings and Cautions
2
WARNING: If you choose to use the GPS 72 in a vehicle, it is the sole responsibility of the owner/operator of the GPS 72 to secure the GPS unit so that it will not cause damage or personal injury in the event of an accident. Do not mount the GPS 72 over airbag panels or in a place where the driver or passengers are likely to have an impact with it in an accident or collision.
WARNING: If you choose to use the GPS 72 in a vehicle, it is the sole responsibility of the operator of the vehicle to operate the vehicle in a safe manner, maintain full surveil­lance of all driving conditions at all times, and never become distracted by the GPS 72 to the exclusion of safe operating practices. It is unsafe to operate the GPS 72 while you are driving. Failure by the operator of a vehicle equipped with an GPS 72 to pay full attention to operating the vehicle and road conditions while the vehicle is in motion could result in an accident or collision with property damage and personal injury.
CAUTION: IT IS THE USER’S RESPONSIBILITY TO USE THIS PRODUCT PRU­DENTLY. THIS PRODUCT IS INTENDED TO BE USED ONLY AS A TRAVEL AID AND MUST NOT BE USED FOR ANY PURPOSE REQUIRING PRECISE MEASUREMENT OF DIRECTION, DISTANCE, LOCATION, OR TOPOGRAPHY.
CAUTION: The Global Positioning System (GPS) is operated by the government of the United States, which is solely responsible for its accuracy and maintenance. The system is subject to changes which could affect the accuracy and performance of all GPS equipment. Although the GPS 72 is a precision electronic NAVigation AID (NAVAID), any NAVAID can be misused or misinterpreted and, therefore, become unsafe.
FCC Compliance
The GPS 72 complies with Part 15 of the FCC interference limits for Class B digital devices FOR HOME OR OFFICE USE. These limits are designed to provide reasonable protection against harmful interference in a residential installation, and are more stringent than “outdoor” requirements.
Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The GPS 72 does not contain any user-serviceable parts. Repairs should only be made by an authorized GARMIN service center. Unauthorized repairs or modifi cations could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations.
Introduction
FCC Compliance Statement
3
Introduction
Features
NOTE: You should always be prepared and capable of navigating without the GPS 72. It is designed to compli­ment other forms of basic navigation, not entirely replace them.
4
The GPS 72 is a 7.5 ounce, 12 channel, hand held GPS receiver with a built-in Quad Helix antenna. The GPS 72 has nine keys located on the front of the unit, that allow the user to quickly access all of the units functions. The GPS 72 has a large 120 X 160 pixel, 4 level gray monochrome display for easy viewing.
The GPS 72 is a full function GPS with a factory-loaded marine point database. Using MapSource™, you can choose to have the GPS 72 display a variety of Points of Interest. Check your local dealer or our Web Site (www.garmin.com) for a complete listing of MapSource products.
GARMIN designed your GPS 72 with the user in mind. The GPS 72 is waterproof to IPX 7 standards, fl oats and is rugged enough to endure the most trying use. GARMIN’s friendly user interface will allow you to be navigating with your GPS in no time. Your GPS 72 can provide one more critical benefi t, peace of mind. With your GPS 72 you will know where you are, where you’ve been and where you’re going. And since you’ll always know the way back home, you can concentrate on what you set out to do, explore the great outdoors.
Thank you for choosing GARMIN!
Other features include:
Waypoints: Tracks: Routes: Trip Computer:
Overall Average Speed, Total Time, Max Speed and Odometer.
Tides: Sun and Moon:
Phase. Hunt and Fish:
500 with name and graphic symbol.
Automatic Track Log; 10 saved Tracks.
50 Routes that let you navigate through a set of 50 waypoints.
Trip Odometer, Stopped Time, Moving Average Speed, Moving Time,
Displays tide information graphically.
Sunrise, Sunset, Moonrise, Moonset, Position in Sky, and Moon
Times
Introduction....................................1-7
Registration ........................................ 1
Warnings and Cautions ...................... 2
FCC Compliance Statement ............... 3
Features.............................................. 4
Table of Contents ............................... 5
“How To” Index.................................. 6
GPS 72 Unit Features ......................... 7
Section Two: Reference ................7-47
Initializing the GPS Receiver............ 7-8
GPS Information Page ...................9-11
Map Page..................................... 12-17
Pointer Page .................................... 18
Highway Page.............................. 19-21

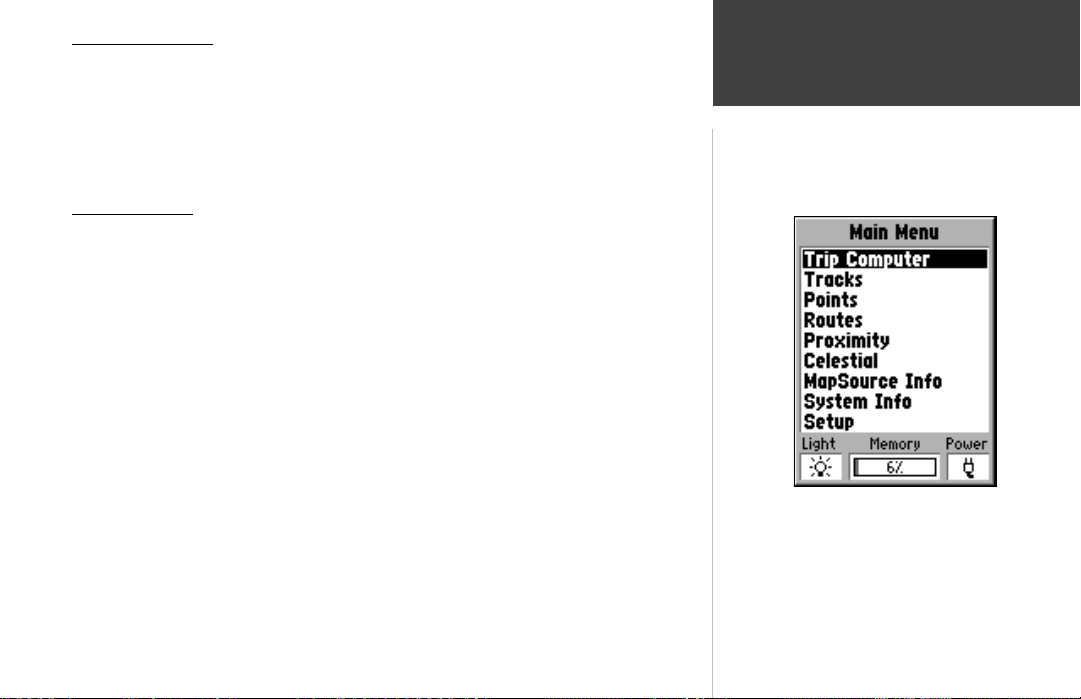

Main Menu Page.......................... 21-47
Trip Computer....................... 21-22
Tracks....................................23-24
Waypoints .................................. 25
Creating Waypoints ............... 26-28
Editing Waypoints ...................... 29
Points of Interest......................... 30
Cities .......................................... 30
Routes ...................................31-34
Proximity.................................... 35
Goto Navigation ....................36-37
Celestial.................................38-40
MapSource Info .......................... 41
Setup Menu- General Tab ...... 42-43
Setup Menu-Time Tab ................ 43
Setup Menu-Units Tab................ 44
Setup Menu-Location Tab......44-45
Setup Menu-Alarms Tab ............. 46
Setup Menu-Interface Tab........... 47
Appendices.................................48-65
Appendix A: Specifi cations............... 48
Appendix B: Wiring & Interfacing.... 49
Appendix C: Time Offsets ................ 50
Appendix D: Map Datums...........51-52
Appendix E: Navigation Terms .... 53-54
Appendix F: Messages ................. 55-56
Appendix G: Loran TD................57-58
Appendix H: Accessories .................. 59
Appendix Appendix
I: Index ...................... 60-64
J: Warranty ..................... 65
Introduction
Table of Contents
5
Introduction
“How To” Index
+
The list to the right is provided to help you quickly fi nd some of the more important procedures you will use on your new GPS 72.
TO DO THIS:.................................................................................. SEE PAGE(S):
Initialize the GPS receiver ............................................................................................... 7
Learn About the Map page .......................................................................................12-17
Zoom in or out on the Map page ................................................................................... 12
Reconfi gure the Map page display ............................................................................12-17
Lear about the Pointer Page........................................................................................... 18
Learn about the Highway Page ................................................................................. 19-21
Setup and reset the Trip Computer................................................................................ 22
Clear the Track Log ....................................................................................................... 23
Learn about waypoints .................................................................................................. 25
Create Waypoints .....................................................................................................26-28
Edit Waypoints.............................................................................................................. 41
Points of Interest ...........................................................................................................30
Create a route................................................................................................................31
Learn about the GOTO key ........................................................................................... 36
View celestial information ........................................................................................38-40
Change the displayed time (zone) ................................................................................. 43
Change units of measure (statute, nautical, metric) .......................................................44
Set Alarms ..................................................................................................................... 46
View a unit message .................................................................................................55-56
Setup Loran TD........................................................................................................57-58
6
Initializing the GPS Receiver
Before the GPS 72 can be used for navigation, the GPS receiver must be initialized. The GPS receiver should only need to be initialized the fi rst time the unit is used, or if it has been stored several months.
The GPS 72 stores orbital data for each satellite in an Almanac. The orbital data is
Initializing the GPS Receiver
supplied in the satellite signals. Each time the unit is used, the Almanac is updated. This is how the GPS 72 knows which satellites to search for. If you do not use your GPS for several months, or move the unit several hundred miles between uses, the Almanac can become “cold”, that is to say that the orbital information is no longer valid. If the Almanac is “cold”, your unit may have trouble locking on to satellite signals. If the unit is unable to receive enough satellite signals to determine its location, it will display an options menu.
Introduction
Reference
Initializing the GPS Receiver:
1. With fresh batteries installed, take the unit outside where a clear 360° view of the sky can be obtained.
2. Turn the unit on and hold it in front of you with the top of the unit tilted upward. Follow the screen prompts, pressing PAG E to display the GPS Information Page.
3. The initialization process is automatic. It should take the GPS 72 no longer than fi ve minutes to acquire enough satellite signals to become operational. When the unit is able to navigate, it will display either 2D GPS Location or 3D GPS Location in the Receiver Status Field.
Ready to Navigate
7
7
Initialization Options
Introduction
Reference
Initializing the GPS Receiver
Initialization Options
If the GPS 72 is unable to determine its location, an options menu will be displayed. Depending on the situation, select an option to help the unit acquire satellites. To select an option, place the highlight over the option then press ENTER.
Start Simulator —
unable to locate satellites. When you select ‘Simulator’, the GPS receiver is turned off
saving battery power.
New Location —
you are having trouble locking onto satellite signals select ‘New Location’.
When you select ‘New Location’, another menu will be displayed. This menu contains
the options ‘Automatic’ or ‘Use Map’. If you select ‘Automatic’ the unit will switch to
the AutoLocate mode and begin searching for satellites. If you select ‘Use Map’ you can
use the Pointer on the Map Page to select your approximate location and the unit will
continue to acquire satellites normally. ‘Automatic’ may take longer to acquire satellites.
Stored w/o Batteries —
the GPS may be incorrect. To check the date, highlight ‘Stored w/o Batteries’ and verify
the date displayed. If the date is incorrect, select ‘Stored w/o Batteries’ to search for
satellites.
Continue Acquiring —
are being temporarily blocked.
The Simulator can be used when you are indoors and the GPS is
If you have moved the unit to another state, province, or country, and
If you have stored the unit without batteries the date stored in
Select this option if you are in an area where the satellite signals
8
8
GPS Information Page
The GPS Information Page displays your speed, elevation, the estimated accuracy, receiver status, satellite locations, satellite signal strength, the date, time and the GPS receiver’s current location.
Speed, Elevation and Estimated Accuracy
When the GPS is receiving at least three satellite signals, it will provide you with the current GPS Speed and the estimated Accuracy of the GPS Location. The GPS must be receiving at least four satellite signals to report the Elevation.
Current GPS Receiver Status
The current status of the GPS receiver will always be displayed.
Autolocate —
Acquiring Satellites —
The receiver will remain in this mode until it has acquired at least 3 satellite signals.
2D GPS Location —
a 2D GPS Location is achieved, the GPS will display your current position but is inca-
pable of providing an altitude reading.
3D GPS Location —
Forces the receiver to search for each satellite individually.
The receiver will be in this mode when the unit is turned on.
Indicates that the receiver is only using three satellite signals. When
Indicates the receiver is currently using at least four satellite signals
Receiver Status
Satellite Location
and is capable of providing your current position and altitude.
2D Differential Location —
Indicates the receiver is using DGPS or WAAS differential
Date
data on three satellites. A “D” will be displayed in or above the indicator bar for each
differentially corrected satellite.
3D Differential Location —
Indicates the receiver is using DGPS or WAAS differential data on at least four satellites. A “D” will be displayed in or above the indicator bar for each differentially corrected satellite.
Lost Satellite Reception — Simulating GPS
— Indicates the GPS 72 is running in Simulator Mode and the GPS
Indicates that the GPS receiver has lost satellite reception.
receiver is turned off. It is important to remember when you are using the Simulator, the GPS 72 can not be used for actual navigation.
Introduction
Reference
GPS Information Page
Data Fields
GPS Information Page
Satellite Signal Strength
Time
Location
9
9
Satellite Location
Introduction
Reference
GPS Information Page
Satellite Sky View
The location of each available satellite is displayed over two location rings. The outer ring represents the horizon, the inner ring represents 45° above the horizon and the center represents directly overhead. When the unit is using a satellite for navigation, the satellite number will become highlighted on the location rings. The unit can be set to display satel­lite location with North, or your current track toward the top of the display.
Satellite Strength Indicator Bars
The Satellite Strength Indicator Bars show the strength of the signal being received, and the status of the signal. The bars will be either shaded with a light grey, or fi lled with solid black. If the bar is grey, it means that the GPS is receiving a signal from the satellite and is in the process of storing orbital data provided in the GPS signal. When the bar turns solid black, the GPS is using the satellite signal for navigation. A “D” in or above the bar means that differential corrections are being applied to that satellite.
Date, Time and Current Location
The GPS gets date and time information from the satellites. The satellites are equipped with an atomic clock that is very accurate. Since the GPS clock is derived from timing information sent from the satellite, the GPS clock is also very accurate.
When the GPS receiver has achieved a 2D or 3D GPS Location, the current location will be displayed in the selected Location Format. If you wish to see the current location in the default (hddd° mm.mmm) format, press the ROCKER up or down to toggle between the active and default format.
10
10
GPS Information Page Options Menu
To activate the Options Menu, from the GPS Information Page press the MENU Key.
To select an option, highlight the desired selection then press ENTER.
Start/Stop Simulator —
Track Up/North Up —
toward the top of the display or your current track toward the top of the display.
New Elevation —
2D GPS Location, entering a known elevation can increase the GPS accuracy.
New Location —
you are having trouble locking onto satellite signals select ‘New Location’.
When you select ‘New Location’, an options menu will be displayed. This menu contains the options ‘Automatic’ or ‘Use Map’. If you select ‘Automatic’, the unit will switch to AutoLocate and begin searching for satellites. This method can take up to fi ve minutes for the unit to begin navigation.
If you select ‘Use Map’, you can use the Pointer on the Map Page to select your approximate location and the unit will continue to acquire satellites normally using the almanac for satellite reference. Using this method, the unit does not need to reinitialize and should receive satellite signals quickly.
If the unit is in the ‘Simulator’ mode, the ‘Use Map’ feature will allow you to move the simulated current location.
This option is used to Start or Stop the Simulator.
This option determines if the satellites are displayed with North
This option can be used to enter a different elevation. If the GPS has a
If you have moved the unit to another state, province, or country, and
Introduction
Reference
GPS Information Page
GPS Information Page Options
11
11
Introduction
Reference
Map Page
User Selectable Data Fields
Zoom Scale
Map Page
The GPS 72 comes with a factory-loaded marine point database that includes marine navaids and major cities. This can be replaced with marine navaids, cities, and points of interest using GARMIN MapSource products.
Changing the Zoom Scale
You can change the Zoom Scale on the Map Page allowing you to view a smaller area in greater detail or a larger area with less detail. As referred to in this manual, when you decrease the Zoom Scale you will view a smaller area with greater detail. The current Zoom Scale setting is displayed in the lower left corner of the Map Page. If ‘Overzoom’ is displayed under the scale, no further map information is available.
To change the Zoom Scale:
1. Press the IN Key to decrease the Zoom Scale.
2. Press the OUT Key to increase the Zoom Scale.
Map Page Options
To access the Map Page Options, with the Map Page displayed, press the MENU Key. To select an option from the Menu, highlight the desired selection then press ENTER.
Full Screen Map —
This option hides the data fi elds and expands the map to include the entire display. When ‘Full Screen Map’ is selected the option will change to ‘Show Data Fields’.
Measure Distance —
This option will allow you to measure the distance between two points. As you move the Map Pointer, the Distance, Bearing and Location of the Pointer are displayed at the top of the map. To measure the distance between to map points, press ENTER to set a reference, then move the Map Pointer to the other loca­tion. The Bearing, and Distance are displayed below the data fi elds.
12
12
Setup Page Layout —
and the size of text used in the fi elds. You have the option of displaying Small (1 Row), Small (2 Rows), Small (3 Rows), Large (1 Row), or Large (2 Rows). To select an option, highlight the desired selection then press ENTER. The new confi guration will be displayed on the map.
Change Data Fields —
displayed in the data fi elds. To change a data type, place the highlight over the desired data fi eld, then press ENTER. Using the ROCKER, scroll through the available selec­tions. With the data type highlighted, press ENTER to accept the selection.
Setup Map —
arranged on a tab menu making it easy to locate the different setup items.
The ‘Map’, ‘Waypoint’, ‘Point’, and ‘Line’ Tabs have setting for ‘Text’, ‘Zoom’ or both. Please read the description of these settings to understand how they affect the display characteristics of the options on the Map Page.
Text Setting
displaying a name or label for an item on the Map Page. There are four options for the ‘Text’ setting: Off, Small, Med, and Large. If you select ‘Off’, the item will be displayed on the map without a name or label. If you select ‘Small’, ‘Med’ or ‘Large’, the name, the item will be displayed with a name or label in the text size selected.
This option allows you to select the number of data fi elds rows
This option allow you to select the type of data that you want
This option contains the Map Page Setup features. The features are
The ‘Text’ setting allows you to determine the size of text used when
Introduction
Reference
Map Page Options
Map Page Options
13
13
Introduction
Reference
Map Page Options
Setup Map — ‘General’ Tab
14
14
Zoom Setting
This setting determines when items will be displayed on the map. You have the option of selecting ‘Off’, ‘Auto’ or a ‘Zoom’ Scale that coincides with the Zoom Scales for the map.
If you select ‘Off’, the items for that option will not be displayed on the Map Page. If you select ‘Auto’, the GPS 72 will automatically determine the zoom level at which to display the selected items. If you select a scale setting, the items will be displayed on the map only when the Map Zoom Scale is at or less than the selected scale .
As an example, if you select 500 ft as ‘Zoom’ Scale setting, the selected items will only be displayed when the Map Zoom Scale is at 500 ft or less.
Setup Map — ‘General’ Tab
The ‘General’ Tab contains the settings for Detail, Orientation and Auto Zoom. Below is a description of each feature. To change a setting, highlight the appropriate fi eld then press ENTER. Make your selection, then press ENTER to accept the new selection.
Detail —
Settings: Most, More, Normal, Less, and Least. The Detail settings allow you to control the amount of map data displayed on the unit. If you select a setting with high detail, the screen redraw times will be slower.
Orientation —
Settings: North Up, Track Up, and Course Up. This option allows you to determine how the map is displayed. If ‘North Up’ is selected, North will always be at the top of the display. If ‘Track Up’ is selected, your current track will always be toward the top of the display. If ‘Course Up’ is selected, the active course line will always be toward the top of the display. If you have ‘Course Up’ selected and do not have an active course, your current track will be toward the top of the display.
Auto Zoom —
This option allows you to have the map automatically zoom in on a
waypoint as you approach it.
Setup Map — ‘Map’ Tab
The ‘Map’ Tab contains settings for the Basemap, MapSource, Lat Lon Grids, and Grid Labels. To change a setting, highlight the appropriate fi eld then press ENTER. Make your new selection then press ENTER to accept the selection.
MapSource —
This option allows you to turn map data displayed on the map ‘On’ or ‘Off’. This setting controls factory-loaded data as well as any MapSource data that may be loaded in the unit.
Lat Lon Grid —
Lat Lon Grids will be displayed in smaller increments as the Zoom Level on the Map Page is decreased. The ‘Zoom’ setting for this option determines when the grids will begin displaying on the Map Page.
If you select ‘Auto’, and have the MapSource options set to ‘ON’, the unit will not display a Lat Lon Grid.
Grid Labels —
This option allows you to display the coordinates on the grid.
You must have the ‘Lat Lon Grid’ displayed for ‘Grid Labels’ to be displayed. If you select ‘Auto’, and have the MapSource options set to ‘ON’, the unit will not display Grid Labels.
Setup Map — ‘Waypoint’ Tab
The ‘Waypoint Tab contains the Waypoints, and Active Route Waypoint option settings. Each of the options has a ‘Text’ and ‘Zoom’ setting. To change a setting, highlight the appropriate fi eld then press ENTER. Make your new selection, then press ENTER to accept the selection.
Waypoints —
This option sets the display parameters for all waypoints.
Introduction
Reference
Map Page Options
Setup Map — ‘Map’ Tab
15
15
Introduction
Reference
Map Page Options
Setup Map — ‘Waypoint’ Tab
Setup Map — ‘Point’ Tab
16
16
Active Route Waypoint —
This option sets the display parameters for waypoints that are in an Active Route. As an example, if you have selected ‘Small’ as the text option for all waypoints, but selected ‘Large’ as the setting for Active Route Waypoints, the waypoints included in an Active Route will be displayed with large text on the Map Page.
Setup Map — ‘Point’ Tab
The ‘Point’ Tab contains the Navaids, Points of Interest, Geo and Exit option settings. Each of the options has a ‘Text’ and ‘Zoom’ setting. To change a setting, highlight the appropriate fi eld then press ENTER. Make your new selection, then press ENTER to accept the selection.
Navaids —
are items displayed on the Map that aid navigation. Navaids can be land-
marks, milemarkers, hazards, light houses, buoys, etc.
Points of Interest —
include general business listings such as restaurants, hotels, gas stations, etc. Points of Interest are only available if MapSource data has been loaded in the unit.
Geo —
include points such as schools, cemeteries, churches, towers, glaciers, parks, etc.
Geo data is only available if MapSource data has been loaded in the unit.
Exit —
information about exits that exist in MapSource data.
Setup Map — ‘Line’ Tab
The ‘Line’ Tab contains the ‘Zoom’ scale settings for Track Log, Saved Tracks, Active Route, and an ‘Off/On setting for the Bearing Line. To change a setting, highlight the appropriate fi eld then press ENTER. Make your new selection, then press ENTER to accept the selection.
Track Log —
the Track Log is the bread crumb trail that is left behind as your position
changes on the Map Page.
Saved Tracks —
Course Line —
Bearing Line —
are Track Logs that have been saved in the units memory.
controls the display of the Route Line and Go To Line.
The Bearing Line will show the bearing from your current location to
the active waypoint. This can be used to steer the shortest path to your waypoint.
Setup Map — ‘City’ Tab
The ‘City’ Tab contains the ‘Text’ and ‘Zoom’ settings for Large City, Medium City, Small City and Small Towns. To change a setting, highlight the fi eld then press ENTER. Make your selection, then press ENTER to accept.
The City settings are used to de-clutter the map. If ‘Auto’ is the selected ‘Zoom’ set­ting, the Large and Medium cities will be displayed at a higher Map Zoom Scale setting.
Setup Map — ‘Other’ Tab
The ‘Other’ Tab contains the ‘Text’ and ‘Zoom’ settings for Railroad and an On/Off setting for the Accuracy Circle. To change a setting, highlight the appropriate fi eld then press ENTER. Make your new selection, then press ENTER to accept the selection.
Accuracy Circle —
The Accuracy Circle is displayed around the current location on the
Map Page. The Accuracy Circle depicts the estimated accuracy of the location.
Heading Line —
If the Heading line is ‘On’, a line showing your current heading will be
projected on the map from the current location. The Heading line is a thin black line.
Introduction
Reference
Map Page Options
Setup Map — ‘Line’ Tab
Setup Map — ‘City’ Tab
17
17
Pointer
Compass Ring
Introduction
Reference
Pointer Page
User Data Fields
Pointer Page
Waypoint Name
Vertical Line
Pointer Page
The Pointer Page is best used for navigation when a straight line course can not be fol-
lowed. The Pointer Page has User Selectable Data Fields along the top, a Active Waypoint Field, Compass Ring and a Pointer.
The Compass Ring is a graphic display of your current track. As you change direction,
the Compass Ring will rotate, aligning your track with the vertical line. As you change direction, the Pointer will always point toward the active waypoint. When you are going directly toward the active waypoint, the Pointer is aligned with the vertical line in the Compass Ring. When you arrive at the waypoint, a message ‘Arriving at Destination’ will be displayed. It is important to note that the Compass Ring does not act as a true compass. You must be moving for the Compass Ring and Pointer to update and provide accurate navigation.
Pointer Page Options
To access the Pointer Page Options, from the Pointer Page, press the MENU Key.
Setup Page Layout —
This option allows you to select the number of data fi eld rows and the size of text used in the fi elds. You have the option of displaying None, Small (1 Row), Small (2 Rows), Small (3 Rows), Large (1 Row), or Large (2 Rows). To select an option, highlight the desired selection then press ENTER. The new confi guration will be displayed on the map. Press QUIT to exit the option.
Change Data Fields —
This option allow you to select the type of data that you want displayed in the data fi elds. To change a data type, place the highlight over the desired data fi eld, then press ENTER. Using the ROCKER, scroll through the available selec­tions. With the data type highlighted, press ENTER to accept the selection.
18
18
Highway Page
The Highway Page is best used for navigation when a straight line course can be fol­lowed. The Highway Page has User Selectable Data Fields along the top, a Status Bar, and the Highway Display.
The Highway Page shares many features with the Map Page. Any tracks, saved tracks or waypoints that are within the display area will be shown, the Zoom Level can be changed using the IN and OUT keys, and the triangle represents your current location.
To navigate using the Highway, just follow the road. If the Highway moves to the right, turn right until the triangle is aligned with the White Line in the middle of the Highway, and the Highway is pointed toward the top of the display. When you are approaching a turn, the message “Approaching Turn” will be displayed. As you approach your destination, the message “Arriving at Destination” will be displayed.
Highway Page Options
To access the Highway Page Options, with the Highway Page displayed press the
MENU Key. To select an option from the Menu, highlight the desired selection then press ENTER.
Setup Page Layout —
data fi elds rows. You have the option of displaying: None, Small
(1 Row), Small (2 Rows), Small (3 Rows), Large (1 Row), or Large (2 Rows). To select
an option, highlight the desired selection then press ENTER. The new confi guration
will be displayed on the map.
Change Data Fields —
displayed in the data fi elds. To change a data type, place the highlight over the desired
data fi eld, then press ENTER. Using the ROCKER, scroll through the available selec-
tions. With the data type highlighted, press ENTER to accept the selection.
This option allows you to select the text size and the number of
This option allows you to select the type of data you want
Introduction
Reference
Highway Page
Highway Page
19
19
Loading...
+ 46 hidden pages
