GAS CONVECTION OVENS
MODELS: MCO-GS-10 & MCO-GD-10
Toll Free Phone, (US & Canada): (800) 427-6668
Toll Free Fax, (US & Canada): (800) 361-7745
http://www.garland-group.com
FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
Explanation of Serial Number
Identification
Explanation of Model Number
Sample : 9601CJ0001
96 = Year built
(first two characters)
93 = 1993
94 = 1994
95 = 1995
96 = 1996
97 = 1997
98 = 1998
99 = 1999
00 = 2000
01 = 2001
01 = Month built
(second two characters)
01 = January
02 = February
03 = March
04 = April
05 = May
06 = June
07 = July
08 = August
09 = September
10 = October
11 = November
12 = December
From Models up to Serial Number 0003CJ9999
Sample:
Position: 1 - M - Master
2 - C - Convection
3 - O - Oven
4 - G - Gas, E- Electric Unit
5 - S - Standard Depth,
(D - Deep)
6 - 10 - Single Deck ,
(20 - Stacked)
7- E- Electronic Control Panel
M C O- G S - 10 E
1 2 3 4 5 6 7
(M-Manual Controls, A-Indendent
doors and Manual controls)
CJ = manufacturers item class for
Convection Oven (ALPHA characters)
0001 = sequential number of units built that
month.
( running number from 0001 to 9999 )
Page 2 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
GAS CONVECTION OVENS
MODELS: MCO-GS-10 & MCO-GD-10
Contents:
Electronic Control Panel ............................................................................................................. Page 4
Manual Control Panel ................................................................................................................. Page 6
Burner Section ............................................................................................................................ Page 8
Dependent Door Components .................................................................................................. Page 10
Independent Door Components ...............................................................................................Page 12
Oven Components ....................................................................................................................Page 14
Main Exterior ............................................................................................................................Page 16
Revison History ........................................................................................................................Page 18
Page 3FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO - G
ELECTRONIC CONTROL PANEL
Page 4 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-22 REV. 0
GARLAND PARTS IDENTIFICATION
Electronic Control Panel Components
ITEM PART # DESCRIPTION QUANTITY
1 1802599 Control Panel Top 1
2 1789605 Overlay 1
3 1802597 Control Panel 1
4
5
6 1019209 Rocker Switch 1
7 1270000 Pilot Light Amber 1
8 1720501 Knobs 2
9 1181000 Momentary Switch 1
10 1749201 Panel Restraining Bracket 1
11 1517706 Control 1
12
13 1771601 Relay 120V 2 Pole 1
14 1269800 24V Transformer 1
15 1815001 Ignition Module 1
16 1787301 Ignition Module Bracket 1
17 1804701 Wire Harness - Control Panel 1
18 1802101 Top Control Panel Mtg Brkt 1
19 1665200 Tired Timer 1
20 1516600 Key Lock 1
3 1802598 Control Panel 1
4 1789607 Overlay 1
5 1019203 Rocker Switch 1
17 1804706 Wire Harness 1
* NOT ILLUSTRATED
1789601 Overlay - 2 Speed 1
1789602 Overlay - 1 Speed 1
1019207 Rocker Sw - 3 Pos - 2 Speed 1
1019203 Rocker Sw - 2 Pos - 1 Speed 1
9006800 Temperature Probe 1 Unknown
1842901 Temperature Probe 1 Unknown
The Following Parts Are For The Tiered Timer Only
RECOMMENDED STOCK PARTS
DATE
FROM UP TO
Page 5FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO-G
MANUAL CONTROL PANEL
Page 6 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-21 REV, 0
GARLAND PARTS IDENTIFICATION
Manual Control Panel
ITEM PART # DESCRIPTION QUANTITY
1 1802599 Control Panel Top 1
2 1789605 Overlay 1
3 1802504 Control Panel 1
4
5
6 1019209 Rocker Switch - 2 Position 1
7 1270000 Amber Pilot Light 28 V 1
8
9 1006493 Pilot Light Green 240V - Export 1
10 1181000 Momentary Switch 1
11 1749201 Panel Bracket 1
12
13 1032400 Thermostat 1
14 1804704 Control Panel Harness 1
15 1815001 Ignition Module 1
16 1787301 Ignition Module Bracket 1
17 1269800 Transformer 24V 1
18 1802101 Top Control Panel Mounting Bracket 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1789603 Overlay - 2 Speed 1
1789604 Overlay - 1 Speed 1
1019207 Rocker Sw - 3 Pos - 2 Speed 1
1019209 Rocker Sw - 2 Pos - 1 Speed 1
1314001 Dial 2
1314117 Insert - Thermostat 1
1314134 Insert - Timer 1
1285700 Timer - 1 Hour 1
1285701 Timer -1 Hour - 230V Export 1
Page 7FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO - G
GAS COMPONENTS
Page 8 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-23 REV 0
GARLAND PARTS IDENTIFICATION
Burner Section
ITEM PART # DESCRIPTION QUANTITY
1800901 Venturi Plate 40 K 1
1
2 1801293 Burner Mounting Bracket 1
3 1814601 Burner Pkg Mounting Bracket 2
4 1095499 Straight Connector 2
5 1004845 Reducer Coupling 1/2 x 3/8 1
6 1811101 Coupling 1/4CC x 1/4CC 1
7 1784401 Manifold 1
8
9 1007300 Manifold Plug As Required
10 1801299 Burner Mtg Brkt Left 1
11
12
13
14 1815002 Ignition Cable 1
15 1803501 Burner As Required
16 1786801 Burner Rest 1
17 1004849 Bell Reducer 3/4 to 1/2 1
18
19 1026903 Union 1/2 NPT 1
20 1004640 Nipple 1-1/8” 1
21 1026733 Street Elbow 1/2 NPT 90 Deg 1
22 1785001 Gas Valve Bracket 1
23
24 1038401 Hex Seal bushing 1
25 1810301 Tubing Valve to Manifold 1
26
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1800902 Venturi Plate 60K 1
1800903 Venturi Plate 80K 1
1804348 Orifice - Natural - 48 As Required
1804355 Orifice - Propane - 55 As Required
1801103 Pilot Mtg Brkt - 40K 1
1801102 Pilot Mtg Brkt - 60K, 80K 1
1814901 Pilot Natural 1
1814902 Pilot Propane 1
1819618 Pilot Tubing - 40K 1
1028721 Pilot Tubing - 60K, 80K 1 Unknown
1824801 Pilot Tubing - 60K, 80K 1 Unknown
1786499 Tailpipe - Standard 1
1786498 Tailpipe - Deep 1
1806501 Gas Valve - Natural 1
1806502 Gas Valve - Propane 1
1819643 Pilot Tubing to Valve 1 Unknown
1834701 Pilot Tubing to Valve 1 Unknown
Burner Package Assys Includes 1-16 & Item 4 On Page 14 As Well as Restrictors for Items 5-7
CK4542 40K Burner Package Natural
CK4543 40K Burner Package Propane
CK4544 60K Burner Package Natural
CK4545 60K Burner Package Propane
CK4546 80K Burner Package Natural
CK4547 80K Burner Package Propane
DATE
FROM UP TO
Page 9FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO - G/E
DEPENDENT DOOR SYSTEM
Page 10 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-25 REV 0
GARLAND PARTS IDENTIFICATION
Dependent Door Components
ITEM PART # DESCRIPTION QUANTITY
1
2 1562604 Handle End Top 1
3 1562605 Handle End Bottom 1
4
5 8003406 Hex Head Mach Screw 1/4-20X1 2
6 1010999 Window 2
7 1757998 Roller Latch Assembly 1
8
9 1803797 Left Door Frame 1
10 1302800 Bearing Retainer 2
11 1010589 Hinge Brkt Assy W/Bearing 2
12 1011201 Chrome Spacer 2
13
14
15
16
17 1805801 Micro Switch Mtg. Brkt 1
18
19 1663201 Handle Back Plate 1
20 1014201 Left Door Rod (Short) 2
21 1014200 Right Door Rod (Long) 2
22 1015000 Turnbuckle 2
23 1021100 Roller Chain 2
24 1679301 Bottom Door Seal 1
25 1679303 Side Door Seal 2
26 1679302 Top Door Seal 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1664802 Door Handle 1 1-Mar-97
1840999 Door Handle 1 1-Mar-97
1803703 Left Door Panel With Window 1
1803704 Left Door Panel Solid 1
1810201 Door Catch 1 24-Apr-97
1841201 Door Catch 1 24-Apr-97
1803795 Left Door Liner W/Window 1
1803796 Left Door Liner Solid 1
1803712 Right Door Panel - Solid 1
1803711 Right Door Panel - W/Window 1
1803799 Right Door Frame - Solid 1
1803798 Right Door Frame W/Window 1
1803814 Right Door Liner - Solid 1 Unknown
1803710 Right Door Liner - Solid 1 Unknown
1803791 Right Door Liner - W/Window 1 Unknown
1803709 Right Door Liner- W/Window 1 Unknown
1019600 Micro Switch 1 01-Mar-99
1855601 Micro Switch 1 01-Mar-99
Part Numbers for Door Assemblies
1803789 Left With Window Dependent
1803784 Right Solid Dependent
1803788 Left Solid Dependent
1803785 Right With Window Dependent
DATE
FROM UP TO
Page 11FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO-G/E
INDEPENDENT DOOR SYSTEM
8
Page 12 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-24 REV 0
GARLAND PARTS IDENTIFICATION
Independent Door Components
ITEM PART # DESCRIPTION QUANTITY
1 1664802 Door Handle 2
2 1562604 Handle End 2
3 1562605 Handle End 2
4
5 8003406 Hex Head Mach Screw 1/4-20X1 4
6 1810201 Door Catch 2 24-Apr-97
7 1757998 Roller Latch Assembly 2
8 1010999 Window 2
9 1803797 Door Frame -Left 1
10
11 1302800 Bearing Retainer 2
12 1010589 Hinge Brkt Assy W/Bearing 2
13 1011201 Chrome Spacer 2
14
15
16
17
18 1805801 Door Switch Mtg. Brkt 1
19 1679301 Bottom Door Seal 1
20 1679303 Side Door Seal 2
21 1679302 Top Door Seal 1
22 1663201 Door Handle Back Plate 2
* NOT ILLUSTRATED
1803703 Left Door Panel With Window 1
1803704 Left Door Panel Solid 1
1841201 Door Catch 2 24-Apr-97
1803795 Door Liner - Left W/Window 1
1803796 Door Liner - Left Solid 1
1803794 Door Liner - Right - Solid 1
1803793 Door Liner - Right W/Window 1
1803799 Door Frame - Right - Solid 1
1802798 Door Frame - Right W/Window 1
1803708 Door Panel - Right - Solid 1
1803707 Door Panel - Right W/Window 1
1019600 Door Switch 1 01-Mar-99
1855601 Door Switch 1 01-Mar-99
Part Numbers for Door Assemblies
1893783 Left With Window Dependent
1803786 Right Solid Dependent
1803782 Left Solid Dependent
1803787 Right With Window Dependent
RECOMMENDED STOCK PARTS
DATE
FROM UP TO
Page 13FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
MCO-G
OVEN COMPONENTS - GAS
Page 14 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-26 REV 0
GARLAND PARTS IDENTIFICATION
Oven Components
ITEM PART # DESCRIPTION QUANTITY
1 1025302 Blower Wheel 1
2 1782198 Motor Mount Assembly 1
1686701 Motor - 2 Speed - 115 V 1
3
4
5
6 1892999 Fan Cover 1
7
8 1025900 Light Socket Gasket 2
9 1623900 Light Bulb - 40W 2
10 1676901 Glass Duplate 1
11 1606801 Glass Frame - Left 1
12 1606802 Glass Frame - Right 1
13 1025800 Light Socket 2
14 1678701 Light Box 1
15
16
17 1676801 Rack Guide Clip 6
18 1317601 Rack Guide Hold Down Bracket 2
19 1800801 Bulb Shield - Elec Controls 1
* 1015799 Capillary Tube Guard - Manual 1
* 1809699
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1686703 Motor 1 Speed 1
1686702 Motor 240V Export 1
1784301 Oven Vent Cap - 40K 1
1784302 Oven Vent Cap - 60K 1
1784303 Oven Vent Cap - 80K 1
1782599 Fan Cover Duct - Left 1
1785999 Fan Duct Restrictor 40K 1
1785998 Fan Duct Restrictor 60K 1
1785997 Fan Duct Restrictor 80K 1
1782598 Fan Cover Duct - Right 1
1785999 Fan Duct Restrictor 40K 1
1785998 Fan Duct Restrictor 60K 1
1785997 Fan Duct Restrictor 80K 1
1607000 Master Oven Rack - Standard 5
1607010 Master Oven Rack -Deep 5
1607001 Rack Guide - Standard 5
1704502 Rack Guide - Deep 2
Oven Light Patch -Porcelain
Used To Cover Light Box Opening For Units With NO
Interior Lights
Motor Assemblies - Items 1, 2 And 3
CK1003090 2 Speed, 115 V
CK1003091 2 Speed, 208/240 V Export
CK1003092 1 Speed
Page 15FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)

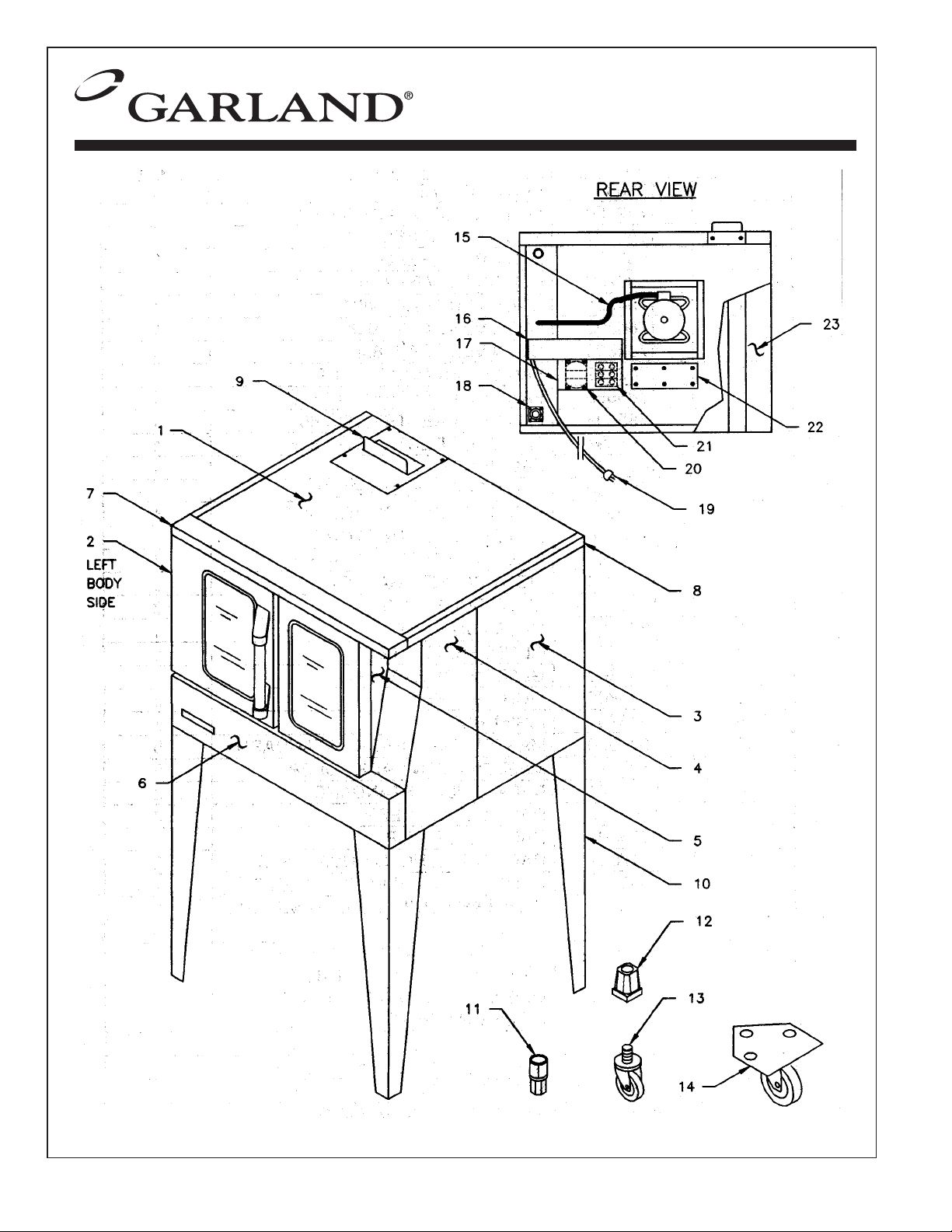

MCO-G
MAIN EXTERIOR - GAS
Page 16 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
PS95-27 REV 0
GARLAND PARTS IDENTIFICATION
Oven Components
ITEM PART # DESCRIPTION QUANTITY
1
2
3
4
5 1802701 Control Panel Left - SS 1
6 1807201 Compustion Chamber - SS 1
7 1802201 Trim Cap Veneer 1
8 1829101 Main Top Side Trim 2
9
10
11 1236100 Square Foot Insert 4
12 1775102 Caster Insert - Single Deck 4
13
14
15 1029426 BX Cable 3/8-26” Long 1
16 1823001 Element Raceway (Export) 1
17 1827901 Transformer Shield (Export) 1
18 1032504 Knockout Plate - Black 1
19 1029501 8’ Power Supply Cord 1
20 1030801 Transformer 240-115 (Export) 1
21 1193900 Terminal Black (Export) 1
22 1809201 Element Patch 1
23
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS
1802801 Main Top - Black 1
1802802 Main Top - SS 1
1785404 Body Side Left - Black 1
1785402 Body Side Left - SS 1
1785403 Body Side Right - Black 1
1785401 Body Side Right - SS 1
1785398 Control Panel Side -RT- Black 1
1785399 Control Panel Side - RT - SS 1
1818201 Oven Vent Plate - STD 1
1818203 Oven Vent Plate - Deep 1
1805299 Leg - Single Deck - Black 4
1805298 Leg - Single Deck - SS 4
1805399 Leg - Double Deck - Black 4
1805398 Leg - Double Deck - SS 4
1027500 Caster - Single Deck 2
1027501 Caster W/Brake - Single Deck 2
1821599 Caster W/Brake - Double Deck 2
1821598 Caster - Double Deck 2
1821597 Lo Profile Caster W/Brake - Double Deck 2
1821596 Lo Profile Caster - Double Deck 2
1820302 Main Back - Black - Standard 1
1820304 Main Back - Black - Deep 1
1820301 Main Back - SS - Standard 1
1820303 Main Back - SS Deep 1
Page 17FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
GARLAND PARTS IDENTIFICATION
Revision History
REV. # PAGE # ITEM # NOTE DATE
1 3 Entire Book Reformatted Feb 3/04
Page 18 FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
NOTES
Page 19FORM # MCO GS/GD-10 MODELS (Old Model Rev 1)
Loading...
