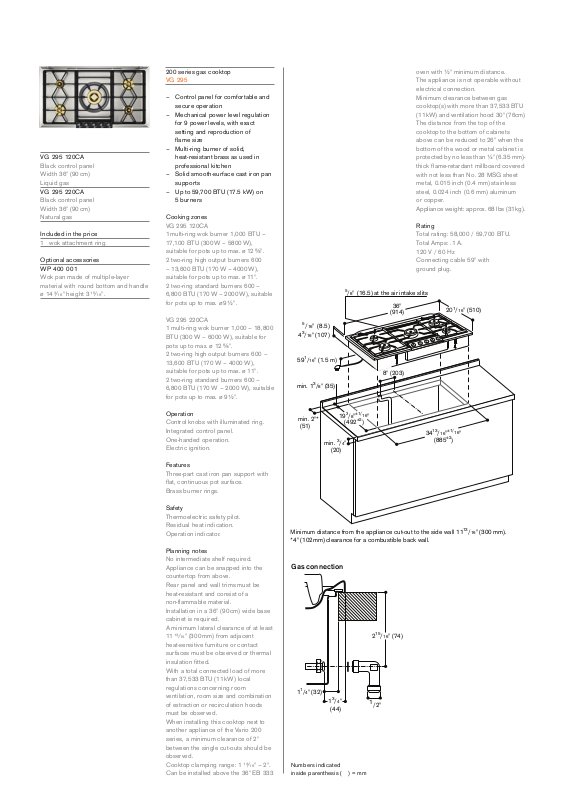

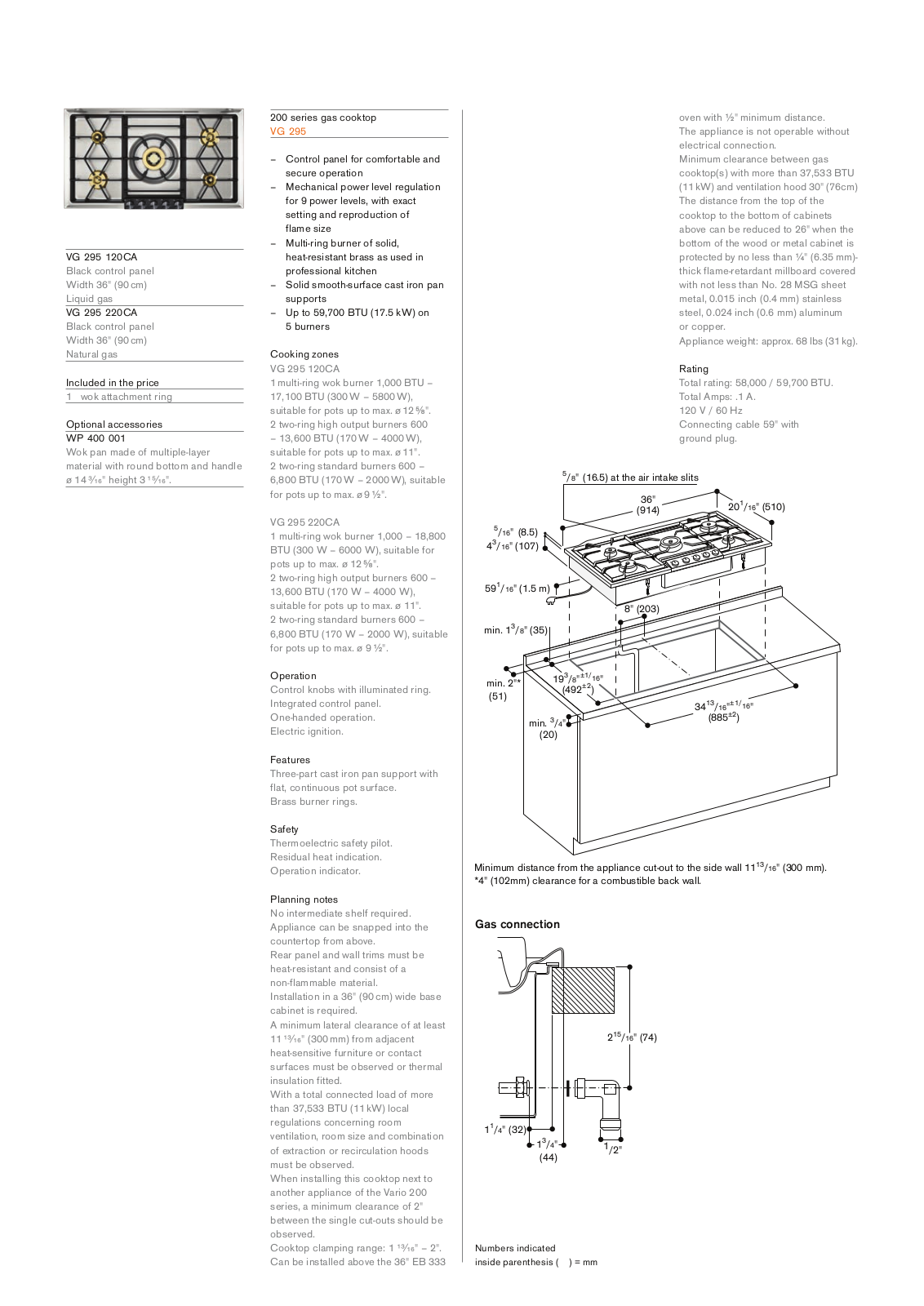

Gaggenau VG295120CA Specification Sheet
V G 295 120CA
Gas connection
1
/2
"
215/16"
(74)
13/4"
(44)
11/4"
(32)
(16.5) at the air intake slits
Minimum distance from the appliance cut-out to the side wall 11 (300 mm).
*4" (102mm) clearance for a combustible back wall.
13/16
"
(1.5 m)
min. 1
(8.5)
min. 2"*
min.
43/
16
5/8
"
591/16"
3/8
"
(35)
5/16
"
3/4
"
" (107)
193/8"
±1/
16
"
(51)
(20)
(492±2)
8" (203)
36"
(914)
3413/16"
±1/
16
"
(885±2)
201/16" (510)
Black control panel
Width 36" (90 cm)
Liquid gas
V G 295 220CA
Black control panel
Width 36" (90 cm)
Natural gas
Included in the price
1 wok attachment ring
Optional accessories
W P 400 001
Wok pan made of multiple-layer
material with round bottom and handle
ø 14 ³⁄₁₆" height 3 ¹⁵⁄₁₆".
200 series gas cooktop
V G 295
– Control panel for comfortable and
secure operation
– Mechanical power level regulation
for 9 power levels, with exact
setting and reproduction of
flame size
– Multi-ring burner of solid,
heat-resistant brass as used in
professional kitchen
– Solid smooth-surface cast iron pan
supports
– Up to 59,700 BTU (17.5 kW) on
5 burners
Cooking zones
VG 295 120CA
1 multi-ring wok burner 1,000 BTU –
17,100 BTU (300 W – 5800 W),
suitable for pots up to max. ø 12 ⅝".
2 two-ring high output burners 600
– 13,600 BTU (170 W – 4000 W),
suitable for pots up to max. ø 11".
2 two-ring standard burners 600 –
6,800 BTU (170 W – 2000 W), suitable
for pots up to max. ø 9 ½".
VG 295 220CA
1 multi-ring wok burner 1,000 – 18,800
BTU (300 W – 6000 W), suitable for
pots up to max. ø 12 ⅝".
2 two-ring high output burners 600 –
13,600 BTU (170 W – 4000 W),
suitable for pots up to max. ø 11".
2 two-ring standard burners 600 –
6,800 BTU (170 W – 2000 W), suitable
for pots up to max. ø 9 ½".
oven with ½" minimum distance.
The appliance is not operable without
electrical connection.
Minimum clearance between gas
cooktop(s) with more than 37,533 BTU
(11 kW) and ventilation hood 30" (76cm)
The distance from the top of the
cooktop to the bottom of cabinets
above can be reduced to 26" when the
bottom of the wood or metal cabinet is
protected by no less than ¼" (6.35 mm)-
thick flame-retardant millboard covered
with not less than No. 28 MSG sheet
metal, 0.015 inch (0.4 mm) stainless
steel, 0.024 inch (0.6 mm) aluminum
or copper.
Appliance weight: approx. 68 lbs (31 kg).
Rating
Total rating: 58,000 / 59,700 BTU.
Total Amps: .1 A.
120 V / 60 Hz
Connecting cable 59" with
ground plug.
Operation
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Features
Three-part cast iron pan support with
flat, continuous pot surface.
Brass burner rings.
Safety
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Planning notes
No intermediate shelf required.
Appliance can be snapped into the
countertop from above.
Rear panel and wall trims must be
heat-resistant and consist of a
non-flammable material.
Installation in a 36" (90 cm) wide base
cabinet is required.
A minimum lateral clearance of at least
11 ¹³⁄₁₆" (300 mm) from adjacent
heat-sensitive furniture or contact
surfaces must be observed or thermal
insulation fitted.
With a total connected load of more
than 37,533 BTU (11 kW) local
regulations concerning room
ventilation, room size and combination
of extraction or recirculation hoods
must be observed.
When installing this cooktop next to
another appliance of the Vario 200
series, a minimum clearance of 2"
between the single cut-outs should be
observed.
Cooktop clamping range: 1 ¹³⁄₁₆" – 2".
Can be installed above the 36" EB 333
Numbers indicated
inside parenthesis ( ) = mm
