Preface
Fig, 1
With your steam oven you can experience modern professional cooking technology in
your own household.
The steam oven offers the following advantages:
- Cooking with steam allows gentle preparation. The valuable substances contained in the
foodstuffs you prepare are retained almost completely.
- Diverse meals can be prepared without any transfeI of taste.
- Thanks to a special combined s_eaming method foodstuffs are neither dried out nor
drained of their goodness.
- Gently re-heating up food is possible, and prepared meals retain their natural appearance
To ensure that you will be able to use this
appliance in all its diversity, read through the operating and assembly instructions conscientiously before operating it for the first
time The instructions contain important notes on
use. installation and maintenance of
the appliance. On the following pages you will find important
notes on safety and operation. These no_es will
serve to ensure your personal safety and the lasting value of your appliance.
The chapters entitled "Structure and operating principle" and "Operation" tell you all about
what your appliance can do and how you operate
it.
The chapter entitled "Cleaning and care" will make sure that your appliance will stay operable
and beautiful for a long time
We have also compiled some "Tips and tricks" for your.
And now we wish you lots of fun with your
steam oven.
Importantsafeguards
Read all instructions.
.
2. Do not touch hot surfaces. Use handles or l<nobs.
3. To protect against electrical shock do not immerse cord or plug in water or liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or tal<ing off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions
or has been damaged in any manner. Rehn_n appliance to the nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer
may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Do not use appliance for other than intended use.
13. To reduce the risk of fire, do not place any heating or cooking appliance beneath the appliance.
14. To reduce the risk of fire, do not mount unit over or near any portion of a heating or cool<ing
appliance.
is. Save these instructions.
Important instructions
1. a) Proper installation - Be sure your appliance
is properly installed and grounded by a qualified electrician.
b) Never use your appliance for warming or
heating the room.
c) Do not leave children alone - Children
should not be left alone or unattended in areas where the appliance is in use. They should
never be allowed to sit or stand on any part of the appliance.
d) Wear proper apparel - Loose-fitting or
hanging garments should never be worn while using the appliance.
e) User servicing - Do not repair or replace any
part of the appliance unless specifically recommended in the manual. All other
servicing should be referred to a qualified technician.
f) Storage in appliance - Flammable materials
should not be stored in an oven or near surface units.
g) Do not use water on grease fires - Smother
fire or flame or use dry chemical or foam type extinguisher.
h) Use only dry pot holders - Moist or damp pot
holders on hot surfaces may result in bums from steam. Do not let pot holders touch hot heating elements. Do not use a towel or other
bulk7 cloth.
2. a) Use care when opening door - Let hot air or
steam escape before removing or replacing food.
b) Do not heat unopened food containers
Build-up of pressure may cause container to burst and result in injury.
c) Keep oven vent ducts unobstructed.
d) Use caxe when using meat probe,
that it does not contact any heating elements.
e) Placement of oven racks - Always place
oven racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let pot holder contact hot heating
element in oven.
f) Accessories supplied with this oven are
intended only for use in this oven.
3. DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN -
Heating elements may be hot even though they are dark in color. Interior surfaces of an oven
become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they
have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause
bums.
4. a) Do not clean door gasket - The door gasket
is essential for a good seal. Care should be tal<en not to rub, damage, or move the gasket.
b) Do not use oven cleaners - No commercial
oven cleaner or oven liner protective coating of any l<ind should be used in or around any part
of the oven.
c) Clean only parts listed in manual. d) Oven must be in the OFF position before
attempting to attach or install any accessory.
1. Important notes
1.1 For your safety
You must not operate the appliance if it is damaged. The appliance must only be connected by an
authorised specialist, paying attention to the relevant regulations of the power supply
companies and the regional construction
regulations.
Observe the assembly instructions! Caution: Fire risk! Do not store any combustible
objects in your appliance. When operating the appliance, only ever leave the inner parts inside the
cooking compartment that you actually need.
As the user, you yourself are responsible for maintenance and proper use in the household.
Only ever operate the appliance under supervision.
Disconnect the unit from the water mains when it is not in operation.
Caution! The appliance gets hot during operation.
Keep children away!
Caution! There is a risk of injuries if the door is not closed properly You could jam and crush your
fingers and hands. Caution! Steam may billow out when you open the
door. If there is steam in the oven, do not reach in
with your hands! Risk of burns!
Caution! When removing the cooking insert hot
water may drip from the oven top. Risk of
scalding! Be careful when removing the cooking insert as hot liquid might spill. Use heat resistant
oven gloves.
Leads of other electrical appliances that are used
in the proximity of the cooker must not be jammed in by the hot oven door.
Do not clean the appliance with a steam cleaning
apparatus or with water pressure - risk of short- circuits!
Disconnect the appliance from the water and
electricity mains. Switch off the corresponding fuse and turn off the tap.
Caution! For technical reasons the lamp cover cannot be removed. Lamp must only be replaced
by Gaggenau after-sales service.
Repairs may only be carried out by authorised electricians.
Note: the appliance must not be connected to the hot water supply
No warranty claims can be lodged for any
damage resulting from failure to observe these instructions.
Technical modifications reserved.
1.2 About use
The appliance is intended solely for use in the household and must not be put to any other uses.
Use the appliance to prepare meals only It must not be used to heat up the room in which it is installed.
Only ever use the included cooking inserts or order the special accessories.
Do not place any items in the oven compartment
that might rust. Rusty accessories will lead to further
rusting in the oven compartment! Do not use any silver tableware in the cooking
compartment.
The cooldng compartment may become
discoloured during prolonged operation. This does
not have a detrimental influence on operability of
the appliance. Operation is only possible when the door is closed,
otherwise there is a risk that water will spray out of the appliance or that hot steam will come out.
The steam oven uses unpressurized steam,
therefore the door can be opened at any time during cooking. To prevent extreme steam from escaping when you open the door, you can
condense beforehand. Water may drip when opening the door.
Steam may escape during operation and when opening the door.
The _ (Heating) symbol inthe control panel goes
off as soon as the required temperature has been
reached. Turn the "Temperature" control knob (right control
knob) to the 0 position after use.
In the event of malfunctions, first of all check the household fuses. If the problem has nothing to do with the power or water supply, please contact
your specialist dealer or your local Gaggenau after-
sales service.
The door window may fog up at all moisture levels (above all at the 100 % moisture level).
Operating noise may occur in all operating modes. Opening and closing of the air flap causes clicking
noise. The appliance rinses automatically when switched
on if it has not been in operation for a prolonged period of time or after a prolonged power failure
(several hours). This removes water that is left over in the pipes.
The food being cooked must not come into contact
with the sides or the grease filter. At set temperatures below 65°C / 150°F, the light is
switched off after a few seconds to ensure that the halogen lamp will not additionally heat up the oven
compartment. This ensures more precise temperature coordination. The light in the oven compartment is switched on again for a few
seconds if you turn one of the two control knobs or if you press a key
Calibration
(automatic boiling point-adjustment):
the boiling point of water depends on the baro- metric pressure. The barometric pressure changes
with the altitude of the place where the appliance is
installed. During self-adjustment, the appliance adapts itself to the pressure conditions prevailing at
the appliance's location.
The appliance cannot be operated if it has not been calibrated!
The appliance features a descaling display.
When it flashes, this is an indication that the
appliance must be descaled. Before commencing operation, you must enter the water hardness in
your household on the appliance.
2. Appliance and accessories
2.1 Appliance description
1 2 3
Fig, 2 9 8 7 6 5 4
2.2 Display
l0 U 12
1 Grease filter
2 Air flap 3 Slide-in grills
4 "Temperature" control 1,mob 5 "Moisture level" control 1,mob
6 Core temperature sensor 7 Base strainer with siphon trap
8 Side plate 9 Display
I7 16 15 1_4 13
Fig, 3
18 19 20 21 22 23
'\
24 25 26 27
Fig, 4 28
29 30 31
I 10U
12 13
14 15 16
17
Timer key Core temperature sensor key Plus key
Minus key Temperature / Moisture level display Time display
Steaming / condensing key Confirmation key
18 "Child lock" symbol (symbol flashes)
"Show room mode" symbol (symbol lights constantly)
19 "Duration, end" symbol 20 "Short timer" symbol 21 "Cooking time" symbol
22 "Core temperature sensor" symbol 23 "Water connection" symbol 24 "Heating" symbol
25 "Steaming / condensing" symbol 26 "Descaling" symbol
27 "Door lock" symbol 28 "Start calibration" symbol 29 "Steaming" symbol
30 "Hot air" symbol
31 "Cleaning aid" symbol
2.3 Accessories / special accessories
Fig, 5
Fig, 6 i [
Fig, 7
As standard, the appliance comes with the
following accessories:
- Stainless steel cooking insert GN 2/3, unperforated, 40 mm / ll/s ""deep (Fig. 5)
- Stainless steel cooking insert GN 2/3, perforated, 40 mm / 1Vs'" deep (Fig. 6)
- Wire grill (Fig. 7)
- Water connection pipe (10 ft)
- Waste water pipe (10 ft)
You can order the following special accessories:
- DR 220-010: Pressure reducer, connection
accessory for water pressure 6-10 bar
- GZ 010-0U: Extension pipes for water
connections
- WF 040-020:
- WF 040-021:
- KB 220-U4:
- KB 220-124:
Brita descaling system (filter head
and filter cartridge). If the hardness of the water exceeds 7 o (American
water hardness), you must install a
descaling system before the appliance.
Set of 3 filter cartridges Stainless steel cooldng insert
GN 1/3, unperforated, 40 mm/ 1V2""deep
Stainless steel cooldng insert GN 1/3, perforated, 40 mm/ 1Vz'" deep
3. Operating for the first time
3.1 Important notes
Before operating the appliance for the first time, please pay attention to the following notes:
Read through these instructions attentively before operating the appliance for the first time.
Remove the packaging from the appliance and dispose of it properly
Pay attention to the fact that there are accessories in the base of the packaging.
Keep packaging elements away from children. Thoroughly clean the appliance and accessories
before using them for the first time. This will
eliminate any "newness" smells and soiling (see Chapter 9).
Every appliance is subjected to a thorough check
before it arrives in your home. It is therefore possible that there is still water in the appliance.
Before operating the appliance for the first time, mal(e sure that the water connection is properly
secured.
When you operate the appliance for the first time,
the suggested time 8:00 appears on the display
You can now choose the required time of day by pressing the + and - keys. Press the
_/(Confirmation) key to confirm the entered value.
3.2 Calibration
The boiling point of water depends on the barometric pressure at mean sea level.
During calibration, the appliance is adjusted to the pressure conditions prevailing at the altitude where
the appliance is installed. Recalibrate the appliance manually if you should
move home to a different altitude (see chapter
entitled "Options menu" on Page 21).
Important:
the calibration process cannot be interrupted
Should the calibration process be interrupted by
opening the door or switching off the appliance. the steam oven will not function. The appliance will automatically start calibration until the
operation has been completed. Recalibration is not necessary, after a power
failure.
Fig, 8
Fig, 9
3.3 What to do, when ...
The display repeatedly flashes the
symbol ,_ (water connection).
Proceed as follows:
- Install the appliance at the required location (see
assembly instructions).
- Remove all loose parts from the oven compartment (bal<ing tray etc.).
- Close the appliance door.
- Open the water tap.
- Self-adjustment starts automatically as soon as you turn the "Temperature" control knob to any
temperature. This takes around 15 minutes. The elapsing time appears in the display The "CAL" symbol for calibration appears in the display
- An audible signal sounds after completion of calibration. The appliance is now ready for
operation. "--:--" appears on the display The H (Duration) and _ (Cooking time) symbols flash
on the display
- Turn the "Temperature" control knob back to the 0 position. The appliance is now ready for
operation.
The appliance receives no water. Turn the water connection on. Check
that the pipe is correctly connected and free from bends. Turn the "Temperature" control knob to 0 and then to the required temperature.
The R symbol appears on the display The appliance has not been calibrated. Switch the appliance on,
the calibration process starts automatically
The [_ symbol appears on the display The appliance is in show room mode without heating function. The appliance does not calibrate or Disconnect the appliance from power supply for a few seconds
heat up, although the heating symbol (by switching off the fuse), then within 3 minutes press + key
appears on the display and keep pressed and turn "Temperature" control knob to any
temperature (not light0.
The _ symbol flashes on the display The child lock is operating (see page 20). The CAL and 40°C / 104°F symbol The temperature in the oven is above 40°C / 104°F. Therefore the
flash alternating on the display calibration cannot tal<e place. The actual temperature appears on
the left of the display The appliance automatically cools the oven
below 40 °C / 104°F and re-starts the calibration.
F 61 or F 6_. lights on the display Check the power and water supply If these are functioning
correctly call the Gaggenau after-sales service.
10
3.4 Determining water hardness
Water hardness range 4 has been pre-entered on
the appliance. If the hardness of the water in your
household should deviate from this value, the
correct water hardness range (between 1 and 4) must be entered before commencing
operation of the appliance. You can find out the hardness of the water in your household either
by consulting your waterworks or by using the
included test strip.
- Run water from the tap for about 20 seconds to
drain off stale water.
- Fill a glass with tap water and briefly (no more
than 1 second) dip the test strip into the water,
malting sure that all test points are wetted.
- Remove the strip from the water and shake off any surplus water drops.
- You can read off the result after one minute.
- If your water contains lime, one or more of the test areas is/are of a reddish colour and the others
stay light or greenish. The number of light (green) areas defines the right water hardness range
setting on the appliance.
The test set must be used even if a water descaling
system is already installed in your household
because, depending on the descaling method, not
all scale-forming ions are removed.
Number of light Water hardness Water (green) areas on (German hardness) hardness
the test strip range 3 or more 1-7° 1
2 7-14 ° 2
1 14-21 ° 3
None >21 ° 4
Please also note that different designations are
used outside Germany to describe the hardness of water.
Water hardness range 1 2 3 4 American hardness 1-7° 7-14 ° 14-21 ° >21 °
French hardness 1-12 ° 12-25 ° 25-37 ° >37 °
British hardness 1-9° 9-18 ° 18-26 ° >26 °
Russian hardness 1-50° 50-100 ° 100-150 ° >150 °
11
3.5 Entering the water hardness
End
Options menu
I
Descaling _,
Temperature
Start
Calibration
Time display
Fig, 10 ON/OFF
(only if appliance is switched off)
Fig, 11
If the hardness of the water in your household deviates from the value that is set at the worl_
(water hardness range 4), you must enter the right water hardness in the options menu for
commencing operation of the appliance.
Proceed as follows:
- Turn the two control knobs to the topmost position.
- Press the ,/(Confirmation) key and keep it pressed.
- Turn the "Moisture level" l_ob to the right.
- Release the ,/(Confirmation) key
- The various options appear on the display Turn the "Moisture level" control knob to the right to
the descaling position.
- With the + and - keys, set the water hardness
(between 1 and 4) (Fig. 11).
- Press the ,/ (Confirmation) key
- To quit the options menu, turn the "Moisture" control knob back up or turn the "Temperature"
control knob.
12
4. Operation
4.1 Switching on and off
Switching on
Fig, 12
The appliance rinses automatically when switched on; if it has not been in operation for some days. This removes water that is left over in the pipes
and wi!! t_e no longer than ! minute.
Switching off
Fig, 13
Switching on
- Turn the "Temperature" control knob by one latching position to the right (Fig. 12).
The lighting goes on:
- Turn the "Moisture level" control knob to the moisture level you require.
- Turn the "Temperature" knob to the temperature you require.
When you turn the "Temperature" knob one latching position to the left, the suggested temperature for
the chosen moisture level appears on the display.
100% - 100°C/210°F
80% - 120°C/250°F
60% - 120°C/250°F
30% - 165°C/330°F
0% - 165°C / 330°F
When the "Moisture" control knob is turned, the moisture is displayed for a few seconds.
Switching off:
To switch off, turn the "Temperature" knob to the
0 position (Fig. 13).
The steam oven lighting goes off.
4.2 Control knobs
100% Off
I 80% s........ I
Fig, 14 3OO/o
"Temperature" control knob:
The temperature can be set between 30°C / 85°F
and 230°C / 450°F. "Moisture" control knob:
You can select the following moisture levels:
100%, 80%, 60%, 30 % und 0 %
13
4.3 Operating modes
Moisture . Temperature. Display Particularly Principle Remarks
suitable for... "
100% 150 - 230°C _4" Bread Steam baking:
300 - 450 oF poultry, The high moisture prevents the food from drying out.
puff pastry Thanks to the high temperature, the surface become
crispy brown all-round.
100°/0 100°C _ Vegetables, Steaming: You can use several
210 °F side dishes, The food is completely surrounded by steam, cooking inserts at
blanching, Steaming is a very gently method with which the food the same time. sterilising, is not deprived of its goodness and retains its natural
juice extraction colour.
100°/o 120°C _ Potatoes, Fast steaming:
250 °F pulses and beans The higher temperature accelerates steaming.
Not suitable for sensitive foodstuffs.
100% 80 - 90°C _ Fish Low-temperature steaming:
175 - 195°F The air in the cooking compartment is saturated with
steam. The heat is transferred without any drying out
whatever. Protein leaking is avoided by the lower
temperature.
809/0 30 - 45°C _'-%" Yeast dough, Fermenting, rising: Light goes off after 60°/0 85- l15°F sour dough mixtura Thsnks to the moisture, the heat is distributed a few seconds.
,._4" Yoghurt particularly evenly, The surfaces of doughs do not
dry out so much.
809/0 1S0 - 230°C _ Casserole dishes, Combined steaming: 60°/0 300 - 450 °F ,_-9 gratin, the middle way between steam baking and hot air
roast operation makes it possible to achieve the optimum
cooking climate for every food.
600/0 120°C / 250°Y ,=, 4" Plated dishes Reheating: Meals can be heated
160 °C / 320 oy cooked food can be reheated gently, Thanks to the directly on the plate.
supply of steam, the food is not dried out. Reheat food served on plates at 120_C / 250°F and
baked items at 160°C / 320"F.
30°/0 150 - 230 °C _4" Yeast pastry In this mode of operation, the cooking compartment
300 - 450"F is sealed hermetically The remaining moisture
prevents the drying effect of conventional hot air.
30°/0 70 - 80°C _" Roast beef, Low-temperature cooking:
160 - 175_'F leg of lamb briefly seared meat can mature slowly and gently
over a long cooking time.
0% 150 - 230°C 4" Fruit cake Convection:
300 - 450 °F the cooking compartment is ventilated and vented
through an opening so that the moisture produced can be dissipated. This is particularly advantageous
for baked items that have to give off moisture during the baking process.
100°/0 60°C _ Cleaning aid
140°F The cleaning aid makes it possible to loosen
soiling with steam.
14
4.4 Operating the timer
The required moisture level and temperature can be set before and after time programming by
turning the "Temperature" or "moisture level" knob.
As long as one or several symbol(s) in the display
flash(es), no input is possible and no value is pro- grammed or an invalid value has been programmed.
All time values are entered by means of the
(timer), +, - and _' (confirmation) keys. Every
input triggers an audible and a visible signal. If you select a program (e.g. end), but you do not
enter a value, the current time will appear on the display after 20 seconds.
An entered value (e.g. duration programming) must be confirmed within 20 seconds _/ (Confirm) key
Entered values are not stored if they are not confirmed.
Press the _/ (Confirm) key if you wish to confirm a value during programming. If you press any other key instead, the entered
value will not be stored and will disappear. You can query set values by pressing the no
(timer) key The value appears on the display for around 10 seconds. During this time, you can
modify the value by pressing the + or - key and you
can confirm it by pressing the _/(Confirm) key Press the + and - keys at the same time if you wish
to clear a value. If you have already programmed a time value once
(e.g. a duration) on the appliance, this previously programmed value will be proposed to you when programming a value again.
The longer you press the + or - key when programming a time, the faster the time elapses on
the display
After completion of time programming, the
corresponding symbol flashes on the display For example, if you have programmed an end time, the
-I (end time) symbol will flash. An audible signal is also sounded. Heating is deactivated and the oven
lighting goes off. You can restart the previously selected mode by pressing any key on the display
You end the baiting process by turningthe
"Temperature" knob to 0.
During a time programming it is possible at any
time to turn the "Temperature" control knob back to 0. The steam oven will then no longer heat. The
previously programmed value is retained. An
audible signal sounds after the entered time has
elapsed.
Every alarm goes off after 3 minutes.
Note: all time programming functions can be programmed simultaneously
15
Fig, 15
Setting the time of day Proceed as follows:
- Press the _ (Timer) key 3 times. The _,, (Time
unit) symbol flashes on the display The time display shows the currently set time
of day (Fig. 18).
- You can select the required time by pressing the + or - key
- Press the ,/(Confirmation) key to confirm the entered value. An audible signal is sounded.
After first installation Or a power fai!le lasting
severaI hot,s, 08:00 and the time unit symbol will
flash in the display You can set the current time by pressing the +and-- keys. 08:00 wi!l be stored as
the time of day if you turn one of the control knobs.
16
Fig, 16
The last programmed value is proposed to you every other time you program a short time;
Short time
You can program a period of time with the short
time function without automatic activation or deactivation. You can use this mode of operation
even when the appliance is switched off as an egg timer, for example. The range that can be set is
between ten seconds (00:10) and 23.59 hours
(23:59)
Proceed as follows:
- Press the + key. The short time symbol _ flashes
(Fig. 16).
- The entered value appears on the display, which you can modify by pressing the + or - key. The
time unit symbol ,_':lights up.
- Press the ,/(Confirm) key to confirm the entered value.
- The elapsing time is displayed.
Note: if nothing is entered for 5 seconds, the short
time starts even if the ,/key (Confirm) is not
pressed.
Once the short time has elapsed, an audible signal sounds and the _ (Short time) symbol flashes on
the display, The signal goes off when you press any
key, The short time reminder can be switched off at
any time by pressing the + and - minus keys at the same time.
Fig, 17
I Elapsing timer
Proceed as follows:
- Press the - key (Fig. 17).
- The time, beginning at 00:00, is displayed
(maximum display: value 12 hours).
Thus, you can continuously display the elapsed cooldng time without programming automatic
deactivation.
When you press the - key again, the time is
switched off.
17
Fig, 18

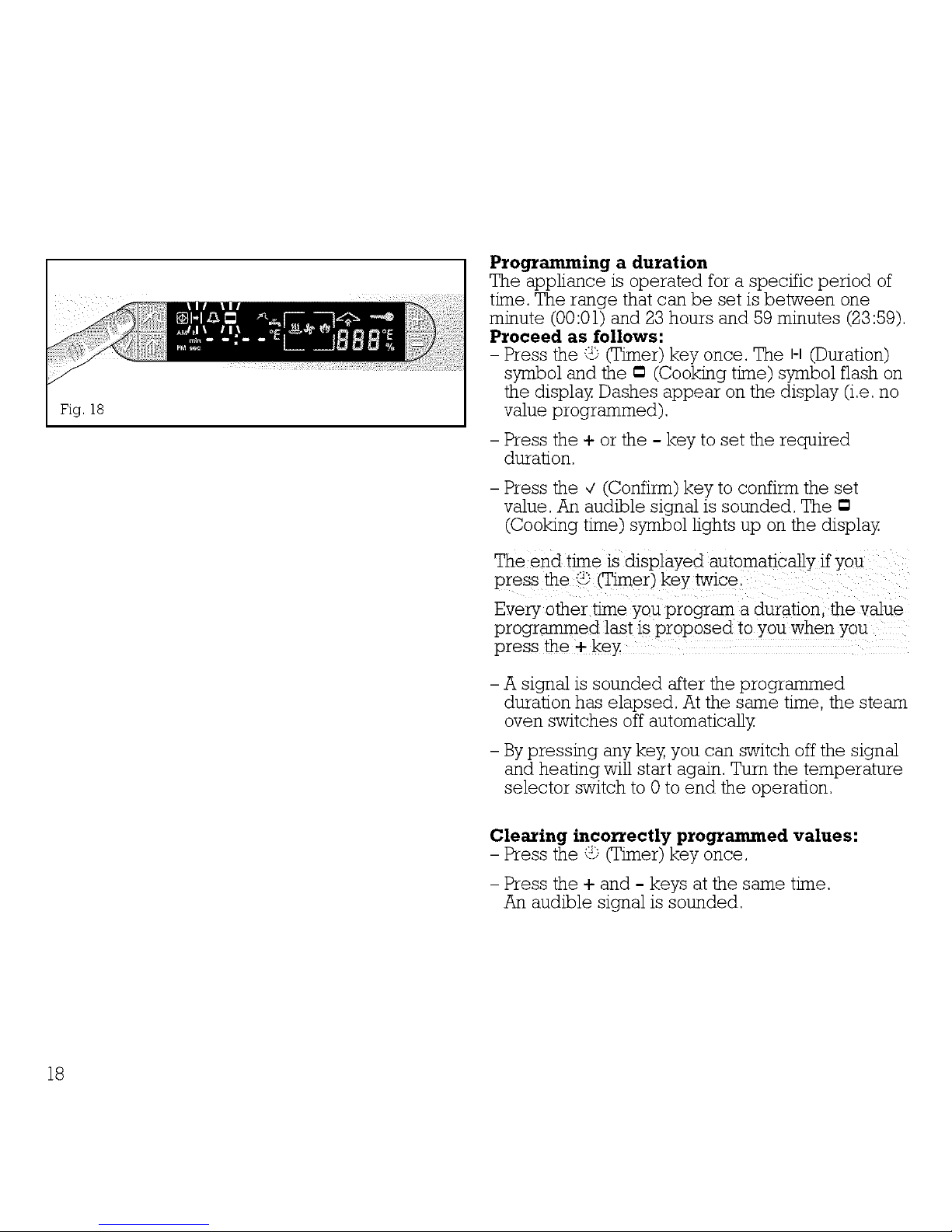

Programming a duration
The appliance is operated for a specific period of
time. The range that can be set is between one minute (00:01) and 23 hours and 59 minutes (23:59).
Proceed as follows:
- Press the G. (Timer) key once. The H (Duration)
symbol and the _ (Cooking time) symbol flash on the display Dashes appear on the display (i.e. no value programmed).
- Press the + or the - key to set the required duration.
- Press the ,/(Confirm) key to confirm the set value. An audible signal is sounded. The
(Cooking time) symbol lights up on the display.
The end time is displayed automatically if you press the G- (Timer) key twice:
Every other time you program a durationl the _alue programmed last is proposed to you when you
press _e ÷ key.
- A signal is sounded after the programmed duration has elapsed. At the same time, the steam
oven switches off automatically.
- By pressing any key. you can switch off the signal
and heating will start again. Turn the temperature
selector switch to 0 to end the operation.
Cleaxing incorrectly programmed values:
- Press the '_) (Timer) key once.
- Press the + and - keys at the same time. An audible signal is sounded.
18
Fig, 19
Note: the time of day that is set on the appliance is the starting point for programming the switch, off
time. You can query the entered v_ue by pressing
_ (Timer) key twice.
Programming a switch-off time
The appliance switches off automatically at a time
that you have chosen. The starting point is the time of day set on the appliance.
Proceed as follows:
- Press the 5. (Timer) key twice. The -I (End) and
(Cooldng time) symbols flash.
- Press the + or - key to set the required time. You can choose any switch-off time within a period of 24 hours.
- Press the ,/(Confirm) key to confirm the entered value. An audible signal is sounded. The
(Cooldng time) symbol lights up on the display
After the set time has elapsed, the _ (Cooking
time) symbol flashes and an audible signal is sounded.
By pressing any key, you can switch off the signal
and heating will start again. Turn the temperature selector switch to 0 to end the operation.
Programming a duration and an off time
This mode enables you to start and end baking and
cooking in your absence.
Proceed as follows:
- Enter a required duration (see page 18).
- Press the ,/(Confirmation) key
- Enter the required switch-off time (see above).
- Press the ,/(Confirmation) key
The automatic mode becomes active as soon as
the switch-off time is programmed and you have
pressed the ,/(Confirm) key
19
5. Special functions
5.1 Child lock
Fig, 20
Fig, 21
The child lock prevents inadvertent activation of the steam oven.
Proceed as follows: Switching on:
- Turn the "Temperature" control l_ob to the right
to any temperature position (not light).
- Press the ,/(Confirm) key and keep it pressed.
- Turn the "Temperature" control knob to the 0 position (Fig. 20).
The _ (Child lock) symbol on the display flashes.
Switching off:
- Press the ,/(Confirm) key and keep it pressed.
- Turn the "Temperature" control knob to the right to any temperature position (not light).
- Release the ,/(Confirmation) key.
- Turn the "Temperature" control knob to the 0 position (Fig. 21).
The _ (Child lock) symbol on the display goes off.
20
5.2 Options menu
With the aid of the Options menu, you can
- choose between 0(3 and °F on the temperature display
- choose between 12h and 24h on the time display
- turn the timer on and off.
- start calibration.
- reset the descaling display
End
Options menu
I
9escaling
Temperature
Start Calibration
Time display
ON/OFF
Fig, 22 (only if appliance is switched off)
Proceed as follows:
- Turn the two control l_obs to the topmost position.
- Press the ,/(Confirm) key and keep it pressed.
- Turn the "Moisture level" 1,mob to the right.
- Release the ,/(Confirmation) key
- By turning the "Moisture level" control l_ob, you
can now choose the various functions (Fig. 22):
Position 1: temperature display either in °C or °F Position 2: time display in 24 hours or 12 hours
(am and pm)
Position 3: optional deactivation of the time display when the appliance is off Position 4: calibration - you can now start the
calibration process when you turn the
"Temperature" control lmob to any
position except light.
Position 5: descaling, enter water hardness
- Set the required option by pressing the + or - key
- Press the ,/(Confirmation) key
- To quit the options menu, turn the "Moisture"
control knob back up or turn the "Temperature" control knob.
21

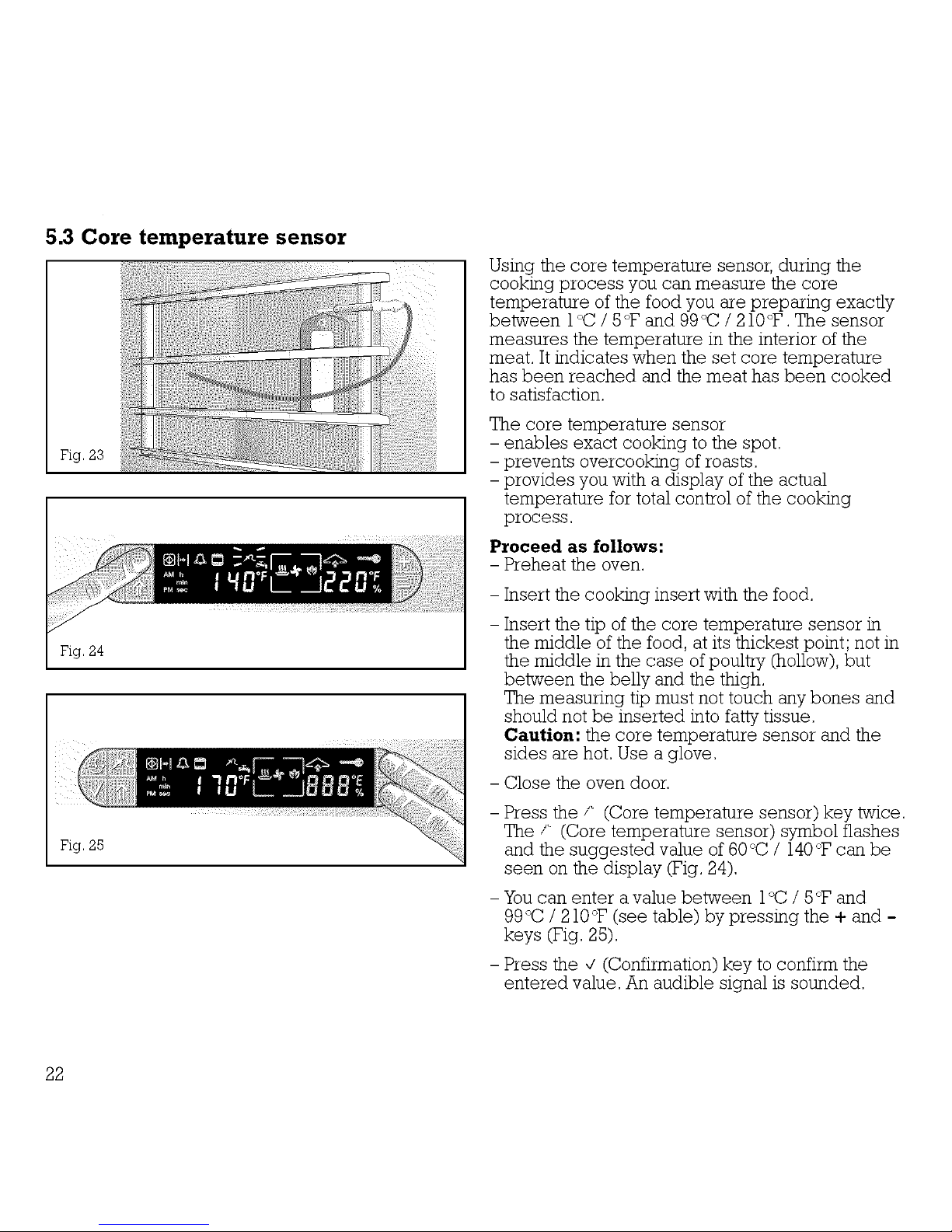

5.3 Core temperature sensor
Fig, 23
Fig, 24
Fig, 25
Using the core temperature sensor, during the cooking process you can measure the core
temperature of the food you are preparing exactly between I°C / 5°F and 99°C / 210°F. The sensor
measures the temperature in the interior of the meat. It indicates when the set core temperature
has been reached and the meat has been cooked to satisfaction.
The core temperature sensor
- enables exact cooking to the spot.
- prevents overcooking of roasts.
- provides you with a display of the actual temperature for total control of the cooking
process.
Proceed as follows:
- Preheat the oven.
- Insert the cooking insert with the food.
- Insert the tip of the core temperature sensor in the middle of the food, at its thickest point; not in the middle in the case of poultry (hollow), but
between the belly and the thigh. The measuring tip must not touch any bones and
should not be inserted into fatty tissue. Caution: the core temperature sensor and the sides are hot. Use a glove.
- Close the oven door.
- Press the/" (Core temperature sensor) key twice. The/" (Core temperature sensor) symbol flashes
and the suggested value of 60°C / 140°F can be
seen on the display (Fig. 24).
- You can enter a value between I°C / 5°F and
99°C / 210°F (see table) by pressing the + and -
keys (Fig. 25).
- Press the ,/(Confirmation) key to confirm the entered value. An audible signal is sounded.
22
An audible signal sounds as soon as the programmed core temperature has been reached. The oven switches off automatically The J'_ (Core
temperature sensor) and -I (End) symbols flash on the display
Caution: pull out the core temperature sensor
before removing the food. Use a glove to do this because the core temperature sensor gets very hot
during operation.
Note:
when you press the/_ (Core temperature sensor) key once, the temperature on the core temperature
sensor is displayed for a few seconds.
Clearing the core temperature:
- Press the/" (Core temperature sensor) key
twice. The/_ (Core temperature sensor) symbol flashes on the display
- Press the + and - keys at the same time.
- An audible signal sounds and the/_ (Core temperature sensor) symbol goes off.
To clean it, simply rub the core temperature sensor with a moist cloth.
Note:
you cannot set a temperature on the core temperature sensor that is lower than the core
temperature of the food you are preparing. If you set programming with the core temperature
sensor and the timer at the same time [he programming that reaches the entered value first
will switch off the oven.
Recommended core temperature values
Beef
Roast beef / fillet of beef
rare medium-rare
well-done
Beef roast Boiled fillet of beef
45-50 °C/115-120 °F 55-65°C/130-150°F
70-80°C/160-175°F 80-85°C/175-185°F
90°C/195°F
Pork
Roast pork Back of pork
Meat loaf
75-80°C/165-175°F 65-70°C/150-160°F
85°C/185°F
Veal
Roast veal Breast of veal, stuffed
Back of veal medium-rare
75-80°C/165-175°F 75-80°C/165-175°F
65-70°C/150-160°F
Venison
Leg of venison Back of hare / venison
75-80°C/165-175°F 65-70°C/150-160°F
Poultry
Chicken Goose
Turkey duck Duck breast
85°C/185°F 85-90°C/185-195°F
80-85°C/175-185°F 70°C/160°F
Lamb
Leg of lamb medium-rare 55-65°C/130-150°F Lamb well-done 75-80 °C/165-175 °F
Mutton
Leg of mutton medium-rare 75-80 °C/165-175 °F Back of lamb well-done 80°C/175°F
Bread 90°C/195°F
23
5.4 Steaming
Fig, 26
You have a possibility of deliberately adding more moistttre to the food you are cooking (e.g. bread,
bread rolls). Note: steaming is only possible at the "Convection"
stage (0%) or with 30% moisture (0%).
Proceed as follows:
- Pressthe_"(Steaming/Condensing)key
(Fig. 26).
- Steaming lasts for as long as you keep the _" key pressed, but no more than 8 seconds. You can
trigger steaming again by pressing the 17
(Steaming Condensing) key yet again.
5.5 Condensing
Fig, 27
Before opening the door it is possible to remove the steam in the oven using the condensation mode.
Water is added to the cooldng compartment. This
causes the cooldng compartment to cool. So, when opening the door after condensing, less steam
blows into your face. Note: condensing is only possible by a humidity of
100 %, 80 % and 60 % and at a temperature below 130°C / 265°F.
Proceed as follows:
- Press the '_"(Steaming / Condensing) key for
approx, one second (Fig. 27).
- Condensation starts to run only when the door is closed.
- After condensation (approx. 20 sec.), an audible signal sounds. If the door is not opened, the
appliance continues heating after a few seconds.
- You can end the process by opening the door
(Caution! Drops of water may drip from the door) or pressing the condensing key
24
5.6 Display of the current cooking compartment temperature
(ThermoTest)
When you press the _/(Confirmation) key the
current temperature in the cooking compartment and the moisture level appears on the display for a few seconds (Fig. 28).
Note: ff the appliance is operated for a prolonged period unavoidable temperature fluctuations of up
to 5°C / 10°F may occur.
When the setting 100°C / 210°F and 100 % humidity has been selected the appliance will heat until boiling point. The boiling point is dependent on the
position above sea level and is usually, in fact, below 100°C / 210°F. In order to steam at boiling
point you must select 100°C / 210°F.
5.7 Power failure protection When the steam oven is on, heating is interrupted
if the power should fail and ff it should then return again.
Note: the appliance bridges a power failure lasting
5 minutes. The cooldng process can be continued
unhindered. A prolonged power failure may have a negative influence on the cooking process. This is
why cooldng stays interrupted. You must switch the
appliance off and then on again.
5.8 Holiday protection
For your protection, the appliance features holiday
protection. Every heating operation is switched off
after 15 hours if the appliance is not operated during this time. Dashes appear on the display
Turn the two control knobs to 0. You can then
operate the appliance in the way to which you are accustomed. This function is not active when a time
has been programmed.
5.9 Cleaning aid The cleaning assistance feature loosens soiling,
which can then be removed with greater ease
(see Chapter 9.3).
25
6. Further uses
Low-temperature cooking
Vigorously browned meat matures over a longer
time at a lower temperature.
- Preheat the appliance to 70 -80°C / 160 - 175°F
(depending on the size of the food). To do this,
turn the "Moisture content" control knob to the 30 % position.
- Briefly roast the meat on all sides in a pan.
Note: the longer you roast the meat in the pan, the shorter the roasting time in the oven.
- Place the meat on a preheated plate in the oven.
- Larger pieces of meat (e.g. entrecote, roast beef
or leg of lamb) need 2 - 4 hours). Smaller pieces of meat (steal< or diced chicken)
tal<e 30 - 60 minutes.
- You can reduce the temperature to 60°C / 140°F
towards the end of the cooldng time. For larger pieces of meat, you can extend the cooldng time
by 2 - 4 hours or for smaller pieces you can extend it by 30 - 45 minutes.
Reheating
Warming up ready-cooked meals without quality
losses.
- Heat up the appliance to 120°C / 250°F. To do
this, tum the "Moisture" control knob to the 60 %
position.
- Portion cooked but cold meals on plates.
- Place the plates on the wire grill.
- Cooking time: 7 - 15 minutes.
Note: to reheat vegetables or pastas choose a
temperature of 100°C / 210°F and a moisture of
100 %.
Fermenting
Raising yeast dough, self-raising flour and sour dough mixtures
- Place the bowl containing the dough on the wire grill.
- Turn the "Temperature" knob to 30 - 40°C / 85 - 105°F and the "Moisture content" knob to
60 %.
Extracting juice
The steam oven allows you to extract juices even
without a special juice extraction pot.
- Place the fruit or berries in the perforated cooldng insert.
- Insert the perforated cooking insert with the fruit in the 3rd level from below.
- Place the deep unperforated cooldng insert one level lower to collect the juice.
- Turn the "Temperature" knob to 100°C / 210°F
and the "Moisture content" knob to 100 %.
Leave the fruit in the appliance until juice no longer appears (1 - 2 hours depending on the type of fruit).
Sterilising
Preserving fruit, vegetables and meats in preserving jars.
- Place the filled preserving jars on the gridiron or the perforated cooking insert. Important: the jars
must not touch each other.
- Turn the "Temperature" knob to 100°C / 210°F
and the "Moisture content" knob to 100 %.
- Turn the "Temperature" knob to 0 as soon as the contents of the jars begin to bubble.
Do not remove the preserving jars from the oven until they have cooled down completely
26
Thawing
Thawing deep frozen products gently and in a short
time.
- Place the frozen foodstuff in the perforated cool<ing receptacle.
- Insert the perforated cooking insert with the frozen food in the 2nd level from below.
- Insert the unperforated cool<ing insert one level lower to collect the thawing liquid.
- Turn the "Temperature" knob to 45 - 50°C /
115 - 120°F and the "Moisture content" knob to
80 %.
The time it tal(es to thaw depends on the size and weight of the frozen food.
Application examples:
Chicken (1000 g) Chicken legs (400 g)
Vegetable frozen in a block
(e.g. spinach) (400 g)
Berries (300 g)
Fish fillet (400 g)
55 - 65 minutes 30 - 35 minutes
20 - 30 minutes
8 - 10 minutes
15 - 20 minutes
After the thawing time has elapsed, leave thawed
food for another 10-15 minutes in the appliance after switching off to ensure that the food is able
to thaw right down to its interior.
Blanching
By blanching, vegetables that are to be frozen,
for example, retain their natural colour.
- Place the food in a perforated cooking
receptacle.
- Turn the "Temperature" knob to 100 °C / 210 °F and the "Moisture content" knob to 100 %.
- As soon as the temperature has been reached,
place the cooking receptacle in the second level
from below and place the unperforated cool<ring
receptacle one level lower.
- After 1-2 minutes, remove the cooldng receptacle from the oven again and place the vegetables in
iced water to cool them.
- Allow the food to drip off well.
Preparing yoghurt
Preparing yoghurt the do-it-yourself way.
- Heat mill< (except long-life mill<) on the hob to 90°C / 195°F to avoid disturbing the bacteria in
the lactic acid.
- Cool the milk to 40 °C / 104°F in a water bath.
- Stir natural yoghurt (without fruit) into the mill<
(1-2 teaspoons for every 100 ml).
- Pour the yoghurt into clean jars.
- In the case of yoghurt ferment, pay attention to the notes on the packet.
- Turn the "Temperature" knob to 45°C / l15°F and the "Moisture content" knob to 80 %. Allow the
yoghurt to mature for 4 - 6 hours.
Note: the time needed for maturity will be
lengthened if you use cold milk to produce the
yoghurt.
On completion, place the yoghourt in the fridge!
Tip: before heating the milk, add sldmmed milk powder (1 - 2 tablespoons for every litre) to obtain
yoghurt that will not go off. To kill off undesirable germs, before preparing
the yoghurt place the yoghurt jars in the oven compartment for a few minutes at 100°C / 210°F
and 100 % moisture. Caution! The yoghurt jars are
hot. Allow them to cool down before tal<ing them
out of the oven.
27
7. Cooking table
VEGETABLES **
Leaf Spinach perforated / unperforated g Cauliflower perforated 1head
Cauliflower and carr0ts perforated together appr0x. 1kg Broccoli perforated 1 kg
Peas perforated/unpefforated 1 kg
Stuffed vegetables (courgette, aubergine, peppers) unperforated Green be_ perforated lkg
Kohlrabi perforated 1 kg
Carrots perforated 1 kg
Jacket potatoes perforated kg (average size)
Boiled potatoes unperforated 1kg Asparagusl green perforated 1 kg
Asparagus, purple perforated 1 kg
MISCELLANEOUS
Vegetable pudding/vegetable fl_ perforated, wire grill Potato gratin unperforated
Dumplings perforated /unpefforated Lasagne unperforated
Soup ingredients (cooked-egg-garmsh, semolina dumpling) unperforated
PULSES i RICE ***
Long grain rice unperforated 250 g + 600 ml water Parboiled rice unperforated 250 g + 600 ml water
Lentils unperforated 250 g + 750 ml water Pre-soakedwhite beans unperforated 250g+ 1 lwater
* Place the cooking insert on the second shelf from bottom, When steaming you can use two cooking inserts simultaneously,
Use the second and third shelves from bottom,
** Some types of vegetables can be "quick steamed" at 100 % and temperatures between 102 - 120 °C / 215 - 250 °F, The higher temperature
shortens the cooking time, Not recommended for sensitive foods! *** Follow packaging instructions,
28
whole 100°(3/ 210°F 100% 20 - 30
• : " o o 0A
in roses / in slices 100 C/210 F 100 0 20-25 in roses 100°C / 2 IO°F 100% 10 - 15
" 0
' 100)/o 12-18
160- 180°0/320-355°F 80- 100% 20-30
whole IOOQC/ 210°F 100% 20:35
in slices 100°C / 210°F 100% 15- 25 in Slices IO0_C/210°F 100% 9- 12
in slices 100°C / 210°F 100% 15- 25 prick with fork 100°C / 210°F 35:50
quartered, salted 100°C / 2 IO°F 100% 15 - 25
whole lO0°C/210°F 100% 10:15 whole 100°C / 210°F 100% 15 -20
o o 0k
whole 100 C/210 F 1000 1:2
bain mariel 1,51 lO0_C / 210°F 100% 60-70 see recipe book 180 - 200°C / 355 - 390°F 30 - 60% 30 - 45
lO0°C/210°F 100% 15:25
see recipe book 175 - 200°C / 350 - 390°F 80% 35 - 45 in Sotfffl6 dishl see recipe book 175 : 200oC) 350 : 390°F 60 : 100% 10 ; 20
100°C / 210°F 80 - 100% 10 - 20
100°C / 210°F 100% 20 - 30
120°C / 250°F 100% 30 - 40 120°C/250°F 100% 55:65
Note:
the cooking times and quantities given here are rough values for 4 people, Smaller quantities shorten cooking time, Always preheat the steam
oven, If the appliance is not preheated, cooking times are lengthened by about 5 minutes,
29
Cooking table
I__EAT Fillet in puff pastry perforated with halting paper 111,5 kg
Roast pork with rind wire grill, unpefforated 1,5 kg
Leg Oflamb (Low-tempera_re cooking)perforated Roast beef (Low-temperature cooking) perforated 1,5 - 2,5 kg
R0ast p0rk (C011ar/Shoulder) wire grill, unpefforated 1,Skg Boiled fillet of beef unperforated 1 kg
Duck (whole)
wire grill, unperforated 2 - 3 kg
Chicken (whole) wire grill 1- 1,5 kg
FISH
Bre_ perforated
Fish tureen wire grill Trout(whole) perforated / unperforated 2 _t300 g
Salmon fillet perforated / unperforated 800 g
Mussels perforated/unperforated 1,5 kg
Rolled sole, stuffed perforated / unperforated
Cr_me Brtil6e
wire grill / perforated
Sweet souffl6 wire grill
Food served on plates wire grill vegetablesl Starch side dishes (potatoesl ricel pasia) unperfOrated 0,511
, Place thecookinginsert onthe second shelffrombottom,Whensteamingyoucanuse twocookinginsertssimultaneously,
Usethe secondand thirdshelves frombottom,
**** Change to the second moisture or temperature valuel5 - 20 rain, before the end of the cooking,
30
see recipe book 180 L200°C/355 : 390°F 80 L100% 50-60 cut the rind between 1) 100°C / 210°F 100% 5
step 1 and 2 and season 2) 160 - 170°C / 320 - 340°F 60 - 80% 80-85°C/175 -185°F 50- 60
3) 210°C / 410°F 0% KT
first brown vigorously 0nhob 75 L80°C/165 - 175°F 0'30% 180- 240 first brown vigorously on hob 75 - 80°C / 165 - 175 °F 0 - 30% 180 - 240
200 - 220°C / 390 ' 430°F 60% 80-85 °C/175-185QF (60- 70)
0,5 1liquid and vegetables 100°C / 210°F 100% 90°C/195°F 100 - 120
see recipe book 160/200°C - 320/390°F **** 60 - 80% 80-85°C/175-185°F 70 - 100 firSi bro_ On hotplate 160oC / 320°F 0 _30% 70°C/160°F 15 -20
200°C / 390°F 100 / 0% **** 85°C/185°F 45 - 55
80°- 90°C / 175_ 195°F 100% 15:25
tureen 75°C / 165°F 80% 40 - 50
/ 175- 195°F 100% 12- 15
80 - 90°C / 175 - 195°F 100% 12 - 18
100 : 120°C/210 : 250°F 100% 12-15
see recipe book 150°C / 300°F 80% 8 - 10
see recipe book 160°C / 320°F 60% 10 - 15
IO0°C / 210°F 100% 15_25
in oven proof dish, see recipe book 150°C / 300°F 60% 8 - 10
120°C / 250°F 60% 7 - 15
90 : IO0°C / 195 : 210°F 80-100%
7-15
Note:
the cooking times and quantities given here are rough values for 4people, Smaller quantities shorten cooking time, Always preheat the steam
oven, Ifthe appliance is not preheated, cooking times are lengthened by about 5 minutes,
31
Baking table
Apple tart 170- 190°C / 340 - 375°F 30% 30 - 45
Swiss roil t90,210oc/375-410oF 0_30% 7_9 Small flaky pastry cakes 180 - 200°C / 355 - 390°F 80 - 100% 15 - 25
Bread (1 ** o _ . 0h
kg) 200/165 C-390/330 F 80- 100 0 50- 55
Bread rolls ** 200 - 220°C / 390 - 430°F 80 - 100% 20 - 30
Plaited buns ** 165 ' 170°C / 330
Ring cake (yeast) 160 - 175°C / 340
Fruit pie made of yeast dough 160 - 175 °C / 340
Biscuits 160 - 175°C / 340
Ouichel fruit tarts 180- 210°C / 355
Sponge cake 160 - 175°C / 340
Cre_ ptfffs 200 : 210°C) 390 Onion pie 170 - 180°(3 / 340
-375°F 30'60% 35
- 350°F 30 - 60% 45 : 350°F 0'30% 40
- 350°F 0 % 15 410°F 0 _30% 35
- 350°F 0 - 30% 50
_410°F 0_30% 20
- 355°F 60 - 80% 40
'45 see recipe book
- 50 _55 see recipe bo0k
- 20 ,45 See recipe book
- 60 see recipe book ;30
- 50 see recipe book
Note: the cooking times and quantities given here are rough values for 4 people, Smaller quantities shorten cooking time, Always preheat the
steam oven, You can only bake on one level, Use the second level from bottom,
* Reduce to the second temperature value afterl5 rain, **Bread and bread rolls can be successfully baked as follows: Preheat at 220 _ / 430°F and 30 % moisture, After placing them in the oven, steam
once or twice, After 5 minutes reduce to 0 % moisture and 190°C / 375°F,
32
8.Tipsandtricks
General:
- The appliance does not need long to heat up. It therefore operates in an extremely energy and time-saving fashion.
- Cooking times depend on the qualitz, weight and
height of the food. This is why specified values
can only serve as recommendations.
- Food being cooked must not come into contact
with the oven compartment, the grease filter or
the air baffle.
- The steam oven door must seal well. So always
keep the door seal faces clean.
- Do not place too much on wire grill and in
receptacles. This will ensure optimum circulation
of the air.
What are all the things you can do better with
the steam oven?
- Cool< potatoes in the perforated receptacle.
By doing so, you will ensure that the steam can reach the potatoes from all sides. This will mal<e
cooldng more intensive.
- Use the perforated insert to boil large quantities of eggs. Please note: Compared to an egg boiler,
the cooldng time is extended by 2-3 minutes.
You will have to preheat the appliance if you want
to boil soft eggs.
- You can collect vegetable juices by placing the
unperforated insert in the bottom rack.
- For foods that are sensitive to pressure (such as dumplings), you are best using two low cooking
receptacles rather than just one. By doing so, you will ensure that items do not lie on one another
and cannot get crushed.
- Peel tomatoes: cut into the tomatoes and place them in the steam for 1 to 2 minutes. Then dip the tomatoes in ice water.
- You can even decrystallise honey with your steam oven. To do this, set a temperature of 60°C/140°F and a moisture level of 100 % steam.
Tips on how to save energy and protect the
environment:
- Give good thought to what foods you can cool< at
the same time. This will ensure an even load on your appliance and will save you time and energy
- Avoid opening the steam oven door frequently and for prolonged periods. Otherwise, generated steam and heat can escape unhindered and then
has to be generated again. This involves a loss of large amounts of energy and prolongs the cool<ring time.
- You can often use several levels at once (when steaming with up to 100°C / 210°F, not when baiting).
Thawing tips:
- Only thaw the quantity you need.
- Please remember: once food has been thawed,
it may not be possible to keep it for as long as intended and it will perish faster than fresh food.
- Thawinq: thaw pieces of meat that you intend to bread long enough to ensure that spices and the
bread crumbs will adhere to the meat.
- Thawinq poultry: remove poultry from its packaging before thawing. Important: pour away
the thawed water.
- You can store ldtchen herbs frozen and you can use them unthawed.
- Thawing and heating in steam is possible instead of a bain-marie. Leave the meal in the bag or put in directly on a plate.
Sterilising:
- If possible preserve foodstuffs immediately after buying or harvesting them. Prolonged storage reduces their vitamin content and leads easily to
fermentation.
- Only ever use fruit and vegetables that are in a perfect state. Examine preserving jars and rubber
rings exactly Check clips and springs. Sterilise the jars and clean the robber rings. Rinse them
with hot water.
33
9. Cleaning and care
9.1 Manual cleaning
You should thoroughly clean the appliance before
operating it for the first time and after every use. By doing so, you avoid bal<ing in of residues.
After residues have baked in several times, they
are then difficult to remove.
Never use any abrasive or aggressive cleaning
agents such as abrasive agents, steel wool, saponified steel wool, metal sponges, plastic sponges or sponges with an abrasive surface.
After cleaning, remove all cleaning agent residues without leaving any on the appliance.
When you wish to clean the appliance manually,
switch it off and allow it to cool down. Clean accessory parts (cooking inserts etc.) in a
dishwasher or with hot water and rinsing detergent.
You can loosen food remainders that have burnt into
the cooldng inserts by placing a little water and
rinsing detergent in the cooldng insert. Soal( these
in the steam oven at 70°C / 160°F and 100 %
moisture. The outer surfaces must only be cleaned with a
soft cloth. Do not use any commercially available stainless steel cleaners as these may be aggressive
to the printed markings. Clean operator controls and glass surfaces with
a soft cloth and light rinsing detergent and wipe them dry with a soft dry cloth. Do not use any
abrasive or nitro polishing agents for cleaning. Do
not use any abrasive sponges either. Do not spray
anything onto the switch panel.
Do not use strongly alkaline cleaning agents (such
as oven spray) because these are aggressive to the aluminium surface.
Do not scrape off burnt-in food remainders.
Remove them by means of the cleaning aid function instead (see Chapter 9.3).
Caution: do not clean this appliance with a steam cleaning unit or with water pressure - risk of short-
circuits! Empty the drip channel and clean it.
Clean the grease filter at regular intervals. Remove the support grills. Push up the grease filter
and then remove it. Clean the strainer and the siphon at regular
intervals. To do this, unscrew the strainer from the bottom plate.
34

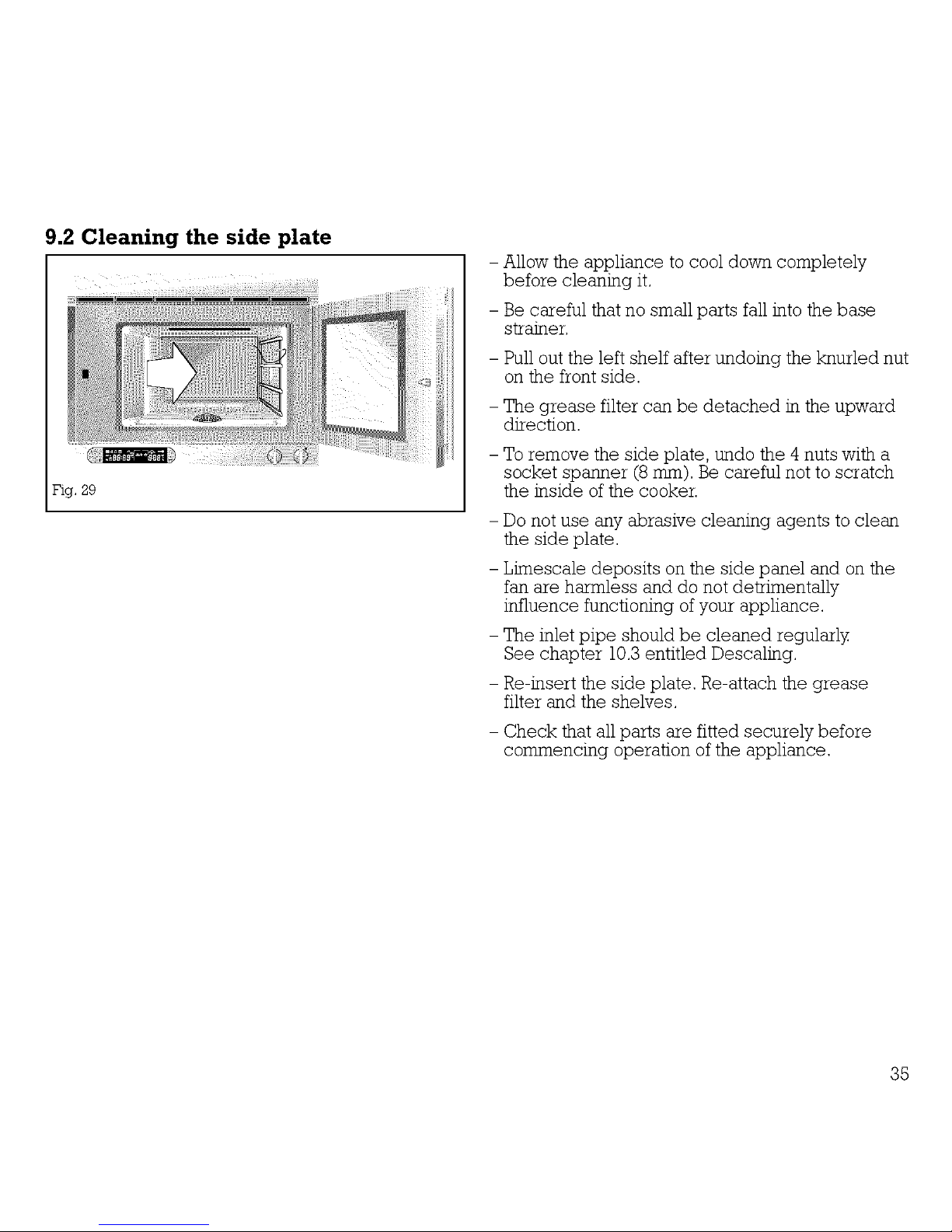

9.2 Cleaning the side plate
- Allow the appliance to cool down completely before cleaning it.
- Be careful that no small parts fall into the base strainer.
- Pull out the left shelf after undoing the knurled nut
on the front side.
- The grease filter can be detached in the upward direction.
- To remove the side plate, undo the 4 nuts with a socket spanner (8 mm). Be careful not to scratch
the inside of the cooker.
- Do not use any abrasive cleaning agents to clean the side plate.
- Limescale deposits on the side panel and on the fan are harmless and do not detrimentally
influence functioning of your appliance.
- The inlet pipe should be cleaned regularly See chapter 10.3 entitled Descaling.
- Re-insert the side plate. Re-attach the grease filter and the shelves.
- Check that all parts are fitted securely before commencing operation of the appliance.
35

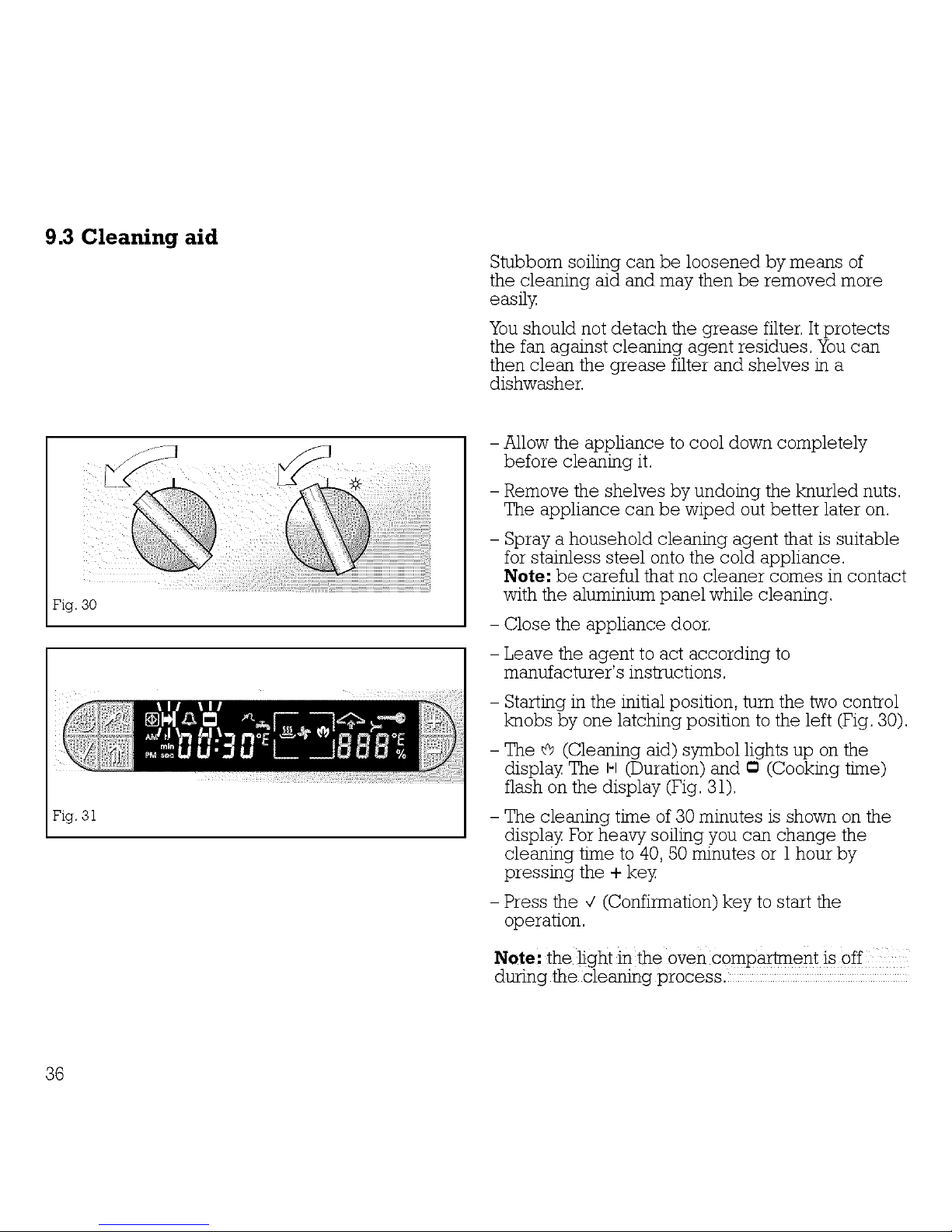

9.3 Cleaning aid
Stubbornsoilingcanbe loosenedbymeansof thecleaningaidandmay thenberemovedmore easily.
You should not detach the grease filter. It protects the fan against cleaning agent residues. You can
then clean the grease filter and shelves in a dishwasher.
Fig, 30
Fig, 31
- Allow the appliance to cool down completely before cleaning it.
- Remove the shelves by undoing the knurled nuts. The appliance can be wiped out better later on.
- Spray a household cleaning agent that is suitable for stainless steel onto the cold appliance.
Note: be careful that no cleaner comes in contact with the aluminium panel while cleaning.
- Close the appliance door.
- Leave the agent to act according to manufacturer's instructions.
- Starting in the initial position, turn the two control knobs by one latching position to the left (Fig. 30).
- The <9 (Cleaning aid) symbol lights up on the
display The I-I (Duration) and _ (Cooking time) flash on the display (Fig. 31).
- The cleaning time of S0 minutes is shown on the
display For heavy soiling you can change the cleaning time to 40, 50 minutes or 1 hour by
pressing the + key
- Press the _/(Confirmation) key to start the
operation.
Note: the light inthe oven cornpar_ent is Off
during the cleaning process.
36

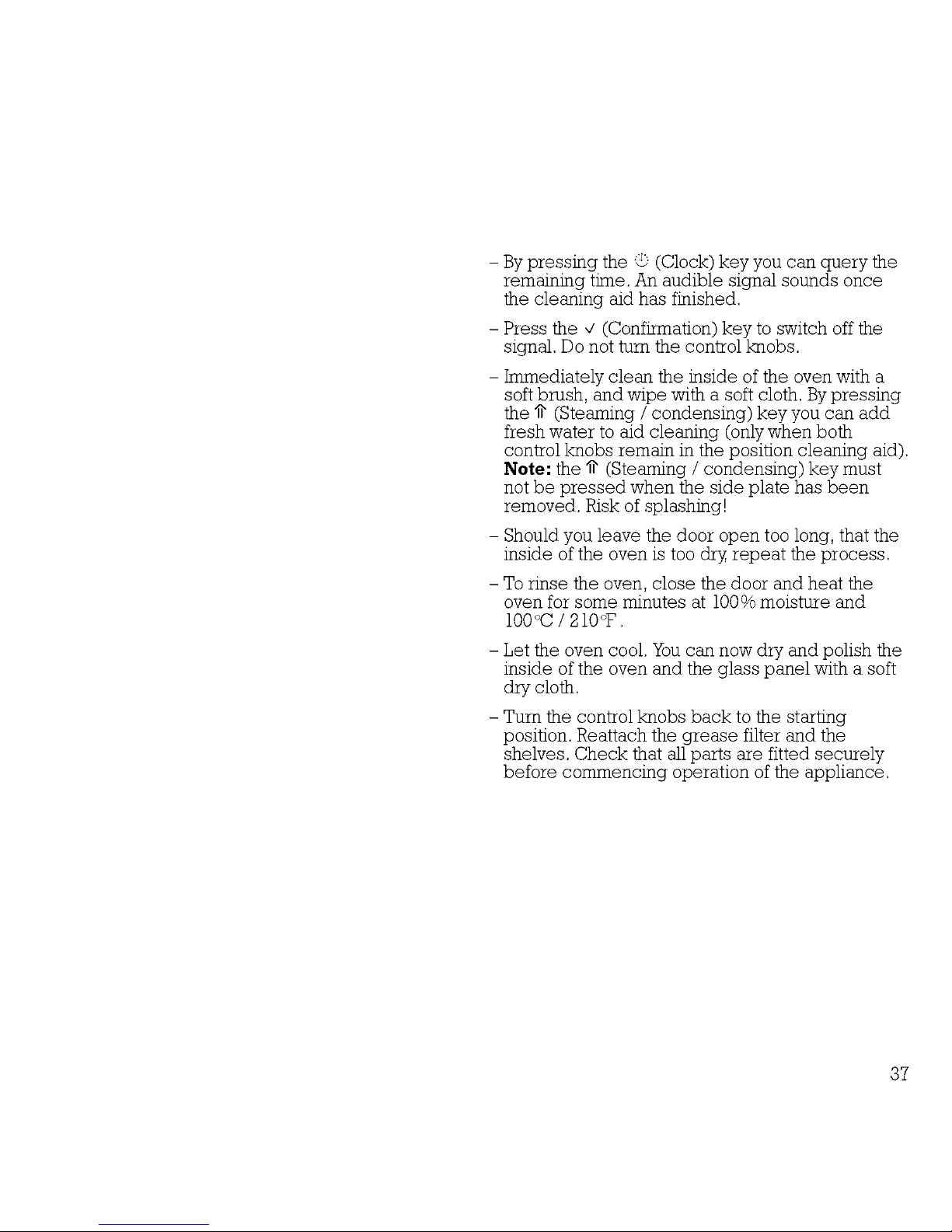

- By pressing the _ (Clock) key you can query the remaining time. An audible signal sounds once the cleaning aid has finished.
- Press the ,/(Confirmation) key to switch off the signal. Do not turn the control l_obs.
- Immediately clean the inside of the oven with a soft brush, and wipe with a soft cloth. By pressing
the 17 (Steaming / condensing) key you can add flesh water to aid cleaning (only when both control 1,mobs remain in the position cleaning aid).
Note: the "_"(Steaming / condensing) key must not be pressed when the side plate has been removed. Risk of splashing!
- Should you leave the door open too long, that the inside of the oven is too dry, repeat the process.
- To rinse the oven, close the door and heat the oven for some minutes at 100% moisture and
100°C / 210°F.
- Let the oven cool. You can now dry and polish the inside of the oven and the glass panel with a soft dry cloth.
- Turn the control knobs back to the starting position. Reattach the grease filter and the
shelves. Check that all parts are fitted securely before commencing operation of the appliance.
37
10. Maintenance
10.1 General The appliance must always be disconnected
from the mains when being repaired.
If the appliance does not function correctly, check the fuses and the water supply connection first.
If the power and water supply is functioning correctly, but your appliance still does not work, please contact your Gaggenau dealer who will
provide you with the address and telephone number of your nearest manufacturer's authorized
service agent or contact Gaggenau USA on (800) 828-9165. Specify the appliance type (see rating plate located on the inner side of the door and also
included with these instructions). Repairs may only be carried out by authorised
electricians, in order to guarantee the safety of the appliance.
Unauthorised tampering with the appliance will invalidate any warranty claims.
10.2 Lamp replacement
For technical reasons the lamp cover cannot be removed. Lamp must only be replaced by
Gaggenau after-sales service.
Important:do not detach the lamp cover.
38
10.3 Descaling
Fig, 33
End
Options menu
I Temperature . ;
Descali[ display in
Start Calibration
I
Time display
Fig, 34 ON/OFF
(only _f appliance _s switched oft)
On assembly, pay attention to a good fit of the inlet pipe. It should be exactly in the middle over the
distributor wheel _d should not scrape on its edges.
The water evaporates behind the side plate.
Scaling therefore drops out there and is washed into the oven compartment. Scale can be wiped
away with a moist cloth.
The inlet pipe must be descaled at regular inter- vals. The oven is equipped with a device which
counts the operational hours. Depending on the
hardness of the water entered, after a certain number of hours the symbol _- (Descale) will
constantly blink on the display This shows that the inlet pipe should be descaled (Fig. 32). This symbol
flashes even when the appliance is off.
To descale the inlet pipe, proceed as follows:
- Remove the shelf and the side plate on the left.
(see Chapter 9.2).
- Dismantle the inlet pipe by first removing the nut
(8 ram) and by then pulling the inlet pipe out of
the mount (Fig. 33).
- Clean the inlet pipe by soal<ing it in vinegar essence, citric acid or descaler.
- Reinstall the inlet pipe in the reverse order. Note: the conical side of the nut must face the
appliance side.
After descaling, the descaling display must be
turned off manually,
Proceed as follows:
- Turn the two control knobs to the topmost position.
- Press the ,/(Confirmation) key and keep it pressed.
- Turn the "Moisture level" knob to the right.
- Release the ,/(Confirmation) key
- Turn the "Moisture level" control knob to the "Descaling" position on the right (Fig. 34).
- Press the ,/(Confirmation) key
The _- (Descaling) symbol goes off.
39
10.4 Disassembly of the front window
0
Fig, 35
Proceed as follows:
- Remove the bottom screw from the door handle.
- Remove the top screw from the door handle and detach the door handle.
- Hold the front window with one hand and lightly shake the door to and fro. The glass window can be removed towards you.
You can now clean the front window
Install in the reverse order. In doing so, make sure that you first insert the
window on the hinge side and that you hold it with
one hand to stop it from falling out.
Fig, 36
4O
10.5 Remedying small malfunctions yourself
If you cannot remedy a malfunction yourself with reference to the list below:
- Switch off the steam oven and isolate the appliance from the mains.
- Shut off the water supply.
- Do not open the housing of the appliance.
- Call Gaggenau after-sales service.
What to do if,.. ? The cause The solution!
... The display stays off? No voltage on the appliance. Insert the mains plug in the socket.
Check the household fuse.
The time display has been switched off Should you wish, switch the time display on using the options menu. on the options menu.
: "R" appears on the display? Calibration has not been done or has Complete calibration,
been ended prematurely
... The _ (Heating up) symbol does Appliance door is not closed. Close the appliance door.
not appear on the display?
L. The "_ (Tap) sYmb0! flashes on N0 water in the app!iance_ Check the water cdimectinn .
the display?
... Water drips down the door? Condensation. The window always steams up at temperatures up to 100 °C / 210 °F.
Condensation is normal with steam.
Collecting channel on the appliance Wipe out the collecting channel. door is full.
:. Steam escapes from the appliance Not ali the Steam can be quenched Canfion when opening the door !Risk of scalding!
despite condensation? becanse the food itself steams as the Walt until quenching has ended.
result of its own heat.
... You can hear a humming noise? The drain pump is emptying the This is normal.
drain tank.
.i. The I_ symbol flashes on the display? The child lock has been activated. Switch off the child lock (see chapter 5.1). ... The I_ symbol lights on the display The appliance is set to show room mode Disconnect appliance from power supply for a few seconds (switch
and the appliance does not heat up? without heating function, off fuse), then within 3 minutes press + key and keep pressed and
turn "Temperature" control knob to any temperature (not light!).
:.. The temperature display does The appliance is still heating up, Small-scale periodic fluctuations of the cooidng compartment
not indicate the set value? temperature are normal.
... The oven lighting goes off? At low target temperatures, the light The light is activated for a few seconds every time a key
is switched off automafica]ly because or control knob is operated. the lamp additionally heats up the
cooking compartment. ... No steam is generated? The inlet pipe is clogged with scale. See Chapter entitled "Descaling": ... The water in the cooking The drain is clogged. Clean the drain filter and siphon and rinse through the drain.
compartment does not drain off?
:.. The pump repeatedly The dra in pipe is no t laid in a gradient. Refit the drain hose as described in the installation instructions,
starts periodically?
... The inside walls are covered in scale? Water is too hard. Connect a water softener. :,; Steum escapes during More steam is needed for the No longer occurs later on during normal operafion.
boiling point adjustment? boiling point adjustment.
... an error sign appears in the The appliance has recognized an error. Disconnect the appliance from the mains for about 10 minutes
display (e.g. F20, F23, etc.)? (e.g. by switching off relevant fuse). If after renewed
switching on the error is still shown in the display, please call the Gaggenau after-sales service.
41
GAGGENAU HAUSGERATE GMBH
P,O, BOX 1002 50 ' 80076 MONCHEN
GERMANY
_ (089) 45 90-03
FAX (089) 45 90-23 47
5551McFADDEN AVENUE
HUNTINGTON BEACH, CA 92649
USA
%_(800) 828-9165-FAX(714)901-0979
www,gaggenau-usa,com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
