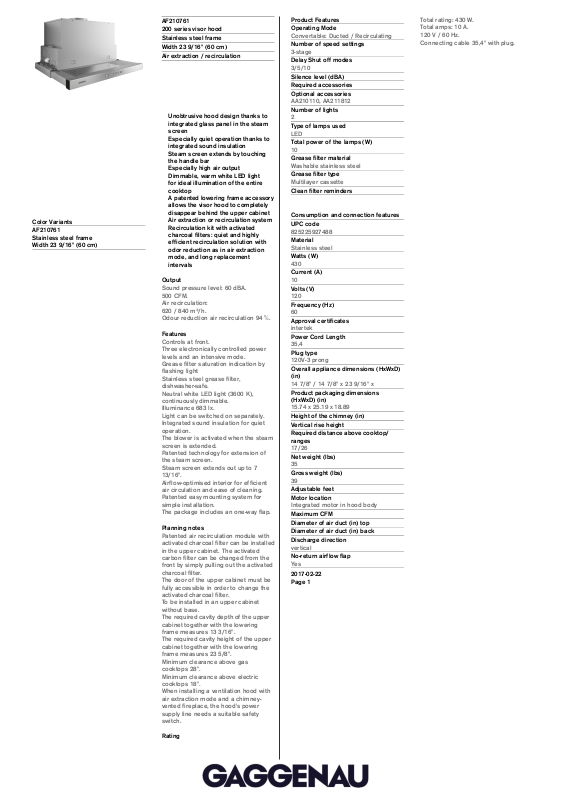

Color Variants
AF210761
Stainless steel frame
Width 23 9/16'' (60 cm)
Product Features
Operating Mode
Convertable: Ducted / Recirculating
Number of speed settings
3-stage
Delay Shut off modes
3/5/10
Silence level (dBA)
Required accessories
Optional accessories
AA210110, AA211812
Number of lights
2
Type of lamps used
LED
Total power of the lamps (W)
10
Grease filter material
Washable stainless steel
Grease filter type
Multilayer cassette
Clean filter reminders
Consumption and connection features
UPC code
825225927488
Material
Stainless steel
Watts (W)
430
Current (A)
10
Volts (V)
120
Frequency (Hz)
60
Approval certificates
intertek
Power Cord Length
35,4
Plug type
120V-3 prong
Overall appliance dimensions (HxWxD)
(in)
14 7/8'' / 14 7/8'' x 23 9/16'' x
Product packaging dimensions
(HxWxD) (in)
15.74 x 25.19 x 18.89
Height of the chimney (in)
Vertical rise height
Required distance above cooktop/
ranges
17/26
Net weight (lbs)
35
Gross weight (lbs)
39
Adjustable feet
Motor location
Integrated motor in hood body
Maximum CFM
Diameter of air duct (in) top
Diameter of air duct (in) back
Discharge direction
vertical
No-return airflow flap
Yes
2017-02-22
Page 1
AF210761
200 series visor hood
Stainless steel frame
Width 23 9/16'' (60 cm)
Air extraction / recirculation
Unobtrusive hood design thanks to
integrated glass panel in the steam
screen
Especially quiet operation thanks to
integrated sound insulation
Steam screen extends by touching
the handle bar
Especially high air output
Dimmable, warm white LED light
for ideal illumination of the entire
cooktop
A patented lowering frame accessory
allows the visor hood to completely
disappear behind the upper cabinet
Air extraction or recirculation system
Recirculation kit with activated
charcoal filters: quiet and highly
efficient recirculation solution with
odor reduction as in air extraction
mode, and long replacement
intervals
Output
Sound pressure level: 60 dBA.
500 CFM.
Air recirculation:
620 / 840 m³/h.
Odour reduction air recirculation 94 %.
Features
Controls at front.
Three electronically controlled power
levels and an intensive mode.
Grease filter saturation indication by
flashing light
Stainless steel grease filter,
dishwasher-safe.
Neutral white LED light (3600 K),
continuously dimmable.
Illuminance 683 lx.
Light can be switched on separately.
Integrated sound insulation for quiet
operation.
The blower is activated when the steam
screen is extended.
Patented technology for extension of
the steam screen.
Steam screen extends out up to 7
13/16".
Airflow-optimised interior for efficient
air circulation and ease of cleaning.
Patented easy mounting system for
simple installation.
The package includes an one-way flap.
Planning notes
Patented air recirculation module with
activated charcoal filter can be installed
in the upper cabinet. The activated
carbon filter can be changed from the
front by simply pulling out the activated
charcoal filter.
The door of the upper cabinet must be
fully accessible in order to change the
activated charcoal filter.
To be installed in an upper cabinet
without base.
The required cavity depth of the upper
cabinet together with the lowering
frame measures 13 3/16".
The required cavity height of the upper
cabinet together with the lowering
frame measures 23 5/8".
Minimum clearance above gas
cooktops 28".
Minimum clearance above electric
cooktops 18".
When installing a ventilation hood with
air extraction mode and a chimneyvented fireplace, the hood's power
supply line needs a suitable safety
switch.
Rating
Total rating: 430 W.
Total amps: 10 A.
120 V / 60 Hz.
Connecting cable 35,4" with plug.
AF210761
200 series visor hood
Stainless steel frame
Width 23 9/16'' (60 cm)
Air extraction / recirculation
2017-02-22
Page 2
