Getting Started

WARNING

See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.

Stereo Controls

Button Function

Dial • Turn to adjust the volume.

◦ When adjusting the volume, press to switch between

zones.

◦ When adjusting the volume, press and hold for at least

one second to adjust the subwoofer levels.

• Turn to move through the menus or adjust a setting.

• When in a menu, press to select the highlighted option.

• On a screen with tabs, press and hold for at least one
second to open the other tab, such as the PARTYBUS tab.

• Press to turn on the stereo.

• Press to mute and un-mute the audio.

• Press and hold to turn off the stereo.

• Press to open the menu.

• Press to return to the previous screen from the menu.

• Press and hold to exit the menu.

• Press to change the source.

• Press and hold to open the PARTYBUS menu.

• Press to skip to the beginning of the track or to the previous
track, when using an applicable source.

• Press and hold to rewind the track, when using an
applicable source.

• AM, FM, or SiriusXM (in Live Mode) source:
◦ Press to tune to the previous station or preset.
◦ Press and hold for faster tuning (manual mode only).

• SiriusXM (in Replay Mode) source:
◦ Press to skip to the previous track.
◦ Press and hold to rewind the current track.

• DAB source:
◦ Press to return to the previous DAB station in the

ensemble. When you reach the beginning of the current
ensemble, the stereo automatically changes to the last
available station in the previous ensemble.

◦ Press and hold to change the ensemble.

Button Function

• Press to pause or resume media playback.

• AM/FM:
◦ Press to cycle through the tuning modes (auto, manual,

and presets).

◦ Press and hold to save the selected station as a preset.

• SiriusXM source:
◦ Press and hold to switch between Replay Mode and Live

Mode.

◦ In Live Mode, press to cycle through the tuning modes

(manual, category, and presets).

◦ In Replay Mode, press to pause and play.

• DAB source: press to scan for DAB stations.

• Press to skip to the next track, when using an applicable
source.

• Press and hold to fast-forward the track, when using an
applicable source.

• AM, FM, or SiriusXM (in Live Mode) source:
◦ Press to tune to the next station or preset.
◦ Press and hold for faster tuning (manual mode only).

• SiriusXM (in Replay Mode) source:
◦ Press to skip to the next track, if applicable.
◦ Press and hold to fast-forward the current track, if

applicable.

• DAB source:
◦ Press to advance to the next DAB station in the

ensemble. When you reach the end of the current
ensemble, the stereo automatically changes to the first
available station in the next ensemble.

◦ Press and hold to change the ensemble.

Stereo Screen

The information displayed on the screen varies depending on
the source selected. This example shows the device playing a
track on a device connected using Bluetooth® wireless
technology.

Source

Network status (Network Status Icons, page 11)

Album art (if available from a compatible source)

Track details

Elapsed time, track duration, and the current track number out of
the total number of tracks in the playlist (if available)

Selecting a Source

Select .

1

Turn the dial to highlight a source.

2

Press the dial to select the source.

3

NOTE: Some sources appear in the source selection screen

when they are not connected to the stereo. The USB icon is
red when a USB device or cable is not connected.

Adjusting the Backlight and Dial Brightness

NOTE: If you connected the dim wire on the wiring harness to

the boat's illumination wire, the backlight and dial dim
automatically when the boat lights are on. This may affect how
you adjust the brightness setting.

Select > SETTINGS > BRIGHTNESS.

1

Getting Started 1

Adjust the brightness level.

2

Enabling Standby Mode

You can set the stereo to enter a low-power standby mode when
you turn off the ignition or hold . When you turn on the ignition
or press again, it takes less than the typical 30 seconds to
turn on.

NOTE: When the stereo is in low-power standby mode, it
continues to draw current from the battery. The maximum
current draw in standby mode is 50 mA.

Select > SETTINGS > POWER OPTIONS > STANDBY
MODE.

The stereo now enters standby mode when you hold .

Audio Control

Adjusting the Volume

Turn the dial to adjust the volume.

1

If necessary, press the dial to switch between zones.

2

TIP: To control all zones at the same time, press the dial

repeatedly to select GLOBAL.

Muting all Connected Stereos

You can quickly mute the audio from this stereo or from all
stereos connected to the network (FUSION PartyBus

Networking, page 8).

From any source, select .

1

The mute symbol appears and audio from this stereo is
silenced.

Press and hold the dial to select MUTE SYSTEM.

2

Audio from all connected stereos is silenced.
Press the dial to select UNMUTE SYSTEM.

3

Audio is restored to all connected stereos.

Adjusting the Tones

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select TONE.

3

Select an option:

4

• Use the slider bar to adjust the level of each tone.

• Press the dial to select a tone, and turn the dial to adjust
the level for the tone.

Disabling the Loud Setting for a Zone

The LOUD setting maintains frequency response at low volumes
and increases perceived loudness at high volumes. This setting
is enabled by default in all zones.

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select LOUD to clear the check box.

3

Adjusting the Gain for an Auxiliary Device

You can adjust the gain for a connected auxiliary device to
achieve a volume level similar to that of other media sources.
You can adjust the gain in 1 dB increments. You can also adjust
the gain for digital sources using an optical audio connection.

Select an auxiliary source.

1

Select an option:

2

• To increase the gain, select .

• To decrease the gain, select .

NOTE: To achieve the best audio quality when using a
portable media player with headphone output, it may be

necessary to adjust the volume control on the media player,
instead of adjusting the gain.

Synchronizing the Source and Zone Volume Levels

You can synchronize the volume levels on one or all zones with
some source devices, such as a Bluetooth source.

Select > SETTINGS > ZONE > PHONE VOLUME ZONE

1

SYNC.
Select a zone or GLOBAL.

2

When you adjust the volume on the source device, the volume
on the selected zone is also adjusted.

Speaker Zones

You can group speakers in one area into a speaker zone. This
enables you to control the audio level of the zones individually.
For example, you could make the audio quieter in the cabin and
louder on deck.

You can set the balance, volume limit, tone, subwoofer level,
subwoofer frequency, and name for each zone, and configure
other zone-specific settings (Speaker Zone Settings, page 9).

Adjusting Additional Audio Settings for a Zone

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select MORE.

3

Select one or more options:

4

NOTE: Not all options are available for all zones.

• To limit the maximum volume output of this zone, select

VOLUME LIMIT, and adjust the level.

• To set the subwoofer level for this zone, select SUB
LEVEL, and adjust the level.

• To adjust the right and left speaker balance of this zone,
select BALANCE, and adjust the balance.

Adjusting the Subwoofer Filter

You can use the subwoofer filter setting to control the subwoofer
cutoff frequency for each zone, which can enhance the blend of
the sound produced by the speakers and the subwoofer. Audio
signals above the selected frequency are not passed to the
subwoofer.

NOTE: If a DSP setting has been applied to zone, this setting
cannot be changed on the stereo. You can view the DSP setting
for the optimal cutoff frequency as calculated by the DSP
controller, but cannot adjust it.

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select SUB FREQ.

3

Select a frequency.

4

DSP Settings

This stereo features digital signal processing (DSP). You can
select pre-configured DSP settings for FUSION® speakers and
amplifiers to optimize audio reproduction in their installed
locations.

All DSP settings are configured using the FUSION-Link™ remote
control app (FUSION-Link Wireless Remote Control App,

page 10).

Configuring the DSP Settings

You must download and install the FUSION-Link remote control
app on your compatible Apple® or Android™ device before you
can configure the DSP settings (FUSION-Link Wireless Remote

Control App, page 10).

2 Audio Control

You can configure the DSP settings to optimize the sound on
each zone with the installed speakers, amplifiers, and
environment.

From the settings menu on your Apple or Android device,

1

connect to the stereo using Bluetooth technology, or connect
to the same wireless network as the stereo.

Open the FUSION-Link remote control app on your

2

compatible Apple or Android device.
If necessary, select the stereo you want to configure.

3

Select SETTINGS.

4

If necessary, select the MUSIC SETTINGS tab.

5

Select Zone.

6

Select a zone.

7

Select DSP SETTINGS.

8

Configure the DSP settings as needed, depending on the

9

models of FUSION speakers and amplifiers connected to the
zone.

Repeat these steps for each zone.

10

After you have finished configuring the DSP settings for all

11

zones, select an option:

• On an Apple device, select SETTINGS > Zone >
SETTINGS > SEND DSP SETTINGS

• On an Android device, select SETTINGS > Zone > SEND

DSP SETTINGS.

Media Player Connection

CAUTION

Always disconnect your media player from the stereo when not
in use and do not leave it in your vessel. This helps reduce the
risk of theft and damage from extreme temperatures.

Do not remove the media player or use your stereo in a
distracting manner while operating the vessel. Check and obey
all marine laws in association with use.

The stereo accepts a variety of media players, including
smartphones and other mobile devices. You can connect a
compatible media player using a Bluetooth wireless connection
or a USB connection to the USB port. The stereo can play
media from Universal Plug and Play (UPnP) devices, such as a
Network Attached Storage (NAS) device connected to the same
network.

Connecting an Auxiliary Device

You can connect various auxiliary devices to the stereo. These
devices have either RCA connectors, a line output, or a
headphone output jack.

Locate the auxiliary connectors on the wiring harness.

1

If necessary, connect an RCA-to-3.5 mm adapter cable to the

2

auxiliary device.
Connect the auxiliary device to the AUX IN RCA connectors

3

on the wiring harness.
Select the Aux source.

4

Optical Audio Connection

You can connect devices with an optical audio output to the
stereo using an optical audio cable. Televisions, DVD players,
CD players, and other devices may supply digital optical audio
output.

This stereo supports PCM audio only. You may have to change
the settings on your device to output PCM audio.

NOTE: Because streaming audio over the FUSION PartyBus
network introduces a slight delay, streaming content from a
television or DVD player may not be ideal. You can disable

™

Optical as a streaming source in the settings, if needed (General

Settings, page 8).

Connecting a UPnP Device

You must connect your stereo to a network to play media from a
UPnP device, such as a NAS device.

Connect your UPnP device to the same network as the

1

stereo, referring to the instructions provided with your UPnP
device and router if necessary.

Select the UPnP source on the stereo (Selecting a Source,

2

page 1).

You can browse and play media from the UPnP device the in
same way that you would from a USB flash drive (Controlling

Music Playback on a Connected Android Device, USB Flash
Drive, or Media Player, page 4).

Bluetooth Device Playback

You can pair the stereo to up to eight Bluetooth media devices.
You can control the playback using the stereo controls on all

Bluetooth devices, and on some devices you can browse the
music collection from the menu on the stereo. On Bluetooth
devices that do not support media browsing, you should select
the song or playlist on the media device.

The availability of song information such as song title, artist
name, track duration, and album art depends on the capability of
the media player and music application.

Connecting a Compatible Bluetooth Device

You can play media from a compatible Bluetooth device using
the Bluetooth wireless connection.

You can control the music playback with the media app on a
Bluetooth device or using the FUSION-Link remote control app
(FUSION-Link Wireless Remote Control App, page 10).

Select the BT source.

1

Select > DISCOVERABLE to make the stereo visible to

2

your compatible Bluetooth device.
Enable Bluetooth on your compatible Bluetooth device.

3

Bring the compatible Bluetooth device within 10 m (33 ft.) of

4

the stereo.
On your compatible Bluetooth device, search for Bluetooth

5

devices.
On your compatible Bluetooth device, select the stereo from

6

the list of detected devices.
On your compatible Bluetooth device, follow the on-screen

7

instructions to pair and connect to the discovered stereo.
When pairing, your compatible Bluetooth device may ask you

to confirm a code on the stereo. The stereo does not display
a code, but it does connect correctly when you confirm the
message on the Bluetooth device.

If your compatible Bluetooth device does not immediately

8

connect to the stereo, repeat steps 1 through 7.

The DISCOVERABLE setting is disabled automatically after two
minutes.

NOTE: On some Bluetooth devices, adjusting the volume on the
device affects the volume level on the stereo.

Bluetooth Range Information

The stereo and Bluetooth wireless devices have a range of 10 m
(33 ft.). For optimal performance, the Bluetooth wireless device
should also have a clear line of sight to the stereo.

Media Player Connection 3

Selecting a Different Bluetooth Source

When you have more than one Bluetooth device paired to the
stereo, you can select a different source when needed. You can
pair the stereo with up to eight Bluetooth devices.

With the BLUETOOTH source selected, select .

1

Select a Bluetooth device.

2

Bluetooth Source Settings

With the BLUETOOTH source selected, select .
DISCOVERABLE: Allows the stereo to be visible to Bluetooth

devices. You can turn off this setting to prevent possible
interruption to audio after pairing a Bluetooth device to the
stereo.

REMOVE DEVICE: Removes the Bluetooth device from the

stereo. To listen to audio from this Bluetooth device again,
you must pair the device again.

USB Device Playback

You can connect various USB media players, USB flash drives,
and smartphones to the stereo. How you access the USB
source depends on the type of connected media player or
smartphone.

Media Player Source Selections

Android device MTP

USB flash drive USB

MP3 media player (as a mass­storage device)

NOTE: The availability of song information such as song title,
artist name, and track duration depends on the capability of the
media player and music application.

USB Device Compatibility

You can use a USB flash drive or the USB cable included with
your media player to connect a media player or mobile device to
the USB port.

The stereo is compatible with Android devices that support MTP
mode.

The stereo is compatible with media players and other USB
mass storage devices, including USB flash drives. Music on
USB drives must meet these conditions:

• The music files must be formatted as MP3, AAC (.m4a), or
FLAC, files.

• If you connect a portable hard drive, you must connect it to
an external power source. The USB port on this stereo
cannot provide power for a portable hard drive.

• The USB mass storage device must be formatted using one
of the following systems:
◦ Microsoft®: NTFS, VFAT, FAT*, MSDOS

◦ Apple: HFS, HFSPLUS
◦ Linux: EXT2, EXT3, EX4

*FAT includes most types of FAT file systems except exFAT.

Connecting a USB Device

You can connect a USB device to the USB port on the stereo.

Locate the USB port on the back of the stereo.

1

Connect the USB device to the USB port.

2

Select the USB source.

3

USB

NOTE: If your MP3 media player
does not support mass-storage
when connected using USB, you
must connect it to the stereo as an
auxiliary device (Connecting an

Auxiliary Device, page 3).

Controlling Music Playback on a Connected Android Device, USB Flash Drive, or Media Player

Connect a compatible Android device, USB flash drive, or

1

media player to the stereo.
Select the appropriate source on the stereo.

2

Select .

3

If necessary, select the name of the device or USB drive to

4

view the file structure.
Select a song to begin music playback.

5

You can use the stereo controls to select, play, pause, and skip
tracks.

Radio

To listen to AM or FM radio, you must have a suitable marine
AM/FM antenna properly connected to the stereo and be within
range of a broadcasting station. For instructions on connecting
an AM/FM antenna, see the stereo installation instructions.

To listen to SiriusXM® radio, you must have the appropriate
equipment and subscriptions (SiriusXM Satellite Radio,

page 4). For instructions on connecting a SiriusXM Connect

Vehicle Tuner, see the stereo installation instructions.
To listen to DAB stations, you must have the appropriate

equipment (DAB Playback, page 7). For instructions on
connecting a DAB adapter and antenna, see the installation
instructions provided with your adapter and antenna.

Setting the Tuner Region

You must select the region you are in to receive AM and FM
stations properly.

If you are connected to a compatible SiriusXM tuner and
antenna, and have a subscription (USA only), you must select
the region you are in to receive SiriusXM stations properly.

NOTE: SiriusXM is not available in all regions.
If you are connected to a compatible DAB module and antenna

(not included), you must select the region you are in to receive
DAB stations properly.

NOTE: DAB stations are not available in all regions.

Select > SETTINGS > TUNER REGION.

1

Select the region you are in.

2

Changing the Radio Station

Select an applicable source, such as FM.

1

Select to select a tuning mode.

2

You can use AUTO mode to scan stations, MANUAL mode to
manually tune to a station, and PRESET mode to select the
next preset station.

Select or to tune to the station.

3

TIP: You can quickly save the selected station or channel as

a preset by holding .

SiriusXM Satellite Radio

Only SiriusXM brings you more of what you love to listen to, all
in one place. Get over 140 channels, including commercial-free
music plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite radio. A
SiriusXM Vehicle Tuner and subscription are required. For more
information, go to www.siriusxm.com.

4 USB Device Playback

Enabling the SiriusXM Source

You must enable the SiriusXM source before you can listen to
SiriusXM Satellite Radio.

Select > SETTINGS > TUNER REGION > USA.

Locating the SiriusXM Radio ID

You must have the radio ID of your SiriusXM Connect Tuner
before you can activate your SiriusXM subscription. You can
locate the SiriusXM Radio ID on the back of the SiriusXM
Connect Tuner or its packaging, or by tuning your stereo to
channel 0.

With the SiriusXM source selected, select > CHANNELS
> ALL CHANNELS > 000 RADIO ID.

The SiriusXM Radio ID does not include the letters I, O, S, or F.

Activating a SiriusXM Subscription

With the SiriusXM source selected, tune to channel 1.

1

You should be able to hear the preview channel. If not, check
the SiriusXM Connect Tuner and antenna installation and
connections, and try again.

Tune to channel 0 to locate the Radio ID.

2

Contact SiriusXM listener care by phone at [phone] or

3

go to www.siriusxm.com/activatenow to subscribe in the
United States. Contact SiriusXM by phone at [phone]
or go to www.siriusxm.ca/activatexm to subscribe in Canada.

Provide the Radio ID.

4

The activation process usually takes 10 to 15 minutes, but
can take up to an hour. For the SiriusXM Connect Tuner to
receive the activation message, it must be turned on and
receiving the SiriusXM signal.

If the service is not activated within the hour, go to

5

http://care.siriusxm.com/refresh or contact SiriusXM Listener

Care by phone at 1-866-635-2349.

Selecting a Category

You can control which categories of channels are available
when using the CATEGORY tuning method.

With the SiriusXM source selected, select > CATEGORY.

1

Select a category.

2

Using Replay Mode

You can use Replay Mode to control playback of a SiriusXM
broadcast.

NOTE: The device enables Replay Mode automatically when
playing saved preset channels.

If necessary, hold to enable Replay Mode.

1

A progress bar appears at the bottom of the screen.
Select an option:

2

• Press to pause and resume playback.

• Press or to skip backward or forward in increments.

NOTE: If you fast-forward or skip forward to the end of the
progress bar, the stereo exits Replay Mode automatically.

• Hold or to rewind or fast-forward the track.

• Hold to exit Replay Mode.

Alerts

NOTE: The Artist, Song, and Game Alerts feature is compatible

with the SXV300 tuner (sold separately). Other tuners are
compatible, but may limit the features. Review the user manual
supplied with your SiriusXM tuner to learn about features
available with your tuner module.

Adding an Artist or Song Alert

You can set alerts for artists and songs so that when a particular
song or a song from a particular artist begins to play on any
music channel, you can quickly tune to that channel.

While a particular song or a song from a particular artist is

1

playing, select > ADD ALERT > SAVE ARTIST/SONG.
Select the song or the artist.

2

Adding Teams for Game Alerts

You can set alerts for sports teams so that when a game
featuring a saved team begins to play on any sports channel,
you can quickly tune to that channel.

NOTE: A Game Alert is different than a SportsFlash™ alert. A
Game Alert lets you know when a game begins, while a
SportsFlash alert lets you know when an exciting play occurs
during a game.

Select > ADD ALERT > GAME ALERT TEAMS.

1

Select a sports league.

2

Select a team to fill the check box and add a Game Alert.

3

Repeat steps 2 and 3 for each team you want to add to the

4

list of Game Alerts.

Adding Teams from a Live Game

While listening to a game, you can quickly add a team playing to
your list of Game Alert teams.

While listening to a game on a channel, select > ADD

1

ALERT > SAVE TEAMS.

A list of teams playing in the current game appears.
Select the team or teams to add to your list of Game Alert

2

teams.

Viewing Active Alerts

You can review active Artist, Song, and Game Alerts.

Select > ACTIVE ALERTS.

1

Select a category.

2

Managing Alerts

You can manage your saved alerts to select which ones you
want to receive. You can delete saved alerts you do not want.

Select > SXM SETTINGS > ALERTS MANAGEMENT.

1

Select an option:

2

• To enable saved alerts for songs only, artists only, or

games only, select ENABLE BY TYPE, and select a type.

• To enable saved alerts for specific artists only, select

ENABLE ARTISTS, and select the artists.

• To enable saved alerts for specific songs only, select

ENABLE SONGS, and select the songs.

• To enable saved game alerts for specific teams, select

ENABLE TEAMS, and select the teams.

• To delete all saved alerts for songs, artists, or teams,

select DELETE BY TYPE, and select a type.

• To delete saved alerts for specific artists, select DELETE
ARTISTS, and select the artists.

• To delete saved alerts for specific songs, select DELETE
SONGS, and select the songs.

• To delete saved alerts for specific teams, select DELETE

TEAMS, and select the teams.

TuneMix™ Feature

NOTE: The TuneMix feature is compatible with the SXV300

tuner (sold separately). Other tuners are compatible, but may
limit the features. Review the user manual supplied with your
SiriusXM tuner to learn about features available with your tuner
module.

SiriusXM Satellite Radio 5

Creating and Customizing a TuneMix Collection

You can create up to 10 unique TuneMix collections on the
stereo.

NOTE: A TuneMix collection must include at least two of your
favorite SiriusXM music channels.

Select > SXM SETTINGS > TUNEMIX SETUP.

1

Select a TuneMix collection.

2

Select a channel to fill the check box and add it to the

3

TuneMix collection.
After you are finished customizing the TuneMix collection,

4

select .
Repeat steps 2 through 4 for each TuneMix collection you

5

want to customize.

Starting and Stopping a TuneMix Collection

Before you can start playing a TuneMix collection, you must
create one (Creating and Customizing a TuneMix Collection,

page 6).

The TuneMix feature enables you mix your favorite music
channels to create a custom listening experience.

Select > TUNEMIX.

1

Select a TuneMix collection.

2

The stereo begins playing the TuneMix collection.
To stop playing a TuneMix collection, select >

3

CHANNELS, and select a channel.

The stereo stops playing the TuneMix collection and begins
playing the selected channel.

SportsFlash Feature

The SportsFlash feature alerts you to key plays from your
favorite teams during a live game. When an exciting play
happens, a SportsFlash alert appears, and you can tune to the
broadcast and hear the play. When the SportsFlash alert ends,
you can choose to return to the previous channel, or remain
tuned to the game.

To receive SportsFlash alerts, your subscription package must
include play-by-play sports channels for the sports leagues you
want to include in the alerts.

You can enable, disable, or delete SportsFlash alerts that you
have added (Managing Alerts, page 5).

NOTE: A SportsFlash is different than a Game Alert. A
SportsFlash alert lets you know when an exciting play occurs
during a game, while a Game Alert lets you know when a game
begins.

NOTE: The SportsFlash feature is compatible with the SXV300
tuner (sold separately). Other tuners are compatible but may
limit the features. Review the user manual supplied with your
SiriusXM tuner to learn about features available with your tuner
module.

Adding Teams to Receive SportsFlash Alerts

Select > SPORTSFLASH > TEAM SELECT.

1

Select a sports league.

2

Select a team to fill the check box and add a SportsFlash

3

alert.
Repeat steps 2 and 3 for each team you want to add to the

4

list of SportsFlash alerts.

Changing SportsFlash Team Priority

If more than one team for which you have set up SportsFlash
alerts are playing at the same time, you can adjust the team
priority to hear SportsFlash alerts from your preferred team first.

Select > SPORTSFLASH > TEAM PRIORITIES.

1

A list of your selected SportsFlash teams appears, in order of
priority.

Select a team to move it up one priority level in the list.

2

Repeat the previous step with each team you want to reorder

3

until the priority list is ordered the way you prefer.

Enabling the TuneStart™ Feature

When you enable the TuneStart feature and tune to a preset
channel, the stereo starts the current song from the beginning of
the song instead of starting it from the point it is at in the live
broadcast.

NOTE: The TuneStart feature is available when tuning to preset
channels only.

If necessary, select > SXM SETTINGS > TUNESTART.

When the TuneStart feature starts a song from the beginning, a
progress bar appears and you can control the track using the
same controls as Replay Mode (Using Replay Mode, page 5).

Parental Controls

The parental control feature allows you to limit access to any
SiriusXM channels, including those with mature content. When
the parental control feature is enabled, you must enter a
passcode to tune to the locked channels. You can also change
the 4-digit passcode.

Unlocking the Parental Controls

You can unlock the parental controls to access locked channels.

With the SiriusXM source selected, select > PARENTAL.

1

Select the UNLOCK check box.

2

Enter the passcode.

3

TIP: The default passcode is 0000.

The parental controls remain unlocked until you turn off the
vehicle or until you lock them again.

Locking Channels

With the SiriusXM source selected, select > PARENTAL.

1

Select the UNLOCK check box.

2

Enter the passcode.

3

TIP: The default passcode is 0000.
Select LOCK/UNLOCK.

4

A list of available channels appears.
Select one or more channels to lock, and select .

5

Clear the UNLOCK check box to lock the parental controls.

6

You cannot access the locked channels while the parental
controls are locked. You must unlock the parental controls to
tune the locked channels.

Clearing All Locked Channels

With the SiriusXM source selected, select > PARENTAL

1

> UNLOCK.
Enter the passcode.

2

Select > PARENTAL > CLEAR ALL LOCKED.

3

Changing the Parental Control Passcode

With the SiriusXM source selected, select > PARENTAL

1

> UNLOCK.
Enter the passcode.

2

Select > PARENTAL > CHANGE PIN.

3

Follow the on-screen instructions.

4

6 SiriusXM Satellite Radio

SiriusXM Troubleshooting

Advisory Description Resolutions

Check Antenna The radio has detected a fault with the SiriusXM

Check Tuner The stereo is having difficulty communicating with the

No Signal The SiriusXM Connect Vehicle Tuner is having

Subscription
Updated

Channel Not
Available

Channel Not
Subscribed

Channel Locked The channel you requested is locked by the parental

antenna. The antenna cable may be disconnected or
damaged.

SiriusXM Connect Vehicle Tuner. The tuner may be
disconnected or damaged.

difficulty receiving the SiriusXM satellite signal.

The radio has detected a change in your SiriusXM
subscription status.

The channel you requested is not a valid SiriusXM
channel, or the channel that you were listening to is no
longer available. You may see this message briefly the
first time you connect a new SiriusXM Connect Vehicle
Tuner.

The channel you requested is not included in your
SiriusXM subscription package, or the channel you
were listening to is no longer included in your SiriusXM
subscription package.

control feature.

• Verify the antenna cable is connected to the SiriusXM Connect
Vehicle Tuner.

• Inspect the antenna cable for damage and kinks. Replace the antenna
if the cable is damaged. SiriusXM products are available at your local
car audio retailer, or at www.shop.siriusxm.com.

Verify the SiriusXM Connect Vehicle Tuner cable is connected securely
to the stereo.

• Verify the SiriusXM antenna is outdoors with a clear view of the sky.

• Verify the SiriusXM antenna is mounted securely.

• Remove obstructions above or next to the SiriusXM antenna.

• Inspect the cable antenna for damage and kinks. Replace the antenna
if the cable is damaged. SiriusXM products are available at your local
car audio retailer or at www.shop.siriusxm.com.

• Consult the SiriusXM Connect Vehicle Tuner installation instructions
for more information on antenna installation.

• Select any button to clear the message.

• Go to www.siriusxm.com or call 866-635-2349 with questions about
your subscription.

Go to www.siriusxm.com for more information about the SiriusXM
channel lineup.

Go to www.siriusxm.com or call 866-635-2349 for more information
about your subscription package or to subscribe to the channel.

Refer to the parental control section in the owner's manual to unlock
channels.

Clearing SiriusXM Data

You can clear all entered SiriusXM user information, such as
favorite teams and alerts.

Use the FACTORY RESET option in the settings menu to
reset the stereo (Update Options, page 10).

NOTE: The factory reset setting resets all data in the stereo,
including AM and FM presets, zone settings, etc. in addition
to clearing all SiriusXM user information.

DAB Playback

When you connect a compatible Digital Audio Broadcasting
(DAB) module and antenna, such as the MS-DAB100A to the
Apollo RA670 stereo, you can tune in to and play DAB stations.

DAB broadcasts are not available in all regions. When the
stereo is not set to a compatible region, the DAB source is not
available.

Setting the Tuner Region

You must select the region you are in to receive DAB stations
properly.

Select > SETTINGS > TUNER REGION.

1

Select the region you are in.

2

Scanning for DAB Stations

Before you can scan for DAB stations, you must connect a
compatible DAB module and antenna (not included) to the
stereo. Because DAB signals are broadcast in select countries
only, you must also set the tuner region to a location where DAB
signals are broadcast.

Select the DAB source.

1

Select to scan for available DAB stations.

2

When scanning is complete, the first available station in the
first ensemble found begins playing.

NOTE: After the first scan is complete, you can select
again to re-scan for DAB stations. When the re-scan is
complete, the system starts playing the first station in the
ensemble you were listening to when you started the re-scan.

Changing DAB Stations

Select the DAB source.

1

If necessary, select to scan for local DAB stations.

2

Select or to change the station.

3

When you reach the end of the current ensemble, the stereo
automatically changes to the first available station in the next
ensemble.

TIP: You can hold or to change the ensemble.

Selecting a DAB Station from a List

Select the DAB source.

1

If necessary, select to scan for local DAB stations.

2

Select > BROWSE > STATIONS.

3

Select a station from the list.

4

Selecting a DAB Station from a Category

Select the DAB source.

1

If necessary, select to scan for local DAB stations.

2

Select > BROWSE > CATEGORIES.

3

Select a category from the list.

4

Select a station from the list.

5

Presets

You can save your favorite AM stations and FM stations as
presets for easy access.

DAB Playback 7

You can save your favorite SiriusXM channels if you are
connected to an optional SiriusXM tuner and antenna.

You can save your favorite DAB stations if you are connected to
an optional DAB antenna.

Saving a Station as a Preset

With an applicable source selected, tune the stereo to a

1

station or a channel.
Press and hold the dial to select the PRESETS tab.

2

Select .

3

TIP: You can quickly save the selected station or channel as a

preset by holding .

Selecting a Preset from a List

With an applicable source selected, press and hold the dial to

1

select the PRESETS tab.
Select a preset from the list.

2

Removing Presets

With an applicable source selected, press and hold the dial to

1

select the PRESETS tab.
Select .

2

Select each preset you want to remove.

3

When you are finished removing presets, select .

4

FUSION PartyBus Networking

The FUSION PartyBus networking feature allows you to connect
multiple compatible stereos together on a network, using a
combination of wired or wireless connections.

The Apollo RA670 stereo does not have built-in Wi‑Fi
technology. To use the wireless functions of the FUSION
PartyBus network, you must connect the stereo to the FUSION
PartyBus network using a wired ethernet connection, and then
connect a Wi‑Fi access point or router to the FUSION PartyBus
network.

A FUSION PartyBus stereo, such as the Apollo RA670 stereo,
can stream sources to other FUSION PartyBus stereos
connected to the network. Connected FUSION PartyBus stereos
can also control media playback on the FUSION PartyBus
stereo.

A FUSION PartyBus zone stereo, such as an Apollo SRX400
zone stereo can stream from a FUSION PartyBus stereo, but
cannot stream sources to other FUSION PartyBus stereos on
the network.

FUSION PartyBus stereos cannot control the speaker volume of
another stereo. You can adjust the volume of speakers or
speaker zones connected directly to the stereo only.

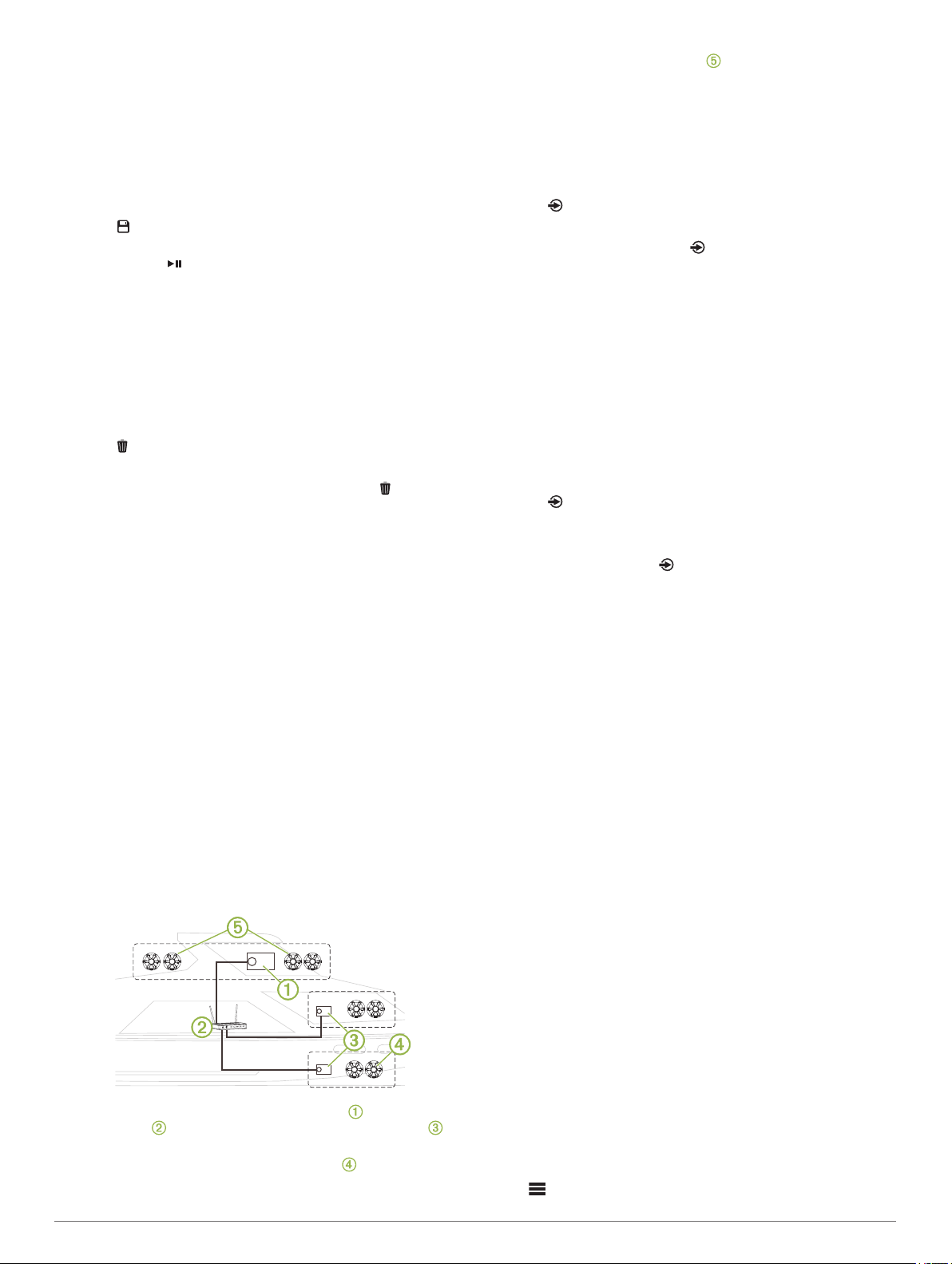

In the image above, one Apollo RA670 stereo connects to a
wireless router and to two Apollo SRX400 zone stereos .

A FUSION PartyBus zone stereo, such as the Apollo SRX400,
controls the volume in a single speaker zone . A FUSION
PartyBus stereo, such as an Apollo RA670 stereo, controls the

®

volume on multiple speaker zones to cover a larger area with
that stereo.

Streaming from a FUSION PartyBus Stereo on the Network

Before you can stream from a stereo on the FUSION PartyBus
network, you must set up and configure your FUSION PartyBus
stereos according to the installation instructions.

Select .

1

Press and hold the dial to open the PARTYBUS tab.

2

TIP: You can press and hold to show available FUSION

PartyBus devices.
The device shows a list of available FUSION PartyBus

stereos on the network.
Select the stereo you want to stream from.

3

The stereo begins streaming the same source as the connected
FUSION PartyBus stereo, and a green border appears around
the device screen. All media playback functions affect both
devices.

Stopping Streaming from a FUSION PartyBus Device on the Network

You can leave the FUSION PartyBus network to play local
sources on the stereo.

Select .

1

Press and hold the dial to open the PARTYBUS tab.

2

Select LEAVE PARTYBUS.

3

You can press and hold to quickly leave the FUSION
PartyBus network.

Network UPnP Playback

This stereo can play content from Universal Plug and Play
(UPnP) devices connected to the network, such as computers
and media servers. You must connect your UPnP device to the
same network as the stereo using a wired or wireless
connection, and you must configure the device to share media
over the network. See the owner's manual from your UPnP
device for more information.

After you have connected your UPnP device to the network and
configured it to share media, the UPnP source appears on the
source selection screen of each stereo on the network
(Selecting a Source, page 1).

Network Troubleshooting

If you cannot see or connect to FUSION PartyBus devices on
the network, check the following:

• Verify that only one device, either a stereo or a router, is
configured as a DHCP server.

• Verify that all FUSION PartyBus devices, network switches,
routers, and wireless access points are connected to the
network and turned on.

• Verify that wireless FUSION PartyBus devices are connected
to a wireless router or wireless access point on the network.

• If you configured static IP addresses, verify that every device
has a unique IP address, that the first three sets of numbers
in the IP addresses match, and that the subnet masks on
every device are identical.

• If you have made configuration changes that might be
causing networking issues, reset all network settings to
factory defaults.

General Settings

Select > SETTINGS.

8 FUSION PartyBus Networking

NOTE: When an check box is filled, the option is on. When the
check box is clear, the option is off.

ZONE: Enables you to configure the speaker zones (Speaker

Zone Settings, page 9).

BRIGHTNESS: Adjusts the screen and dial backlight brightness

(Adjusting the Backlight and Dial Brightness, page 1).

TUNER REGION: Sets the region used by the FM, AM, DAB,

and SiriusXM sources.

LANGUAGE: Sets the language on the device.
DEVICE NAME: Sets a name for this stereo.
TELEMUTE: Sets the behavior of the mute function when the

device is connected to a hands-free mobile phone. When a
call is received, the device can either mute the audio or
broadcast the call through the Aux input. See your hands-free
kit instructions.

SEARCHING: Enables FUSION Alpha Search Technology

(FAST), which allows you to quickly search for tracks by letter
or number. You can select a number to enable the FAST
menu if your music device contains more than the selected
number of items.

POWER OPTIONS: Adjusts power settings, such as the power-

save mode (Power Options, page 9).

PARTYBUS SETTINGS: Sets the sources the device can

stream over the FUSION PartyBus network. You may want to
disable some sources, such as Optical, because streaming
over the network introduces a small audio lag that is not
desirable in some situations.

NETWORK: Enables you to configure the device network

settings (Network Settings, page 9).

UPDATE: Updates the stereo or connected devices (Update

Options, page 10).

ABOUT: Shows the software version information for the stereo.

Speaker Zone Settings

Setting a Zone Name

You can set a name for a speaker zone to make it easier to
identify.

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select ZONE NAME.

3

Use the on-screen keyboard to enter a name, and select .

4

Linking Zones

You can link zones 1 and 2 to keep the volume levels
synchronized. Adjusting the volume of either of the linked zones
affects both zones.

Select > SETTINGS > ZONE > ZONE 2 > LINK TO ZONE

1.

When zones 1 and 2 are linked, appears on zones 1 and 2 on
the volume screen.

NOTE: After zones 1 and 2 are linked, you cannot adjust the
volume of each zone individually.

Enabling Volume Control of Zone 3 from a Connected Amplifier

By default, the volume of zone 3 is controlled by the stereo, but
you can control the it using the connected amplifier instead.

Select > SETTINGS > ZONE.

1

Select zone 3.

2

Select VOLUME CONTROL to clear the check box.

3

The audio signal from the zone is provided to the amplifier as a
fixed-line-level output.

Disabling a Zone

You can disable an unused zone and remove it from the audio
level pages. When a zone is disabled, you cannot change any of
the settings for that zone. You cannot disable zone 1.

Select > SETTINGS > ZONE.

1

Select a zone.

2

Select ZONE ENABLED to clear the check box.

3

Disabling the Internal Amplifiers

If you do not connect speakers directly to zones 1 and 2, you
can disable the internal amplifiers to reduce power consumption.

Select > SETTINGS > ZONE.

1

Select INTERNAL AMP ON to clear the check box.

2

Power Options

Select > SETTINGS > POWER OPTIONS.
NOTE: When an check box is filled, the option is on. When the

check box is clear, the option is off.
POWER SAVE: Disables the LCD backlight after one minute of

inactivity to save battery power.

STANDBY MODE: Enables a low-power standby instead of

turning off the stereo completely. When enabled, the stereo
turns on much faster, but the stereo uses more battery when
in standby mode than when turned off (Enabling Standby

Mode, page 2).

NRX POWER: Turns on or off the power the stereo provides to

optional NRX series wired remote controls not on a NMEA
2000® network (Configuring an Optional Wired Remote,

page 11).

SYSTEM OFF: Sends a signal to turn off on all devices

connected to the network.

Network Settings

Select > SETTINGS > NETWORK.
DHCP: Sets the device as a DHCP client.
STATIC IP: Allows you to set a static IP address for the device

(Setting a Static IP Address, page 9).

DETAILS: Shows information about the network configuration.
ADVANCED: Allows you to configure the DHCP server and

reset all network settings for this stereo to the factory default
values.

SAVE: Allows you to save changes to the network settings.

Setting the Stereo as the DHCP Server

If you connected two FUSION PartyBus stereos together
directly, or connected more than two together using a network
switch or wireless access point and did not install a router, you
must configure only one FUSION PartyBus stereo to be the
DHCP server.

Select > SETTINGS > NETWORK > STATIC IP > SAVE.

1

You can configure the static IP (Setting a Static IP Address,

page 9).

Select > SETTINGS > NETWORK > ADVANCED >

2

DHCP > DHCP > SAVE.

You can configure the IP address range of the DHCP server
(DHCP Settings, page 10).

Setting a Static IP Address

If the stereo is configured as a static IP, it is automatically
assigned the IP address of 192.168.0.1. You can change this IP
address.

If the stereo is a DHCP client on the network and you do not
want the DHCP server to automatically assign an IP address to
the stereo, you can set a static IP address.

General Settings 9

NOTE: Every device on the network must have a unique IP
address. If you select a static IP address that is the same as the
IP address on the network, the devices will not work properly.

Select > SETTINGS > NETWORK > STATIC IP.

1

Select an option:

2

• To set the IP address, select IP, and enter the IP address.

• To set the subnet mask, select MASK, and enter the

subnet mask.
NOTE: The subnet mask must match all other devices on

the network to work properly. A typical subnet mask is

255.255.255.0.

• To set the default gateway IP address, select GATEWAY,

and enter the gateway IP address.
NOTE: The default gateway is typically set as the IP

address of the DHCP server on the network.

Select SAVE.

3

DHCP Settings

Select > SETTINGS > NETWORK > ADVANCED > DHCP.
DHCP: Sets the device as the DHCP server on the network.
START IP: Sets the first IP address in the IP-address range of

the DHCP server.

END IP: Sets the final IP address in the IP-address range of the

DHCP server.

Resetting Network Settings

You can reset all network settings for this stereo to the factory
default values.

Select > SETTINGS > NETWORK > RESET > YES.

Update Options

Select > SETTINGS > UPDATE.

NOTICE

Do not turn off the stereo or disconnect the power during a
software update. Turning off the power during a software update
may cause the stereo to become unresponsive.

NOTE:

• You should update the stereo software using a USB flash
drive formatted to FAT32. If the stereo is connected to a
wireless network, you can update the software using the
FUSION-Link app on a smartphone.

• Do not remove power from the stereo during the update.

• The stereo may restart a few times during the software
update. This is normal.

• You can program only newer versions of software on the
stereo.

STEREO: Updates the stereo using a valid software update file

on a connected USB flash drive.

NRX REMOTE: Updates an optional NRX remote connected to

the NMEA 2000 port or NMEA 2000 network using a valid
software update file on a connected USB flash drive.

DAB MODULE: Updates an optional DAB module connected to

the SIRIUS XM port using a valid software update file on a
connected USB flash drive.

FACTORY RESET: Restores all settings to the factory default

values.

Additional Stereo Control Options

Connecting to a Garmin® Watch

For a list of a compatible Garmin watches, go to

www.fusionentertainment.com.

For more information about the watch, see the watch manual at

www.garmin.com/manuals.

Following the instructions in the watch manual, install the

1

FUSION-Link Lite™ app from the Connect IQ™ store onto the
watch.

On the stereo, select the BT source.

2

Select > DISCOVERABLE.

3

The stereo remains discoverable for two minutes.
Bring the watch within 3 m (10 ft.) of the stereo.

4

NOTE: Stay 10 m (33 ft.) away from other ANT® devices

while pairing.
Open the FUSION-Link Lite app on the watch.

5

The first time you open the app on the watch, the watch
automatically pairs with and connects to the stereo. If you
need to pair to another stereo, in the FUSION-Link Lite app,
select Settings > Pair new.

Control the audio playback using the FUSION-Link Lite app

6

on the watch.

After the devices are paired, they connect automatically when
they are turned on, within range, and the app is open on the
watch.

Connecting to an ARX70 Remote Control

On the stereo, select the BT source.

1

Select > DISCOVERABLE.

2

Bring the ARX70 remote control within 10 m (33 ft.) of the

3

stereo.
NOTE: Stay 10 m (33 ft.) away from other ANT devices while

pairing.
On the ARX70 remote control, press and hold until the

4

status LED starts alternating green and red.
The remote control searches for the stereo. When the remote

control pairs successfully, the status LED turns on green
briefly and then turns off.

If the remote control cannot find the stereo, the status LED turns
on red briefly and then turns off.

FUSION-Link Wireless Remote Control App

You can use the FUSION-Link remote control app on your
compatible Apple or Android device to adjust the stereo volume,
change the source, control playback, select and manage radio
presets, and adjust some stereo settings.You can use the app to
set up and configure DSP profiles on the stereo.

The app communicates with the stereo using a wireless
connection to the mobile device. You must connect your
compatible device to the stereo using Bluetooth or Wi‑Fi
technology to use the app.

If the stereo is connected to a network with a Wi‑Fi access point,
the app can communicate with the stereo using the network for
greater range than a Bluetooth connection.

For information about the FUSION-Link remote control app for
compatible Apple or Android devices, go to the Apple App
StoreSM or the Google Play™ store.

FUSION-Link™ Network Technology

FUSION-Link network technology allows you to fully control
compatible FUSION entertainment systems on compatible multi­function displays installed at the helm, flybridge, or navigation
station of the vessel. This provides integrated entertainment
control and a less cluttered console.

The partnered multi-function display becomes the portal on
which you can control all audio on the vessel, no matter where
on the vessel the connected stereo is installed. The FUSION­Link equipped stereo can be installed out of sight if space is an

10 Additional Stereo Control Options

issue and users need to access the stereo only to replace
removable media.

FUSION-Link technology on this device can communicate using
existing industry-standard network connections including
Ethernet and Wi‑Fi wireless technology.

FUSION-Link technology offered on this device can
communicate using existing industry-standard NMEA 2000
networks.

For a list of FUSION-Link capable products from companies
partnered with FUSION, go to www.fusionentertainment.com.

NMEA 2000 Remote Control and Display

The stereo can be controlled by compatible FUSION wired
remote controls installed in the audio zones throughout the
vessel. Operating the entertainment system from the remote
control is similar to operating it from the main stereo.

FUSION wired remote controls operate over an existing NMEA
2000 network, so wiring the remote controls directly to the
stereo is not necessary. All remote controls connected to the
same NMEA 2000 network as the stereo can control the stereo.

If your vessel does not have a NMEA 2000 network, you can
directly connect a single FUSION remote control or create a
FUSION remote control network to connect multiple FUSION
wired remote controls directly to the NMEA 2000 connector on
the stereo. See the installation instructions provided with your
stereo and remote for more information.

The FUSION wired remote control can also serve as an NMEA
display showing NMEA navigation data or vessel performance
data from other NMEA devices on an existing NMEA 2000
network. See the instructions provided with your remote control
for information on supported NMEA 2000 PGN information.

Configuring an Optional Wired Remote

NOTICE

The stereo is configured by default to work with a NMEA 2000
network, and the NRX POWER option should be enabled only
when an optional remote is connected directly to the stereo.
Enabling this option when the stereo is connected to a NMEA
2000 network may damage other devices on the NMEA 2000
network.

If you connect an optional wired NRX remote directly to the
stereo, and not through a NMEA 2000 network , additional
configuration is needed.

Select > SETTINGS > POWER OPTIONS.

1

Select an option:

2

• If you connected both your stereo and your optional wired

remote to a NMEA 2000 network, make sure the NRX
POWER option is not selected. This enables the optional
remote to receive power from the NMEA 2000 network.

• If you connected the optional wired remote directly to the

stereo through the NMEA 2000 connector, select the NRX
POWER option. This enables the stereo to supply power
to the optional remote.

NMEA 2000 Information

NMEA 2000 is the most popular marine standard for data
communication within vessels. It has become the standard for
sending navigation and engine management data within
vessels. FUSION introduces an industry-first product by
incorporating NMEA 2000 functionality in its audio remote
control devices. This enables the user to monitor a series of
NMEA sentences available over the NMEA 2000 network on a
connected remote control.

Go to www.fusionentertainment.com for a full list of supported
NMEA sentences.

Appendix

Registering Your Apollo RA670

Help us better support you by completing our online registration
today.

• Go to www.fusionentertainment.com.

• Keep the original sales receipt, or a photocopy, in a safe
place.

Software Updates

For best results, you should update the software in all FUSION
devices at the time of installation to ensure compatibility.

You can update the software using a USB flash drive. For
software updates and instructions on updating the device using
the USB flash drive, go to the device product page at

www.fusionentertainment.com/marine.

If the stereo is connected to a FUSION PartyBus network with a
Wi‑Fi router, you can also update the software using the
FUSION-Link remote control app on your compatible Apple or
Android device. To download the app and update the device
software, go to the Apple App Store or the Google Play store.

Troubleshooting

The stereo does not respond to key presses

• Hold until the stereo turns off, and turn it on again to reset

®

the stereo.

• Disconnect power to the stereo for two minutes to reset the
stereo.

My Bluetooth audio is interrupted by short breaks

• Ensure the media player is not covered or obstructed.
Bluetooth technology performs best with line-of-sight

operation.

• Bring the media player within 10 m (33 ft.) of the stereo.

• Turn off the DISCOVERABLE setting after pairing a
Bluetooth device to the stereo.

The stereo does not display all song information from my Bluetooth source

The availability of song information such as song title, artist
name, track duration, and album cover artwork depends on the
capability of the media player and music application.

Network Troubleshooting

If you cannot see or connect to FUSION PartyBus devices on
the network, check the following:

• Verify that only one device, either a stereo or a router, is
configured as a DHCP server.

• Verify that all FUSION PartyBus devices, network switches,
routers, and wireless access points are connected to the
network and turned on.

• Verify that wireless FUSION PartyBus devices are connected
to a wireless router or wireless access point on the network.

• If you configured static IP addresses, verify that every device
has a unique IP address, that the first three sets of numbers
in the IP addresses match, and that the subnet masks on
every device are identical.

• If you have made configuration changes that might be
causing networking issues, reset all network settings to
factory defaults.

Network Status Icons

A network-status icon is shown on some screens of the stereo.
You can refer to this table to understand the appearance of the
icon and help diagnose issues with the FUSION PartyBus
network (Network Troubleshooting, page 8).

Appendix 11

The stereo is connected correctly to a network.

The stereo cannot detect the network. An Ethernet cable may not
be connected or there may be other problems with the network.

Specifications

General

Weight 750 g (26.5 oz.)

Water rating* IEC 60529 IPX6 and IPX7 (front of

Operating temperature range From 0 to 50°C (from 32 to 122°F)

Storage temperature range From -20 to 70°C (from -4 to 158°F)

Input voltage From 10.8 to 16 Vdc

Current (max.) 15 A

Current (muted) Less than 700 mA

Current (off, standby mode
enabled)

Current (off, standby mode
disabled)

Fuse 15 A mini blade-type

NMEA 2000 LEN 1 (50 mA)

Bluetooth wireless range Up to 10 m (30 ft.)

ANT wireless range Up to 3 m (10 ft.)

Wireless frequencies/protocols Bluetooth 2.4 GHz @ from 13.29 dBm

Compass-safe distance 20 cm (7.87 in.)

stereo only, when properly installed)

50 mA

35 mA

nominal
ANT 2.4 GHz @ from 6.92 dBm

nominal

Stereo Dimension Drawings

Side Dimensions

21 mm (0.83 in.)

102 mm (4.0 in.)

68 mm (2.68 in.)

49 mm (1.93 in.)

Top Dimensions

* Withstands incidental exposure to water of up to 1 m for up to
30 min. and is protected against powerful jets of water. For more
information go to garmin.com/waterrating.

On-board, Class D Amplifier

Output music power per
channel

Total output peak power 280 W max.

Output power per channel 4 x 43 W RMS at 14.4 Vdc input,

Line output level (max.) 5.5 V (peak to peak)

Aux input level (typical) 1 V RMS

4 x 70 W max. 2 ohm

2 ohm, 10% THD*
4 x 26 W RMS at 14.4 Vdc input,

4 ohm, 10% THD*

*The stereo may limit the output power to prevent the amplifier
from overheating, and to maintain the audio dynamics.

Tuner Europe and

FM radio
frequency range

FM frequency
step

AM radio
frequency range

AM frequency
step

Australasia

87.5 to 108 MHz 87.5 to

50 kHz 200 kHz 50 kHz

522 to 1620 kHz 530 to

9 kHz 10 kHz 9 kHz

USA Japan

107.9 MHz

1710 kHz

76 to 95 MHz

522 to
1620 kHz

157 mm (6.18 in.)

130 mm (5.10 in.)

21 mm (0.83 in.)

10 mm (0.39 in.)

12 Appendix

Index

A

alerts 5
AM 4, 7
amplifier 9
Android 4
Android device 4
Android devices 4, 10
ANT devices 10
Apple devices 10
auxiliary input 2, 3

B

backlight 1
bass 2
Bluetooth devices 3, 4, 10
brightness 1

D

DAB 4, 7
device, registration 11
digital audio 3
DSP 2

F

factory settings 10
FM 4, 7
FUSION PartyBus network 8, 9, 11
FUSION-Link 10

G

gain 2

I

icons 11

L

language 8

M

media player 4
mute 2

N

network 3, 8–11
network configuration 10
NMEA 2000 11

O

optical audio 3

P

presets 7, 8
product registration 11

R

radio

AM 4
FM 4

SiriusXM 4–7
registering the device 11
remote control 11
resetting 7, 8

S

settings 2, 8–10
SiriusXM 4, 7

parental controls 6

Satellite Radio 4, 5, 7
source 1, 8
speaker zones 2, 9
standby 2
subwoofer 2

T

tone 2
treble 2
troubleshooting 8, 11

U

USB 4

flash drive 4

USB devices 3, 4

V

volume 2, 9

adjusting 2

W

watch 10
Wi‑Fi technology 9

Index 13

®

FUSION SUPPORT

New Zealand 09 369 2900
Australia 1300 736 012
Europe [phone]
USA 623 580 9000
Pacific [phone]

FUSIONENTERTAINMENT.COM

May 2019 Printed in Taiwan 190-02516-00_0A
