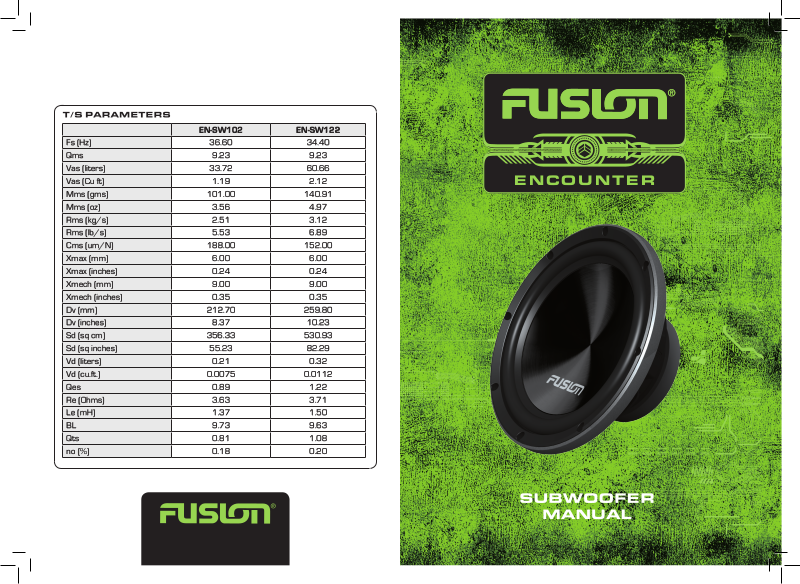

Fusion EN-SW102 User Manual

EN-SW102 EN-SW122

Fs (Hz) 36.60 34.40

Qms 9.23 9.23

Vas (liters) 33.72 60.66

Vas (Cu ft) 1.19 2.12

Mms (gms) 101.00 140.91

Mms (oz) 3.56 4.97

Rms (kg/s) 2.51 3.12

Rms (lb/s) 5.53 6.89

Cms (um/N) 188.00 152.00

Xmax (mm) 6.00 6.00

Xmax (inches) 0.24 0.24

Xmech (mm) 9.00 9.00

Xmech (inches) 0.35 0.35

Dv (mm) 212.70 259.80

Dv (inches) 8.37 10.23

Sd (sq cm) 356.33 530.93

Sd (sq inches) 55.23 82.29

Vd (liters) 0.21 0.32

Vd (cu.ft.) 0.0075 0.0112

Qes 0.89 1.22

Re (Ohms) 3.63 3.71

Le (mH) 1.37 1.50

BL 9.73 9.63

Qts 0.81 1.08

no (%) 0.18 0.20

ENCOUNTER

EN-SW102 EN-SW122

Peak Power (Watts) 800 1000

Rated Power (Watts) 200 250

Frequency Response 28Hz - 2kHz 26Hz - 1.5kHz

Impedance 4 Ohm 4 Ohm

Sensitivity 88dB 90dB

Cone Material Pressed Paper Pressed Paper

Voice Coil Type Round Wound Copper Round Wound Copper

Mounting Depth 126mm (4-15/16”) 138mm (5-7/16”)

Mounting Diameter 230mm (9-1/16”) 279mm (11”)

EN-SW102 Ported Sealed

Volume 40.0L (1.53 cu.ft.) 15.0L (0.53 cu.ft.)

Fb (Hz) Tuned frequency 33.5 49.1

Port Diameter 76.2mm (3”) -

Port Length 114mm (4-1/2”) -

EN-SW122 Ported Sealed

Volume 60L (2.12 cuft) 28L (0.989cuft)

Fb (Hz) Tuned frequency 33.3 49.2

Port Diameter 76.2mm (3”) -

Port Length 42mm (1.62”) -
