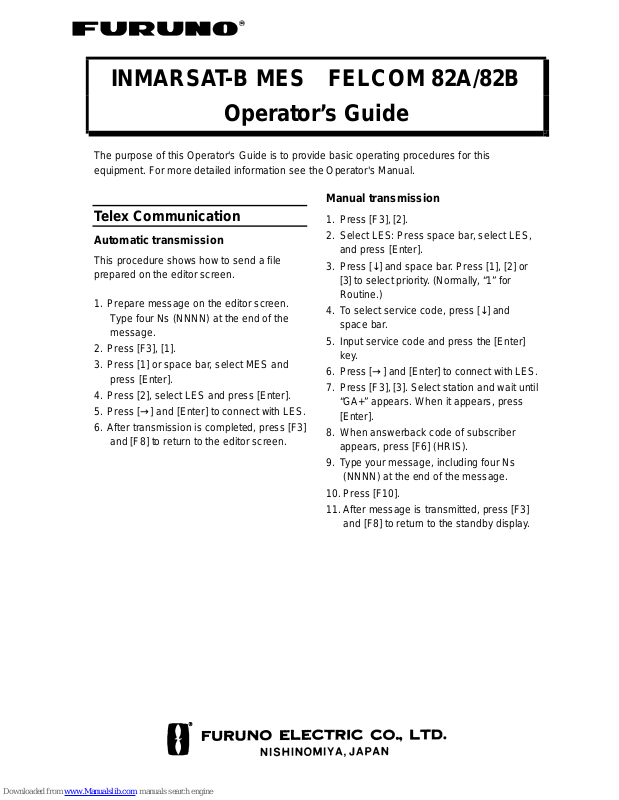

INMARSAT-B MES FELCOM 82A/82B

Operator’s Guide

The purpose of this Operator ' s Guide is to provide basic operating procedures for t his equipment. For more detailed information see the Operator's Manual.

Telex Communication

Automatic transmission

This procedure shows how to send a file prepared on the editor screen.

1. Prepare message on the editor screen. Type four Ns (NNNN) at the end of the message.

2. Press [F3], [1].

3. Press [1] or space bar, select MES and press [Enter].

4. Press [2], select LES and press [Enter].

5. Press [→] and [Enter] to connect with LES.

6. After transmission is completed, pr ess [F3] and [F8] to return to the editor scr een.

Manual transmission

1. Press [F3], [2].

2. Select LES: Press space bar, select LES, and press [Enter].

3. Press [↓] and space bar. Press [1], [2] or [3] to select priority. (Normally, “1” for Routine.)

4. To select service code, press [↓] and space bar.

5. Input service code and press the [Enter] key.

6. Press [→] and [Enter] to connect with LES.

7. Press [F3], [3]. Select station and wait until “GA+” appears. When it appears, press [Enter].

8. When answerback code of subscriber appears, press [F6] (HRIS).

9. Type your message, including four Ns

(NNNN) at the end of the messag e .

10. Press [F10].

11. After message is transmitted, press [F3]

and [F8] to return to the standby display.

2

Handset Communication

1. Pick up the handset of the and dial subscriber’s complete number as below.

Land subscriber

LES No.

Service Code

Country Code

Subscriber’s No.

Area Code

00

M ES (Inmarsat B)

→→→→

M ES (Inmarsat A, B)

LES No.

Service Code

Sea Area No.

Vessel ID No.

Example: 222 00 872 343112210 Perth Automatic POR Vessel ID No. call

0

Sea Area

871: AOR-E 872: POR 873: IOR 874: AOR-W

2. Press [

] to start the call.

3. Communicate with party.

4. Press [

] to end communications.

5. Hang up the handset.

Urgent, safety communication

1. Pick up the handset.

2. Press [DEL Prty] to select Sa fety o r U rgen t

as appropriate.

3. Press [

].

4. Dial three-digit LES code and press [ #] .

5. Communicate with LES.

6. Press [

] to finish call.

7. Hang up the handset.

Facsimile Communication

Press the [TEL/DIAL] key on the fax and then follow appropriate procedure below. Normally, enter 00 (automatic call) as the service code. After pressing the [#] key, hit the [ | ] (START) button to transmit the fax.

MES (Inmarsat B) →

→ →

→ Land

LES No.

Service Code

Country Code

Fax No.

#

MES (

Inmarsat B) →

→ →

→

M ES (Inm arsat B)

LES No.

Service Code

Sea Area No.

Vessel ID No. (Inmarsat B)

#

MES (

Inmarsat B) →

→ →

→

M ES (Inm arsat A)

LES No.

Service Code

Sea Area No.

Vessel ID No. (Inmarsat A)

#

81

Worldwide Code

3

LES Access Code Lists (Effective February, 2000)

AOR-East

AOR-E

Aussaguel

Beijing Marine at Southbury

Burum

Eik

Fucino

Goonhilly

Hong Kong at Laurentides

Indosat at Laurentides

Jeddah

KDDI at Burum

Korea Telecom at Laurentides

Laurentides

Morsviazsputnik at Laurentides

Raisting

Singapore Telecom at Aussaguel

Southbury

Psary

Telstra at Laurentides

Thermoplyae

VSNL at Southbury

Kuantan

France Telecom

Beijing Marine

Station 12

Eik Global Communications

Telecom Italia

British Telecom

Cable & Wireless (HKG Telecom)

Indosat

Saudi Telecom Co

KDDI

Korea Telecom

Stratos Mobile Networks

Morsviazsputnik

DeTeSat

Singapore Telecom

Comsat Mobile Communications

Polish Telecom

Telstra

OTE

VSNL

Malaysia Telecom

011

868

012

004

555

002

118

007

025

003

006

013

015

111

210

001

016

222

005

306

060

BV, BF, BT, BD, BHSD

BV, BF, BT, BD, pending RCC info

BV, BF, BT, BD, BHSD

BV, BF, BT, BD, pending results

BV, BF, BT, BD, BHSD

BV, BF, BT, BD, BHSD, pending results

BV, BF, BT, BD, BHSD

BV, BF, BT

BV: Voice BF: Fax BT: Telex BD: Data BHSD: High Speed Data

Ocean Region

LES Name

LES Provider

LES ACCESS CODE

AOR-West

AOR-W

Aussaguel

Beijing Marine at Southbury

DeTeMobil at Aussaguel

Eik

Goonhilly

Hong Kong at Laurentides

Indosat at Laurentides

KDDI at Burum

Korea Telecom at Laurentides

Laurentides

Morsviazsputnik at Laurentides

OTE at Southbury

Singapore Telecom at Aussaguel

Southbury

Telecom Italia at Southbury

Telstra at Laurentides

VSNL at Southbury

Burum

Kuantan

France Telecom

Beijing Marine

DeTeSat

Eik Global Communications

British Telecom

Cable & Wireless (HKG Telecom)

Indosat

KDDI

Korea Telecom

Stratos Mobile Networks

Morsviazsputnik

OTE

Singapore Telecom

Comsat Mobile Communications

Telecom Italia

Telstra

VSNL

Station 12

Malaysia Telecom

011

868

111

004

002

118

007

003

006

013

015

005

210

001

555

222

306

012

060

BV, BF, BT, BD, BHSD

BV, BF, BT

BV: Voice BF: Fax BT: Telex BD: Data BHSD: High Speed Data

Ocean Region

LES Name

LES Provider

LES ACCESS CODE

4

POR

Telecom Italia at Santa Paula

Telenor at BT Pacific

VSNL at Santa Paula

Yamaguchi

Beijing

BT Pacific

Cape d’Aguilar

DeTeMobil at Perth

France Telecom at Perth

Indosat at Perth

Kumsan

Malaysia Telecom at Perth

Morsaviazsputnik at Perth

OTE at Santa Paula

Perth

Santa Paula

Sentosa

Stratos Perth

Station 12 at Yamaguchi

Telecom Italia

Eik Global Communications

VSNL

KDDI

Beijing Marine

British Telecom

Cable & Wireless (HKG Telecom)

DeTeSat

France Telecom

Indosat

Korea Telecom

Malaysia Telecom

Morsviazsputnik

OTE

Telstra

Comsat Mobile Communications

Singapore Telecom

Stratos Mobile Networks

Station 12

555

004

306

003

868

002

118

111

011

007

006

060

015

005

222

001

210

013

012

BV, BF, BT, BD, BHSD

BV, BF, BD, BT, BHSD

BV, BF, BT, BD, BHSD

BV, BF, BT, BD

BV, BF, BD, BT

BV, BF, BD, BT, BHSD

BV, BF, BD, BT

BV, BF, BT, BD, BHSD

BV, BF, BT, BHSD, BD

BV, BF, BT, BD

BV: Voice BF: Fax BT: Telex BD: Data BHSD: High Speed Data

Ocean Region

LES Name

LES Provider

LES ACCESS CODE

IOR

Arvi

Aussaguel

Beijing

British Telecom at EIK

Burum

Cape d’Aguilar

Comsat Eurasia

Eik

Fucino

Yamaguchi

Jatiluhur

Jeddah

Kuantan

Kuman

Morsviazsputnik at Perth

Nonthaburi

Perth

Raisting

Sentosa

Stratos at Perth

Psary

Thermoplyae

Towi Al Saman

VSNL

France Telecom

Beijing Marine

British Telecom

Station 12

Cable & Wireless (HKG Telecom)

Comsat Mobile Communications

Eik Global Communications

Telecom Italia

KDDI

Indosat

Saudi Telecom Co

Malaysia Telecom

Korea Telecom

Morsviazsputnik

Thailand

Telstra

DeTeSat

Singapore Telecom

Stratos Mobile Networks

Polish Telecom

OTE

Etisalat

306

011

868

002

012

118

001

004

555

003

007

025

060

006

015

333

222

111

210

013

016

005

123

BV, BF, BT, BD

BV, BF, BT, BD, BHSD

BV, BF, BT, BD

BV, BF, BT, BD, BHSD

BV, BF, BT, BD

BV, BF, BT, BD, BHSD

BV, BF, BT, BD

BV, BF, BT, BD, pending RCC info

BV, BF, BT

BV, BF, BT, BD, BHSD

BV, BF, BT

BV, BF, BT, BD, BHSD

BV, BF, BT, BD, pending results

BV, BF, BT, BD, BHSD, pending results

BV, BF, BT, BD

BV: Voice BF: Fax BT: Telex BD: Data BHSD: High Speed Data

Ocean Region

LES Name

LES Provider

LES ACCESS CODE
