OWNER’S

As an ENERGY STAR

Partner, our company has determined that this product meets the E

NERGY STAR guidelines for

energy efficiency. E

NERGY STAR is

a U.S. registered mark.

MANUAL

COLOR TV/VCR

SRC22134 (13 inch) SRC22194 (19 inch)

This Owner’s Manual is made of

recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional assistance for set-up or operating

after reading owner’s manual, please call

TOLL FREE : 1-800-968-3429

Please read before using this equipment

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-Unplug TV/VCR from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by the TV/VCR manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/VCR near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/VCR may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/VCR. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

S3126A

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

AMEUBLES- Cet appareil ne doit être

placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/VCR on a bed, sofa, rug, or other similar surface. This TV/VCR should never be placed near or over a radiator or heat register. This TV/VCR should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV/VCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/VCRs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/VCR is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

- 2 - EN

9I03

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELE CTRICAL CODE

GROUND

CLAMP

ANTENNA

LEAD IN WIRE

ANTENNA

DISCHARGE UNI T (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDI NG ELECTRODE SYSTEM (NEC ART 250, PART H)

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/VCR due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/VCR through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/VCR.

18.Servicing-Do not attempt to service this TV/VCR yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/VCR from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

TV/VCR.

c. If the TV/VCR has been exposed to rain or water. d. If the TV/VCR does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/VCR to its normal operation.

e. If the TV/VCR has been dropped or damaged in any way. f. When the TV/VCR exhibits a distinct change in perfor-

mance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Upon completion of any service or repairs to this TV/VCR, ask the service technician to perform routine safety checks to determine that the TV/VCR is in proper operating condition.

22.Heat-This TV/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

- 3 - EN

9I03

PRECAUTIONSPRECAUTIONS

LOCATION

For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away

•

from sources of intense heat. Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper

•

heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the TV/VCR near strong magnetic fields.

•

Avoid moving TV/VCR to locations where temper-

•

ature differences are extreme.

AV OID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting

•

it from an AC wall outlet. Grasp it by the plug. If, by accident, water is spilled on your unit, unplug

•

the power cord immediately and take the unit to an Authorized Service Center for servicing.

Do not put your fingers or objects into the

•

TV/VCR cassette holder. Do not place anything directly on top of the unit.

•

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a tape is played in a TV/VCR which has moisture, it may damage the tape and TV/VCR. Therefore if condensation occurs inside the unit, turn the POWER button on and allow at least 2 hours for the unit to dry out.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use, or other acts which infringe upon the rights of copyright owners.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

The serial number of this product may be found on the back of the unit. No other TV/VCR has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

- 4 - EN

9I03

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

C SUPPLIED ACCESSORIES . . . . . . . . . . . . . . .6

C OPERATING CONTROLS AND FUNCTIONS 7

C PREPARATION FOR USE . . . . . . . . . . . . . . . .9

ANTENNA/CABLE CONNECTIONS . . . . . . .9

EXTERNAL INPUT MODE . . . . . . . . . . . . . .10

INSTALLING THE BATTERIES . . . . . . . . . . .10

C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . .10

CHANNEL SET UP FOR THE FIRST TIME .10

CLOCK SET UP (AUTO / MANUAL) . . . . . .11

CHANNEL SET UPAGAIN . . . . . . . . . . . . . .12

DELETING (OR ADDING) CHANNEL . . . . .12

SELECTING THE LANGUAGE . . . . . . . . . . .13

DAYLIGHT-SAVING TIME . . . . . . . . . . . . . .13

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .14

WATCHING A TV PROGRAM . . . . . . . . . . . .14

GAME MODE . . . . . . . . . . . . . . . . . . . . . . . . .14

DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .14

PICTURE CONTROL . . . . . . . . . . . . . . . . . . .14

CLOSED CAPTION SYSTEM . . . . . . . . . . . .15

V-CHIP SET UP . . . . . . . . . . . . . . . . . . . . . . . .15

FM MODE (SRC22134 only) . . . . . . . . . . . . . .17

C RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .20

NORMAL RECORDING . . . . . . . . . . . . . . . . .20

OTR (One Touch Recording) . . . . . . . . . . . . . .21

TIMER RECORDING . . . . . . . . . . . . . . . . . . .21

TIMER PROGRAM EXTENSION . . . . . . . . .22

HINTS FOR AUTOMATIC TIMER

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . .23

AUTO RETURN . . . . . . . . . . . . . . . . . . . . . . .23

WAKE UP TIMER . . . . . . . . . . . . . . . . . . . . . .23

SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .24

C COPYING A VIDEO TAPE . . . . . . . . . . . . . . .24

C ON SCREEN DISPLAY . . . . . . . . . . . . . . . . .25

C SPECIAL FEATURES . . . . . . . . . . . . . . . . . .25

REAL TIME TAPE COUNTER . . . . . . . . . . . .25

AUTO REWIND-EJECT . . . . . . . . . . . . . . . . .25

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .25

C TROUBLESHOOTING GUIDE . . . . . . . . . . .26

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .27

C CABLE CHANNEL DESIGNATIONS . . . . . .27

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

C PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . .17

NORMAL PLAYBACK . . . . . . . . . . . . . . . . . .18

AUTO REPEAT PLAYBACK . . . . . . . . . . . . .18

SEARCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

SLOW MOTION . . . . . . . . . . . . . . . . . . . . . . .19

RENTAL PLAYBACK . . . . . . . . . . . . . . . . . . .19

VERTICAL HOLD CONTROL . . . . . . . . . . . .20

STILL PICTURE . . . . . . . . . . . . . . . . . . . . . . .20

TRACKING ADJUSTMENT . . . . . . . . . . . . . .20

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

- 5 - EN

9I03

FEATURES

Rotary 4-head Record/Playback System–Four

•

heads ensure excellent picture quality and special effects playback.

Index Search–

•

Slow Motion–View recorded program at slower

•

than normal speed.

Infrared remote control

•

Bilingual on screen menu display selectable in

•

English or Spanish Real time counter–This shows the elapsed record-

•

ing or playback time in hours, minutes, and seconds. The “–” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

181 channel capability PLL frequency synthesiz-

•

er tuner with direct station call–

be necessary to view scrambled cable channels.)

Auto Clock Setting–Allows you to set the clock

•

from a PBS broadcast station.

Closed caption system–You may view specially

•

labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

Game mode–Automatically sets external input

•

mode and allows the TV/VCR display to be suitable for use with TV games.

Auto power on and off system–Automatically

•

turns on the TV/VCR when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.

Auto rewind when the end of a tape is

•

reached–

timer recording.

2 Step picture search operation–You can view a

•

video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode. For SP mode only high speed.

Three different playback tape speeds : SP/LP/SLP

•

Two different recording tape speeds : SP/SLP

•

Fast-forwards to start of next recording.

(A converter may

This function doesn’t occur when using

Auto Head Cleaner–Automatically cleans video

•

heads as you insert or remove a cassette.

Zero Return–The tape returns to counter of

•

0:00:00 by rewinding or fast forwarding.

Still–“Freeze” the picture at any time, for close

•

viewing of a particular scene. Only tapes recorded in SLP mode will show a fairly clear picture.

Digital Auto Tracking (DTR)–Automatically

•

adjusts the tracking for each tape you play.

Rental play mode–Improves playback picture

•

quality from worn tapes, such as rental tapes.

Auto repeat–Allows you to repeat the playing of a

•

tape indefinitely without pressing the PLAY button.

Time search–Lets you set the TV/VCR to advance

•

the tape by entering the desired playback time you want to skip.

OTR (One Touch Recording)–Instant timed

•

recording from 30 to 480 minutes is possible at the push of the REC/OTR button.

1 Year, 8 events (including Daily and Weekly

•

Timer Recording)–

record up to 8 programs at different times on different channels up to 1 year in advance. The Daily timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be made once a week up to the end of the tape.

Auto return–After timer recording is finished, the

•

TV/VCR can return to the beginning of the recording.

Wake-up/Sleep timer–Allows you to have the

•

TV/VCR automatically turn on or off at a desired time.

Timer Program Extension–Allow you to shift the

•

time schedule for automatic timer recording.

V-CHIP–Enables parents to prevent their children

•

from watching inappropriate material on TV.

FM mode–Allows you to listen to the FM radio.

•

(SRC22134 only)

The built-in timer allows you to

SUPPLIED ACCESSORIES

Remote Control Unit 2 AA Batteries Rod Antenna (13” model only)

PA RT NO. PART NO. (0EMN00673 or (N0155UD for SRC22134) 0EMN01599 or

(N0157UD for SRC22194) 0EMN01755)

If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-

•

968-3429. Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators

•

(Splitter). Contact your local electronics store for these items. We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

•

a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

- 6 - EN

9I03

OPERATING CONTROLS AND FUNCTIONS

AUDIO

EARPHONE

VIDEO

STOP/EJECT

REW

PLAY

F.FWD REC/OTRCHANNEL

VOLUME

POWER

1 92 3 4 5 6 7 8131011 1412

POWER

WAKE-UP

/SLEEP

123

456

789

+100

EJECT

CHANNEL

RETURN

REW

PLAY

STOP

F.FWD

GAME

RECORD

PAUSE/STILL

SPEED

SLOW

CHANNEL

T-PROG.

CLEAR

COUNTER

RESET

DISPLAY MUTE

VOLUME

11 18

19 20

22 21

This manual covers 13" and 19". The operation of the two models are exactly the same except the appearance. 19" model is illustrated in this manual.

- TV/VCR FRONT PANEL -

- REMOTE CONTROL -

[ SRC22134 ]

POWER

123

456

789

DISPLAY MUTE

8 7

11 18

REW

RECORD

T-PROG.

CLEAR

COUNTER

RESET

[ SRC22194 ]

VIDEO input jack– Connect to the video output

jack of your video camera or another VCR.

AUDIO input jack– Connect to the audio output

WAKE-UP

TV/FM

/SLEEP

CHANNEL

RETURN

CHANNEL

+100

PLAY

STOP

SPEED

GAME

VOLUME

F.FWD

PAUSE/STILL

SLOW

25 7

4 23

9 10

22 21

jack of your audio equipment, video camera or another VCR.

POWER button– Press to turn TV/VCR on and off.

Press to activate timer recording.

VOLUME XX/ YYbuttons– Adjust the volume level.

5 CHANNEL K / L buttons–

desired channels for viewing or recording, listening of FM radio.

You may display the main menu on the TV screen by pressing repeatedly this button on the TV/VCR.

TRACKING function– Press to minimize video

‘noise’ (lines or dots on screen) during playback or Slow mode. (See page 20.)

Remote Sensor Window– Receives the infrared

signals from the remote control.

[ TV/VCR ]

7 STOP button– Press to stop the tape motion.

EJECT button– Press in the Stop mode to remove

tape from TV/VCR.

button–

Press to select setting modes from the on screen

•

menu. Press to enter digits when setting program.

•

(for example: setting clock or timer program)

[ Remote control ] (SRC22134)TV/FM button– (SRC22194)EJECT button– Press in the Stop

mode to remove tape from TV/VCR.

- 7 - EN

Press to select the

Sets the FM mode.

9I03

- REAR VIEW -*

REW button– Press to rewind the tape, or to view

the picture rapidly in reverse during playback mode. (Rewind Search)

button–

Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

PLAY button– Press to begin playback.

button–

Press to select setting modes from the on screen

•

menu. Press to enter digits when setting program.

•

(for example: setting clock or timer program)

F.FWD button– Press to rapidly advance the tape,

or to view the picture rapidly in forward during playback mode. (Forward Search)

button–

When setting program (for example: setting clock

•

or timer program), press to determine your selection and proceed to the next step you want to input.

Press to determine setting modes from on screen

•

menu. Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

REC button– Press for manual recording. OTR button– Activates One Touch Recording.

(only on the TV/VCR)

RECORD indicator– Flashes during recording.

Lights up in the Stand-by mode for Timer Recording.

13 EARPHONE jack– Connects to earphones (not

supplied) for personal listening. The size of jack is 1/8” monaural (3.5mm).

Cassette compartment

15 Number buttons– Press to select desired channels

for viewing or recording. To select channels from 1 to 9, first press the 0 button and then 1 to 9.

+100 button– When selecting cable channels which

are higher than 99, press this button first, then press the last two digits. (To select channel 125, first press the “+100” button then press “2” and “5”).

ANT.

2726

MENU button– Press to display the main menu on

the TV screen.

DISPLAY button– Display the counter or the cur-

rent channel number and current time on the TV screen. (See page 25.)

SPEED button– Press to choose the desired

recording speed:SP/SLP.

T-PROG. CLEAR button– Press to cancel a setting

of timer program. (See page 23.)

COUNTER RESET button– Press to reset counter

to 0:00:00.

GAME button– Sets the game mode and external

input mode at the same time. (See page 14.)

SLOW button– Press to start slow motion playback.

The slow speed can be controlled by pressing the F.FWD button (faster) or the REW button (slower). (only on the remote control).

22 PAUSE/STILL button– Press to temporarily stop

the tape during the recording or to view a still picture during playback.

Frame Advance function– Press to advance the

picture one frame at a time during Still mode.

MUTE button– Mutes the sound. Press it again to

resume sound.

CHANNEL RETURN button– Press to go back to

the previously viewed channel. For example, pressing this button once will change channel display from 3 (present channel) to 10 (previously viewed channel), and pressing it a second time will return from 10 to 3.

WAKE UP/SLEEP button– Sets the Wake up or

Sleep Timer. (See page 23 and 24.)

Power cord– Connect to a standard AC outlet

(120V/60Hz).

ANT. terminal– Connect to an antenna or cable

system.

- 8 - EN

9I03

Satellite Box or Cable Box (Not supplied)

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

From Cable System or Satellite Dish

OUT

Rod Antenna (Supplied with 13” model only)

VHF/UHF Antenna (Not supplied)

VHF Antenna (Not supplied)

From Cable System

75-ohm Coaxial Cable (Not supplied)

ANT.

VHF/UHF COMBINED ANTENNA

The VHF/UHF Rod Antenna (supplied with 13” model only) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/VCR.Connect the VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/VCR as shown in the diagram. For the best reception, fully extend the VHF/UHF Rod Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

Before plugging the Rod antenna into antenna terminal, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into antenna terminal.

Bent pin

Cable Plug

(Needs to be straightened)

NOTE:

The connection of an indoor antenna may not always give acceptable TV reception.

(Straight pin)

UHF Antenna

VHF/UHF Combiner

(Not supplied)

Flat twin-lead cable

(Not supplied)

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/VCR without a converter box.

By using this connection you can:

1) Use the TV/VCR remote to select channels.

2) Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This unit will ONL

Y record and view the

same channel.

CABLE WITH CONVERTER/ DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown in the diagram.

By using this connection you can also record scrambled channels. However, channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/VCR Remote Control. Unattended timer recording is limited to one channel at a time.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

- 9 - EN

9I03

TO RECORD A SCRAMBLED/UNSCRAMBLED CHANNEL

1) Set the TV/VCR channel selector to the output channel of the Cable Converter Box or Satellite Box. (Example: CH3)

2) Select the channel to record from your Cable Converter Box or Satellite Box.

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

EXTERNAL INPUT MODE

3)Replace the cover.

When using an external input signal (another VCR or video camera), connect the player’s audio/video output cables to the AUDIO IN/ VIDEO IN jacks of your TV/VCR. Then press the CHANNEL K or L button until “AUX” appears on the screen.

NOTE: “AUX” is found below the lowest memorized channel.

AUX

(Example: CH2)

SET UP FOR USE

You can program the tuner to scan all the channels you receive in your area. NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just

select the TV/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3). Then select the channel to be viewed on the Cable Box or Satellite Box.

CHANNEL SET UP FOR THE

FIRST TIME

1 Plug in the TV/VCR power cord

Plug the TV/VCR power cord into a standard AC outlet.

NOTE:

If some digits appear in the corner of

•

the screen, press the POWER button without unplugging the power cord.

2 Turn on the TV/VCR

Press the POWER button to turn on the TV/VCR

3 Select “ENGLISH” or “ESPAÑOL”

Select “ENGLISH” or “ESPAÑOL”=Spanish using the F.FWD/B or REW/s button. “[ ]” indicate the selected language.

– SET UP –

B LANGUAGE

[ENGLISH] ESPAÑOL

AUTO PRESET

4 Begin auto preset

Press the PLAY/K or STOP/L button to point to “AUTO PRESET”.

Then press the F.FWD/B button.

– SET UP –

LANGUAGE [ENGLISH] ESPAÑOL

B AUTO PRESET

The tuner scans and memorizes all active channels in your area.

NOTES:

The TV/VCR distinguishes between standard TV

•

channels and cable channels. If you want to play or record a video tape

•

BEFORE presetting the tuner, you must press the MENU button on the remote control. To preset the tuner again, see “CHANNEL SET UPAGAIN” on page 12.

The TV/VCR may memorize TV channels as

•

CATV channels if reception conditions are poor. If this happens, try the AUTO MEMO action again when reception conditions are better.

5 After scanning

The tuner stops on the lowest memorized channel. If you want to recall the selected channels, you can

select the desired channel directly with the remote control number buttons or CHANNEL K or L button.

- 10 - EN

9I03

TO SELECT A DESIRED CHANNEL

You can select the desired channel by using the CHANNEL K or L button or directly pressing the number buttons on the remote control.

Note for using the number buttons:

When selecting cable channels which are higher

•

than 99, press the +100 button first, then, press the last two digits. (Example: to select channel 125, first press the +100 button then press “2” and “5”).

You must proceed single-digit channel numbers

•

with a zero (Example: 02 ... 09).

1 Select “SETTING CLOCK”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “SETTING CLOCK”.

Then, press the F.FWD/B button.

2 Set “AUTO CLOCK” to [ON]

Press the F.FWD/B or REW/s button repeatedly until [ON] appears.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

B AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

MANUAL CLOCK SET

D.S.T. [OFF]

CLOCK SET UP

(AUTO / MANUAL)

Set the clock accurately for proper automatic timer recording. If the Public Broadcasting Station (PBS) is available in your area, follow “AUTO CLOCK SETTING”. If it is not, follow “MANUAL CLOCK SETTING”.

AUTO CLOCK SETTING

You can have the TV/VCR set the clock automatically by using the Public Broadcasting Station (PBS) channel in your area. Once you have set the clock by using the following procedure, the TV/VCR will automatically monitor the correct time and date being broadcast by the PBS station in your area, using a new service called Extended Data Service (XDS).

Make sure ...

TV/VCR power must be turned on.

•

Confirm that the antenna connections are correct.

•

The cable converter box must be turned on if your

•

TV/VCR is connected directly to it. (See NOTES:) The channel is properly set in advance.

•

NOTES:

Auto clock setting only needs to be set once. But it

•

can be done again if the clock’s time has become incorrect for some reason.

If the TV/VCR is connected directly to a cable

•

converter box or satellite box, the local PBS station must be selected on the cable box itself, and the TV/VCR must be set to the output channel of the cable converter box or satellite box (usually channel 3 or 4), to be able to set up or correct the clock automatically.

If you do not know what your local PBS station is, then follow “Manual Clock Settings”.

The TV/VCR cannot control the channels of the cable converter box or satellite box.

3 Enter the channel number for the PBS station

Press the PLAY/K or STOP/L button to point to “AUTO CLOCK CH”.

Then press the F.FWD/B or REW/s button until the channel number for your local PBS station appears.

If you do not know the PBS channel number, leave it set to [AUTO] which is located before [2]. The TV/VCR will search automatically all available channels for the local PBS station, and will select that channel.

– SETTING CLOCK –

AUTO CLOCK [ON]

B AUTO CLOCK CH [AUTO]

MANUAL CLOCK SET

D.S.T. [OFF]

4 Exit the Auto Clock Setting

Press the MENU button on the remote control to return to TV mode.

5 Turn off the TV/VCR

Turn the TV/VCR off. The Auto Clock functions automatically while the TV/VCR is off.

If you choose [AUTO],

The TV/VCR must search until the PBS channel is

•

found. It must scan each channel for a couple of seconds to determine if that channel is transmitting the XDS signal.

If the time that is automatically set by this selected

•

PBS station is incorrect, it may not be your local PBS station, but one from a different time zone. Or if no channel is broadcasting the XDS signal in your area, no time will show. In these cases, you must manually enter the correct local PBS station, or set the clock manually and turn off the Auto Clock Setting feature.

MANUAL CLOCK SETTING

Make sure ...

TV/VCR power must be turned on.

•

In the example below, the clock is to be set to:

DATE May 7th, 2002 SETTING TIME 5:40PM

- 11 - EN

9I03

1 Select “SETTING CLOCK”

Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to “SETTING CLOCK”.

Then, press the F.FWD/B button.

2 Select “MANUAL CLOCK

SET”

Press the PLAY/K or STOP/L button to point to “MANUAL CLOCK SET”.

Then, press the F.FWD/B button.

3 Select the month

Press the PLAY/K or STOP/L button until your desired month appears. (Example: May → 05)

Then, press the F.FWD/B button.

4 Select the day

Press the PLAY/K or STOP/L button until your desired day appears. (Example: 7th → 07)

Then, press the F.FWD/B button.

5 Select the year

Press the PLAY/K or STOP/L button until your desired year appears. (Example: 2002)

Then, press the F.FWD/B button.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

B MANUAL CLOCK SET

D.S.T. [OFF]

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / – – – – – – – – –

HOUR MINUTE

– – : – – – –

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 7 – – – – – – –

HOUR MINUTE

– – : – – – –

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 7 TUE 2 0 0 2

HOUR MINUTE

– – : – – – –

NOTE:

When unplugging the AC cord or if there is a power failure for more than 3 seconds, you may have to reset the clock.

TO CHANGE CLOCK SETTING

If you want to change the clock,

1)Follow steps [1] and [2].

2)Select where you want to change using the F.FWD/B or REW/s button.

3)Enter correct numbers using the PLAY/K or STOP/L button.

4)Press the MENU button on the remote control to start the clock.

PLEASE NOTE:

If there is no local PBS station in your area or on your cable system, select “AUTO CLOCK” and press the F.FWD/B or REW/s button to turn [OFF] this function. Then you can manually adjust the clock.

CHANNEL SET UP AGAIN

Make sure ...

Press the POWER button to turn on the TV/VCR.

•

1 Select “CHANNEL SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “CHANNEL SET UP”.

Then, press the F.FWD/B button.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

6 Select the hour

Press the PLAY/K or STOP/L button until your desired hour appears. (Example: 5, PM)

Then, press the F.FWD/B button.

7 Select the minute

Press the PLAY/K or STOP/L button until the desired minute appears. (Example: 40)

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 7 TUE 2 0 0 2

HOUR MINUTE

0 5 : – – PM

– MANUAL CLOCK SET –

MONTH DAY YEAR

0 5 / 0 7 TUE 2 0 0 2

HOUR MINUTE

0 5 : 4 0 PM

8 Start the clock

Press the MENU button on the remote control.

Although seconds are not displayed, they begin counting from 00 when you press the MENU button on the remote control. Use this feature to synchronize the clock with the correct time.

2 Begin auto preset

Press the PLAY/K or STOP/L button to point to “AUTO PRESET”.

– CHANNEL SET UP –

ADD / DELETE CH (TV)

B AUTO PRESET

Then, press the F.FWD/B button. The tuner scans and memorizes all

the active channels in your area.

3 After scanning

The tuner stops on the lowest memorized channel.

DELETING (OR ADDING)

5:40 PM

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can add the deleted channel into the memory again.)

- 12 - EN

CHANNEL

9I03

1 Select “CHANNEL SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “CHANNEL SET UP”.

Then, press the F.FWD/B button.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK

B CHANNEL SET UP

USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select “ENGLISH” or “ESPAÑOL”

Select “ENGLISH” or “ESPAÑOL”= Spanish using the F.FWD/B or REW/s button.

3 Exit the Language mode

Press the MENU button on the remote control to return to TV mode.

2 Select “ADD/DELETE CH”

Press the PLAY/K or STOP/L button to point to “ADD/DELETE

– CHANNEL SET UP –

B ADD / DELETE CH (TV)

AUTO PRESET

CH”. Press the F.FWD/B button.

3 Enter the desired channel number

Press the PLAY/K or STOP/L button until your desired channel number appears. (You can also use the number buttons or the CHANNEL K/L button to enter it.) (Example:

ADD / DELETE

CH8)

4 Delete (or add) it from (into) memory

Press the F.FWD/B or REW/s button. The channel number changes to light red. The channel is deleted from memory.

To delete another channel, repeat steps [3] and [4].

•

If you press the F.FWD/B or REW/s button

•

again, the channel is memorized again.

Added channel: Light blue. Deleted channel: Light red.

5 Exit the channel setup mode

Press the MENU button on the remote control to returns to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press the CHANNEL K or L button.

SELECTING THE LANGUAGE

Make sure ...

Press the POWER button to turn on the TV/VCR.

•

NOTE: This function effects only the language on the screen menu and not the audio source.

1 Select “LANGUAGE”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “LANGUAGE”.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP

B LANGUAGE [ENGLISH]

CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

NOTE: If for some reason the menu is in Spanish, press the MENU button on the remote control, press the PLAY/K button to point to “IDIOMA [ESPAÑOL]”, then press the F.FWD/B button, then press the MENU button on the remote control.

DAYLIGHT-SAVING TIME

Select this feature and the TV/VCR’s clock automatically will advance one hour in April, then reverse one hour in October.

When Daylight-Saving Time is ON, the clock will change automatically as follows:

First Sunday of April : At 2 AM the clock imme-

•

diately changes to 3 AM. Any timer programming you have set to occur between 2 AM and 3 AM will not record.

Last Sunday of October : At 2 AM the clock

•

immediately changes to 1 AM.

Make sure ...

Press the POWER button to turn on the TV/VCR.

•

1 Select “SETTING CLOCK”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “

SETTING CLOCK

”.

Then, press the F.FWD/B button.

2 Set “D.S.T.” (Daylight-Saving Time) to [ON]

Press the PLAY/K or STOP/L button to point to “D.S.T.”.

Then, press the F.FWD/B or REW/s button until [ON] appears.

3 Exit the Daylight-Saving Time mode

Press the MENU button on the remote control to return to TV mode.

TO CANCELTHE DAYLIGHT-SAVING TIME

Repeat steps [1] to [2], select [OFF] using the F.FWD/B or REW/s button.Then, press the MENU button on the remote control to return to TV mode.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL

B SETTING CLOCK

CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

– SETTING CLOCK –

AUTO CLOCK [ON]

AUTO CLOCK CH [AUTO]

MANUAL CLOCK SET

B D.S.T. [ON]

- 13 - EN

9I03

TV OPERATION

WATCHING A TV PROGRAM

1 Turn on the TV/VCR

Press the POWER button to turn on the TV/VCR.

2 Select the channel number

Press the CHANNEL K or L button to select your desired channel number or press the number buttons on the remote control.

Remember: If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be viewed must be selected on the cable box or satellite box.

3 Adjust sound

Press the VOLUME XXor YYbutton to adjust the volume.

VOLUME 20

C C C C C C C C C C C C

GAME MODE

This function enables you to decrease the TV screen contrast and making it suitable for use with a TV GAME.

NOTE: This function can not be set during recording.

Press the GAME button on the remote control. “GAME” appears on the screen.

GAME

PICTURE CONTROL

The TV/VCR’s picture controls – BRIGHT, CONTRAST, COLOR, TINT and SHARPNESS – are

preset to factory specifications. Although they are usually the best, you may need to make some further adjustments for a natural looking image.

NOTES:

Procedures must be followed within 5 seconds or

•

the Picture Control mode will be cancelled. When setting the Picture Control, the Game mode

•

will be cancelled.

Make sure ...

TV/VCR power must be turned on.

•

1 Select “PICTURE CONTROL”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to ”PICTURE CONTROL”.

Then, press the F.FWD/B button.

2 Select item you want to adjust

Press the PLAY/K or STOP/L button until desired control is displayed.

BRIGHT CONTRAST COLOR TINT SHARPNESS

– M E N U –

TIMER PROGRAMMING

B PICTURE CONTROL

SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

BRIGHT

PP PP PPPP PP PP PP CC PP PP PP PP PP PP PP

–

When you press the GAME button;

The TV/VCR comes on automatically if it is off.

•

The TV/VCR will be in external input mode auto-

•

matically.

TO CANCELTHE GAME MODE

Press the GAME button or CHANNEL K or L button on the remote control.

DEGAUSSING

Magnetism from nearby appliances might affect the color of the TV picture.

If this happens, move this unit away from the appliance. If the color is still not correct, disconnect power cord from AC outlet then reconnect it after 30 minutes.

3 Adjust the picture control

Press the F.FWD/B or REW/s button to adjust to your desired level.

REW/s F.FWD/B

BRIGHT to decrease to increase

brightness brightness

CONTRAST to decrease to increase

contrast contrast

COLOR to pale to brilliant TINT to purple to green

SHARPNESS to soft to clear

If there is a power failure of any kind, the unit will

•

retain its memory for this feature.

- 14 - EN

9I03

CLOSED CAPTION SYSTEM

You can view specially labeled (cc) TV programs, movies, news, pre-recorded tapes with either a dialogue caption or text display.

CAPTION mode: By choosing the caption mode, you

can watch dramas, movies and news while captioning the dialogues and the contents of news.

TEXT mode: By choosing the text mode, you can

watch half screen text information if you want.

1-2: You may get these captions or text information

by selecting either “1” or “2”. Caption “2” is usually used for a second language if available.

NOTE:

Not all programs are broadcast with closed captions. Your television is designed to provide error free closed captions from high quality antenna, cable and VCR signals. Conversely, poor quality signals are likely to result in caption errors or no captions at all. Common signal conditions which may cause captions errors are listed below:

Automobile ignition noise

•

Electric motor brush noise

•

Weak snowy reception on TV screen

•

Multiplex signal reception displaying picture

•

ghosts or airplane flutter. Playback of poorly recorded or worn VCR tapes.

•

NOTE:

If the TV/VCR displays a black box on the TV screen, this means that the TV/VCR is set to the TEXT mode. To clear screen, select [CAPTION1], [CAPTION2] or [OFF].

Make sure ...

TV/VCR power must be turned on.

•

1 Select “CAPTION”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “CAPTION”.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [OFF]

ZERO RETURN TIME SEARCH

INDEX SEARCH

TO CANCELTHE CLOSED CAPTION SYSTEM

Repeat steps [1] and [2], select [OFF] using the F.FWD/B or REW/s button. Press the MENU button on the remote control to return to TV mode.

WHEN THE CLOSED CAPTION MODE IS ON

The On-Screen Display will disappear after 5 seconds.

This is also true when the MUTE button is pressed,

•

and when the PAUSE/STILL button is pressed while recording.

If there is a power failure of any kind, the unit will

•

retain its memory for this feature.

V-CHIP SET UP

V-CHIP enables parents to prevent their children from watching inappropriate material on TV.

V-CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program’s rating meets the limitations you select. In this case, “PROTECTED PROGRAM by ...” message appears on the TV screen. You can watch the protected program by entering access code (default 0000).

To block certain ratings, follow the steps below.

Programming may be rated by the Motion Picture

•

Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).

TV RATING SET UP

Make sure ...

TV/VCR power must be turned on.

•

1 Select “V-CHIP SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “V-CHIP SET UP”.

Then, press the F.FWD/B button.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP

B V-CHIP SET UP

LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

2 Select your desired caption menu

Press the F.FWD/B or REW/s button until your desired caption menu appears.

([CAPTION1], [CAPTION2], [TEXT1] or [TEXT2])

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH]

B CAPTION [CAPTION1]

ZERO RETURN TIME SEARCH INDEX SEARCH

3 Exit the caption setting mode

Press the MENU button on the remote control to return to TV mode.

2 Input Access code

Use the number buttons to enter 4digit access code. The default code

ACCESS CODE

_ _ _ _

is 0000.

3 Select “TV RATING”

Press the PLAY/K or STOP/L but-

– V-CHIP SET UP –

B TV RATING

MPAA RATING CHANGE CODE

ton to point to “TV RATING”. Then, press the F.FWD/B button.

- 15 - EN

9I03

4 Select your desired item

Press the PLAY/K or STOP/L button to point to your desired item.

Then, press the F.FWD/B button to select [BLOCK] or [VIEW].

When you select the rating category and turn it

•

[BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

When you turn “TV-Y” to [VIEW], then all ratings

•

will turn to [VIEW] automatically.

Selection Rating Category Explanations

TV-Y Appropriate for all children TV-Y7 Appropriate for children seven and older TV-G General Audience TV-PG Parental Guidance suggested. TV-14 Unsuitable for children under 14

TV-MA Mature audience only

When you select TV-Y7, TV-PG, TV-14, or TV-MA and you press the F.FWD/B button, the sub-ratings will appear on the TV screen.

If you select the rating category (example: TV-PG) and turn it [BLOCK] or [VIEW], the sub-ratings (example: V for Violence) will turn [BLOCK] or [VIEW] automatically.

You can set the sub-ratings to [BLOCK] or [VIEW] individually when the rating category is set to [BLOCK].

To set the sub-ratings individually, follow the steps below.

When you select [TV-Y7]:

•

Press the STOP/L or PLAY/K button to select “FV” (Fantasy Violence). Then, press the F.FWD/B button to select [BLOCK] or [VIEW].

When you select [TV-PG], [TV-

•

14] or [TV-MA]:

Press the STOP/L or PLAY/K button to select “D”(Suggestive Dialog), “L”(Coarse Language), “S”(Sexual Situation), or “V”(Violence). Then, press the F.FWD/B button to select [BLOCK] or [VIEW].

Note: When you select [TV-MA], “D” does not appear on the TV screen.

The sub-ratings which set to

•

[BLOCK] appears next to the rating category in the TV RATING menu.

B TV–Y [VIEW]

TV–Y7 ( ) [VIEW] TV–G [VIEW] TV–PG ( ) [VIEW] TV–14 ( ) [VIEW] TV–MA( ) [VIEW]

TV–Y7 [BLOCK]

B FV [BLOCK]

TV–PG [BLOCK]

B D [BLOCK]

L [BLOCK] S [BLOCK] V [BLOCK]

B TV–Y [VIEW]

TV–Y7 ( ) [VIEW] TV–G [VIEW] TV–PG (DLSV) [BLOCK] TV–14 (DLSV ) [BLOCK] TV–MA ( LSV) [BLOCK]

5 Exit the V-Chip setting mode

Press the MENU button on the remote control to return to original mode.

MPAA RATING SET UP

Make sure ...

TV/VCR power must be turned on.

•

1 Select “V-CHIP SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “V-CHIP SET UP”.

Then, press the F.FWD/B button.

Use the number buttons to enter 4digit access code. The default code

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP

B V-CHIP SET UP

LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

ACCESS CODE

_ _ _ _

is 0000.

3 Select “MPAA RATING”

Press the PLAY/K or STOP/L but-

– V-CHIP SET UP –

TV RATING

B MPAA RATING

CHANGE CODE

ton to point to “MPAA RATING”. Then, press the F.FWD/B button.

4 Select your desired item

Press the PLAY/K or STOP/L button to point to your desired item.

Then, press the F.FWD/B button to select [BLOCK] or [VIEW].

Selection Rating Category Explanations

G General Audience PG Parental Guidance suggested. PG-13 Unsuitable for children under 13 R Restricted; under 17 requires accompa-

nying parent or adult guardian

NC-17 No one under 17 admitted X Mature audience only

When you select the rating category and turn it

•

[BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.

When you turn “G” to [VIEW], then all ratings

•

will turn to [VIEW] automatically.

G [VIEW] PG [VIEW] PG–13 [VIEW]

B R [BLOCK]

NC–17 [BLOCK] X [BLOCK]

5 Exit the V-Chip setting mode

Press the MENU button on the remote control to return to original mode.

- 16 - EN

9I03

CHANGE ACCESS CODE

To change access code, follow the steps.

Press the MENU button so that the TV/VCR SETUP display appears on the TV screen.

– M E N U –

TIMER PROGRAMMING

Press the PLAY/K or STOP/L button to point to "V-CHIP SET UP". Then, press the F.FWD/B button.

Use the number buttons to enter 4digit access code. The default code is 0000.

PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP

B V-CHIP SET UP

LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

ACCESS CODE

_ _ _ _

Press the MENU button to exit the TV/VCR SETUP.

Note:

If you unplug the power code or power failure

•

occurs, the changed access code will be lost and will return to default (0000). Change your access code again as necessary.

FM MODE (SRC22134 only)

This function enables you to receive FM radio broadcasting.

1 Set the FM mode

Press the TV/FM button on the remote control. The radio frequency appears on the TV screen.

FM 88.0 MHz

Press the PLAY/K or STOP/L button to point to "CHANGE CODE". Then, press the F.FWD/B button.

Use the number buttons to enter your desired access code in the NEW CODE space. Then enter the same code in the CONFIRM CODE space. V-CHIP SET UP screen appear on the screen.

If you enter wrong code, repeat

•

step 5, making sure you enter the same new code exactly in the confirm code space.

– V-CHIP SET UP –

TV RATING MPAA RATING

B CHANGE CODE

NEW CODE

CONFIRM CODE

NEW CODE

CONFIRM CODE

_ _ _ _

X X X X

_ _ _ _

Select the radio frequency you want to receive

Press the CHANNEL K or L button until your desired radio frequency appears.

NOTES:

FM mode is not available for model SRC22194.

•

The radio frequency indication repeats to appear

•

and disappear. You can not record the FM radio wave broadcast-

•

ing. If you receive a weak radio signal, you may change

•

the FM Antenna mode to INT(internal) or EXT(external) by following the step below.

1)Press the MENU button. Press the PLAY/K or STOP/L button to point to “CHANNEL SET UP”. Then, press the F.FWD/B button.

2)Press the PLAY/K or STOP/L button to point to “FM ANTENNA”. Select [INT] or [EXT] using the F.FWD/B or REW/s button.

PLAYBACK

This TV/VCR will operate with any cassette that has the mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

INSERTING A CASSETTE

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the TV/VCR. The TV/VCR will automatically turn on.

Window

CORRECT

WRONG

PRECAUTIONS

Avoid moisture. Moisture condensation may occur

•

on the tape if it is moved from a cold place to a warm place or visa versa. Before using a tape with these conditions, to avoid damage of the tape and your TV/VCR, wait until the tape has warmed to room temperature and the moisture has evaporated.

Avoid extreme heat, high humidity and magnetic

•

fields. Do not tamper with the cassette mechanism.

•

Do not touch the tape with your fingers.

•

- 17 - EN

9I03

NORMAL PLAYBACK

Make sure ...

TV/VCR power must be turned on.

•

1 Insert a prerecorded tape

If the erase-protection tab has been removed, the TV/VCR will start playback automatically.

2 To begin playback

PLAY

Press the PLAY button. Note: If any menu is activated on

the screen, the PLAY button does not function. Press the MENU button to clear the menu, then press the PLAY button.

3 To stop playback

Press the STOP button when playback is completed.

AUTO REPEAT PLAYBACK

The TV/VCR has an auto repeat function that allows you to repeat a tape indefinitely without touching the PLAY button.

ALL REPEAT: Repeat playback from the beginning

to the end of the tape.

BLANK REPEAT: Repeat playback from the begin-

ning to a blank part of more than 10 seconds.

1 Select “USER’S SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “USER’S SET UP”.

Then, press the F.FWD/B button.

2 Select “ALL” or “BLANK”

Press the PLAY/K or STOP/L button to point to “REPEAT PLAY”.

Press the F.FWD/B or REW/s button repeatedly until your desired selection [ALL] or [BLANK] appears.

3 Exit the Repeat Play setting

Press the MENU button on the remote control to return to the TV mode.

4 Start playback

Press the PLAY button to start the Repeat Play. ”REPEAT PLAY B” appears.

Once you select the Repeat Play mode, it stays in

•

effect even after you turn off the TV/VCR. If the Rental mode is set [ON], the “RENTAL

•

PLAY B” display has priority.

TO CANCELTHE REPEAT PLAY MODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/B or REW/s button on the remote control. Press the MENU button on the remote control to return to TV mode.

If there is a power failure of any kind, the unit will retain its memory for this feature.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

USER’S SET UP

–

RENTAL [OFF]

B REPEAT PLAY [ALL]

AUTO RETURN [OFF]

–

PICTURE SEARCH

This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted.

1)You may view a video tape at a high speed in either a forward or reverse direction by pressing the F.FWD or REW button during playback (in the SP / LP / SLP modes).

2)Press it again and the TV/VCR will now search in super high speed (in the LP / SLP modes only).

NOTE: Tapes recorded in the SP or LP mode will display a noise bar on the TV screen and the picture may revert to Black and White. This is normal.

3)Press the PLAY button to return to normal speed.

ZERO RETURN

This function allows you to search easily a beginning point that you want to review by rewinding or fast forwarding.

NOTE: Zero Return WILL

NOT work on a blank tape or a

blank portion of a tape.

1 Stop a tape at your desired point

Rewind or fast forward the tape to the beginning point from which you want to review.

2 Reset the counter to 0:00:00

Press the COUNTER RESET button repeatedly.

3 Begin recording or playback

Press the RECORD or PLAY button. Press the STOP button when recording or playback is

completed.

4 To activate “ZERO RETURN” mode

Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to

“ZERO RETURN”. Then, press the F.FWD/B button. The counter will appear on the TV

screen. The tape will automatically stop

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

B ZERO RETURN

TIME SEARCH INDEX SEARCH

when the counter returns to 0:00:00.

TIME SEARCH

The Time Search function makes it possible to quickly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip.

- 18 - EN

9I03

NOTES:

Time Search can be set up to a maximum of 9

•

hours 50 minutes (9:50) by 10 minutes at a time. This function will not operate in recording mode.

•

In the example below: To watch a program that is 2 hours, 50 minutes from the present tape position, in either direction.

1 Insert a tape.

SLOW MOTION

Press the SLOW button to reduce the playback speed. The TV/VCR mutes the sound during slow motion. Press the PLAY button to return to normal playback.

NOTE: If left in the Slow mode for more than five minutes, the TV/VCR will automatically go into the Stop mode.

2 Select “TIME SEARCH” mode

Press the TIME SEARCH button (with each push it will increase by 10 minutes).

3 Enter your desired time

Press the PLAY/K or STOP/L but-

TIME SEARCH

2 : 50

ton until your desired time appears. (Example: “2:50” stands for 2 hours 50 minutes)

If you wish to cancel the Time Search at this point, press the MENU button on the remote control.

4 Begin Time Search

By pressing the REW/s or F.FWD/B button, the TV/VCR will rewind or fast forward to the specified point.

The time counts down as the searching progresses. When 0:00 is reached, the tape will start playback automatically.

TO CANCELTHE TIME SEARCH at this point

Press the STOP/EJECT button on the TV/VCR or the remote control. This will delete the selected time.

INDEX SEARCH

An index signal is recorded on the tape automatically when the recording is started. To view a recording at a specific start point:

1)Press the MENU button on the remote control. Press the PLAY/K or STOP/L button to point to “INDEX SEARCH”, then press the F.FWD/B button.

2)Press the PLAY/K or STOP/L button within 30 seconds until the number of programs that you want to skip appears.

3)Press the F.FWD/B or REW/s button to start index search. If you want to go forward, press the F.FWD/B button. If you want to go back, press the REW/s button.

After index search, the TV/VCR will play the tape

•

automatically. In some cases, the index mark at the beginning of

•

video tape cannot be detected.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH

B INDEX SEARCH

RENTAL PLAYBACK

This function enables you to improve the picture quality when playing back worn cassettes such as rented tapes.

1 Select “USER’S SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “USER’S SET UP”.

Then, press the F.FWD/B button.

2 Set “RENTAL” to [ON]

Press the PLAY/K or STOP/L button to point to “RENTAL”.

Press the F.FWD/B or REW/s button until [ON] appears.

3 Exit the Rental setting

Press the MENU button on the remote control to return to the TV mode.

4 Start playback

Press the PLAY button to start playback. “RENTAL PLAY B” appears.

Once you select the Rental mode, it stays in effect

•

even after you turn off the TV/VCR.

TO CANCELTHE RENTALMODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/B or REW/s button on the remote control. Press the MENU button on the remote control to return to TV mode.

If there is a power failure of any kind, the unit will retain its memory for this feature.

- 19 - EN

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

USER’S SET UP

–

B RENTAL [ON]

REPEAT PLAY [OFF] AUTO RETURN [OFF]

–

9I03

VERTICAL HOLD CONTROL

TRACKING ADJUSTMENT

In the Pause/Still mode only, when the picture begins to vibrate vertically, stabilize the picture by pressing the CHANNEL K or L button.

NOTE:

If there are video noise lines on the screen, see Tracking Adjustment section.

STILL PICTURE

You can view a still picture on the TV screen during playback (the Still mode). Press the PAUSE/STILL button during playback. Only tapes recorded in the SLP mode will show the least amount of lines. Press the PLAY button to return to playback.

NOTES:

You can advance the picture one frame at a time by

•

pressing the PAUSE/STILL button during the Still mode.

If it is left in the Still mode for more than five min-

•

utes, the TV/VCR will automatically switch to the Stop mode.

RECORDING

Before recording, make sure:

The desired channel is selected by pressing the number buttons on the remote control or the CHANNEL Up/Down button. (If the TV/VCR is connected to a cable box or satellite box, the TV/VCR must be on CH3 or CH4, then the channel to be recorded is selected on the cable box or satellite box. )

There is a tape with its safety tab into the VCR. The desired recording speed is selected in SP(stan-

dard play) or SLP(super long play) mode by pressing the TAPE SPEED button on the VCR.

Tape Speed Recording/Playback Time

Type of tape

SP mode 1 hour 2 hours 2-2/3 hours SLP mode 3 hours 6 hours 8 hours

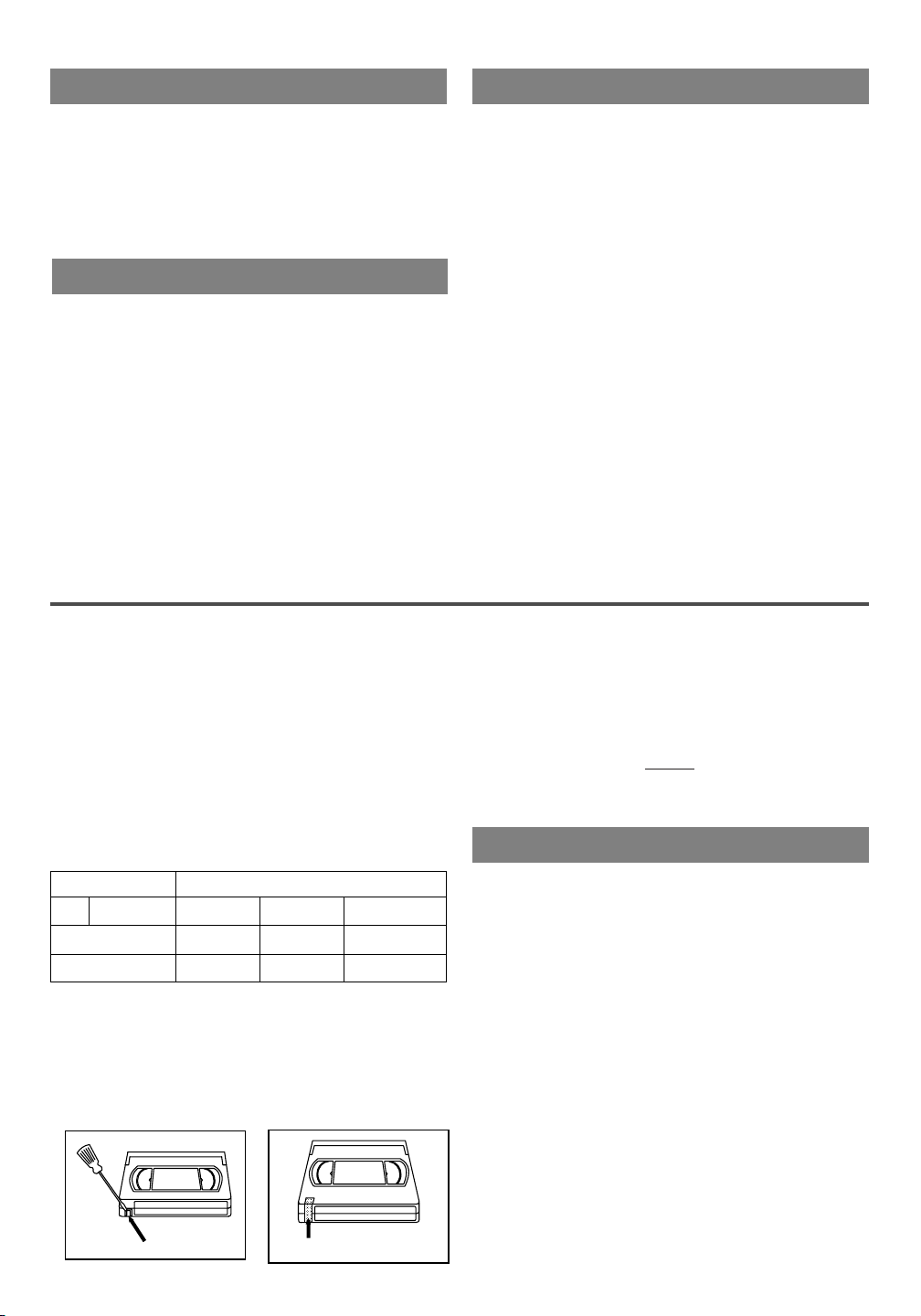

ERASE PREVENTION

You can prevent accidental erasing of recording by breaking off the tab on the back edge of the cassette.

T60 T120 T160

If you decide to record on the tape again, cover the hole with plastic tape.

Tracking adjustment will be set automatically

•

(Digital Tracking function) when you start playback.

However when playing pre-recorded tapes or tapes

•

recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, you can adjust the tracking control manually by pressing the CHANNEL K or L button until the streaks disappear. To return to the DTR function, stop the tape once and start playback again.

You can reduce the noise lines by pressing the

•

CHANNEL K or L button in slow mode, too. Tracking adjustment in Slow mode will not be set automatically.

NOTE:

In Still mode, press the SLOW button and press the

•

CHANNEL K or L button until streaks disappear. To return to Still mode, press the PAUSE/STILL button again.

Make sure ...

TV/VCR power is turned on.

•

Insert a cassette tape with its erase prevention tab

•

in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

NOTE: This unit will ONL same channel.

Y record and view the

NORMAL RECORDING

1)Begin the recording by pressing the RECORD button.

To temporarily stop recording or resume it, press the PAUSE/STILL button. After the VCR has been in Pause mode for 5 minutes, it will stop automatically to protect the tape and the video head.

NOTES:

After five minutes, the TV/VCR will automatically

•

switch to the Recording mode to prevent tape damage.

If “CLOSED CAPTION (ON)” is selected, the

•

On-Screen Display will appear for 5 seconds, then disappear.

2)Stop the recording by pressing the STOP button when recording is completed.

Ta b

Plastic Tape

- 20 - EN

9I03

9:00AM 10:00AM 12:00PM

Program 1 10:00AM-11:00AM Program 2 9:00AM-10:00AM Program 3 9:30AM-12:00PM

11:00AM

Recording Sequence

*Recording period is SHADED

OTR (One Touch Recording)

This function enables you to set the recording length simply by pressing the REC/OTR button on the VCR.

1)Begin OTR by pressing the

OTR(2 : 30)

REC/OTR button on the VCR repeatedly until the desired recording length appears.

Recording stops when 0:00 is

reached.

NOTES:

This function CANNOT be done from the remote

•

control. To stop the OTR operation, press the STOP button

•

on the TV/VCR or on the remote control. If the tape runs out before the end time, the

•

TV/VCR will switch to the Stop mode immediately, eject the tape and turn itself off.

Push(es) Display Recording length

1 push (continuous recording) 2 pushes 0:30 30 minutes 3 pushes 1:00 60 minutes 4 pushes 1:30 90 minutes

17 pushes 8:00 480 minutes

TIMER RECORDING

Avoid overlap of programs ...

There is a chance that a program will not be recorded. When programs overlap:

The program with the earliest start time will record

•

first. Once the earliest program finishes recording, the

•

overlapping programs will record in the order of the program number.

The illustration below demonstrates the sequence

•

of recording.

1 Select “TIMER PROGRAMMING”

Press the MENU button on the remote control. Confirm “TIMER PROGRAM-

MING” is pointed to by pressing the PLAY/K button.

Press the F.FWD/B button.

If you have not yet set the clock,

•

“MANUAL CLOCK SET” appears. If so, follow stops [3] to [8] on page 11 and 12. Then set the timer recording.

– M E N U –

B TIMER PROGRAMMING

PICTURE CONTROL SETTING CLOCK CHANNEL SET UP USER’S SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

You may set the TV/VCR to start and end a recording while you are away. You can set 8 programs to record on specific days, daily or weekly within a 1 year period.

In the example below, the timer is being set to record:

DATE: July 5th, 2002 SETTING TIME: from 7:30PM to 8:50PM CHANNEL: CH61 TAPE SPEED: SP

Make sure ...

If your TV/VCR is connected to a cable or satellite

•

box, you must set the TV/VCR to channel 3 or 4 to match the output channel of the box.

Clock is set to the correct time and date before set-

•

ting the timer. TV/VCR power is turned on to program it.

•

To insert a cassette tape with its erase prevention

•

tab in place. (If necessary, rewind or fast forward the tape to the point at which you want to begin recording.)

To set the channel you want to record

•

2 Select your desired program position (1~8)

Press the PLAY/K or STOP/L button to select the desired program position.

Then, press the F.FWD/B button.

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

3 Set the channel number

Press the PLAY/K or STOP/L button until the desired channel number appears.

(Example: CH61) Then, press the F.FWD/B button.

Remember: If your TV/VCR is connected to a cable or satellite box, you must set the TV/VCR to channel 3 or 4 to match the output channel of the box.

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

4 Select once, every day or weekly recording

For once recording :

Press the PLAY/K (up) button until the desired date appears. (Example: “7/05” for July 5th). Then, press the F.FWD/B button.

- 21 - EN

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

9I03

For every day recording : To record a TV program at the same time on the same channel every day. (Example: Monday through Sunday)

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 EVRY DAY -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

Press the STOP/L (down) button until “EVRY DAY” appears. Then, press the F.FWD/B button.

10 Finish setting the program

Press the F.FWD/B or REW/s button. The program is now completed.

To set another program, repeat steps [2] to [10].

•

Press the MENU button on the remote control to

•

return to original mode.

For weekly recording : To record a TV program at the same time on the same channel every week. (Example: every Monday)

Press the STOP/L (down) button until “EVRY” and your desired day of the week appear together. Then, press the F.FWD/B button.

5 Set beginning hour

Press the PLAY/K or STOP/L button until the desired hour appears. (Example: “ 7, PM” for 7:30PM)

Then, press the F.FWD/B button.

6 Set beginning minute

Press the PLAY/K or STOP/L button until the desired minute appears. (Example: “30” for 7:30PM)

Then, press the F.FWD/B button.

7 Set end hour

Press the PLAY/K or STOP/L button until the desired hour appears. (Example: “8, PM” for 8:50PM)

Then, press the F.FWD/B button.

8 Set end minute

Press the PLAY/K or STOP/L button until the desired minute appears. (Example: “50” for 8:50PM)

Then, press the F.FWD/B button.

9 Set the tape speed

Press the PLAY/K or STOP/L button until the desired tape speed appears. (Example: SP)

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 EVRY MON -:- - -:- - - -

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI 7:12

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI 7:30

- - -/- - - - - -:- - -:- - - -

– TIMER PROGRAMMING –

CH DATE BEGIN END

- - -/- - - - - -:- - -:- - - -

- - -/- - - - - -:- - -:- - - 61 7/05 FRI 7:30

- - -/- - - - - -:- - -:- - - -

M 8:30PM - -

M 8:50PMSP

8:50

11 Set the timer

Press the POWER button to set automatic timer recording. The RECORD indicator lights up.

You must turn off the TV/VCR to activate automat-

•

ic timer recording. If power is not turned off and you continue watch-

ing TV, “TIMER REC STANDBY” starts flashing on the TV screen 2 minutes before the programmed start time.

TIMER PROGRAM EXTENSION

-:- - - -

To shift the time schedule of an automatic timer recording.

1)Press the POWER button.

2)Repeat step [1] on page 21.

3)Press the RECORD button and select the desired program using the PLAY/K or STOP/L button.

4)Press the RECORD button again. Each additional push will shift forward the

begin/end time for recording by 10 minutes. When the recording is already in progress, each additional push will shift forward the end time only. If you want to cancel while setting, press the PAUSE/STILL button on the remote control. The recording time returns to the original time.

NOTE: When you shift forward the time schedule during recording, the recording speed will automatically be set to the SLP mode.

5)Press the F.FWD/B or REW/s button to exit the setting menu. Then press the MENU button on the

remote control to return to original mode.

- -

TO CORRECT APROGRAM

While setting a program; press the REW/s but-

•

ton to go back one step and enter the correct numbers using the PLAY/K or STOP/L button.

After setting a program;

•

1)Press the POWER button.

2)Repeat steps [1] - [2] on page 21.

3)Press the F.FWD/B button (or press the REW/s

button to go back one step) until the part you want to correct begins flashing, then make the changes pressing the PLAY/K or STOP/L button.

4)Press the POWER button to set automatic timer

recording.

- 22 - EN

9I03

TO CANCELAN AUTOMATIC TIMER RECORDING

After setting a program;

•

1)Press the POWER button.

2)Repeat steps [1] ~ [2] under TIMER RECORDING, page 21, and select a program you want to cancel.

3)Press the T-PROG. CLEAR button.

4)Press the MENU button on the remote control to return to TV mode.

While recording is in progress;

•

1)Press POWER button.

2)Press the STOP/EJECT button on the

TV/VCR.

TO CHECK THE BEGIN/END TIME

1)Press the POWER button so that the REC indicator goes off.

2)Press the MENU button on the remote control.

3)Confirm “TIMER PROGRAMMING” is pointed to.

4)Press the F.FWD/B button. The details of programs appear on the TV screen.

5)Press the MENU button on the remote control to return to TV mode.

HINTS FOR AUTOMATIC

TIMER RECORDING

Make sure the channel you want to record is prop-

•

erly set in advance. It is not necessary to press the RECORD button for

•

timer recording. Recording begins automatically at the Start time.

•

If you are recording using a Timer mode, you may

•

not operate the unit manually. The erase-prevention tab on the cassette must be in

•

place (or you must put tape over the hole). If the erase-prevention tab is removed, the cassette

•

will be ejected when the POWER button is pressed to off.

If the tape runs out before the end time, the

•

TV/VCR will switch to the Stop mode immediately, and the tape will be ejected.

2 Set “AUTO RETURN” to [ON]

Press the PLAY/K or STOP/L button to point to “AUTO RETURN”.

–

RENTAL [OFF] REPEAT PLAY [OFF]

B AUTO RETURN [ON]

–

USER’S SET UP

Press the F.FWD/B or REW/s button until [ON] appears. Then, press the MENU button on the remote control to return to TV mode.

3 Auto Return will begin

When all the timer recordings are completed, the TV/VCR will rewind to the beginning of the recorded program(s).

NOTE:

If you press the POWER button while tape is

•

rewinding, the Auto Return will stop.

4 Watch the recorded program

Press the PLAY button.

TO CANCELTHE AUTO RETURN MODE

Repeat steps [1] and [2], select [OFF] using the F.FWD/B or REW/s button. Then, press the MENU button on the remote control to return to TV mode.

If there is a power failure of any kind, the unit will retain its memory for this feature.

WAKE UP TIMER

The Wake Up Timer function turns on the TV/VCR without using the POWER button after a desired period of time.

NOTES:

Use the remote control for this procedure.

•

Clock must be set to the correct time before setting

•

the timer. If you want to select [TAPE], you must insert a

•

cassette tape in the TV/VCR. The tape will start playback automatically on your desired time.

AUTO RETURN

With this feature, after timer recording is finished, the beginning of the recorded program(s) can be searched for automatically.

1 Select “USER’S SET UP”

Press the MENU button on the remote control.

Press the PLAY/K or STOP/L button to point to “USER’S SET UP”.

Then, press the F.FWD/B button.

– M E N U –

TIMER PROGRAMMING PICTURE CONTROL SETTING CLOCK CHANNEL SET UP

B USER’S SET UP

V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF] ZERO RETURN TIME SEARCH INDEX SEARCH

1 Select “WAKE UP TIMER”

Press the WAKE-UP/SLEEP button on the remote control once, and confirm “ON/OFF” is pointed.

Press the F.FWD/B or REW/s button until [ON] appears.

- 23 - EN

WAKE UP B ON/OFF [ON] TIMER TV/TAPE [TV]

TIME [12:00AM]

9I03

2 Select “TV” or “TAPE”

Press the PLAY/K or STOP/L button until it points to “TV/TAPE”.

Press the F.FWD/B or REW/s button, and select [TV] or [TAPE].

WAKE UP ON/OFF [ON] TIMER BTV/TAPE [TV]

TIME [12:00AM]

SLEEP TIMER

The Sleep Timer function turns off the TV/VCR without using the POWER button after a desired period of time.

NOTE:

This function does not operate during Recording

•

mode.

3 Set wake up time

Press the PLAY/K or STOP/L button until it points to “TIME”.

Press the F.FWD/B or REW/s button until your desired wake up

WAKE UP ON/OFF [ON] TIMER TV/TAPE [TV]

BTIME [12:00AM]

time appears. Each additional push will increase (or decrease) the

time by 10 minutes.

4 Exit the Wake Up Timer setting

Press the MENU button on the remote control to return to TV mode.

TO CANCELTHE WAKE UP TIMER

Press the WAKE-UP/SLEEP button on the remote control once, and confirm “ON/OFF” is pointed.

Press the F.FWD/B or REW/s button until [OFF] appears.

COPYING A VIDEO TAPE

You can make copies of video tapes made by friends or relatives for your enjoyment.

WARNING: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect your TV/VCR and a Source (Playing) VCR using the following diagram.

[The TV/VCR]

AUDIOVIDEO

[Ex: Source (playing) VCR or camcorder]

Audio/Video adapter cable (not supplied)

OUT

AUDIO

VIDEO

1 Select “SLEEP TIMER”

Press the WAKE UP/SLEEP button on the remote control until “SLEEP TIMER” appears.

2 Set sleep time

Press the PLAY/K, STOP/L, F.FWD/B or REW/s button until your desired sleep time appears.

Each additional push will increase

SLEEP TIMER [2:00]

the time by 30 minutes up to 120 minutes. Press the MENU button on the remote control to exit

the Sleep Timer setting.

TO CANCELTHE SLEEP TIMER

Press the WAKE UP/SLEEP button on the remote control until “SLEEP TIMER” appears.

To view the time left for sleep timer, press the WAKE-UP/SLEEP button twice, then press the MENU button on the remote control to exit the sleep timer setting.

1)Insert a pre-recorded video cassette into the Source (Playing) VCR or camcorder.

2)Insert a blank video cassette, or one you want to record over, into the TV/VCR’s cassette compartment.

3)Press the SPEED button on remote control for the TV/VCR to select the desired recording speed (SP/SLP).

4)Press the CHANNEL K or L button on the TV/VCR until “AUX” appears on the screen.

NOTE: “AUX” is found below the lowest numbered memorized channel. (Example: CH2)

5)Press the RECORD button on the TV/VCR.

6)Begin playback of the tape in the source (Playing) VCR or camcorder.

NOTE: For best results during copying, use the TV/VCR’s front panel controls whenever possible. The remote control might affect the source (Playing) VCR’s playback operation.

- 24 - EN

9I03

ON SCREEN DISPLAY

To check the Counter, Clock and Channel number on the TV screen, press the DISPLAY button on the remote control. Each time you press the DISPLAY button on the remote control, the TV screen will change as follows:

WHEN THE CLOSED CAPTION MODE IS OFF:

Counter mode: After 5 seconds, only

•

the counter remains. To clear it, press the DISPLAY button.

Clock mode: After 5 seconds, only

•

the clock and the channel number remain. To clear them, press the DISPLAY button.

Press once

COUNT 0:12:34

Press once

5:40PM

CH2

WHEN THE CLOSED CAPTION MODE IS ON:

The On Screen Display disappears after 5 seconds.

•

This is true even if the MUTE button is pressed, or the

•

PAUSE/STILL button is pressed while recording.

SPECIAL FEATURES

REAL TIME TAPE COUNTER

This shows the elapsed recording or playback time in hours, minutes, and seconds. (The displayed time will not change on a blank tape or blank portions on the tape.)The “–” indication will appear when the tape has rewound further than “0:00:00” on the tape counter.

When the end of a tape is reached during record-

•

ing, playback, or fast-forward, the tape will automatically rewind to the beginning. After rewinding finishes, the TV/VCR will eject the tape and turn itself to off.

This function is operative when Repeat Play is set

•

to the [OFF] position. The tape will not auto-rewind during timer record-

•

ing or One Touch Recording.

MAINTENANCE

CABINET CLEANING

Wipe the front panel and other exterior surfaces of

•

the TV/VCR with a soft cloth immersed in lukewarm water and wrung dry.

Never use a solvent or alcohol. Do not spray insec-

•

ticide liquid near the TV/VCR. Such chemicals may cause damage and discoloration to the exposed surfaces.

AUTO HEAD CLEANING

Automatically cleans video heads as you insert or

•

remove a cassette, so you can see a clear picture. Playback picture may become blurred or interrupt-

•

ed while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during play-

back, the video heads in your TV/VCR may need to be cleaned.

1.Please visit your local Audio/Video store and pur-

chase a good quality VHS Video Head Cleaner.

2.If a Video Head Cleaner does not solve the prob-

lem, please call our help line at 1-800-968-3429, to locate an Authorized Service Center.

NOTES:

Remember to read the instructions included with

•

the video head cleaner before use. Clean video heads only when problems occur.

•

SERVICING

Should your TV/VCR become inoperative, do not

•

try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800968-3429, to locate an Authorized Service Center.

OFF mode Clock/Counter mode

STOP 5:40 PM

SP COUNT 0:12:34

AUTO REWIND-EJECT

CH2

- 25 - EN

9I03

TROUBLESHOOTING GUIDE

If you have followed the instructions contained in this manual and have difficulty in operating your TV/VCR, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem.

PROBLEM CORRECTIVE ACTION

No power.

No picture and sound.

No picture or poor picture on TV/VCR.

No sound or poor sound.

Timer recording is not possible.

Cannot go into Record mode.

Playback picture is partially noisy.

No picture but the audio is OK in playback.

No operation by infrared Remote Control. Video or color fades in and out

when making a copy of a video tape

Make sure the AC cord is connected to an AC outlet.

•

Make sure the power is turned on.

•

Make sure the AC cord is connected to an AC outlet.

•

Check antenna connection.

•

Let the TV/VCR program its tuner memory.

•

Adjust direction or replace antenna.

•

Adjust picture controls.

•

Adjust volume control on remote control or main unit.

•

Press the MUTE button to restore sound.

•

Make sure the timer recording is set correctly.

•

Make sure the power is off.

•

Make sure the TV/VCR clock is set correctly.

•

Make sure the tape has an erase-prevention tab. If need, cover the

•

hole with plastic tape.

•

Adjust tracking control for a better picture using the CHANNEL K

•

or L button on the TV/VCR.

•

Head cleaning may be necessary. Refer to “AUTO HEAD

•

CLEANING” on page 25.

•

Make sure the AC cord is connected to an AC outlet.

•

Check batteries in remote control.

•

You can not copy a copyrighted video tape. You are experiencing

•

.•copy guard protection.

CLOSED CAPTION PROBLEM POSSIBLE REMEDY

My TV/VCR is showing captions • You are watching a live broadcast and spelling errors made by the that are misspelled. • closed captioning production company may pass through uncorrected.

• A prerecorded program will not show any misspelled words because

• of the normal time available for editing the captions.

My TV/VCR will not show the text • Captions that are delayed a few seconds behind the actual dialogue in its entirety or there is a delay of • are common for live broadcast. Most captioning production companies what is being said. • can display a dialogue to a maximum of 220 words per minute. If a

• dialogue exceeds that rate, selective editing is used to insure that the

• captions remain up-to-date with the current TV screen dialogue.

My captions are scrambled with • Interference caused by building, power lines, thunderstorms, etc. white boxes on the TV screen. • may cause scrambled or incomplete captions to appear.

My program guide listed a TV show as being closed captioned but none • up the actual program so that additional advertising time can be of the captions were displayed. • given. Since the decoder cannot read the compressed information,

My prerecorded video tape does not show any captions. The tape box • company accidentally left out the captioning signals during the mentions it being closed captioned. • copying process.

My TV screen shows a black box • You are in the TEXT mode. Select CAPTION mode to CAPTION on certain channels. • [OFF].

• Broadcasters may at times use a time compression process to speed

• captions will be lost.

• The video tape was either an illegal copy or the tape duplicating

- 26 - EN

9I03

SPECIFICATIONS

TV Display

CATV channel

TV Display

W+80 W+81 W+82 W+83 W+84

W+65 W+66 W+67 W+68 W+69 W+70 W+71 W+72 W+73 W+74 W+75 W+76 W+77 W+78 W+79

W+55 W+56 W+57 W+58 A-4 A-3 A-2 A-1 W+59 W+60 W+61 W+62 W+63 W+64

W+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47 W+48 W+49 W+50 W+51 W+52 W+53 W+54

W+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32 W+33 W+34 W+35 W+36 W+37 W+38 W+39

W+10 W+11 W+12 W+13 W+14 W+15 W+16 W+17 W+18 W+19 W+20 W+21 W+22 W+23 W+24

A-5

RSTUVWW+1 W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9

CDEFGHI JKLMNOPQ

5A 2 3 4 5 6 7 8 9 10 11 12 13 A B

123456789101112131415

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40 41 42 43 44 45

46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

91 92 93 94 95 96 97 98 99 100 101 102 103 104 105

106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

121 122 123 124 125

CATV channel

GENERAL SPECIFICATIONS

CRT : 13 or 19 inch in-line gun, 90˚

deflection tube Television system : NTSC-M Closed caption system :§15.119/FCC Video Heads : Rotary four-head Tape width : 1/2 inch Tape speed

SP : 33.40mm/sec. LP : 16.67mm/sec. SLP : 11.12mm/sec.

Tuner channel

TV VHF Low : #2~#6 TV VHF High : #7~#13 TV UHF : #14~#69 CATV VHF : 5A MID band : A5~A1, A~I SUPER band : J~W HYPER band : W+1~W+84 FM:

Terminals

Antenna input : VHF/UHF 75 ohms

Video input : RCA connector [ 1 Audio input : RCA connector [ 1 Earphone : 1/8” monaural (3.5 mm)

88~108MHz (SRC22134 only)

unbalanced

ELECTRICAL SPECIFICATIONS

Video input level : 0.5~2.0Vp-p Audio input level : -15dBs

Video S/N ratio : More than 46dB Audio S/N ratio : More than 43dB

OTHER SPECIFICATIONS

[ SRC22134 ]

Power requirement : AC 120V/60Hz Power consumption : 65W Dimensions : H:15-3/8” (389mm)

W:14-1/2” (367mm) D:14-7/8” (377mm)

Weight : 23.1 lbs (10.5kg)

[ SRC22194 ]

Power requirement : AC 120V/60Hz Power consumption : 80W Dimensions : H:17-3/8” (439mm)

W:19-3/8” (491mm) D:18-3/4” (475mm)

Weight : 43.0 lbs (19.5kg)

Designs and specifications are subject to change

•

without notice and without our legal obligation. If there is a discrepancy between languages, the

•

default language will be English.

CABLE CHANNEL DESIGNATIONS

If you subscribe to cable TV, the channels are displayed as 1-125. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

- 27 - EN

9I03

INDICE

CONTROLES DE OPERACIÓN Y

SUS FUNCIONES . . . . . . . . . . . . . . . . . . . . . . . .28

CONEXIONES DE ANTENA/CABLE . . . . . . . .30

MODO DE ENTRADA EXTERNA . . . . . . . . . . .31

INSTALACIÓN DE LAS PILAS . . . . . . . . . . . . .31

PREPARACIÓN DE CANALES POR

PRIMERA VEZ . . . . . . . . . . . . . . . . . . . . . . . . . .31

AJUSTE DEL RELOJ . . . . . . . . . . . . . . . . . . . . .31

CONTROLES DE OPERACIÓN Y SUS FUNCIONES

Este manual sirve para los modelos de 13" y 19". A excepción de la apariencia, la operación de los dos modelos es exactamente la misma. En este manual se muestra el modelo de 19".

NOTA:

No recomendamos utilizar mandos a distancia universales. No todas las funciones pueden ser controladas mediante un mando a distancia universal. Si decide utilizar un mando a distancia universal con esta unidad, tenga en cuenta que con el número de código dado tal vez no se pueda controlar la unidad. En este caso, póngase en contacto con el fabricante del mando a distancia universal.

- PANEL DELANTERO -

VIDEO

VOLUME

POWER

AUDIO

STOP/EJECT REW

PLAY

EARPHONE

F.FWD REC/OTRCHANNEL

1 92 3 4 5 6 7 8131011 1412

- CONTROL REMOTO -

SRC22134

4 23

9 10

DISPLAY MUTE

REW

T-PROG.

CLEAR

COUNTER

RESET

PLAY

STOP

WAKE-UP

/SLEEP

+100

SPEED

GAME

TV/FM

CHANNEL

RETURN

CHANNEL

VOLUME

F.FWD

PAUSE/STILL

SLOW

16 17

11 18

POWER

123

456

789

RECORD

1 Toma de entrada de vídeo (VIDEO)– Conéctela a

la toma de salida de vídeo de su videocámara u otra videograbadora.

2 Toma de entrada de audio (AUDIO)– Conéctela a

la toma de salida de audio de su equipo de audio, videocámara u otra videograbadora.

3 Botón de la alimentación (POWER)– Púlselo para

encender y apagar el televisor/videograbadora. Púlselo para activar la grabación con temporizador.

SRC22194

WAKE-UP

/SLEEP

123

456

789

+100

DISPLAY MUTE

PLAY

REW

T-PROG.

COUNTER

CLEAR

RESET

STOP

F.FWD

SPEED

GAME

EJECT

CHANNEL RETURN

CHANNEL

VOLUME

PAUSE/STILL

SLOW

16 17

11 18

POWER

RECORD

4 Botones de volumen (VOLUME XX/ YY)– Ajustan

el nivel del volumen.

5 Botones de canales (CHANNEL K/ L)– Púlselos

para seleccionar los canales deseados para ver o grabar. Se puede mostrar el menú principal en la pantalla del

televisor pulsando repetidamente este botón del televisor/videograbadora.

4 23

9 10

- 28 - ES

0I29

- PANEL TRASERO -

Función de seguimiento– Pulse los botones para minimizar el ruido de vídeo (líneas o puntos en la pantalla) durante la reproducción.

6 Ventanilla sensora del mando a distancia–

Recibe las señales infrarrojas procedentes del mando a distancia.

[ Televisor/videograbadora ]

7 Botón de parada (STOP)– Púlselo para detener la

cinta. Botón de expulsión (EJECT)–Púlselo en el modo

de parada para expulsar la cinta del televisor/videograbadora.

Botón L– Púlselo para seleccionar los modos de ajuste desde el

• menúde la pantalla.

Púlselo para introducir dígitos cuando establezca un

• programa.

(Por ejemplo: Para ajustar el reloj o establecer un programa de temporizador)

[ Control remoto ]

7 Botón de televisor/modulación de frecuencia

(TV/FM) (SRT22134) – Establece el modo FM.

7(Botón de expulsión (EJECT) (SRT22194)–

Púlselo en el modo de parada para expulsar la cinta del televisor/videograbadora.

8 Botón de rebobinado (REW)– Púlselo para

rebobinar la cinta, o para ver la imagen en retroceso rápido durante el modo de reproducción. (Búsqueda con rebobinado)

Botón s– Púlselo para seleccionar un modo desde un menúpar-

• ticular.

(Por ejemplo: IDIOMA o ADJUST DE USER)

9 Botón de reproducción (PLAY)– Púlselo para ini-

ciar la reproducción. Botón K– Púlselo para seleccionar los modos de ajuste desde el

• menúde la pantalla.

Púlselo para introducir dígitos cuando establezca un

• programa.

(Por ejemplo: Para ajustar el reloj o establecer un programa de temporizador)

10 Botón de avance rápido (F.FWD)– Púlselo para

avanzar rápidamente la cinta, o para ver la imagen en avance rápido durante el modo de reproducción. (Búsqueda con avance rápido)

ANT.

2726

Botón B– Cuando establezca un programa (por ejemplo: para

• ajustar el reloj o para establecer un programa de tem-

porizador), púlselo para determinar su elección y vaya al paso siguiente que quiera introducir.

Púlselo para determinar los modos de ajuste desde el

• menúde la pantalla.

Púlselo para seleccionar un modo desde un menúpar-

• ticular.

(Por ejemplo: IDIOMA o ADJUST DE USER)

11 Botón de grabación (REC)– Púlselo para iniciar la

grabación manual. Botón de grabación de un toque (OTR)– Activa

la grabación de un toque. (Sólo en el televisor/videograbadora)

12 Indicador de grabación (RECORD)– Parpadea

durante la grabación. Se enciende en el modo de espera de la grabación con

temporizador.

13 Toma de auriculares (EARPHONE)– Para conec-

tar los auriculares (no suministrados) y escuchar en privado. La toma es mono y tiene un tamaño de 3,5 mm.

14 Compartimiento del videocasete 15 Botones numerados– Púlselos para seleccionar los

canales deseados para ver o grabar. Para seleccionar canales del 1 al 9, pulse primero el botón 0 y luego el botón 1 a 9.

Botón +100– Cuando seleccione canales de televisión por cable cuyo número sea superior al 99, pulse primero este botón, y luego pulse los dos últimos dígitos. (Para seleccionar el canal 125, pulse primero el botón “+100” y luego el “2” y el “5”.)

16 Botón de menú (MENU)– Púlselo para visualizar el

menúprincipal en la pantalla del televisor.

17 Botón del visualizador (DISPLAY)– Visualiza el

contador o el número del canal actual y la hora actual en la pantalla del televisor.

18 Botón de velocidad de cinta (SPEED)– Púlselo

para elegir la velocidad de grabación deseada: SP/SLP.

19 Botón T-PROG. CLEAR– Púlselo para cancelar un

programa de temporizador.

Botón de reposición del contador (COUNTER RESET)– Púlselo para reponer el contador a 0:00:00.

20 Botón de juego (GAME)– Establece el modo del

juego y el modo de entrada externa al mismo tiempo.

21 Botón de cámera lenta (SLOW)–

activar la reproducción a cámera lenta.

Pulselo para

- 29 - ES

0I29

22 Botón de pausa/imagen fija (PAUSE/STILL)–

Púlselo para detener temporalmente la cinta durante la grabación o para ver una imagen fija durante la reproducción.

23 Botón de silenciamiento (MUTE)– Silencia el

sonido. Púlselo de nuevo para recuperar el sonido.

24 Botón de retorno de canal (CHANNEL

RETURN)– Púlselo para volver al canal anterior. Por

ejemplo, pulsando una vez este botón, la visualización del canal cambiará de 3 (canal actual) a 10 (canal ante-

CONEXIONES DE ANTENA/CABLE

Desde el cable coaxial o

Caja de CATV o caja de emisiones vía satélite (no incluído)

caja de emisiones vía satélite de 75 ohm del sistema de Cable

OUT

Antena de varilla UHF/VHF (incluído para solamente 13”)

rior), y al pulsarlo por segunda vez, el canal cambiará del 10 al 3.

25 Botón del temporizador despertador/para

dormir (WAKE-UP/SLEEP)– Ajusta el tempo-

rizador para despertarse/dormir.

26 Cordón de alimentación– Conéctelo a la toma de

CA estándar (120V/60Hz).

27 Terminal de antena (ANT.)– Para conectar una

antena o sistema de televisión por cable.

Antena combinada de VHF/UHF (no incluído)

Antena VHF (no incluído)

Desde el sistema de Cable

Cable coaxial

ANT.

de 75 ohm (no incluído)

ANTENA COMBINADA DE VHF/UHF

La antena de varilla de VHF/UHF (incluído para solamente 13”) es desmontable. Inserte el vástago de la antena en el agujero de la parte trasera superior del televisor/videograbadora.

Conecte la varilla de antena de VHF/UHF o la antena combinada de VHF/UHF al terminal ANT. del televisor/videograbadora.

ANTENAS SEPARADAS DE VHF/UHF

En algunos lugares será necesario utilizar una antena exterior.

CABLE SIN CONVERTIDOR/DESCODIFICADOR

Utilice esta conexión si su sistema de televisión por cable se conecta directamente a su televisor/videograbadora sin convertidor.Utilizando esta conexión usted podrá:

1)Utilizar el mando a distancia del televisor/videograbadora para seleccionar canales.

2)Programar uno o más canales sin codificar para realizar la grabación automática con temporizador.

NOTA: Con esta unidad SÓLO se podrá grabar y ver un mismo canal al mismo tiempo.

Antena UHF

Combinador de

VHF/UHF

(no incluído)

CABLE CON CONVERTIDOR/DESCODIFICADOR O CONVERTIDOR DE EMISIONES VÍA SATÉLITE

Si su servicio de televisión por cable le suministra un convertidor, o si usted utiliza un sistema de emisiones vía satélite, usted podrá utilizar las conexiones básicas.

Utilizando estas conexiones, usted también podrá grabar canales codificados. Sin embargo, la selección de los canales deberá hacerse con el convertidor de televisión por cable con el convertidor de emisiones vía satélite. Esto significa que los canales no podrán ser cambiados con el mando a distancia del televisor/videograbadora. La grabación inatendida se limita a un canal cada vez.

PARA GRABAR UN CANAL CODIFICADO/DESCODIFICADO

1. Ajuste el selector de canales del televisor/videograbadora al canal de salida del convertidor de televisión por cable o del convertidor de emisiones vía satélite. (Ej.: CA3)

2. Seleccione el canal que desee grabar de su convertidor de televisión por cable o del convertidor de emisiones vía satélite.

- 30 - ES

0I29

AJUSTE DEL RELOJMODO DE ENTRADA EXTERNA

Cuando utilice una señal de entrada externa (otra videograbadora o una videocámara), conecte los cables de salida de audio/vídeo del equipo de reproducción a las tomas AUDIO IN/VIDEO IN de su televisor/videograbadora. Y luego pulse el botón CHANNEL K o L hasta que “AUX” aparezca en la pantalla.

Usted puede programar el temporizador para que explore todos los canales que puedan recibirse en su zona.

INSTALACIÓN DE LAS PILAS

1)Abra la tapa del compartimiento de las pilas del mando a distancia presionándola en el sentido de la flecha.

2)Inserte 2 pilas tamaño “AA” en el compartimiento de las pilas, en el sentido indicado por las marcas de polaridad (+/-).

3)Vuelva a poner la tapa.

PREPARACIÓN DE CANALES POR

PRIMERA VEZ

1) Enchufe el cable de alimentación del televisor/videograbadora en una toma de CA estándar.

NOTA: Si aparezcan algunos digitos en el rincón de la pantalla, pulse el botón POWER sin desenchufar el cable de alimentación.

2) Pulse el botón POWER para encender el televisor/videograbadora.

3) Seleccione “ENGLISH” o “ESPAÑOL” utilizando el botón F.FWD/B o REW/s. “[ ]” indica el idioma seleccionado.

4) Pulse el botón PLAY/K o STOP/L para señalar “AUTOPRESELECCION”.

Luego pulse el botón F.FWD/B. El sintonizador explorará y memorizará todos los canales activos de su área.

NOTAS:

El televisor/videograbadora distingue entre los canales

• de televisión estándar y los canales de televisor por cable.

Si desea reproducir o grabar una cinta ANTES de prea-

• justar el sintonizador, usted tendrá que pulsar el botón MENU en el mando a distancia. Para preajustar de nuevo el sintonizador, consulte “REPETICIÓN DE LA PREPARACIÓN DE CANALES”.

La unidad de televisor/videograbadora puede reconocer

• los canales de TV como ellos de TV por cable a causa de los condiciones de recepción. En este caso, pruebe el preajuste automático de nuevo en los condiciones finas de recepción.

5) El sintonizador se para en el canal memorizado más bajo. Si desea recuperar canales seleccionados, usted podrá seleccionar directamente el canal deseado con los botones numerados del mando a distancia o con los botones CHANNEL K o L.

Cerciórese...

La alimentación del televisor/videograbadora deberá

• estar conectada.

En el ejemplo de abajo, el reloj va a ajustarse así:

FECHA: 7 de mayo de 2002 HORA: 5:40 PM

1) Pulse el botón MENU en el mando a distancia. Pulse el botón PLAY/K o STOP/L para indicar

“AJUSTE RELOJ”. Luego, pulse el botón F.FWD/B.

2) Pulse el botón PLAY/K o STOP/L para indicar “AJUSTE MANUAL RELOJ”.

Luego, pulse el botón F.FWD/B.

3) Pulse el botón PLAY/K o STOP/L hasta que aparezca el mes deseado. (Ejemplo: Mayo - 05)

Luego, pulse el botón F.FWD/B.

4) Pulse el botón PLAY/K o STOP/L hasta que aparezca el día del mes deseado. (Ejemplo: 7 - 07)

Luego, pulse el botón F.FWD/B.

5) Pulse el botón PLAY/K o STOP/L hasta que aparezca el año deseado. (Ejemplo: 2002)

Luego, pulse el botón F.FWD/B.

6) Pulse el botón PLAY/K o STOP/L hasta que aparezca la hora deseada. (Ejemplo: 5, PM)

Luego, pulse el botón F.FWD/B.

7) Pulse el botón PLAY/K o STOP/L hasta que aparezca el minuto deseado. (Ejemplo: 40)

8) Pulse el botón MENU en el mando a distancia. Aunque los segundos no se visualizan, éstos empiezan a contar desde 00 cuando se pulsa MENU en el mando a distancia. Utilice esta función para sincronizar el reloj con la hora correcta.

- 31 - ES

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home…

no matter who made it, no matter who sold it!

1-800-4-MY-HOME

Anytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222

Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner’s manuals

that you need to do-it-yourself, call

Sears PartsDirect

1-800-366-PART

6 a.m. – 11 p.m. CST,

(1-800-366-7278)

7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. – 5 p.m. CST, Mon. – Sat.

Para pedir servicio de reparación a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en français:

1-877-LE-FOYER

(1-877-533-6937)

® Registered Trademark / ™ Trademark of Sears, Roebuck and Co.

® Marca Registrada / ™ Marca de Fábrica de Sears, Roebuck and Co.

HomeCentral

For 90 days from the date of purchase, Sears will repair any defect in material or workmanship in this TV/VCR combination, free of charge. For one year from the date of purchase, Sears will supply, at no charge, replacement for defective parts.

The above warranty coverage applies only to TV/VCR combinations which are used for private household purposes. TO OBTAIN WARRANTY SERVICE, SIMPLY RETURN THE TV/VCR COMBINATION TO THE NEAREST SEARS SERVICE

CENTER IN THE UNITED STATES. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179 For the location of a Sears Service Center in your area : 1-800-488-1222

Printed in Malaysia 0EMN01907

FULL 90 DAY WARRANTY

T5308 / T7308UJ * * * * *

documentation manual, user maintenance, brochure, user reference, pdf manual

This file has been downloaded from:

User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..

Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,

manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,

Funai SRC22194, SRC22134 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
