Funai SD300D User Manual

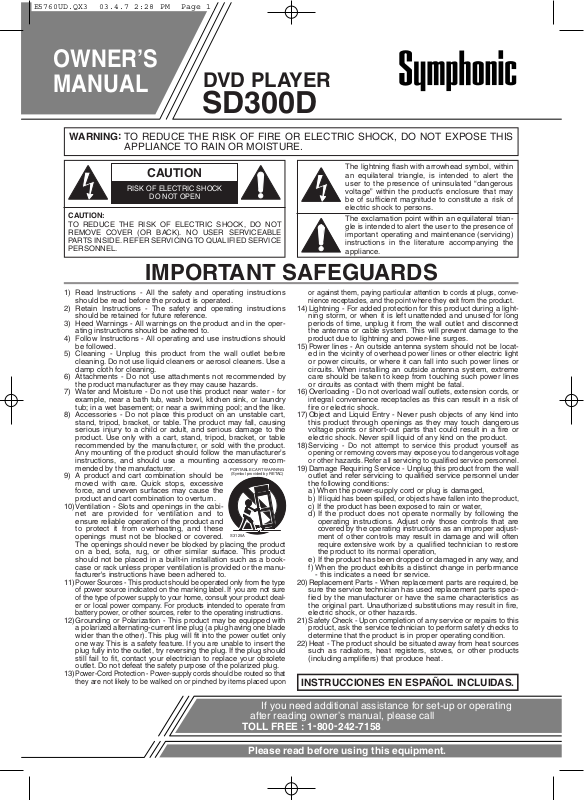

OWNER’S MANUAL

If you need additional assistance for set-up or operating after reading owner’s manual, please call

TOLL FREE : 1-800-242-7158

Please read before using this equipment.

DVD PLAYER

PORTABLE CART WARNING (Symbol provided by RETAC)

S3125A

SD300D

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFEGUARDS

1) Read Instructions - All the safety and operating instructions should be read before the product is operated.

2) Retain Instructions - The safety and operating instructions should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions should be followed.

5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10)Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11)

Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12)

Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13)

Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14)Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

15)Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16)Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17)Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18)

Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19)Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b)

If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper adjust-

ment of other controls may result in damage and will often

require extensive work by a qualified technician to restore

the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance

- this indicates a need for service.

20)Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21)

Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22)Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

PRECAUTIONS

LASER SAFETY

This player employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO

NOT STARE INTO BEAM.

LOCATION: INSIDE, ON THE DECK MECHANISM.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual.The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

–2–

TABLE OF CONTENTS

■

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LASER SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in this Manual. . . . . . . . . . . . . . . . . . . . . 4

■

ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Playable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disc Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

■

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

■

FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . 6

FRONT PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

REAR VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . 6

Loading the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■

HOOK UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting to a TV using a VIDEO OUT Jack

or a S-VIDEO OUT Jack . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting to an Amplifier Equipped with Digital Input

Jacks such as MD deck or DAT deck . . . . . . . . . . . . . . . 8

Connecting to a Dolby Digital decoder . . . . . . . . . . . . . . 8

Connecting to a TV or a Stereo TV that has Component

VIDEO In Jacks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■

PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Basic Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

General Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Disc Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Title Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CALLING UP A MENU SCREEN DURING

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step by Step Playback. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Resume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Fast Forward / Reverse Search . . . . . . . . . . . . . . . . . . 10

Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . 10

Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . 10

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

REPEAT TITLE / CHAPTER. . . . . . . . . . . . . . . . . . . 10

REPEAT TRACK . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

REPEAT A-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MP3 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

On-Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . 11

Track Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Stereo Sound Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing the On-Screen Display . . . . . . . . . . . . . . . . . 12

Parental Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

PARENTAL LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . 13

IF YOU FORGET THE PASSWORD . . . . . . . . . . . . . 13

CONTROL LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . 13

Marker Setup Screen. . . . . . . . . . . . . . . . . . . . . . . . . . 13

■

DVD SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Audio Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Display Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■

TROUBLESHOOTING GUIDE. . . . . . . . . . . . . . . . . . . 15

■

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INDICE

■ CONTROLES DE OPERACIÓN Y FUNCIONES . . . . . 17

PANEL DELANTERO / VISTA TRASERA . . . . . . . . . 17

MANDO A DISTANCIA. . . . . . . . . . . . . . . . . . . . . . . 17

Instalación de las Pilas . . . . . . . . . . . . . . . . . . . . . . . . 18

■ CONEXIONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Conexión a un Televisor. . . . . . . . . . . . . . . . . . . . . . . . 18

Conexión a un Amplificador Equipado con tomas de

Entrada Digital, Platina MD o Platina DAT . . . . . . . . . . 18

Conexión a un Descodificador Dolby Digital . . . . . . . . . 18

Conexión a un Televisor o a un Televisor Estéreo Que

tenga tomas Component Video in . . . . . . . . . . . . . . . . 18

■ REPRODUCCIÓN DE UN DISCO . . . . . . . . . . . . . . . . 19

Reproducción de un DVD de Vídeo o un CD de Audio . 19

–3–

INTRODUCTION

Supplied Accessories Symbols Used in this Manual

• Remote control (NA603UD) or (NA653UD)

• Two AA batteries

• Owner’s Manual (0VMN03738)

• VIDEO/AUDIO cables (WPZ0102TM015)

• RETURN STOP SHEET (0VM414373)

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The following symbols appear below in some headings and notes in this manual, with the following meanings!

DVD-V

: Description refers to playback of DVD video discs.

: Description refers to playback of audio CDs.

MP3

: Description refers to playback of MP3 discs.

QUICK

: Description refers to the items to be set in the QUICK

mode.

ABOUT THE DISCS

Playable Discs

The following discs can be played back on this DVD player.

DVD video

DVD+R/RW*

CD-R/RW*

*Depending on the types or the writing method of the medium some discs can not be played.

• Some DVD-R/RW, DVD+R/RW, or CD-R/RW discs made on personal computers, or on DVD recorders may not be played back properly due to the factors such as scratches, dirt or special properties of the disc.

• Discs made on personal computers may not be played back properly due to the different environment or the settings of the application you use. We recommend always to use the standardized, rightly formatted discs. (Please contact the sales agency for more detail).

This player conforms to the NTSC color system.You cannot play discs recorded in other color systems such as PAL or SECAM.

• Some discs include region codes as shown below.

DVD-R/RW*

Audio CD

MP3*

• The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on DVD player with the same region code.

For Customer Use: Read carefully the information located at the bottom of your DVD player and enter below the Serial No.Retain this information for future reference. Model No. DVD player Serial No. __________________________

The following discs cannot be played back on this DVD player.

DVD with region codes other than 1 or ALL.

DVD-ROM

DVD-RAM (Never play back, otherwise malfunction may result.)

CD-ROM

VSD

CDV (Only plays back the audio part.)

CD-G (Only plays back the sound.)

CD-I (Never play back, otherwise malfunction may result.)

SACD

Photo CD (Never play back, otherwise malfunction may result.)

Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications.

–4–

ABOUT THE DISCS

Example

Track 1 Track 2 Track 3 Track 4 Track 5 Track 6

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1 Chapter 2Chapter 3 Chapter 4

Example

Group 1 Group 2

Track 1 Track 2 Track 1 Track 2Track 3 Track 4

Disc Types

[DVD]

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected do not run as desired, refer to the manual accompanying the disc.

[Audio CD]

Data on an audio CD is divided into sections called “tracks”, each of which is given a track number.

[MP3]

Data on a MP3 is divided into sections called "groups", and then into subsections called "tracks", each of which is given a group or track number.

FEATURES

¡Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback ¡Random playback for audio CD and MP3 ¡Program playback for audio CD and MP3 ¡DVD menus in a desired language ¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 30 minutes, the power is automatically turned off.

¡Subtitles in a desired language ¡Selecting a camera angle ¡Choices for audio language and sound mode ¡Parental lock ¡Automatic detection of discs

This player automatically detects if a loaded disc is DVD, audio CD or MP3 on disc.

¡Playing an MP3 disc ¡Direct Search ¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Zoom ¡Marker

The part designated by user can be called back.

¡Resume Play ¡Virtual Surround ¡Component Video Out Jacks

Jacks located on the back of the DVD Player which are used to send high-quality video to a TV via Component Video In Jacks.

¡Bit rate indication ¡DRC (Dynamic range control)

You can control the range of sound volume.

¡Black Level Setting

–5–

AUDIO OUT

DIGITAL AUDIO OUT PCM / BITSTREAM

YCr

COMPONENT

VIDEO OUT

CbLRCOAXIAL

VIDEO

OUT

S-VIDEO OUT

131415 17

RETURN

ZOOM

MODE

SKIPPAUSEA-B

REPEAT

ANGLE

AUDIO

SUB

TITLE

CLEAR

TITLE

STOP

PLAY

FWDREV

SETUP

ENTER

OPEN/ CLOSE

MODE

DISPLAY

123

456

789

0 +10

POWER

2 3

5 6 7

9 10 11

12 13

17 16

21 20

FUNCTIONAL OVERVIEW

FRONT PANEL

POWER DISC IN

PLAY

OPEN/CLOSE

PLAY

STOP

POWER

SKIP/SEARCH

REAR VIEW

1. POWER

to switch the player to ON or OFF

2. STOP

to stop playback

3. SKIP G / SEARCH

goes to next chapter or track during playback; press and hold for 1.5 seconds for a forward search

4. PLAY

to start or resume disc playback

5. SKIP H / SEARCH

goes to previous chapter or track during playback; press and hold for 1.5 seconds for a reverse search

6. OPEN/CLOSE

to open/close the disc tray

7. Remote Sensor window

8. Disc tray

9. DISC IN indicator

light appears when a disc is in the DVD player

10. PLAY indicator

lights during disc playback

REMOTE CONTROL

1. DISPLAY

to access or remove the display screen during DVD or Audio CD playback

2. POWER

switch DVD player ON or OFF

3. AUDIO

to choose audio languages or sound modes

4. SUBTITLE

subtitle language DVD selector

5. ANGLE

select DVD camera angle

6. REPEAT

repeat chapter, track, title, all.

7. REPEAT A-B

repeat a specific segment

8. CLEAR

to reset the setting

9. PAUSE

pause playback temporarily / frame-by-frame playback

[Fig. 3]

16 357891011 4 2

11. POWER indicator

lights when the power is on

12. MAIN (AC Power Cord)

connect to a standard AC outlet

13. COAXIAL (Digital audio out)

connect to AUDIO inputs of a digital (coaxial) audio equipment

14. AUDIO OUT (Left/Right)

connect to AUDIO inputs of an amplifier, receiver or stereo system

15. VIDEO OUT

connect to the Video Input of a TV.

16. COMPONENT VIDEO OUT

connect to a TV with Component video in jacks.

17. S-VIDEO OUT

connect to a TV with S-Video inputs

Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the player.

10. REV

to view DVD picture in fast reverse motion

11. PLAY

to start a DVD disc playback

12. SETUP

to access or remove the DVD setup menu

13. MODE

to set up programmed or random playback (Audio CD) to set the black level and virtual surround during DVD playback

14. ZOOM

enlarge DVD video image

15. TITLE

to display title menu of a disc

16. ENTER

acknowledge menu selection

17. RETURN

to return previous or remove setup menu

18. Arrow (sB

KK LL

)

(left/right/up/down) select an item in the menu

19. MENU

to display the menu of the DVD disc

20. STOP

to stop a DVD disc playback

21. FWD

to view DVD picture in fast forward motion

22. SKIP H,G

to skip chapter/tracks

23. 0-9 numerical buttons

select numbered items in a menu

+10

use this button to enter number 10 and above

24. OPEN/CLOSE

to open/close the disc tray

25. SEARCH MODE

to locate a desired point

–

6 –

[Fig. 1]

[Fig. 2]

FUNCTIONAL OVERVIEW

AUDIO OUT

DIGITAL AUDIO OUT PCM / BITSTREAM

YCr

COMPONENT

VIDEO OUT

CbLRCOAXIAL VIDEO

OUT

S-VIDEO OUT

A/V-compatible

wide screen TV

Stereo system

To Right (red) and

Left (white) AUDIO

OUT jacks

To VIDEO INPUT jack

To Right (red) and Left (white) ANALOG AUDIO INPUT jacks

To VIDEO OUT jack

To S-VIDEO INPUT jack

To S-VIDEO OUT jack

Loading the Batteries

1. Open the battery compartment cover.

2. Insert two AA batteries, with each one oriented correctly.

3. Close the cover.

NOTES

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

HOOK UPS

CAUTION:

• Be sure to turn off the Player and equipment to be connected before connecting.

• Read through the operation manual for the equipment to be connected.

• Be sure that the colors of the jacks and plugs match up when using VIDEO/AUDIO cables.

• Be sure to keep the Player connection cables separate from the TV antenna cable when you install the Player, because it

may cause electrical interference when you are watching television programs.

Connecting to a TV using a VIDEO OUT Jack or a S-VIDEO OUT Jack

Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy pictures at higher quality.

A/V-compatible or

wide screen TV

To Right (red) and

Left (white)

AUDIO OUT jacks

To Right (red) and Left (white) AUDIO INPUT jacks

To VIDEO INPUT jack

AUDIO OUT

DIGITAL AUDIO OUT PCM / BITSTREAM

To VIDEO OUT jack

To S-VIDEO OUT jackTo S-VIDEO INPUT jack

RCOAXIAL VIDEO

YCr

OUT

COMPONENT

VIDEO OUT

S-VIDEO OUT

[Fig. 5]

[Fig. 6]

–7–

+ 14 hidden pages
