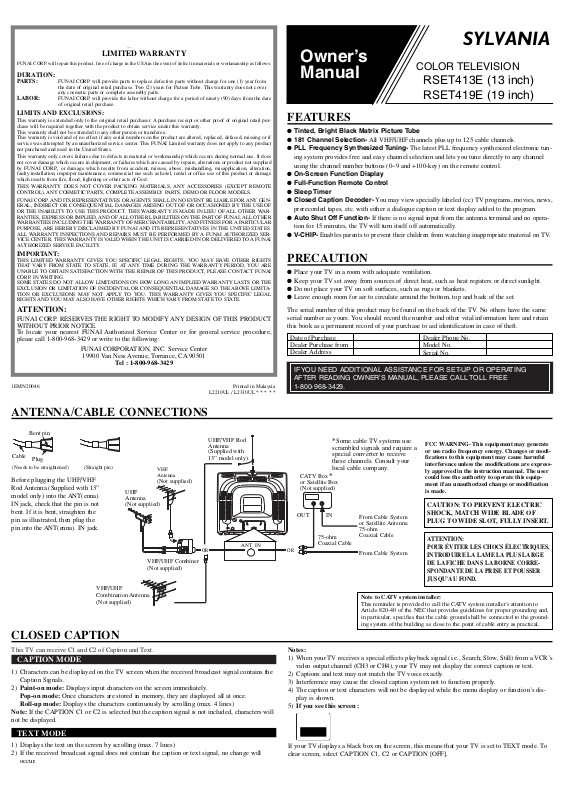

Funai RSET413E User Manual

This TV can receive C1 and C2 of Caption and Text.

CAPTION MODE

1) Characters can be displayed on the TV screen when the received broadcast signal contains the
Caption Signals.

2) Paint-on mode: Displays input characters on the screen immediately.

Pop-on mode: Once characters are stored in memory, they are displayed all at once.
Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines)

Note: If the CAPTION C1 or C2 is selected but the caption signal is not included, characters will

not be displayed.

TEXT MODE

1) Displays the text on the screen by scrolling (max. 7 lines)

2) If the received broadcast signal does not contain the caption or text signal, no change will
occur.

Notes:

1) When your TV receives a special effects playback signal (i.e., Search, Slow, Still) from a VCR’s
video output channel (CH3 or CH4), your TV may not display the correct caption or text.

2) Captions and text may not match the TV voice exactly.

3) Interference may cause the closed caption system not to function properly.

4) The caption or text characters will not be displayed while the menu display or function’s dis­play is shown.

5) If you see this screen :

If your TV displays a black box on the screen, this means that your TV is set to TEXT mode. To
clear screen, select CAPTION C1, C2 or CAPTION [OFF].

ANTENNA/CABLE CONNECTIONS

PRECAUTION

● Place your TV in a room with adequate ventilation.

● Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

● Do not place your TV on soft surfaces, such as rugs or blankets.

● Leave enough room for air to circulate around the bottom, top and back of the set.

FEATURES

● Tinted, Bright Black Matrix Picture Tube

● 181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

● PLL Frequency Synthesized Tuning- The latest PLL frequency synthesized electronic tun-

ing system provides free and easy channel selection and lets you tune directly to any channel
using the channel number buttons (0~9 and +100-key) on the remote control.

● On-Screen Function Display

● Full-Function Remote Control

● Sleep Timer

● Closed Caption Decoder- You may view specially labeled (cc) TV programs, movies, news,

prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

● Auto Shut Off Function- If there is no signal input from the antenna terminal and no opera-

tion for 15 minutes, the TV will turn itself off automatically.

● V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

The serial number of this product may be found on the back of the TV. No others have the same
serial number as yours. You should record the number and other vital information here and retain
this book as a permanent record of your purchase to aid identification in case of theft.

ANT.IN

CLOSED CAPTION

UHF
Antenna
(Not supplied)

VHF
Antenna

(Not supplied)

VHF/UHF Combiner
(Not supplied)

VHF/UHF
Combination Antenna
(Not supplied)

UHF/VHF Rod
Antenna
(Supplied with

13” model only)

OR

OR

ANT. IN

OUT IN

75-ohm
Coaxial Cable

From Cable System

From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable

CATV Box

*

or Satellite Box
(Not supplied)

*Some cable TV systems use

scrambled signals and require a
special converter to receive
these channels. Consult your
local cable company.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to
Article 820-40 of the NEC that provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the ground­ing system of the building as close to the point of cable entry as practical.

FCC WARNING- This equipment may generate
or use radio frequency energy. Changes or modi­fications to this equipment may cause harmful
interference unless the modifications are express­ly approved in the instruction manual. The user
could lose the authority to operate this equip­ment if an unauthorized change or modification
is made.

IF YOU NEED ADDITIONAL ASSISTANCE FOR SET-UP OR OPERATING
AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE
1-800-968-3429.

Owner’s
Manual

1EMN20046 Printed in Malaysia

L2210UL / L2310UL * * * * *

COLOR TELEVISION

RSET413E (13 inch)
RSET419E (19 inch)

Before plugging the UHF/VHF
Rod Antenna (Supplied with 13”
model only) into the ANT(enna).
IN jack, check that the pin is not
bent. If it is bent, straighten the
pin as illustrated, then plug the
pin into the ANT(enna). IN jack.

Bent pin

Cable

Plug

(Needs to be straightened) (Straight pin)

CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRE­SPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PAR TS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from

the date of original retail purchase. Two (2) years for Picture Tube. This warranty does not cover
any cosmetic parts or complete assembly parts.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date

of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail pur­chase will be required together with the product to obtain service under this warranty.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if
service was attempted by an unauthorized service center. This FUNAI Limited warranty does not apply to any product
not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does
not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied
by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration,
faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage
which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE
CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GEN­ERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF
OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WAR­RANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALLOTHER
WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SER­VICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN OR DELIVERED TO A FUNAI
AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS., YOU MAY HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE
UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI
CORP. IN WRITING.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE SO THE ABOVE LIMITA­TION OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT
WITHOUT PRIOR NOTICE.
To locate your nearest FUNAI Authorized Service Center or for general service procedure,
please call 1-800-968-3429 or write to the following:

FUNAI CORPORATION, INC. Service Center

19900 Van Ness Avenue, Torrance, CA 90501

Tel : [phone]

SYLVANIA

Date of Purchase
Dealer Purchase from
Dealer Address

Dealer Phone No.
Model No.
Serial No.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLI­ANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SER­VICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DAN­GEROUS VOLTAGE CONSTI-TUTING A
RISK OF ELECTRIC SHOCK IS PRE­SENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT
THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS
IN THE LITERATURE ACCOMPANY-ING
THE APPLIANCE.
