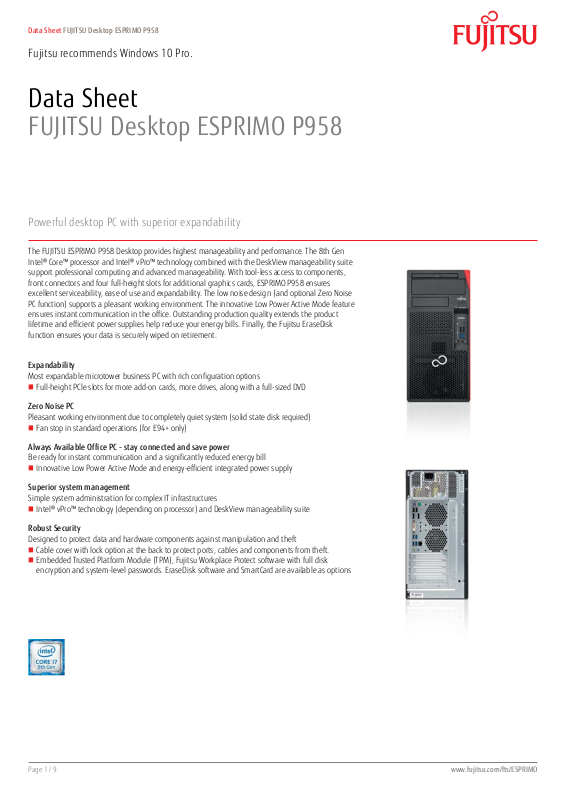

Data Sheet FUJITSU Desktop ESPRIMO P958
Fujitsu recommends Windows 10 Pro.
Data Sheet
FUJITSU Desktop ESPRIMO P958
Powerful desktop PC with superior expandability
The FUJITSU ESPRIMO P958 Desktop provides highest manageability and performance. The 8th Gen
Intel® Core™ processor and Intel® vPro™ technology combined with the DeskView manageability suite
support professional computing and advanced manageability. With tool-less access to components,
front connectors and four full-height slots for additional graphics cards, ESPRIMO P958 ensures
excellent serviceability, ease of use and expandability. The low noise design (and optional Zero Noise
PC function) supports a pleasant working environment. The innovative Low Power Active Mode feature
ensures instant communication in the ofce. Outstanding production quality extends the product
lifetime and efcient power supplies help reduce your energy bills. Finally, the Fujitsu EraseDisk
function ensures your data is securely wiped on retirement.
Expandability
Most expandable microtower business PC with rich conguration options
Full-height PCle slots for more add-on cards, more drives, along with a full-sized DVD
Zero Noise PC
Pleasant working environment due to completely quiet system (solid state disk required)
Fan stop in standard operations (for E94+ only)
Always Available Office PC - stay connected and save power
Be ready for instant communication and a signicantly reduced energy bill
Innovative Low Power Active Mode and energy-efcient integrated power supply
Superior system management
Simple system administration for complex IT infrastructures
Intel® vPro™ technology (depending on processor) and DeskView manageability suite
Robust Security
Designed to protect data and hardware components against manipulation and theft
Cable cover with lock option at the back to protect ports, cables and components from theft.
Embedded Trusted Platform Module (TPM), Fujitsu Workplace Protect software with full disk
encryption and system-level passwords. EraseDisk software and SmartCard are available as options
Page 1 / 9 www.fujitsu.com/fts/ESPRIMO
Page 2
Data Sheet FUJITSU Desktop ESPRIMO P958
Fujitsu recommends Windows 10 Pro.
Components
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Processor Intel® Core™ i3-8100 processor (4 Cores / 4 Threads, 3.60 GHz, 6 MB, Intel® UHD Graphics 630)
Intel® Core™ i5-8500 processor (6 Cores / 6 Threads, 3.00 GHz, up to 4.1 GHz, 9 MB, Intel® UHD Graphics 630) *
Intel® Core™ i5-8600 processor (6 Cores / 6 Threads, 3.10 GHz, up to 4.3 GHz, 9 MB, Intel® UHD Graphics 630) *
Intel® Core™ i7-8700 processor (6 Cores / 12 Threads, 3.20 GHz, up to 4.6 GHz, 12 MB, Intel® UHD Graphics 630) *
*with Intel® Turbo Boost Technology (clock speed and performance will vary depending on workload and other
variables)
Intel® vPro™ Logo with Intel® Core i5 and Core i7 processors
Operating systems
Operating system pre-installed Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Windows 10 Home
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Memory modules 4 GB (1 module(s) 4 GB) DDR4, unbuffered, non-ECC, 2,666
MHz, UDIMM
8 GB (1 module(s) 8 GB) DDR4, unbuffered, non-ECC, 2,666
MHz, UDIMM
16 GB (1 module(s) 16 GB) DDR4, unbuffered, non-ECC,
2,666 MHz, UDIMM
Windows 10 Pro. Fujitsu recommends Windows 10 Pro.
Windows 10 Home
4 GB (1 module(s) 4 GB) DDR4, unbuffered, non-ECC, 2,666
MHz, UDIMM
8 GB (1 module(s) 8 GB) DDR4, unbuffered, non-ECC, 2,666
MHz, UDIMM
16 GB (1 module(s) 16 GB) DDR4, unbuffered, non-ECC,
2,666 MHz, UDIMM
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Graphics Others: VGA Extension Card Others: VGA Extension Card
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Hard disk drive HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business
critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
Intel Optane Memory (16 GB)
RAID1 Bundle 2x256GB M.2 NVMe Highend
RAID1 Bundle 2x512GB M.2 NVMe Highend
SSD PCIe, 1024 GB M.2 NVMe Highend module
SSD PCIe, 1024 GB M.2 NVMe module
SSD PCIe, 1024 GB M.2 NVMe module, SED
SSD PCIe, 256 GB M.2 NVMe Highend module
SSD PCIe, 256 GB M.2 NVMe module
SSD PCIe, 256 GB M.2 NVMe module, SED
SSD PCIe, 512 GB M.2 NVMe Highend module
SSD PCIe, 512 GB M.2 NVMe module
SSD PCIe, 512 GB M.2 NVMe module, SED
SSD SATA III, 1024 GB, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 512 GB, 2.5-inch
Hard disk notes SSD (Solid State Disk)
SED (Self-Encrypting Drive)
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 1,000 GB, 3.5-inch, business
critical
HDD SATA III, 7,200 rpm, 2,000 GB, 3.5-inch
HDD SATA III, 7,200 rpm, 500 GB, 3.5-inch
Intel Optane Memory (16 GB)
RAID1 Bundle 2x256GB M.2 NVMe Highend
RAID1 Bundle 2x512GB M.2 NVMe Highend
SSD PCIe, 1024 GB M.2 NVMe Highend module
SSD PCIe, 1024 GB M.2 NVMe module
SSD PCIe, 1024 GB M.2 NVMe module, SED
SSD PCIe, 256 GB M.2 NVMe Highend module
SSD PCIe, 256 GB M.2 NVMe module
SSD PCIe, 256 GB M.2 NVMe module, SED
SSD PCIe, 512 GB M.2 NVMe Highend module
SSD PCIe, 512 GB M.2 NVMe module
SSD PCIe, 512 GB M.2 NVMe module, SED
SSD SATA III, 1024 GB, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 512 GB, 2.5-inch
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Optical drive MultiCard Reader 24in1 USB 2.0 3.5”, USB 2.0
DVD-ROM
DVD Super Multi, SATA
DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Page 2 / 9 www.fujitsu.com/fts/ESPRIMO
MultiCard Reader 24in1 USB 2.0 3.5”, USB 2.0
DVD-ROM
DVD Super Multi, SATA
DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Page 3
Data Sheet FUJITSU Desktop ESPRIMO P958
ESPRIMO P958/E85+ ESPRIMO P958/E94+
Interfaces add on cards / components Parallel Interface
M.2 WLAN 802.11ac (2x2) and BT 5 (dedicated regions
only)
Gigabit Ethernet PCIe x1
eSATA Interface
Dual serial card PCIe x1
Base unit ESPRIMO P958/E85+ ESPRIMO P958/E94+
Mainboard
Mainboard type D3602
Formfactor proprietary
Chipset Intel® Q370
Processor socket LGA 1151
Processor quantity maximum 1
Supported capacity RAM (max.) 64 GB
Memory slots 4 DIMM (DDR4)
Memory frequency 2,666 MHz
Memory notes Dual channel support
For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same.
2666 MHz may be clocked down to 2400 or 2133 depending on used processor
LAN 10/100/1,000 MBit/s Intel® I219LM
Integrated WLAN 1 (optional with Bluetooth together)
BIOS version AMI Aptio V
UEFI Specication 2.6
BIOS features BIOS Flash EPROM update by software
Recovery BIOS
Unied Extensible Firmware Interface (UEFI)
Audio type On board
Audio codec Realtek ALC671
Audio features Internal speaker supports audio playback (optional), High Denition audio, 5.1 surround sound
Fujitsu recommends Windows 10 Pro.
Parallel Interface
M.2 WLAN 802.11ac (2x2) and BT 5 (dedicated regions
only)
Gigabit Ethernet PCIe x1
eSATA Interface
Dual serial card PCIe x1
I/O controller on board
Serial ATA total 5
thereof SATA III 5
thereof eSATA 2
Controller functions Serial ATA III (6 Gbit)
NCQ
AHCI
RAID 0/1/5/10
Interfaces
Audio: line-in 1
Audio: line-out 1
Front audio: microphone 1
Front audio: headphone 1
USB 2.0 total 5
USB 3.1 Gen1 (USB 3.0) total 3
USB 3.1 Gen2 total 4 and 2 optional via add on card
USB front 2x USB 2.0; 2x USB 3.1 (gen2), 1x USB 3.1 (gen2) Type C; optional: 1x USB 3.1 Type-C (Gen2) via add on card and front
adapter bay
USB rear 2x USB 2.0; 3x USB 3.1 (Gen1); 1x USB 3.1 (Gen2); optional: additional 1x USB 3.1 Type C (Gen2) via add on card
USB internal 1x USB 2.0
VGA optional: via adapter card
DisplayPort 2
Page 3 / 9 www.fujitsu.com/fts/ESPRIMO
Page 4
Data Sheet FUJITSU Desktop ESPRIMO P958
Interfaces
DVI 1 (DVI-D)
Serial (RS-232) optional: serial port (9pin, 16 byte FIFO, 16550 compatible)
Mouse / Keyboard (PS/2) 2
Ethernet (RJ-45) 1
Parallel 1 (optional) (25pin with EPP and ECP)
eSATA 1 (optional)
Interface Module notes Anytime USB charge functionality, USB Typ C connector supports up to 15W
Input device / components
Input devices (optional) Keyboard
Mouse
KBPC PX ECO
Mouse M440 ECO
Drive bays
Drive bays total 6
2.5-inch internal bays 1
3.5-inch internal bays 2
3.5-inch external bays 1
5.25-inch external bays 2
Drive bay notes 5,25” bays: one bay in HH format, one bay for slim optical disc drive only;
internal 3.5” bays: 3.5” drive (screwless) or 2.5” drive (screws; optional screwless).
drive cage for external 3.5” bay and internal 2.5” bay: optional
M.2-2280 1 x on mainboard for SSD NVMe (PCIe 3.0 x4; up to 32Gbit/s; supports Intel® Optane™ technology)
Fujitsu recommends Windows 10 Pro.
Slots
PCI-Express 3.0 x1 2 x (174 mm / 6.85 inch)
PCI-Express 3.0 x4 (mech. x16) 1 x (210 mm / 8.27 inch)
PCI-Express 3.0 x16 1 x (240 mm / 9.45 inch) Full height
M.2-2230 on mainboard for WLAN module
Graphics on board
Graphics brand name Intel® UHD Graphics 610, Intel® UHD Graphics 630
Shared video memory up to 1,782 MB
TFT resolution (VGA) 1,024 x 768 pixel
1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,600 x 1,200 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
TFT resolution (DVI) 1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
Page 4 / 9 www.fujitsu.com/fts/ESPRIMO
Page 5
Data Sheet FUJITSU Desktop ESPRIMO P958
Graphics on board
TFT resolution (DisplayPort) 1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
2,560 x 1,440 pixel
2,560 x 1,600 pixel
3,440 x 1,440 pixel
3,840 x 2,160 pixel
4,096 x 2,304 pixel
Graphics features Support for up to three independent displays
DirectX® 12
HDCP support
OpenCL™ 2.0 (requires Intel® Core™ i3, i5 or i7 processors)
OpenGL® 4.4
For multi monitoring mode, graphics card and integrated graphics run in parallel
DisplayPort interface supports Ver. 1.2 incl. Multi-Stream
DVI-D interface supports audio output for HDMI monitors
Graphics notes up to 1 GB dedicated video memory (main memory owned and locked for graphics use)
Tested resolutions, depending on display type additional resolutions and frequencies possible
Shared memory depending on main memory size and operating system
Resolution (color depth up to 32 Bit/pixel)
For TFT we recommend using 60Hz
Fujitsu recommends Windows 10 Pro.
Base unit ESPRIMO P958/E85+ ESPRIMO P958/E94+
Electrical values
Power efciency note power supply efciency at 10% / 20% / 50% / 100% load for
230V: 80% / 85% /88% / 87%; for 115V: 79%/ 84%/ 87%/
84%
Rated voltage range 100 V - 240 V 100 V - 240 V
Rated frequency range 50 Hz - 60 Hz 50 Hz - 60 Hz
Operating voltage range 90 V - 264 V 90 V - 264 V
Operating line frequency range 47 Hz - 63 Hz 47 Hz - 63 Hz
Max. output of single power supply 210 W 280 W
Power factor correction/active power active active
Monitor outlet No Switched
Base unit ESPRIMO P958/E85+ ESPRIMO P958/E94+
Power consumption
Power consumption note See white paper Energy Consumption
Noise emission
Related Processors for noise Intel® Core™ i7 8700 Intel® Core™ i7 8700
Standard noise emission 2x4 GB, HDD, ODD, Windows
According to ISO 7779:2010, ECMA-74
Standard noise notes / description A-weighted sound power level Lwad (in B) / Workplace
related A-weighted sound pressure level LpAm (in dB(A))
Standard noise operation mode: CPU
50% load
Standard noise operation mode: HDD
load
Standard noise operation mode: Idle
mode
Standard noise operation mode: ODD
load
tbd tbd
tbd tbd
tbd tbd
tbd tbd
power supply efciency at 10% / 20% / 50% / 100% load for
230V: 87% / 91% / 94% / 93%; for 115V: 86%/ 90%/ 92%/
90%
2x4 GB, HDD, ODD, Windows
According to ISO 7779:2010, ECMA-74
A-weighted sound power level Lwad (in B) / Workplace
related A-weighted sound pressure level LpAm (in dB(A))
Page 5 / 9 www.fujitsu.com/fts/ESPRIMO
Page 6
Data Sheet FUJITSU Desktop ESPRIMO P958
Noise emission
Standard noise operation mode: Ofce
applications 2.0
Dimensions / Weight / Environmental
Dimensions (W x D x H) 180 x 304 x 375 mm
Operating position Vertical
Weight 7 kg
Weight (lbs) 15.50 lbs
Weight notes Actual weight may vary depending on conguration
Operating ambient temperature 10 - 35 °C (50 - 95 °F)
Operating relative humidity 5 - 85 % (relative humidity)
Compliance
Product ESPRIMO P958/E85+ ESPRIMO P958/E94+
Model MI6W
Germany GS (planned)
Europe CE
USA/Canada FCC Class B
Global RoHS (Restriction of hazardous substances)
China CCC (planned)
Compliance link https://sp.ts.fujitsu.com/sites/certicates
tbd tbd
7.09 x 11.97 x 14.76 inch
cTUVus
WEEE (Waste electrical and electronic equipment)
Microsoft Operating Systems (HCT / HCL entry / WHQL)
ENERGY STAR® in progress
EPEAT® in progress (dedicated regions)
CCC (depending on conguration)
CEL (Chinese energy label)
TPM 2.0 for China (optional)
Fujitsu recommends Windows 10 Pro.
Additional Software
Additional software (preinstalled) Adobe® Reader® (pdf reader)
McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version)
Microsoft Ofce (buy license to activate the pre-installed Microsoft Ofce)
Additional software (optional) Recovery DVD for Windows®
Drivers & Utilities DVD (DUDVD)
CyberLink PowerDVD BD (playback software for Blu-ray Disc™)
CyberLink PowerDVD DVD (playback software for DVD)
Nero Essentials XL
Base unit ESPRIMO P958/E85+ ESPRIMO P958/E94+
Security
Physical Security Kensington Lock support
Eye for padlock
Integrated cabinet lock (optional)
Cable Cover (optional; covers and secures the ports and
cables on rear side)
System and BIOS Security Embedded security (TPM 2.0)
EraseDisk (optional)
Credential Guard Ready and Device Guard Capable
(Windows 10, v. 1709)
Boot sector virus protection
Write protect option for the Flash EPROM
Control of all USB interfaces
External USB ports can be disabled separately
Control of external interfaces
Kensington Lock support
Eye for padlock
Integrated cabinet lock (optional)
Cable Cover (optional; covers and secures the ports and
cables on rear side)
Embedded security (TPM 2.0)
EraseDisk (optional)
Credential Guard Ready and Device Guard Capable
(Windows 10, v. 1709)
Boot sector virus protection
Write protect option for the Flash EPROM
Control of all USB interfaces
External USB ports can be disabled separately
Control of external interfaces
Page 6 / 9 www.fujitsu.com/fts/ESPRIMO
Page 7
Data Sheet FUJITSU Desktop ESPRIMO P958
Security
User Security User and supervisor BIOS password
Hard disk password
Access protection via external SmartCard reader (optional)
Access protection via internal SmartCard reader (optional)
Workplace Protect (secure authentication solution)
Workplace Embedded Tools Auto BIOS Update via Fujitsu Server
Auto BIOS Update via customer server
Easy PC Protection
Manageability
Manageability technology DeskUpdate Driver management
PXE 2.1 Boot code
Wake up from S5 (off mode)
Intrusion switch (optional)
WoL (Wake on LAN)
iAMT 12.0 (depending on processor)
Manageability software DeskView Client
DeskView Instant BIOS Management
DeskView components BIOS Management incl. Security
Inventory Management
Driver Management
Alarm Management
Supported standards DMI (Desktop Management Interface)
SMBIOS (System Management BIOS)
PXE (Preboot Execution Environment)
WMI (Windows Management Instrumentation)
WBEM (Web Based Enterprise Management)
CIM (Common Information Model)
Manageability link http://www.fujitsu.com/fts/manageability
Fujitsu recommends Windows 10 Pro.
User and supervisor BIOS password
Hard disk password
Access protection via external SmartCard reader (optional)
Access protection via internal SmartCard reader (optional)
Workplace Protect (secure authentication solution)
Auto BIOS Update via Fujitsu Server
Auto BIOS Update via customer server
Easy PC Protection
Miscellaneous
Keyboard on (Special Fujitsu keyboard required)
Keyboard on with one key (KBPX Eco, KB521)
Keyboard on with 2 keys (CTRL+CTRL) with PS2 or special
USB keyboards
Keyboard on with any key (USB)
Thermal management
Low Power Active Mode
Warranty
Warranty period 3 years (depending on country)
Warranty type Bring-In / Onsite Service (for countries within region EMEIA, for all other countries depending on local regulations)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Product Related Services - the perfect extension
Recommended Service X - 9x5, Onsite Response Time: Next Business Day
Spare Parts availability 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services/support
Keyboard on (Special Fujitsu keyboard required)
Keyboard on with one key (KBPX Eco, KB521)
Keyboard on with 2 keys (CTRL+CTRL) with PS2 or special
USB keyboards
Keyboard on with any key (USB)
Thermal management
Low Power Active Mode
Extended lifetime
Recommended Accessories
Order Code:
BDL:BFS-B24-8-TE
Page 7 / 9 www.fujitsu.com/fts/ESPRIMO
Page 8
Data Sheet FUJITSU Desktop ESPRIMO P958
Fujitsu recommends Windows 10 Pro.
Display B24-8 TE Pro The FUJITSU Display B24-8 TE Pro is made for intensive ofce work. With
visual and mechanical ergonomics this marble-grey display enables
fatigue-free working for hours in front of the screen. The large 60.5
cm (23.8-inch) screen allows you to keep always track of all open
applications. This high-quality display works unfailingly around the clock.
Easy connectivity, manageability and usability help you increase your
productivity.
Mouse M440 ECO
SOUNDSYSTEM DS E2000 Air
Fujitsu Mouse M440 ECO is made from 100% bio material and has a
completely PVC free cable. The elegant M440 ECO works on nearly every
surface and follows all your hand movements smoothly and precisely.
It features two main buttons and as well as a scroll wheel providing
comfortable computing to both right and left-handed users.
The new more powerful SOUNDSYSTEM DS E2000 Air gives you impressive,
well-balanced sound throughout the frequency band. It is an unbeatable
USB speaker set with a surprisingly small form factor. The robust satellite
speakers are decorated with a deluxe piano nish and the base is adorned
with warm ambient lighting.
Order Code:
S26361-K1577-V140
Order Code:
S26381-K450-L200
Order Code:
S26391-F7128-L600
Page 8 / 9 www.fujitsu.com/fts/ESPRIMO
Page 9
Data Sheet FUJITSU Desktop ESPRIMO P958
More information
Fujitsu recommends Windows 10 Pro.
Fujitsu products, solutions & services
In addition to FUJITSU Desktop ESPRIMO P958,
Fujitsu provides a range of platform solutions.
They combine reliable Fujitsu products with
the best in services, know-how and worldwide
partnerships.
Fujitsu Portfolio
Build on industry standards, Fujitsu offers a full
portfolio of IT hardware and software products,
services, solutions and cloud offering, ranging
from clients to datacenter solutions and
includes the broad stack of Business Solutions,
as well as the full stack of Cloud offering. This
allows customers to leverage from alternative
sourcing and delivery models to increase
their business agility and to improve their IT
operation’s reliability.
Computing Products
www.fujitsu.com/global/products/computing/
Software
www.fujitsu.com/software/
More information
Learn more about FUJITSU Desktop ESPRIMO
P958, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
www.fujitsu.com/fts/ESPRIMO
Fujitsu green policy innovation
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to
contribute to the creation of a sustainable
environment for future generations through IT.
Please nd further information at http://www.
fujitsu.com/global/about/environment
Copyrights
All rights reserved, including intellectual
property rights. Changes to technical data
reserved. Delivery subject to availability.
Designations may be trademarks and/or
copyrights of the respective manufacturer,
the use of which by third parties for their
own purposes may infringe the rights of such
owner. For further information see http://www.
fujitsu.com/fts/resources/navigation/terms-ofuse.html
Copyright 2018 Fujitsu Technology Solutions
GmbH
Disclaimer
Technical data is subject to modication and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective manufacturer, the use of which
by third parties for their own purposes may
infringe the rights of such owner.
Contact
Fujitsu Technology Solutions GmbH
Website: www.fujitsu.com/fts
2018-06-01 EM-EN
Page 9 / 9 www.fujitsu.com/fts/ESPRIMO
All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability.
Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for
their own purposes may infringe the rights of such owner. For further information see http://www.fujitsu.com/fts/resources/
navigation/terms-of-use.html
Copyright 2018 Fujitsu Technology Solutions GmbH
Loading...
