Fujitsu Stylistic 5020 User Guide

Fujitsu Computer Systems Corporation has made every effort to ensure the accuracy and completeness of this document. Because ongoing development efforts are made to continually improve the capabilities of our products, however, the data contained herein represents Fujitsu design objectives and is provided for comparative purposes; actual results may vary based on a variety of factors. This product data does not constitute a warranty. Specifications are subject to change without knowledge.

Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited; Stylistic is a registered trademark of Fujitsu Computer Systems Corporation.

Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association.

Intel, Pentium, and SpeedStep are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Atheros is a registered trademark of Atheros Communications, Inc.

Bluetooth and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Technology Group.

Memory Stick is a registered trademark of Sony Corporation and/or its affiliates

Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA).

All other products are trademarks or registered trademarks of their respective companies.

Warning

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

Copyright 2004 Fujitsu Computer Systems Corporation. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Fujitsu Computer Systems Corporation. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Fujitsu Computer Systems Corporation.

B6FH-3061-01EN-00

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu Computer Systems Corporation

Address: 1250 E. Arques Avenue, MS 122

Sunnyvale, CA 954085

Telephone: 408-746-6000

Declares that product: Model Series: Stylistic® ST5000 Tablet PC

Complies with Part 15 of the FCC Rules

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: For more detailed information about the FCC rules and their applicability to the Stylistic ST5000 Series

Tablet PC, refer to Chapter 5 of this document.

Stylistic ST5000 Series Tablet PC - User’s Guide

Table of Contents

Tab le of Con tent s

PREFACE

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v

Fujitsu Contact Information . . . . . . . . . . . . . . . . . v

Warranty Information . . . . . . . . . . . . . . . . . . . . . v

GETTING STARTED

Getting Started with Your ST5000 Series Tablet PC

In-box Items for the Tablet PC. . . . . . . . . . . . . . . 1

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2

Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3

Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10

Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12

Tertiary Functions of Buttons . . . . . . . . . . . . . . . 13

Security Functions of Application Buttons. . . . . . 14

Setting up the Security Panel . . . . . . . . . . . . . . . 14

Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using Your Security Panel . . . . . . . . . . . . . . . . . 15

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Uninstalling the Security Panel Application . . . . 15

Connectors and Peripheral Interfaces . . . . . . . . . 17

Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . 25

Replacing the Pen Tip . . . . . . . . . . . . . . . . . . . . 25

Charging the Battery . . . . . . . . . . . . . . . . . . . . . 25

Removing and Installing the Battery. . . . . . . . . . 26

Tips for Conserving Battery Power. . . . . . . . . . . 26

Modem Connection . . . . . . . . . . . . . . . . . . . . . 27

Memory Stick/SD Card Slot . . . . . . . . . . . . . . . . 27

PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

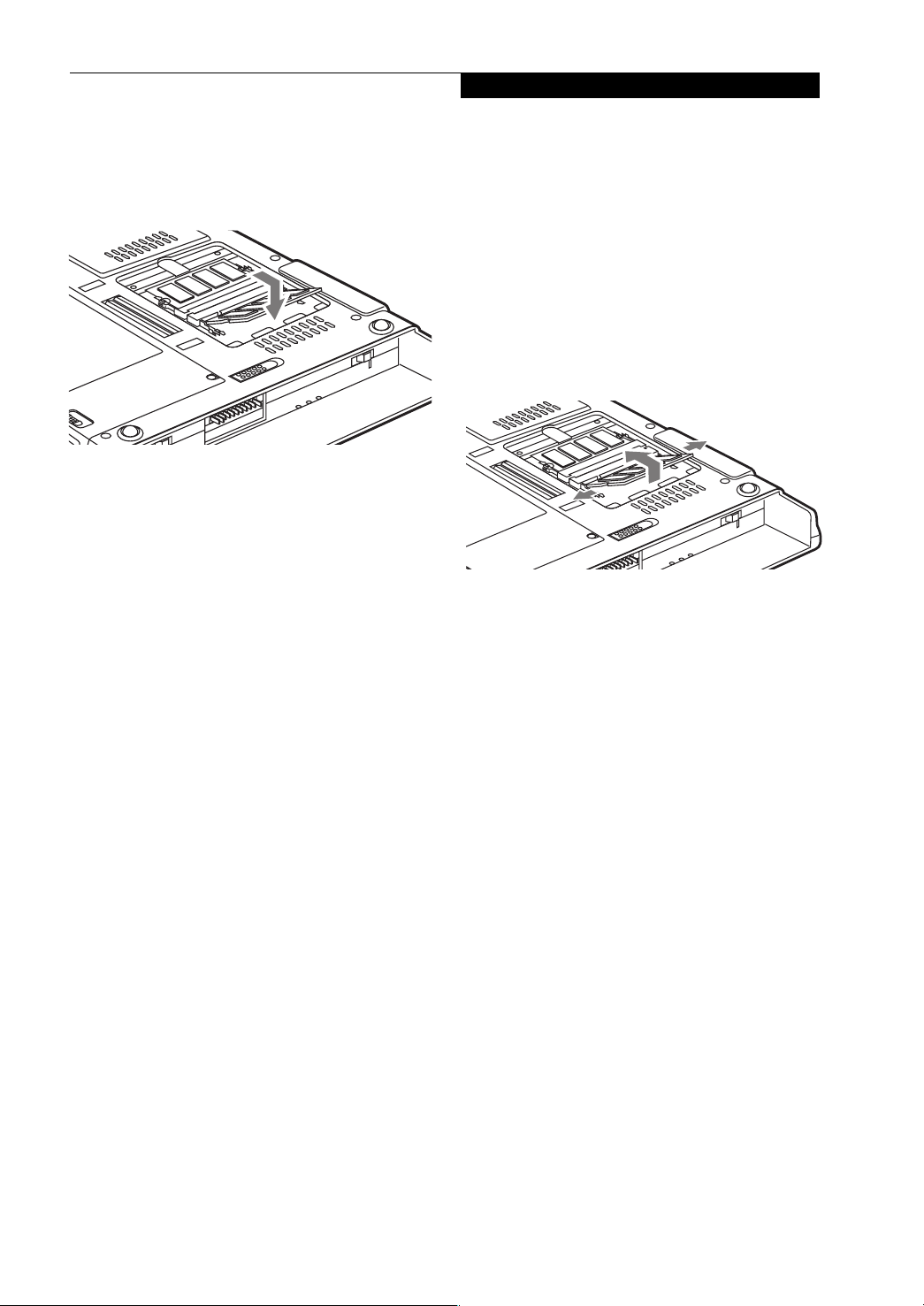

Removing and Installing Memory Modules . . . . 28

CARE AND MAINTENANCE

Caring for Your Stylistic ST5000 Series Tablet PC

Caring for Your Tablet PC . . . . . . . . . . . . . . . . . 33

Protecting the Display Screen. . . . . . . . . . . . . . . 33

Storing the Tablet PC. . . . . . . . . . . . . . . . . . . . . 34

Avoiding Overheating . . . . . . . . . . . . . . . . . . . . 34

Cleaning the Display Screen. . . . . . . . . . . . . . . . 34

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 34

Restoring Your Pre-Installed Software . . . . . . . . 35

Restoring the Factory Image . . . . . . . . . . . . . . . 36

USING YOUR TABLET PC

Using Your Stylistic ST5000 Series Tablet PC

System States. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Powering Up the Tablet PC . . . . . . . . . . . . . . . . 22

Shutting Down the System. . . . . . . . . . . . . . . . . 22

Suspending System Operation . . . . . . . . . . . . . . 22

Resuming System Operation . . . . . . . . . . . . . . . 24

Adjusting the Display Brightness. . . . . . . . . . . . . 24

Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Calibrating the Pen. . . . . . . . . . . . . . . . . . . . . . . 25

SPECIFICATIONS

Stylistic ST5000 Series Specifications

Processing Specifications . . . . . . . . . . . . . . . . . . 39

Memory/Storage Specifications . . . . . . . . . . . . . 39

Display Specifications. . . . . . . . . . . . . . . . . . . . . 39

Physical Specifications . . . . . . . . . . . . . . . . . . . . 39

Interface Specifications . . . . . . . . . . . . . . . . . . . 39

Power Specifications . . . . . . . . . . . . . . . . . . . . . 40

Environmental Specifications . . . . . . . . . . . . . . . 40

Agency Approval Specifications . . . . . . . . . . . . . 40

Additional Specifications . . . . . . . . . . . . . . . . . . 40

Stylistic ST5000 Series Tablet PC User’s Guide

AGENCY NOTICES

Regulatory Information

Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

APPENDIX A: WIRELESS LAN/ BLUETOOTH USER’S GUIDE

FCC Regulatory Information . . . . . . . . . . . . . . . 49

Before Using the Wireless LAN

For better communications. . . . . . . . . . . . . . . . . 51

Stopping transmission . . . . . . . . . . . . . . . . . . . . 52

Starting Transmission . . . . . . . . . . . . . . . . . . . . . 52

Connecting the WLAN

Flow of operations . . . . . . . . . . . . . . . . . . . . . . . 53

Preparation for wireless LAN connection . . . . . . 53

Connection to the network . . . . . . . . . . . . . . . . 55

Other settings

Setting of power-saving function . . . . . . . . . . . . 59

APPENDIX B: SECURITY DEVICE USER’S GUIDE

Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . . . 69

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . 69

Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . 69

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . 70

Using OmniPass. . . . . . . . . . . . . . . . . . . . . . . . . 71

Configuring OmniPass . . . . . . . . . . . . . . . . . . . . 73

OmniPass Control Center . . . . . . . . . . . . . . . . . 74

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 76

Trusted Platform Module Installation

TPM installation. . . . . . . . . . . . . . . . . . . . . . . . . 77

Index

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Troubleshooting the WLAN

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 60

Wireless LAN Glossary

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

IP address information

Additonal information . . . . . . . . . . . . . . . . . . . . 64

Specifications

Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Using the Bluetooth Device

What is Bluetooth?. . . . . . . . . . . . . . . . . . . . . . . 66

Where to find information about Bluetooth . . . . 66

Preface

Stylistic ST5000 Series Tablet PC User’s Guide – Preface

Preface

ABOUT THIS GUIDE

The Stylistic ST5000 Series Tablet PC is a highperformance, pen-based computer that has been designed to support MicrosoftWindows XP Tablet PC Edition.

This manual explains how to operate your Fujitsu Stylistic ST5000 Series Tablet PC hardware and built-in system software.

The Stylistic ST5000 Series Tablet PC is a completely selfcontained unit with an active-matrix (TFT) color LCD display and an active digitizer. It has a powerful interface that enables it to support a variety of optional features.

Conventions Used in the Guide

Keyboard keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].

Pages with additional information about a specific topic are cross-referenced within the text. Example: (See page xx.)

On screen buttons or menu items appear in bold Example: Click OK to restart your Tablet PC.

DOS commands you enter appear in Courier type. Example: Shut down the computer?

FUJITSU CONTACT INFORMATION

Service and Support

You can contact Fujitsu Service and Support in the following ways:

■

Toll free: 1-800-8Fujitsu (1-800-838-5487)

■

Fax: 408-764-2724

■

E-mail: 8fujitsu@us.fujitsu.com

■

Web site: http://us.fujitsu.com/computers

Before you place the call, you should have the following information ready so the customer support representative can provide you with the fastest possible solution:

■

Product name

■

Product configuration number

■

Product serial number

■

Purchase date

■

Conditions under which the problem occurred

■

Any error messages that have occurred

■

Type of device connected, if any

Fujitsu Online

You can go directly to the online Fujitsu product catalog for your Tablet PC by going to the Fujitsu Web site at: http://us.fujitsu.com/computers

You must have an active internet connection to use the online URL links.

The information icon highlights information that will enhance your understanding of the subject material.

The caution icon highlights information that is important to the safe operation of your computer, or to the integrity of your files. Please read all caution information carefully.

The warning icon highlights information that can be hazardous to either you, your computer, or your files. Please read all warning information carefully.

WARRANTY INFORMATION

Your Stylistic ST5000 Series Tablet PC is backed by an International Limited Warranty. Check the service kit that came with your system for warranty terms and conditions.

Stylistic ST5000 Series Tablet PC User’s Guide – Preface

Getting Started with Your Stylistic ST5000 Series Tablet PC

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

Getting Started

Getting Started with Your Stylistic Tablet PC

Series Tablet PC is available

with either a 10.4” reflective display

or a 12.1” transmissive display. For purposes

of illustration, the 12.1” model is used throughout.

Please refer to the Specifications chapter for additional details.

The Stylistic ST5000

Figure 1-1. Stylistic ST5000 Series Tablet PC

The Stylistic ST5000 Series Tablet PC is a highperformance, pen-based computer that has been designed to support Microsoft



Windows XP Tablet PC Edition. This chapter provides an overview of the Stylistic ST5000 Series Tablet PC and its features.

IN-BOX ITEMS FOR THE STYLISTIC ST5000 SERIES TABLET PC

Verify that the following items are included in the box with your Tablet PC:

• Stylistic ST5000 Series active pen

• Pen tips (quantity: 5)

•Pen tip removal tool

•Pen tether

• Main battery

•Power cord

•AC adapter

• Screen protectors (quantity: 2)

• Getting Started Guide

• Quick Tips Guide

• Drivers and Application Restore (DAR) CD

• System Restore DVD

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

OPTIONAL ACCESSORIES

The following optional accessories can be used with the Stylistic ST5000 Series Tablet PC. Refer to the instructions provided with these accessories for details on their use.

For the latest list of accessories available for your Stylistic ST5000 Series Tablet PC, be sure to frequently check the Fujitsu Web site at: http://us.fujitsu.com/computers.

Peripheral/Accessory

Docking Options

Tablet PC Tablet Dock, with CD-ROM drive Universal Dock Mount

Tablet PC Tablet Dock, with Combo DVD/CD-RW drive Folding Desk Stand

Charge-Only Cradle

Carrying Cases

Tablet PC Executive Leather Portfolio Case Bump Case

Tablet PC Nylon Attaché Case Easel Case

Harsh Environment Case (HEC) Hand Strap

Media Options

External USB Floppy Disk Drive USB CD-ROM Drive

External DVD/CD-ROM Combo Drive

Memory

256 MB SO DIMM, DDR333 128 MB Compact Flash Card

512 MB SO DIMM, DDR333 256 MB Compact Flash Card

1 GB SO DIMM, DDR333 128 MB Secure Digital Memory Card

Power Options

AC Adapter with US Cord Auto/Airline Adapter

Main Battery Battery Charger

High-Capacity Battery

Input Devices

Wireless Keyboard USB Optical Mouse

Wireless Keyboard with Touchpad Stylistic ST5000 Tablet PC Pen (2-pack)

Logitech Wireless Keyboard and Mouse Wireless Mouse with Scroll Function

Additional Accessories

Screen Protectors (6-pack) Compact Flash Card Adapter

HEC Screen Protectors (2-pack) Notebook Guardian Lock

4 in 1 PC Card Adapter (SD/MMC/ Memory Stick/SmartMedia)

Deluxe Pen Tether

Charge-Only Cradle DC Adapters

Table 1-1. Stylistic ST5000 Series Optional Accessories

Getting Started

STYLISTIC TABLET PC FEATURES

Features and controls that you use to operate the Stylistic ST5000 Series Tablet PC are outlined below and illustrated in Figures 1-1 through 1-6. Details on using these features and controls are provided later in this manual.

Infrared Keyboard/ Mouse Port

Speaker

Fingerprint Swipe Sensor*

System Status LEDs

Power On/Suspend/ Resume Button

User-Programmable Application Buttons

Built-in Microphone

Infrared Keyboard/ Mouse Port

Built-in Microphone (12.1” model only)

Figure 1-2. Stylistic ST5000 Series Tablet PC Features (Front View)

Front Features: 1

• Infrared keyboard/mouse ports: The infrared ports

are used for communicating with a proprietary infrared keyboard or mouse.

• Speaker: Allows you to listen to mono audio files.

• Fingerprint Swipe Sensor*: The optional fingerprint

swipe sensor allows you to start your system by swiping your finger over the sensor.

• System status LEDs: Indicate the operational status of

the Tablet PC and hard disk drive, the charge level of the battery, and the security panel.

• Power On/Suspend/Resume button: Allows you to

turn on, off, suspend, resume, hibernate or wake the Tablet PC in order to optimize battery life.

†

Navigation Buttons

• Application buttons: Allow you to quickly launch

pre-defined applications and utilities by pressing a button.

• Navigation buttons: The navigation buttons allow

you to move: Page Up/Page Down, Tab Right/Tab Left, Cursor Up/Cursor Down, and Cursor Right/ Cursor Left.

• Built-in Microphones: The built-in microphone(s)

allow you to input mono audio. Note that the 10.4” model has only one microphone.

†

These peripherals and accessories are sold separately.

* The fingerprint swipe sensor is available only on the

12.1” model, as an option.

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

Wireless LAN Module Cover

Memory Module Cover

System Interface Connector

Battery Release Latch

Battery

Tablet Dock Latch Points

Thermal Suede

Wireless LAN*

On/Off Switch

Figure 1-3. Stylistic ST5000 Series Tablet PC Features (Back View)

Back Features: 1

• System interface connector: Allows you to connect

the optional Stylistic Tablet Dock.

• Removable battery: Can be removed and replaced

with a charged battery.

†

• Battery release latch: Used to release the removable

battery.

• Tablet Dock latch point: Allows you to attach the

system to an optional Tablet Dock.

• Memory module cover: Removable cover over the

memory modules.

†

• Thermal Suede: Several areas of the system back are

covered with “thermal suede”. This material should not be removed. It is designed to minimize the heat that the user feels when the system has been operating for an extended period of time.

• Wireless LAN module cover: Provides protection for

the optional wireless LAN radio.

• Wireless LAN/Bluetooth On/Off switch: For systems

with the optional wireless LAN radio or Bluetooth device, this switch toggles the radio on or off.

†

These peripherals and accessories are sold separately.

Getting Started

Pen Holder

Pen Tether Point

PC Card Slot

PC Card Eject Button

Air flow vents

SD Card/Memory Stick Slot

Figure 1-4. Stylistic ST5000 Series Tablet PC Features (Top View)

Top Features: 1

• Pen: The main input device that you use to execute

programs and enter data. A pen holder is built into the Tablet PC to store the pen when not in use.

• Pen Tether Point: The pen tether point is used to

attach a pen tether to help prevent loss of the pen.

• PC Card slot: Allows you to install a Type I or Type II

PCMCIA Card

• PC Card Eject Button: The PC Card eject button is

used to remove a PC Card from the PC Card slot.

• Air flow vents: Provides secondary cooling for

processor. (Do not obstruct the vents.)

†

in the system.

IrDA/FIR Port Smart Card Slot

• SD Card/Memory Stick Slot: The Secure Digital (SD)

card/Memory Stick slot allows you to install a flash

†

memory card

for data storage. Flash memory cards allow you to transfer data to and from a variety of different digital devices.

• IrDA/FIR port: Provides an infrared interface for

communication with devices compliant with IrDA Standard Revision 1.1.

• Smart Card Slot: The dedicated Smart Card slot

†

allows you to install a Smart Card

on which you can store such data as medical information or electronic “cash”.

†

These peripherals and accessories are sold separately.

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

External Monitor Connector (behind cover)

IEEE 1394 Jack

Microphone Jack

Headphone Jack

USB 2.0 Ports

Latch Point

LAN Jack*

Modem Jack*

Kensington

DC Input Jack

™ Lock Slot

Figure 1-5. Stylistic ST5000 Series Tablet PC Features (Left Side View)

Left-Side Features: 1

• USB 2.0 ports: Allow you to connect Universal Serial

Bus-compliant devices (compliant with USB Standard Revision 2.0) to the Tablet PC. Additional USB ports are located on the optional Tablet Dock

†

• Headphone Jack: Allows you to connect a set of

stereo headphones†.

• Microphone Jack: Allows you to connect an external

microphone†.

• IEEE 1394 Jack: Allows you to connect IEEE 1394

(Firewire) peripherals such as digital video cameras or external hard drives† to your Tablet PC.

• External Monitor Connector: The External Monitor

connector allows you to connect an external VGA, XGA, or SVGA CRT monitor.

†

module installed in the Stylistic ST5000 Series Tablet PC has actual maximum transfer rates of 53 Kbps (receive), 33.6 Kbps (send), and 14.4 Kbps (fax). Download rates are limited to 53 Kbps in the United States due to FCC restrictions.

• LAN jack: Allows you to connect a standard RJ-45

connector to the Tablet PC’s internal local area network (LAN).

• Kensington™ lock slot: Allows you to attach a

Kensington MicroSaver

-compatible security

cable.†

• DC input connector: Allows you to connect the AC

†

adapter or auto adapter.

†

These peripherals and accessories are sold separately.

• Modem jack: Allows you to connect a standard RJ-11

connector to the Tablet PC’s internal 56 Kbps modem. Note that the internal 56 Kbps LAN/modem

Getting Started

Infrared Keyboard/Mouse Port

Optional Wireless LAN location

Latch Point

Figure 1-6. Stylistic ST5000 Series Tablet PC Features (Right Side View)

Right-Side Features: 1

• Pen: The main pointing device that you use to execute

programs and enter data. A pen holder is built into the Tablet PC to store the pen when not in use.

• Infrared keyboard/mouse port: The infrared port

wraps around the front and bottom of the display, and is used for communicating with an optional proprietary infrared keyboard or mouse

• Wireless LAN location: The optional wireless LAN

device is located inside of the system housing.

†

These peripherals and accessories are sold separately.

†

Pen / Pen Holder

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

STATUS DISPLAY

Icons appear under each of the system status LEDs in the status display indicating the status of system functions such as system power and battery charge level. The location of icons in the Status display is shown in Figure 1-7.

Table 1-2. explains how the LEDs associated with the individual icons are displayed, and describes what the variations of that display indicate. (If an icon is not displayed, it indicates that the related system function is off or inactive.

Power

Battery

Charge/DC In

HDD Access

Figure 1-7. Status Display Icons

In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the rate of one second on, five seconds off.

Icon Mode/State LED State Remarks

Security

Power • On State

• Idle Mode

• Suspend-to-RAM Green, blinking The system has suspended and saved active

• Off State

•Hibernate (Save-to-Disk)

Charge/DC In• On State

• Idle Mode

• Suspend-to-RAM

•Hibernate (Save-to-Disk)

• Off State

Green, continuous The system is powered on and ready for use.

settings to RAM.

Off The system has suspended and saved settings

and data to the hard disk drive.

Amber AC adapter and battery are available and system

is charging.

Green • AC adapter and battery are available and

system is not charging (battery fully charged).

• AC adapter is available but battery is not present.

Amber, blinking AC adapter and battery are available and waiting

to charge (battery is out of thermal range).

Off AC adapter is not available.

Getting Started

In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the rate of one second on, five seconds off.

Icon Mode/State LED State Remarks

Battery

HDD

Access

• On State

• Idle Mode

• Suspend-to-RAM, without AC adapter

• Suspend-to-RAM with AC adapter

•Hibernate (Save-to-Disk), with AC adapter

• Off State

•Hibernate (Save-to-Disk), without AC adapter

• On State (or flashing)

• Idle Mode

• Suspend-to-RAM

•Hibernate

(Save-to-Disk)

• Off State

Green, continuous Battery charge is between 50%-100%

Amber, continuous Battery charge is between 13%-49%

Red, continuous Battery charge is between 0%-12%

Red, blinking There is a battery error.

Green, blinking slow Battery charge is between 50%-100%.

Amber, blinking slow Battery charge is between 13%-49%.

Red, blinking slow Battery charge is between 0%-12%.

Off Battery is not installed, or system is off or in

Hibernate mode.

If battery is inserted during power off, LED blinks amber for 4 seconds to detect battery. Battery status is displayed for 5 seconds after that.

Green Displayed when hard disk drive is accessed.

Off Hard disk drive is not being accessed.

Security

• On State Green, continuous

(until password is entered)

Table 1-2. System Status Indicators

The Security Indicator lights (if a password was set) when the system resumes from Off or Standby modes. You must enter the password that was set in the Security Panel before your system will resume operation.

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

APPLICATION BUTTONS

The six application buttons are located on the upper right-hand side of a vertically-oriented system. (See figure 1-2 on page 3 for location). Five of the buttons have secondary functions. The secondary functions are activated by pressing the Function (Fn) button while pressing the application button.

The buttons also have separate tertiary functions that can be used while the system is booting up. For more

Tablet Icon

Button Icon

and Name

(Primary)

Ctl-Alt-Del

Button

(Fn +

Button)

(Secondary)

Security

Button

Internet

Button

Pressing the Ctl-Alt-Del button for approximately one second allows you to log on after boot or after resuming from power management. Security Button: All five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and the fifth is used as an Enter button. See “Security Functions of Application Buttons” on page 14.

When you press the EMail button, you automatically launch Microsoft Outlook Express, where you can read, create, and send emails.

When you press the Fn + EMail buttons at the same time, you automatically launch the Web browser. The default page to which you go is the Fujitsu home page. If you would like to change your home page, go to the Control Panel-> Internet Options. Select the General tab and enter the starting address you would like to use.

information about the tertiary functions, refer to Table 1-5 on page 13.

Ctl-Alt-Del is the only application button that can be used while the system is logging on or when the system is locked (i.e., when you have the Logon or Computer Locked window showing on your desktop).

Description

Orientation

Button

Escape Button

Display

Mode

Button

Application

A Button

When you press the Orientation button, the system screen orientation changes from portrait (vertical) to landscape (horizontal) or from landscape to portrait. When you would like to use the Tablet PC as an eBook, for example, you would use the portrait orientation, when accessing spreadsheets, you would more typically use a landscape orientation.

When you press the Fn + Orientation buttons at the same time*, the display output will switch between internal, external, and simultaneous display.

The Escape application button acts the same way as an Escape key on a keyboard.

When you press the Fn + Esc buttons at the same time*, they act to invoke a predetermined application or generate a combination keystroke, as assigned in the Tablet Button Settings utility. (You can change the settings in Control Panel -> Tablet Button Settings).

By default, pressing the Fn + Esc combination acts the same as if you had pressed

Ctl + Esc on a keyboard: the Start menu is launched.

Button Icon

and Name

(Primary)

Enter

Button

Function

Button

Getting Started

Tablet Icon

(Fn +

Button)

(Secondary)

Application

B Button

Fujitsu

Utility

The Enter application button acts the same way as an Enter key on a keyboard.

Pressing the Fn + Ent buttons at the same time*, acts to invoke a pre-determined application or keystroke combination, as assigned in the Tablet Button Settings utility. (You can change the settings in Control Panel -> Tablet Button Settings).

By default, pressing the Fn + Ent combination acts the same as if you had pressed Alt on a keyboard: it selects a main menu in the typical Windows application.

The Function button works in conjunction with the other application buttons to provide additional functionality for the buttons. Refer to specific details above.*

Pressing the Fn button twice in succession (within the “sticky” time*), causes the Fujitsu menu to appear on your screen, allowing you to modify certain system settings.

Description

Table 1-3. Application Buttons - Primary and Secondary Functions

* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather

than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the second button.

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

NAVIGATION BUTTONS

The two navigation buttons are located on the lower right-hand side of a vertically-oriented system. (See figure 1-2 on page 3 for location). Each of the buttons can be toggled by pressing either end of the button.

The buttons have dual functions. The secondary functions are activated by pressing the Function (Fn) button while pressing the application button*.

The buttons also have separate tertiary functions that can be used while the system is booting up. For more

Buttons/icons Purpose (when pressed alone)

(“Primary” function)

This button consists of Page Up and Page Down segments. When the Page Up portion is pressed, you will scroll up one page.

When the Page Down portion is pressed, you will scroll down one page.

This button consists of Up and Down segments. When the Up portion is pressed, the cursor will move up.

When the Down portion is pressed, the cursor will move down.

information about the tertiary functions, refer to Table 1-5 on page 13.

Ctl-Alt-Del is the only Application button that can be used while the system is logging on or when the system is locked (i.e., when you have the Logon or Computer Locked window showing on your desktop).

Purpose (when pressed with Fn button)

(“Secondary” function)

When pressed with the Function (Fn) button*, the Up portion of this button allows you to tab right.

When pressed with the Function (Fn) button*, the Down portion of this button allows you to tab left.

When pressed with the Function (Fn) button*, the Up portion of this button will move the cursor to the right.

When pressed with the Function (Fn) button*, the Down portion of this button will move the cursor to the left.

* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather

than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the second button.

Table 1-4. Navigation Buttons

Getting Started

TERTIARY FUNCTIONS OF APPLICATION AND NAVIGATION BUTTONS

While you are booting up your system, the Application Buttons and Navigation buttons can be used for entering and navigating through the Basic Input-Output System (BIOS), and for invoking the Advanced Options Menu, where you can enter different modes (such as Safe Mode).

The BIOS is a program and a set of parameters that are stored in ROM, which tests and operates your Tablet PC

operating system from disk. Information from the BIOS is transferred to the operating system to provide it with information on the configuration and status of the hardware.

The system is booting up while the Fujitsu logo is displayed immediately after turning on the system. The table below indicates how the buttons act while the system is booting up and while you are in the BIOS.

from when you turn it on until it loads your installed

Buttons/icons Purpose (when pressed while the system is booting up)

Pressing the Ctl-Alt-Del button while the system is booting up takes you into BIOS setup. This is the same as if you had tapped [F2] on a keyboard.

Ctl-Alt-Del

Button

Pressing the EMail button while the system is booting up opens the Boot Options menu. This is the same as if you had tapped [F12] on a keyboard.

EMail Button

Pressing the Orientation button while the BIOS setup screen is open causes the selected item (if applicable) to change to the next item. Pressing this is the same as tapping the spacebar on a keyboard.

Orientation

Button

Pressing the Esc button while the BIOS is open acts to escape from the BIOS. This is the same as if you had tapped [Esc] on a keyboard.

Escape Button

Enter Button

Function Button

Pressing the Ent button while the BIOS is open acts the same as the [Ent] button on a keyboard.

Pressing the Fn button while the system is displaying the operating system boot menu, opens the Advanced Operating System Options menu. This menu allows you to enter different operating system modes (such as Safe Mode). Pressing this button is the same as if you had tapped [F8] on a keyboard.

Pressing the top half of the upper navigation button while the BIOS setup screen is open causes the cursor in the BIOS setup screen to move up. This is the same as if you had tapped Arrow Up on a keyboard. This feature is also functional in the operating system boot menu.

Pressing the bottom half of the upper navigation button while the BIOS setup screen is open causes the cursor in the BIOS setup screen to move down. This is the same as if you had tapped Arrow Down on a keyboard. This feature is also functional in the operating system boot menu.

Pressing the top half of the lower navigation button while the BIOS setup screen is open causes the cursor in the BIOS setup screen to move right. This is the same as if you had tapped Arrow Right on a keyboard.

Pressing the bottom half of the lower navigation button while the BIOS setup screen is open causes the cursor in the BIOS setup screen to move left. This is the same as if you had tapped Arrow Left on a keyboard.

Table 1-5. Tertiary Functions of Application and Navigation Buttons

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

SECURITY FUNCTIONS OF APPLICATION BUTTONS

Five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and the fifth is used as an Enter button. Instructions for using the security feature follow the table.

Button Icons Security Icons Security Purpose

Security Enter Button

Ctl-Alt-Del Button

EMail Button

Orientation Button

Escape Button

Enter Button

Table 1-6. Security Functions of Application Buttons

SETTING UP THE SECURITY PANEL

When you receive your Tablet PC, the security panel application is pre-installed without any passwords. The following sections provide detailed information on your security panel, how to set, change or remove passwords.

Numbered Buttons

Use these buttons to enter your password.(Figure 1-6)

Enter Button

After entering the button strokes, push this button to enter the password into the Tablet PC. (Figure 1-6)

Security Button 1

Security Button 2

Security Button 3

Security Button 4

The following are valid button strokes:

■

Pushing [4] by itself

■

Pushing [2] and [3] at the same time

■

Pushing [1], [2], and [4] at the same time

■

Pushing [1], [2], [3], and [4] at the same time

The following are valid passwords. The numbers within braces ({ }) are button strokes using more than one button.

■

{[2]+[3]}, [1], [Enter]

■

[4], [enter]

■

{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]

PASSWORDS

The user and supervisor password may be set on this Tablet PC. A supervisor password is typically the same for all Tablet PC’s and notebooks in a work group, office, or company to allow for system management. Individual computers in a group environment should not use a common password. A password consists of one to five button strokes plus the enter button. A valid stroke consists of pushing one or up to four buttons simultaneously.

Setting Passwords

When shipped from the factory, no passwords are set. You have a choice of having no password or setting a supervisor and user password. You must set the supervisor password before the user password.

■

The purpose of supervisor password is to be able to bypass the user password in case the user password is forgotten. The supervisor password alone will not lock the system.

■

You must set the supervisor and user passwords for the security panel to work.

Getting Started

Setting Supervisor Password

You must have set a supervisor password before setting any user passwords. The supervisor password can bypass the user password.

1. Go to the Start menu.

2. Click on Run.

3. Type in:

C:\Program Files\Fujitsu\Security Panel Application\Supervisor\ FJSECS.EXE, then press [Enter]

4. Follow the on-screen instructions to set the Supervisor password.

Setting User Password

1 Go to the Start menu.

2. Click on All Programs.

3. Click on Security Panel Application -> Security Panel Application.

4. Follow the on-screen instructions to set the user password

You may change or remove the supervisor or user password by repeating the steps defined above.

USING YOUR SECURITY PANEL

The security lock feature is in effect both when the system resumes from Off, Standby, or Hibernation state. You always need to push the Security Panel buttons to input the user password. Your system will not begin the boot sequence until you enter your supervisor/user password.

From Off State

1. Turn on your system.

2. When the Security Indicator flashes, enter the password and press Enter button.

For example, if the password is 22222, first press Button 2 five times and press the Enter button. The Tablet PC will boot to normal operation.

From Standby/Hibernation State

1. Press your Suspend/Resume button.

2. When the Security Indicator flashes, enter the password and press Enter button.

The Tablet PC should resume normal operation.

PC will resume normal operation. If no password is entered or an invalid password is entered while the system beeps, the system will return to its previous locked state (standby or off) and the Security Indicator will go off. To reactivate the Tablet PC after a password failure, you must press the Suspend/Resume button, then enter a correct password

Remember the user password you specified on the Security Panel Application. If you forget the password you will not be able to use your computer. The supervisor password can override the user password.

PRECAUTIONS

Low Battery Operations

If your Tablet PC has a low battery, pushing the suspend/ resume button does not unlock the Tablet PC. To resume normal operation, first attach a power supply to the system. Then you may unlock the Tablet PC.

UNINSTALLING THE SECURITY PANEL APPLICATION

You have two options when uninstalling the security panel application:

■

Remove passwords and uninstall the security panel application software. This will disable all security features.

■

Uninstall the security panel application with password still active. This will not allow any changes to the password.

Uninstalling the Security Panel Application Software

Remove passwords when User wants no password protection whatsoever and doesn’t want to give anybody the utility to set a password on their computer. In this case, if passwords (supervisor, user, or both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords, follow same procedure in SETTING PASSWORD CODES except this time, select REMOVE, enter current password then click Next. When asked to confirm select Ye s .

Incorrect Password Entry

If an invalid supervisor or user password is entered three times in succession, the system will “beep” for about one minute. If a valid password is entered within a minute (while system beeps), the beeping will stop and the Tablet

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

Removing Security Panel Application with Passwords Still Active

Using this feature will not allow any changes to the password.

Removing the applications does not remove the password. It simply removes the utility to change/add/remove passwords. To change your password you must reinstall the application.

User :

1. Go to Start -> Control Panel.

2. Open Add or Remove Programs Properties in the Control Panel.

3. Select the Security Panel Application in the list, and click Change/Remove.

4. When the Confirm File Deletion box appears, click Ye s .

Supervisor:

1. Go to Start -> Control Panel.

2. Open Add or Remove Programs Properties in the Control Panel.

3. Select the Security Panel Application for Supervisor in the list, and click Change/Remove.

4. When the Confirm File Deletion box appears, click Ye s .

Reinstalling the Security Panel Application

To reinstall supervisor or user security application, you will need your Drivers and Applications CD. The Utilities\Security Panel Application folder contains two separate folders: Supervisor and User. The setup files for supervisor and user security applications are contained in those folders.

1. Go to the Utilities\Security Panel Application\

Supervisor folder on the CD and double-click the setup.exe file. The Installing Security Panel Applica-

tion window will appear. Follow the instructions on the screen.

2. Go to the Utilities\Security Panel Application\User folder on the CD and double-click the setup.exe file. The Installing Security Panel Application window will appear. Follow the instructions on the screen.

Supervisor and user passwords can be set via Windows software using the FJSECS.exe and FJSECU.exe files, respectively. FJSECU.exe for the user password cannot run without first setting a supervisor password. You need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on page 14.

If you forget both passwords, please contact Fujitsu Computer Systems Corporation Service and Support at 1-800-8Fujitsu (1-800-838-5487). Fujitsu Computer Systems Corporation charges a service fee for unlocking a password-restricted Tablet PC. When calling please have a valid credit card and provide proof of ownership. You will then be given instructions on where to ship your Tablet PC.

CONNECTORS AND PERIPHERAL INTERFACES

Getting Started

Connectors and peripheral interfaces on the Stylistic ST5000 Series Tablet PC allow the connection of a variety of devices. Specific locations are illustrated in Figures 1-2 through 1-5.

Connector/

Peripheral

DC input connector

Tablet PC

Icon

Connect an external power source such as the AC adapter or auto/ airline adapter.

Table 1-7 provides a description of each peripheral connector on the Stylistic ST5000 Series Tablet PC. Each of the illustrated icons is either molded into or printed on the Tablet PC chassis.

Purpose

USB Port Connect Universal Serial Bus 2.0 compliant devices to the Tablet PC.

PCMCIA

Install a Type I or Type II PC Card.

Card slot

SD Card/

Install a Secure Digital (SD) Card or a Memory Stick. Memory Stick slot

Microphone jack

Connect an external microphone. The internal microphone is disabled

when you plug in an external microphone.

Headphone jack

Connect stereo headphones or powered external speakers. The internal

speaker is disabled when you plug in external headphones or powered

speakers.

IrDA/FIR port An infrared transceiver built into the Tablet PC allows you to

communicate with other devices that are compliant with the IrDA

Standard Rev. 1.1. Effective range for infrared communication is about

3 feet, and within 15 degrees off center. A clear line-of-sight path must

exist between the IrDA port on the Tablet PC and the IrDA transceiver

on the other device.

Modem Connect a telephone line to the optional internal modem using a

standard RJ-11 telephone plug.

Tablet Dock port

Connect the Stylistic ST5000 Series Tablet Dock or other approved

docking device. Refer to documentation accompanying the docking

device for more information.

Stylistic ST5000 Series Tablet PC User’s Guide – Section One

Connector/

Peripheral

Infrared keyboard/ mouse port

Tablet PC

Icon

Purpose

An infrared receiver built into the Tablet PC allows you to communicate with a Fujitsu wireless infrared keyboard or mouse. The keyboard infrared port works optimally when it is placed between 10 to 30 cm (approximately 4 in. to 12 in.) from the keyboard infrared port (which is located on the bottom edge of the Tablet PC). Ensure there is a clear line-of-sight path between the infrared receiver on the Tablet PC and the infrared transmitter on the keyboard or mouse. Note that an infrared keyboard or mouse works best when the system is in landscape orientation.

Kensington Lock slot

The Kensington MicrosaverTM security slot allows you to secure the Tablet PC using Kensington-compatible locking devices.

IEEE 1394 jack The IEEE 1394 jack allows you to connect IEEE 1394 (Firewire) devices

such as digital video cameras and external hard drives to your Tablet PC.

Suspend/ Resume button

The Suspend/Resume/Power On button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from suspend mode, and power on the system when it has been shut down from Windows.

Page Up/ Page Down

The Page Up/Page Down button allows you to navigate quickly from page to page without scrolling.

Local Area Network (LAN)

Battery Release Latch

Wireless LAN/ Bluetooth On-Off Switch

Fingerprint Swipe Sensor

The LAN (RJ-45) jack is used to connect the internal10/100/1000* BaseT/Tx Ethernet to a Local Area Network (LAN) in your office or home, or broadband devices such as a cable modem, DSL, or satellite internet.

*1000 Mbps, commonly referred to as Gigabit Ethernet.

The battery release latch allows you to remove the battery from your system for storage or replacement.

The wireless LAN/Bluetooth switch allows you to turn power to the optional wireless LAN or Bluetooth devices on and off.

The optional fingerprint swipe sensor allows you to avoid having to enter a user name and password every time you want to log into the system. This icon indicates the direction in which you should swipe your finger.

Table 1-7. Peripheral Connectors/Interfaces
