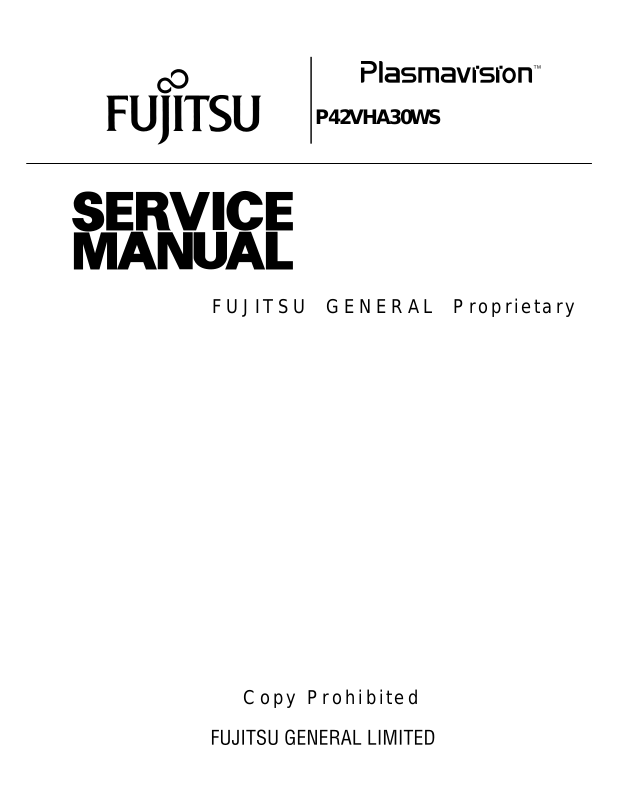

Fujitsu SM42VHA30 Service Manual

P42VHA30WS

FUJITSU GENERAL Proprietary

Copy Prohibited

CONTENTS

IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SETTING SIGNALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

PART NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

VIDEO MODE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RGB MODE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING USING LED AND OSD . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING FLOWCHART . . . . . . . . . . . . . . . . . . . . . . . . . .

EXPLANATION OF LABELS

REPLACEMENT PARTS AND REQUIRED ADJUSTMENT

VR AND TEST POINT LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . .

DISASSEMBLY PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TRANSPORTATION AND HANDLING RESTRICTIONS . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . .

17

18

19

25

26

27

28

30

40

41

- 1 -

IMPORTANT INFORMATION

WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

Please use a screen saver to prevent burning of an after-image on the screen.

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your
personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD.
In order not to defeat the safeguards incorporated into this unit, observe the following basic rules governing its installation,
use and service. Please read these "Important Safeguards" carefully before use.

Read all the safety and operating instructions before operating the unit.

Retain the safety and operating instructions for future reference.

Adhere to all warnings on the unit and in the operating instructions.

Follow all operating instructions.

Unplug the unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the manufacturer as they may be hazardous.

Do not use the unit near water. Do not use the unit immediately after moving it from a low temperature to a high

temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.

Do not place the unit on an unstable cart, stand, or table. The unit may fall, causing serious injury to a child or adult, and

serious damage to the unit. Mount the unit according to the manufacturer's instructions, using the mount recommended by
the manufacturer.

When the unit is used on a cart, avoid quick stops, excessive force, and uneven

surfaces which may cause the unit and cart to overturn, damaging the unit or
causing possible injury to the operator.
When transporting by car, place the unit as shown in the figure.

Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation and protect the unit from

overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the unit
on a bed, sofa, rug, or similar surface. The unit should not be placed in a built - in installation such as a bookcase or rack
unless proper ventilation is provided and the manufacturer's instructions are adhered to.) For proper ventilation, separate
the unit from other equipment, which may obstruct ventilation. Keep the unit at least 10cm from other equipment.

Operate only with the type of power source indicated on the label. If you are not sure of the type of power supply to your

home, consult your dealer or local power company.

This unit is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you cannot insert the plug

into the outlet, have an electrician install the proper outlet. Do not defeat the safety purpose of the grounded plug.

Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay

particular attention to cords at doors, plugs, receptacles, and where they exit from the unit.

For added protection during a lightning storm, or when the unit is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the cabling. This will prevent damage to the unit by lighting and power line
surges.

Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in fire or

electric shock.

Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-circuit

parts that could result in a fire or electric shock. Never spill liquid of any kind onto the unit.

- 2 -

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltages and

other hazards. Have all service done by qualified service personnel.

Unplug this unit from the wall outlet and have it serviced by qualified service personnel in the following cases:

a) If the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen onto the unit.
c) If the unit has been exposed to rain or water.
d) If the unit does not operate normally by following the operating instructions. Adjust only those controls that are

covered by the Operation Manual, as improper adjustment of controls may result in damage and will often require

extensive work by a qualified technician to restore the unit to normal operation.
e) If the unit has been dropped or damaged in any way.
f) A distinct change in performance indicates that service is required.

When required, be sure the service technician uses replacement parts specified by the manufacturer or parts with the

same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Upon completion of any service of repairs, ask the service technician to perform safety checks to determine that the

unit is in proper operating condition.

Place the unit more than one foot away from heat sources such as radiators, heat registers, stoves, and other devices

(including amplifiers) that produce heat.

When connecting other devices such as VCR's and personal computers, turn off the power to this unit to protect

against electric shock.

Do not place combustibles such as cloth, paper, matches, aerosol cans or gas lighters that prevent special hazards

when overheated behind the cooling fan.

Use only the accessory cord designed for this unit to prevent shock.

The power supply voltage rating of this unit is AC100-240V, but the attached power cord conforms to the following
power supply voltage. Use only the Power Cord designated by our dealer to ensure Safety and EMC.

When used with other power supply voltages, the power cable must be changed.
Consult your local dealer.

Power Cord

Power supply voltage : AC 100 - 125 V AC 200 - 240 V AC-240V

(SAA TYPE)

- 3 -

SPECIFICATIONS

Power requirement

Current drain

110-240V, 50/60Hz

3.5A-1.35A

Display panel

Screen size 92.1 (W) x 51.8 (H) [cm]

36.3 (W) x 20.4 (H) [inch]
Aspect ratio 16 : 9
Number of pixels 852 (H) x 480 (V) pixels
Pixel pitch 1.08mm x 1.08mm
Contrast ratio 3000 : 1
Luminance 800 cd/m

2

Viewing angle Max. 160 degrees

Input Terminals

Video input RCA terminal

P-P /75Ω

1.0V

S video input

S terminal
Y signal:1.0V

P-P /75Ω

C signal:0.286VP-P /75Ω

Component Three RCA terminals

(one system)video input

Y : 1.0V

P-P /75Ω

Pb /B-Y: 0.7VP-P /75Ω
Pr /R-Y: 0.7VP-P /75Ω

Video input

SCART terminal

(only E model:option)

Video
S video

/75Ω

1.0V

P-P

Y signal:1.0VP-P /75Ω
C signal:0.286VP-P /75Ω

RGB

G : 0.7VP-P /75Ω
B : 0.7VP-P /75Ω
R : 0.7VP-P /75Ω

Digital RGB 1 input

DVI-D terminal (HDCP)

Differential Input 0.5V 10%

+ + + +

(RXC , RX0 , RX1 , RX2 )

+

Analog RGB 2 input mD-sub:15pin (3 row type)

Video : 0.7V

P-P /75Ω

SYNC signal : TTL level

User set mode 8 memories (each RGB1,2,3)

Display frequency Horizontal :15.63 to 80.0MHz

Vertical : 50.0 to 120Hz
Dot clock:50MHz Max

XGA 68MHz

RS-232C D-sub 9 pin terminal

Color system

NTSC/PAL/SECAM/N-PAL/M-PAL
/4.43NTSC/PAL60

Analog audio input Two RCA terminals(one system)

Effective max.

500mVrms/22k
Level terminal 10W+10W (L/R), 6

Ω

output

Display colors

16.7 million (256 each for R.G.B.)

Outer dimensions Width : 103.7cm (40.8 inch)

Height: 64.2cm (25.3 inch)
Depth : 8.5 cm ( 3.3 inch)

Net weight 30.0kg (66.0lbs)

Environment (Operating)

Temperature 0 to 40 C (32 to 104 F)
Relative humidity 20 to 80%
Pressure 850 to 1,114 hPa

Accessories 2 User's manual

Power cord
Small ferrite core (2)
Big ferrite core (2)
Remote controller
Batteries (Type AA x 2)

Options

Stand P-TT4200

P-WB4201Wall mounting unit

0 to 15 mounting angle

Ceiling mounting unit

P-CT4200

0 to 15 mounting angle
P-SP4200Speaker
P-ST4200Speaker stand

Standards

P42VHA30WS
P42VHA30ES

UL,CSA

Safety:

UL6500
C-UL

EMC:

FCC Part15 Class B
ICES-003 Class B

CE

EN60065

Safety:

EMC :

EN55022 1998
Class B
EN61000-3-2 1995
EN61000-3-3 1995
EN55024 1998
EN61000-4-2 1995
EN61000-4-3 1996
EN61000-4-4 1995
EN61000-4-5 1995
EN61000-4-6 1996
EN61000-4-8 1993
EN61000-4-11 1994

AS

IEC60065

Safety :

EMC :AS/NZS 3548

Ω

- 4 -

SETTING SIGNALS

This display can store parameter settings for eight additional signals for RGB.
To do this, select the desired signal and follow "RGB MODE ADJUSTMENT" in the manual to adjust the parameters.
When you finish, the settings will be automatically stored.

FACTORY SET SIGNALS (RGB MODE)

Main corresponding signals (RGB mode)

Display (dots x lines)

640 x 480 31.47 59.94 VGA
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768

1024 x 768
1280 x 1024 63.98 60.02 SXGA 60 Hz
1280 x 1024 79.98 75.03 SXGA 75 Hz
1600 x 1200 75.00 60.00
1600 x 1200
848 x 480 31.02 60.00
852 x 480 31.72
1360 x 768
720 x 485 15.73 59.94 60 fields
720 x 575 15.63 50.00 50 fields

* With some input signals, “Out of range” may appear even when the horizontal and vertical frequencies are within their permissible ranges. Make

sure that the vertical frequency of the input signal is 85 Hz or less for SVGA, 75 Hz or less for XVGA/ SXGA , 60 Hz or less for UXGA.

Horizontal frequency (kHz) Vertical frequency (Hz)

37.50 75.00

43.27 85.01

31.47 70.09

37.88 60.32

46.88 75.00 SVGA 75 Hz

53.67 85.06 SVGA 85 Hz

48.36 60.00 XGA 60 Hz

60.02

68.68

106.25 85.00 UXGA 85 Hz

47.71

75.03

84.99

59.97

60.01

VGA 75 Hz
VGA 85 Hz
400 lines
SVGA 60 Hz

XGA 75 Hz
XGA 85 Hz

UXGA 60 Hz

Signal DVD-I

- 5 -

FACTORY SET SIGNALS (Component video mode)

Horizontal

frequency (kHz)

15.73 SDTV 480i

15.63 SDTV 576i

31.47 SDTV 480p

31.25 SDTV 576p

45.00 HDTV 720p

37.50 HDTV 720p

33.75 HDTV 1,080i

28.13 HDTV 1,080i

The dedicated graphics card is optional.
In the 800 x 600 and 1,024 x 768 modes, images of reduced size are displayed on the screen, using size reduction and
interpolation. Also note that on-screen information is also displayed in reduced size.
" Out of range" appears if the display receives a signal whose characteristic does not fall within the display's
permissible range.
You can check the input signals with "Information" on the OTHERS Menu screen.

Vertical

frequency (Hz)

59.94

50.00

59.94

50.00

60.00

50.00

60.00

50.00

Signal

FACTORY SET SIGNALS (Video, S-video mode)

Horizontal

frequency (kHz)

15.73 NTSC

15.63 PAL

15.63 SECAM

15.63 PAL 60

15.63 N-PAL

15.73 M-PAL

15.73 4.43 NTSC

Vertical

frequency (Hz)

59.94

50.00

50.00

59.52

50.00

59.95

59.94

RGB INPUT TERMINAL

Pin No. Input signal Pin No. Input signal

1 Red 9

2 Green 10 Ground

3 Blue 11

∗ The sync switch (TTL/ANALOG switch) is on

the rear of the 13-pin horizontal sync and
14-pin vertical sync terminals.

4

5 Ground 13 Horiz. sync

6 Ground 14 Vert. sync

7 Ground 15

8 Ground

12

Outer side

Ground

Signal

RS-232C INPUT TERMINAL

Pin No.

DVI-D INPUT TERMINAL

Pin No. No. signal

1 DCD (Data Carrier Detect)

2 RD (Receive Data)

3 TD (Transmit Data)

4 DTR (Data Terminal Ready)

5 GND (Ground)

6 DSR (Data Set Ready)

7 RTS (Request To Send)

8 CTS (Clear To Send)

9 RI (Ring Indication)

- 6 -

SCART TERMINAL

48121620

26101418

37111519

Pin No.

1

2 Right audio

3

4

5 Blue ground

159131721

6 Left audio

7 Blue

Input Signal

Audio ground

Pin No.

8

9

10

11 Green

12

13 Red ground

14

Input Signal

Green ground

Pin No.

15

16

17

18

19

20

21 Ground

Input Signal

Red/chrominance

Composite video ground

Composite video/Y

- 7 -

CONNECTION

EXAMPLE OF CONNECTION TO EXTERNAL COMPONENTS

Speaker

Display

Speaker (optional)

Remote
control

VCR

DVD player

Satellite tuner

PC

- 8 -

Model : P42VHA30W

VCR

Connect the video signal cable to either the S-video input terminal or the video input terminal.

To video output

To S-video output

To audio outputs

To S-video input

To audio inputs

To video input

Bottom of Display

- 9 -

DVD PLAYER

Connect the video signal cable to the component video input terminal, S-video input terminal, or the video input terminal.
If the component to be connected is equipped with component video output terminal, it is recommended to connect to the
component video terminal.

To component video output

To video output

To S-video output

To audio outputs

To video input

To S-video input

To audio
inputs

To component
video input

Bottom of Display

SATELLITE TUNER

Connect the video signal cable to the component video input terminal, S-video input terminal, or the video input terminal.
If the component to be connected is equipped with component video output terminal, it is recommended to connect to the
component video terminal.

To component video output

To video output

To S-video output

To audio outputs

To video input

To S-video input

To audio
inputs

To component
video input

Bottom of Display

- 10 -

PC

As the cable for connecting a PC differs with the PC model, please consult your dealer for information on the right cable to purchase.
The PC can be connected to either the front side or the rear side, whichever is most convenient.

To RGB output (DVI-D)

To RGB output (mD-sub)

To audio output

To audio
input

To RGB2
input
(mD-sub)

Bottom of Display

To RGB1 input
(DVI-D)

- 11 -

PART NAMES AND FUNCTIONS

DISPLAY SECTION – FRONT

(Right section)

Power indicator lamp

This lamp shows the state of the power supply.

Lit (red): Stand-by

Lit (green): Power ON

Lit (orange): Power saving (DPMS: Power saving

function) mode ON

Flashing (red): Malfunction (Flashes differently depending

on the type of malfunction.)

Remote control signal receiver

Receives signals from the remote control.

Input mode selector button

Input mode selector button

Switches between picture input modes.

VOL + button

VOL - button

Adjusts the sound volume.

Wide screen selector button [WIDE]

Switches the screen over to a desired wide screen.

ON/OFF button

Turns the power "ON" and "OFF (standby state)".

[MODE]

[MODE]

Control Panel (Right side of display)

- 12 -

Model : P42VHA30W

DISPLAY SECTION – LOWER PART

/I power switch

When pressed while in the "OFF" state, the power indicator lamp lights and the display is placed in the
can be turned "ON" or "OFF" by the remote control or on the control panel of the display
the power indicator lamp goes out and the display is placed in the "OFF" state where power is still partly supplied.

RS-232C terminal (RS-232C)

This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable.

RGB1 input terminal (RGB1 INPUT/DVI-D)

Connect this terminal to the PC's display (digital RGB) output terminal.
*The connection cable No.88741-8000 made by molex Inc. is recommanded.

RGB2 input terminal (RGB2 INPUT/mD-sub)

Connect this terminal to the PC's display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.

Component video input terminal (VIDEO3 INPUT)

Component video input terminal (VIDEO3 INPUT)

Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.

Video input terminal (VIDEO1 INPUT)

Connect this terminal to the video output terminal of your VCR.

- 13 -

. When pressed while in the "ON

"ON " state, and the power

" state,

S-Video input terminal (VIDEO2 INPUT)

Connect this terminal to the S-video output terminal of your VCR.

Audio3 input terminal (AUDIO3 INPUT)

Audio2 input terminal (AUDIO2 INPUT)

Audio1 input terminal (AUDIO1 INPUT)

Connect this terminal to the audio output terminal of your VCR, etc.

External speaker output terminal (EXT SP)

Connect this terminal to the optionally available speaker.
When connecting a cable, attach a ferrite core to the cable.

Power input terminal

Connect this terminal to the power cable supplied with the display.
When connecting a cable, attach a ferrite core to the cable.

- 14 -

Model : P42VHA30W/E

REMOTE CONTROL

button

Switches between power ON and standby
state.

DISPLAY OFF button

For showing on-screen-information.

PICTURE MODE button

Switches the picture mode.

RGB input mode selector button
[RGB 1 - 2]

Selects RGB 1 - 2.

Video input mode selector button
[VIDEO 1 - 3]

Selects VIDEO 1 - 3.

Menu button [MENU]

Use this button to display a desired menu
for adjusting the picture.

Enter button [ENTER]

Press this button to finalize the selection of
a desired menu or option within a menu.

MUTE button

Temporarily mutes the sound.

PICTURE MEMORY button

Recalls the PICTURE MEMORY.

WIDE button

Switches the screen over to a desired wide
screen.

RGB3/VIDEO4 input mode selector
button [RGB3/VIDEO4]

Selects RGB3 or VIDEO4.

Volume adjustment buttons
[VOL +/ - ]

Adjust the volume.
Press the + button to increase the volume.
Press the - button to reduce the volume.

Adjustment buttons [

Use these buttons to scroll through options
in a menu.

/ / / ]

- 15 -

VIDEO MODE ADJUSTMENT

REMOTE CONTROLLER

VIDEO 1
VIDEO 2
VIDEO 3
RGB 1
RGB 2
RGB 3 / VIDEO 4
VOL. +
VOL. ­MUTE
DISPLAY
PICTURE MODE

PICTURE MEMORY

WIDE

Normal

Wide 1

Wide 2

Zoom 1

Zoom 2

Natural
Fine
Effective
Conventional
Still

Load
Save

Normal
Auto
Wide 1
Wide 2
Zoom 1
Zoom 2

Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory 6
Memory 7
Memory 8

MENU
ENTER


POSITION/SIZE

AUDIO

FEATURES

FACTORY DEFAULT

Contrast
Brightness
Color
Tint
Sharpness
Picture Mode

Precision Setting

Noise Reduction

Picture Memory

Default

Position

Size

Default

Treble
Bass
Balance
Loudness

Adjustment*
Function

On Screen Menu

Input Terminal

Others

Execute

{-30 to +30}
{-60 to +60}
{-60 to +60}
{-30 to +30 (Comp. video -60 to +60)}
{-16 to +16}

Natural
Fine
Effective
Conventional
Still

Luminance
Black Level
Color Temp.
User Color Temp.

Off
Min.
Std.
Max.

Load
Save

Yes
No

Horizontal
Vertical

Width
Height

Yes

No
{-6 to +6}
{-6 to +6}
{-10 to +10}

On

Off

Clamp Position* *Only Comp. Video{-8 to +8}

24 Frame Mode

OSD

Language

Name Select

Video Input

S-video Input

D-SUB Input

DVI Input

Audio Input

White Screen

Exhibition Mode

Information

Yes

No

{40 to 100%}
{-15 to +15}
{-3500 to +3500}

Red
Green
Blue

Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory 6
Memory 7
Memory 8

{-30 to +30 (Comp. video -16 to +16)}
{-7 to +7 (Zoom -15 to +15) (Comp. video -16 to +16)}

{-3 to +12 (Comp. video -2 to +16)}
{-3 to +12 (Comp. video -2 to +16)}

On
Off

On(OSD : bright)
On(OSD : dark)
Off

English
Deutsch
Espanol
Francais
Italiano
Portugues
Pycc * *Russian can only be set with the E-model.K

RGB 1
RGB 2

Video 1
Video 2
Video 3
Video 4

Auto 1
Auto 2
NTSC
PAL
SECAM
PAL60
N-PAL
M-PAL

4.43NTSC
RGB-PC
Decoder

DVI 1
DVI 2

RGB 1
RGB 2
Video 1
Video 2
Video 3
Video 4
On

Off
On

Off
Mode

Freq. Scan Mode
Input Signal
Freq.

Can be set when Fine is

}

selected as the Picture Mode.

{0 to 255}
{0 to 255}
{0 to 255}

~

~

<

NN

RGB 1
PC 1
PC 2
DVD 1
DVD 2
STB
Satellite
Cable TV

Video 1
DVD 1
DVD 2
VCR 1
VCR 2
GAME
Camcorder
STB
Satellite
Cable TV

Mask

No Audio
Audio 1
Audio 2
Audio 3

Position Horizontal "-"

Horizontal "+"

Vertical "-"

Vertical "+"

Size Width "-"

Width "+"

Height "-"

Height "+"

Mask Off

Mask 5

Off
5
10
15

Mask 10

Mask 15

- 16-

RGB MODE ADJUSTMENT

REMOTE CONTROLLER

VIDEO 1
VIDEO 2
VIDEO 3
RGB 1
RGB 2
RGB 3 / VIDEO 4
VOL. +
VOL. ­MUTE
DISPLAY
PICTURE MODE

PICTURE MEMORY

WIDE

Normal

Wide

Zoom

Position Horizontal "-"

Horizontal "+"

Vertical "-"

Vertical "+"

Natural
Fine
Effective
Conventional
Still

Load
Save

Normal
Wide
Zoom

Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory 6
Memory 7
Memory 8

MENU
ENTER


POSITION/SIZE

AUDIO

FEATURES

FACTORY DEFAULT

Contrast
Brightness
Color
Tint
Sharpness
Picture Mode

Precision Setting

Picture Memory

Default

Position

Size

Default

Treble
Bass
Balance
Loudness

Adjustment

On Screen Menu

Input Terminal

Others

Execute

{-30 to +30}
{-60 to +60}
{-60 to +60}
{-60 to +60}
{-4 to +4}

Natural

Fine

Effective

Conventional

Still

Luminance

Black Level

Color Temp.

User Color Temp.

Load

Save

Yes

No

Horizontal

Vertical

Width

Height

Yes

No
{-6 to +6}
{-6 to +6}
{-10 to +10}

On

Off

Dot Clock

Clock Phase

Clamp Position

Auto Calibration

OSD

Language

Name Select

Video Input

S-video Input

D-SUB Input

DVI Input

DPMS

Audio Input

Screen Orbiter

Yes

No

{40 to 100%}

Can be set when Fine is

}

selected as the Picture Mode.

{-15 to +15}
{-3500 to +3500}

Red
Green
Blue

Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory 6
Memory 7
Memory 8

{-150 to +150}
{-150 to +150}

{-12 to +25}
{-12 to +25}

{-30 to 30}

Auto
Manual {1 to 32}

{-8 to +8}

Execute

On(OSD : bright)
On(OSD : dark)
Off

English
Deutsch

~

Espanol
Francais

~

Italiano

<

Portugues
Pycc * *Russian can only be set with the E-model.K

NN

RGB 1
RGB 2

Video 1
Video 2
Video 3
Video 4

Auto 1
Auto 2
NTSC
PAL
SECAM
PAL60
N-PAL
M-PAL

4.43NTSC
RGB-PC
Decoder

DVI 1
DVI 2

Time

Background

RGB 1
RGB 2
Video 1
Video 2
Video 3
Video 4
Mode / Time

Moving Area

{0 to 255}
{0 to 255}
{0 to 255}

RGB 1
PC 1
PC 2
DVD 1
DVD 2
STB
Satellite
Cable TV

Video 1
DVD 1
DVD 2
VCR 1
VCR 2
GAME
Camcorder
STB
Satellite
Cable TV

Yes
No

Mask

Off
1 min.
15 min.
45 min.
60 min.

Black
White

No Audio
Audio 1
Audio 2
Audio 3

Off
Time
Mode

Min.
Std.
Max.

Size Width "-"

Width "+"

Height "-"

Height "+"

Moving Area Std. (10 dot)

Moving Area Max. (15 dot)

Moving Area Min. (5 dot)

Mask Off

Mask 5

Mask 10

Off
5
10
15

Direct Setting

Code Setting

White Screen

Exhibition Mode

Information

Mask 15

Auto
VGA
WVGA
480P
XGA
WXGA
SXGA

+

SXGA
Auto

Manual {00 to 27} *Hexadecimal
On

Off
On

Off
Mode

Freq. Scan Mode
Input Sync
Freq.
Preset No.

- 17 -

TROUBLESHOOTING USING LED AND OSD

1. Display

(1) OSD

Three kinds of error messages are displayed on the screen, and the power is turned off 10 sec later.

(2) LED

LED error is displayed continuously after the power is turned off.

2. Error types and check points

(1) OSD

On screen display Cause Check point

ERROR MESSAGE CONDITION 2 Temperature protector

operated

(2) LED

LED lamp display status Cause Check point

Steady light (Red)

1 time (Red) / 1 time (Green)

Flashes once Red LED and flashes
once Green LED every 3 sec.

1 time (Red) / 2 times (Green)

Flashes once Red LED and flashes
twice Green LED every 4 sec.

1 time (Red) / 3 times (Green)

Flashes once Red LED and flashes
three Green LED every 5 sec.

2 times (Red) / 1 time (Green)

Flashes twice Red LED and flashes
once Green LED every 4 sec.

2 times (Red) / 2 times (Green)

Flashes twice Red LED and flashes
twice Green LED every 5 sec.

3 times (Red) / 2 times (Green)

Flashes three Red LED and flashes
twice Green LED every 6 sec.

3 times (Red) / 3 times (Green)

Flashes three Red LED and flashes
three Green LED every 7 sec.

4 times (Red) / 1 time (Green)

Flashes four Red LED and flashes
once Green LED every 6 sec.

5 times (Red) / 1 time (Green)

Flashes five Red LED and flashes
once Green LED every 7 sec.

Stand-by status

No power
Power supply protector

operated
No power

Power supply protector
operated

No power
Power supply protector

operated

Temperature protector
operated

Temperature protector
operated

EEPROM device fault

EEPROM device Read /
Write fault

Main/Digital circuit fault

Video circuit fault

Ambient temperature of unit
Main/Digital PCB
Temp. sensor IC6950

Main power PCB

PDP panel

Main/Digital PCB

Ambient temperature of unit

Main/Digital PCB
Temp. sensor IC6950

Main/Digital PCB

Main/Digital PCB

Main/Digital PCB

Video PCB

- 18 -

TROUBLESHOOTING FLOWCHART

LED lamp blinking

Turn power on and check
state of lamp.

Blink LED

Blink LED

Blink LED

Blink LED

Blink LED

Blink LED

Blink LED

GREEN

LAMP STATE

Not lighted.

Blinks

1 time (Red)
continuously.

1 time (Green)

1 time (Red)
2 times (Green)

1 time (Red)
3 times (Green)

2 times (Red)

3 times (Red)

4 times (Red)

5 times (Red)

Lights steadily for
more than 10 sec.

POWER SUPPLY STATE

Power supply
circuit faulty.

Power turned off

Power turned off
immediately.

immediately.

Power turned off
immediately.

Power turned off
immediately.

Power turned off
after 10 sec.

Power not turned
off, LED blinks only.

Power not turned
off, LED blinks only.

Power not turned
off, LED blinks only.

REMEDY

Replace Main
Power PCB.

Replace Main

Check 1

Power PCB.

Check PDP Panel.

Check Main/Digital
PCB

Check 1

Replace Main/Digital
PCB.

Replace Main/Digital
PCB Assy.

Replace Video PCB
Assy.

Is on-screen display
normal?

YES

All input image
faulty.

Video input image
faulty.

S-video input image
faulty.

Component video
input image faulty.

RGB input image
faulty.

NO

Check 2

Signal processing
PCB faulty.

Check 3

Check 3

Check 4

Check 5

- 19 -

Replace Main/Digital
PCB Assy.

Check 1

Temperature protector operated

Power lamp : Flashes intermittently twice in red.

(For 0.5 sec. at an interval of 5 sec.)

Start

Is ambient temperature

of IC6950 on Sensor

PCB less than 81 ?

Yes

Does unit

operate normally

when temperature sensor

IC6950 changed ?

Yes

Temperature sensor cooling

The temperature sensor IC6950 is installed

on sensor PCB. Turn the power off and

cool with a point cooler

No

No

Temperature
sensor IC6950 faulty.

Adjust PDP unit installation so that
peripheral temperature is 40.0 or
less.

Microcomputer
peripheral circuit
faulty.

Replace
Main/Digital
PCB Assy.

Replace
temperature sensor
IC6950.

- 20 -

Check 2

OSD is not displayed

Power lamp : Lighted green.

(10 sec or more)

Start

Is picture

displayed on-screen

when signal input?

No

Is voltage at

each connector on

Main Power PCB

Normal?

Yes

Is picture displayed

normally when PDP

changed?

No

Yes

Signal processing
circuit faulty.

Signal processing
circuit faulty.

No

Power Supply
circuit faulty.

Yes

PDP panel faulty.

Replace Main/Digital
PCB Assy.

Replace Main
Power PCB.

Replace Main/Digital
PCB Assy.

- 21 -

Check 3

Start

Video 1/ Video 2 input signal are abnormal.

Power lamp : Lighted green

(10 sec or more)

Can this unit

select only RGB mode?

No

Is picture

displayed on screen

normal when new video

PCB unit installed ?

No

Is signal input level

normal?

No

Yes

Yes

Yes

Microcomputer
peripheral circuit
faulty

Video PCB Assy
faulty.

Signal processing
circuit faulty.

Replace Main/Digital
PCB Assy.

Check input signal.

- 22 -

Check 4

Start

Video 3 are abnormal.

Power lamp : Lighted green

(10 sec or more)

Can this unit select

only RGB mode ?

No

Is picture

displayed on screen

normal when new

Video PCB Unit

installed ?

No

Are brightness

and color difference

signals connected to

input terminals

correctly ?

Yes

Is signal

input level

normal?

Yes

Yes

Yes

No

Install Video PCB
Unit faulty.

Video PCB Unit
faulty.

Check connection
cable.

Signal processing
circuit faulty.

Replace Main/Digital
PCB Assy.

No

Check input signal

∗SYNC signals are added to the Y signal.

- 23 -

No

No

Ye s

cable ?

Is composite sync.

signal input to pin 13 of RGB

Make sync. signal polarity output

from signal source negative, or make

output impedance TTL.

Check connection cable.

No

Check input signal.

Start

(10 sec or more)

RGB input is abnormal.

Power lamp: Lighted green

k

Chec 5

Is RGB

cable pin arrangement

appropriate ?

Ye s

What kind of

Sync. on green signal

source ?

Is composite sync.

signal is output from signal

Separate signal Composite signal

io

io

io

Is horizontal sync.

signal input to pin 2 of RGB

Check input signal.

No

.

le ?

RGB cable ?

signal input to pin 14 of

signal input to pin 13 and vertical sync

le ?

cable ?

Ye s

Note(∗): If the synchronizing signal cannot be identified by

TTL level, it in the 75Ω terminated state.

Check input signal.NoCheck input signal.

No

Ye s

Is Sync. signal

Connect RGB cable

to terminal.

Yes

negative ?

TTL and polarity

No

Ye s

∗

Is input level(∗) within specified

Is frequency of horizontal sync.

and vertical sync signals within

specified range ?

range ?

.

.

.

Ye s

Signal processing circuit faulty.

.

Replace Main/Digital PCB Assy.

- 24 -

EXPLANATION OF LABELS

Panel Label Information

M

AUG 2003

MC106W36F6

Serial No.

**********

Ve :

*****

MADE IN JAPAN

Unit Serial Number

MD-42M6

YB3450001

For Example----------- YB3450001

V

Vsus :

*****

Panel Serial Number

V

Adjustment Voltage

YB 1 4 5 0001 * MID/AUG/2003

5

4

2

1

1

1 Production Line No. 4 Production Period (Day)

2

2 Production Year 1 : BEG (1-10)

3 Production Month

3

3

1 : 2001 2 : MID (11-20)
2 : 2002
3 : 2003

1 : JAN-FEB
2 : MAR-APR
3 : MAY-JUN
4 : JLY-AUG
5 : SEP-OCT
6 : NOV-DEC

* YB Production Line

4

1st Month

3 : END (21-30/31)
2nd Month
4 : BEG (1-10)
5 : MID (11-20)
6 : END (21-30/31)

5

5 Serial Number

From 0001-----

- 25 -

REPLACEMENT PARTS AND REQUIRED ADJUSTMENT

Caution

To remove PCB, wait for 1 minute after power was turned off for electrolytic capacitors to discharge.

Preparation

Wide------------------ Auto

Input------------------ White pattern

Quick adjustment after PCB replacement

PCB Name VR RemarksTest Point Voltage

Power Supply PCB

Scan Drive PCB

Sustain Drive PCB Ve R6774TPVE Ve ± 1V

Vsus
Vda

Vbk R6443TPVBK 155V± 5V
Vad R6477TPVAD -90V± 1V

TPVSUS Vsus ± 1V
TPVDA 67V ± 1V

R605
R590

- 26 -

VR AND TEST POINT LOCATION

Adjustment VR Location

R443

Label (Serial Number for Unit)

R477/Vad

R590 /Vda

R605 /Vsus

R774/Ve

Test Point Location

Label (Panel Information)

TPVBK

TPVDA

TPVSUS

TPVE

TPVAD

- 27 -

OPTICAL FILTER

PLASMA DISPLAY UNIT

MD-42M6

POWER

SWITCH

M03DZC

M03DZD

SENSOR

M03DK

M03DC

MAIN/DIGITAL

P42VHA30WS

INLET

GENERAL CONNECTION DIAGRAM

PFC

M03DN

- 28 -

M03DZA

VIDEO/AUDIO

COMPONENT INPUT

M03DZB

LED/PHOTO/KEY

OPTICAL FILTER

PLASMA DISPLAY UNIT

MD-42M6

POWER

SWITCH

M03DYC

M03DYD

SENSOR

M03DK

M03DC

MAIN/DIGITAL

P42VHA30ES

INLET

PFC

M03DN

- 29 -

M03DYA

VIDEO/AUDIO

COMPONENT INPUT

M03DYB

LED/PHOTO/KEY

DISASSEMBLY

1. Removing the Rear Case and layout of Main PCB

1. Remove the 27 screws and Rear Case.

A
B

C

* Layout of Main PCB.

A: PFC PCB B: Video/Audio PCB

C: Main/Digital PCB

- 30 -

2. Removing the PFC PCB

1. Remove the Rear Case.

2. Disconnect the 2 circled connector.

3. Remove the 5 screws and PFC PCB.

* View after PFC PCB removed.

- 31 -

3. Removing the Video/Audio PCB

1. Remove the 5 circled screws.

2. Slide the module in the direction of the arrow.

3. Remove the 12 circled screws and shield option TOP

4. Remove the 4 circled screws and Video/Audio PCB

* View after Video/Audio PCB removed.

- 32 -

4. Removing the Main/Digital PCB

1. Remove the Video/Audio Unit.
(Refer to Page 32)

2. Remove the 15 sircled screws and shild main TOP.

3. Disconnect the 7 circled connector.

4. Remove the 4 circled screws and Main/Digital PCB.

* View after Main/Digital PCB removed.

- 33-

5. Removing the PDP Unit (1 of 3 )

1. Remove the Rear Case, Video/Audio Unit and

Main/Digital Unit.

2. Disconnect the 1 circled connector.

3. Remove the 6 circled screws and shield main

bottom.

4. Disconnect the 8 circled connector.

5. Remove the 5 circled screws and shield together

with PCBs

- 34 -

5. Removing the PDP Unit (2 of 3)

6. Disconnect the 1 circled connector.

7. Remove the 8 circled screws.

8. Remove the Base Frame from the Front

Case together with the panel and PCBs.

* View after the Front Case Panel Unit and
PCBs were removed.

9. Remove the 2 circled screws and Sensor PCB.

- 35 -

5. Removing the PDP Unit (3 of 3)

10. Remove the 5 screws and 2 bracket bars.

* View after only the PDP Unit removed.
* When the PDP Unit is replaced, make

sure to replace the removed parts to
their original position.

- 36 -

6. Removing the Bezel Front and Optical Filter (1 of 2)

1. Remove the PDP Unit and 8 circled
screws.
(To remove the PDP Unit, refer to
Page 35)

2. Pull the Bezel Front in the direction of
arrow.
(Repeat the same procedure on the other
3 locations.)

* View after the both top and bottom
Bezel Front removed.

3. Pull toward the direction of arrow.
(Remove the other side in a same
manner)

- 37 -

6. Removing the Bezel Front and Optical Filter (2 of 2)

* View after Bezel Front was removed.

- 38 -

7. Removing the Key Switch PCB

1. Remove the PDP Unit.

2. Disconnect the 1 circled connector.

3. Remove the 2 screws and Key Switch

PCB Unit.

4. Remove the 2 screws.

5. Remove the Key Switch PCB.

- 39 -

PARTS LIST

Ref.no. Description P42VHA30WS P42VHA30ES

Cabinet Bezel Front Top 8114509006

Electric

Bezel Front Btm
Bezel Front L
Bezel Front R
Rear Case

8114510002
8117468003
8117469000
8117131006

Badge 8112118002 8117708000
Gasket Filter L/R 8114537009

Gasket Filter T/B 8114536002

PFC PCB
Optical Filter

Video/Audio PCB
Main/Digital PCB
DC/DC PCB
LED/Photo/Key PCB
Power Switch PCB
PDP Unit
Button Key Switch
Button Main Switch

8117660001
8114893006

8117309016 8117304011

8117796007

8117789009
8117786008

8117318018 8117310012

8117320011 8117314010

S141014488

8114519005

8114518008

Packing

Power Cord UL/CSA

VDE
Sensor PCB
Remoto Controller

8116768012

----------------

8117354016

8114649016

Carton Top 8114549002
Carton Bottom
Carton Bottom W
Carton Sheet
Packing Joint-D
Packing Pad-Top
Packing Pad-Bottom
Packing Pad-Bottom W

Sheet Protect

Carton Accessory

8114547008

8116485001

8116404002

8108655009

8114551005

8114550008

8116486008

8111634008
8111799004

----------------

8116885009

8117356010

: Same as left

- 40 -

TRANSPOR

Transportation

Handling

TATION AND HANDLING RESTRICTIONS

Bad loading

Don't load the plasmavision on a truck
as shown in the drawing.

Never drop.Never topple.

Don't hold the
surface of the
optical filter.

Over 30 cm

Drop

Floor

- 41 -

3333

4

Don't stack the
plasmavision over
three units high.

Example of good transportation and handling

Good loading

Load the plasmavision as shown above.

- 42 -

FUJITSU GENERAL CUSTOMER SERVICE LIMITED

GLOBAL SUPPORT DIVISION

NOVEMBER 2003
