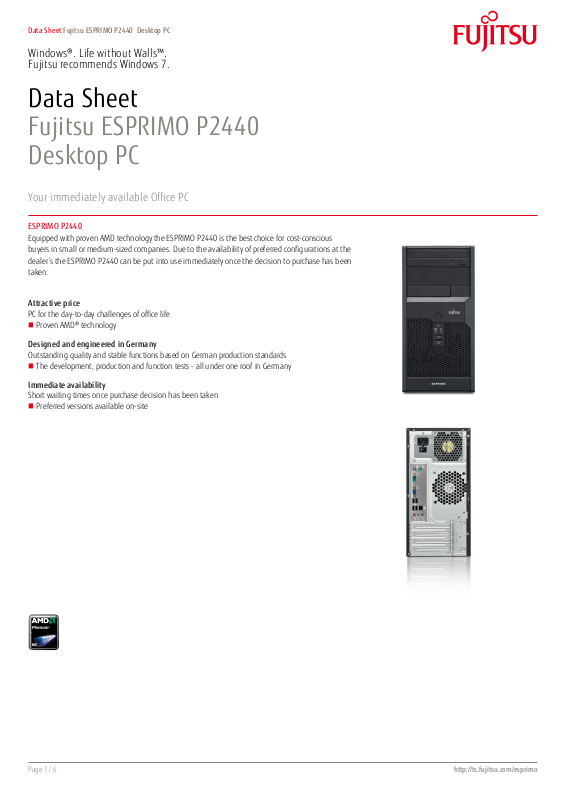

Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Data Sheet
Fujitsu ESPRIMO P2440
Desktop PC
Your immediately available Office PC
ESPRIMO P2440
Equipped with proven AMD technology the ESPRIMO P2440 is the best choice for cost-conscious
buyers in small or medium-sized companies. Due to the availability of preferred congurations at the
dealer’s the ESPRIMO P2440 can be put into use immediately once the decision to purchase has been
taken.
Attractive price
PC for the day-to-day challenges of ofce life
Proven AMD® technology
Designed and engineered in Germany
Outstanding quality and stable functions based on German production standards
The development, production and function tests - all under one roof in Germany
Immediate availability
Short waiting times once purchase decision has been taken
Preferred versions available on-site
Page 1 / 6 http://ts.fujitsu.com/esprimo
Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
Components
Processor AMD Phenom™ II X4 945 (4 Cores, 3.0 GHz, 8 MB)
AMD Phenom™ II X2 550 (2 Cores, 3.1 GHz, 7 MB)
AMD Phenom™ II X2 545 (2 Cores, 3.0 GHz, 7 MB)
AMD Athlon™ II X2 220 (2 Cores, 2.8 GHz, 1 MB)
Operating system
Operating system Genuine Windows® 7 Home Basic
Genuine Windows® 7 Home Premium
Genuine Windows® 7 Professional
Operating system compatible openSUSE Linux
Genuine Windows® XP
Operating system notes All Windows® 7 versions are Ofce 2007 ready.
Limited Windows XP support. Microsoft discontinued Windows XP certication on system level.
Memory modules 1 GB (1 module(s) 1 GB) DDR2, 800 MHz, PC2-6400
2 GB (1 module(s) 2 GB) DDR2, 800 MHz, PC2-6400
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Hard disk drives (internal) SATA II, 7200 rpm, 500 GB, 3.5-inch, S.M.A.R.T.
SATA II, 7200 rpm, 320 GB, 3.5-inch, S.M.A.R.T.
SATA II, 7200 rpm, 250 GB, 3.5-inch, S.M.A.R.T.
Hard disk notes Supporting NCQ and 3 GBit
Graphics add on cards (optional) NVIDIA® GeForce® 9300GE, 512 MB
NVIDIA® GeForce® 405 display port full height
ATI Radeon® HD 5450, 512 MB
Drives (optional) 1.44 MB Floppy
Blu-ray Disc™ Triple Writer
DVD-ROM
DVD Super Multi
MultiCard Reader 20in1, USB 2.0, 3.5-Inch
Interface add on cards/components
(optional)
WLAN III, 802.11g/Draft-n (Windows only)
USB 3.0 PCIe x1
Modem adapter kit (EU)
Modem 56k incl. RJ11 modem cable
Base unit ESPRIMO P2440
Mainboard
Mainboard type D2414
Formfactor reduced µATX
Chipset AMD 780G
Processor socket AM2+
Processor quantity maximum 1
System bus (FSB / HT / QPI) up to 4000 MHz
Memory slots 2 DIMM (DDR2)
Supported capacity RAM (max.) 4 GB
Memory frequency 800 MHz
Page 2 / 6 http://ts.fujitsu.com/esprimo
Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Mainboard
Memory notes 4 GB address space, thereof max. 3.0 GB usable for physical main memory.
Dual channel support. For dual channel performance, a minimum of 2 memory modules have to be ordered. Capacity
per channel has to be the same
LAN 10/100/1000 MBit/s Realtek RTL 8111C
BIOS version AMI BIOS Core 08.00.15
BIOS features Recovery BIOS
BIOS Flash EPROM update by software
Audio codec Realtek ALC888
Audio features High Denition audio
I/O controller on board
Serial ATA total 4
Controller functions Serial ATA II
3 GBit
Interfaces
Audio: line-in 1
Audio: line-in / microphone 1
Audio: line-out 1
Front audio: microphone 1
Front audio: headphone 1
USB 2.0 total 8
USB front 2
USB rear 4
USB internal 2
VGA 1
Serial (RS-232) 1 (9pin, 16 byte FIFO, 16550 compatible)
Mouse / Keyboard (PS/2) 2
Ethernet (RJ-45) 1
Input device / components
Optical USB wheel mouse
Keyboard
Drive bays
Drive bays total 5
3.5-inch internal bays 2
3.5-inch external bays 1
5.25-inch external bays 2
Slots
PCI-Express x16 1 x (240 mm) full height
PCI (32-bit / 33 MHz) 2 x (170/ 220 mm) full height
Graphics on board
Graphics brand name ATI Radeon™ HD 3200
Shared video memory up to 256 MB
Refresh rate 1024 x 768 (recommended
/ max.)
Refresh rate 1280 x 1024
(recommended / max.)
Refresh rate 1600 x 1200
(recommended / max.)
85 Hz / -
85 Hz / -
85 Hz / -
Page 3 / 6 http://ts.fujitsu.com/esprimo
Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Graphics on board
TFT resolution (VGA) 1024 x 768 pixel
1360 x 768 pixel
1440 x 900 pixel
1680 x 1050 pixel
1920 x 1200 pixel
Graphics features DirectX 10
Graphics notes Tested resolutions, depending on display type additional resolutions and frequencies possible
Shared memory depending on main memory size
Resolution (color depth up to 32 Bit/pixel)
For TFT we recommend using 60Hz
Electrical values
Rated voltage range 200 V - 240 V
Rated frequency range 50 Hz - 60 Hz
Operating voltage range 200 V - 240 V
Operating line frequency range 47 Hz - 63 Hz
Max. output of single power supply 300 W
Power factor correction/active power passive
Monitor outlet No
Power consumption
Power consumption note See white paper Energy Consumption
Link to Energy White Paper http://docs.ts.fujitsu.com/dl.aspx?id=052f5674-1500-4b28-aada-63c038c7a9ab
Heat dissipation
Heat dissipation notes See white paper Energy Consumption
Noise for standard conguration (HDD, ODD, FDD)
Noise emission According to ISO9296
Related Processors for noise AMD® Athlon™ X2 5200
Noise Operation mode 1: ODD load
(Blue angel requirement)
Noise Operation mode 2: HDD load
(Blue angel requirement)
Noise Operation mode 3: CPU 90% load
(Blue angel requirement)
Noise Operation mode 4: High load 4.6 B / 32 dB(A)
Noise Operation mode 5: Ofce
applications
Idle mode (Blue Angel requirement) 4.2 B / 27 dB(A)
Noise notes / description A weighted sound power level Lwad (in B) / workplace related A-weighted sound pressure level LpAm (in dB(A)),
Dimensions / Weight / Environmental
Dimensions (W x D x H) 175 x 425 x 353 mm
Weight approx. 11 kg
Weight notes Actual weight may vary depending on conguration
Operating ambient temperature 15 - 35°C
4.4 B / 30 dB(A)
4.3 B / 28 dB(A)
4.6 B / 31 dB(A)
4.4 B / 29 dB(A)
Bystander position
Compliance
Product ESPRIMO P2440
Model MI4W-D2414
Germany GS
Europe CE
Page 4 / 6 http://ts.fujitsu.com/esprimo
Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
Compliance
Global RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronical equipment)
Microsoft Operating Systems (HCT / HCL entry / WHQL)
Compliance link https://sp.ts.fujitsu.com/sites/certicates/default.aspx
Additional Software
Additional software (preinstalled) Nero Essentials (burning software)
Additional software (optional) Drivers & Utilities DVD (DUDVD)
Recovery DVD for Windows®
Compatibility (references)
DMI 2.0
USB 2.0
WMI 1.5
Manageability
Manageability features PXE 2.1 Boot code
Security
Physical security Kensington Lock support
Eye for padlock
System security Boot sector virus protection
Control of external interfaces
User security User and supervisor BIOS password
Optional: Access protection via external SmartCard reader
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Packaging information
Packaging dimension 500x290x540 mm
Max. quantity / pallet 24
Material - Weight (g) Carton 1270 g
Material - Weight (g) EPS / PS 210 g
Material - Weight (g) PE appr. 60 g
Packaging notes printed user documentation is bleached in chlorine free process
Warranty
Service level (depending on country)
Maintenance and Support Services - the perfect extension
Recommended Service 5x9, Response Time: Next Business Day
Spare Parts availability 3 years
Service Weblink http://ts.fujitsu.com/Supportservice
Page 5 / 6 http://ts.fujitsu.com/esprimo
Data Sheet Fujitsu ESPRIMO P2440 Desktop PC
More information
Windows®. Life without Walls™.
Fujitsu recommends Windows 7.
Fujitsu platform solutions
In addition to Fujitsu ESPRIMO P2440, Fujitsu
provides a range of platform solutions. They
combine reliable Fujitsu products with the
best in services, know-how and worldwide
partnerships.
Dynamic Infrastructures
With the Fujitsu Dynamic Infrastructures
approach,Fujitsu offers a full portfolio of IT
products, solutions and services, ranging
from clients to datacenter solutions, Managed
Infrastructure and Infrastructureas-a-
Service. How much you benet from Fujitsu
technologies and services depends on the
level of cooperation you choose. This takes IT
exibility and efciency to the next level.
Computing Products
www.fujitsu.com/global/services/computing/
Software
www.fujitsu.com/software/
More information
Learn more about Fujitsu ESPRIMO
P2440, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
http://ts.fujitsu.com/esprimo
Fujitsu green policy innovation
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to resolve
issues of environmental energy efciency
through IT.
Please nd further information at http://www.
fujitsu.com/global/about/environment/
Copyrights
All rights reserved, including intellectual
property rights. Technical data subject
to modications and delivery subject to
availability. Any liability that the data and
illustrations are complete, actual or correct is
excluded.
Designations may be trademarks and/or
copyrights of the respective manufacturer,
the use of which by third parties for their
own purposes may infringe the rights of such
owner.
For further information see http://ts.fujitsu.
com/terms_of_use.html
Copyright © Fujitsu Technology Solutions
Disclaimer
Technical data are subject to modication and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective manufacturer, the use of which
by third parties for their own purposes may
infringe the rights of such owner
CONTACT
FUJITSU Technology Solutions
Website: http://ts.fujitsu.com
2010-12-27 CE-EN
Page 6 / 6 http://ts.fujitsu.com/esprimo
