M3093EX AND M3093GX
IMAGE SCANNER
OPERATOR’S GUIDE
C150-E022-05EN
REVISION RECORD
Edition
01
02
03
04
05
Date published
Dec., 1994
Jan., 1995
Apr., 1995
Septermber, 1995
January, 1996
Revised contents
First edition
Document specification and others changed
Pick Roller replacement procedure added
Pad replacement procedure added
Appendix C, Declaration of Conformity added
Specification No.: C150-E022-05EN
This digital apparatus does not exceed the Class A limit for radio noise emissions from digital apparatus set out in the Radio
interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’ément pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de la classe A prescridtes dans le Réglesment sur le brouillage radioélectrique édicté par le ministere des
Communications du Canada.
Maschinenlärmlnformationsverordnung 3. GSGV, 18.01.1991:Der arbeisplatzbezogene Schalldruckpegel beträgt 70
dB(A)oder weniger gemäß ISO 7779.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
The contents of this manual is subject to change
without prior notice.
All Rights Reserved,
Copyright ©1994, 1995, 1996 FUJITSU LIMITED
i
Conventions
Special information, such as warnings, cautions are indicated as
follows:
WARNING
A WARNING indicates that personal injury may result if you do not
follow a procedure correctly.
CAUTION
A CAUTION indicates that damage to the scanner may result if you
do not follow a procedure correctly.
NOTICE
A NOTICE provides "how-to" tips or suggestions to help you perform
a procedure correctly. NOTEs are particularly useful for first-time
users.
ii
CONTENTS
page
CHAPTER 1 PREFACE .................................................................................................... 1-1
CHAPTER 2 COMPONENTS ........................................................................................... 2-1
2.1 Checking the Components ......................................................................................... 2-1
2.2 Part Names and Functions........................................................................................... 2-2
2.2.1 Exterior view of image scanner .......................................................................... 2-2
2.2.2 Functions of each part ......................................................................................... 2-3
2.3 Indicator Functions ..................................................................................................... 2-4
2.3.1 Indicators ............................................................................................................ 2-4
CHAPTER 3 INSTALLATION AND CONNECTIONS ................................................ 3-1
3.1 Precautions .................................................................................................................. 3-1
3.2 Removing the Carrier Fixing Bracket ......................................................................... 3-2
3.3 Connections................................................................................................................. 3-3
3.4 Mounting the Stacker .................................................................................................. 3-5
3.5 SCSI-ID Setting .......................................................................................................... 3-6
CHAPTER 4 OPERATIONS ............................................................................................. 4-1
4.1 Turning on the Power .................................................................................................. 4-1
4.2 Reading a Document in Flatbed Mode........................................................................ 4-2
4.2.1 Reading a standard-size document ..................................................................... 4-2
4.2.2 Reading a page from a thick book ...................................................................... 4-3
4.2.3 Reading a document larger than the document board......................................... 4-4
4.3 Reading Documents in ADF Mode............................................................................. 4-5
CHAPTER 5 MAINTENANCE ......................................................................................... 5-1
5.1 Removing Jammed Documents .................................................................................. 5-1
5.2 Notes on Daily Use ..................................................................................................... 5-2
5.3 Cleaning ...................................................................................................................... 5-2
iii
5.3.1 Cleaning the document cover, document holding pad, and document bed ........ 5-2
5.3.2 Cleaning the ADF ............................................................................................... 5-3
5.4 Consumables/Periodical replacement parts................................................................. 5-4
5.4.1 Parts number and replacement cycle................................................................... 5-4
5.4.2 Replacing pad ASY ............................................................................................ 5-4
5.4.3 Replacing pick roller ........................................................................................... 5-5
CHAPTER 6 TROUBLESHOOTING .............................................................................. 6-1
APPENDIX A ..........................................................................................................................A-1
A.1 Installation Specifications ...........................................................................................A-1
A.2 External Dimensions ...................................................................................................A-2
APPENDIX B ..........................................................................................................................B-1
B.1 Test mode for maintenance ......................................................................................... B-1
APPENDIX C .......................................................................................................................... C-1
C.1 Option .......................................................................................................................... C-1
C.2 IPC-2/CMP-2 option board installation ......................................................................C-1
iv
FIGURES
page
2.1 Received components ................................................................................................. 2-1
2.2 M3093EX/GX parts names ......................................................................................... 2-2
2.3 M3093EX/GX Indicators ............................................................................................ 2-4
3.1 SCSI-ID setting ........................................................................................................... 3-6
4.1 Flatbed reading ............................................................................................................ 4-3
4.2 Removing the document cover.................................................................................... 4-4
4.3 ADF paper chute setting.............................................................................................. 4-7
4.4 Loading the document................................................................................................. 4-9
5.1 Removing jammed documents .................................................................................... 5-1
5.2 Cleaning the document cover, document holding pad, and document bed................. 5-2
5.3 Cleaning the ADF ...................................................................................................... 5-3
5.4 Pick Roller replacement .............................................................................................. 5-5
5.5 Move the Retaining spring .......................................................................................... 5-6
5.6 Slide the Pick Roller ................................................................................................... 5-6
A.1 External dimensions ....................................................................................................A-2
v
TABLES
page
1.1 The differences between the M3093EX and the M3093GX....................................... 1-1
3.1 SCSI-ID setting ........................................................................................................... 3-6
6.1 Check items ................................................................................................................. 6-1
A.1 Installation specifications............................................................................................A-1
B.1 LED at an error............................................................................................................B-2
vi
CHAPTER 1 PREFACE
This manual describes how to operate the M3093EX and M3093GX image scanners. An image
scanner optically reads image information from a document and outputs the information to the
host system. The differences between the M3093EX and the M3093GX image scanners are
listed in table 1.1.
Table 1.1 The differences between the M3093EX and the M3093GX
Model number
M3093EX
M3093GX
This manual should be read before operating the image scanner to ensure correct operation.
Note on Copyright Act
This document cannot be reproduced or copied for any use other than private without the
author’s permission.
Interface
RS232C
+
VIDEO
SCSI2
Shipping
models
North America
Europe
North America
Europe
Image size
A4 size or letter
size
Automatic
document feeder
Yes
Max. 50 pages
(A4)
1–1
This page is intentionally left blank.
1–2
CHAPTER 2 COMPONENTS
2.1 Checking the Components
2.2 Part Names and Functions
2.3 Indicator Panel Functions
After unpacking image scanner, confirm that all the components have been received. This
section describes the components of the image scanner and their functions.
2.1 Checking the Components
These high precision components must be handled with care. Confirm
that all the components shown in figure 2.1 have been received. If
any component is missing, please contact your local Fujitsu sales
person.
Power cable
for Europe
Image scanner
Operator’s Guide
(this manual)
Inspection
report
Power cable for
North America
One stacker
Terminator
(for M3093GX)
Pads
Figure 2.1 Received components
2–1
2.2 Part Names and Functions
This section shows the exterior view of image scanner. This section
also provides names of each part and describes their functions.
2.2.1 Exterior view of image scanner
The image scanner can read a document of A4 or letter size at maximum.
Document cover
Document
holding pad
Automatic document
feeder (ADF)
Stacker
ADF paper chute
Document bed
Indicators
ADF lever
2–2
Power switch
Third party slot opening
(M3093EX)
Interface connectors
Power inlet
Figure 2.2 M3093EX/GX parts names
2.2.2 Functions of each part
Document cover: Closed over and holds a document to be
Document bed: A document to be read is placed on the
Document holding pad: Presses a document to the document bed.
Automatic document feeder (ADF):
Stacker: Stacks the read documents.
Power switch: Turns the power on or off.
Indicators: These LEDs indicate the status of the
ADF paper chute: Holds the documents to be fed by the
ADF lever: Opens or closes the automatic document
read.
bed also called Flatbed (FB).
Automatically feeds documents to the
reading position.
scanner.
automatic document feeder.
feeder to remove documents jammed in
the feeder.
Power inlet: To be connected to an AC power outlet
with the power cable.
Interface connectors: To be connected to the host system with
interface cables.
Third party slot opening: Reserved (M3093EX)
2–3
2.3 Indicator Functions
Figure 2.3 M3093EX/GX Indicators
2.3.1 Indicators
The meaning of each indicator is as follows:
Power indicator (Green):
Read (reading in progress) indicator (Green):
Power
Read
Check
Lights to indicate the power is on.
Lights to indicate reading is in progress.
Check (device check) indicator (Yellow):
Lights if a device error occurs which may result in a service
call. This indicator blinks if a document is jammed in the
automatic document feeder. This indicator turns off when the
jammed documents are removed from the feeder and the feeder
is closed.
This indicator blinks in four seconds period if the ADF cleaning
is necessary. (See section 5.3.2)
2–4
CHAPTER 3 INSTALLATION AND CONNECTIONS
3.1 Precautions
3.2 Removing the Carrier Fixing Bracket
3.3 Connections
3.4 Mounting the Stacker
3.5 SCSI-ID Setting
This chapter explains how to install and connect the image scanner.
3.1 Precautions
Do not install the image scanner in the following places and environments. See the appendix A.1 “Installation Specifications” for the
information such as size of installation space.
Place the scanner away from electrical noise
sources and strong magnetic fields. If the
image scanner is used near an air conditioner,
copying machine, or TV set, the scanner may
operate incorrectly.
Keep the scanner out of the sun and away
from heaters. These environments may
shorten scanner life or cause hardware
failures.
Do not install the scanner in a place where
vibrations may occur. This environment may
cause hardware failures or may cause the
scanner to operate incorrectly.
CAUTION
Place the image scanner on a level surface.
Place the image scanner so that the rubber
pads are secured on a flat and solid desktop.
Do not install the scanner in a humid, dusty,
or damp places. These enviroments may
shorten scaner life or cause hardware failures. Do not place the image scanner where
liquid spills may occur. Place it on a flat and
even surface.
Be aware of static electricity. If static
electricity is generated, the scanner may
operate incorrectly. Be sure that the flooring
and the desk are made of materials that do
not generate static electricity.
3–1
3.2 Removing the Carrier Fixing Bracket
To keep the scanner from being damaged during shipping, the carrier
unit is fixed with a bracket. After placing the carrier unit at the
installation place, remove this bracket as explained below.
1 Place the image scanner on the edge of the desk top so that the left side (where ADF
is placed) of the scanner extends from the desk top. Do not set the image scanner
upside down or on its side.
×
2 Remove the carrier fixing bracket from position A . Then install the carrier fixing
bracket at position B .
Front side
×
Enlarged
Bottom view
Carier bracket (Position for
storage, position for shipment)
Enlarged section A enlarged
3–2
CArier bracket
(Position for operation)
B
ADF side
A
Carier bracket
(Position for shipment)
3.3 Connections
Connect the image scanner using the following procedure.
1 Set the power switch to off.
2 Connect the power cable.
Connect the power cable to the power inlet on the back of the image scanner.
Connect the other end of the power cable to a power outlet.
Power switch
Power inlet
Power cable
3 Connect the interface cables (for M3093EX).
Connect the interface cables to the interface connectors and fasten the cables
with catches and screws as shown below.
Connect the other end of each interface cable to the host computer.
Back of the image scanner
Interface cable for RS232C
Power outlet
for North America
for Europe
Catches
Interface cable for video
Screws
To the host system
3–3
(M3093GX)
Connect the interface cables to the interface connectors and fasten the cables
with the catches. Connect the other ends of the cables to the host system. If the
image scanner is at the terminal side, connect the terminator.
Back of the image scanner
Catches
Catches
Interface cables
To the
host
system
Terminator
If the image scanner is at
the terminal side, connect
the terminator to the
connector to which an
interface cable is not
connected.
3–4
3.4 Mounting the Stacker
Mount the stacker using the following procedure.
Hook the pins on the stacker to the holes of the image scanner.
Push
→
←
Push
3–5
3.5 SCSI-ID Setting
Interface connector
Use the address switches to set the device address. After the setting
turn the power on.
Address switch
Interface cable
Figure 3.1 SCSI-ID setting
Table 3.1 SCSI-ID setting
ID
0 to 7
8, 9
Contents
Available
No Operation
* When the scanner is terminated device, the termination connector
must be connected on one side of the connectors.
3–6
CHAPTER 4 OPERATIONS
4.1 Turning on the Power
4.2 Reading a Document in Flatbed Mode
4.3 Reading Documents in ADF Mode
Documents can be read in the flatbed mode or automatic document feeder (ADF) mode. In the
flat-bed mode, each document is placed on the document bed and is read one by one. In ADF
mode, documents are fed and read automatically.
This section explains how to turn on the power and how to read documents.
NOTICE: If the “Check” indicator blinks in four seconds period, clean the ADF in accordance
with the section 5.3.
NOTICE: If the top 3 mm of the read area isn’t left blank (grounding color) by specifying a
drop-out color, read the document by selecting photo.
4.1 Turning on the Power
This section explains how to turn on the power.
Press “I” on the power switch. When the power is turned on, the
power indicator is lit.
Press “O” on the power switch to turn off the power.
Power OFF
Power switch
Power ON
4–1
4.2 Reading a Document in Flatbed Mode
This section explains how to read a document placed on the document
bed.
4.2.1 Reading a standard-size document
If the size of the document is smaller than the document bed, read the
document using the following procedure:
1 Open the document cover.
2 Place the document face down on the document board. Correct
any curled or folded parts of the document.
3 Position the long side (in landscape mode) or the short side (in
portrait mode) of the document to the left side of the document
bed.
4 Position the left top of the document to the reference mark. If the
document is not placed correctly, reading cannot be done correctly.
5 Close the document cover slowly. If the document cover is
closed too quickly, the document may move.
6 Read the document. Do not press on or open the document cover
during the read operation.
7 After reading, open the document cover to remove the document.
4–2
Reference mark
Document cover
Document
4
2
Document bed
1
5
Figure 4.1 Flatbed reading
3
2

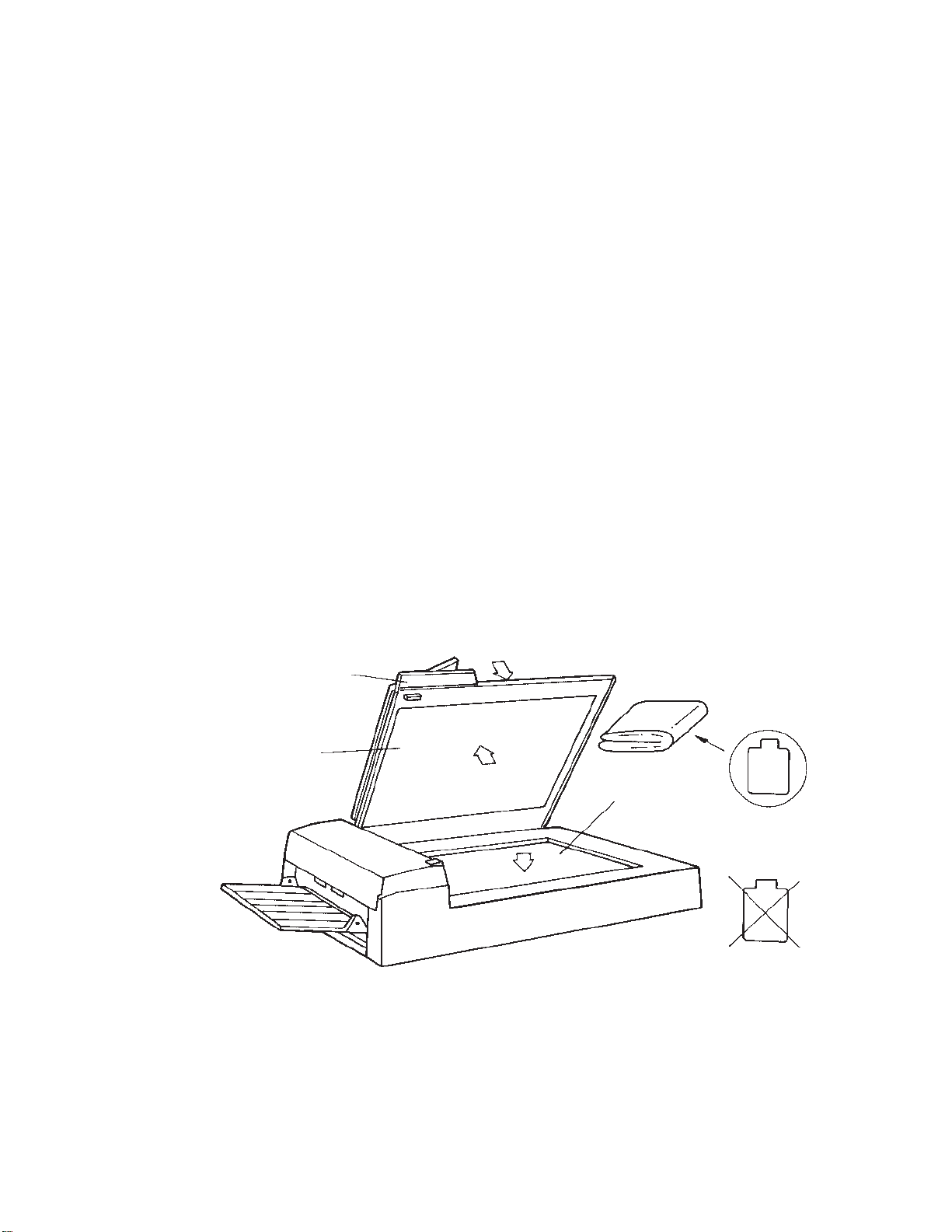

4.2.2 Reading a page from a thick book
To read a page from a thick book, remember the following points:
1 Do not close the document cover forcibly. Keep the cover open
for reading.
2 Any document parts that are not in contact with the glass will not
be read correctly.
3 Do not move the document during the read operation.
4–3
4.2.3 Reading a document larger than the document board
If the size of the document is larger than the document board, read the
document using the following procedure:
1 Open the document cover at an angle of about 80°, then slide the
cover to the direction of the arrow to remove it.
2 Place the document face down on the document bed.
3 Place the document cover over the document.
4 Read the document.
5 After the read operation, remove the document, replace the
document cover. Mount the document cover to the original
position, and close the document cover.
Document cover
80°
Document bed
Figure 4.2 Removing the document cover
NOTICE: Do not remove the document cover for any other purpose.
4–4
4.3 Reading Documents in ADF Mode
This section explains how to read documents using the automatic
document feeder. If the following steps are not closely followed, a
feed error may occur.
1 Check the documents as follows:
(a) Paper quality
• Wood-free paper.
• PPC paper; Specified by XEROX Corporation.
(b) Paper weight
• 13.91bs to 27.81bs
(c) Paper size
• Letter, Legal, A4, A5, B5
(d) Items to avoid
• The following documents may be hard to read by ADF. Before
you start the large quantity reading, check that the document is
read appropriately. If the reading is not appropriate, read them
by flatbet.
– Paper with a clip or staple.
– Paper that has ink which is not dry.
– Paper thickness is not constant, such as an envelope.
– Paper that has large rumples or curl. (See NOTICE)
– Paper that has folds or tears.
– Tracing paper.
– Coating paper.
– Carbon paper.
– Paper that is smaller than A5 size or larger than A4 width.
– Items other than paper, such as clothes, metal sheet, or OHP
film.
– Photographic paper.
– Paper that has perforations on its side.
– Paper that has a shape other than square.
– Paper that is very thin.
NOTICE: The important document which shall not be torn must be read by flatbet.
NOTICE: Carbonless papers have the chemical composition which damages the pad and
pickroller. Therefore, note the following remarks
Cleaning: If the miss pick occurs frequently, clean the pad and pickroller
in accordance with the section 5.3.2.
Replacement of parts: The life of the pad and the pickroller may be shorter than the
case that PPC document is fed. Replacement cycle of the pad
and the pickroller may be 100,000 sheets or more if the paper
quality is good and cleaning is done well. Before you start the
large quantity reading, check the replacemtne cycle of them
and prepare pads and pickrollers.
4–5
NOTICE: Paper should be straightened to fit the condition below.
More than
30 mm
Top of the paper
Less than
5 mm
More than
30 mm
Top of the paper
Feed direction
Read surface
Less than
5 mm

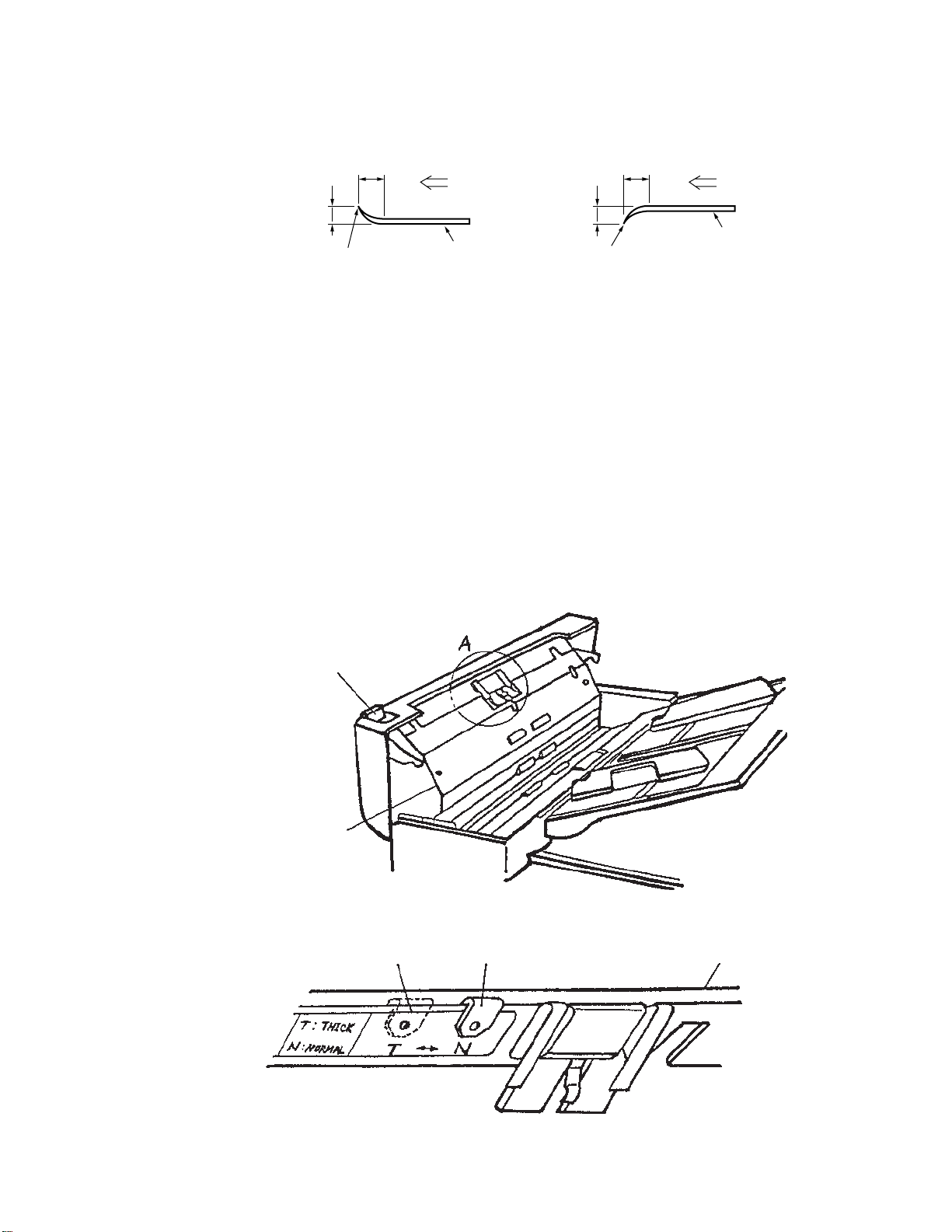

2 Switch the paper select lever.
Switch the lever in the following procedures:
• Open the automatic document feeder (ADF) while lifting up the
ADF lever.
• Set the paper select lever.
Plain paper: "NORMAL"
Heavy paper: "THICK"
• Reset the ADF. (Check that the ADF lever is set at the "NORMAL" position.)
NOTICE: Always reset the paper select lever to "NORMAL" posi-
tion, when you feed the paper other than heavy paper.
Feed direction
Read surface
ADF lever
Automatic document
feeder (ADF)
(THICK mode)
Paper select lever
(NORMAL mode)
ADF frame
4–6
Section A enlargerd
3 Pull up the ADF paper chute as follows:
• Hold the document cover with one hand and pull up the ADF
paper chute with the other hand until it clicks.
ADF paper chute
Document cover
ADF paper chute
Push for storage
Shaft
Document cover
Figure 4.3 ADF paper chute setting
4 Fan the documents as follows:
• Take a 15 to 20 mm thickness of documents. Lightly hold both
ends with both hands. Bend the documents into an arch as
shown below.
• Then hold the documents tightly with both hands, and
straighten the documents. The center of documents swell and
air is introduced between the documents.
• Repeat this operation two or three times.
• Turn the documents 90°, and repeat the operation again.
15 to 20 mm
4–7
5 Take documents to be placed in the ADF paper chute. The
thickness of the documents to be placed in the ADF paper chute is
limited depending on the size of the documents as follows:
A4 or letter size or smaller: 4 mm or less
6 Angling the documents
Angle the document edges as follows:
• Place the documents face down with the top to the left as shown
in A. The long side is the top for landscape mode and the short
side is the top for portrait mode.
• Lift the documents holding the both ends with both hands.
• Hold the documents tightly with your left hand and bend the
documents as shown in B.
• Grip tightly with your right hand, loosen the grip of your left
hand, and straighten the documents as shown in C.
• Repeat these operations until the top is angled 20° or less as
shown in D.
Top
A
B
C
(For portrait mode)
D
20° or less
4–8
7 Open the right and left guides of the ADF paper chute about 5
mm wider than the document width.
8 Place the documents face down onto the ADF paper chute with
the top edges facing the automatic feeder hole.
9 Adjust the guides to the document sides. Skewing may occur if
there is a gap between the guides and documents.
10 Slide the documents down until they touch the far end of the
automatic feeder opening. If the documents hit the far end hard,
two or more pages may be fed at once. Make sure that the upper
end of documents are not turned.
11 Read the document. If a wrong document size or mode (portrait
or landscape) is selected, the document may not be read entirely.
NOTICE: Unless 3 mm of the leading edge of forms are not
white or dropout color, set the document type to
"Photo."
12 After reading, remove the documents from the stacker.
Guide
Automatic document feeder
Guide
Figure 4.4 Loading the document
Portrait Landscape
Short side
Documents
ADF paper chute
Guide lever (Both sides)
Automatic document feeder
ADF paper chute
Long side
Documents
4–9
This page is intentionally left blank.
4–10
CHAPTER 5 MAINTENANCE
5.1 Removing Jammed Documents
5.2 Notes on Daily Use
5.3 Cleaning
5.4 Consumables/Periodical replacement parts
This section explains how to remove jammed documents, and provides notes on daily use and
cleaning.
5.1 Removing Jammed Documents
If documents jam while being fed by the ADF, remove the jammed
documents as follows:
1 Remove the documents from the ADF paper chute.
2 Pulling up the ADF lever, open the automatic document feeder.
3 Remove the jammed documents.
4 Close the ADF until the ADF lever locks.
Automatic document feeder (ADF)
ADF lever
Figure 5.1 Removing jammed documents
5–1
5.2 Notes on Daily Use
Note the following points on daily use:
NOTICE
• Do not look directly at the light source during the read operation.
Keep the document cover in place.
NOTICE
• See Section 5.3 “Cleaning”, to clean the document cover, document
holding pad, document bed, and the automatic document feeder.
Especially, clean the automatic document feeder (ADF) periodically.
For the cleaning cycle, see Section 5.3.2, "Cleaning the ADF."
5.3 Cleaning
This section explains how to clean the image scanner.
5.3.1 Cleaning the document cover, document holding pad, and document bed
• Use a dry cloth or a cloth with a neutral cleanser to remove dirt from
the document cover, document holding pad, and document bed. Do
not use organic solvents such as a thinner.
• Make sure that no liquid enters the scanner from the edges of the
document bed glass.
Document cover
Document holding pad
Document bed
Cloth
Neutral cleanser
Thinner
Figure 5.2 Cleaning the document cover, document holding pad, and document bed
5–2
5.3.2 Cleaning the ADF
Clean the automatic document feeder (ADF) once every 5,000 pages.
The cycle depends on the types of documents used (paper quality, a
level of toner fusing on paper).
1 Pull the ADF lever up to open the ADF.
2 Use the dry cloth or a cloth with ethyl alcohol to softly remove
dirt and dust as follows.
Pad: Wipe the pad in a downward direction (indi-
cated by the arrow). Be careful not to hook
the pick spring when wiping.
Glass: Wipe the glass lightly.
Pick roller : Wipe the roller softly. Be careful not to
damage the surface of the roller.
Feed roller and coupled feed roller:
Wipe the rollers softly. Be careful not to
damage the surface of the rollers.
Ejection roller and coupled ejection roller:
Wipe the rollers softly. Be careful not to
damage the surface of the rollers.
3 Close the ADF to lock the ADF lever.
ADF lever
Pad
Automatic document feeder
Sheet guide (white part):
Pick spring
Wipe the sheet guide softly.
Ejection roller (Clean the roller
Feed roller
on the opposite side also.)
Pick rollers
Sheet guide (white part)
Figure 5.3 Cleaning the ADF
Glass
Coupled feed roller
5–3
5.4 Consumables / Periodical replacement parts
5.4.1 Parts number and replacement cycle
Customer is responsible to change these items periodically.
No.
1
2
*1: These replacement cycle may vary by the paper quality and cleaning result. When PPC
paper is used, replacement cycle may be 300,000 sheets or more by good cleaning. Before
you start the large quantity reading, evaluate the replacement cycle and prepare pads and
pickrollers.
*2: This part may not be provided in some countries due to the conformability of safety regula-
tion. Before the order of the pick roller, contact your sales agent or Fujitsu service representative.
5.4.2 Replacing pad ASY
Part name
Pad ASY
Pick roller
1 Lift up the ADF lever and open the ADF.
2 Insert a coin in the slot or hold the both sides of the pad ASY,
Part number
PA02201-0020
PA02212-K001(*2)
then slide it to the direction of the arrow to remove the pad.
Every 100,000 pages or annually(*1)
Every 200,000 pages or annually(*1)
Replacement cycle
Pad ASY
ADF lever
Slot
NOTICE: Set the paper select lever to “N”, before removing pad ASY. (See Section 4.3)
5–4
3 Insert the pad assembly into the ADF frame hole (the bigger one),
slide the assembly to the direction of the arrow until it clicks.
ADF frame
Pad assy
NOTICE: Pad can be replaced by aligning the holes of the pad with the pins of the Pad holder.
5.4.3 Replacing pick roller
Replace the pickroller as follows.
a. Pull the cap up to open the ADF
unit.
b. Remove two thumb screws
shown in Figure 5.4. And remove the Guide A.
Pad holder
Pad
Pick spring
Thumb Screw
Guide A
Thumb Screw
Figure 5.4 Pick Roller replacement
5–5
c. Pinch the retaining spring and
slide it toward the roller. Free
bearing A from the bracket by
sliding it toward the roller.
d. Slide the pick roller shaft in the
direction of arrow B and remove
the shaft from bearing B.
The roller shaft can then be lifted
and removed as shown in Figure
5.6.
Bearing A
A direction
Retaining Spring
Figure 5.5 Move the Retaining spring
Arrow B
e. Remove the bearing B.
f. Mount the new pick roller in
reverse order of removal.
Bearing B
Figure 5.6 Slide the Pick Roller
NOTICE: When mounting the Guide A, note that the hooks of the retaining spring are not
pressed by the Guide A. (See figure bellow)
Guide A
×
j
Retaining spring
5–6
CHAPTER 6 TROUBLESHOOTING
If a problem occurs, use Table 6.1 to resolve the problem.
Table 6.1 Check items
Problem
No power
Read operation
does not start.
Possible cause
The power switch was not
turned on.
The power cable was not
connected correctly.
——————————
The documents were not
placed on the ADF correctly.
The ADF was not closed
completely.
The interface cables were not
connected correctly.
Terminator was not connected. (M3096GX).
Response
Press the power switch.
Connect the power cable correctly.
Turn off the power once and make an
attempt to turn on the power again. If the
power is not turned on, contact your
Fujitsu service representative.*
Insert the first a few pages into the slot.
Make sure that the ADF is closed completely.
Connect the interface cables correctly.
Connect the terminator.
Pictures and
photographs are
not read correctly.
Characters and
lines are not
read correctly.
Image is distorted or unclear.
Halftone processing was not
selected.
The document bed, document holding pad, or inside
ADF is dirty.
Simple binarization was not
done.
The document bed, document holding pad, or the
inside of the ADF is dirty.
The document was moved
during the read operation.
The document was not in
contact with the glass.
Select a halftone mode from the host
system.
Clean the dirty parts as explained in
Section 5.3, “Cleaning.”
Select a binarization mode from the host
computer.
Clean the dirty parts as explained in
Section 5.3, “Cleaning.”
Keep the document cover closed during
reading so that the document will not be
moved.
Adjust the document so that it is in
contact with the glass.
6–1
Table 6.1 Check items (continued)
Problem
The check
indicator is on.
“Check” lamp
blinks at 4
seconds period.
Possible cause
The carrier fixing bracket
was not removed.
——————————
The pick roller is dirty.
The unallowable document
was read in the automatic
document feeder.
(See Section 4.3.)
Response
Remove the carrier fixing bracket as
explained in Section 3.2, “Removing the
Carrier Fixing Bracket.”
Turn the power off then on again. If the
check indicator turns on again, contact the
sales person in charge or a Fujitsu service
representative.*
When the power is turned off, the message is cleared.
Even if the message is displayed, the read
operation can be continued. Clean the
pick roller after the read operation.
(See Section 5.3.2.)
If a document not meeting the scanner
specifications is read in the automatic
document feeder, the document is not fed
smoothly and an error message may be
displayed.
Read the document in the flat bed station.
Paper double feed.
Miss pick.
Paper jam.
* Please check the test mode in appendix B, if possible, before calling the service representa-
tive and inform status of the indicators.
Pad is dirty.
Pad is worn out.
Pick roller is dirty.
Pick roller is worn out.
Some foreign particles are in
ADF.
Clean the Pad. (See Section 5.3.2)
Replace the Pad. (See Section 5.4.2)
Clean the Pick roller. (See Section 5.3.2)
Replace the Pick roller.
(See Section 5.4.3)
Clean the ADF (See Section 5.3.2) or
remove any foreign particles.
6–2
APPENDIX A
A.1 Installation Specifications
Table A.1 Installation specifications
SpecificationItem
External dimensions (mm)
Weight (kg)
Input power
Power
Temperature and
humidity allowed
ranges
Voltage
Number of phases
Frequency
Temperature
Humidity
Width
530
11
100 to 120 VAC, 200 to 240 VAC
Single-phase
50/60 Hz
100 VA
Operation
5 to 35°C
20 to 80%
Depth
376
Idle
–20 to 60°C
8 to 95%
Height
173
A–1
A.2 External Dimensions
376
173
530
(Unit: mm)
Figure A.1 External dimensions
A–2
APPENDIX B
B.1 Test mode for maintenance
CAUTION: Please follow the procedure here or the offset data may be changed incor-
rectly. If the scanner does not react as the procedure below, turn off the
scanner and start from the beginning.
(1) Activating a test mode
Open the ADF cover and set the sensors to the following state before turning on the image
scanner. The image scanner can be placed in the maintenance mode by pulling out the
empty sensor lever and setting the B5 size sensor lever to down position with the ADF
cover fully opened (see Figure below). If the image scanner is placed in the maintenance
mode, the POWER lamp blinks. If the POWER lamp does not blink, turn off the power
and try again. Then close the ADF.
(Setting of the ADF sensors for maintenance mode)
- Empty sensor: UP
- B5 size sensor: DOWN
ADF open
B5 Size sensor
Empty sensor
DOWN
UP
B–1
(2) Activating the continuous operation test
Open the ADF and close it again. If no document is loaded on the ADF within five seconds after closing the ADF, the image scanner runs in flatbed mode. If documents are
loaded on the ADF within five seconds after closing the ADF, the image scanner continuously feeds the document from ADF. Once the image scanner start reading documents in
the flatbed mode, it does not feed documents from ADF even if documents are loaded on
the ADF.
(3) Ending the test in flatbed mode
To stop the carrier movement in flatbed mode, open the ADF cover. If the ADF cover is
opened, the POWER lamp starts blinking immediately after the carrier returns to the home
position.
(4) Ending the test in ADF mode
If the ADF document hopper is empty, feeding documents from the ADF ends. To restart
feeding, open the ADF cover and close it again. Then load documents on the ADF document hopper within five seconds after closing the ADF cover.
(5) LED status on error
If an error occurs during the test, the LED indicates as shown in table B.1.
If paper is jammed in the ADF, remove the jam and close the ADF cover. The CHECK
lamp stops blinking about three seconds after closing the ADF cover. To feed the document from ADF, open and close the ADF cover.
Table B.1 LED at an error
Errors
Paper jam
Carrier unit error
Optical system error
Motor fuse failure
Lamp fuse failure
POWER lamp
On
Blink
Blink
Blink
Blink
READ lamp
Off
Off
Off
On
On
CHECK lamp
Blink
Blink
Blink
On
On
B–2
APPENDIX C
C.1 Option
Name Specification Scanner Feature
IPC-2 CA01952-0191 M3093EX Image processing
M3093GX • Automatic separation
CMP-2 CA M3093GX • 4 Mbyte memory
Contact your Fujitsu sales agent for more information.
C.2 IPC-2/CMP-2 option board installation
• Image emphasis
• Outline extraction
• Mirror image
• Dynamic threshold
• Noise suppression
• Smoothing
• MH/MR/MMR compression
WARNING: Follow the outlined procedure to avoid danger from electrical components.
(1) Verify that the scanner power is turned off.
(2) Remove the AC cable from the rear of the scanner.
(3) Romove the two screws securing the power supply and the interface PCA assembly.
(4) Pull the power supply and the PCA assembly out slightly and remove the flat cabel
connector. Then pull out the entire assembly.
CAUTION: Do not pull on the flat cable too strongly or it may be damaged.
Flat cable
(inside)
power supply and PCA assembly screw
C–1
(5) Remove the two screws in the following figure.
Two screws
(6) Remove the four screws from the interface connector and remove the two screws A in
the following figure.
Screw A
Interface connector screw
(7) Remove the cover from the interface PCA.
Cover
(8) Connect the IPC-2 option board connector and tighten the screw.
C–2
(9) Where a CMP-2 is installed, remove the screw from the memory board and detach the
memory board. Connect the CMP-2 option board connector and tighten the screw.
Screw for IPC-2
CMP-2 option board or memory PCA (M3093GX)
Screw for memor board or CMP-2 (M3093GX)
IPC-2 option board
(not shown)
(10) Attach the power supply and PCA assembly in the reverse order of removal.
C–3
This page is intentionally left blank.
C–4
Comments concerning this manual can be directed to one of the following addresses:
FUJITSU LIMITED
International Operations
Marunouchi 1-6-1, Chiyoda-ku, Tokyo 100,
JAPAN
TEL: (81-3) 3216-3211
FAX: (81-3) 3213-7174
TLX: J22833
Cable: “FUJITSU LIMITED TOKYO”
FUJITSU COMPUTER PRODUCTS OF
AMERICA, INC.
2904 Orchard Parkway, San Jose.
California 95134-2022, U.S.A.
TEL: 1-408-432-6333
FAX: 1-408-432-3908
FUJITSU CANADA, INC.
2800 Matheson Blvd. East, Mississauga.
Ontario 4X5, CANADA
TEL: 1-905-602-5454
FAX: 1-905-602-5457
FUJITSU DEUTSCHLAND GmbH.
Frankfurter Ring 211,
8000 Munchen 40, F.R, GERMANY
TEL: 49-89-32378-0
FAX: 49-89-32378-100
FUJITSU EUROPE LTD.
2, Longwalk Road, Stockley Park, Uxbridge
Middlesex, UB11 1AB, U.K
TEL: 44-81-573-4444
FAX: 44-81-573-2643
TLX: 263871
FUJITSU NORDIC AB
Kung Hans vag, S-191 76 Sollentuna, SWEDEN
TEL: 46-8-626-6000
FAX: 46-8-626-6711
FUJITSU ITALIA S.p.A.
Via Melchiorre Gioia, No. 8-20124 Milano,
ITALY
TEL: 39-2-63651
FAX: 39-2-6572257
FUJITSU FRANCE S.A.
Batiment Aristote, 17 rue Olof palme
94006 Creteil cedex, FRANCE
TEL: 33-14-513-1616
FAX: 33-14-399-0700
FUJITSU AUSTRALIA LIMITED
475 Victoria Avenue Chatswood.
N.S.W 2067, AUSTRALIA
TEL: 61-2-410-4555
FAX: 61-2-411-8603
FUJITSU HONG KONG Limited
Room 2521, Sum Hung Kai Centre
30 Harbour Road Wanchal, Hong Kong
TEL: 852-827-5780
FAX: 852-827-4724
TLX: 62667
FUJITSU ESPANA, S.A
Edificio torre Europa
Paseo de la Castellana 95 Madrid 28046, SPAIN
TEL: 34-1-581-8400
FAX: 34-1-581-8125
Reader Comment Form
We would appreciate your comments and suggestions for improving this publication.
Publication No. Rev. Letter Title Current Date
How did you use this publication? Is the material presented effectively?
Learning Installing Sales Fully Well Well
Reference Maintaining Operating Covered illustrated Organized
What is your overall rating of this publication? What is your occupation?
Very Good Fair Very Poor
Good Poor
Your other comments may be entered here. Please be specific and
give page, paragraph and line number references where applicable.
Clean
Your Name & Return Address
Loading...
