Copyright
Fujitsu PC Corporation has made every effort to ensure
the accuracy and completeness of this document.
However, as ongoing development efforts are continually
improving the capabilities of our products, we cannot
guarantee the accuracy of the contents of this document.
We disclaim liability for errors, omissions, or future
changes.
Fujitsu, the Fujitsu logo, and LifeBook are registered
trademarks of Fujitsu Limited.
The following are registered trademarks of Microsoft
Corporation: MS, MS-DOS, Windows.
PCMCIA is a trademark of the Personal Computer
Memory Card International Association.
Intel and Pentium are registered trademarks of Intel
Corporation.
Adobe Acrobat Reader is a registered trademark of
Adobe System Inc.
LapLink is a registered trademark of LapLink.com, Inc.
Copyright
PowerQuest and Drive Image are registered trademarks
of PowerQuest Corporation.
Netscape is a registered trademark of Netscape
Communications Corporation.
McAfee is a registered trademark of Network Associates/
McAfee.com, Inc.
All other trademarks mentioned herein are the property
of their respective owners.
© Copyright 2003 Fujitsu PC Corporation. All rights
reserved. No part of this publication may be copied,
reproduced, or translated, without prior written consent
of Fujitsu PC Corporation. No part of this publication
may be stored or transmitted in any electronic form
without the written consent of Fujitsu PC Corporation.
B5FH-8441-01EN-00
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu PC Corporation
Address: 5200 Patrick Henry Drive
Santa Clara, CA 95054
Telephone: (408) 982-9500
Declares that product: Model Configuration:
LifeBook B2630
Complies with Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions:
(1) This device must not be allowed to cause harmful interference, (2) This device must accept any interference
received, including interference that may cause undesired operation.
LifeBook B Series
Table of Contents
Fujitsu LifeBook B Series Notebook
Table of Contents
1
PREFACE
Preface
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . .3
FPC Contact Information . . . . . . . . . . . . . . . . . . .3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2
GETTING TO KNOW YOUR
LIFEBOOK NOTEBOOK
Overview

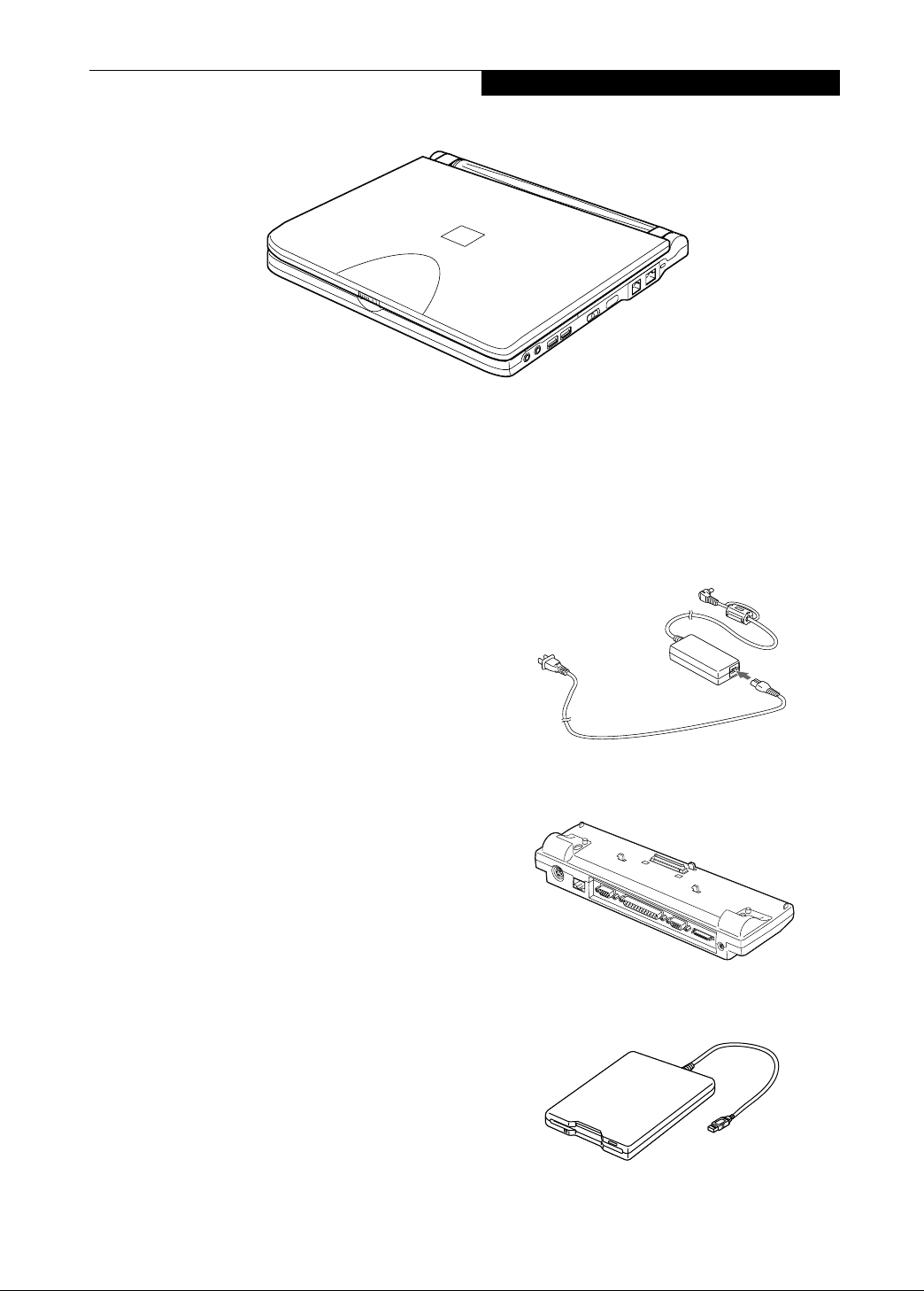

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Locating Controls and Connectors

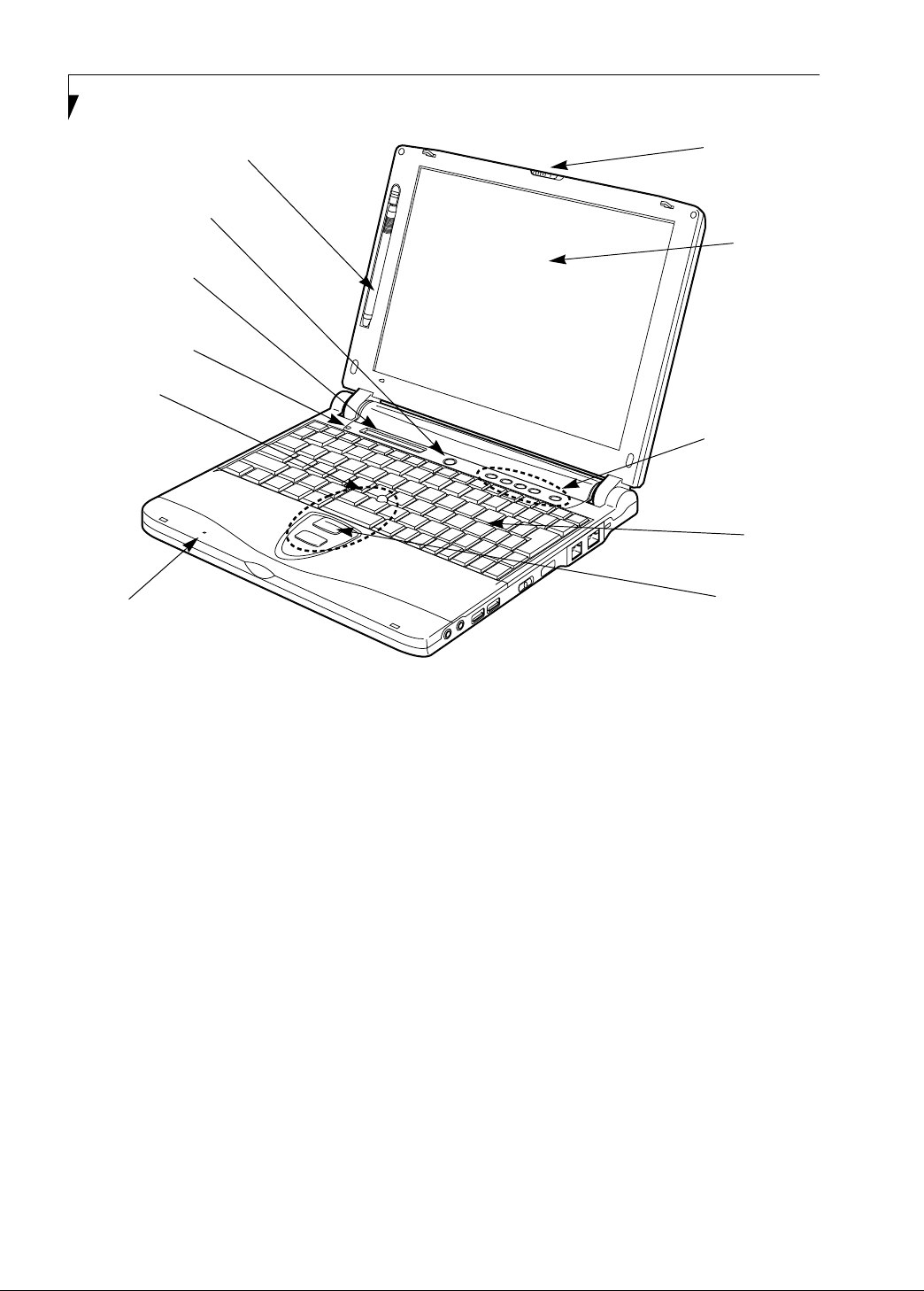

Top and Front Components . . . . . . . . . . . . . . . . .8

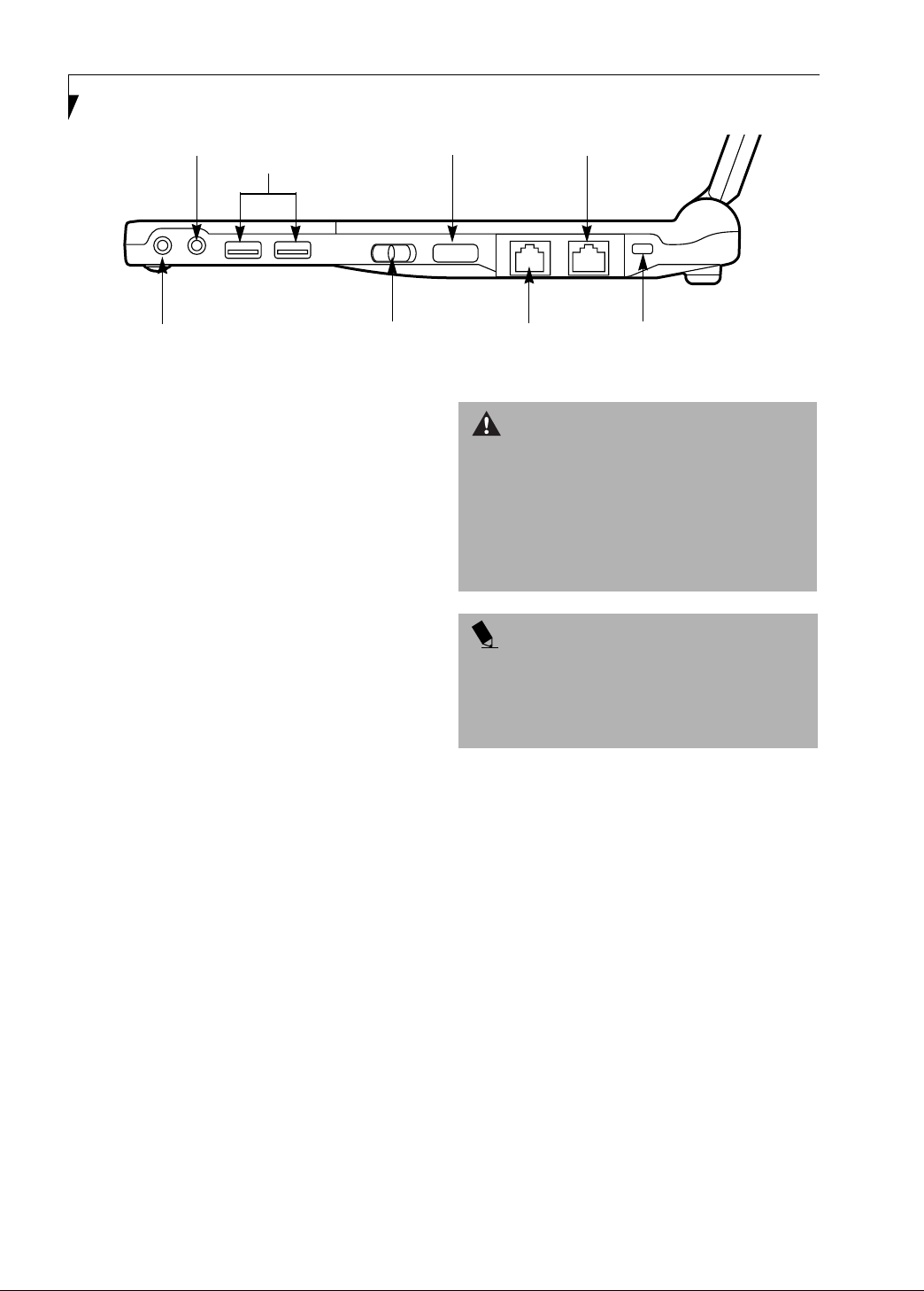

Left-Side Panel Components . . . . . . . . . . . . . . . .9

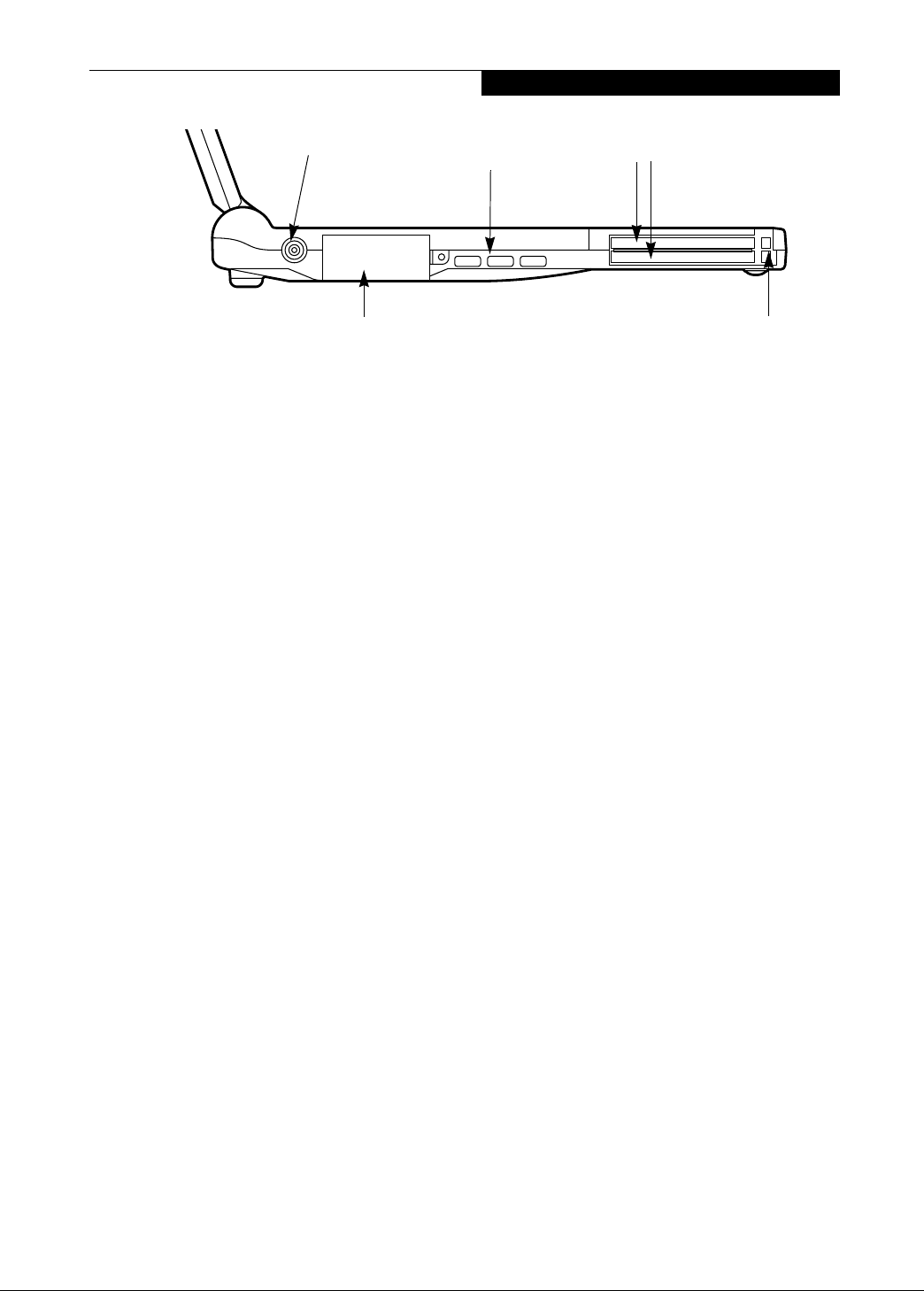

Right-Side Panel Components . . . . . . . . . . . . . .10

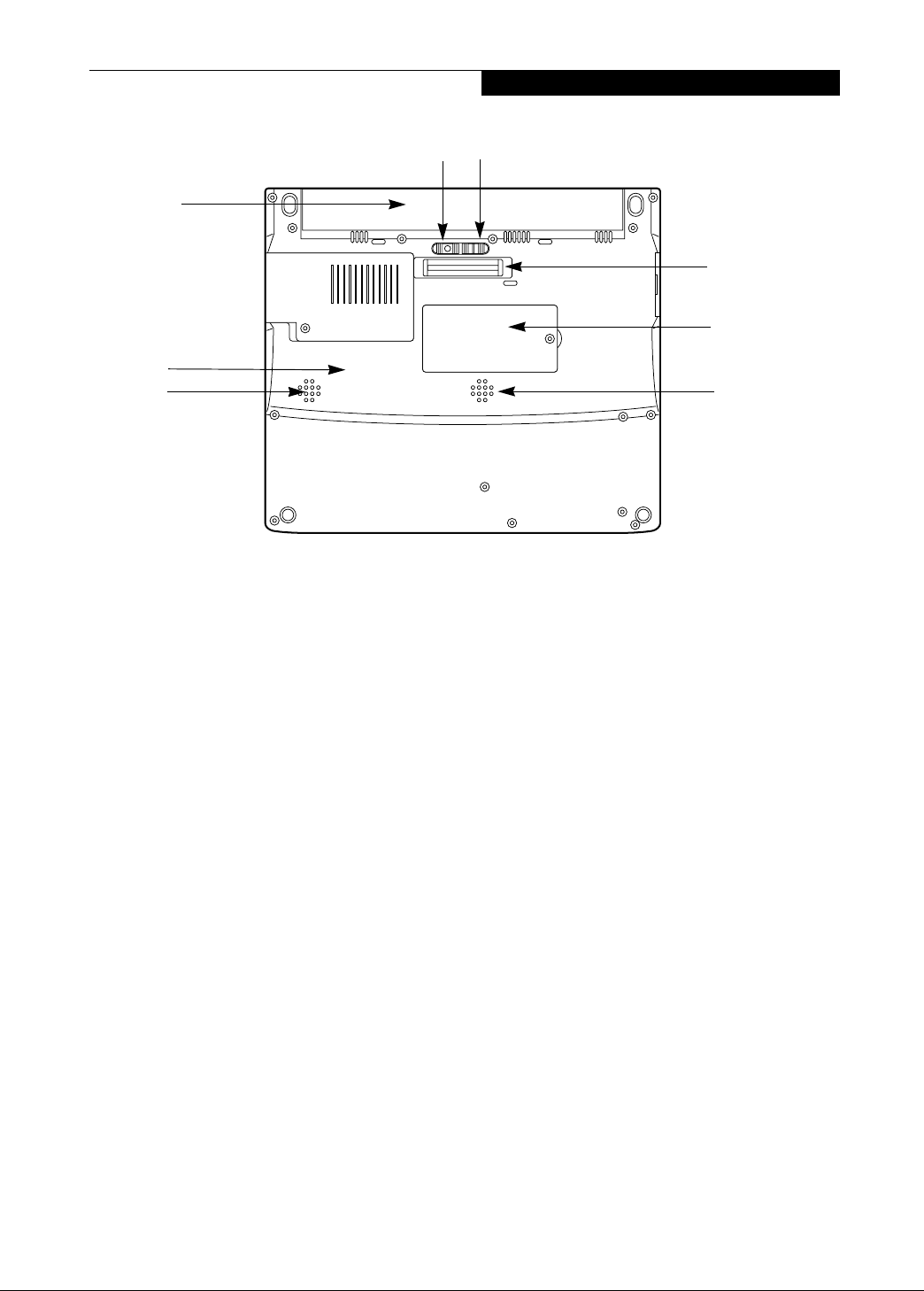

Bottom Components . . . . . . . . . . . . . . . . . . . . .11
Status Indicator Panel
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .12
AC Adapter Indicator . . . . . . . . . . . . . . . . . . . . .12
Battery Level Indicators . . . . . . . . . . . . . . . . . . .12
Battery Charging Indicators . . . . . . . . . . . . . . . .13
Hard Drive or Removable
Media Drive Access Indicator. . . . . . . . . . . . .13
PC Card Access Indicators . . . . . . . . . . . . . . . . .13
NumLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . .13
CapsLock Indicator. . . . . . . . . . . . . . . . . . . . . . .13
ScrLk Indicator . . . . . . . . . . . . . . . . . . . . . . . . . .13
Security Indicator. . . . . . . . . . . . . . . . . . . . . . . .13
Keyboard

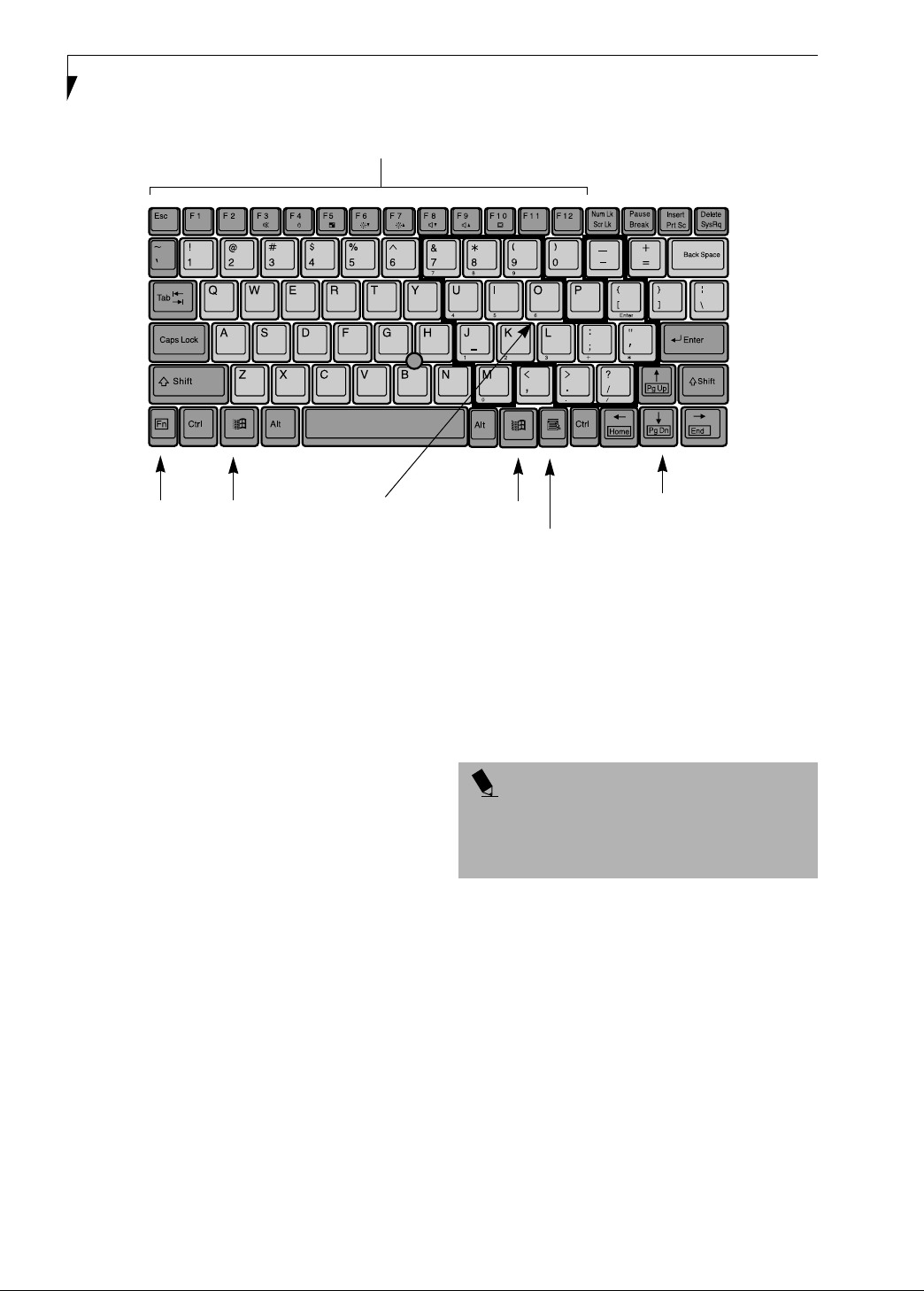

Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .14
Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .14
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .15
Quick Point Pointing Device

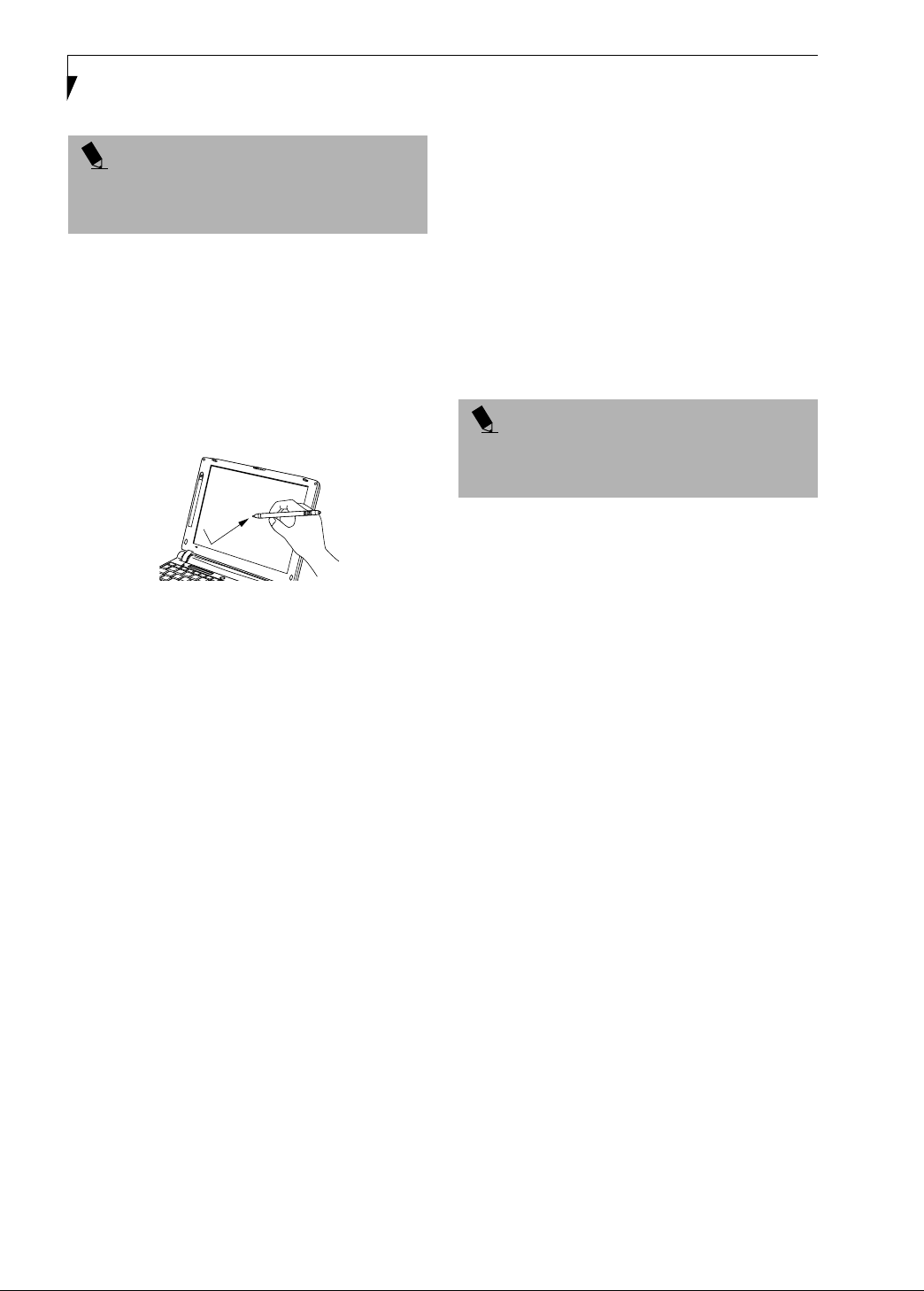

Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Volume Control
Controlling the Volume . . . . . . . . . . . . . . . . . . .19
LifeBook Security/Application Panel
Setting up Your LifeBook Security Panel. . . . . . .20
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Operating Your LifeBook Security/
Application Panel. . . . . . . . . . . . . . . . . . . . . .21
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Uninstalling the Security Panel Application . . . . .21
Launching Applications with
the Security/Application Panel . . . . . . . . . . . .22
3
GETTING STARTED
Power Sources
Connecting the Power Adapters. . . . . . . . . . . . .27
Display Panel
Opening the Display Panel . . . . . . . . . . . . . . . . .28
Adjusting Display Panel Brightness . . . . . . . . . . .28
Closing the Display Panel . . . . . . . . . . . . . . . . . .28
Starting Your LifeBook Notebook
Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . .29
BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . .29
Booting the System . . . . . . . . . . . . . . . . . . . . . .30
Activating Additional Utilities . . . . . . . . . . . . . . .30
Registering Your LifeBook notebook. . . . . . . . . .31
Power Management
Suspend/Resume Button . . . . . . . . . . . . . . . . . .32
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . .32
Hibernate Mode. . . . . . . . . . . . . . . . . . . . . . . . .33
Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . .33
Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . .33
Windows Power Management . . . . . . . . . . . . . .33
LifeBook B Series
Restarting the System. . . . . . . . . . . . . . . . . . . . .33
Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
4
USER-INSTALLABLE FEATURES
Lithium ion Battery
Recharging the Batteries. . . . . . . . . . . . . . . . . . . 37
Replacing the Battery. . . . . . . . . . . . . . . . . . . . .38
External Floppy Disk Drive
Connecting an External Floppy Disk drive. . . . . .39
Loading a Disk . . . . . . . . . . . . . . . . . . . . . . . . . .39
Ejecting a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Preparing a Disk for Use. . . . . . . . . . . . . . . . . . . 39
PC Cards
Installing PC Cards. . . . . . . . . . . . . . . . . . . . . . .41
Removing PC Cards . . . . . . . . . . . . . . . . . . . . . .41
Smart Card Reader. . . . . . . . . . . . . . . . . . . . . . . 41
Memory Upgrade Module
Installing a Memory Upgrade Module . . . . . . . . 42
Removing a Memory Upgrade Module . . . . . . . 42
Checking the Computer Recognition
of New Memory Capacity . . . . . . . . . . . . . . . 43
Port Replicator
Rear Panel Components. . . . . . . . . . . . . . . . . . .44
Front Panel Components . . . . . . . . . . . . . . . . . . 45
Attaching the Port Replicator . . . . . . . . . . . . . . .45
Detaching the Port Replicator. . . . . . . . . . . . . . .45
Device Ports
Modem (RJ-11) Jack . . . . . . . . . . . . . . . . . . . . .46
Internal LAN (RJ-45) jack (LAN model only). . . . 46
Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . .47
External Floppy Disk Drive Port . . . . . . . . . . . . . 47
Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 47
Infrared Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . .47
Headphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . 47
External Monitor Port. . . . . . . . . . . . . . . . . . . . . 48
5
TROUBLESHOOTING
Troubleshooting
Identifying the Problem . . . . . . . . . . . . . . . . . . . 51
Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting Table. . . . . . . . . . . . . . . . . . . . 52
Power On Self Test Messages . . . . . . . . . . . . . . 60
Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 61
Restoring Your Pre-installed Software
Drive Image Special Edition (DISE) . . . . . . . . . . . 62
Using DISE with Windows 2000/XP. . . . . . . . . . 62
6
CARING FOR YOUR SYSTEM
Care and Maintenance
LifeBook Notebook . . . . . . . . . . . . . . . . . . . . . . 65
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Floppy Disks and Drives. . . . . . . . . . . . . . . . . . . 66
CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7
SYSTEM SPECIFICATIONS
Specifications
Configuration Label . . . . . . . . . . . . . . . . . . . . . . 71
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . 71
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Mass Storage Device Options . . . . . . . . . . . . . . 71
Integrated Pointing Device. . . . . . . . . . . . . . . . . 71
LifeBook Security/Application Panel. . . . . . . . . . 71
Theft Prevention Lock SLot . . . . . . . . . . . . . . . . 72
Communications . . . . . . . . . . . . . . . . . . . . . . . . 72
Device Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Dimensions and Weight . . . . . . . . . . . . . . . . . . .72
Environmental Requirements . . . . . . . . . . . . . . .72
Popular Accessories . . . . . . . . . . . . . . . . . . . . . .73
Pre-Installed Software . . . . . . . . . . . . . . . . . . . .73
Learning About Your
Application Software . . . . . . . . . . . . . . . . . . . .73
8
GLOSSARY
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Regulatory Information . . . . . . . . . . . . . . . . . . .83
APPENDIX
Using the Integrated Wireless LAN
FCC Regulatory Information . . . . . . . . . . . . . . .89
Before Using This Device . . . . . . . . . . . . . . . . . .90
Connecting Windows 2000 Systems. . . . . . . . . .91
Network Connection: Windows 2000. . . . . . . . .92
Connecting Windows XP Systems . . . . . . . . . . .95
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . .99
About IP Addresses . . . . . . . . . . . . . . . . . . . . .102
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .103
Table of Contents
LifeBook B Series
1
Preface
1
LifeBook B Series
2
Preface
Preface
ABOUT THIS GUIDE
The LifeBook® B Series notebook from Fujitsu PC
Corporation is a powerful mini-notebook computer. It
is powered by an Intel® Pentium™ III microprocessor,
has a built-in color touch screen display, and brings the
computing power of desktop personal computers (PCs)
to a portable environment.
This manual explains how to operate your LifeBook
notebook’s hardware and built-in system software. Your
LifeBook notebook is compatible with the IBM® PC AT.
It comes with Windows® 2000 Professional, Windows
XP Home, or Windows XP Professional pre-installed.
Your notebook is a completely self-contained unit with
an active-matrix (TFT) color LCD display. It has a
powerful interface that enables it to support a variety of
optional features.
Conventions Used in the Guide
Keyboard keys appear in brackets.
Example: [Fn], [F1], [Esc], [Enter] and [Ctrl].
Pages with additional information about a specific topic
are cross-referenced within the text.
Example: (See page xx.)
On screen buttons or menu items appear in bold
Example: Click OK to restart your notebook.
DOS commands you enter appear in Courier type.
Example: Shutdown the computer?
POINT
The point icon highlights information that will enhance
your understanding of the subject material.
CAUTION
The caution icon highlights information that is
important to the safe operation of your computer, or to
the integrity of your files. Please read all caution
information carefully.
FPC CONTACT INFORMATION
Service and Support
You can contact FPC Service and Support the following
ways:
■
Toll free: 1-800-8Fujitsu (1-800-838-5487)
■
Fax: 1-901-259-5700
■
E-mail: 8fujitsu@fujitsupc.com
■
Web site: http://www.fujitsupc.com
Before you place the call, you should have the
following information ready so that the customer
support representative can provide you with the
fastest possible solution:
■
Product name
■
Product configuration number
■
Product serial number
■
Purchase date
■
Conditions under which the problem occurred
■
Any error messages that have occurred
■
Hardware configuration
■
Type of device connected, if any
Fujitsu Online
You can go directly to the online Fujitsu Product catalog
for your notebook by clicking on the LifeBook Accessories Web site URL link, located in the Windows
Start menu.
You can also reach Fujitsu Service and Support online by
clicking on the Fujitsu Service and Support Web site
URL link, located in the Service and Support Software
folder of the Windows Start menu.
POINT
You must have an active internet connection to use the
online URL links.
WARRANTY
Your LifeBook notebook is backed by an International
Limited Warranty and includes toll-free technical
support. Check the service kit that came with your
notebook for warranty terms and conditions.
WARNING
The warning icon highlights information that can be
hazardous to either you, your LifeBook notebook, or
your files. Please read all warning information carefully.
3
LifeBook B Series – Section One
4
2
Getting to Know
Your LifeBook
5
LifeBook B Series
6
Getting to Know Your LifeBook
Figure 2-1 Fujitsu LifeBook B Series notebook (LAN model shown)
Overview
This section describes the components of your Fujitsu
LifeBook B Series notebook. We strongly recommend
that you read it before using your LifeBook notebook,
even if you are already familiar with notebook
computers.
UNPACKING
When you receive your LifeBook notebook, unpack it
carefully, and compare the parts you have received with
the items listed below.
For a pre-configured model you should have:
■
LifeBook B Series notebook (Figure 2-1)
■
AC adapter with AC power cord (Figure 2-2)
■
Phone/Modem (RJ-11) telephone cable
■
Stylus (located in stylus holder)
■
Two additional pointer caps
■
Driver and Application Restore CD
■
Getting Started Guide
■
User’s Guide (this document)
■
International Limited Warranty Brochure
■
Microsoft Windows Manual and
Certificate of Authenticity
■
Premium Care Registration card and envelope
Depending upon the configuration of your notebook,
you will have one of the following battery
configurations:
■
One main Lithium ion battery pre-installed,
or,
■
One main high-capacity Lithium ion battery (preinstalled),
or,
■
One main Lithium ion battery pre-installed and one
spare main high-capacity Lithium ion battery
You may also have one or more of the following devices
in the box:
■
External USB Floppy Disk Drive (Figure 2-4),
and/or,
■
Port Replicator (Figure 2-3)
Figure 2-2 AC Adapter
Figure 2-3 Optional Port Replicator (LAN model shown)
Figure 2-4 Optional External USB Floppy Disk Drive
7
LifeBook B Series – Section Two
Touch Screen Stylus
Suspend/Resume Button
Status Indicator Panel
Closed Cover Switch
Cursor Control
Built-in
Microphone
Display Panel Latch
Display Panel
LifeBook Security/
Application Panel
Keyboard
Quick Point
Pointing Device
Figure 2-5 LifeBook notebook with display open
Locating the Controls and Connectors
TOP AND FRONT COMPONENTS
The following is a brief description of your LifeBook
notebook’s top and front components. (Figure 2-5)
Touch Screen Stylus
The stylus is used as the pointing device for the touch
screen.
Closed Cover Switch
The closed cover switch turns off the LCD back
lighting when the display panel is closed.
Suspend/Resume Button
The Suspend/Resume button allows you to suspend
notebook activity without powering off, resume your
notebook from standby mode, and power on your notebook when it has been shut down from the Windows
operating system. See “Suspend/Resume Button” on
page 32.
Display Panel Latch
The display panel latch locks and releases the display
panel.
8
Status Indicator Panel
The Status Indicator Panel displays symbols that correspond with a specific component of your LifeBook notebook. See “Status Indicator Panel” on page 12.
LifeBook Security/Application Panel
The LifeBook Security/Application Panel provides
hardware security and one-touch application launch
capability. See “LifeBook Security/ Application Panel”
on page 20.
Quick Point Pointing Device
The Quick Point pointing device consists of two mouselike buttons and one cursor control button. See “Quick
Point Pointing Device” on page 16.
Keyboard
A full-function keyboard with dedicated Windows
keys. See “Keyboard” on page 14.
Built-in Microphone
The built-in microphone allows mono audio input.
Display Panel
The display panel is a color LCD panel with back
lighting for the display of text and graphics and Touch
Screen functionality.
Getting to Know Your LifeBook
DC Power Jack PC Card Slots
External Monitor Port
(behind cover)
Figure 2-6 LifeBook notebook left-side panel
LEFT-SIDE PANEL COMPONENTS
Following is a brief description of your LifeBook notebook’s left-side components.
DC Power Jack
The DC power jack allows you to plug in the AC adapter
or the optional Auto/Airline adapter to power your
notebook and charge the internal Lithium ion Battery.
(Figure 2-6)
External Monitor Port
The external monitor port allows you to connect an
external VGA or SVGA CRT monitor. Note that when
the optional Port Replicator is attached to the system,
you must use the external monitor port on the Port
Replicator rather than the port on the system. (Figure 2-
6) See “External Monitor Port” on page 48.
Air Vents
PC Card Eject/Lock Button
PC Card Slots
The PC Card Slots allow you to install two Type II or
one Type III PC Card. (Figure 2-6) See “PC Cards” on
page 41.
9
LifeBook B Series – Section Two
Microphone Jack
Headphone Jack
USB Ports
Power Switch
Figure 2-7 LifeBook notebook right-side panel
Infrared Port
RIGHT-SIDE PANEL COMPONENTS
Following is a brief description of your LifeBook notebook’s right-side components.
Headphone Jack
The headphone jack allows you to connect headphones
or powered external speakers. (Figure 2-7) See “Headphone Jack” on page 47.
Microphone Jack
The microphone jack allows you to connect an external
mono microphone. (Figure 2-7) See “Microphone Jack”
on page 47.
Power Switch
This switch is the main power switch for your notebook.
(Figure 2-7)
USB Ports
The two USB ports allow you to connect Universal Serial
Bus devices. (Figure 2-7) See “Universal Serial Bus Ports”
on page 47.
Infrared Port
The fast IrDA compatible port allows you to communicate with another IrDA compatible infrared device
without a cable. (Figure 2-7)
Modem (RJ-11) Telephone Port
The Modem (RJ-11) telephone port is for attaching
a telephone line to the internal multinational 56K
modem. (Figure 2-7)
Optional LAN (RJ-45)
Modem (RJ-11) Port
Anti-theft Lock Slot
WARNING
The internal multinational modem is not intended for
use with Digital PBX systems. Do not connect the
internal modem to a Digital PBX as it may cause serious
damage to the internal modem or your entire LifeBook
notebook. Consult your PBX manufacturer’s
documentation for details. Some hotels have Digital
PBX systems. Be sure to find out BEFORE you connect
your modem.
POINT
The internal modem is designed to the ITU-T V.90
standard. Its maximum speed of 53000bps is the
highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
LAN (RJ-45) Jack
The optional internal LAN (RJ-45) port is used for an
internal Fast Ethernet (10/100 Base-T/Tx) connection.
(Figure 2-7) See “Internal LAN (RJ-45) jack (LAN model
only)” on page 46.
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach a optional
physical lock down device. (Figure 2-7)
10
Getting to Know Your LifeBook
Battery Pack Lock
Lithium ion
Battery Bay
Main Unit and
Configuration
Label (approximate
location)
Speaker
Figure 2-8 LifeBook notebook bottom panel
BOTTOM COMPONENTS
Following is a brief description of your LifeBook notebook’s bottom panel components.
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion
battery. It can be opened for the removal of the battery
when stored over a long period of time or for swapping
a discharged battery with a charged Lithium ion battery.
(Figure 2-8) See “Lithium ion Battery” on page 37.
Stereo Speakers
The built-in dual speakers allow for stereo sound.
(Figure 2-8)
Battery Pack Latch
Docking Port
Connector
Memory Upgrade
Compartment
Stereo Speaker
Docking Port Connector
This connector allows you to connect the optional Port
Replicator. (Figure 2-8)
Main Unit and Configuration Label
The configuration label shows the model number and
other information about your LifeBook notebook. In
addition, the configuration portion of the label has the
serial number and manufacturer information that you
will need to give your support representative. It identifies the exact version of various components of your
notebook. (Figure 2-8)
Memory Upgrade Compartment
Your LifeBook notebook comes with high speed
Synchronous Dynamic RAM (SDRAM). The memory
upgrade compartment allows you to expand the system
11
LifeBook B Series – Section Two
Battery
Charging
Power AC Adapter
Battery
Level
Hard Drive
Access
Figure 2-9 Status Indicator Panel
Status Indicator Panel
The Status Indicator displays symbols that correspond
with a specific component of your LifeBook notebook.
These symbols tell you how each of those components
are operating. (Figure 2-9)
1
2
PC Card
Access
NumLk
A1
CapsLk
Security
Indicator
ScrLk
states that can tell you what power source your notebook
is using.
■
On: This means that either of the adapters are
currently in use.
■
Off: Power is only coming from the batteries, and
you do not have an adapter connected.
POWER INDICATOR
The Power indicator symbol states whether your system
is operational. It has several different states, each of
which tells you what mode your notebook is in at that
time.
■
Steady On: This means that there is power to your
notebook and that it is ready for use.
■
Flashing: This means that your notebook is in Standby
mode.
■
Steady Off: This means that your system is either in
Hibernate mode, or that your notebook has been
turned off with the power switch.
If you are charging your battery, the Power indicator
symbol will remain on even if your LifeBook notebook is
shut off. The Power indicator symbol will also remain on
if you have either adapter connected and are shut down
from Windows, but have not turned off the power
switch.
AC ADAPTER INDICATOR
The AC Adapter indicator states whether your notebook
is operating from the AC adapter, the Auto/Airline
adapter or the batteries. This icon has two different
12
BATTERY LEVEL INDICATORS
The Battery Level indicators state whether or not the
primary Lithium ion battery is installed. In addition,
this symbol states how much charge is available within
the installed battery. The symbol will only be displayed
for a battery that is currently installed in your notebook.
(Figure 2-10)
76%–100% Charging
76%–100%
51%–75%
26%–50%
11%–25%
Low Warning <11%
Critical Low or
Dead Battery
Shorted Battery
Figure 2-10 Battery Level Indicator
Getting to Know Your LifeBook
CAUTION
A shorted battery is damaged and must be replaced.
(Figure 2-10)
POINT
If there is no battery activity, the power adapters are not
connected, and the power switch is Off, the Battery
Level indicators will also be off.
BATTERY CHARGING INDICATORS
Located to the left of the Battery Level indicator is a
small arrow symbol. This symbol states whether the
battery is charging. This indicator operates whether the
power switch is in the On or Off position, and will flash
if the battery is too hot or cold to charge.
CAUTION
Batteries subjected to shocks, vibration or extreme
temperatures can be permanently damaged.
HARD DRIVE OR REMOVABLE
MEDIA DRIVE ACCESS INDICATOR
The Hard Drive Access indicator states whether your
internal hard drive is being accessed.
1 2
PC CARD ACCESS INDICATORS
The PC Card Access indicator states whether or not your
notebook is accessing a PC Card. The indicator will flash
if your software tries to access a PC Card even if there is
no card installed. See “PC Cards” on page 41.
NUMLK INDICATOR
The NumLk indicator states that the integral keyboard is
set in ten-key numeric keypad mode.
POINT
If you are using the optional external numerical keypad,
pressing the [NumLk] key will activate the external
keypad. The indicator will come on, however it will not
change any of the functionality of your keyboard keys.
CAPSLOCK INDICATOR
The CapsLock indicator states that your keyboard is set
to type in all capital letters.
SCRLK INDICATOR
The ScrLk indicator states that your scroll lock is active.
SECURITY INDICATOR
The Security Indicator flashes (if a password was set)
when the system resumes from Off or Standby modes.
You must enter the password that was set in the Security
Panel before your system will resume operation.
13
LifeBook B Series – Section Two
Function Keys
x
Fn Key
Start Key
Numeric Keypad
Figure 2-11 Keyboard
Keyboard
USING THE KEYBOARD
Your LifeBook notebook has an integral 83-key
keyboard. The keys perform all the standard functions of
a 101-key keyboard, including the Windows keys and
other special function keys. This section describes the
following keys. (Figure 2-11)
■
Numeric keypad: Your notebook allows certain keys to
serve dual purposes, both as standard characters and
as numeric and mathematical keys. The ability to
toggle between the standard character and numerical
keys is controlled through the [NumLk] key.
■
Cursor keys: Your keyboard contains four arrow
keys for moving the cursor or insertion point to the
right, left, up, or down within windows, applications
and documents.
■
Function keys: The keys labeled [F1] through [F12],
are used in conjunction with the [Fn] key to produce
special actions that vary depending on what program
is running.
■
Windows keys: These keys work with your Windows
operating system and function the same as the
onscreen Start menu button, or the right button on
your pointing device.
NUMERIC KEYPAD
Certain keys on the keyboard perform dual functions as
both standard character keys and numeric keypad keys.
NumLk can be activated by pressing the [NumLk] keys.
Turning off the NumLk feature is done the same way.
Start Key
Application Key
Cursor Keys
Once this feature is activated you can enter numerals 0
through 9, perform addition ( + ), subtraction ( - ),
multiplication ( * ), or division ( / ), and enter decimal
points ( . ) using the keys designated as ten-key function
keys. The keys in the numeric keypad are marked on the
front edge of the key to indicate their secondary functions. (Figure 2-11)
POINT
If you are using the optional external numerical keypad,
pressing the [NumLk] key will activate the external
keypad. The indicator will come on, however it will not
change any of the functionality of your keyboard keys.
WINDOWS KEYS
Your LifeBook notebook has three Windows keys: two
Start keys and an Application key. The two Start keys
display the Start menu. This button functions the same
as your onscreen Start menu button. The Application
key functions the same as your right mouse button and
displays shortcut menus for the selected item. (Please
refer to your Windows documentation for additional
information regarding the Windows keys.) (Figure 2-11)
CURSOR KEYS
The cursor keys are the four arrow keys on the keyboard
which allow you to move the cursor up, down, left and
right in applications. In programs such as Windows
Explorer, it moves the “focus” (selects the next item up,
down, left, or right). (Figure 2-11)
14
FUNCTION KEYS
Your LifeBook notebook has 12 function keys, F1
through F12. The functions assigned to these keys differ
for each application. You should refer to your software
documentation to find out how these keys are used.
(Figure 2-11)
[Fn] Key
The [Fn] key provides extended functions for the
notebook and is always used in conjunction with
another key.
■
[Fn+F3]: Pressing [F3] while holding [Fn] will toggle
the Audio Mute on and off.
■
[Fn+F4]: Pressing [F4] while holding [Fn] will toggle
the Quick Point feature on and off. Note that the
[Fn+F4] combination only works if Manual Setting is
selected in the BIOS. (See “Entering the BIOS Setup
Utility” on page 29)
■
[Fn +F5]: Pressing [F5] while holding [Fn] allows
you to toggle between video compensation and no
compensation. (Video compensation controls spacing
on the display. When it is enabled, displays with less
than 1024 x 768 or 800 x 600 pixel resolution will still
cover the entire screen.)
■
[Fn+F6]: Pressing [F6] repeatedly while holding [Fn]
will lower the brightness of your display.
■
[Fn+F7]: Pressing [F7] repeatedly while holding [Fn]
will increase the brightness of the display.
■
[Fn+F8]: Pressing [F8] repeatedly while holding [Fn]
will decrease the volume of your LifeBook notebook.
■
[Fn+F9]: Pressing [F9] repeatedly while holding [Fn]
will increase the volume of your LifeBook notebook.
■
[Fn+F10]: Pressing [F10] while holding [Fn] allows
you to change your selection of where to send your
display video. Each time you press the combination
of keys you will step to the next choice. The choices,
in order, are: built-in display panel only, both built-in
display panel and external monitor or external monitor only.
Getting to Know Your LifeBook
15
LifeBook B Series – Section Two
Left Button
Right Button
Figure 2-12 Quick Point pointing device
Quick Point Pointing Device
The Quick Point is built into your LifeBook notebook. It
is used to control the movement of the cursor to select
items on your display panel. The Quick Point is
composed of a cursor control at the center of the
keyboard and two buttons on the palm rest of your
notebook. The cursor control works the same way a
mouse ball does, and moves the cursor around the
display. It only requires light pressure with the tip of
your finger, and the more pressure you use, the faster the
cursor will move. The upper button functions the same
as a left mouse button while the lower button has the
same function as a right mouse button. The actual functionality of the buttons may vary depending on the
application that is being used. (Figure 2-12)
POINT
You have the option of using any two of the following
pointing devices at any given time; Quick Point, touch
screen or external PS/2 mouse. See “BIOS Setup
Utility” on page 29.
Clicking
Clicking means pushing and releasing a button. To leftclick, move the cursor to the item you wish to select,
press the top button once, and then immediately release
it. To right-click, move the cursor to the item you wish
to select, press the bottom button once, and then immediately release it. (Figure 2-13)
Cursor Control
Figure 2-13 Clicking
Double-Clicking
Double-clicking means pushing and releasing the top
button twice in rapid succession. This procedure does
not function with the right button. To double-click,
move the cursor to the item you wish to select, press
and release the top button twice. (Figure 2-14)
Figure 2-14 Double-clicking
POINT
■
If the interval between clicks is too long, the
double-click will not be executed.
■
Parameters for the Quick Point can be adjusted from
the Mouse Properties dialog box located in the
Windows Control Panel.
16
Dragging
Dragging means pressing and holding the top button,
while moving the cursor. To drag, move the cursor to
the item you wish to move. Press and hold the top
button while moving the item to its new location
and then release it. (Figure 2-15)
Figure 2-15 Dragging
Quick Point Device Control Adjustment
The Windows Control Panel allows you to customize
your Quick Point with selections made from within the
Mouse Properties dialog box. There are three aspects of
Quick Point operation, which you can adjust:
■
Buttons: This tab lets you set up the buttons for
right or left handed operation, in addition to
setting up the time interval allowed between
clicks in double-clicking.
■
Pointers: This tab lets you set up the scheme for
the cursor depending on its functionality.
■
Motion: This tab lets you set up a relation between
the speed of your finger motion and the speed of the
cursor. It also allows you to enable a Pointer Trail for
the cursor arrow.
Getting to Know Your LifeBook
CAUTION
To avoid potential scratching and damage, never
use anything but the included stylus or your finger
with the Touch Screen.
POINT
To purchase additional or replacement styluses,
visit Fujitsu’s accessories web site at:
http://www.fujitsupc.com.
Clicking
To left-click, touch the object you wish to select and then
lift the stylus tip immediately. You also have the option
to perform the left-click operation by tapping lightly
with your finger on the Touch Screen once. (Figure 2-17)
To right-click, go to Start --> Programs --> Fujitsu
Touch Panel. From that window, you can specify a right
button tool by using the Touch Panel Configuration
Control button prior to the desired right mouse click. It
can be used two ways: by holding down the key or by
pressing the key once.
TOUCH SCREEN
The integrated Touch Screen allows you to use either the
included stylus, or your fingertip, as a pointing device.
You can use the stylus to click, double-click, drag items
and icons, or to draw like a pen or pencil in applications
that support this behavior, such as drawing or painting
programs. See the documentation that came with your
application for details. (Figure 2-16)
Figure 2-16 Using the Stylus with the Touch Screen
Figure 2-17 Clicking the Touch Screen
Double-Clicking
To double-click, touch the item twice, and then immediately remove the stylus tip. You also have the option to
perform the double-click operation by tapping lightly
with your finger on the Touch Screen twice. (Figure 2-
18)
Figure 2-18 Double-clicking the Touch Screen
POINT
If the interval between taps is too long, the
double-click will not be executed.
17
LifeBook B Series – Section Two
POINT
Parameters for the Touch Screen can be adjusted from
the Mouse Properties dialog box located in the
Windows Control Panel.
Dragging
Dragging means touching the screen with the stylus,
moving and then lifting the stylus. To drag, tap the
Touch Screen twice with your stylus over the item you
wish to move, making sure to leave your finger on the
screen after the final tap. Next, move the item to its new
location by moving the stylus across the screen, and then
lifting the stylus to release it. Dragging can also be done
using your fingertip. (Figure 2-19)
Figure 2-19 Dragging on the Touch Screen
Right-clicking
It is possible for you to perform right-click functions
with the stylus.
2. Adjust the display of your notebook to a comfortable
angle and find the red (+) symbol in the upper-left
corner of the display.
3. Using the stylus, firmly touch the screen directly on
the (+) symbol, then pause for a moment. When you
lift the stylus tip, the (+) symbol will move to the
next location.
4. Repeat step 3 until you have selected a total of twelve
symbols. This is the minimum number of points
necessary to calibrate your touch screen.
5. Once you have selected the twelve symbols, press
[ENTER], then press [ENTER] again.
POINT
If you receive an error message at this point, you
selected fewer than twelve symbols. Click [OK] and
begin again at Step 2.
1. Click Start -> Programs -> Fujitsu Touch Panel
-> Touch Panel Configuration.
2. When the Right Button Tool screen appears, select
either "Hold [Ctl] key down and touch the screen"
or "Press [Ctl] key and touch the screen".
When you select "Hold [Ctl]...", the stylus will act as
a right mouse button when you hold down the
control key while touching the screen.
When you select "Press [Ctl]...", pressing the control
key before touching the screen will cause the stylus
to act as a right mouse button.
3. Click [Apply] to complete your selection.
Calibrating the Touch Screen
In order to ensure accurate tracking between the stylus
and cursor, you must run the Touch Screen Calibration
Utility before you use the Touch Screen for the first time,
or after you change the display resolution.
To run the calibration utility:
1. On the Start menu, point to Programs. Point to
Fujitsu Touch Panel/CTouch Screen Calibration
Utility. This will open the Calibration Utility.
18
Volume Control
Your Fujitsu LifeBook notebook has multiple volume
controls which interact with each other.
POINT
Any software that contains audio files will also contain
a volume control of its own. If you install an external
audio device that has an independent volume control,
the hardware volume control and the software volume
control will interact with each other. It should be noted
that if you set your software volume to Off, you will
override the external volume control setting.
CONTROLLING THE VOLUME
The volume can be controlled in several different ways:
■
Volume can be set from within the Volume Control on
the Taskbar.
■
Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding [Fn]
will decrease the volume of your notebook. Pressing
[F9] repeatedly while holding [Fn] will increase the
volume of your notebook.
Getting to Know Your LifeBook
POINT
There are seventeen levels through which the function
keys cycle.
■
Volume can be controlled by many volume controls
that are set within individual applications.
■
Certain external audio devices you might connect to
your system may have hardware volume controls.
Each source discussed above puts an upper limit on the
volume level that must then be followed by the other
sources.
We recommend that you experiment with the various
volume controls to discover the optimal sound level.
19
LifeBook B Series – Section Two
Figure 2-20 LifeBook Security/Application Panel
(1) Application A Button
(2) Application B Button
(3) Internet Button
(4) E-Mail Button
Enter Button
LifeBook Security/ Application Panel
A unique feature of your LifeBook notebook is the Security/Application Panel that allows you to secure your
notebook from unauthorized use. The Security/Application Panel also allows you to launch applications with the
touch of a button when your system is on.
If the security system is activated, upon starting your
notebook or resuming from Standby mode the security
system requires you to enter a password code using the
buttons on the Security/Application Panel. After entering
a correct password, your notebook resumes system
operation. (Figure 2-20)
SETTING UP YOUR LIFEBOOK SECURITY
PANEL
When you receive your LifeBook notebook, the security
panel application is pre-installed without any passwords.
The following sections provide detailed information on
your security panel, how to set, change or remove passwords.
Numbered Buttons
Use these buttons to enter your password.(Figure 2-20)
Enter Button
After entering the button strokes, push this button to
enter the password into the LifeBook notebook.
(Figure 2-20)
PASSWORDS
The user and supervisor password may be set on this
notebook. A supervisor password is typically the same
for all LifeBook notebooks in a working group, office, or
company to allow for system management. Individual
LifeBook notebooks in a group environment should not
use a common password. A password consists of one to
five button strokes plus the enter button. A valid stroke
consists of pushing one or up to four buttons simultaneously. The following are valid button strokes:
■
Pushing [4] by itself
■
Pushing [2] and [3] at the same time
■
Pushing [1], [2], and [4] at the same time
■
Pushing [1], [2], [3], and [4] at the same time
The following are valid passwords. The numbers
within braces ({ }) are button strokes using more
than one button.
■
{[2]+[3]}, [1], [enter]
■
[4], [enter]
■
{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [enter]
Setting Passwords
When shipped from the factory, no passwords are set.
You have a choice of having no password or setting a
supervisor and user password. You must set the supervisor password before the user password.
POINT
■
The purpose of supervisor password is to be able to
bypass the user password in case the user password
is forgotten. The supervisor password alone will not
lock the system.
■
You have to set both the supervisor and user passwords for the security panel to work.
Setting Supervisor Password
You must have set a supervisor password before setting
any user passwords. The supervisor password can bypass
the user password.
1. Go to the Start menu.
2. Click on Run.
3. Type in:
C:\Program Files\Fujitsu\
Security Panel Application\
Supervisor\FJSECS.EXE,
then press [Enter]
20
4. Follow the on-screen instructions to set the
Supervisor password.
Setting User Password
1 Go to the Start menu.
2. Click on Programs.
3. Click on Security Panel Application and
Set User Password.
4. Follow the on-screen instructions to set the
user password.
POINT
You may change or remove the supervisor or user
password by repeating the steps defined above.
Getting to Know Your LifeBook
POINT
Remember the user password you specified on the
Security Panel Application. If you forget the password
you will not be able to use your computer. The supervisor password can override the user password.
PRECAUTIONS
Opening and Closing the Cover
Closing the cover automatically places the notebook
into Standby mode. Opening the cover does not automatically place the notebook into normal operation.
Instead, you must enter the proper security password
after pushing the Suspend/Resume button.
OPERATING YOUR LIFEBOOK SECURITY/
APPLICATION PANEL
The security lock feature is in effect both when the system
resumes from Off or Standby state. You always need to
push the Suspend /Resume button to input the user password. Your system will not begin the boot sequence
without entering your supervisor/user password.
From Off State
1. Turn on your system.
2. When the Security Indicator flashes, enter the password and press Enter button.
For example, if the password is 22222,
Press Button Number 2 five times and press Enter
button.
The LifeBook notebook will boot to normal operation.
From Standby State
1. Press your Suspend/Resume button.
2. When the Security Indicator flashes, enter the password and press Enter button.
The notebook should resume normal operation.
Incorrect Password Entry
If an invalid supervisor or user password is entered three
times in succession, the system will “beep” for about one
minute. If a valid password is entered within a minute
(while system beeps), the beeping will stop and the notebook will resume normal operation. If no or an invalid
password is entered while the system beeps, the system
will return to its previous locked state (standby or off)
and the Security Indicator will go off. To reactivate the
notebook after a password failure, you must press the
Suspend/Resume button, then enter a correct password.
Low Battery Operations
If your LifeBook notebook has low battery, pushing the
suspend/resume button only turns on the Security Indicator. Your notebook does not unlock, the Security Indicator turns off after one minute. To resume normal
operation, first attach a power supply to the notebook.
Then you may unlock the notebook.
UNINSTALLING THE SECURITY
PANEL APPLICATION
You have two options when uninstalling the security
panel application:
■
Uninstall the security panel application software.
This will disable all security feature.
■
Uninstall the security panel application with password
still active. This will not allow any changes to the
password.
Uninstalling the Security Panel
Application Software
Remove passwords when User wants no password
protection whatsoever and doesn’t want to give anybody
the utility to set a password on their computer. In this
case, if passwords (supervisor, user, or both) are set, the
passwords must first be cleared BEFORE removing the
application. To clear passwords, follow same procedure
in SETTING PASSWORD CODES except this time,
select REMOVE, enter current password then click Next.
When asked to confirm select Yes .
Removing Security Panel Application with
Passwords Still Active
Using this feature will not allow any changes to
the password.
21
LifeBook B Series – Section Two
POINT
Removing the applications does not remove the
password. It simply removes the utility to change/add/
remove passwords. To change your password you must
reinstall the application.
User:
1. Go to Start Menu, Click on Control Panel.
2. Open Add/Remove Programs Properties in the
Control Panel.
3. Select the Security Panel Application in the list, and
click Add/Remove.
4. When the Confirm File Deletion box appears,
click Ye s .
Supervisor:
1. Go to Start Menu, Click on Control Panel.
2. Open Add/Remove Programs Properties in the
Control Panel.
3. Select the Security Panel Application for
Supervisor in the list, and click Add/Remove.
4. When the Confirm File Deletion box appears,
click Ye s .
Reinstalling the Security/Application Panel
To reinstall supervisor or user security application, you
will need your Drivers and Applications CD. The
Utilities\Security Application Panel folder contains two
separate folders: Supervisor and User. The setup files for
supervisor and user security applications are contained
in those folders.
1. Go to the Utilities\Security Application
Panel\Su pervi sor folder on the CD and double-click
the setups.exe file. The Installing Security Panel
Application window will appear. Follow the instructions on the screen.
2. Go to the Utilities\Security Application Panel\User
folder on the CD and double-click the setup.exe file.
The Installing Security Panel Application window
will appear. Follow the instructions on the screen.
and provide proof of ownership. You will then be given
instructions on where to ship your notebook.
LAUNCHING APPLICATIONS WITH
THE SECURITY/APPLICATION PANEL
The security panel also enables you to launch applications
with the touch of a button when your system is on.
Pressing any of the buttons will launch a user-defined
application. Your notebook is pre-installed with software
utilities that let you operate and configure your LifeBook
Security /Application Panel. These utilities are found
under the Start menu, under Programs, then under LifeBook Application Panel. They include Application Panel
Setup, Application Panel Guide, Activate Panel and Deactivate Panel.
Configuring your LifeBook Application Panel
When you start Windows, the LifeBook Application
Panel is automatically activated. An icon resembling a
finger pressing a button will appear on the system tray
(the indented portion of the status bar where the clock is
displayed). When you see this icon you will know that
LifeBook Application Panel is active.
As an application launcher, the LifeBook Application
Panel is very flexible, giving you a variety of options. To
set up the Panel to best suit your needs, we have
provided the Application Panel Setup utility that quickly
and easily helps you make the most of this valuable
feature.
To configure your LifeBook Application Panel with
Application Panel Setup:
1. Click on Start.
2. Click on Programs.
3. Click on LifeBook Application Panel.
4. Click on Application Panel Setup.
The Application Panel Setup utility will appear. There
are tabs that correspond to the application buttons on
the LifeBook Application Panel. When you receive your
notebook, these buttons are pre-configured to launch
specific programs, as referenced in Chapter 7 of this
document.
Supervisor and user passwords can be set via Windows
software using the FJSECS.exe and FJSECU.exe files,
respectively. FJSECU.exe for the user password cannot
run without first setting a supervisor password. You
need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on
page 20.
If you forget both passwords, please contact Fujitsu PC
Corporation Service and Support at 1-800-8FUJITSU
(1-800-838-5487). Fujitsu PC Corporation charges a
service fee for unlocking a password restricted LifeBook
notebook. When calling please have a valid credit card
22
POINT
The tabs in Application Panel Setup may not be in the
same order as the buttons on your LifeBook notebook,
please select the tab you wish to change carefully.
To change an application associated with the Application buttons, click on the tab for the button you would
like to reconfigure – for example, Application A. Click
on Browse from Start Menu, scroll down the list of
applications, click on the application you wish to launch
with this button, and then click OK. The button will
now launch the new application.
Getting to Know Your LifeBook
The Internet tab is different. It comes set to launch your
Windows default Internet browser (Internet Explorer),
unless you have changed this in Windows. In order to
reconfigure it to launch another program follow these
easy steps:
1. Click on Other from the Internet browser box.
2. Click on Browse from Start Menu.
3. Scroll down the list of applications, and then click
on the application you wish to launch with this
button.
4. Click OK.
The button will now launch the new application. If you
want to return to launching your Windows default
Internet browser with this button, you need only click
on “Default Internet Browser” from the Internet
browser box. Be aware that you will erase the settings for
the “other application”. If you wish to go back to
launching the “other application” from this button, you
will need to reconfigure it as described above.
POINT
If your system has dedicated one of the application
launcher buttons to be an Internet launcher, the button
can still be configured to launch any application you
wish, not just an Internet browser.
Deactivating and Activating the LifeBook
Application Panel
To deactivate the LifeBook Application Panel, follow
these easy steps:
1. Click on Start.
2. Click on Programs.
3. Click on LifeBook Application Panel.
4. Click on Deactivate Panel.
To reactivate, follow the same procedure, except for
step 4. Click on Activate Panel instead.
POINT
Every time you start Windows the LifeBook Application
Panel is activated, even if you deactivated it before you
shut down.
When you have finished with Application Panel Setup
click OK, and the new settings will take effect. You can
reconfigure your LifeBook Application Panel as often as
you like.
23
LifeBook B Series – Section Two
24
