Fujitsu Halcyon AOU9RLS2, ASU9RLS2 Specification

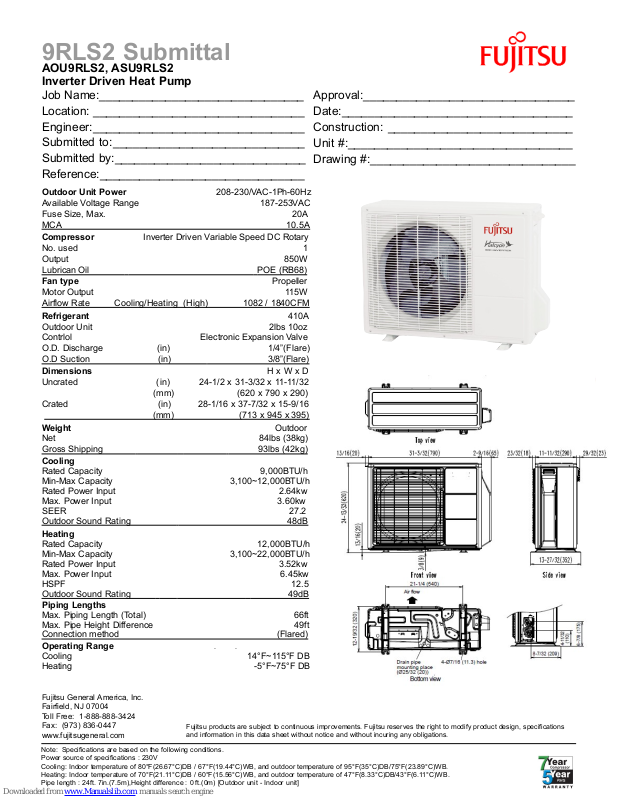

9RLS2 Submittal
AOU9RLS2, ASU9RLS2
Inverter Driven Heat Pump
Job Name:_______________________________
Location: ________________________________
Engineer:________________________________
Submitted to: _____________________________
Submitted by:_____________________________
Reference:_______________________________
Outdoor Unit Power 208-230/VAC-1Ph-60Hz
Available Voltage Range 187-253VAC
Fuse Size, Max. 20A
MCA 10.5A
Compressor Inverter Driven Variable Speed DC Rotary
No. used 1
Output 850W
Lubrican Oil
Fan type Propeller
Motor Output 115W
Airflow Rate Cooling/Heating (High) 1082 / 1840CFM
Refrigerant 410A
Outdoor Unit 2lbs 10oz
Contrlol Electronic Expansion Valve
O.D. Discharge (in) 1/4”(Flare)
O.D Suction (in)
Dimensions H x W x D
Uncrated (in) 24-1/2 x 31-3/32 x 11-11/32
(mm) (620 x 790 x 290)
Crated (in) 28-1/16 x 37-7/32 x 15-9/16
(mm) (713 x 945 x 395)
Weight Outdoor
Net 84lbs (38kg)
Gross Shipping
Cooling
Rated Capacity 9,000BTU/h
Min-Max Capacity 3,100~12,000BTU/h
Rated Power Input 2.64kw
Max. Power Input 3.60kw
SEER 27.2
Outdoor Sound Rating
Heating
Rated Capacity 12,000BTU/h
Min-Max Capacity 3,100~22,000BTU/h
Rated Power Input 3.52kw
Max. Power Input 6.45kw
HSPF 12.5
Outdoor Sound Rating
Piping Lengths
Max. Piping Length (Total) 66ft
Max. Pipe Height Difference 49ft
Connection method (Flared)
Operating Range . .
Cooling 14°F~115°F DB
Heating -5°F~75°F DB
3/8”(Flare)
48dB
POE (RB68)
93lbs (42kg)
49dB
Approval:________________________________
Date:___________________________________
Construction: ____________________________
Unit #:__________________________________
Drawing #:_______________________________
Fujitsu General America, Inc.
Fairfield, NJ 07004
Toll Free: 1-888-888-3424
Fax: (973) 836-0447
www.fujitsugeneral.com
Note: Specifications are based on the following conditions.
Power source of specifications : 230V
Cooling: Indoor temperature of 80°F(26.67°C)DB / 67°F(19.44°C)WB, and outdoor temperature of 95°F(35°C)DB/75°F(23.89°C)WB.
Heating: Indoor temperature of 70°F(21.11°C)DB / 60°F(15.56°C)WB, and outdoor temperature of 47°F(8.33°C)DB/43°F(6.11°C)WB.
Pipe length : 24ft. 7in.(7.5m),Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit]
Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications
and information in this data sheet without notice and without incuring any obligations.
Indoor Unit Power 208-230/VAC-1Ph-60Hz
Available Voltage Range
187-253VAC
Fan type Cross flow
Motor Output 29W
MCA 0.4A
Sound Pressure Level
Cooling Lo-Hi 21-43dB
Heating Lo-Hi 21-43dB
Airflow rate
Cooling Lo-Hi 194-500dB
Heating Lo-Hi 194-500dB
Dimensions H x W x D
Uncrated (in) 11-3/32 x 34-1/4 x 7-9/32
(mm) (282 x 870 x 185)
Crated (in) 9-23/32 x 36-7/32 x 14-11/16
(mm) (247 x 920 x 373)
Weight Indoor
Net 21lbs (9.5kg)
Gross Shipping
27lbs (12kg)
Fujitsu General America, Inc.
Fairfield, NJ 07004
Toll Free: 1-888-888-3424
Fax: (973) 836-0447
www.fujitsugeneral.com
Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications
and information in this data sheet without notice and without incuring any obligations.
