Fujitsu-Siemens D3120 Easy Install Guide

Page 1
Short Description
Mainboard

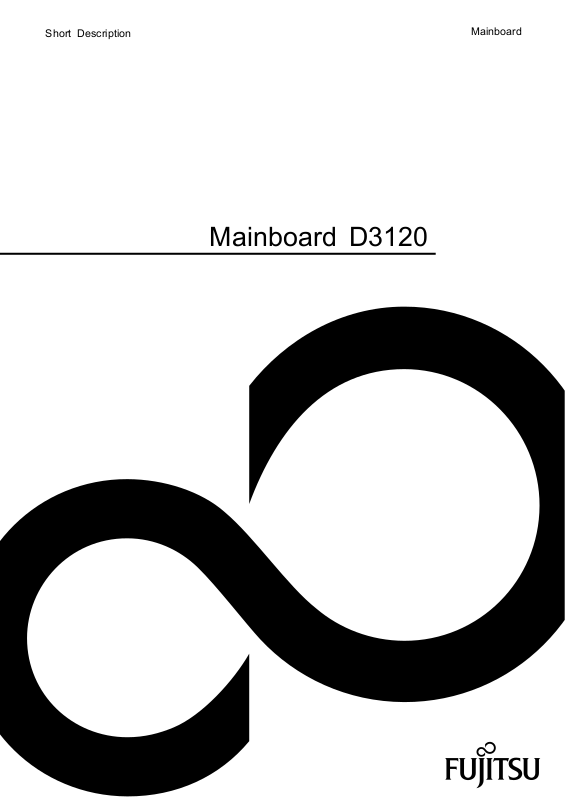

Mainboard D3120

Page 2
Congratulations on buying product from Fujitsu.
an innovative
The latest information about our products, tips, updates etc. can be found on the Internet at: "
For driver updates, go to: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact:
• our Hotline/Service Desk (see the Service Desk list or visit:
"
http://support.ts.fujitsu.com/contact/servicedesk")
• Your sales partner
• Your sales office
We hope you enjoy working with your new Fujitsu system!
Page 3
Page 4
Published by / Contact address in EU
chnology Solutions GmbH
Fujitsu Te
Mies-van-der-Rohe-Straße 8
80807 Munich, Germany
www.fujitsu.com/fts/"
http://
"
Copyright
u Technology Solutions GmbH 2012. All rights reserved.
©Fujits
Publication Date
12/2012
Order No.: A26361-D3120-Z320-1-7419, edition 1
Page 5
D3120

Internal connectors and slots

External connectors rear
USB dual channel
1 2
PS2
VGA
DVI-D
USB
LAN,
Audio
DVI-D
USB
LAN
Temp. Sensor
FAN1
Audio Frontpanel
Power Supply
PCIe16
PCIe1
PCIe1
1 = 5V USB 2 = 5V USB 3 = Data negative Port X 4 = Data negative Port Y 5 =
Data positive Port X
CPU
LGA1155
Temp. Sensor
USB
USB
5+6
8+9
external (front)
internal
6 = Data positive Port Y 7 =
GND 8 = GND 9 = Key
10 = Not connected
Frontpanel
SATA Power
Channel A, Slot 1
Channel B, Slot 2
Battery
Desc Override Enable
PCH
SATA 0+1
SATA
FAN2
4
Front panel
Reset
Recovery
Power On/Off
Power LED
Recovery inserted = The system starts from USB stick and allows a BIOS recovery. Details can be found in the BIOS manual.
HD-LED
1 2
Fujitsu
A26361-D3120-Z320-1-7419
Page 6
Internal connectors and slots
List of onboard Features D3120
Chipset Intel® H61 Board size ultra small μATX DVI-D / VGA / DisplayPort / /­Stereo Audio / 5.1 Multichannel Audio - / LAN 1 Gbit / 100 Mbit/ 10 Mbit / / LAN ASF / Aol / WoL / Remote Boot / iAMT - / - / / /­SATA / ATA / RAID / eSATA-support /-/-/­FireWireTM / USB 2.0 - / FAN monitored PSU* / CPU / AUX1 - / - / ­FAN controlled PSU* / CPU / AUX1 - / / TEMP monitored CPU /
ONB / OFFB
/ /-
Special onboard fea
tures D3120
Silent Fan / Silent Fan LT / System Guard / Silent Drives - / / / Recovery BIOS / Desk Update / Multi Boot / / HDD Password / HDD
Encryption / EraseDisk
/-/ Logo Boot Option / Intel On Screen Branding / High E fficient Core regulator design (85 % @ 65 W) Operating Mod
e 24-7 / 8-5 (hours per day - days per week)
-
-/
* not supported by standard P owe r Supplies
Special Features
Green Editi
on
Halogen-fr
ee and lead-reduced product Silent Fan LT Independent temperature related processor fan and system fan control System Guard View Silent Fan LT Silent D
rives
Noise re
duction for optical and hard disk drives Recovery BIOS Restores a corrupted BIOS Desk Up Multi B oot HDD Passw ort
date
Simple driver update with DU CD
rtable boot from any boot device
Comfo Access protection for disk drives
Fujitsu
Page 7
Mainboard D3120
First-time setup
Deutsch 5 English 13
Page 8
Page 9
Inhalt Deutsch - 1

DeutschInhalt

Kurzbeschreibung desMainboards .................................................... 3
Anschlüsse und Steckverbinder . ....................................................... 4
Prozessorein-/ausbauen ............................................................... 5
TechnischeDaten ....................................................................... 5
Hauptspeicher ein-/ausbauen .......................................................... 6
BIOSUpdate ........................................................................... 7
BIOS-Update unter Windows mit dem Programm DeskFlash . . ............................. 7
BIOS-Update mit einem USB-Stick ....................................................... 7
Fujitsu 5
Page 10
Bemerkung
Hinweise zur Produktbeschreibung entsprechen den Designvorgaben von Fujitsu und werden zu Vergleichszwecken zur Verfügung gestellt. Die tatsächlichen Ergebnisse können aufgrund mehrerer Faktoren abweichen. Änderung en an technischen Daten ohne Ankündigung vorbehalten. Fujitsu weist jegliche Verantwortung bezüglich technischer oder r edaktioneller Fehler bzw. Auslassungen von sich.
Warenzeichen
Fujitsu und das Fujitsu-Logo sind eingetragene Warenzeichen von Fujitsu Limited oder seiner Tochtergesellschaften in den Vereinigten Staaten und anderen Lä ndern.
Microsoft und Windows sind Warenzeichen bzw. eingetragene Warenzeichen der Microsoft Corporation in den Vereinigten Staaten und/oder anderen Ländern.
Intel, Pentium und Celeron sind eingetragene Warenzeichen der Intel Corporation, USA. PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines, Inc. Alle anderen hier genannten Warenzeichen sind Eigentum ihrer jeweiligen Besitzer.
Copyright
Ohne vorherige schriftliche Genehmigung von Fujitsu darf kein Teil dieser Veröffentlichung kopiert, reproduziert oder übersetzt werden.
Ohne schriftliche Genehmigung von Fujitsu darf kein Teil dieser Veröffentlichung auf irgendeine elektronische Art und Weise gespeichert oder übertragen werden.
Page 11

Kurzbeschreibung des Mainboards De

utsch - 3
Kurzbeschreibung des Mainboa
Hinweise zu den Baugruppen
Beachten Sie bei Baugruppen mit EGB unbedingt Folgendes:
• Sie müssen sich statisch entladen (z. B. durch Berühren eines geerdeten Gegenstands), bevor Sie mit Baugruppen arbeiten.
• Verwendete Geräte und Werkzeuge müssen frei von statischer Aufladung sein.
• Ziehen Sie den N etzstecker, b evor Sie Baugruppen stecken oder ziehen.
• Fassen Sie die Baugrupp en nur am Rand an.
• Berühren Sie keine An schluss-St ifte oder Leiterbahnen auf der Baugruppe.
Eine Übersicht der Leistungsmerkmale finden Sie im Datenblatt.

Besondere Merkmale

Ihr Mainboard ist in verschiedenen Ausbaustufen erhältlich. Ab hängig von der Konfiguration Ihres Mainboards besitzt oder unterstützt das Ma inboard bestimmte Merkmale.
In diesem Handbuch finden Sie die wichtigsten Eigenschaften dieses M ainboards beschrieben. Weitere Info rmationen zu Mainboards finden Sie im Handbuch "Basisinformationen Mainboard"
auf der CD "User Documentation" oder "OEM Mainboard" bzw. im Internet.
rds
Fujitsu 7
Page 12
4 - Deutsch Anschlüsse und Steckverb
inder
Anschlüsse und Steckverbinde
Die Position der Anschlüsse und Steckverbinder Ihres Mainboards finden Sie am Anfang des Handbuches.
Die markierten Komponenten und Steckverbinder müssen nicht auf dem Mainboard vorhanden sein.

Externe Anschlüsse

Die Position der externen Anschlüsse Ihres Mainboards finden Sie am Anfang des Handbuches.
PS/2-Tastaturanschluss, violett PS/2-Mausanschluss, g rün
LAN-Anschluss (RJ-45) Mikrofonanschluss, rosa
Audioeingang (Line in), hellblau USB – Universal Serial Bus, schwarz
Audioausgang (Line out), hellgrün
Serielle Schnittstelle, türkis
Die externen USB-Anschlüsse dürfen laut USB 2.0 Spezifikation maximal mit 500 mA pro USB-Anschluss belastet werden.
Durch den Einsatz einer neuen Chipsatz -Technology kann sich ein verändertes Verhalten beim Anschluss älterer USB-Geräte (Fullspeed, USB 1.1) ergeben. Das betrifft zum Beispiel ältere Digitalkameras, von denen immer nur eine (nicht zwei oder mehr gleichzeitig) betrieben werden kann. Neuere Geräte der Spezifikation USB 2.0 sind davon nicht betroffen.
DVI – D
r
8 Fujitsu
Page 13
Prozessor ein-/ausba uen Deutsch - 5

Prozessor ein-/ausbauen

Für alle hier beschriebenen Arbeiten muss Ihr System vollständig von der Netzspannung getrennt sein! Nähere Angaben dazu finden Sie in der Betriebsanleitung Ihres Systems.

Technische Daten

• Sockel LGA 1155, max. 95W
• Eine aktuelle Liste der von diesem M ainboard unterstützten Prozessoren fi nden Sie im Internet unter: "
Fassen Sie auf keinen Fall die Unterseite des Prozessors an. Schon leichte Verunreinigungen wie Fett von der Haut können die Funktion des Prozessors beeinträchtigen oder den Prozessor zerstören. Setzen Sie den Prozessor mit großer Sorgfalt in den Steckplatz, da die Federkontakte des Steckplatzes sehr empfindlich sind und nicht verbogen werden dürfen.
Sind ein oder mehrere Federkontakte verbogen, setzen Sie auf keinen Fall den Prozessor ein, da dieser dadurch beschädigt werden könnte. Wenden Sie sich bitte direkt an Ihren zuständigen Händler
http://www.fujitsu.com/fts/products".
Fujitsu 9
Page 14
6 - Deutsch Hauptspeicher ein-/ausb

Hauptspeicher ein-/ausbauen

Technische Daten

Technologie
Gesamtgröße 1 bis 16 GByte DDR3 Modulgröße 1, 2, 4 oder 8 GByte pro Modul
Es muss mindestens ein Speichermodul eingebaut sein. Speichermodule mit unterschiedlicher Speicherkapazität können komb iniert werden.
Es dürfen nur ungepufferte DDR3-Spe icherm odule ohne ECC verwendet werden. DDR3-Speichermodule müssen der PC3-10600- oder PC3-12800-Spezifikation
entsprechen.
Die maximale Systemperformance ist gegeben, wenn in Channel A und Channel B identische Speichermodule verwendet werden.
Abhängig von der Systemkonfigu ration kann sich der sichtbare Hauptspeicher reduzieren.
DDR3 1333 / 1600 MHz ungepufferte DIM M Module 240-Pin; 1,5 V; 64 Bit ohne ECC
auen
Channel A, Slot 1 Channel B, Slot 2
Zu verwendender Steckplatz 1 2
Channel A, Slot 1 Channel B, Slot 2
Der Ein-/Ausbau ist im Handbuch "Basisinformationen Mainboard" beschrieben.
Anzahl der gesteckten Speichermodule
xx
x
10 Fujitsu
Page 15
BIOS Update Deutsch - 7

BIOS Update

Wann sollte ein BIOS-Update durchgeführt werden?

Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden.
Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.

Wo gibt es BIOS-Updates?

Im Internet unter " finden Sie die BIOS-Updates.
http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards/"
BIOS-Update unte
r Windows mit dem
Programm DeskFlash
Ein B IOS-Update Das Programm Des
oder ► Laden Sie die U
von unserer I
► Führen Sie die Update-Datei aus. ► Folgen Sie d
kann unter Windows auch mit dem Programm DeskFlash durchgeführt w erden.
kFlash finden Sie auf dem Datenträger "D rivers & Utilities" (unter Flash BIOS).
pdate-Datei für "Flash BIOS Update – Desk Flash Instant"
nternet-Seite auf Ihren PC.
en Bildschirmanweisungen.

BIOS-Update mit einem USB-Stick

► Halten Sie einen bootfähigen USB-Stick bereit. ► Laden Sie
USB-Sti
► Entpacken Sie die ZIP-Datei und kopieren Sie die Dateien auf Ihren bootfähigen USB-Stick. ► Starte ► Wählen Sie den USB-Stick als Boot Device. ► Booten ► Folgen Sie den Bildschirmanweisungen.
die "Admin package - Compressed Flash Files" für bootfähige
cks v on unserer Internet-Seite auf Ihren PC.
n Sie den PC neu.
Sie von dem USB-Stick und starten sie DosFlash.BAT.
Fujitsu 11
Page 16
8 - Deutsch BIOS Update
12 Fujitsu
Page 17
Contents English - 1

EnglishContents

Brief description of mainbo ard . ........................................................ 3
Interfaces and connectors . . ........................................................... 4
Installing/removing the processor . .. ................................................... 5
Technicaldata .......................................................................... 5
Installing/removing m ain memory . ..................................................... 6
BIOSUpdate ........................................................................... 7
BIOS update under Windows with DeskF lash program . .................................... 7
BIOSupdateusing aUSBstick .......................................................... 7
Fujitsu 13
Page 18
Remarks
Product description information corresponds to the design requirements of Fujitsu and is provided for the purposes of comparison. The actual results may differ due to several factors. Subject to changes to technical dat a without prior notification. Fujitsu accepts no responsibility with regard to technical or editorial mistake s or omissions.
Trademarks
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited or its subsidiaries in the United States of America and other countries.
Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation in the United States of America and/or other countries.
Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA. PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc. All other trademarks specified here are the property of their respective owners.
Copyright
No part of this publication may be copied, reproduced or translated without the prior, written consent of Fujitsu.
No part of this publication may be saved or transmitted by any electronic means without the written consent of Fujitsu.
Page 19

Brief description of mainbo ard Engl

ish - 3
Brief description of mainboar
Information about boards
Be sure to observe the following for boards with ESD:
• You must always discharge static build up (e.g. by touching a grounded object) before working with the board.
• The equipment and tools you use must be free of static charge.
• Remove the power plug from the mains supply before inserting or removing boards.
• Always hold boards by their edges.
• Never touch connector pins or conductors on the board.
An ove rview of the features is provided in the data sheet.

Special features

Your mainboard is available in different con figuration levels. Depending on the configuration, your mainboard will be equipped w ith or provide support for certain features.
This manual describes the most important properties of this mainboard. Additional information on mainboards is provided in the manual "Basic information on mainboard"
on the "User Documentation" or "OEM Mainboard" CD, or on the Internet.
d
Fujitsu 15
Page 20
4 - English Interfaces and connector

Interfaces and connectors

The location of the interfaces and connectors of your mainboard is specified at the beginning of the manual.
The components a n d connectors marked are not necessarily present on the mainboard. External ports
The location of the external connections of your mainboard is specified at the beginning of the manual.
PS/2 keyboard port, purple PS/2 m ouse port, green
LAN port (RJ-45) Microphone jack (mono), pink
Audio input (Line in), light blue USB – Universal Serial Bus, black
Audio output (Line out), light green
Serial interface, turquoise
According to the USB 2.0 specifications, no more than 500 mA must be connected to the external USB ports.
The use of a new chip set technology can mean that the procedure is different when connecting older USB devices (Fullspeed, USB 1.1). This relates, for example, to older digital cameras of which only one (not two or more at the same time) can be operated at any one time. Newer devices with specification USB 2.0 are not affected by this.
DVI – D
s
16 Fujitsu
Page 21

Installing/removing the processor

English - 5
Installing/removing the proc
Disconnect the system from the m ains voltage before performing any of the tasks described below. Details are contained in the operating manual of your system.
essor

Technical data

• Socket LGA 1155, max. 95
• A current list of the processors supported by this mainboard is available on the Internet at: "
http://www.fujitsu.com/fts/products".
Never touch the underside of the processor. Even minor soiling su ch as grease from the skin can impair the processor’s operation or destroy the processor. Place the processor in the socket with extreme care, as the spring contacts of the socket are very delicate and must not be bent.
If one or more spring contacts are bent, on no account insert the processor as it may be damaged by doing so. Please contact the responsible vendor.
W
Fujitsu 17
Page 22
6 - English Installing/removing mai
nmemory
Installing/removing main mem

Technical data

Technology
Tota l s iz e Module size
At least one memory module must be installed. Memory modules with different memory capacities can be combined.
You may use only unbuffered DDR3 memory modules without ECC. DDR3 memory modules must comply with the PC3-10600 or PC3-12800 specification.
Maximum system performance is achieved when identical memory modules are used in Channel A a nd Channel B.
Depending on how the system is configured, the visible main memory can be reduced.
Channel A, Slot 1 Channel B, Slot 2
Slot to be used 1 2
Channel A, slot 1 Channel B, sl
The installation/removal is described in the "Basic information on mainboard" ma nual.
ot 2
DDR3 1333 / 1600 MHz unbuffered DIMM modules 240 pin; 1.5 V; 64 bit, no ECC
1to16GbyteDDR3 1, 2, 4 or 8 GByte for one module
Number of memor
xx
ory
y modules inserted
x
18 Fujitsu
Page 23
BIOS Update English - 7

BIOS Update

When should a BIOS update be performed?

Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated.
A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software.

Where can I obtain BIOS updates?

You can find the BIOS updates on the Internet at
"
http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards/".
BIOS update under W
A BIOS update can also be carried out under Windows with the DeskFlash program. The DeskFlash program is located on the "Drivers & Utilities" data carrier (under Flash BIOS).
or
► Download the "Flash BIOS Update – Desk Flash Instant" update file from our website to your PC. ► Run the update file. ► Follow the on-screen instructions.
indows with DeskFlash program

BIOS update using a USB stick

► Make sure you have a bootable USB stick available. ► Download the "Admin package – Compre ssed Flash Files" for bootable USB
sticks from our website to your PC.
► Unzip the ZIP file and copy the files onto your bootable USB stick. ► Reboot the PC. ► Select the USB stick as the boot device. ► Boot from the USB stick and start DosFlash.BAT. ► Follow the on-screen instructions.
Fujitsu 19
Loading...
