Fujitsu D2952 Technical Manual

Technical Manual - English

System Board D2952
for BX924 S2

Technical Manual

Edition May 2011

Comments… Suggestions… Corrections…

The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.

Feel free to send us your comments by e-mail to

email: [e-mail].

Certified documentation
according to DIN EN ISO 9001:2008

To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2008.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Copyright and Trademarks

Copyright © 2011 Fujitsu Technology Solutions GmbH.

All rights reserved.
Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

– The contents of this manual may be revised without prior notice.

– Fujitsu assumes no liability for damages to third party copyrights or other rights arising from

the use of any information in this manual.

– No part of this manual may be reproduced in any without the prior written permission of

Fujitsu.

Microsoft, Windows, Windows Server, and Hyper V are trademarks or registered trademarks of
Microsoft Corporation in the USA and other countries.

Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the USA and other countries.

D2952 (BX924 S2) Technical Manual

Before reading this manual

For your safety

This manual contains important information for safely and correctly using this
product.

Carefully read the manual before using this product. Pay particular attention to
the accompanying manual "Safety Notes and Regulations" and ensure these
safety notes are understood before using the product. Keep this manual and the
manual "Safety Notes and Regulations" in a safe place for easy reference while
using this product.

Radio interference

This product is a "Class A" ITE (Information Technology Equipment). In a
domestic environment this product may cause radio interference, in which case
the user may be required to take appropriate measures. VCCI-A

Aluminum electrolytic capacitors

The aluminum electrolytic capacitors used in the product's printed circuit board
assemblies and in the mouse and keyboard are limited-life components. Use of
these components beyond their operating life may result in electrolyte leakage
or depletion, potentially causing emission of foul odor or smoke.

As a guideline, in a normal office environment (25°C) operating life is not
expected to be reached within the maintenance support period (5 years).
However, operating life may be reached more quickly if, for example, the product
is used in a hot environment. The customer shall bear the cost of replacing
replaceable components which have exceeded their operating life. Note that
these are only guidelines, and do not constitute a guarantee of trouble-free
operation during the maintenance support period.

High safety use

This product has been designed and manufactured for general uses such as
general office use, personal use, domestic use and normal industrial use. It has
not been designed or manufactured for uses which demand an extremely high
level of safety and carry a direct and serious risk to life or body if such safety
cannot be ensured.

Technical Manual D2952 (BX924 S2)

These uses include control of nuclear reactions in nuclear power plants,
automatic airplane flight control, air traffic control, traffic control in mass
transport systems, medical devices for life support, and missile guidance control
in weapons systems (hereafter, "high safety use"). Customers should not use
this product for high safety use unless measures are in place for ensuring the
level of safety demanded of such use. Please consult the sales staff of Fujitsu if
intending to use this product for high safety use.

Measures against momentary voltage drop

This product may be affected by a momentary voltage drop in the power supply
caused by lightning. To prevent a momentary voltage drop, use of an AC
uninterruptible power supply is recommended.

(This notice follows the guidelines of Voltage Dip Immunity of Personal
Computer issued by JEITA, the Japan Electronics and Information Technology
Industries Association.)

Technology controlled by the Foreign Exchange and Foreign Trade
Control Law of Japan

Documents produced by Fujitsu may contain technology controlled by the
Foreign Exchange and Foreign Trade Control Law of Japan. Documents which
contain such technology should not be exported from Japan or transferred to
non-residents of Japan without first obtaining authorization in accordance with
the above law.

Harmonic Current Standards

This product conforms to harmonic current standard JIS C 61000-3-2.

Only for the Japanese market:
About SATA hard disk drives

The SATA version of this server supports hard disk drives with SATA / BC-SATA
storage interfaces. Please note that the usage and operation conditions differ
depending on the type of hard disk drive used.

Please refer to the following internet address for further information on the
usage and operation conditions of each available type of hard disk drive:

http://primeserver.fujitsu.com/primergy/harddisk/

D2952 (BX924 S2) Technical Manual

Only for the Japanese market:

I Although described in this manual, some sections do not apply to the

Japanese market. These options and routines include:

– USB Flash Module (UFM)

– CSS (Customer Self Service)

– Replacing the lithium battery

Technical Manual D2952 (BX924 S2)

D2952 (BX924 S2) Technical Manual

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.1 Notational conventions . . . . . . . . . . . . . . . . . . . . . 9

2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 CE certificate of conformity . . . . . . . . . . . . . . . . . . 14

2.3 Environmental protection . . . . . . . . . . . . . . . . . . . 15

3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 21

3.2.1 Main memory configuration . . . . . . . . . . . . . . . . . . . 21

3.2.2 Module population . . . . . . . . . . . . . . . . . . . . . . . . 22

3.2.3 Main memory operating modes . . . . . . . . . . . . . . . . . 22

3.2.3.1 Independent Channel Mode . . . . . . . . . . . . . . . . . 24

3.2.3.2 Performance Channel Mode . . . . . . . . . . . . . . . . . 25

3.2.3.3 Mirrored Channel Mode . . . . . . . . . . . . . . . . . . . 25

3.2.3.4 Spare Channel Mode . . . . . . . . . . . . . . . . . . . . 26

3.2.4 Memory speed . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.3 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 28

3.4 Temperature/system monitoring . . . . . . . . . . . . . . . 28

3.5 LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.5.1 Internal indicators . . . . . . . . . . . . . . . . . . . . . . . . 30

3.5.2 External indicators . . . . . . . . . . . . . . . . . . . . . . . . 31

3.6 Interfaces, connectors and user switch . . . . . . . . . . . 32

3.7 Settings with switches and jumpers . . . . . . . . . . . . . 34

4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 37

Technical Manual D2952 (BX924 S2)

Contents

D2952 (BX924 S2) Technical Manual 9

1 Introduction

This technical manual describes the D2952 system board, which must be
equipped with two processors.

For additional driver information (if available), refer to the supplied DVDs (see
Installation DVD of ServerView Suite - ServerView Software Products).

You will find further information about the BIOS setup in the "D2952 BIOS Setup
Utility for PRIMERGY BX924 S2 Server Blade Reference Manual".

I PRIMERGY manuals are available in PDF format on the ServerView

Suite DVD 2. The ServerView Suite DVD 2 is part of the ServerView Suite
supplied with every server.

PRIMERGY Abbreviations and Glossary can also be found on the ServerView
Suite DVD 2.

1.1 Notational conventions

The following notational conventions are used in this manual:

Text in italics indicates commands or menu items.

"Quotation marks" indicate names of chapters and terms that are being

emphasized.

Ê describes activities that must be performed in the order

shown.

V CAUTION! pay particular attention to texts marked with this symbol.

Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.

I indicates additional information, notes and tips.

10 Technical Manual D2952 (BX924 S2)

Notational conventions

D2952 (BX924 S2) Technical Manual 11

2 Important notes

In this chapter you will find essential information regarding safety when working
with your server.

V CAUTION!

With the system board installed you must open the system to access the
system board. How to access the system board of your system is
described in the appropriate service supplement (except for the
Japanese market).

When handling the system board, refer to the specific notes on safety in
the operating manual and/or service supplement for the respective
server.

2.1 Notes on safety

V CAUTION!

● The actions described in these instructions should only be performed

by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.

● Transport the device only in the antistatic original packaging or in

packaging that protects it from knocks and jolts.

● Only install expansions that are allowed for the system board. If you

install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are approved for installation
can be obtained from our customer service center or your sales
outlet.

● The warranty expires if the device is damaged during the installation

or replacement of system expansions.

12 Technical Manual D2952 (BX924 S2)

Notes on safety

V CAUTION!

● Components can become very hot during operation. Ensure you do

not touch components when making extensions to the system board.
There is a danger of burns!

● Transmission lines to peripheral devices must be adequately

shielded.

● Ethernet cabling has to comply with EN 50173 and EN 50174-1/2

standards or ISO/IEC 11801 standard respectively. The minimum
requirement is a Category 5 shielded cable for 10/100 Ethernet, or
Category 5e for Gigabit Ethernet.

● Never connect or disconnect data transmission lines during a storm

(risk of lightning hazard).

Batteries

V CAUTION!

● Incorrect replacement of batteries may lead to a risk of explosion. The

batteries may only be replaced with identical batteries or with a type
recommended by the manufacturer (this information doesn’t apply to
the Japanese market).

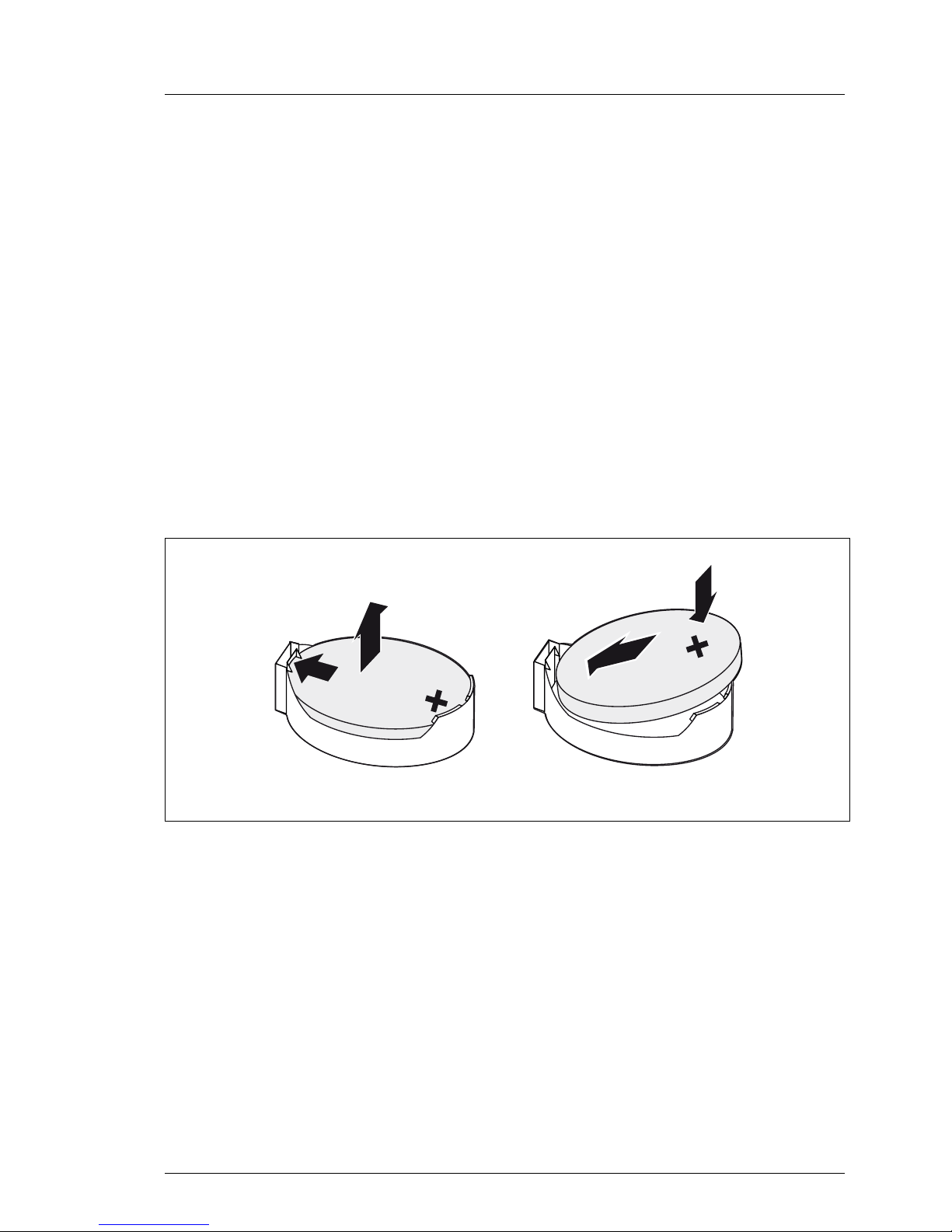

It is essential to observe the instructions in chapter "Replacing the

lithium battery".
