FUJITSU CD1000 User Manual [en, es, fr]

Introduction

For your safety in using the CD1000

Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD1000. They show safe and correct ways to handle the main unit to prevent personal injury to you, others and to avoid property damage. Before reading through the manual, take time to read through and learn the important information listed in this section.

This "WARNING" sign indicates a situation in which incorrect

Warning

Caution

Please read all materials such as manuals and warranties that have come with the main unit. Eclipse will not be liability for unsatisfactory main unit performance due to failure to follow these

instructions.

WARNING

● Do not modify this system for use other than that specified herein. Also, do not deviate from the installation procedures described herein; Eclipse will not be held liable for damages including, but not limited to serious injury, death or property damage resulting from installations that enable unintended operation.

● This main unit requires 12V DC and should only be installed in a vehicle with a 12V negative ground electrical system. Any other installation may cause a fire or other severe damage to the main unit and the vehicle.

● Some main unit uses batteries. Never install main unit where young children can get access to batteries. If a battery is swallowed, seek medical attention immediately.

● When the vehicle is in motion, never take your eyes off the road to make adjustments to the main unit. You must pay attention to the road to avoid accidents, do not let the operation or adjustment of the main unit distract you from proper vehicle operation.

● The driver should not look at the screen while driving. Accidents may result if you are not paying attention to the forward direction.

● Do not put foreign objects in the loading slot of disc. Fires or shocks may result.

● Do not disassemble or alter this main unit. Accidents, fires or shocks may result.

● Do not let water, dust or foreign objects enter the internal parts of this main unit. Smoke,

fires or shocks may result.

● Pay attention to the location of the remote control. Traffic accidents or problems with driving may result if the remote control makes its way under the foot pedals etc. When the vehicle is in motion (Example: during stops, going around corners).

● Do not use when the equipment is malfunctioning (the screen is not lit or no sound comes out). Accidents, fires or shocks may result.

handling or disregard of this sign may result in death or serious personal injury.

This "CAUTION" sign indicates a situation in which incorrect handling or disregard of this sign may result in personal injury or may result solely in damage to property.

For your safety in using the CD1000

WARNING

● Always replace fuses with fuses of identical capacity and characteristics. Never use a higher capacity fuse than the original. Using the wrong type of fuse may cause a fire or severe damage.

● If foreign objects or water enters the main unit, smoke comes out, or there is a strange odor, stop using it immediately, and contact your dealer. Accidents, fires, or shocks may result if you continue to use it in these conditions.

● The driver should not change the CD while driving. As accidents may result if you are not paying attention to the forward direction, first stop the car at a safe location and then proceed.

● Plastic bags and wrappings may cause suffocation and death. Keep away from babies and children. Never put bag over your head or mouth.

CAUTION

● When changing the installation location for this main unit, please consult the dealer where you bought it for safety reasons. Expertise is necessary for removal and installation.

● Keep volume to a reasonable level so that you can hear sounds from outside the vehicle, including warning sounds, voices, and sirens. Failure to do so may cause an accident.

● Be careful that hands and fingers are not pinched when adjusting the tilting angle or closing display. Injuries may result.

● Do not put your hands or fingers into the loading slot of disc. Injuries may result.

● Do not touch the heat dissipating part of the amp. Burns may result from the heat of this

part.

● Do not recharge dry cell batteries. Dry cell batteries may rupture, resulting in injuries.

● Do not use batteries other than those specified. Also, do not mix old and new batteries.

Injuries or pollution to the surroundings may result from battery ruptures and leakage.

● When inserting batteries into the main unit, be careful with the polarity (positive/negative), and insert them as indicated. If the battery polarities are incorrect, injuries and pollution to the surroundings may result from battery ruptures and leakage.

● Replace used batteries as soon as possible; they may leak and damage main unit. Battery leakage can burn your skin or your eyes. Wash hands after handling.

● If alkaline solution from alkaline dry cell batteries makes contact with your skin or clothes, flush with clean water. If any of the solution gets in your eyes, also flush clean with water and then seek medical attention.

● When disposing of lithium dry cell batteries, affix insulating tape to the positive and negative terminals, and after they are insulated, dispose of them according to the "Local municipal ordinances". Shorts, fires and ruptures may result from disposal when coming contact with other electrically conductive objects such as metal parts, etc.

● Do not short, disassemble or heat the batteries, or place them in fire or water. Fire and injuries may result from battery rupture and leakage.

● Store the remote control in a place away from direct sunlight, high temperatures, and high moisture levels. The case may change shape, and the batteries may rupture and leak.

● Do not use this main unit except for in-vehicle use. Shocks or injuries may result.

Introduction

CAUTION

● Take notice of the volume position prior to turning ON the power. Hearing damage may result if very loud noise is emitted when the power is turned ON.

● Do not operate under abnormal conditions such as when the sound is broken or distorted. Fires may result.

● This main unit uses invisible laser light. Do not disassemble or alter this equipment. If trouble occurs, contact the dealer where you bought the equipment. Altering this equipment may cause exposure to laser emissions (worsening eyesight), or result in accidents, fires or shocks.

● If the main unit is dropped or the cosmetics appear broken, turn off the power to the main unit and contact your dealer. If used in this condition, fires or shocks may result.

Table of Contents

For your safety in using the CD1000 ...........................................2

Operating precautions ..................................................................8

Names of controls and parts .......................................................9

How to operate the CD player ....................................................11

How to operate the tuner ............................................................17

How to use the optional remote control ...................................19

How to operate the AUDIO CONTROL ......................................21

Making changes with Function Mode .......................................23

Detaching the front panel ...........................................................24

If you have a question: ...............................................................25

Specifications ..............................................................................29

How to contact customer service ..............................................30

III

VII

VIII

XII

Table of Contents

For your safety in using the CD1000.................................................... 2

Operating precautions........................................................................... 8

Notes on operation ......................................................................................................... 8

Names of controls and parts................................................................. 9

Turning the power on and off........................................................................................ 10

How to operate the CD player ............................................................. 11

About compact discs .................................................................................................... 11

About brand new CDs ............................................................................................ 11

About CD accessories............................................................................................ 12

About borrowed CDs.............................................................................................. 12

How to remove CDs............................................................................................... 12

About irregularly-shaped CDs ................................................................................ 12

About cleaning a CD..................................................................................................... 12

About MP3/WMA .......................................................................................................... 13

What is MP3/WMA?............................................................................................... 13

Playing an MP3/WMA disc..................................................................................... 13

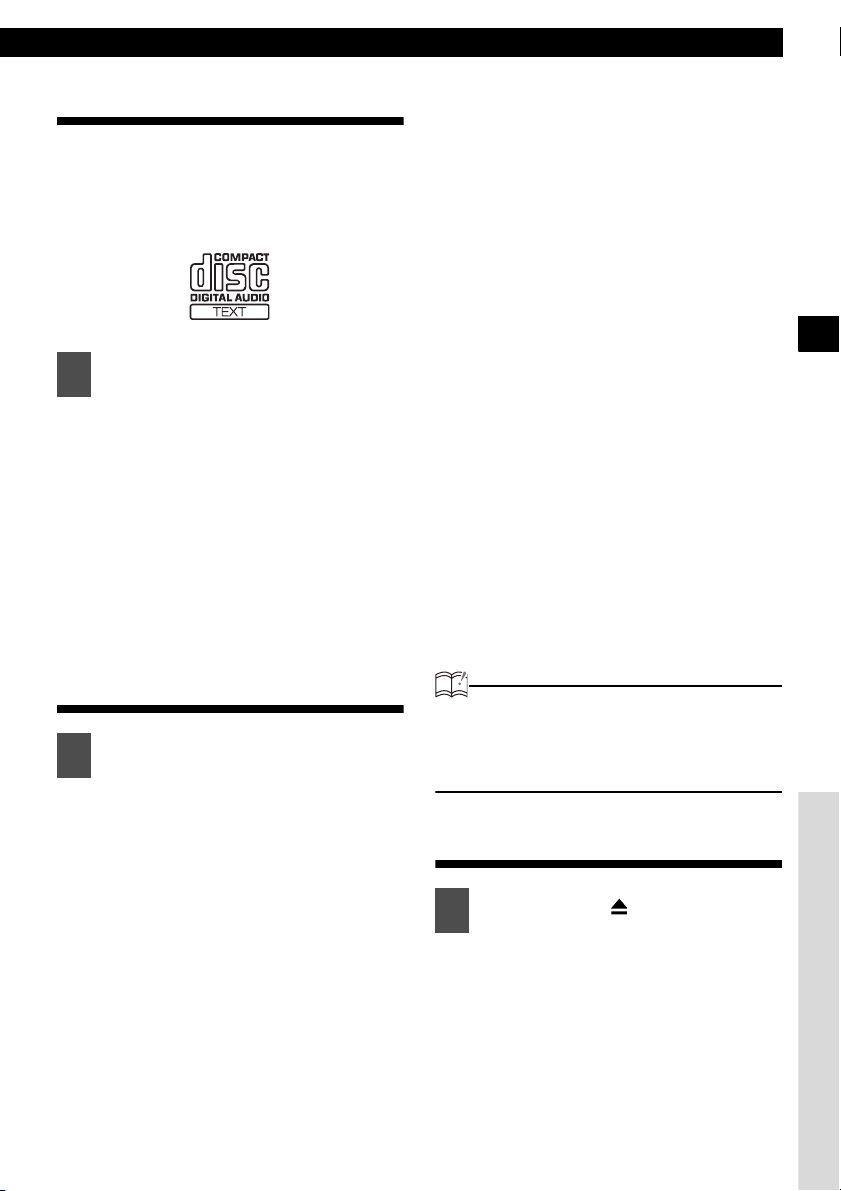

Displaying CD text........................................................................................................ 16

Displaying title .............................................................................................................. 16

Ejecting the disc ........................................................................................................... 16

How to operate the tuner..................................................................... 17

Tuning to a station........................................................................................................ 17

Entering stations into memory automatically (The automatic preset mode: ASM) ....... 17

Manually setting stations into memory ......................................................................... 18

Changing the radio band location................................................................................. 18

Switching to the monaural mode .................................................................................. 18

How to use the optional remote control ............................................ 19

Precautions in use of the remote control...................................................................... 19

Cleaning the remote control ......................................................................................... 19

Replacing the battery.................................................................................................... 20

How to operate the AUDIO CONTROL ............................................... 21

Switching audio control modes..................................................................................... 21

Making changes with Equalizer Mode .......................................................................... 22

Making changes with Function Mode ................................................ 23

Detaching the front panel.................................................................... 24

Using the detachable panel .......................................................................................... 24

Table of Contents

How to remove the detachable panel..................................................................... 24

How to fit the detachable panel.............................................................................. 24

If you have a question: ........................................................................ 25

Displayed information (for troubleshooting).................................................................. 25

Specifications....................................................................................... 29

How to contact customer service....................................................... 30

Introduction

Operating precautions

Notes on operation

For your safety, play only at volume levels that allow outside sounds to be heard.

• It is recommended to use the logo shown to the left for this player.

• You can play music CDs(CD-R/CD-RW) on this player. Be sure to use discs that have been properly processed.

• Depending on the editing equipment used, some discs may not play properly.

TEXT

• Do not insert anything other than a CD into the head unit.

• Do not insert any foreign objects, such as coins or credit cards, into the disc slot. Be especially watchful of children’s mischief in this regard.

• Avoid severe mechanical shock.

• When the player is subjected to severe vibration while traveling over a rough surface, playback may be intermittent. When a situation like this occurs, resume playback after returning to a smoother road.

• About dew condensation.

• In cold or rainy weather, just as the interior glass surface gets fogged, dew (water condensation) may also settle on the deck. When this occurs, disc playback may become intermittent or impossible.

• Dehumidify the air in the vehicle for a while before resuming playback.

• Cleaning the disc slot.

• The disc slot tends to get dusty. Clean it occasionally to prevent accumulated dust from scratching the discs.

Names of controls and parts

A? 9 87

Front view

Names of controls and parts

1 2 3 4 5

No. Button Name/Function

[POWER MUTE] button

Turns deck power ON/OFF. Activates and deactivates

mute.

[SOURCE] button

Switches to the CD mode and the radio mode.

[BAND] button

Switches radio bands.

▲(EJECT)] button

[

Ejects compact disc.

[EQ] button

Sets the equalizer settings.

[ +10 / -10 ] button

CD mode:

Selects the desired track by button number.

Tuner mode:

Selects the desired radio preset channel.

[Release] button

Detaches the right end of the front panel from the body of the main unit or equipment.

Disc slot

III

No. Button Name/Function

[FUNC DISP] button

Switches screen display. Switches a function of each

button.

Buttons [1] to [6]

CD mode:

Select the desired track by button number.

Tuner mode:

Select the desired radio preset channel.

[ / ] button

CD mode:

Fast-forwards/rewinds and selects the desired track.

Tuner mode:

Tunes to stations automatically or manually.

[MODE] button

Switches the audio control mode.

Turns the function mode ON and OFF.

Control dial

Adjusts volume.

Introduction

Turning the power on and off

When the power is turned ON, the last source mode used (such as CD or tuner) prior to turning OFF the power will be restored.

Press the [POWER] button until the

power is turned off.

Press the [POWER] button again to

turn the power on.

● MEMO ●

• When the power is off, pressing the [SOURCE] button will turn the power on.

• When the power is off, pressing the [DISP] button will display the clock for 5 seconds.

How to operate the CD player

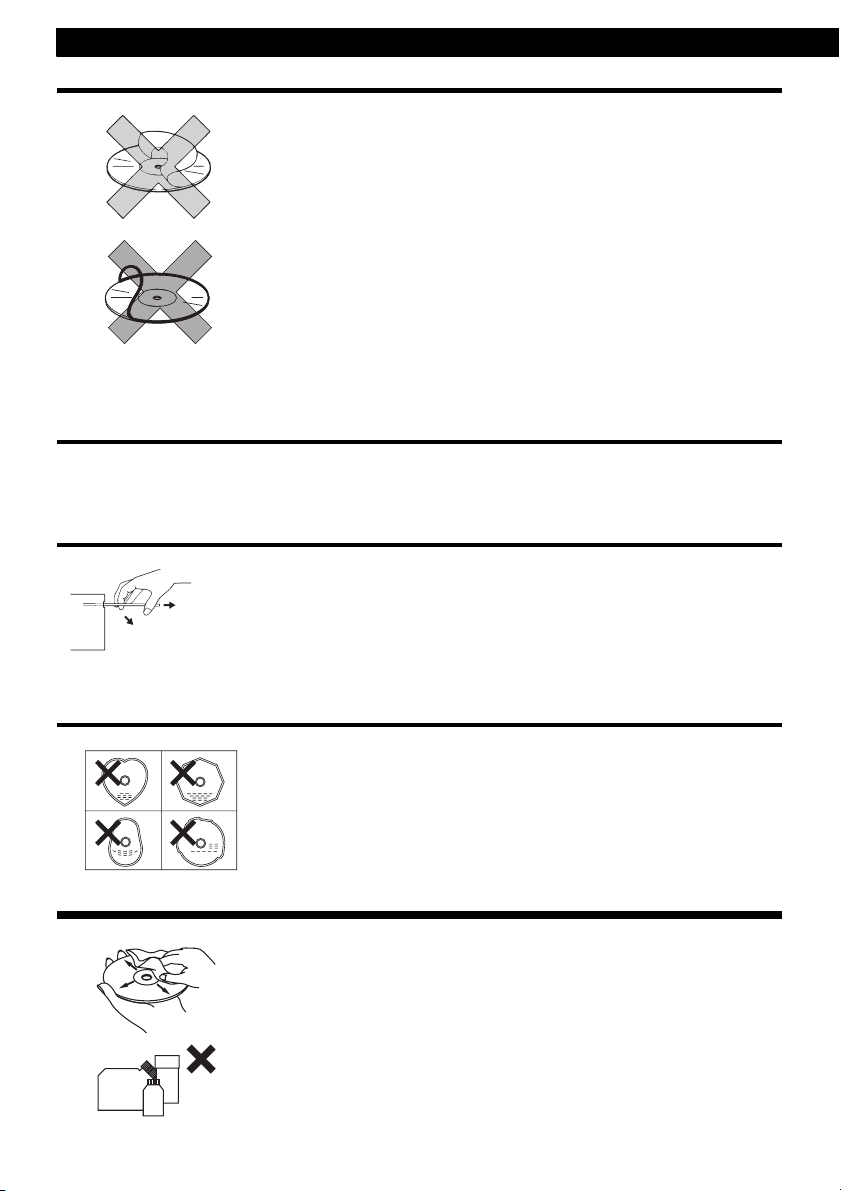

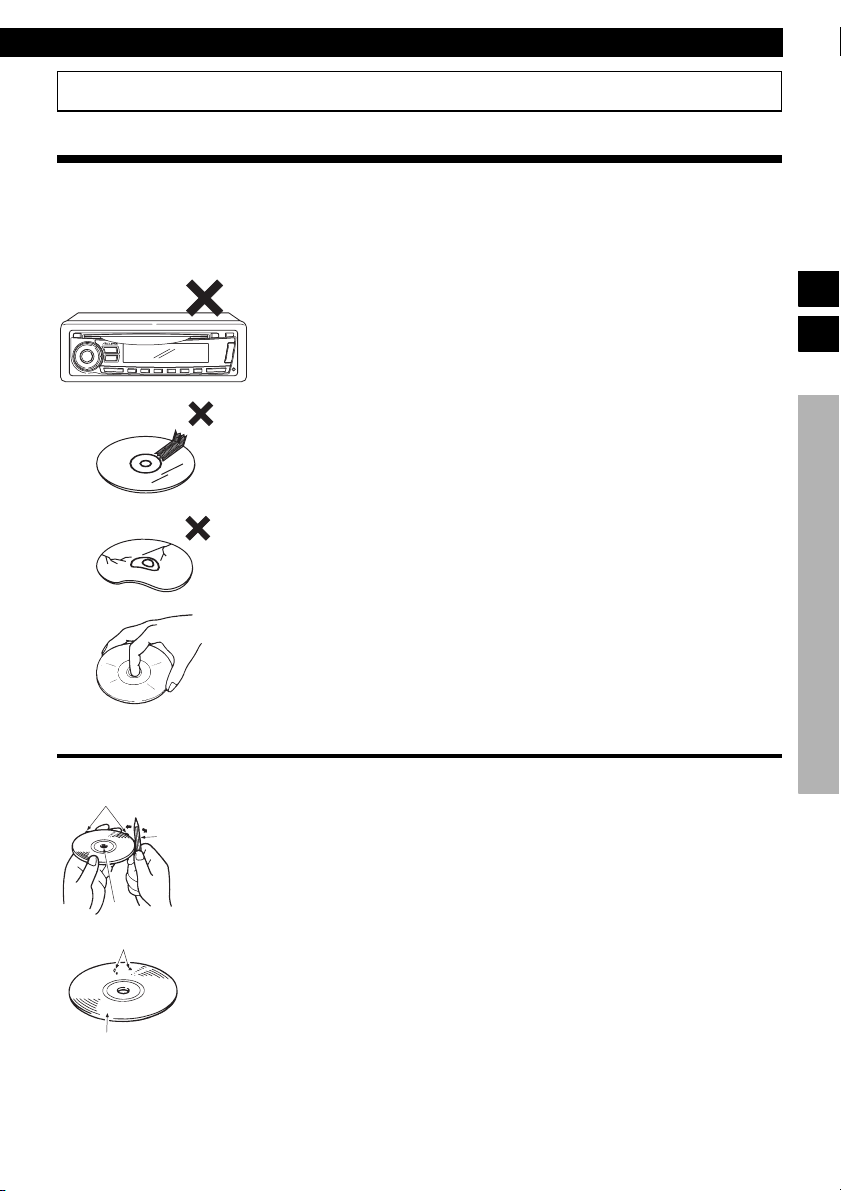

About compact discs

• The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback. Observe the following precautions to ensure high quality sound performance:

About brand new CDs

Rough Edges

Ballpoint pen

Rough Edges

Flakes

• Do not leave an ejected disc in the disc slot for very long; the disc may warp. Discs should be stored in their cases and kept away from high temperature and humidity.

• Do not stick a piece of paper or tape on the disc. Do not write on or scratch either side of a disc.

• Discs spin at a high speed inside the deck. Keep cracked or warped discs out of the player to avoid damage to the deck.

• Avoid touching the recorded surface when handling a disc; handle discs by their edges.

• You may notice that some brand new discs are rough around the center hole or outside edge. Remove the rough edges with the side of a ballpoint pen, etc. Rough edges may prevent proper loading in the deck. Flakes from the rough edges may also stick to the recorded surface and interfere with playback.

III

Recorded surface

Operation

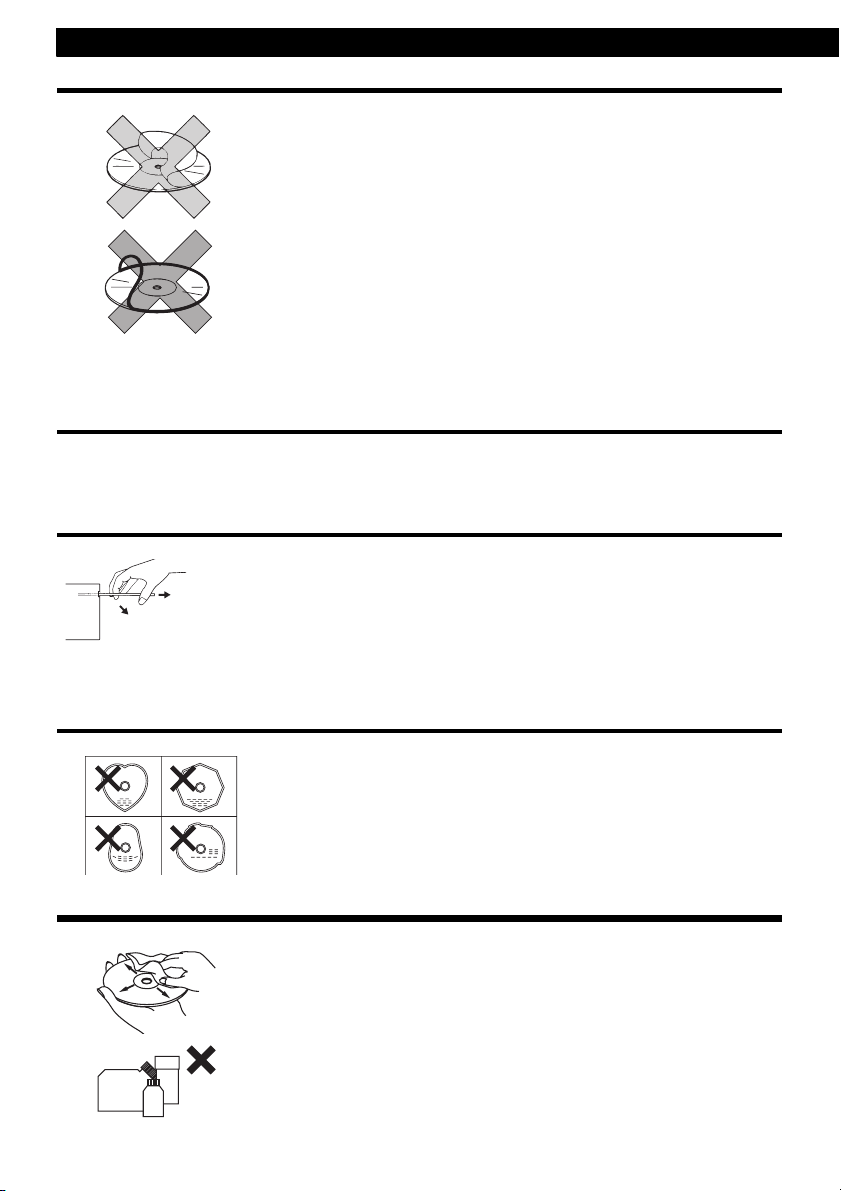

About CD accessories

• Do not use accessories (stabilizers, protective seals, laser lens cleaners, etc.) sold for "improving sound performance" or "protecting CDs." The changes in CD thickness or outside dimensions made by these accessories may cause problems in the player.

• Please be sure NOT to attach any ring-shape protector (or other accessory) to your discs. Those protectors are commercially available and said to protect disc and to improve sound quality (and antivibration effect), but they can do more harm than good in regular uses. The most common problems are disc insertion, disc ejections, and won't play problems due to the protector ring that came off in the disc mechanism.

About borrowed CDs

Do not use a CD with glue or remnants of adhesive tape or labels. They may cause the CD to get stuck inside or damage the deck.

How to remove CDs

• When removing the ejected disc, pull it straight out along the slot.

• Pressing downward or lifting upward when removing a disc may scratch the recorded surface of the disc.

OKAY

About irregularly-shaped CDs

• Specially-shaped CDs, like heart-shaped or octagonal CDs, cannot be played. Do not attempt to play them, even with an adapter, since they may damage the player.

• Do not insert 8 cm discs (single CD) into the disc slot.

•

About cleaning a CD

• Use a commercially available compact disc cleaner to clean a CD, wiping gently from the center to the edge.

XXXX

• Do not use benzine, thinner, LP record spray or other cleaners on CDs. They may damage a CD’s finish.

How to operate the CD player

About MP3/WMA

ATTENTION

The making of MP3/WMA files by recording from sources such as broadcasts, records, recordings, videos and live performances without permission from the copyright holder for uses other than personal enjoyment is prohibited.

What is MP3/WMA?

MP3/WMA (MPEG Audio Layer III) is a standard format for audio compression technology. By using MP3/WMA a file can be compressed to one-tenth the size of the original.

WMA (Windows Media compressed to a size smaller than MP3 files.

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case-upper/lower).

• This receiver can show the names of albums, artists (performer), and ID3 Tag (Version 1.0, 1.1,

2.2, 2.3, or 2.4) for MP3 files and for WMA files.

• This receiver can play back MP3/WMA files meeting the conditions below:

- Bit rate: 8 kbps - 320 kbps

- Sampling frequency:

48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)

- Disc format: ISO 9660 Level 1/ Level 2, Romeo, Joliet, Windows long file name

• The maximum number of characters for file/ folder names varies among the used disc format (includes 4 extension characters-<.mp3> or <.wma>).

- ISO 9660 Level 1: up to 12 characters

- ISO 9660 Level 2: up to 31 characters

- Romeo*: up to 128 (72) characters

- Joliet*: up to 64 (36) characters

- Windows long file name*: up to 128 (72) characters * The parenthetic figure is the maximum number of characters for file/folder names in case the

total number of files and folders is 313 or more.

• This receiver can recognize the total of 512 files, of 200 folders, and of 8 hierarchies.

• This receiver can play back the files recorded in VBR (variable bit rate).

• The files recorded in VBR have a discrepancy in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.

• This receiver cannot play back the following files:

- MP3 files encoded with MP3i and MP3 PRO formats.

- MP3 files encoded in an unappropriated format.

- MP3 files encoded with Layer 1/2.

- WMA files encoded with lossless, professional, and voice formats.

- WMA files which are not based upon Windows Media® Audio.

- WMA formatted files copy-protected with DRM.

- Files which have the data such as WAVE, ATRAC3, etc.

• The search function works but search speed is not constant.

Audio) is format for audio compression technology. WMA files can be

Operation

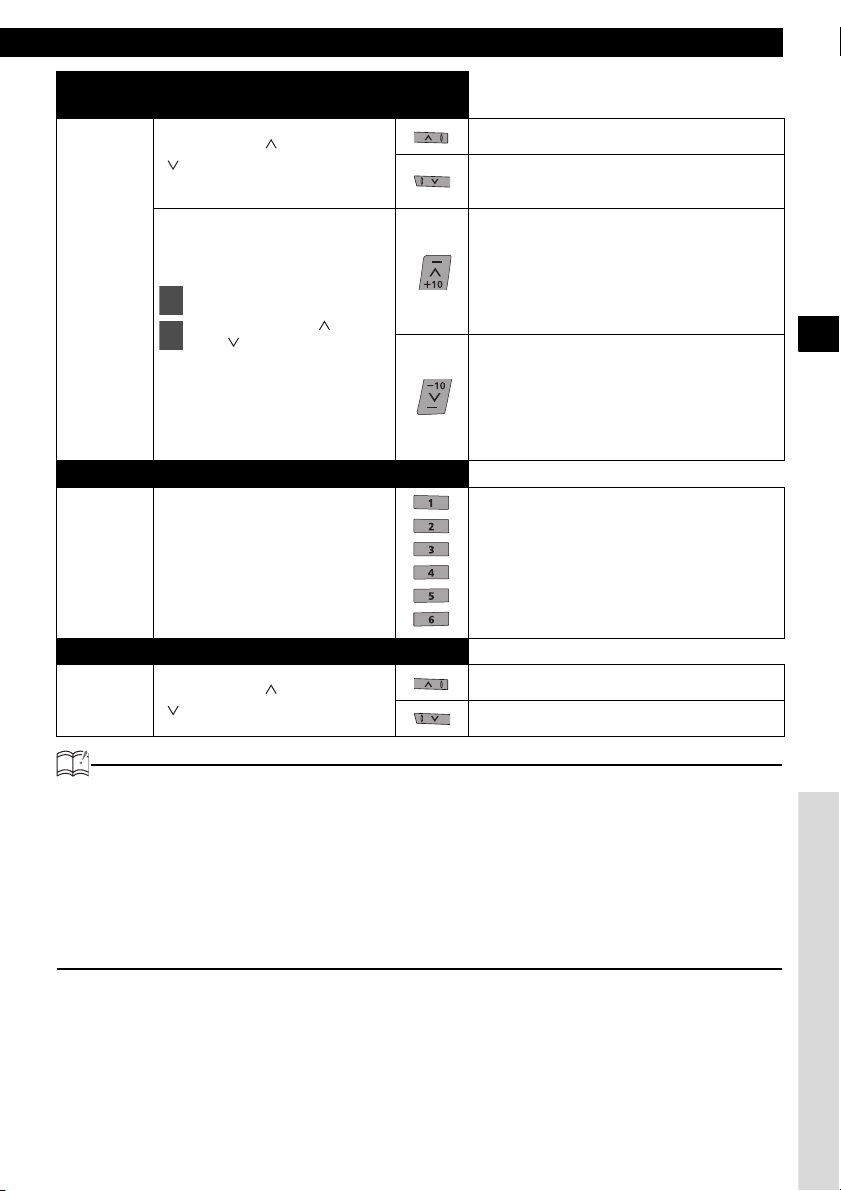

TRACK (FILE) UP / DOWN

Press the [ ] or [ ] button briefly.

CD (MP3/WMA)

Press the [FUNC] button.

Press the [ +10] or [ -10]

button while [FUNC] is blinking on the display.

Direct Track Selection

Press a button from [1] to [6]

briefly to select the track number corresponding to the [1] – [6] button.

Fast Forward / Rewind

CD (MP3/WMA)

Press the [ ] or [ ] button for several seconds.

Advances to the next track (file).

Returns to the beginning of the track (file) being played. Repeat turning for previous tracks (files).

Selects the 10th track, the 20th one, the 30th one, … and then the last one as follows:

When you are listening to the 26th track for example, each press of the button will

advance to the 30th track, the 40th one, … and then the last one.

Selects the first track, the 10th one, the 20th one, the 30th one, … as follows:

When you are listening to the 26th track for example, each press of the button will return

to the 20th track, the 10th one and then the first one.

To select a track number from 7 to 12, press a button from [1] to [6] for several seconds.

Fast - forwards.

Rewinds.

ATTENTION

• While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sound.

• When a CD is already loaded, press the [SOURCE] button to switch to the CD mode.

• This receiver can play back only the files of the same type which is first detected if a disc includes both audio CD (CD-DA) files and MP3/WMA files.

• Use only "finalized" CD-Rs or CD-RWs.

• This receiver can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• If no MP3/WMA music files can be found, a message [NO FILES] will appear.

• Playback may be intermittent when there is a scratch on a CD or when the recorded side is dirty.

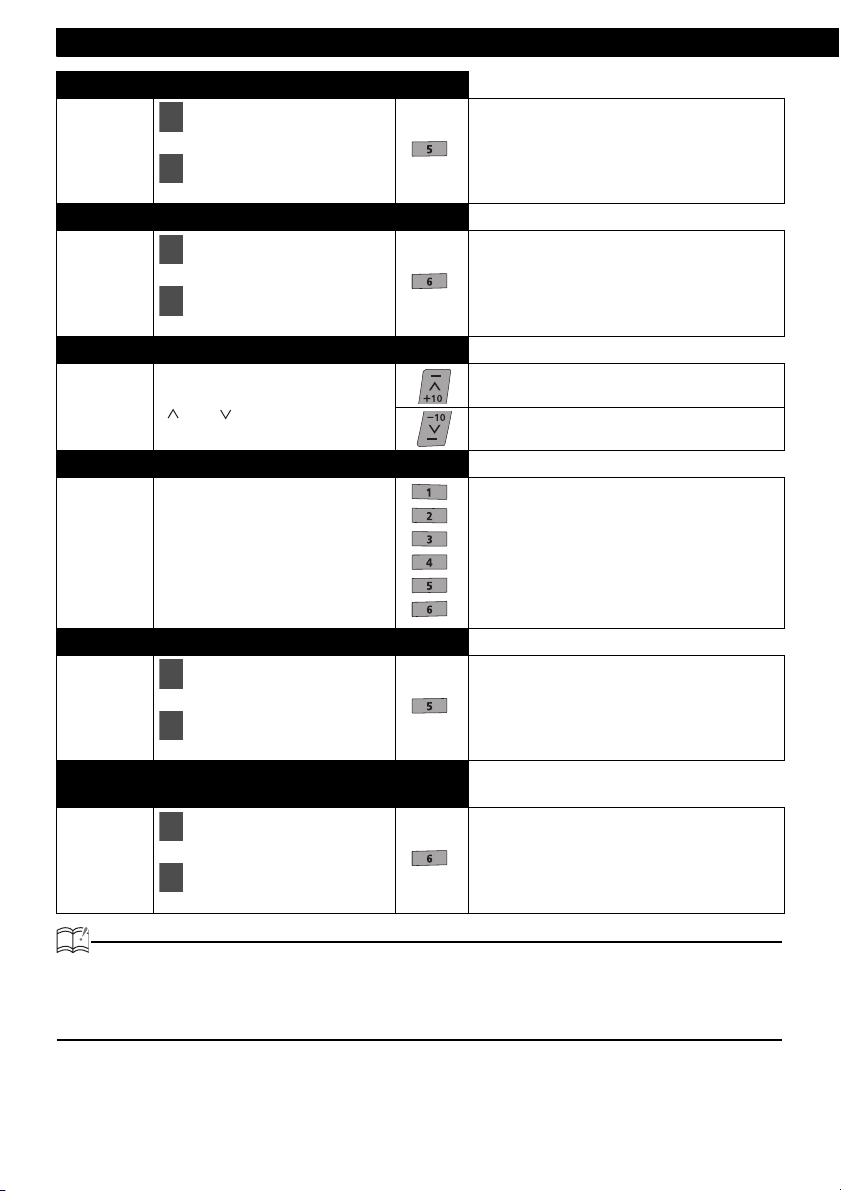

REPEAT

Press the [FUNC] button.

RANDOM

FOLDER UP / DOWN

MP3/WMA

Direct Folder Selection

MP3/WMA

FOLDER REPEAT

MP3/WMA

ALL RANDOM

MP3/WMA

Press the [5] button while

[FUNC] is blinking on the display.

Press the [FUNC] button.

Press the [6] button while

[FUNC] is blinking on the display.

Press the [ ] or [ ] button briefly.

Press a button from [1] to [6] briefly to select the folder number corresponding to the [1] – [6] button.

Press the [FUNC] button.

Press the [5] button while

[FUNC] is blinking on the display.

Press the [FUNC] button.

Press the [6] button while

[FUNC] is blinking on the display.

ATTENTION

How to operate the CD player

Repeating the same track. To cancel, press the [5] button again while [FUNC] is blinking on the display.

Playing tracks in random order. To cancel, press the [6] button again while [FUNC] is blinking on the display.

Selects the next folder.

Selects the previous folder.

To select a folder number from 7 to 12, press a button from [1] to [6] for several seconds.

Each time the button is pressed, the following will be displayed in order.

Track repeat Track repeat …

Each time the button is pressed, the following will be displayed in order.

Folder random

➔ Folder repeat ➔ Repeat OFF ➔

➔ Disc random ➔ Random OFF

➔ Folder random …

• Occasionally the same track (file) happens to be played (selected) two or more times in a row; this is normal operation and is not a sign of a problem.

• When any of the functions -"REPEAT" and "RANDOM" -is selected, a message such as [RPT] or [RAND] appears on the display to verify the current function.

Operation

Displaying CD text

If the CD came with a logo shown below, it is recorded with a disc title and track titles. These information will be displayed during playback.

Press the [DISP] button.

Each time the button is pressed, the following will be displayed in order.

Track No & elapsed time ➔ Track No & clock ➔ Disc name ➔ Track name ➔ Track No & elapsed time www

CD TEXT recorded with characters other than alphanumeric and symbols cannot be displayed.

Displaying title

The display area shows a maximum of 8 characters and then scrolls to display the remaining characters. After the folder name is displayed, the file name will be displayed by scrolling. After the file name is scrolled, the display will be fixed.

ATTENTION

This receiver can handle only one-byte characters. No other characters can correctly be displayed.

Ejecting the disc

Press the [ ] button.

The disc will be ejected.

Press the [DISP] button.

Each time the button is pressed, the following will be displayed in order.

When “TAG DISP” is set to “TAG ON” (see page 23)

Track No & elapsed time ➔ Track No & clock ➔ album/airtist tag(folder name*) ➔ title tag(file name*) ➔ Track No & elapsed time …

* If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this case, the TAG indicator will not light up.

When “TAG DISP” is set to “TAG OFF” Track No & elapsed time ➔ Track No &

clock ➔ Folder name ➔ File name ➔ Track No & elapsed time …

How to operate the tuner

ATTENTION

If stations have been stored in memory, pressing a button from [1] to [6] will directly select a station. (Refer to "Manually setting stations into memory" on page 18.)

CAUTION

If the vehicle’s battery is disconnected (for repairs to the vehicle or for removing the receiver), all stations in memory will be lost. In such a case, set stations in the memory again.

Tuning to a station

Press the [BAND] button to switch

to the desired FM, AM bands.

Radio bands will switch from FM1 ➔ FM2 ➔ FM3 ➔ AM in order each time the button is pressed.

Press the [ ] or [ ] button to

start the automatic station search.

button:

[]

Starts searching toward higher frequencies.

[] button:

Starts searching toward lower frequencies.

● MEMO ●

To tune to a station manually; Press the [ ] or [ ] button until “M” is

displayed. When “M” is displayed, press the [ ] or [ ] button to select a

station you want to listen to.

ATTENTION

At times, it may be difficult to maintain optimum reception because the antenna affixed to your vehicle is in motion constantly (relative to the broadcast antenna), encountering continuous variation in the received radio signals’ strength. Other factors affecting reception include interference from natural obstacles, sign posts, etc.

Entering stations into memory automatically (The automatic preset mode: ASM)

ASM is available for the FM radio mode.

Press the [BAND] button.

You can switch the mode to desired one.

Press the [FUNC] button.

Press the [3] button for several

seconds while [FUNC] is blinking.

The automatic preset mode starts. [ASM ON] will appear on the display,

and stations are automatically entered in memory under the buttons [1] to [6].

These buttons are called preset buttons.

Operation

➔

ATTENTION

• Pressing the preset buttons ([1] to [6])

allows you to make one-touch station selections. The frequency of the selected station is indicated on the display.

• When a new station is set in memory, the

station previously set in memory will be deleted.

• If there are fewer than six receivable

stations, the stations set in the remaining buttons will be retained.

Manually setting stations into memory

This section covers the setting of stations in memory under the numbered buttons.

Press the [BAND] button.

You can switch the mode to desired one.

Select a station (see page 17).

Press a button from [1] to [6] for

several seconds.

Select any button, from [1] to [6],

and press it for more than two seconds.

The tuned station is now memorized and set in the selected button. Repeat the procedure to set additional manually tuned stations in memory, in turn, for the buttons [1] to [6]. These buttons are called the preset buttons.

Changing the radio band location

The location for the radio bands used between the North American region and the Asia/ Australia/Latin region can be switched. The default setting is USA (North America).

Press the [MODE] button for

several seconds.

The mode will be switched to the function mode.

Press the [ ] or [ ] button to

switch the mode selection.

[AREA] will be displayed.

Turn the control dial to select the

region.

➔

USA ASIA AUS LATIN

Switching to the monaural mode

If FM stereo is difficult to receive,switch to the monaural mode to receive it.

You cannot listen to FM broadcasts in stereo when the monaural mode is activated.

Press the [BAND] button to switch

to the desired FM bands.

Press the [FUNC] button.

Press the [2] button while [FUNC]

is blinking.

[MONO] appears on the display.

● MEMO ●

• The monaural mode can be canceled in the same procedure.

• [MONO OFF] appears on the display

➔ ➔

How to use the optional remote control

Precautions in use of the remote control

• Be careful when handling the control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction.

• Keep the remote control free of moisture, dust and water. Do not subject it to shock.

• Do not place the remote control unit where it will get hot, such as on the dashboard or near a heater vent. Allowing the remote control unit to overheat may warp its case or cause other problems.

• Do not operate the remote control unit while driving because doing so could cause an accident.

• When using the remote control, point it toward at the remote control light receptor.

• The light receptor may not operate correctly if it is exposed to bright light such as direct sunlight.

• Be sure to press the [PWR] button on the main unit for more than two seconds to shut it down before leaving the car, or the car battery may be run down. When the main unit is shut down, the remote control will not work.

• Remove the batteries from the remote control unit whenever it is not to be used for a long time.

Cleaning the remote control

• Use a dry cloth to keep the unit clean. If the remote control unit gets extremely dirty, clean it with a cloth moistened with diluted liquid detergent. Do not use alcohol or thinner; these compounds may damage the finish.

• In no event should benzine or thinner be used. These substances will damage the case or finish.

Remote control (optional)

No. Button Name/Function

[PWR] button

Turns deck power ON/OFF.

[TU] button

Switches to the tuner mode.

[BAND] button

Switches radio bands.

[ ] button

Decreases the volume.

[MUTE] button

Activates and deactivates mute.

[ PRESET CH ] buttons [ DISC ] buttons

Select the desired radio preset channel and the desired MP3/ WMA folder.

Operation

No. Button Name/Function

[MODE] button

Switches to the playback mode.

[DISC] button

Switches to the DISC mode.

[ ] button

Increases the volume.

[ TUNE·SEEK ] buttons [ TRACK ] buttons

Select radio stations and CD tracks.

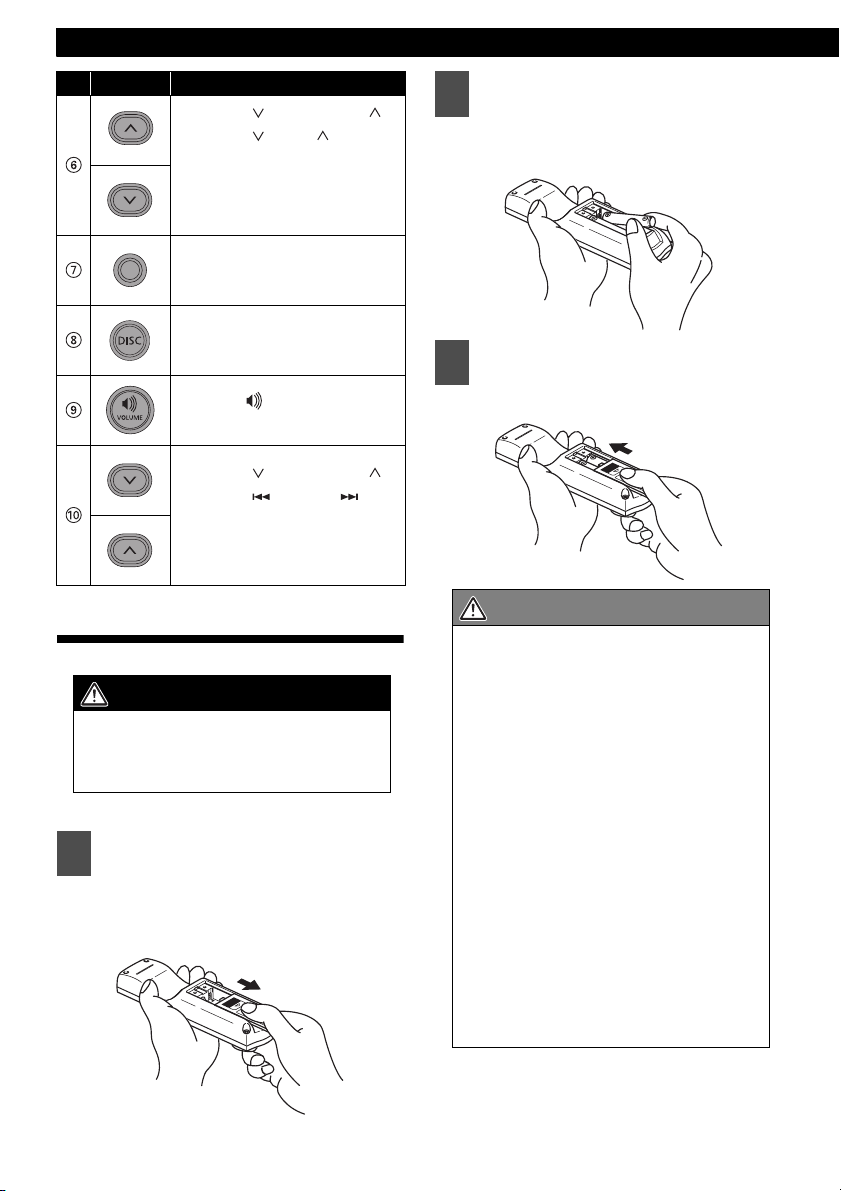

Replacing the battery

WARNING

To prevent accidents, store batteries out of the reach of children. If a child has swallowed one, consult a doctor immediately.

Use two AAA size batteries.

Remove the back cover of the

remote control unit by gently pressing and sliding it in the direction indicated by the arrow.

Install the two batteries provided

into the compartment as illustrated inside the compartment.

Return the back cover into place

by sliding it in the direction indicated by the arrow.

CAUTION

• Be extremely careful not to swallow the battery.

• The battery life is approximately one year. If the remote control unit does not operate correctly or if the button lamp gets dim, replace the batteries.

• Be sure to orient the batteries correctly so that the positive and negative poles match the diagram.

• Do not use one new battery and one old one; use two new batteries.

• Use only two of the same kind of battery.

• If any liquid is seen leaking from the batteries, remove both batteries and dispose of them properly. Thoroughly clean the battery compartment with a dry cloth. Then install new batteries.

How to operate the AUDIO CONTROL

Switching audio control modes

Various audio control modes may be fine-tuned using this procedure.

Press the [MODE] button to select the item to be adjusted.

Modes will switch in the order shown below each time the button is pressed. VOL ➔ BASS ➔ TREB ➔ FAD ➔ BAL ➔ LOUD ➔ VOL www

ATTENTION

• If you change the "AMP GAIN" setting from "HIGH PWR" to "LOW PWR" while the volume level is set higher than "VOL 30," the receiver automatically changes the volume level to "VOL

30."

• Pressing the [MUTE] button briefly will cut the volume or restore it instantly.

WARNING

Do not adjust the volume or other controls while driving the vehicle. Do so only while parked in a safe location.

VII

Mode Function

VOL (VOLUME) Adjusts volume.

BASS

TREB (TREBLE)

FAD (FADER) Adjusts front/rear speaker balance.

BAL (BALANCE)

LOUD

Adjusts bass level. Bass mode can be adjusted for each source

Adjusts treble level. Treble mode can be adjusted for each source

Adjusts left/right speaker balance.

The loudness control may be turned on to emphasize low and high frequencies at low volume levels. Loudness compensates for the apparent weakness of low and high frequencies at low volume by boosting the bass and treble levels.

[AUDIO CONTROL] button

Turn to the Left Turn to the Right

Decreases the volume.

Softens low sounds.

Softens high sounds.

Emphasizes rear speakers.

Emphasizes left speakers.

Turn the loudness control ON/OFF.

Increases the volume.

Emphasizes low sounds.

Emphasizes high sounds.

Emphasizes front speakers.

Emphasizes right speakers.

Various Settings

Making changes with Equalizer Mode

Using EQ (equalizer), you can adjust the frequency according to the genre of the music you are listening to or the kind of the musical instruments.

Furthermore, the set value in the audio control mode can be stored and called USER mode set value.

Press the [EQ] button for less than

one second.

Each time the button is pressed, the selection changes in the following order.

Indication

USER 0 0 OFF SHARP 0 +03 OFF SOFT +01 +01 OFF VOCAL POWER +02 +02 ON BEAT 0 +02 ON

Preset values

BASS TREB LOUD

01 - 01 OFF

ATTENTION

The adjusted bass, treble and loudness level can be stored in the USER mode. The stored level can be called from the USER mode.

Making changes with Function Mode

Press the [MODE] button for several seconds.

The mode will be switched to the function mode.

Pressing the [ ] or [ ] button will switch the mode selection.

➔ ➔

Control dial

➔ ➔

Mode Function

DEMO DEMO mode setup ON OFF CLOCK H CLOCK adjust mode (hour) UP direction DOWN direction CLOCK M CLOCK adjust mode (minute) UP direction DOWN direction DIMMER Dimmer mode change setup ON OFF

TEL TELE MUTE detect signal logic setup

SCROLL TEXT title auto scroll style setup

TAG DISP TAG display setup ON OFF AMP GAIN AMP.Gain change setup HIGH PWR LOW PWR AREA Tuner Area change setup see page 18

Turn the control dial to select the setting.

Press the [MODE] button to exit the function mode.

Tur n to th e Righ t Turn to the Left

MUTING 1 MUTING 2 OFF

ONCE AUTO OFF

VII

VIII

About optional unit

Detaching the front panel

Using the detachable panel

The front panel of the unit can be removed. By removing this panel when you leave the

vehicle, you can prevent the theft of the unit.

How to remove the detachable panel

Turn off the unit power.

Press the [Release] button.

The right end of the front panel detaches from the body of the main unit or equipment.

Remove the front panel.

Hold the front panel and pull it toward you to remove it.

How to fit the detachable panel

Insert the left end of the front panel

into the main unit or equipment.

Engage the catch at the left end of the front panel with the lock on the unit itself.

Insert the front panel.

Press the right end of the front panel until it clicks into the place.

Press the [PWR] button to turn

the power ON.

CAUTION

• If you drop the detachable panel or subject it to impact, it may be damaged or malfunction.

• Do not detach or fit the detachable panel while driving since this could cause an accident.

• Store the panel at a location free from humidity, dust, and water.

• Do not leave the detachable panel in locations that are likely to become hot, like the dashboard and surroundings.

If you have a question:

Displayed information (for troubleshooting)

The information listed in the chart below is displayed to show the status of the CD, Refer to the chart for the appropriate action.

Symptoms Causes Remedies

Sound cannot be heard from the speakers.

General

This receiver does not work at all.

ASM automatic presetting does not work.

Static noise while listening

FM/AM

to the radio. Disc is automatically

ejected.

·CD-R/CD-RW cannot be played back.

·Tracks on the D-R/CDRW cannot be skipped.

Disc can be neither played back nor ejected.

Disc playback

Disc sound is sometimes interrupted.

"NO DISC"appears on the display.

The volume level is set to the minimum level.

Connections are incorrect.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Signals are too weak. Store stations manually.

The antenna is not connected firmly. Connect the antenna firmly.

Disc is inserted upside down. Insert the disc correctly.

CD-R/CD-RW is not finalized.

Disc is locked.

The CD player may have functioned incorrectly.

You are driving on rough roads.

Disc is scratched. Change the disc.

Connections are incorrect.

Disc is inserted incorrectly. Insert the disc correctly.

Adjust it to listening level.

Check wiring and connections.

Reset the receiver .

·Insert a finalized CD-R/ CD-RW.

·Finalize the CD-R/CD-RW with the component which you need for recording.

Unlock the disc (see page

16).

Eject the disc forcibly (see page 16).

Stop playback while driving on rough roads.

Check wiring and connections.

Other information

Symptoms Causes Remedies

No MP3/WMA tracks are recorded on the disc.

MP3/WMA tracks do not have the

Disc cannot be played back.

Noise is generated.

A longer readout time is required ("CHECK" keeps flashing on the display).

Tracks cannot be played

MP3/WMA playback

back as you have intended them to play.

Elapsed playing time is not correct.

"NO FILES" appears on the display.

Correct characters are not displayed (e.g. album name)..

extension code <.mp3> or <.wma> in their file names.

MP3/WMA tracks are not recorded in the format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.

The track played back is not an MP3/WMA file (although it has the extension code <.mp3> or <.wma>).

Readout time varies due to the complexity of the folder/ file configuration.

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the tracks are recorded on the disc.

The current disc does not contain any MP3/ WMA tracks.

This receiver can only display alphabets (capital: A - Z), numbers, and a limited number of symbols

Change the disc.

Add the extension code <.mp3> or <.wma> to their file names.

Change the disc. (Record MP3/WMA tracks

using a compliant application.)

Skip to another track or change the disc. (Do not add the extension code <.mp3> or <.wma> to non-MP3 or WMA tracks.)

Do not use too many hierarchies and folders.

————————————

Insert a disc that contains MP3/WMA tracks.

————————————

If you have a question:

Mode Problem Causes

Is the volume control up sufficiently? Turn up the volume control. 21

Is the muting function in effect (MUTE)?

Common

to all

Dead or weak

sound

Power does not

turn on.

Frequencies or

titles set in

memory are

deleted.

The remote

control does not

work.

Is the fader or balance control set far to one side?

Other probable causes include broken audio-signal wiring or a faulty speaker.

Are there too electrical items installed and causing a lack of power?

Other probable causes include a run-down car battery, broken power or interconnection wiring.

Has the car battery been disconnected for repair or checked out?

Are there too electrical items installed and causing lack of available power?

Other probable causes include run-down car battery, broken power or interconnection wiring.

Is the battery low? Replace battery. 20

Is the battery installed in reverse polarity?

Is direct sunlight hitting the remote control light receptor?

Other probable causes include a malfunctioning remote control.

Remedial action

to take

Cancel the muting (MUTE) function.

Readjust the fader and balance controls to more normal positions.

Have your dealer check the problem.

Reenter them into memory.

Have your dealer check the problem.

Reinstall the battery in the correct polarity.

Use the remote control close to the receptor.

Have your dealer check the problem.

Refer to

page

—

17,

—

Other information

Mode Problem Causes

Tuner

The disc cannot

be inserted.

The disc is ejected as soon as it is inserted.

Or, the disc cannot

be ejected.

The disc cannot

be changed.

Sound skips

around.

Sound is

intermittent.

Sound is bad in

quality.

The disc cannot

be ejected.

Receives no stations, or receives static noise.

Is an extra label or seal applied to the disc?

Are there rough edges, deformations or damaged areas on the disc?

Is the disc damaged? (scratched, warped, etc.) Is the disc clean? Clean the disc. 12 Is the player mounted at a proper angle? Is the player mounted loosely?

Are you driving over a rough surface?

Is the [ ] button locked?

Is the antenna retracted? Extend the antenna. — Is the tuner correctly tuned to a station? Tune to a station. 17

Are you driving out of the service area of your preset stations?

Are you operating other equipment such as computer, or a mobile phone, in your vehicle at the same time as your receiver?

Other problems may include a loose or disconnected antenna cable, a bad antenna cable or a bad wiring.

Remedial action

to take

Do not apply labels or seals to the disc.

Try inserting another disc. Remove any burrs.

Do not use a deformed or damaged disc.

Try another disc. Do not play a damaged disc.

Have your dealer check it out. —

Avoid playback while driving over rough surfaces.

Press the [SOURCE] and [ ] buttons simultaneously

for several seconds.

Tune to a local station. (Please note, there may be no local stations servicing the area where you are currently driving.)

Avoid operating such equipment while using the receiver.

Have your authorized Eclipse retailer check the problem.

Refer to

page

—

Specifications

Power Output 50W×4 Line Output Level/Impedance

Power Supply 14.4V DC (11-16V) Load Impedance

Frequency Response 40 Hz~20 000 Hz Allowable Operating Temperature 0° C~+40° C (32° F~104° F) Dimensions (W × H × D) 7" x 2" x 5-15/16" (178 x 50 x 150 mm) Mass (approx.) 3.1 lbs (1.4 kg) (excluding accessories) Tone Control BASS: ±10db at 100Hz Treble: ±10db at 10kHz

Frequency Range

Usable Sensitivity 50dB Quieting Sensitivity Alternate Channel Selectivity (400 kHz)

Capture Ratio 1.5dB Frequency Response 40~15,000Hz Stereo Separation 35dB (1kHz)

Frequency Range

Usable Sensitivity 20µV Selectivity 35dB

Specifications

2.5V / 20k load (full scale)

4 (4 to 8 allowance)

USA: 87.75~107.9MHz (0.2MHz step)

Asia: 87.5~108.0MHz (0.05MHz step)

Australia: 87.5~108.0MHz (0.1MHz step)

Latin America: 87.75~107.9MHz (0.1MHz step)

11.3dBf (1.0µV / 75 )

16.3dBf (1.8µV / 75 ) 65dB

USA: 530~1710kHz (10kHz step)

Asia: 522~1629kHz (9kHz step)

Australia: 522~1710kHz (9kHz step)

Latin America: 530~1710kHz (10kHz step)

Frequency Response 5Hz~20,000Hz Wow & Flutter Less than measurable limit S/N Ratio 98dB Dynamic Range 96dB Number of channels 2 channels (stereo) MP3 decoding format MPEG1/2 Audio Layer 3 Max. Bit Rate 320 Kbps WMA (Windows Media® Audio) decoding format

Max. Bit Rate: 192 Kbps

Other information

How to contact customer service

Should the product require service, please contact the following Eclipse dealer near your house.

<U.S.A/CANADA>

Fujitsu Ten Corp. of America 19600 South Vermont Avenue, Torrance, CA 90502 Phone: (310) 327-2151

Fujitsu Ten (Australia) PTY LTD. 89 Cook Street Port Melbourne, Victoria 3207, Australia Phone: 1800 211 411

CSE Automotive Technologies Sdn. Bhd. Level 5, Axis Plaza, Jalan U1/44, Glenmarie, 40150 Shah Alam, Selangor D.E., Malaysia. Phone: 03-5569-4200 Fax: 03-5569-4201

Cobra Singapore Pte Ltd #07-02, King's Centre 390, Havelock Road Singapore 169662 Phone: 6737 2568 Fax : 6737 9538

<KOREA>

Transpectra Co., Ltd. 115-16 nonhyun dong kangnam ku Seoul, Korea. Phone: 02-540-4595 Fax: 02-2-540-4666

Sentrek Taiwan, LTD. 1, 9F, Lane 155, Section 3, Peishen RD., Shenkeng, Taipei Hsien, 222 Taiwan, R.O.C. Phone: 02-2662-8110 Fax: 02-2662-8117

Sho-Ten Co., Ltd. 114/9 Soi Suwansawadi, Thungmahamek, Rama 4 Rd., Sathorn, Bangkok 10120, Thailand. Phone: 02-671-9610-12 Fax: 02-671-9614

+ 69 hidden pages
