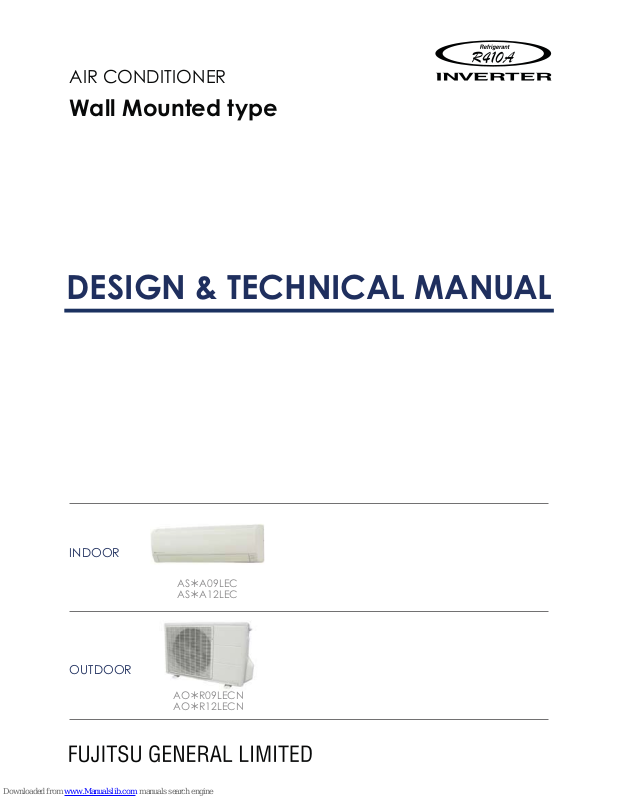

AIR CONDITIONER
Wall Mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
ASA09LEC
ASA12LEC
OUTDOOR
AOR09LECN
AOR12LECN
1.INDOOR UNIT
WALL MOUNTED TYPE :
ASA09LEC
ASA12LEC
DTR_AS047E_01
2010.10.05
WALL MOUNTED TYPE
A09-12LE
AS
1. INDOOR UNIT
CONTENTS
WALL MOUNTED TYPE
A09-12LE
AS
1. FEATURE
2. WIRELESS REMOTE CONTROLLER
3. SPECIFICATIONS
4. DIMENSIONS
5. WIRING DIAGRAMS
6. CAPACITY TABLE
6-1. COOLING CAPACITY
6-2. HEATING CAPACITY
.................................................................................................................. 01 - 01
............................................... 01 - 04
.............................................................................................. 01 - 06
........................................................................................................ 01 - 07
........................................................................................ 01 - 09
............................................................................................ 01 - 10
...................................................................................... 01 - 10
........................................................................................01 - 11
7. FAN PERFORMANCE AND CAPACITY
7-1. AIR VELOCITY DISTRIBUTION
7-2. AIR FLOW
.......................................................................................................... 01 - 13
8. OPERATION NOISE
8-1. NOISE LEVEL CURVE
8-2. SOUND LEVEL CHECK POINT
......................................................................................... 01 - 14
.................................................................................... 01 - 14
..................................................................... 01 - 12
..................................................................... 01 - 15
.......................................... 01 - 12
9. ELECTRIC CHARACTERISTICS
10. SAFETY DEVICES
11-1. EXTERNAL INPUT
11-2. EXTERNAL OUTPUT
12. FUNCTION SETTING
12-1. INDOOR UNIT (Setting by remote controller)
13. OPTIONAL PARTS
............................................................................................ 01 - 17
........................................................................................... 01 - 18
....................................................................................... 01 - 19
...................................................................................... 01 - 20
........................................................................................... 01 - 23
........................................................... 01 - 16
........................................... 01 - 20
WALL MOUNTED TYPE
3.5
17%up
2.9
FEATURE1.
MODEL
A09-12LE
AS
ASA09LEC / AOR09LECN
ASA12LEC / AOR12LECN
FEATURES
Low outdoor air temperature correspondence
Corresponds to heating operation at -25°C outdoor air temperature
Heating
-25 to 24
Specification improvement that can be operated under
extreme low outdoor temperature (-25°C) without trouble
°C
Structural
improvements
New model
Improvement of coldproof specifications
of parts
WALL MOUNTED TYPE
A09-12LE
AS
Expansion of
mechanical space
Freezing
prevention of bace
Powerful Heating at low outdoor temperature
Keeping the high heating capacity at low outdoor temperature.
Heating capacity
(kW)
2.5 kW
Class
Heating capacity
(kW)
3.4 kW
Class
New model
Current model
3.3
4.1
4.1
2°C -7°C -15°C
Outdoor temperature
45%up
3.2
2.2
3.5
3.0
2.6
- (01 - 01) -
WALL MOUNTED TYPE
A09-12LE
AS
Energy-Efficiency classification A
Europe Energy-Efficiency classification A achieved
ALL DC
a
b
a
DC fan motor
PAM control
b
When operation starts, the machine operates at high voltage and high power
and when operation stabilizes, the set temperature is maintained at low voltage.
c
DC
compressor
Super quiet
Air flow mode can be set in 4 steps and more detailed air flow setting is possible.
Fan speed Noise level
Quiet 21
dB(A)
a
c
Front view
WALL MOUNTED TYPE
A09-12LE
AS
Easy maintenance
Easy maintenance and always clean. Troublesome maintenance has been made easy.
Since the front panel is easy to remove, maintenance is also easy.
Inner drying operation
This model is equipped with an inner drying function. After the power is turned off, the dry starts
inside the air conditioner. This prevents the growth of mold and bacteria inside the air conditioner.
During dew
condensation
Corresponds to maximum 20m long piping
Approx. 90 mins
Drying
- (01 - 02) -
WALL MOUNTED TYPE
A09-12LE
AS
Air conditioner filter features
Dirty Air
Ion Deodorization Filter
Apple-catechin Filter
Clean Air
WALL MOUNTED TYPE
A09-12LE
AS
Long-life Ion
Deodorization Filter
Applecatechin Filter
- (01 - 03) -
WALL MOUNTED TYPE
A09-12LE
AS
WIRELESS REMOTE CONTROLLER2.
FEATURES
Four kinds of timer setup
(On / Off / Program / Sleep) are possible.
Four kinds of timers. Easy operation.
Easy to change transmission code (4 patterns) by button operation.
Simple function setting
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
Select from four different timer programs (On/Off/Program/Sleep).
Program timer
The program timer operates the on and off timer once within a 24 hour period.
WALL MOUNTED TYPE
A09-12LE
AS
Sleep timer
The sleep timer function automatically corrects the temperature thermostat setting according to
the timer setting to prevent excessive cooling and heating while sleeping.
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 1 °C every hour. The set
temperature can rise up to a maximum of 2 °C.
Timer setting
60min.
1 °C
Switching remote controller signal code
After code change
Mixed-up
I.U. I.U. I.U. I.U.
ABC D
I.U. I.U. I.U. I.U.
ABCD
2 °C
Set
temp.
Heating operation
When the sleep timer is set, the set temperature
automatically drops 1 °C every 30 minutes. The set
temperature can drop to a maximum of 4 °C.
Set
temp.
30min.
60min.
1 °C
90min.
2 °C
3 °C
Timer setting
4 °C
Code selector switch eliminates unit
•
being wrongly switched.
(Up to 4 codes can be set.)
*I.U.=Indoor unit
- (01 - 04) -
WALL MOUNTED TYPE
A09-12LE
AS
FUNCTIONS
2
3
4
5
1
7
16
Display panel
17
20
21
11
10
12
13
14
15
A09-12LE
WALL MOUNTED TYPE
1
6
9
8
24
18
23
START/STOP button
2
MODE button
3
10°C HEAT button
4
SET TEMP. button ( / )
5
COIL DRY button
6
Signal transmitter
7
TIMER MODE button
8
TIMER SET ( / ) button
9
FAN b utton
10
ECONOMY button
11
START/STOP button
12
SET button
13
SWING button
14
RESET button
15
TEST RUN button
This button is used when installing the air conditioner, and
should not be used under normal conditions, as it will cause the
indoor unit's thermostat function to operate incorrectly.
If this button is pressed during normal operation, the indoor
unit will switch to test operation mode, and the Indoor Unit’s
OPERATION Indicator Lamp and TIMER Indicator Lamp will
begin to flash simultaneously.
To stop the test operation mode, press the START/STOP button
to stop the air conditioner.
16
CLOCK ADJUST button
17
Remote controller display
18
Transmit indicator
19
Clock display
20
ECONOMY display
21
Operating mode display
22
Timer mode display
23
Fan speed display
24
Temperature set display
25
COIL DRY display
26
SLEEP display
27
SWING display
AS
25
26
SPECIFICATION
SIZE (H x W x D mm) 176 x 56 x 18
WEIGHT ( g ) 110
ACCESSORY Holder
27
22
19
- (01 - 05) -
SPECIFICATIONS3.
WALL MOUNTED TYPE
A09-12LE
AS
Typ e
Model name ASA09LEC ASA12LEC
Power source 230V~ 50Hz
Available voltage range 198-26 4V ~ 50Hz
European energy label
Cooling
Capacity
Heating
Input power
Current
EER Cooling
COP Heating 4.27 4.12
SENSIBLE CAPACITY Cooling kW 1.60 2.20
POWER FACTOR
Moisture removal l/h (pints/h) 1.3 ( 2.7 ) 1.8 ( 3.8 )
Fan
Sound pressure level
Heat exchanger type
Enclosure
Dimensions
( H×W ×D )
Weight
Connection pipe
Operation range
Remote controller type Wireless
Drain pipe
Note :
Specifications are based on the following conditions.
Coolin g : Indoor tem perature of 2 7 °CDB / 19 °CWB. and outdoo r temperatu re of 35 °CDB /24 °CWB.
Heating : I ndoor temp erature of 2 0 °CDB / 15 °CWB. and outdoor t emperatu re of 7 °CDB/6 ° CWB.
Pipe leng th : 5 m, Height d ifferen ce : 0 m.(Outdoo r unit - Indoo r unit)
Cooling
Heating
Cooling
Heating
Airflow
rate
Type × Q'ty Cross flow fan×1
Motor output W 30
Net
Gross 259 × 840 × 328
Net
Gross 9.5 (20)
Size
Method Flare
Material PP + LLDPE
Size mm Outer diameter: 21 / Inner diameter: 13.6
Rated
Min-Max
Rated
Min-Max
Rated
Min-Max 0.25 - 1.27 0.25 - 1.40
Rated 0.75 0.97
Min-Max 0.25 - 1.60 0.25 - 1.99
Rated
Max 6.0 6.5
Rated 3.7 4.6
Max 9.5 9.0
Cooling
Heating 89 92
High
Cooling
Heating
Cooling
Heating
Dimensions
(H × W × D)
Fin pitch 1.1
Rows x Stages 2 × 16
Pipe type Copper
Fin type Aluminium
Material Polystyrene
Colour
Liquid
Gas Φ9.52 (Φ 3 /8 in.)
Cooling
Heating °C 30 or less
Med 595
Low 425
Quiet 285
High 735
Med 595
Low 425
Quiet 285
High
Med 38
Low 33
Quiet 21
High 43
Med 38
Low 33
Quiet 21
Cooling A A
Heating A A
kW 2.50 3.40
BTU/h 8,500 11,600
kW 0.5 - 3.2 0.9 - 3.9
BTU/h 1,700 - 10,90 0 3,100 - 13,300
kW 3.20 4.00
BTU/h 10,900 13,600
kW 0.5 - 4.5 0.9 - 5.6
BTU/h 1,700 - 15,300 3,100 - 19,100
kW
A
kW/kW
%
3
/h
m
dB(A)
mm
mm
kg(lb.)
mm
°C 18 to 32
%RH 80 or less
0.63 0.895
3.2 4.3
3.97 3.80
87 91
Approximate colour of MUNSELL N 9.25/
WALL MOUNTED
INVERTER HEAT PUMP
735
43
256 × 630 × 20
White
260 × 790 × 2 02
7.5 (1 7)
Φ6.35 (Φ 1/4 in.)
WALL MOUNTED TYPE
A09-12LE
AS
- (01 - 06) -
DIMENSIONS4.
WALL MOUNTED TYPE
A09-12LE
AS
MODEL :ASA09LE, ASA12LE
(Unit : mm)
WALL MOUNTED TYPE
A09-12LE
AS
- (01 - 07) -
WALL MOUNTED TYPE
A09-12LE
AS
INSTALLATION PLACE
Outline of
indoor unit
(Unit : mm)
63 or more
45 or more
WALL MOUNTED TYPE
A09-12LE
AS
52 or more
70 or more
48 or more
100 or more
1500 or more
1800 or more
- (01 - 08) -
WIRING DIAGRAMS5.
WALL MOUNTED TYPE
A09-12LE
AS
MODEL :ASA09LE, ASA12LE
WALL MOUNTED TYPE
A09-12LE
AS
TO OUTDOOR UNIT
- (01 - 09) -
CAPACITY TABLE6.
WALL MOUNTED TYPE
A09-12LE
AS
COOLING CAPACITY6-1.
MODEL :ASA09LE
AFR 12.5
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
°CDB TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
10 2.22 1.52 0.24 2.48 1.53 0.25 2.56 1.66 0.25 2.73 1.67 0.25 2.81 1.80 0.25 2.98 1.79 0.25 3.15 1.91 0.26
15 2.22 1.52 0.21 2.47 1.53 0.22 2.56 1.66 0.22 2.73 1.67 0.22 2.81 1.80 0.22 2.98 1.79 0.22 3.15 1.91 0.23
20 2.33 1.59 0.43 2.59 1.60 0.44 2.68 1.74 0.44 2.86 1.75 0.44 2.95 1.89 0.45 3.12 1.88 0.45 3.30 2.00 0.45
25 2.22 1.51 0.49 2.47 1.52 0.50 2.55 1.66 0.50 2.72 1.66 0.51 2.80 1.79 0.51 2.97 1.79 0.51 3.14 1.90 0.52
30 2.10 1.43 0.55 2.34 1.44 0.56 2.42 1.57 0.56 2.58 1.57 0.57 2.66 1.70 0.57 2.82 1.69 0.57 2.98 1.80 0.58
35 1.98 1.35 0.61 2.20 1.36 0.62 2.28 1.48 0.62 2.43 1.48 0.63 2.50 1.60 0.63 2.65 1.59 0.64 2.80 1.70 0.64
Outdoor temperature
40 1.84 1.26 0.67 2.05 1.27 0.68 2.12 1.38 0.69 2.26 1.38 0.69 2.33 1.49 0.70 2.47 1.49 0.70 2.61 1.58 0.71
43 1.72 1.18 0.68 1.92 1.19 0.69 1.99 1.29 0.69 2.12 1.29 0.70 2.18 1.40 0.70 2.31 1.39 0.71 2.44 1.48 0.72
MODEL :ASA12LE
AFR 12.5
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
°CDB TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
10 2.92 2.02 0.27 3.25 2.03 0.27 3.36 2.21 0.27 3.58 2.21 0.27 3.70 2.39 0.28 3.92 2.38 0.28 4.14 2.54 0.28
15 2.83 1.95 0.35 3.15 1.96 0.35 3.25 2.14 0.35 3.47 2.14 0.36 3.58 2.31 0.36 3.79 2.30 0.36 4.01 2.46 0.37
20 3.13 2.17 0.60 3.49 2.18 0.60 3.61 2.37 0.61 3.85 2.38 0.61 3.97 2.57 0.62 4.21 2.56 0.62 4.44 2.72 0.63
25 3.00 2.07 0.68 3.34 2.09 0.69 3.45 2.27 0.70 3.68 2.27 0.70 3.80 2.46 0.71 4.02 2.45 0.71 4.25 2.61 0.72
30 2.85 1.97 0.77 3.17 1.98 0.78 3.28 2.15 0.79 3.50 2.16 0.80 3.61 2.33 0.80 3.82 2.32 0.81 4.04 2.48 0.82
35 2.69 1.86 0.86 2.99 1.87 0.88 3.09 2.03 0.88 3.30 2.04 0.89 3.40 2.20 0.895 3.60 2.19 0.90 3.81 2.33 0.91
Outdoor temperature
40 2.47 1.71 0.92 2.75 1.72 0.94 2.84 1.87 0.94 3.03 1.87 0.95 3.12 2.02 0.96 3.31 2.01 0.97 3.50 2.14 0.98
43 2.27 1.57 0.92 2.53 1.58 0.93 2.62 1.72 0.93 2.79 1.72 0.94 2.88 1.86 0.95 3.05 1.85 0.96 3.22 1.98 0.97
Indoor temperature
Indoor temperature
WALL MOUNTED TYPE
A09-12LE
AS
AFR : Air fl ow rate (m3/min)
TC : Total capaci ty (kW)
SHC : Sens ible Heat c apacity (k W)
PI : Power Inpu t (kW)
- (01 - 10) -
WALL MOUNTED TYPE
A09-12LE
AS
HEATING CAPACITY6-2.
This table is created using the maximum capacity.
WALL MOUNTED TYPE
A09-12LE
AS
MODEL :
AFR 12.5
°CDB °CWB TC PI TC PI TC PI TC PI TC PI
-25 -26 2.88 1.07 2.81 1.09 2.74 1.11 2.68 1.14 2.61 1.16
-20 -21 3.21 1.28 3.13 1.31 3.05 1.34 2.98 1.36 2.90 1.39
-15 -16 3.48 1.50 3.39 1.53 3.31 1.56 3.23 1.59 3.15 1.62
-10 -11 3.75 1.71 3.66 1.75 3.57 1.78 3.48 1.82 3.39 1.85
Outdoor temperature
MODEL :
AFR 12.5
°CDB °CWB TC PI TC PI TC PI TC PI TC PI
-25 -26 3.07 1.09 3.00 1.12 2.92 1.14 2.85 1.16 2.78 1.18
-20 -21 3.35 1.28 3.27 1.31 3.19 1.34 3.11 1.36 3.03 1.39
-15 -16 3.73 1.47 3.64 1.50 3.56 1.54 3.47 1.57 3.38 1.60
-10 -11 4.2 2 1.6 6 4.12 1.70 4.02 1.73 3. 92 1.77 3.82 1.80
Outdoor temperature
ASA09LE
Indoor temperature
°CDB 16 18 20 22 24
-5 -7 4.0 3 1.70 3.9 4 1.73 3.84 1.7 7 3.75 1.80 3 .65 1.84
0 -2 4.14 1.70 4.04 1.73 3. 94 1.77 3.84 1.80 3.74 1.84
5 3 4.64 1.70 4.53 1.73 4.42 1.77 4.31 1.80 4.20 1.84
7 6 5.04 1.70 4.92 1.73 4.80 1.77 4.68 1.80 4.56 1. 84
10 8 5. 38 1.70 5.25 1.73 5.12 1.77 4.99 1. 80 4.87 1.84
15 10 5.69 1.70 5.55 1.73 5.42 1.77 5.28 1.80 5.15 1.84
ASA12LE
Indoor temperature
°CDB 16 18 20 22 24
-5 -7 4.65 1.73 4.54 1.77 4.43 1.80 4.32 1.84 4.20 1.87
0 -2 4.81 1.88 4.69 1.92 4.58 1.96 4.47 2.00 4.35 2.04
5 3 5.64 1.68 5.51 1.71 5.37 1.75 5.24 1.78 5.10 1.82
7 6 5.88 1.70 5.74 1.73 5.60 1.77 5.46 1.80 5.32 1.84
10 8 6.18 1.71 6.03 1.75 5.88 1.78 5.74 1.82 5. 59 1. 85
15 10 6.42 1.72 6.26 1.75 6.11 1.79 5.96 1. 83 5.81 1.86
AFR : Air flo w rate (m3/min)
TC : Total capaci ty (kW)
PI : Power Inpu t (kW)
- (01 - 11) -
FAN PERFORMANCE AND CAPACITY7.
WALL MOUNTED TYPE
A09-12LE
AS
AIR VELOCITY DISTRIBUTION7-1.
MODEL :ASA09LE, ASA12LE
2
1
0
1
2
012345678
3
2
1
2.0
2.0
1.0
1.0
0.5
Unit : m/s(m)
0.5
Unit : m/s(m)
TOP VIEW
Vertic al flap : Up
Horizo ntal flap : Cen ter
(m)
TOP VIEW
Vertic al flap : Up
Horizo ntal flap : Ri ght & Left
Note:
Fan spee d:High
Operation mode:FAN
Volt age: 230 V
WALL MOUNTED TYPE
A09-12LE
AS
0
1
2.0
2
3
012345678
3
2
1.0
0.5
Unit : m/s(m)
2.0
1
1.0
0.5
0
012345678
3
2
Unit : m/s(m)
2.0
1
1.0
0.5
(m)
SIDE VIEW
Vertic al flap : Up
Horizo ntal flap : Cen ter
(m)
SIDE VIEW
Vertic al flap : Down
Horizo ntal flap : Cen ter
0
012345678
(m)
- (01 - 12) -
WALL MOUNTED TYPE
A09-12LE
AS
AIR FLOW7-2.
MODEL :ASA09LE, ASA12LE
COOLING
WALL MOUNTED TYPE
A09-12LE
AS
Fan speed
HIGH
MED
LOW
QUIET
HEATING
Number of
rotations
(r.p.m)
1440
1200
920
680
735
204
432
595
165
350
425
118
250
285
79
168
Air flow
m³/h
l/s
CFM
m³/h
l/s
CFM
m³/h
l/s
CFM
m³/h
l/s
CFM
Fan speed
HIGH
MED
LOW
QUIET
Number of
rotations
(r.p.m)
1440
1200
980
700
735
204
432
595
165
350
465
129
274
295
82
174
Air flow
m³/h
l/s
CFM
m³/h
l/s
CFM
m³/h
l/s
CFM
m³/h
l/s
CFM
- (01 - 13) -
OPERATION NOISE8.
WALL MOUNTED TYPE
A09-12LE
AS
NOISE LEVEL CURVE8-1.
MODEL :ASA09LE
COOLING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
High
Quiet
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HEATING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
Quiet
High
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
WALL MOUNTED TYPE
A09-12LE
AS
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
MODEL :ASA12LE
COOLING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
High
Quiet
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
HEATING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
High
Quiet
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
- (01 - 14) -
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
WALL MOUNTED TYPE
A09-12LE
AS
SOUND LEVEL CHECK POINT8-2.
WALL MOUNTED TYPE
A09-12LE
AS
- (01 - 15) -
ELECTRIC CHARACTERISTICS9.
WALL MOUNTED TYPE
A09-12LE
AS
Model Name ASA09LE ASA12LE
Voltage V 230 ~
Power Supply
Frequency Hz 50
Max Operating Current A 9.5 11.0
Circuit breaker A 15
*)Wiring Spec
Connection Cable mm
2
1.5
Limited wiring length m 20
*) Wiring Spec
Selected Sample
(Selected based on Japan Electrotechnical Standard and Codes Committee E0005)
WALL MOUNTED TYPE
A09-12LE
AS
- (01 - 16) -
SAFETY DEVICES10.
WALL MOUNTED TYPE
A09-12LE
AS
Protection form
Circuit protection Current fuse (PCB)
Terminal protection Current (thermal) fuse
Fan motor protection Terminal protection program
Model
ASA09LE ASA12LE
3.15A 250V
3A 250V 102°C
MAX. 120±15°C
WALL MOUNTED TYPE
A09-12LE
AS
- (01 - 17) -
EXTERNAL INPUT & OUTPUT11.
WALL MOUNTED TYPE
A09-12LE
AS
Connector
CN303 Control input -
CN304 -
INPUT
OUTPUT REMARKS
See external input/
Operation status
output settings for
output
details.
EXTERNAL INPUT11-1.
CONTROL INPUT (Operation/Stop)
The air conditioner can be remotely operated by means of the following on-site work.
Operation is started at the following contents by adding the contact input of a commercial ON/OFF switch to a
connector on the external control PC board and turning it ON.
Initial starting after power turned on Starting other than at the left
Operation mode Auto changeover Mode at previous operation
Set temperature 24°C Temperature at previous operation
Air flow mode AUTO Mode at previous operation
Up-down air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Left-right air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Circuit diagram example
Indoor
control PC board Communication kit
Connector
1
Connected unit
Ex.) Switch
WALL MOUNTED TYPE
A09-12LE
AS
3
*10 m
Signal
Input signal
Indoor unit
Parts (Optional)
ON
OFF
Operation
Stop
Optional parts
Field supply
Parts name Model name
External connect kit UTY-XWZX
Communication box kit UTY-XCBXE
* For operating the EXTERNAL INPUT function, the Compact wall mounted type requires the communication kit
(UTY-XCBXE) in addition to the wire (UTY-XWZX).
Wire (External input) : UTY-XWZX
- (01 - 18) -
WALL MOUNTED TYPE
A09-12LE
AS
EXTERNAL OUTPUT11-2.
OPER ATION STATUS O UTPUT
An air conditioner operation status signal can be output.
Circuit diagram example
Indoor
control PC board Communication kit Connected unit
Connector
1
2
Optional parts
24V DC
V
*10 m
Ex.)Relay unit
Signal
Field supply
Ex.)Display
Relay
power
supply
WALL MOUNTED TYPE
A09-12LE
AS
Indoor unit
Output signal
Parts (Optional)
Operation
Stop
ON
OFF
Parts name Model name
External connect kit UTY-XWZX
Communication box kit UTY-XCBXE
* For operating the EXTERNAL INPUT function, the Compact wall mounted type requires the communication kit
(UTY-XCBXE) in addition to the wire (UTY-XWZX).
Wire (External input) : UTY-XWZX
- (01 - 19) -
FUNCTION SETTING12.
WALL MOUNTED TYPE
A09-12LE
AS
INDOOR UNIT (Setting by remote controller)12-1.
This procedure changes to the function settings used to control the indoor unit according to the •
installation conditions. Incor settings can cause the indoor unit malfunction.
After the power is turned on, perform the “FUNCTION SETTING” according to the installation •
conditions using the remote controller.
The settings may be selected between the following two: Function Number or Setting Value. •
Settings will not be changed if invalid numbers or setting values are selected. •
FUNCTION SETTING METHOD (for Wireless remote controller)
Entering the Function Setting Mode
While pressing the FAN button and SET TEMP. (
•
setting mode.
STEP 1
Setting the Remote controller Signal Code
Use the following steps to select the signal code of the remote controller. (Note
that the air conditioner cannot receive a signal code if the air conditioner has not
been set for the signal code.) The signal codes that are set through this process are
applicable only to the signals in the FUNCTION SETTING. For details on how to set
the signal codes through the normal process, refer to SELECTING THE REMOTE
CONTROLLER SIGNAL CODE.
Press the SET TEMP. (1.
→
→ Match the code on the display to the air conditioner signal code. (initially
set to
)
(If the signal code does not need to be selected, press the MODE button and
proceed to STEP 2.)
Press the TIMER MODE button and check that the indoor unit can receive signals 2.
at the displayed signal code.
Press the MODE button to accept the signal code, and proceed to STEP 2.3.
) ( ) button to change the signal code between →
) simultaneously, press the RESET button to enter the function
WALL MOUNTED TYPE
A09-12LE
AS
The air conditioner signal code is set to A prior to shipment.
The remote controller resets to signal code A when the batteries in the remote controller are replaced. If you use a
signal code other than signal code A, reset the signal code after replacing the batteries.
If you do not know the air conditioner signal code setting, try each of the signal codes (
find the code which operates the air conditioner.
STEP 2
Selecting the Function Number and Setting Value
Press the SET TEMP. (1.
number.
(Press the MODE button to switch between the left and right
digits.)
Press the FAN button to proceed to setting the value. 2.
Press the FAN button again to return to the function number
selection.)
Press the SET TEMP. (3.
value.
(Press the MODE button to switch between the left and right
digits.)
Press the TIMER MODE button, and START/STOP button, 4.
in the order listed to confirm the settings.
Press the RESET button to cancel the function setting 5.
mode.
After completing the FUNCTION SETTING, be sure to turn 6.
off the power and turn it on again.
After turning off the power, wait 10 seconds or more before turning on it again.
The FUNCTION SETTING doesn’t become effective if it doesn’t do so.
) ( ) buttons to select the function
Function number
) ( ) buttons to select the setting
CAUTION
→ → → ) until you
Setting value
- (01 - 20) -
WALL MOUNTED TYPE
A09-12LE
AS
CONTENTS OF FUNCTION SETTING
Follow the instructions in the Local Setup Procedure, which is supplied with the remote control, in •
accordance with the installed condition.
After the power is turned on, perform the Function Setting on the remote control.
The settings may be selected between the following two: Function Number or Setting Value. •
Settings will not be changed if invalid numbers or setting values are selected. •
Wall
Mounted
1-1 Cooler room temperature correction ●
1-2 Heater room temperature correction ●
1-3 Auto Restart ●
1-4 Indoor Room Temperature Sensor ●
1-5 Remote controller Signal Code ●
1-1. Setting the Cooler Room Temperature Correction
Depending on the installed environment, the room temperature sensor may require a correction.
The settings may be selected as shown in the table below.
(. . .Factory setting)
Setting Description Function Number Setting Value
Standard
Lower control 01
30
00
WALL MOUNTED TYPE
A09-12LE
AS
1-2. Setting the Heater Room Temperature Correction
Depending on the installed environment, the room temperature sensor may require a correction.
The settings may be changed as shown in the table below.
(. . .Factory setting)
Setting Description Function Number Setting Value
Standard
Lower control 01
Slightly warmer control 02
Warmer control 03
31
00
- (01 - 21) -
WALL MOUNTED TYPE
A09-12LE
AS
The following settings are also possible, depending on the operating conditions.
1-3. Auto Restart
(. . .Factory setting)
Setting Description Function Number Setting Value
Yes
No 01
40
00
1-4. Indoor Room Temperature Sensor Switching Function
(Only for Wired remote controller)
The following settings are needed when use the control by Wired remote controller temperature
sensor.
(. . .Factory setting)
Setting Description Function Number Setting Value
If setting value is “00”,
•
room temperature is controlled by the indoor unit temperature sensor.
If setting value is “01”,
•
room temperature is controlled by either indoor unit temperature sensor or remote controller unit sensor.
No
Yes 01
42
00
1-5. Setting the Remote controller Signal Code
Change the indoor unit Signal Code, depending on the remote controllers.
(. . .Factory setting)
Setting Description Function Number Setting Value
A
B01
C02
D03
44
00
WALL MOUNTED TYPE
A09-12LE
AS
REMOTE CONTROLLER SIGNAL CODE SETTING
Use the following steps to select the signal code of the remote controller.
(Note that the air conditioner cannot receive a signal code if the air conditioner has
not been set for the signal code.)
Press the START/STOP button until only the clock is displayed on the remote 1.
controller display.
Press the MODE button for at least five seconds to display the current signal code 2.
(initially set to
Press the SET TEMP. (3.
→
→ .
Match the code on the display to the air conditioner signal code.
Press the MODE button again to return to the clock display. The signal code will 4.
be changed.
If no buttons are pressed within 30 seconds after the signal code is displayed, the system returns to the original
clock display. In this case, start again from step 1.
The air conditioner signal code is set to A prior to shipment.
Contact your retailer to change the signal code.
The remote controller resets to signal code A when the batteries in the remote controller are replaced. If you use
a signal code other than signal code A, reset the signal code after replacing the batteries. If you do not know the
air conditioner signal code setting, try each of the signal codes (
operates the air conditioner.
).
) ( ) button to change the signal code between →
→ → → ) until you find the code which
- (01 - 22) -
OPTIONAL PARTS13.
WALL MOUNTED TYPE
A09-12LE
AS
Exterior Parts name Model No. Summary
Fine dust, invisible mold
spores, and harmful
microorganisms are absorbed
Apple-catechin
filter
UTR-FA16
onto the filter by static
electricity, and further growth
is inhibited and deactivated
by the polyphenol ingredient
extracted from apples.
The filter deodorizes by
Ion
deodorization
filter
UTR-FA16-2
powerfully decomposing
absorbed odors using the
oxidizing and reducing effects
of ions generated by the ultra
fine-particle ceramic.
Communication
box kit
UTY-XCBXE
Use to connect with optional
devices and air conditioner
PC board.
WALL MOUNTED TYPE
A09-12LE
AS
SUMOTUWETH FR
AM
PM
369
12 15 18 21
SA
Wired remote
controller
External
connect kit
UTB-UD
UTY-XWZX
Unit control is performed by
wired remote controller.
Use to connect with various
peripheral devices and air
conditioner PC board.
- (01 - 23) -
2.OUTDOOR UNIT
SINGLE TYPE :
AO
AO
R09LECN
R12LECN
DTR_AO069E_01
2010.10.05
2. OUTDOOR UNIT
CONTENTS
R09-12LE
OUTDOOR UNIT
AO
1. SPECIFICATIONS
2. DIMENSIONS
3. REFRIGERANT CIRCUIT
4. WIRING DIAGRAMS
.............................................................................................. 02 - 01
........................................................................................................ 02 - 02
............................................................................ 02 - 03
........................................................................................ 02 - 04
5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND
HEIGHT DIFERENCE
6. ADDITIONAL CHARGE CALCULATION
7. AIR FLOW
................................................................................................................ 02 - 08
8. OPERATION NOISE
8-1. NOISE LEVEL CURVE
8-2. SOUND LEVEL CHECK POINT
9. ELECTRIC CHARACTERISTICS
...................................................................................... 02 - 05
......................................... 02 - 07
......................................................................................... 02 - 09
.................................................................................... 02 - 09
..................................................................... 02 - 10
............................................................02 - 11
R09-12LE
OUTDOOR UNIT
AO
10. SAFETY DEVICES
............................................................................................ 02 - 12
R09-12LE
OUTDOOR UNIT
AO
SPECIFICATIONS1.
Typ e INVERTER HEAT PUMP
Model name AOR09LECN AOR12LECN
Power source 230V~ 50Hz
Available voltage range 198-26 4V ~ 50Hz
Starting current A 3.7 4.6
Airflow
Fan
Sound pressure level
Heat exchanger type
Compressor
Refrigerant
Refrigerant oil Type POE(VG74)
Enclosure
Dimensions
( H×W×D)
Weight
Connection pipe
Operation range
Note :
Specifications are based on the following conditions.
Coolin g : Indoor tem perature of 2 7 °CDB / 19 °CWB. and outdoo r temperatu re of 35 °CDB /24 °CWB.
Heating : I ndoor temp erature of 2 0 °CDB / 15 °CWB. and outdoor t emperatu re of 7 °CDB/6 ° CWB.
Pipe leng th : 5 m, Height d ifferen ce : 0 m.(Outdoo r unit - Indoo r unit)
rate
Type × Q'ty Propeller fan×1
Motor output W 50
Type × Q'ty Rotary ×1
Motor output W 750
Net
Gross 648 × 910 × 380
Net
Gross 36 (79) 39 (85)
Size
Method Flare
Max. length
Max. height difference 15
Cooling
Heating 1,760 1,700
Cooling
Heating 47 48
Dimensions
(H × W × D)
Fin pitch 1.3 1.4
Rows x Stages 1 × 20 2 × 24
Pipe type Copper
Fin type Aluminium
Typ e R 410A
Charge g 950 1,000
Material Steel
Colour
Liquid
Gas Φ9.52 (Φ 3/8 in.)
Cooling
Heating -25 to 24
3
m
/h
dB(A)
mm
mm
kg(lb.)
mm
m
°C
2,020 1,950
48 49
508 × 89 6 × 22 504 × 896 × 18.2
Approximate colour of MUNSELL 10YR 7.5/1.0
33 (72) 36 (79)
Beige
540 × 790 × 290
Φ6.35 (Φ 1/4 in.)
20(chargeless:15)
10 to 43
R09-12LE
OUTDOOR UNIT
AO
- (02 - 01) -
DIMENSIONS2.
MODEL :AOR09LE, AOR12LE
45.4
Drain port Ø20
(Unit : mm)
395
R09-12LE
OUTDOOR UNIT
AO
353
20
540
20
540
Pitch of bolts for installation
790
125
68
320
290
R09-12LE
OUTDOOR UNIT
AO
INSTALLATION PLACE
600 mm or more
100 mm or more
250 mm or more
(Service space)
100 mm or more
200 mm or more
If the space is larger that is stated, the condition will be the same as that are no obstacles.
- (02 - 02) -
REFRIGERANT CIRCUIT3.
g
MODEL :AOR09LE, AOR12LE
R09-12LE
OUTDOOR UNIT
AO
Compressor
3-Way
valve
Muffler
4-Way valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
2-Way
valve
Strainer
Expansion valve
Strainer
R09-12LE
OUTDOOR UNIT
AO
Cooling
Heatin
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
- (02 - 03) -
WIRING DIAGRAMS4.
MODEL :AOR09LE, AOR12LE
R09-12LE
OUTDOOR UNIT
AO
R09-12LE
OUTDOOR UNIT
AO
- (02 - 04) -
CAPACITY COMPENSATION RATE FOR PIPE LENGTH 5.
AND HEIGHT DIFERENCE
MODEL :AOR09LE
R09-12LE
OUTDOOR UNIT
AO
Height difference H
(m)
Height difference H
(m)
COOLING
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
HEATING
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
Pipe length (m)
57.5101520
15 - - - 0.913 0.922
10 - - 0.963 0.928 0.937
7.5 - 0.980 0.967 0.932 0.941
5 0.992 0.984 0.971 0.936 0.945
0 1.000 0.992 0.979 0.943 0.953
-5 1.000 0.992 0.979 0.943 0.953
-7.5 - 0.992 0.979 0.943 0.953
-10 - - 0.979 0.943 0.953
-15 - - - 0.943 0.953
Pipe length (m)
57.5101520
15
10
7. 5
5
0
-5
-7.5
-10
-15
- - - 0.990 0.969
- - 1.002 0.990 0.969
- 1.001 1.002 0.990 0.969
1.000 1.001 1.002 0.990 0.969
1.000 1.001 1.002 0.990 0.969
0.995 0.996 0.997 0.985 0.964
- 0.994 0.995 0.983 0.962
- - 0.992 0.980 0.960
- - - 0.970 0.950
R09-12LE
OUTDOOR UNIT
AO
Indoor unit
Connection pipe
1 Indoor unit is upper than outdoor unit.
Outdoor unit
Height difference H
Outdoor unit
Connection pipe
2 Indoor unit is under than outdoor unit.
- (02 - 05) -
Indoor unit
MODEL :AOR12LE
R09-12LE
OUTDOOR UNIT
AO
Height difference H
(m)
Height difference H
(m)
COOLING
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
HEATING
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
15
10
7. 5
5
0
-5
-7.5
-10
-15
15
10
7. 5
5
0
-5
-7.5
-10
-15
Pipe length (m)
57.5101520
---0.882 0.880
- - 0.943 0.896 0.894
- 0.968 0.947 0.900 0.898
0.992 0.972 0.951 0.903 0.901
1.000 0.980 0.958 0.911 0.909
1.000 0.980 0.958 0.911 0.909
- 0.980 0.958 0.911 0.909
- - 0.958 0.911 0.909
---0.911 0.909
Pipe length (m)
57.5101520
---0.952 0.932
- - 1.002 0.952 0.932
- 1.010 1.002 0.952 0.932
1.000 1.010 1.002 0.952 0.932
1.000 1.010 1.002 0.952 0.932
0.995 1.005 0.997 0.947 0.927
- 1.002 0.994 0.945 0.925
- - 0.992 0.942 0.923
---0.933 0.913
R09-12LE
OUTDOOR UNIT
AO
Indoor unit
Connection pipe
1 Indoor unit is upper than outdoor unit.
Outdoor unit
Height difference H
Outdoor unit
Connection pipe
2 Indoor unit is under than outdoor unit.
- (02 - 06) -
Indoor unit
R09-12LE
OUTDOOR UNIT
AO
ADDITIONAL CHARGE CALCULATION6.
MODEL :AOR09LE
Refrigerant type R410A
Refrigerant amount g 950
REFRIGERANT CHARGE
Pipe length m ~15 20
Additional charge g 0 (Charge less) +100
MODEL :AOR12LE
Refrigerant type R410A
Refrigerant amount g 1000
REFRIGERANT CHARGE
20g/m
R09-12LE
OUTDOOR UNIT
AO
Pipe length m ~15 20
Additional charge g 0 (Charge less) +100
20g/m
- (02 - 07) -
AIR FLOW7.
MODEL :AOR09LE
COOLING
R09-12LE
OUTDOOR UNIT
AO
Number of rotations
(r.p.m)
2020 m
850
HEATING
Number of rotations
(r.p.m)
750
561 l/s
118 9 C FM
1760
489
1036
MODEL :AOR12LE
COOLING
Number of rotations
(r.p.m)
Air flow
Air flow
Air flow
3
/h
m3/h
l/s
CFM
R09-12LE
OUTDOOR UNIT
AO
850
HEATING
Number of rotations
(r.p.m)
750
1950
542
114 8
170 0
472
1000
m3/h
l/s
CFM
Air flow
m3/h
l/s
CFM
- (02 - 08) -
OPERATION NOISE8.
NOISE LEVEL CURVE8-1.
MODEL :AOR09LE
R09-12LE
OUTDOOR UNIT
AO
COOLING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HEATING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
R09-12LE
OUTDOOR UNIT
AO
MODEL :AOR12LE
COOLING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HEATING
80
70
60
50
40
30
20
Octave ba nd sound pr essure leve l, dB:(0dB= 0.0002μbar)
10
0
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- (02 - 09) -
SOUND LEVEL CHECK POINT8-2.
R09-12LE
OUTDOOR UNIT
AO
R09-12LE
OUTDOOR UNIT
AO
- (02 - 10) -
R09-12LE
OUTDOOR UNIT
AO
ELECTRIC CHARACTERISTICS9.
Model Name AOR09LE AOR12LE
Power Supply
Starting Current A 3.2 4.0
*) Wiring Spec
Selected Sample
(Selected based on Japan Electrotechnical Standard and Codes Committee E0005)
Voltage V 230 ~
Frequency Hz 50
R09-12LE
OUTDOOR UNIT
AO
- (02 - 11) -
SAFETY DEVICES10.
R09-12LE
OUTDOOR UNIT
AO
Protection form
Current fuse (NEAR THE TERMINAL) 20A 250V
Circuit protection
Current fuse
(MAIN PRINTED CIRCUIT BOARD)
Fan motor protection Thermal protection program
Compressor protection
Thermal protection program
(DISCHARGE TEMP.)
Current fuse 5A 250V (2pcs)
Heater protection
Thermal protection switch
(HEATER TEMP.)
Model
AOR09LE AOR12LE
3.15A 250V
ON:95
+15
+15
°C
-10
°C
-10
OFF:100
OFF:110°C
ON: After 7 minutes
+3
OFF:55
ON:45
°C
-3
+4
°C
-4
R09-12LE
OUTDOOR UNIT
AO
- (02 - 12) -
Loading...
