Fujifilm MX-700 User's Guide

54321

Contents

SOFTWARE for

FUJIFILM DIGITAL CAMERA

for Windows

Windows

User's Guide

Thank you for purchasing this Fujifilm product.This User's Guide pro­vides detailed instructions on how to use the Software for Fujifilm
Digital Camera. For information on connecting a camera to your PC
and installing the software, refer to the Quick Start Guide.Read this
manual carefully to ensure that you use the software correctly.

Windows

54321

Contents

IMPORTANT

Be sure to read this page before using the Interface Set.

Notes on the Software and User's Guide

(1) Unauthorized transfer or duplication of all or any part of the enclosed soft-

ware or User's Guide is forbidden.

(2) The enclosed software and User's Guide can be used with only one de-

vice.

(3) Fuji Photo Film Co., Ltd. accepts no liability whatsoever for any loss or

injury incurred by the owner or by any third party while using a device with
the enclosed software or User's Guide.

(4) Every effort has been made to ensure that this product is flawless. If any

defect is found that is due to a fault on the part of the manufacturer, the
product will be replaced free of charge, at the discretion of Fuji Photo Film
Co., Ltd. No responsibility is accepted for defects not caused by the manu­facturer.

(5) The contents of the enclosed software and User's Guide are subject to

change without notice.

• Microsoft, MS-DOS and Windows are trademarks of the Microsoft Corporation of

• Windows is an abbreviated term referring to the Microsoft Windows Operating Sys-

• Adobe Photoshop and PhotoDeluxe are trademarks of Adobe Systems Incorporated

• SmartMedia™ is a trademark of Toshiba Corpration.

• All other company or product names are trademarks or registered trademarks of the

Do not attempt to play the CD-ROM enclosed with this product on
an audio CD player.
Doing so could damage your hearing or could damage your speak­ers or headphones.

the U.S. registered in the U.S. and other countries.

tem.

of the U.S.

respective companies.

Windows

54321

Contents

Preface

This User's Guide describes how to use the software (PICTURE SHUTTLE Data
Transfer Software and the DS SERIAL TWAIN Driver).

This User's Guide is written with the assumption that you have a basic under­standing of how to use a PC (personal computer). For basic information on us­ing your PC, refer to the manual supplied with your PC.

To use the software with your PC, perform the checks and preparatory steps
outlined in "Quick Start Guide" and then perform the following:

• Connect the camera to your PC.

• Install the software.

Notes

• Loss of power to the camera during data transfer could result in data corruption. If
you are connecting a camera to your PC, always connect an AC power adapter to
the camera beforehand.

• This software can be used with the MX / DX series digital cameras. However, some
functions may not be available on some models.

• Depending on your operating environment, the screens used in this manual and
screens you see may be slightly different.

Contents

PC and Camera Setup ................................................... (Quick Start Guide)

Refer to the Quick Start Guide for information on how to connect the camera to your PC and how to
install the software.

Chapter 1 PICTURE SHUTTLE Basics ............................................(P.1-1 to)

This chapter describes how to use PICTURE SHUTTLE to download images from the camera to your
PC, and how to edit and print out the downloaded images.

Chapter 2 PICTURE SHUTTLE Advanced Features ....................... (P.2-1 to)

This chapter describes the advanced features offered by the PICTURE SHUTTLE software once you
have mastered the basics.Advanced Features introduces functions that allow you to use the software
more efficiently, such as how to manage the folders in which you saved your downloaded images.

Chapter 3

This chapter describes how to use third-party software (such as Adobe Photoshop) to download images.

Using Other Software to Download Images from the Camera .....

(P.3-1 to)

Chapter 4 Troubleshooting ..............................................................(P.4-1 to)

This chapter tells you what to do if an error occurs. If an error does occur, check here first.

Chapter 5 Appendix ..........................................................................(P.5-1 to)

This appendix gives detailed explanations of the terminology used in this User's Guide.

1

Contents

Chapter 1

PICTURE SHUTTLE Basics

1–1

Windows

This chapter describes how to use PICTURE SHUTTLE to download images
from the camera to your PC, and how to edit and print out the downloaded
images.

Basic PICTURE SHUTTLE Operation ........................................... 1-2

About PICTURE SHUTTLE ...............................................................................1-2

Procedure Overview ................................................................................1-2

Connecting the Camera to Your PC for the First Time ...................................... 1-4

Switching Cameras............................................................................................1-6

Viewing Camera Images ................................................................ 1-7

Viewing the Camera Image List (Index).............................................................1-7

Index Window Button Functions ..............................................................1-8

Saving Images from the List (Index) ........................................................ 1-9

Opening and Viewing Images Stored in the Camera....................................... 1-11

Saving Opened Images .........................................................................1-12

Changing the Image Orientation......................................................................1-13

Erasing Unwanted Images ..............................................................................1-14

Closing the Image List (Index) ......................................................................... 1-15

Dealing with Multiple Folders on the Camera .................................................. 1-16

Editing Images.............................................................................. 1-17

Opening Images for Editing .............................................................................1-17

Cropping Images ............................................................................................. 1-21

Changing the Image Size and Orientation.......................................................1-22

Changing the Image Size by the Number of Pixels ...............................1-25

Correcting Image Colors and Brightness......................................................... 1-27

Applying Special Effects to Images ................................................................. 1-30

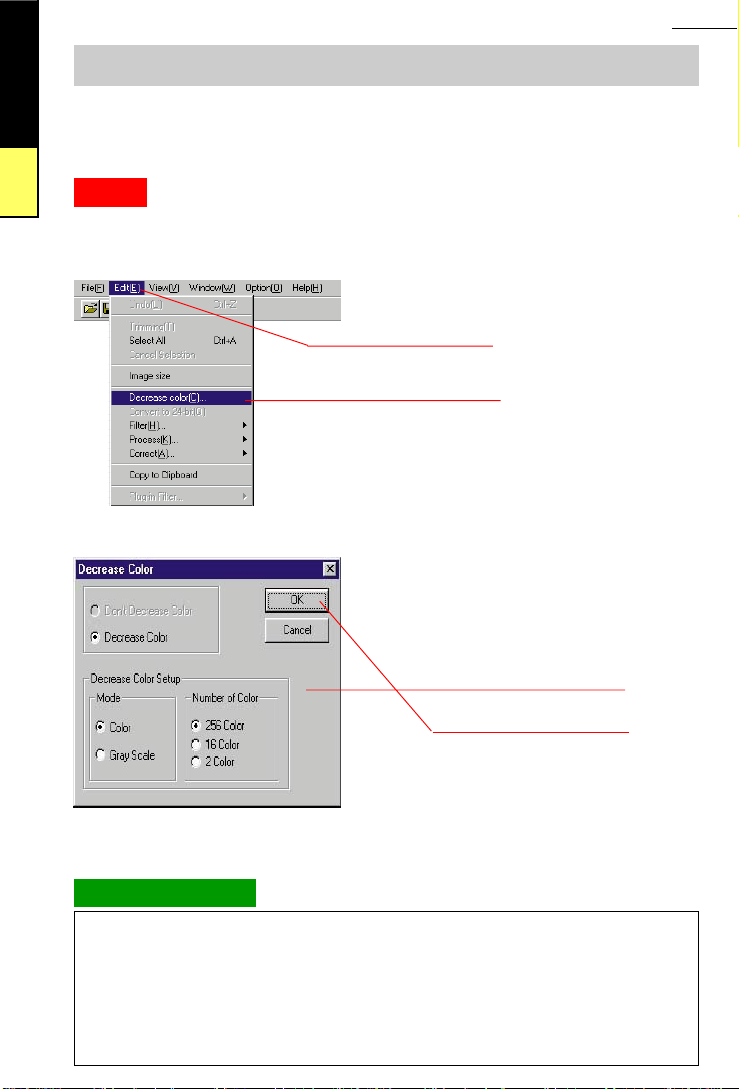

Reducing the Number of Image Colors ........................................................... 1-35

Saving Edited Images......................................................................................1-36

Printing Images ............................................................................ 1-37

Specifying the Paper .......................................................................................1-37

Printing ............................................................................................................1-38

1

Contents

Basic PICTURE SHUTTLE Operation

About PICTURE SHUTTLE

The PICTURE SHUTTLE Data Transfer Software features the following func­tions:

1–2

Windows

• Image data can be sent to and received from devices (digital cameras or printers) con­nected to your PC, allowing you to view and print out the images stored on a camera.

• By registering image folders on your hard disk, you can easily save, organize and view
lists of images downloaded from a camera.

• Images can be enhanced easily and you can apply special effects.

• Detailed information is displayed for image files recorded in Exif file format*.

Notes

If the connected camera does not support a PICTURE SHUTTLE func­tion, the screen button or menu for that function is disabled.

Procedure Overview

1. Double-click on the camera icon or folder icon.

To view a list (index) of the images on the
camera –> P.1-7.

* Displayed if an MX-2700 is connected to

the PC.

Image Source window

Camera icon

2. The Index window opens. Select the image you want to view

and click on the Open button.

Folder icon

1) Click to select.

2) Click on the Open button.

Index window

1

Contents

Windows

1–3

3. The Image window opens.

Image window

4. Select the desired special effect.

Emboss

Many other effects are available. For information on editing images, see "Editing
Images" on P.1-17.

Terminology Note

* Exif File Format

Select a special effect.

White Vignette

This is a still image format for full-color images used by digital still cameras. This
format also allows information such as the date and time of shooting to be recorded.

1

Contents

Connecting the Camera to Your PC for the

First Time

The first time you connect the camera to your PC, the camera icon appears in
the Image Source window.

1–4

Windows

1. Start up PICTURE SHUTTLE.

Click on the Start button.

Select "FUJIFILM" in
Programs, select PICTURE
SHUTTLE.

2. When the Hint window appears, click on OK.

If you tick the "Do not show this message"
checkbox before you click on OK, the Hint win­dow will no longer appear when you start up
PICTURE SHUTTLE.

Click here.

3. The Image Source window appears. Update the window to

show the camera icon.

1) From the View menu,

2) Select Update Information

Image Source window

1

Contents

4. The camera icon appears in the Image Source window.

* The window at left appears when an MX-

2700 is connected to your PC.

1–5

Windows

Connected camera icon.

1

Contents

Windows

1–6

Switching Cameras

When you connect a different camera, update the Image Source window so that
the icon for the new camera appears.

1. Update the Image Source window.

1) From the View menu,

2) Select Update Information.

Image Source Window

2. The new camera icon appears in the Image Source window.

* Window shown when you switch to

an MX-700.

Icon for the connected camera

1

Contents

Windows

1–7

Viewing Camera Images

Viewing the Camera Image List (Index)

You can use PICTURE SHUTTLE to view a list (index) of the camera images.

1. Double-click on the camera icon in the Image Source window.

Double-click

2. The Processing progress box appears.

Terminology Note

* Thumbnail Image

Tip

When the "Equipment is not connected or power is off" message appears...
Click on the OK button and check the following:

• Is the camera properly connected to the PC?

• Is the camera switched on?

• Is the camera set to PC mode?

• Is the SmartMedia card loaded into the camera correctly?

A small image displayed in screens such as index windows.

You can also view the Index window by selecting the camera icon and
then selecting Open from the File menu.

–> See "Quick Start Guide".

–> Refer to the Owner's Manual for the camera.

–> Refer to the Owner's Manual for the camera.

–> Refer to the Owner's Manual for the camera.

Click on the Cancel button to interrupt
downloading of the thumbnail images*.

1

Contents

Windows

3. The Index window appears.

,

If
nail, refer to P.2-14.

Index window

Thumbnail display area

Index Window Button Functions

Scroll bar

Selected image (Cick to select)

File name display area

Open button

Click on this button to open the selected image.

or

is shown instead of a thumb-

1–8

Rotate 90° Left button

Click on this button to rotate the image 90° counterclockwise.

Rotate 90° Right button

Click on this button to rotate the image 90° clockwise.

Show Details button

Click on this button to view detailed information on the image
(date and time of shooting, shutter speed, etc.).

Download Thumbnail button

Click on this button to download and display a thumbnail image
for the selected frame.

Play Video button

Click on this button to switch to Video Playback mode.In Video
Playback mode, the selected frame is displayed on the camera's
LCD monitor. (Supported on the DX-9 Zoom and DX-7.)

1

Contents

The name of the
currently selected
folder is displayed.

1–9

Select Folder

If there are multiple folders on the camera, use this list to select
the desired folder. (Supported on the MX series, DX-10 and
DX-8) (–> "Dealing with Multiple Folders on the Camera" P.1-

16)

Thumbnail display area

Shows thumbnail images.

Windows

File name display area

Shows the file name.

Scroll bar

Used to view images that are not currently shown as they are
above or below the current window.

Saving Images from the List (Index)

You can download an image from the camera and save it to the hard disk on
your PC by dragging the image file from the Index window and dropping it onto
the desktop.Use this method wherever possible when you are transferring cam­era images directly to your PC.If you open the selected image and then save it,
the JPEG image is compressed again, thereby degrading the image quality.

1. Click on the image you want to save to select it.

You can select multiple images by holding down
the Ctrl key as you click on the images. Y ou can
also select all the images by selecting Select All
in the Edit menu (or by pressing Ctrl+A).

Selected image

1

Contents

Windows

1–10

2. Drag the thumbnail and drop it on the folder in which you

want to save the image.

In this example, the screen shows a folder called
"New Folder" that has already been created on
the desktop.

Save to this folder.

3. The image is saved in the destination folder.

Double-click to open.

Check that the image is saved.

Terminology Note

* Drag and Drop

The process of moving or copying an icon or thumbnail image by clicking the mouse
button over the object, moving the mouse to another location with the button held
down, and then releasing the mouse button.

1

Contents

Opening and Viewing Images Stored

in the Camera

Here, “Images stored in the camera” are images that are recorded on a
SmartMedia in the camera.This section describes how to download images in
the Index window from the camera and open them.

1–11

Windows

1. Click on the thumbnail for the image you want to open to

select it.

You can select multiple images by holding down
the Ctrl key as you click on the images. Y ou can
also select all the images by selecting Select All
in the Edit menu (or by pressing Ctrl+A).

Selected image

2. Click on the Open button.

Tip

Click on the Open button.

You can also view the image by
double-clicking on the thumbnail
or by selecting Open from the File
menu.

3. The image is downloaded and opened.

Image window

1

Contents

Windows

1–12

Saving Opened Images

This section describes how to name an opened image and save it.

1. Click on in the toolbar.

Click here.

Tip

You can also save the image by selecting "Save As..." in the File menu.

2. The Save window appears.

1) Select the location to which the image is
to be saved.

2) Type in the file name.

3) Select the file format.

4) Click on the Save button.

* Select the format for the saved file from the Save as type: list box. The only available file

formats are BMP, Exif-TIFF , Exif-JPEG (High Quality), Exif-JPEG (Medium Quality) and
Exif-JPEG (Low Quality).

* When you save a file in the Exif-JPEG format, you can select from 3 image quality

settings. However, because images are compressed in the Exif-JPEG format, the image
quality suffers.

Notes

If the number of colors specified in the Display Properties window on
your PC is 256 or less, you cannot save images in the Image window in
any format other than BMP.
To save an image as a JPEG or TIFF file, set "256 Color Display" in the
Option menu to OFF and then download and save the image again. This
only affects the quality of the colors displayed on the screen and does
not affect the image data itself.

Terminology Note

* Exif File Format

This is a still image format for full-color images used by digital still cameras. This
format also allows information such as the date and time of shooting to be recorded.

1

Contents

Windows

1–13

Changing the Image Orientation

If an image is displayed on its side, use the procedure below to rotate it to an
upright orientation.

1. Click on the image to be rotated to select it.

Click to select.

Device Index window

2. Click on the button to rotate the image to the left or the
button to rotate it to the right.

Click to rotate right.

Click to rotate left.

Tip

This rotation only applies in the Device Index
window.
If you open a rotated image in an Image window,
it does not appear rotated.

You can also rotate an image by
selecting Rotate Left or Rotate
Right in the Tools menu.

1

Contents

Windows

1–14

Erasing Unwanted Images

Y ou can erase any displayed images that you no longer need. When you erase
the thumbnail image in the Index window, the image stored in the camera is also
erased.

1. Click on the image to be erased to select it.

Y ou can select multiple images by holding down
the Ctrl key as you click on the images. Y ou can
also select all the images by selecting Select All
in the Edit menu (or by pressing Ctrl+A).

Click on the image to be erased to select it.

2. Select Delete from the File menu.

1) From the File menu,

2) Select Delete.

3. A confirmation dialog box appears.

To erase the selected image, click on the OK button.
Click on the Cancel button to return to the previous
screen without erasing the image.

Click on the OK button.

The image is erased.

1

Contents

Windows

1–15

Closing the Image List (Index)

This section describes how to close the currently displayed Index window.

1. Click on the to close the window.

Click here.

Tip

You can also close the Index window by selecting Close from the File
menu.

1

Contents

Dealing with Multiple Folders

on the Camera

If there are multiple folders on the SmartMedia in the camera, you can select the
folder to be opened from the pull-down folder menu.

1–16

Windows

You can use this feature when images shot on two or more models of Fujifilm
digital camera are stored on the same SmartMedia.
The folder selection menu is available for the MX series, DX-10 and DX-8.

1. Click and hold down the mouse button on the folder selection
menu.

A list of the folders stored on the camera ap­pears.

Folder selection menu.

* The folder for images shot using Fujifilm digital cameras is “IMFIDX10”, “IM01FUJI” or

“DCIM\100_FUJI” etc.

2. Select the folder you want to open and release the mouse
button.

The images in the folder are displayed.

Select the folder you want to open.

1

Contents

Editing Images

Opening Images for Editing

To edit an image, you must use the fully opened image (the image in the Image
window) rather than the thumbnail (the image in the Index window).

1–17

Windows

Notes

This section describes how to open images stored on a camera connected to
your PC and images saved in a registered folder. (–> See "Registering Folders
in the Image Source Window" on P.2-2.)

If the number of colors specified in the Display Properties window on
your PC is 256, images are automatically reduced to 256 colors. Once
this has been done, you cannot use the image editing options described
below with those images. Set "256 Color Display" in the Option menu to
OFF and then download and edit the images again.
Setting "256 Color Display" to OFF only affects the quality of the colors
displayed on the screen and does not affect the image data itself.

1. Start up PICTURE SHUTTLE.

1) Click on the Start button.

2) From "FUJIFILM" in Programs,
select PICTURE SHUTTLE.

2. Open the Index window that contains the image you want to
edit.

T o open the images on the camera, double-click on
the camera icon
T o open an image saved in a registered folder in the
Image Source window, double-click on the folder
icon. See P.2-2 for information on how to register a
folder.

Double-click to open an image in
a folder registered on your PC.

Double-click to open an image
on the camera.

1

Contents

3. Open the image.

1–18

Y ou can select multiple images by hold­ing down the Ctrl key as you click on
the images. Y ou can also select all the
images by selecting Select All in the
Edit menu (or by pressing Ctrl+A).

Windows

1) Select the image to be opened.

2) Click on the Open button.

4. Open the Image window.

Image window

About the Toolbar

Toolbar

From this window, you can edit, save
or print the image.
–> See P.1-12 for information on sav-

ing images.

–> See P.1-37 for information on print-

ing images.

Notes

• If you open the Image
window and then save the
image as an Exif-JPEG
file, the image quality is
degraded since the image
is compressed again.

• If you want only to trans­fer a camera image, trans­fer the image by dragging
it from the Index window
and dropping onto the
desktop without opening
the Image window.

Copies the image to the clipboard (–> See P.2-26.)

Cancels the modifications and restores the image to its previous state.

Click to crop an image (–> See P.1-21.)

Prints the image (–> See P.1-37.)

Saves the image (–> See P.1-12.)

Opens the Image window (–> See P.1-19.)

1

Contents

Windows

1–19

• Opening Images Directly from the Image Window

You can also open images stored on your hard disk directly from the Image
window.

1. Open the Image window.

See P.1-11 for information on how to
open the Image window.

Image window

2. Click on in the toolbar.

3. The Open File dialog box appears.

Click here.

1) Select the file to be opened.

Tip

Specify the file you want to open and
click on the Open button.
* Only BMP , Exif*-JPEG, Exif-TIFF and

PCD* files can be opened.

* PCD refers to the file format used on

photo CDs.

2) Click on the Open button.

You can also open the
image by selecting Open
from the File menu.

1

Contents

Windows

1–20

4. The image in the specified file opens.

Opened image

Terminology Note

* Exif File Format

This is a still image format for full-color images used by digital still cameras. This
format also allows information such as the date and time of shooting to be recorded.

1

Contents

Windows

Cropping Images

This section describes how to crop the image currently displayed. Trimming al­lows you to discard any unwanted parts of the image and keep only the required
portion. This is useful when you want to change the image layout or when the
original shot includes unnecessary parts.

Notes

1. Specify the area to be cropped.

2. Click on in the toolbar.

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

Drag* the mouse over the area you want to be
cropped. A dotted line appears around the se­lected area.

Drag to select.

1–21

Terminology Note

* Drag

Click here.

The area outside the dotted lines is cropped off.

Tip

The action of moving the mouse with the mouse button held down.

You can also crop the image by se­lecting Cropping from the Edit
menu.

1

Contents

Changing the Image Size and Orientation

Y ou can use PICTURE SHUTTLE to change the size and orientation of an image.

1–22

Windows

Notes

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

1. Select Process from the Edit menu.

1) From the Edit menu,

2) Select Process.

2. Select an item from the pull-down menu.

* To specify a portion of the image to

be edited, drag* the mouse over the
target area and then select Process.

Select one.

1

Contents

• Scale

The function enlarges the currently displayed image up to 200% or reduces it
down to 10% of its current size.

2) Click on the Execute button.

1–23

Windows

1) Type in the scale from the keyboard.

* If you want to specify a portion of the image for enlargement or reduction, trim the

specified area before using the Scale function.

* Ensure that scale setting (%) is such that the size of the image when enlarged or

reduced is no less than 64 x 64 pixels* and no more than 3584 x 3584 pixels. Images
cannot be enlarged or reduced to sizes outside this range.

* You can also change the image size by changing the number of pixels. (See "Chang-

ing the Image Size by the Number of Pixels" on P.1-25.)

Terminology Note

* Drag

* Pixel

The action of moving the mouse with the mouse button held down.

Picture element. Denotes the smallest unit used in computer graphics.

1

Contents

Windows

1–24

• Flip

This function inverts the image 180° either vertically or horizontally.

2) Click on the Execute button.

1) Select Flip Vertical or Flip Horizontal.

* If you specify a portion of the image to be flipped, only the selected portion is flipped.

1

Contents

Windows

• Rotate

This function rotates the displayed image through an angle between 1° and
359°.

* If you want to specify a portion of the image to

be rotated, trim the specified area before using
the Rotate function.

1) Type in the rotation angle from the keyboard.

2) Click on the Execute button.

1–25

Changing the Image Size by the Number of Pixels*

This section describes how to change the size of an image by changing the
number of vertical and horizontal dots (pixels) in the image.

Notes

1. Select Image size... from the Edit menu.

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

1) From the Edit menu,

2) Select Image size...

1

Contents

Windows

1–26

2. Specify the width, height and Background color, and then
click on the Execute button.

1) Type in the width and height from the
keyboard.

2) Select the Background Color.

3) Click on the Execute button.

3. The image size changes.

A margin is added to the image when you
alter the ratio of width to height in the new im­age size. This is to ensure that the aspect ratio
between height and width is maintained when
you vary the size of the image. In the example
shown at left, the image is displayed at 640 x
240 pixels including the backgrounds.

Terminology Note

* Pixel

Background

Picture element. Denotes the smallest unit used in computer graphics.

1

Contents

Correcting Image Colors and Brightness

Use the procedure below to correct image features such as the brightness, the
image colors and the level of bluring.

1–27

Windows

Notes

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

1. Select Correct from the Edit menu.

1) From the Edit menu,

2) Select Correct.

Tip

To specify a portion of the image to be corrected, drag the mouse over
the target area and then select Correct.

2. Select an item from the pull-down menu.

Terminology Note

* Drag

Select one.

Refers to the action of moving the mouse with the mouse button held down.

1

Contents

Windows

1–28

• Blur

This function blurs the entire image or a portion selected by dragging the mouse.
You can select the level of bluring.

1) Select the level of bluring.

2) Click on the Execute button.

• Sharpness

This function sharpens the entire image or a portion selected by dragging the
mouse. You can select either strong or weak sharpening.

1) Select the level of sharpness.

2) Click on the Execute button.

1

Contents

Windows

• Tone Adjustment

This function adjusts the tones over the entire image or in a portion selected by
dragging the mouse.

Slide bar

2) Click on the Execute button.

1) Set the hue, saturation and brightness.

Y ou can specify settings by moving the
slider bar or by typing in a value. The
effect is the same.
The box on the right of the window
shows the adjusted image.

• Brightness / Contrast

This function allows you to adjust the brightness and contrast over the entire
image or in a portion selected by dragging the mouse.

Y ou can specify settings by moving the
slider bar or by typing in a value.
The effect is the same.
The box on the right of the window
shows the adjusted image.

1) Set the contrast and brightness.

1–29

• Color Balance

This function allows you to adjust the balance of red, green and blue over the
entire image or in a portion of the image selected by dragging the mouse.

2) Click on the Execute button.

Y ou can specify settings by moving the
slider bar or by typing in a value. The
effect is the same.
The box on the right of the window
shows the adjusted image.

1) Set the color balance.

2) Click on the Execute button.

1

Contents

Applying Special Effects to Images

PICTURE SHUTTLE allows you to apply a range of special effects to an image.

1–30

Windows

Notes

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

1. Select Filter from the Edit menu.

1) From the Edit menu,

2) Select Filter.

* T o apply special effects to a specific portion of

the image, drag* the mouse over the target area
and then select Filter. If no area is selected,
the effect is applied to the entire image.

2. Select an item from the pull-down menu.

Select one.

Terminology Note

* Drag

Refers to the action of moving the mouse with the mouse button held down.

1

Contents

Windows

1–31

• Oil Painting

This filter gives the look of an oil painting to the entire image or to an area
selected by dragging the mouse.

• Emboss*

This filter applies a monotone effect with raised outlines to the entire image or to
an area selected by dragging the mouse.

Terminology Note

* Emboss

1) Select the embossing color.

2) Click on the Execute button.

Simulation of a raised effect in text or graphics.

1

Contents

Windows

1–32

• Mosaic

This filter applies a mosaic tiling effect to the entire image or to an area selected
by dragging the mouse. Select the size of the mosaic tiling and the click on the
Execute button.

1) Select the mosaic size.

2) Click on the Execute button.

• Soft Focus

This filter applies a soft focus effect to the entire image or to an area selected by
dragging the mouse.

• Sepia Tone

This filter applies sepia tones to the entire image or to an area selected by
dragging the mouse.

• White Vignette

This filter fades a circular area of the image out to a white border. If you have
selected an area of the image by dragging the mouse, white vignetting is only
applied to the selected area.

1

Contents

• Red-Eye*

This filter corrects the red-eye phenomenon in photographs of people.

1. Specify the area in which the red-eye filter is to be applied.

1–33

Windows

1) Drag the mouse over the target area.

2) Click inside the selected area.

The selected area is shown enlarged.

Terminology Note

* Red-Eye

The phenomenon by which a person's eyes appear red when they are photographed
in low-light conditions using a flash. Red-eye is caused by the light of the flash reflect­ing off the inside of the eye.

1

Contents

Windows

1–34

2. Click on the red portion of the first eye.

* If only one eye requires correction, click on Execute

after you click on the first eye.

Click.

3. Click on the red portion of the second eye and then click on
the Execute button.

Click on the second eye.

4. The red-eye replacement color window appears.

A Processing window appears while red-eye correction is in progress. When processing
finishes, an image in which the selected red eyes are corrected appears.

1) Select the red-eye replacement color.

2) Click on the Execute button.

1

Contents

Reducing the Number of Image Colors

You can reduce the number of colors in the displayed image to 256, 16 or 2
colors. You can select to show the image in fewer colors or fewer gray scale*
levels.

1–35

Windows

Notes

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

1. Select Decrease color from the Edit menu.

The Decrease Color dialog box appears.

1) From the Edit menu,

2) Select Decrease color.

2. Set the color reduction* settings.

Select Color or Gray Scale as the mode and
256, 16 or 2 as the number of colors.

1) Set the mode and the
number of color.

2) Click on the OK button.

Terminology Note

* Gray scale

* Color Reduction

An image that contains no color information, such as a black and white photograph.

A process that allows an image to be represented using fewer colors (256, 16 or 2
colors). This process reduces the file size but also degrades the image quality.

1

Contents

Saving Edited Images

This section describes how to name and save the currently displayed image.

1–36

Windows

1. Click on

Click here.

in the toolbar.

2. The Save window appears.

Notes

If the number of colors specified in the Display Properties window on
your PC is 256 or less, you cannot save images in the Image window in
any format other than BMP.
To save an image as a JPEG or TIFF file, set "256 Color Display" in the
Option menu to OFF and then download and save the image again. This
only affects the quality of the colors displayed on the screen and does
not affect the image data itself.

Tip

* Select the format for the saved file from the Save

as type : list box. The only available file formats
are BMP, Exif*-JPEG (High Quality), Exif-JPEG
(Medium Quality), Exif-JPEG (Low Quality) and
Exif-TIFF.

* When you save a file in the Exif-JPEG format, you

can select from 3 image quality settings. However,
because images are compressed in the Exif-JPEG
format, the image quality suffers.

1) Select the location to

2) Type in the file name.

3) Select the file format.

4) Click on the Save button.

You can also save an image by
selecting Save As... from the File
menu.

which the image is to be saved.

Terminology Note

* Exif File Format

This is a still image format for full-color images used by digital still cameras. This
format also allows information such as the date and time of shooting to be recorded.

1

Contents

Windows

1–37

Printing Images

Specifying the Paper

This section describes how to set the print size and specify the paper.

1. Select Printer Setup from the File menu.

1) From the File menu,

2) Select Printer Setup.

2. Specify the paper settings.

* The sample window shown at left is for illustra-

tion purposes only. The details shown in the
actual window will differ depending on the
printer.

* For details of how to specify the paper settings,

refer to the user's manual for the printer con­nected to your PC.

1) Specify the settings.

2) Click on the OK button.

1

Contents

Windows

Printing

This section describes how to send the image shown in the Image window to the
printer.

1. Close the PICTURE SHUTTLE camera Index window currently
shown.

.

Notes

You may not be able to print while
a PICTURE SHUTTLE camera In­dex window is open.

1–38

Index window

2. Click on in the toolbar.

Click here.

Notes

If the number of colors specified in the Display Properties window on
your PC is 256, the image is also printed in 256 colors. This is because
all the images displayed in the Image window are automatically reduced
to 256 colors if the 256 Color Display option in the Option menu is set to
ON.
If you want to print an image in full color in a 256-color environment,
manually set the 256 Color Display option in the Option menu to OFF.
Then redisplay and print the image.
However, bear in mind that setting the 256 Color Display option to OFF
in a 256-color environment can distort the colors shown on the screen.
This is only a display problem however, and does not adversely affect
the actual image data or the printed image.

Click to close.

Tip

You can also print an image by se­lecting Print from the File menu.

1

Contents

3. The Print window appears.

1–39

Refer to the explanations below for infor­mation on specifying the settings in the
Print window.

Windows

1) Select one. 3) Click on the Execute button.

[Print all printable area (image cropped)]

This prints the image enlarged or reduced so that there is no margin around the image.
Any part of the image that overlaps the paper is cropped.

[Print entire image at maximum size (margins added)]

This prints the image enlarged or reduced so that the image does not overlap the paper.
No part of the image is cropped. Margins are added when the ratio of width to height
differs from that of the paper used for printing.

[Set Scale]

Y ou can use this setting to specify the enlargement or reduction ratio. Areas of the image
that overlap the paper are cropped. Even when you specify the same scale, the size of the
printed image may differ depending on the printer resolution.

[Make image horizontal direction center]

Ticking this checkbox prints the image centered horizontally on the page. If this checkbox
is not ticked, the image is printed flush left on the page (print area).

[Make image vertical direction center]

Ticking this checkbox prints the image centered vertically on the page. If this checkbox is
not ticked, the image is printed at the top of the page (print area).

Notes

2) Set the Centering.

To set the scale when you are using a Fujifilm NX-5, NX-5D, NC-3D or
NC-2 printer, switch the Smoothing function in the printer driver off first.
If Smoothing is left on, the image will be printed smaller than the normal
size.

Windows

2

Contents

2–1

Chapter 2

PICTURE SHUTTLE Advanced Features

This chapter describes the advanced features that allow you to use the software
more effectively, such as how to manage the folders in which you saved your
downloaded images.

Using the Advanced Functions .................................................... 2-2

Registering Folders in the Image Source Window ............................................2-2

Deregistering Folders ........................................................................................ 2-5

Transferring Images to a Registered Folder ...................................................... 2-6

Saving Edited Images to a Folder .....................................................................2-9

Opening Images Saved in a Folder ................................................................. 2-11

Erasing Unwanted Images ..............................................................................2-13

When Thumbnail Images do not Appear .........................................................2-14

Using the Advanced Functions .................................................. 2-16

Viewing Image Information

(Date and Time of Shooting, etc.)....................................................................2-16

Viewing Camera and Folder Information .........................................................2-17

Changing Image File Names ...........................................................................2-19

Setting Copyright, Date and Time to the Camera............................................ 2-22

Viewing Images on the Camera's LCD Monitor............................................... 2-24

Editing Non-24-bit Image Data ........................................................................ 2-25

Pasting Images into Text Documents .............................................................. 2-26

Customizing PICTURE SHUTTLE ............................................... 2-29

Problems Downloading Camera Images <Communications Settings> ..........2-29

When Thumbnails are Not Required <Index Settings> ................................... 2-30

Changing to Detail Display Modefor Index Windows....................................... 2-31

Changing the Image Window Display.............................................................. 2-32

Using Additional Special Effects for Images .................................................... 2-35

Before Opening Photo CD Images ..................................................................2-36

Windows

2

Contents

2–2

Using the Advanced Functions

Registering Folders in the Image Source Window

By registering a variety of folders in the Image Source window, you can set up
libraries for viewing different images. You can also organize your image files by
creating folders for particular trips, events or subjects.

1. Start up PICTURE SHUTTLE and display the Image Source
window. (See P.1-4 for information on starting up PICTURE SHUTTLE.)

Image Source window

2. Select Create Folder from the File menu

1) From the File menu,

2) Select Create Folder.

2

Contents

3. The Register Folder dialog box appears. Create a folder.

If you have already created the folder
to be registered on your PC, you do
not need to create a new folder. Se­lect the folder to be registered and
proceed to step 5.

2–3

Windows

2) Click on the Create Folder button.

1) Select the location in which the folder is to be created.

4. Type in the folder name.

1) Type in the folder name from
the keyboard.

Confirm the name by pressing
the Enter key on the keyboard.

5. Double-click on the folder to be registered to open it, and
then click on the Register button.

1) Double-click on the folder to be
registered.

2) Click on the Register button.

2

Contents

6. The new folder is registered.

2–4

Registered folder

Windows

Index window for the registered folder

Windows

2

Contents

2–5

Deregistering Folders

You can deregister a folder that you no longer need. This cancels the folder's
PICTURE SHUTTLE registration but does not delete the folder itself or the im­age files in the folder.

1. Select the folder you want to deregister.

You can select multiple folders by
holding down the Ctrl key as you click
on the folders.

Click on the folder to be deregistered.

2. Select Delete Folders from the File menu.

1) From the File menu,

2) Select Delete Folders.

3. The deregistration confirmation screen appears.

Click on the OK button to deregister
the folder. Click on the Cancel button
to cancel the deregistration.

Click on the OK button.

The folder is deregistered.

Windows

2

Contents

2–6

Transferring Images to a Registered Folder

You can copy (transfer) an image file to another Index window by dragging and
dropping the image file. Y ou can also use drag and drop to copy an image file to
the desktop.

1. Open the Index window for the connected camera.

Double-click on the camera icon.

2. Open the Index window for the folder in which you want to
save the image.

Double-click on the folder icon.

2

Contents

3. Select the image to be transferred and then drag it to the
destination folder and drop it.

Y ou can also transfer multiple images.
To select multiple images, hold down
the Ctrl key as you click on the im­ages. You can also select all the im­ages by selecting Select All in the Edit
menu (or by pressing Ctrl+A).
* This procedure only copies images.

It does not erase them.

2–7

Windows

1) Select the image to be transferred.

2) Drag and drop the image to copy it.

Windows

2

Contents

2–8

• Transferring Images to the Desktop

Y ou can also use drag and drop to transfer images between the desktop and an
Index window.

Copy the image from the Index win­dow to the desktop.

2) Drag and drop the image to copy it.

1) Select the image to be transferred.

Copy the image from the desktop to
the Index window.

1) Drag the desired image,

2) And drop it in the Index window
to copy it.

When a file with the same name already exists in the destination folder

Click on Auto to have PICTURE
SHUTTLE automatically rename the file.

Cancels copying

Overwrites the existing file

Automatically renames and copies the file

Windows

2

Contents

Saving Edited Images to a Folder

This section describes how to save an image to a registered folder after you
have changed the image size or applied special effects to the image.

Notes

1. Edit the image. (See P.1-17 for information on editing images.)

2. Click on in the toolbar.

If your monitor is set to 256 colors or less, this function cannot be used.
(See "256 Color Display" on P.2-34 )

Edited image

2–9

3. The Save dialog box appears.

* Select the format for the saved file from the Save as type: list box. The only available file

formats are BMP, Exif*-JPEG (High Quality), Exif-JPEG (Medium Quality), Exif-JPEG
(Low Quality) and Exif-TIFF.

* When you save a file in the Exif-JPEG format, you can select from 3 image quality

settings. However, because images are compressed in the Exif-JPEG format, the image
quality suffers.

Click here.

Tip

Select a registered folder and save the
file.

1) Select a registered folder.

2) Type in the file name.

3) Select the file format.

4) Click on the Save button.

You can also save an ed­ited image by selecting
Save As... from the File
menu.

2

Contents

4. Open the Index window for the saved folder and check the
image files. (See P.2-11.)

To display the thumbnail image,
click on the frame you want to dis-

play then click on the button.

2–10

Windows

Click to display the thumbnail.

Saved image

Terminology Note

* Exif File Format

This is a still image format for full-color images used by digital still cameras. This
format also allows information such as the date and time of shooting to be recorded.

Windows

2

Contents

2–11

Opening Images Saved in a Folder

This section describes how to open images you have saved in a folder.

1. Open the folder icon in the Image Source window.

Double-click on the icon for the folder containing the saved image.

2. The Index window opens. Click on the image you want to

open to select it.

You can select multiple images by
holding down the Ctrl key as you click
on the images. Y ou can also select all
the images by selecting Select All in
the Edit menu (or by pressing Ctrl+A).

3. Click on the Open button.

Click on the Open button.

Selected image

Tip

You can also view the
image by double-click­ing on the selected im­age or by selecting
Open from the File
menu.

Windows

2

Contents

2–12

4. The image opens.

Windows

2

Contents

2–13

Erasing Unwanted Images

You can use the steps below to erase unwanted images displayed in the Index
window.

1. Click on the image you want to erase to select it.

You can select multiple images by
holding down the Ctrl key as you click
on the images. Y ou can also select all
the images by selecting Select All in
the Edit menu (or by pressing Ctrl+A).

Click on the image to be erased to select it.

2. Select Delete from the File menu.

1) From the File menu,

2) Select Delete.

3. A confirmation dialog box appears.

Click on the OK button to erase the
image. Click on the Cancel button to
return to the previous screen without
erasing the image.

Click on the OK button.

2

Contents

When Thumbnail Images do not Appear

This section explains the situations in which a thumbnail* is not displayed in the
Index window.

Shown when the Cancel button is pressed while the file is being down­loaded, or when Index Setting in the Tool menu specifies that thumbnails
are not displayed.

2–14

Windows

Shown when a file in a registered folder does not have a thumbnail image.

Shown when the image cannot be opened and the thumbnail cannot be
displayed because the file format is incompatible.

If the problem with a frame in the folder index is something other than an incompatible file
format, use the procedure below to display the thumbnail.

1. Click on the frame you want to view to select it.

You can select multiple frames by
holding down the Ctrl key as you click
on the frames. Y ou can also select all
the frames by selecting Select All in
the Edit menu (or by pressing Ctrl+A).

Click on the frame for the thumbnail
you want to view.

Terminology Note

* Thumbnail

A small image displayed in screens such as index windows.

2

Contents

2. Click on .

2–15

Windows

Tip

Click here.

3. The thumbnail image is displayed.

You can also display the thumb­nail by selecting Preview from
the File menu.

2

Contents

Using the Advanced Functions

Viewing Image Information

(Date and Time of Shooting, etc.)

PICTURE SHUTTLE allows you to view image details such as the date and time
the image was shot and the shutter speed used.

2–16

Windows

1. Select the image for which you want to view the details by
clicking on it.

Click to select.

2. Click on the button.

Tip

Click here.

3. The details are displayed.

Click on the OK button to close the window.

You can also view the
image information by
selecting Information...
from the File menu.

Click on the OK button to close.

Windows

2

Contents

2–17

Viewing Camera and Folder Information

Y ou can use the procedure below to view the location of a registered folder and
the camera's communication port information.

1. In the Image Source window, click on the icon for which you

want to view more information.

The details shown for camera icons
and folder icons differ.

Click on the icon for which you want to view the information.

2. Select Information... from the File menu.

1) From the File menu,

2) Select Information...

2

Contents

3. The camera or folder information is displayed.

For camera icons, the connection port
and connection speed are displayed.
Click on the OK button to close the
window.

2–18

Windows

Click on OK to close.

For folder icons, the link destination*
appears, and you can open the linked
folder. Click on the OK button to close
the window.

Click on OK to close.

Click on Find Target... to open the linked folder.

Terminology Note

* Link Destination

The location of the source folder for the folder registered in the Image Source window.

2

Contents

Changing Image File Names

This section describes how to change the names of the image files displayed in
the Index window.Names can be changed automatically or manually.

2–19

Windows

Notes

• The file names of images displayed in a camera Index window can­not be changed automatically.

• If you change the file name, you will no longer be able to transfer the
image to the camera.

• Automatic Renaming

The Auto Rename function allows the names of image files in the Index window
to be changed by including the date and time and a specification code in the file
name. This can also be used to manage images shot on a camera so that file
names are not duplicated.

The example below illustrates how the file name suffixes change during automatic
renaming.For image data shot at 9.21 and 15 seconds on March 3rd 1999.
When "FUJI" is entered in the User Settings field, the file name changes as follows:

Date and time specified –> "FUJI1999_0303_092115AA.JPG"
Time only specified –> "FUJI092115AA.JPG"
Date only specified –> "FUJI1999_0303AA.JPG"

If a modification then produces the same name as already exists, the two-letter code
(specification code) added to the end of the file name is incremented automatically to
prevent file name duplication. Image files that are not Exif files or that do not have the date
and time of shooting recorded are automatically renamed using the time stamp* for the
file.

1. Select the image to be renamed by clicking on it.

You can rename multiple images at
one time by selecting multiple images.
To select multiple images, hold down
the Ctrl key as you click on the im­ages. You can also select all the im­ages by selecting Select All in the Edit
menu (or by pressing Ctrl+A).

Click on the image to be renamed.

Windows

2

Contents

2–20

2. Select Automatic Rename* from the File menu.

1) From the File menu,

2) Select Automatic Rename.

3. Specify the Auto Rename settings.

In the User Settings field, type in the
characters to be used at the start of
the filename and then specify whether
the date and time are to be appended.

4. The file is automatically renamed

Terminology Note

* Time Stamp

The time stamp is the record of the date and time on which the file was last modified.

1) Specify the characters.

2) Click on the OK button.

You can use the Detail Display mode
(P.2-31) to check the new file names.

* Automatic Rename

The automatic allocation of a new name for a file.

Windows

2

Contents

2–21

• Manual Renaming

Use the procedure below to manually rename a file.

1. Highlight the file name.

1) Click on the image to be renamed.

2) Click on the file name.

2. Type in the new file name.

1) Type in the new file name.

2) Press the Enter key on the keyboard.

Windows

2

Contents

2–22

Setting Copyright, Date and Time

to the Camera

This function specifies settings on cameras that support date and time recording
functions and a copyright function*.

1. Select the camera icon.

Click to select.

2. Select Option from the View menu.

1) From the View menu,

2) Select Option.

3. Specify the Copyright setting.

Notes

When you type in an identifier, such
as your name, in the Copyright field
and click on the Send button, the iden­tifier you typed in is sent to the de­vice. From that point on, this identifier
is recorded in all the images shot and
can be viewed in the Copyright 1 field

1) Type in your
identifier here.

The Send button is only enabled for compatible devices. For all other
devices, the Send button is grayed out* and cannot be selected.

2) Click on the
Send button.

in the Details window (see P.2-16).

Windows

2

Contents

4. Set the date.

Notes

The Send button is only enabled for compatible devices. For all other
devices, the Send button is grayed out and cannot be selected.

2–23

When you click the Send button for
the date and time, the currently dis­played date and time is sent to the
device.The date and time for all im­ages shot subsequently are then re­corded by the reset internal clock and
can be viewed in the Details window.

Click on the Send button.

Terminology Note

* Copyright Function

* Graying Out

The copyright function records and displays the copyright information. If you specify
the copyright in the camera, the copyright information is automatically recorded in the
Copyright 1 field for images shot from that point on.

This refers to the display mode for menu items and buttons that are shown in gray to
indicate that they are disabled.

2

Contents

Viewing Images

on the Camera's LCD Monitor

You can view images on a TV set or monitor by connecting the camera’s video
output jack to the video input jack on the TV set. This feature is supported on the
DX-9 ZOOM and DX-7 but not on the MX series and DX-8 digital cameras. On
the DX-9 ZOOM and DX-7 digital cameras, you can also use the camera’s re­mote video playback* function to view images out of sequence.

2–24

Windows

1. Click on the button so that it clicks down.

* DX-9 ZOOM screen

Click here.

2. Click on an image.

The selected image is played back as
video on the camera.

Click on the image to be displayed.

Notes

This function can only be used if the selected camera supports a remote
video playback function. For devices that do not support a remote video
playback function, the button is grayed out and cannot be selected. All
images that were selected when operation was switched to video play­back mode are deselected.

Terminology Note

* Remote Video Playback

* Graying Out

A function that allows you to control the camera from your PC and view the images on
the camera as video output.

This refers to the display mode for menu items and buttons that are shown in gray to
indicate that they are disabled.

Windows

2

Contents

2–25

Editing Non-24-bit Image Data

Use this procedure to convert non-24-bit image data to 24-bit data. Converting
an image to 24-bit data allows better results to be obtained when the image is
edited. Images downloaded from the camera are 24-bit data and do not require
conversion.

1. Select Convert to 24-bit* from the Edit menu.

* This menu cannot be selected for

24-bit images.

1) From the Edit menu,

2) Select Convert to 24-bit.

Terminology Note

* Convert to 24-bit

Refers to the process of converting index color or gray scale images to full-color im­ages with 8-bit depth for each RGB color.

Windows

2

Contents

2–26

Pasting Images into Text Documents

Use the procedure below to paste the image shown in the Image window into a
document in a word processor or other application.

1. Open the Image window.

Image window.

2. Select Copy to Clipboard* from the Edit menu.

You can also select a portion of the im­age to be pasted. T o select an area, drag*
the mouse over the desired portion of the
image and then select Copy to Clipboard
from the Edit menu.

Terminology Note

* Drag

* Clipboard

1) From the Edit menu,

2) Select Copy to Clipboard.

Refers to the action of moving the mouse with the mouse button held down.

A shared storage area that can be accessed by various kinds of applications.

Windows

2

Contents

2–27

3. Open a document created in another application.

Paste the image into the document.
In most applications, selecting Paste
from the Edit menu pastes the image
into the document.
(In some applications, the method
may differ or pasting may not be pos­sible. Refer to the user’s manual sup­plied with the application.)

Paste the image into the document.

• Using Drag and Drop to Paste an Image

1. Select a portion of the image and then drag the selected
portion and drop it into the target document.

You can paste an image into a docu­ment in Microsoft Word by dragging
the image and dropping it into the
document.

Windows

2

Contents

2–28

2. The image is pasted into the document.

If you double-click on the pasted image, the edit functions of the PICTURE
SHUTTLE Image window appear.

Windows

2

Contents

Customizing PICTURE SHUTTLE

Problems Downloading Camera Images

<Communications Settings>

1. Select Communication Setting from the Tool menu.

1) From the Tool menu,

2) Select Communication Setting.

2. The Communication Setting dialog box appears.

• Connection Speed Setting

The default setting for the connection
speed is AUTO, which determines the
connection speed automatically.
Leave the setting on AUTO unless
communication errors occur.
If communication errors occur fre­quently, switch the camera off and
then on again. Then, beginning with
the highest baud rate(connection

Select Communication Settings.

speed), set progressively lower rates
until the errors cease to occur.
While the likelihood of errors de­creases with lower baud rates, the
time required to receive an image in­creases.

2–29

3. Select Update Information from the View menu.

• Port Selection Checkboxes

Problems with PICTURE SHUTTLE
operation can be remedied by
unchecking the checkboxes for ports
to which the camera is not connected.

If a camera has just been connected
to a previously vacant port*, the Up­date function automatically rechecks
the ports.
The icon for the connected camera
appears in the window.

2) Select Update Information.1) From the View menu,

Windows

2

Contents

When Thumbnails are Not Required

<Index Settings>

Use the procedure below to specify that thumbnail images not be displayed.

1. Select Index Setting from the Tool menu.

1) From the Tool menu,

2) Select Index Setting.

2. Specify the thumbnail settings.

Selecting Show Filename and Thumb­nail displays all the thumbnails for
checking. This is ideal when you want
to view images as you transfer them.
(Default setting)

Selecting Show Filename Only dis­plays the Index window quickly since
no thumbnails are shown. Use this
option if you want to transfer files with-

Click here to suppress thumbnail display.

out checking the contents.

2–30

Terminology Note

* Port

Click here to display thumbnails.

A connector used by a computer for data input and output.

Windows

2

Contents

2–31

Changing to Detail Display Mode

for Index Windows

If you switch to Detail Display mode in the Index window, the date and time of
shooting and the file size are always shown for each image.

1. Select Details from the View menu.

To switch back to the original display
mode, select List from the View menu.

1) From the View menu,

2) Select Details.

Detail display

2

Contents

Changing the Image Window Display

Use the procedure below to set options such as the toolbar display, the display
scale and the shape of the cursor.

• Scale Display

Y ou can reduce the image displayed down to 12.5% or enlarge it up to 800% of
its current size.

2–32

Windows

1. Select Enlarge Reduce Display from the View menu and

select a scale.

The size of the image displayed
changes, but the original image data
is not changed.

1) From the View menu,

3) Select the display scale.

2) Select Enlarge Reduce Dispay.

• Show/Hide Toolbar

This option allows you to specify whether the toolbar is displayed.

1. Select Toolbar from the View menu.

To display the toolbar, select Toolbar
from the View menu again.

1) From the View menu,

2) Select Toolbar.

Windows

2

Contents

2–33

• Show/Hide Status Bar

The status bar shows the program status and displays explanations. This option
allows you to specify whether the status bar is displayed.

1. Select Status Bar from the View menu.

1) From the View menu,

2) Select Status Bar.

To display the status bar, select Sta­tus Bar from the View menu again.

Status Bar

• Cursor Shape

Y ou can select an arrow or a cross-hair as the shape of the cursor used to select
area. The default shape is the arrow.

1. Select Cursor from the Option menu and then select the
cursor shape.

1) From the Option menu,

2) Select Cursor.

3) Select the cursor shape.

Windows

2

Contents

• 256 Color Display

If your monitor supports 256 colors, this option displays images in 256 colors. If
your monitor displays more than 256 colors, this option is not available. It is only
valid for monitors that display images in 256 or fewer colors.

Notes

1. Select 256 Color Display from the Option menu and select

ON or OFF.

If the number of colors specified in the Display Properties window on
your PC is 256, any image displayed in the Image window is
automatically reduced to 256 colors. When this occurs, note the
following:
(1) The image is printed in 256 Colors also.
(2) You cannot edit the image.
(3) When you save the image, it can only be saved in the BMP format.

To avoid these problems, set "256 Color Display" in the Option menu
to OFF and then display the image again.
Once you do this, you can:
(1) Print the image in full color.
(2) Edit the image.
(3) Save the image in the JPEG or TIFF format.
Note that though this detracts from the quality of the colors displayed
on the screen, it does not affect the image data itself.

1) From the Option menu,

2) Select 256 Color Display.

2–34

3) Select ON or OFF.

2

Contents

Using Additional Special Effects for Images

Use the procedure below to specify the folder containing plug-in software* sold
for Adobe Photoshop. (Third-party plug-in software must be purchased sepa­rately.)

* PICTURE SHUTTLE supports the plug-in filters in the Adobe Gallery Effects

Vols 1 to 3.

2–35

Windows

1. Select Plug-in Directory from the Option menu.

1) From the Option menu,

2) Select Plug-in Directory.

2. Select the directory in which the plug-ins were installed.

* If you have changed the plug-in di-

rectory, you must restart PICTURE
SHUTTLE.

1) Display the Plug-in directory here.

2) Click on the OK button.

Terminology Note

* Plug-In

Software used to extend the functions of an application.

2

Contents

Before Opening Photo CD Images

When you are opening photo CD images, use the procedure below to specify
the image size.

1. Select PCD Image Size from the Option menu.

1) From the Option menu,

2–36

Windows

2) Select PCD Image Size.

2. Select the image size and click on the OK button.

1) Select the image size. 2) Click on the OK button.

* The photo CD sizes are as follows:

• Base/16 : 128 x 192 pixels

• Base/4 : 256 x 384 pixels

• Base : 512 x 768 pixels

• 4Base : 1024 x 1536 pixels

• 16Base : 2048 x 3072 pixels

Windows

3

Contents

3–1

Chapter 3

Using Other Software to Download

Images from the Camera

This chapter describes how to use third-party software (such as Adobe
PhotoDeluxe) to download images.

About DS SERIAL TWAIN .............................................................. 3-2

Procedure Overview ................................................................................3-2

Starting Up and Quitting................................................................ 3-5

Starting Up DS SERIAL TWAIN......................................................................... 3-5

Quitting DS SERIAL TWAIN .............................................................................. 3-8

Viewing Camera Images ................................................................ 3-9

The Index Window ............................................................................................. 3-9

Index Window Button Functions ..............................................................3-9

Downloading Images from the Camera ........................................................... 3-11

Rotating Images ..............................................................................................3-12

Displaying Thumbnail Images Manually ..........................................................3-13

Dealing with Multiple Folders on the Camera .................................................. 3-14

Other Functions ........................................................................... 3-15

Problems Downloading Camera Images <Communications Settings> ...........3-15

Changing the Index Window Display ............................................................... 3-17

Checking the Version.......................................................................................3-18

Viewing the Image Information ........................................................................3-19

The following applications have been confirmed by Fujifilm as being
compatible with DS SERIAL TWAIN:

Adobe PhotoDeluxe Ver.2.0
Adobe PhotoDeluxe Home Edition Ver 3.0
Adobe Photoshop Ver.4.0
Adobe Photoshop Ver.5.0
MGI PhotoSuite SE Ver.1.0

PhotoEnhancer Ver.3.2

Windows

3

Contents

3–2

About DS SERIAL TWAIN

The DS SERIAL TWAIN* driver provides the following functions:

• Displays a list of the image data stored on a digital camera.

• Downloads image data directly into image processing software* such as Adobe
PhotoDeluxe. (See P.3-1 for a list of supported applications.)

Procedure Overview

1. Start up the application to be used to download the images.

The descriptions in this manual use
Adobe PhotoDeluxe Home Edition 3.0
as an example.
The procedure for other applications
is a little different.

Select PhotoDeluxe.

2. Click on the Get Photo button in the Get & Fix Photo tab and

select Cameras... from the pull-down menu.

1) Select Get & Fix Photo tab,

2) Click on the Get Photo.

The software connects to the
camera. See “Starting Up DS
SERIAL TWAIN” on P.3-5 for
details.

3) Select Cameras

Windows

3

Contents

3–3

3. Click on the 1 Camera tab and then select FUJIFILM_DSS

from the Camera ModeIs list .

Select FUJIFILM_DSS

4. Click on the Open Camera button.

Click here

5 The Index window appears showing the thumbnail images*.

A list of the images stored on the cam­era appears. See “The Index Window”
on P.3-9 for details.

6. Click on the image you want to download and then click on

Index window

Thumbnail images

the button.

The image is downloaded into the ap­plication. See “Downloading Images
from the Camera” on P .3-1 1 for details.

1) Click to select.

2) Click on the Acquire button.

Windows

3

Contents

3–4

7. The image is downloaded.

Terminology Note

* Image Processing Software

* Thumbnail Image

* TWAIN

Application software that modifies or enhances images downloaded from a device
such as a digital camera.

A small image displayed in screens such as index windows.

A global standard interface between application software and image capture devices
such as digital cameras and scanners.

3

Contents

Starting Up and Quitting

Starting Up DS SERIAL TWAIN

Here, the Adobe PhotoDeluxe software is used as an example of how to start up
DS SERIAL TWAIN*.
* Other third-party TWAIN-compatible applications include Adobe Photoshop .

(See P.3-1 for a list of compatible applications.)

(1) Select TW AIN.

1. Start up PhotoDeluxe.

3–5

Windows

2. Click on the Get Photo button in the Get & Fix Photo tab and

Select PhotoDeluxe.

select Cameras... from the pull-down menu.

1) Select Get & Fix Photo tab,

2) Click on the Get Photo.

The software connects to the camera.

3) Select Cameras

Terminology Note

* TWAIN

A global standard interface between application software and image capture devices
such as digital cameras and scanners.

Windows

3

Contents

3. Click on the 1 Camera tab and then select FUJIFILM_DSS

from the Camera Models list.

Select FUJIFILM_DSS.
* In other applications, “Select

TWAIN_32 Source” is often the item
to be selected from the File menu.

Click on FUJIFILM_DSS to select it.

(2) Start up TWAIN.

1. Click on the Open Camera button.

* In other applications, “TWAIN_32”

is often the item to be selected from

Click here

the File menu.

* Some applications may not support

the Download Consecutive function.

3–6

Windows

3

Contents

3–7

2. The Receiving Filenames window appears.

Click on the Close button to interrupt
the procedure.

3. The Index window appears and the thumbnail images* are

downloaded.

Click on the Stop button to stop thumb­nail downloading. If you already know
the name of the file you want to down­load, you can stop thumbnail down­loading to save time.

Index window

Thumbnail images

Notes

Terminology Note

* Thumbnail Image

If there is a file that DS SERIAL TW AIN cannot read, the thumbnail is not
displayed in the Index window.

A small image displayed in screens such as index windows.

Windows

3

Contents

Click on the

Quitting DS SERIAL TWAIN

button to quit DS SERIAL TWAIN*.

Click here.

3–8

Terminology Note

* TWAIN

A global standard interface between application software and image capture devices
such as digital cameras and scanners.

Windows

3

Contents

3–9

Viewing Camera Images

The Index Window

Index Window Button Functions

Thumbnail display area

Item display area

Selected image
Click to select

Acquire button

Downloads the selected image from the camera. This button is
only enabled when an image is selected.

Select All button

Selects all the images. If all the images are already selected, click­ing on this button deselects the images.

Select Page button

Selects all the images currently shown in the Index window. If all
the images shown are already selected, clicking on this button
deselects the images.

Details button

Displays the details window for the selected image. This button is
disabled if multiple images are selected.

Rotate 90° Left button

Clicking on this button rotates the selected image 90° counter­clockwise.

Scroll bar

Windows

3

Contents

3–10

Rotate 90° Right button

Clicking on this button rotates the selected image 90° clockwise.

Get Thumbnail button

Clicking on this button downloads and displays the thumbnail im­age for the selected frame.

Folder selection menu

When there are multiple folders on the camera, use this menu to
select the folder. (Supported on the MX Series, DX-10 and DX-8)
(See “Dealing with Multiple Folders on the Camera” on P.3-14.)

Frame number display

Shows the frame number in the selected folder on the digital
camera.

Version Info button

Displays the Version Info window.

Set button

Opens the window used to specify the item settings and commu­nications settings.

Close button

Closes the Index window and quits TWAIN*.

Thumbnail Display Area

Displays the thumbnail images.

Item Display Area

Displays the image attributes. The default attribute displayed is the file name. The date,
time and image size can also be displayed. Use the settings window to select the at­tributes to be displayed.

Scroll Bar

Scrolls the images up or down a row at a time.

Terminology Note

* TWAIN

A global standard interface between application software and image capture devices
such as digital cameras and scanners.

3

Contents

Downloading Images from the Camera

1. Click on the image you want to open to select it.

You can select multiple images by
holding down the Ctrl or Shift key as
you click on the images. Y ou can also
select all the images shown by click-

ing on the (Select Page) button or
all the images in the current folder by
clicking on the (Select All) button.

3–11

Windows

2. Click on the

Notes

3. The image is downloaded and displayed.

Click to select.

button.

Tip

Click on the Acquire button.

If you started up DS SERIAL TWAIN from an application that does not
support consecutive image downloading in TWAIN, DS SERIAL TWAIN
quits after the first image is transferred.

You can also download
an image by double­clicking on the selected
image.

3

Contents

Rotating Images

When the image is displayed on its side, use this procedure to turn it upright.

1. Click on the image to be rotated to select it.

3–12

Windows

2. Click on the

3. If you click on the

Click to select.

button to rotate the image counterclockwise

or the

button rotate the image clockwise.

Click to rotate clockwise.

Click to rotate counterclockwise.

button when the image is rotated,

the image is downloaded in the rotated orientation.

Windows

3

Contents

3–13

Displaying Thumbnail Images Manually

Thumbnail images are automatically displayed at startup. However, if you al­ready know which frame you want to download (such as the last image shot),
you can stop thumbnail downloading at startup and manually display the thumb­nail image you want to see.

1. Select the frame for the thumbnail you want to view by

clicking on it.

You can select multiple frames by
holding down the Ctrl or Shift key as
you click on the frames. Y ou can also
select all the frames shown by click-

ing on the (Select Page) button or
all the frames in the current folder by
clicking on the (Select All) button.

Click to select.

2. Click on the button.

Notes

Tip

Click here.

The thumbnail image is displayed.

If there is a file that DS SERIAL TWAIN cannot read, its thumbnail image
is not displayed in the Index window.

You can also view a
thumbnail image by
double-clicking on the
selected frame.

Windows

3

Contents

3–14

Dealing with Multiple Folders

on the Camera

If there are multiple folders on the camera, select the folder you want to open
from the folder selection pull-down menu. Y ou can use this feature when images
shot on another manufacturer’s digital camera are stored on the same
SmartMedia.The folder selection menu is available for the MX series, DX-10
and DX-8.

1. Click and hold down the mouse button on the folder selection

menu.

A list of the folders stored on the cam­era appears.

Folder selection menu.

* The folder for images shot using Fujifilm digital cameras is “IMFIDX10”, “IM01FUJI“ or

“DCIM\100_FUJI“ etc.

2. Select the folder you want to open and release the mouse

button.

The images in the folder are displayed.

Select the folder you want to open.

Windows

3

Contents

Other Functions

Problems Downloading Camera Images

<Communications Settings>

The communication settings specify the camera port* and the connection speed.
Use these settings to remedy communication problems.

1.

Click on the (Set) button to open the Settings dialog box.

Click here.

2. Set the camera port and the connection speed.

• Camera Port setting

Set the port to which the cable linking
the PC and the digital camera is con­nected.

3–15

Click on the OK
button to close the
Settings dialog box.

• Connection Speed setting

The default setting for the connection
speed is AUTO, which determines the
connection speed automatically. Use
the AUTO setting unless a communi­cation error occurs or the “This image
format cannot be proceeded” mes­sage appears.
If communication errors occur fre­quently, switch the camera off and
then on again. Then, beginning with
the highest baud rate, set progres­sively lower rates until the errors cease
to occur.While the likelihood of errors
decreases with lower baud rates, the
time required to receive an image in­creases.

Windows

3

Contents

3–16

Select the port.

Select the connection speed.

Terminology Note

* Camera Port

The socket on your PC to which the camera is connected.

3

Contents

Changing the Index Window Display

This section describes how to change the information shown in the item display
area.
The item display area is below the thumbnail display area and shows the image
attributes. You can use the item display settings to select whether the file name,
date, time and image size attributes are displayed. The default attribute dis­played is the file name. (The date and time are not shown for the DX-5.)

3–17

1. Click on the

Windows

2. Specify the settings for the item displayed.

3. The information displayed changes.

(Set) button to open the Settings window.

Click here.

Select Filename, Date, Time or Im­age Size.

1) Select an item.

2) Click on the OK button.

Display showing the setting changed
to Date.

3

Contents

Checking the Version

Use this procedure to view the DS SERIAL TWAIN* version information.

3–18

Windows

1. Click on the

(Version Info) button.

2. The version information appears.

Click here.

Click on the OK button to close
the window.

Click here to close.

Terminology Note

* TWAIN

A global standard interface between application software and image capture devices
such as digital cameras and scanners.

3

Contents

Viewing the Image Information

Use the procedure below to view information such as the date and time of shooting
and the shutter speed.

3–19

Windows

1. Click on the

(Details) button.

Click here

2. Image information such as the image size and the date and

time of shooting is displayed.

Click on the OK button to close the
window.

Click on the OK button to close.

Contents

Windows

4

4–1

Chapter 4

Troubleshooting

This chapter tells you what to do if an error occurs. If an error does occur, check
here first.

Troubleshooting............................................................................. 4-2

Problems with PICTURE SHUTTLE ................................................................. 4-2

Problems with the DS SERIAL TWAIN Driver ...................................................4-8

Contents

Windows

4

Troubleshooting

Problems with PICTURE SHUTTLE

When PICTURE SHUTTLE starts up

Problem Cause Solution

The “This application runs with
Windows 95 / 98 / NT 4.0.”
message appears at startup.

When you run Update in the Image Source window to recognize a device

Problem Cause Solution

The icon for the connected
device does not appear in the
Image Source window.

Your version of W indows is too
old to run PICTURE
SHUTTLE.

The device is switched off. Switch the device on.
The device is not connected.

The port* to which the device
is connected is being used by
the operating system.

Run the program on Windows 95 /
98 or Windows NT 4.0.

Connect the device to the com­puter and switch the device on.

Connect the device to a different
port.

Alternatively, change the operating
system settings so that the oper­ating system is no longer using the
port.

4–2

The “Unsupported equipment
connected. This equipment
will be ignored.” message ap­pears.

Terminology Note

* Port

The port to which the device
is connected is being used by
another application.

The connected device is not
supported by PICTURE
SHUTTLE.

Connect the device to a different
port.

Alternatively, quit the application
that is using the port.

In the Communication Settings dia­log box, uncheck the port to which
the unsupported device is con­nected.

A connector used for data input and output on a computer.
