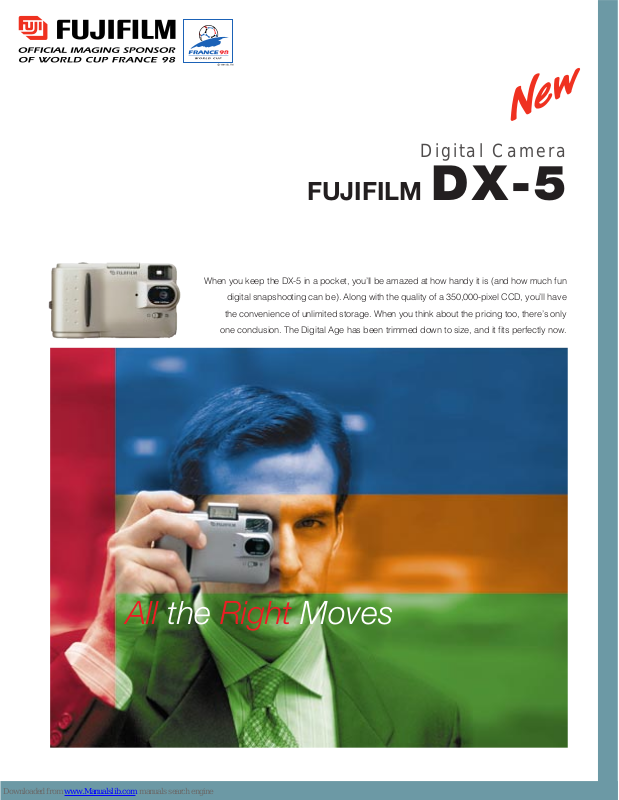

Page 1
When you keep the DX-5 in a pocket, you’ll be amazed at how handy it is (and how much fun
digital snapshooting can be). Along with the quality of a 350,000-pixel CCD, you’ll have
the convenience of unlimited storage. When you think about the pricing too, there’s only
one conclusion. The Digital Age has been trimmed down to size, and it fits perfectly now.
Digital Camera
FUJIFILM DX-5
All the Right Moves
Page 2
Communication Port, Too
The DX-5 has a serial port, so you
can use the included RS-232C cable
to connect the camera directly to
your PC.
The Fun Factor
After you’ve captured the images
and input them to the PC, use the included PhotoEnhancer™
software to modify them in countless ways. It’s so friendly and easy that it adds to the fun.
▼ CONVENIENT HANDLING
Trim Good Looks
The DX-5 measures just 112 (W)
× 66 (H) × 40 (D) mm,
and it weighs only 160 g without batteries. Ultracompact
and lightweight, it will fit in your pocket so you’ll always
be ready for digital snapshooting.
Power to Spare
The DX-5 is so energy-efficient that you can use the
included alkaline AA batteries to shoot 250 images*
(employing the flash half the time). Since AA batteries
are widely available, you’ll never be at a loss. You can
also use a long-life lithium or nickel-cadmium battery,
and an optional AC Adapter is available.
* The actual number of shots depends on the type of alkaline batteries used.
In a Flash
The Built-in Flash is ready for dim
or difficult lighting. To give you the
right answer in every situation,
there are four Flash Modes,
including Red-Eye Reduction.
Creativity Comes Naturally
The Optical Viewfinder makes composing as natural and convenient as it is with a 35 mm
camera. Showing all the information you need, the LCD
Panel also gives you complete control.
▼ IMAGE QUALITY
Quality Time
The DX-5 has the high resolution of a 350,000-pixel
CCD in an array of 640 × 480 pixels. To prevent any
distortion, its square pixels have been designed specially for a digital camera, and the RGB filter ensures
exceptionally accurate color reproduction. The result
is all you’ve been looking for—truer colors and less
“noise” in the luminosity. And this quality will be just
as clear when you use a digital printer for output.
Sharp Ideas
The DX-5’s sharp Fujinon lens offers
wide-angle coverage equivalent to
that of a conventional compact
camera’s 38 mm lens. And you can
be sure the quality is absolutely
uncompromising since the design
has won quite a reputation for its
performance in professional broadcast cameras.
▼EASY CONNECTIVITY
The New Standard
The DX-5 stores images on a removable SmartMedia™ Card. Even
though it’s only the size of a postage
stamp (and just 0.76 mm thick), a
2MB card can hold up to 30 images
in the Normal Mode and 22 images
in the Fine Mode. Keep an extra one
at hand, and you’ll always have room for another shot.
Very Well Adapted
The adapter for the SmartMedia™
Card makes PC input as simple
as you could want. Just use the
optional PC Card Adapter to insert
the SmartMedia™ Card in a PC
Card slot.
Y
ou might be a business professional who needs high-quality images
for meetings or presentations that won’t wait. Maybe you’re a
student who would like to e-mail snapshots to friends and relatives
back home. Or perhaps you’re new parents who want to save years of
smiles in a digital photo album.
Whatever you need and wherever you go, the DX-5 makes it simple.
You’ll like the quality of the 350,000-pixel CCD, the pocket-size
dimensions and the affordable price. You’ll also find the DX-5 is as friendly
as an ordinary compact camera. And since it uses an incredibly small
SmartMedia
™
Card for removable storage, there’s no limit on how
many images you can shoot. To input images to your home
computer, just use the included serial cable and software.
However you look at it, the DX-5 is the anywhere-anytime digital
camera. And it’s the easy way to make every moment count.
Digital Camera
FUJIFILM DX-5
Make Every Moment Count
The slanted photos on these pages were taken with the DX-5.
Actual size
Page 3
FUJI PHOTO FI LM CO., LTD.
26-30, NISHIAZABU 2-CHOME, MINATO-KU, TOKYO 106, JAPAN
© 1997 Fuji Photo Film Co., Ltd. Ref. No. EB-703E (SK·97·07·DT·MW) Printed in Japan
PC Card Adapter
PC-AD
SmartMedia™
Cards
MG-2 (2MB)
MG-4 (4MB)
OPTIONAL ACCESSORIES SYSTEM CONFIGURATION
SPECIFICATIONS
AC Power Adapter
AC-3V
Soft Case
SC-DX5
Battery Charger
with Battery
BK-68PF
CCD sensor 1/3-inch CCD with 350,000 square
pixels
Resolution 640 × 480 pixels
File format JPEG (Exif)
Storage media SmartMedia™ Card (3.3V and 5V)
Number of images Mode 2MB 4MB
Normal 30 60
Fine 22 44
Lens focal length f = 5.7 mm (equivalent to 38 mm with a
35 mm camera)
Lens/Aperture TV-Fujinon lens with 2 steps (F3.1/F8)
Focus distance 70 cm/28 in. to infinity
Sensitivity Equivalent to ISO 150 (ISO 200 with
flash)
Exposure control TTL Aperture-Priority AE
White balance 5500K fixed
Shutter speeds 1/4~1/5,000 sec.
Viewfinder Reverse Galilean optical viewfinder
Flash Built-in Auto Flash with 3.6 m/12 ft.
range
Output Digital: Mini DIN (9 pin) for serial interface
Power source 2 AA batteries, AC power adapter
Dimensions 112 (W) × 66 (H) × 40 (D) mm/
4.4 (W) × 2.6 (H) × 1.6 (D) in.
Weight Approx. 160 g/5.6 oz. excluding batteries,
strap and SmartMedia™ Card
Included accessories • 2MB SmartMedia™ Card
• 2 AA alkaline batteries
• Serial cables for Windows
®
and Macintosh
®
• CD-ROMs (interface software and
PhotoEnhancer™) for Windows
®
and
Macintosh
®
• Hand strap
DIGITAL CAMERA FUJIFILM DX-5
Specifications are subject to change without notice.
Macintosh®is a registered trademark of Apple Computer, Inc.
Windows®is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective holders.
Desktop PC
PC Card Reader
PC Card Adapter
Notebook PC
with PC Card Slot
SmartMedia™
Card
Serial Cable
Serial Cable
AC Adapter
DX-5
