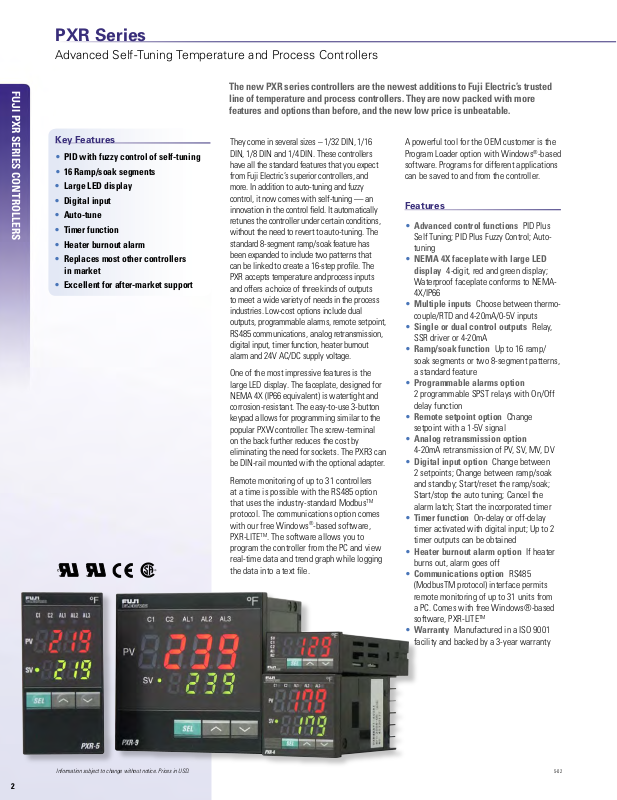

PXR Series
Advanced Self-Tuning Temperature and Process Controllers
FUJI PXR SERIES CONTROLLERS
The new PXR series controllers are the newest additions to Fuji Electric’s trusted
line of temperature and process controllers. They are now packed with more
features and options than before, and the new low price is unbeatable.
Key Features
Key Features
• Description
• PID with fuzzy control of self-tuning
• 16 Ramp/soak segments
• Large LED display
• Digital input
• Auto-tune
• Timer function
• Heater burnout alarm
• Replaces most other controllers
in market
• Excellent for after-market support
They come in several sizes – 1/32 DIN, 1/16
DIN, 1/8 DIN and 1/4 DIN. These controllers
have all the standard features that you expect
from Fuji Electric’s superior controllers, and
more. In addition to auto-tuning and fuzzy
control, it now comes with self-tuning — an
innovation in the control field. It automatically
retunes the controller under certain conditions,
without the need to revert to auto-tuning. The
standard 8-segment ramp/soak feature has
been expanded to include two patterns that
can be linked to create a 16-step profile. The
PXR accepts temperature and process inputs
and offers a choice of three kinds of outputs
to meet a wide variety of needs in the process
industries. Low-cost options include dual
outputs, programmable alarms, remote setpoint,
RS485 communications, analog retransmission,
digital input, timer function, heater burnout
alarm and 24V AC/DC supply voltage.
One of the most impressive features is the
large LED display. The faceplate, designed for
NEMA 4X (IP66 equivalent) is watertight and
corrosion-resistant. The easy-to-use 3-button
keypad allows for programming similar to the
popular PXW controller. The screw-terminal
on the back further reduces the cost by
eliminating the need for sockets. The PXR3 can
be DIN-rail mounted with the optional adapter.
Remote monitoring of up to 31 controllers
at a time is possible with the RS485 option
that uses the industry-standard Modbus
protocol. The communications option comes
with our free Windows
TM
PXR-LITE
. The software allows you to
®
-based software,
TM
program the controller from the PC and view
real-time data and trend graph while logging
the data into a text file.
A powerful tool for the OEM customer is the
Program Loader option with Windows
®
-based
software. Programs for different applications
can be saved to and from the controller.
Features
• Advanced control functions PID Plus
Self Tuning; PID Plus Fuzzy Control; Autotuning
• NEMA 4X faceplate with large LED
display 4-digit, red and green display;
Waterproof faceplate conforms to NEMA4X/IP66
• Multiple inputs Choose between thermo-
couple/RTD and 4-20mA/0-5V inputs
• Single or dual control outputs Relay,
SSR driver or 4-20mA
• Ramp/soak function Up to 16 ramp/
soak segments or two 8-segment patterns,
a standard feature
• Programmable alarms option
2 programmable SPST relays with On/Off
delay function
• Remote setpoint option Change
setpoint with a 1-5V signal
• Analog retransmission option
4-20mA retransmission of PV, SV, MV, DV
• Digital input option Change between
2 setpoints; Change between ramp/soak
and standby; Start/reset the ramp/soak;
Start/stop the auto tuning; Cancel the
alarm latch; Start the incorporated timer
• Timer function On-delay or off-delay
timer activated with digital input; Up to 2
timer outputs can be obtained
• Heater burnout alarm option If heater
burns out, alarm goes off
• Communications option RS485
(ModbusTM protocol) interface permits
remote monitoring of up to 31 units from
a PC. Comes with free Windows®-based
software, PXR-LITE
TM
• Warranty Manufactured in a ISO 9001
facility and backed by a 3-year warranty
Information subject to change without notice. Prices in USD. 5-02
2
Specifications
General Specifications
Power supply voltage 100 (-15%) to 240V
(+10%) AC, 50/60Hz; 24V (±10%) AC/DC
Power consumption PXR3: 6VA (100 V
AC), 8VA (220V, 24V). PXR4: 8VA (100V),
10VA (220V), 12VA (24V). PXR5, 9: 10VA
(100V), 12VA (220V, 24V)
Reference junction compensation
accuracy ±1°C at 23°C
Input
Input signal Thermocouple: J, K, R, B, S, T,
E, N, PL2. RTD: Pt100. Voltage, current. For
1 to 5V/4 to 20 mA DC, 0 to 5V/0 to 20 mA
DC, use 250 ohm shunt resister included
Input filter 0 to 900.0 sec set in 0.5 sec steps
Burnout For thermocouple or RTD input,
control output direction (upper or lower) is
selectable
Control Function
Control action On/Off; PID control (with
auto-tuning, self-tuning); Fuzzy Control
(with auto-tuning)
Proportional band (P) 0 to 999.9% of
measuring range set in 0.1% steps
Integral time (l) 0 to 3200 sec set in 1 sec
steps
Differential time (D) 0 to 999.9 sec set in
1 sec steps
Proportional cycle 1 to 150 sec set in
1 sec steps
Hysteresis width 0 to 50% of measuring
range; For on/off action only
Input sampling cycle 0.5 sec
Program Loader Interface
The Program Loader for Fuji Electric’s PX
and PXR series controllers is a powerful
tool for the OEM customer. Using the PXR4
Load
er Assembly, the controller can be
configured from a PC running on Windows
environment.
PXR LITE Communications Software
FUJI PXR SERIES CONTROLLERS
Features
• Retrieve or store controller data
• Selectively mask or unmask parameters
for viewing on the controller
• Clone settings to other controllers from
saved files
• Print data report
Control Output 1 (select one)
Relay contact PXR4, 5, 9: SPDT, 220 V
AC/30 V DC, 3A (resistive load). PXR3:
SPST contact, 220 V AC/30 V DC, 3A
(resistive load)
SSR PXR4, 5, 9: ON–17 to 25 V DC; OFF–0.5
V DC or less. PXR3: 12 to 16 V DC. Max.
current: 20mA or less
4 to 20 mA DC PXR4, 5, 9: Allowable load
resistance 600 ohms or less. PXR3: 100 to
500 ohms
PXR-LITETM is free Windows®-based software that is supplied with the communications
Control Output 2 (Heating/
Cooling Control) (select one)
Relay contact SPST, 220 V AC/30 V DC, 3A
(resistive load)
SSR PXR4, 5, 9: ON–17 to 25 V DC; OFF–0.5
option on a PXR controller. It is the latest in
control and monitoring of Fuji Electric’s PXR
series controllers. It provides continuous
remote monitoring of single or multiple con-
trollers using a single half-duplex RS485 line.
V DC or less. PXR3: 12 to 16 V DC. Max.
current: 20mA or less
4 to 20 mA DC PXR4, 5, 9: Allowable load
resistance 600 ohms or less. PXR3: 100 to
500 ohms
Information subject to change without notice. Prices in USD. 5-02
Features
• Monitor and control up to 31 controllers
from a PC via RS485-RS232 signal converter
• Real-time charting and data-logging
• Remote setpoint adjustment
• Set control modes, alarms and other
control parameters
• Remote auto-tuning and ramp-soak
programming
• Live display of process and setpoint
values, alarm annunciators
• View single-station or multi-station data
• Comprehensive help file included
• Runs on Windows environment, version
3.1 or later
3
3
PXR Series (continued)
FUJI PXR SERIES CONTROLLERS
Operation and Display Section
Parameter setting method Digital setting
by 3 keys; Key lock function provided
Display unit Process value/set value
displayed individually 4 digits, 7-segment
LED
Status display LED Control output, process
alarm output, heater burnout alarm output
Indication accuracy (at 23°C) Thermo-
couple: ± (0.5% of measuring range)
± 1 digit ±1°C. For thermocouple R at 0 to
PXR4 Terminal Cover (option) PXR3 DIN Rail Adapter
500°C: ± (1% of measuring range) ±1 digit
±1°C. For thermocouple B at 0 to 400°C:
± (5% of measuring range) ±1 digit ±1°C.
RTD, voltage/current: ±(0.5% of measuring
range) ±1 digit
Alarm (option)
Alarm type Absolute alarm, deviation
alarm, zone alarm with upper and lower
limits for each; hold function available;
alarm latch function provided
Alarm ON-delay Delay setting 0 to 9999
sec set in 1 sec steps
Process alarm output Relay contact: SPST,
220 V AC/30 V DC, 1A (resistive load);
Max. 2 points (PXR3), max. 3 points (PXR4,
5, 9)
Heater burnout option (not available on
PXR3) Alarm setting range: 1 to 50A
Available only when control output is relay
or SSR drive.
Heater burnout alarm output Relay
contact: SPST, 220 V AC/30 V DC, 1A
(resistive load); 1 output point
Current detector CTL-6-S for 1 to 30 A;
CTL-12 for 20 to 50 A
Digital Input (option)
Points 1 or 2; contact closure. 5 V DC,
approx. 2mA
Function (select one) Set value (SV, SV1
to 3) changeover, start/stop control action,
start/reset ramp/soak action, start/stop
auto-tuning, cancel alarm latch, start
incorporated timer
Retransmission Output (option)
Output signal 4-20 mA DC
Load resistance 500 ohms or less
Output accuracy ±0.3% FS
Timer Function (option)
Start By digital input option
Setting 0 to 9999 sec set in 1 sec steps
Action Event ON-delay or OFF-delay
Signal output Alarm output relays used;
2 points are available
Communication Function (option)
Physical specifications EIA RS485
Communication protocol Modbus (RTU).
Free Windows®-based software,
TM
PXR-LITE
Communication method 2-wire method;
half-duplex, bit serial, start-stop sync type
Data type 8 bits. Parity: odd/even/none
Communication rate 9600 bps
Connection aspect Multi-drop up to 31
controllers
Communication distance Total extension
500m or less
RS232C/RS485 signal converter RSFC24
(recommended, see ordering information)
Remote Setpoint Option
Input signal 1 to 5 V DC, 1 point
Accuracy ±0.5% ±1 digit
Input sampling cycle 0.5 sec
Display of remote mode LED on front
panel
Input impedance 1M ohms or more
Other Functions
Parameter mask function Parameter
display can be disabled from keypad
Ramp/soak function 8 ramps and 8 soaks;
1 or 2 program patterns; digital input
allows start/reset of the action
Operating and Storage Conditions
Ambient operating temperature 14 to
122°F (-10 to 50°C)
Ambient operating humidity Less than
90% RH (no condensation)
Storage temperature -4 to 140°F (-20 to
60°C)
Structure
Mounting method Panel flush mounting.
PXR3 can be DIN-rail mounted using the
optional adapter
External terminal Screw terminal
Dimensions PXR3: 1 x 2 x 4 in. (24 x 48 x
98mm). PXR4: 1.89 x 1.89 x 3.37 in. (48 x
48 x 79.8 mm). PXR5: 2.07 x 3.96 x 3.77 in.
(52.5 x 100.5 x 95.8 mm). PXR9: 3.96 x 3.96
x 3.77 in (100.5 x 100.5 x 95.8 mm)
Protective structure Front panel NEMA4X
(IEC standard IP66 equivalent) (when
mounted on panel with supplied gasket).
Rear case: IEC IP20
Outer color Black (front panel, case)
Agency approvals UL, c-UL recognized
(UL873), CSA (C22.2 No.24-93), CE certified
(LVD:EN61010-1, EMC:1326-1)
Optional Items
Current transformer For 1 to 30 A: CTL-6-S.
For 20 to 50 A: CTL-12
Signal converter for communication
function RSFC24
DIN Rail adapter For PXR3 only
Terminal cover For PXR4 only
Output selection PV, SV, MV, DV (SV-PV)
Information subject to change without notice. Prices in USD. 5-02
4
Ordering Information (PXR3)
P
X R A
To create a part number f ll in the boxes above with the appropriate number and/or letter from the corresponding list below.
–
Box A: Front Panel Size
3 = 1/32 DIN (24x48mm)
Box B: Input Signal
T = Thermocouple (°C)
R = Thermocouple (°F)
N = RTD, Pt100 ohm, 3-wire type (°C)
S = RTD, Pt100 ohm, 3-wire type (°F)
B = 4-20mA DC, 1-5V DC
A = 0-20mA DC, 0-5V DC
Box C: Control Output 1
A = Relay contact output
C = SSR or SSC drive output
B
C D 1
F G A 1
E
–
Box D: Control Output 2
Y = None
A = Relay contact output
C = SSR or SSC drive output
E = 4-20mA DC output
Box E: Alarm Options
4 = None
5 = High/low alarm 1 point
G = High/low alarm 2 points
1
Box F: Power Supply
V = Standard (100-240 VAC, 50/60Hz)
B = 24V AC/DC (50/60Hz)
Box G: Additional Functions
0 = None
M = RS485 communication (Modbus)
Q = Retransmission + DI 1 point
R = Retransmission (4-20mA DC)
T = Digital Input (DI) x 2
V =
RS485 communications (Modbus)
+ DI
E = 4-20mA DC output
Note: RS485 option comes with Free software, PXR-LITE. RS485 requires signal converter to connect to PC, P/N RSFC24 recommended.
1
High/low alarm 2 points not available when control output 2 is selected.
Ordering Information (PXR4, PXR5, PXR7, PXR9)
P
X R A – B C D 1 – E F G A 1
To create a part number f ll in the boxes above with the appropriate number and/or letter from the corresponding list below.
Box A: Front Panel Size
4 = 1/16 DIN (48x48mm)
5 = 1/8 DIN (48x96mm)
7 = 72 x 72mm
9 = 1/4 DIN (96x96mm)
Box B: Input Signal
T = Thermocouple (°C)
R = Thermocouple (°F)
N = RTD, Pt100 ohm, 3-wire type (°C)
S = RTD, Pt100 ohm, 3-wire type (°F)
B = 4-20mA DC, 1-5V DC
A = 0-20mA DC, 0-5V DC
Box C: Control Output 1
A = Relay contact output
C = SSR or SSC drive output
E = 4-20mA DC output
G = Triac 1A, 250 VAC
Note: RS485 option comes with Free software, PXR-LITE. RS485 requires signal converter to connect to PC, P/N RSFC24 recommended.
1
Heater break option not available with 4-20mA output, or with 2 digital inputs, or with RS485 +1 digital input.
2
Must order current transformer CTL-6-S or CTL-12 with heater break option.
3
Remote setpoint option not available with RS485 +1 digital input.
4
UL and c-UL not available with PXR5 or PXR9.
1
4
Box D: Control Output 2
Y = None
A = Relay contact output
C = SSR or SSC drive output
E = 4-20mA DC output
G = Triac 1A, 250 VAC
1
4
R = Retransmission (4-20mA DC)
Box E: Alarm Options
4 = None
6 = Heater break alarm
1,2
G = High/low alarm 2 points
H = High/low alarm 2 points +
heater break alarm
M = Alarm 3 points
D = Remote setpoint
1,2
3
P = Remote setpoint + alarm 2 points
Box F: Power Supply
V = Standard (100-240V AC, 50/60Hz)
B = 24V AC/DC (50/60Hz)
Box G: Additional Functions
0 = None
M = RS485 communication (Modbus)
S = Digital Input (DI) x 1
T = Digital Input (DI) x 2
V =
RS485 communications (Modbus)
1,3
3
11
+ DI
FUJI PXR SERIES CONTROLLERS
1
Accessories
CTL-6-S Current transformer for 1-30A
CTL-12 Current transformer for 20-50A
RSFC24 RS485 to RS232 signal converter
PXR4 Loader Assembly
Program loader for PXR4 (can be used for PX series also)
PXR3 Rail Adapter Mounting adapter for DIN rail installation
PXR4 Terminal Cover Terminal block protective cover
Information subject to change without notice. Prices in USD. 010110
PXR4 Temperature Controller Socket Series
Ordering Information (PXR4 Socket Version)
P
X R 4 – A B S 1 – C D 0 A 1
To create a part number fi ll in the boxes above with the appropriate number and/or letter from the corresponding list below.
Front Panel Size
4 = 1/16 DIN (48x48mm)
Box A: Input Signal
T = Thermocouple (°C)
R = Thermocouple (°F)
N = RTD, Pt100 ohm, 3-wire type (°C)
S = RTD, Pt100 ohm, 3-wire type (°F)
B = 4-20mA DC, 1-5V DC
A = 0-20mA DC, 0-5V DC
Box B: Control Output 1
A = Relay contact output
C = SSR or SSC drive output
E = 4-20mA DC output
G = Triac 1A, 250 VAC
1
4
Box C: Alarm Options
4 = None
5 = Hign.low alarm 1 point
G = High/low alarm 2 points
Box D: Power Supply
V = Standard (100-240V AC, 50/60Hz)
B = 24V AC/DC (50/60Hz)
Accessories
PXR4 Loader Assembly Program loader for PXR4
PXR4 Terminal Cover
Terminal block protective cover
Information subject to change without notice. Prices in USD. 050110
PV
SSR
ON : RUN
OFF : RESET
Digital input
Ramp/Soak command
Voltage pulse output
Furnace
Thermocouple
SV1
SV2
C
Time
SV3
RESET
RUN
SV4
SV
PV
ON ON
SSR SSR
PVPV
Digital input
Autotuning command
ON : Autotuning Start
OFF : Autotuning Strat
Tuning Action
Heater
Material
Process
Alarm
(Extruder)
Molding
Machine
Voltage
pulse
output
SSR
SSR
PVPV
OVEN
Digital input
Main-setting /
Sub-setting
Switchover
Voltage pulse output
PV
SSR
Digital input
Control : RUN / STAND-BY
OFF : RUN
ON : STAND-BY
Fryer
Heater
oil
Voltage pulse output
Water
Heating
Output
Cooling
Sterilizer
Heat / Cool
Overlap
Dual Output
Steam
PV
Deadband
PXR Series (continued)
Application Examples
FUJI PXR SERIES CONTROLLERS
Furnace Heat Pattern Control
Heat Pattern Control — Ramp/Soak Function
Oven
To change SV easily
Ramp/Soak Function
• Control temperature according to “Heat pattern with ramp”
• Keep temperature stable for a certain period with “Heat pattern”
and then cool down
• “Heat pattern” can be Started (RUN) /Reset by an external digital
Set Value (SV) can be selected/changed externally.
<main SV, SV1~3 change over>
input.
Fryer
To keep oil temperature stable
Plastic Molding Machine
Stable temperature control required — Fuzzy + PID
Control
6
Auto-Tuning can be started/stopped through external digital input
Information subject to change without notice. Prices in USD. 5-02
Control RUN/Stand-by selectable through external digital input
Cooling & Heating Control
Cooling output and Heating output can be overlapped or a “Deadband” set between them.
Loading...
