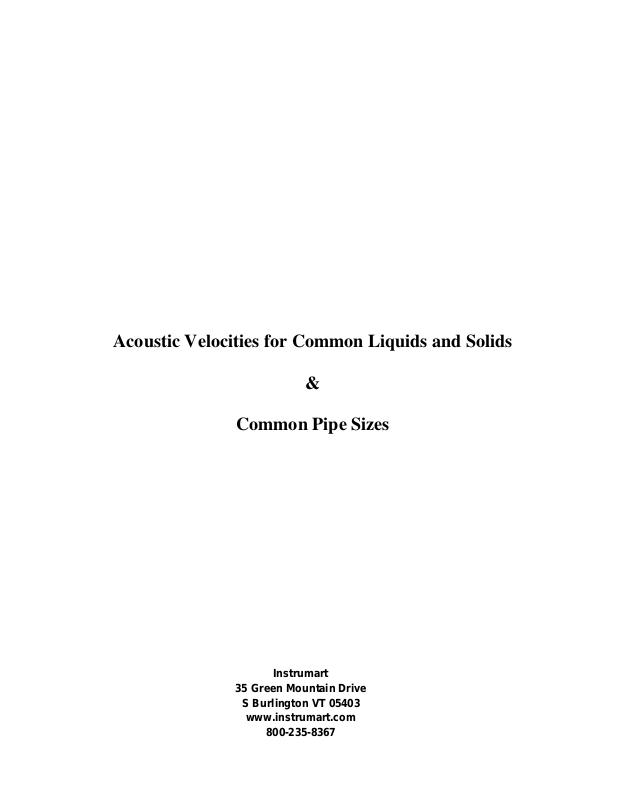

Acoustic Velocities for Common Liquids and Solids
&
Common Pipe Sizes
35 Green Mountain Drive
S Burlington VT 05403
800-235-8367
Page 2
Page 3
Page 4
Common Pipe Sizes for Welded Steel, Aluminum, and Copper
Brass Pipe
WELDED STEEL
Nominal Diameter
ALUMINUM COPPER TUBING Copper &
Type K Type L Type M 16 Gage 14 Gage 12 Gage 10 Gage 7 Gage 3 Gage 1/4 5/16 3/8 7/16 1/2
1/2" O.D. 0.625 0.625 0.625 0.840
Wall 0.049 0.040 0.028 0.108
I.D. 0.527 0.545 0.569 0.625
5/8" O.D. 0.750 0.750 0.750
Wall 0.049 0.042 0.030
I.D. 0.652 0.666 0.690
3/4" O.D. 0.875 0.875 0.875 1.050
Wall 0.065 0.045 0.032 0.114
I.D. 0.745 0.785 0.811 0.822
1" O.D. 1.125 1.125 1.125 1.315
Wall 0.065 0.050 0.035 0.127
I.D. 0.995 1.025 1.055 1.062
1-1/4" O.D. 1.375 1.375 1.375 1.660
Wall 0.065 0.055 0.042 0.146
I.D. 1.245 1.265 1.291 1.368
1-1/2" O.D. 1.625 1.625 1.625 1.900
Wall 0.072 0.060 0.027 0.150
I.D. 1.481 1.505 1.571 1.600
2" O.D. 2.125 2.125 2.125 2.375
Wall 0.083 0.070 0.058 0.157
I.D. 1.959 1.985 2.009 2.062
2-1/2" O.D. 2.500 2.625 2.625 2.625 2.875
Wall 0.050 0.095 0.080 0.065 0.188
I.D. 2.400 2.435 2.465 2.495 2.500
3" O.D. 3.000 3.125 3.125 3.125 3.500
Wall 0.050 0.109 0.090 0.072 0.219
I.D. 2.900 2.907 2.945 2.981 3.062
3-1/2" O.D. 3.625 3.625 3.625 4.000
Wall 0.120 0.100 0.083 0.250
I.D. 3.385 3.425 3.459 3.500
4" O.D. 4.000 4.125 4.125 4.125 4.500 4.000 4.000 4.000 4.000
Wall 0.063 0.134 0.110 0.095 0.250 0.060 0.075 0.105 0.135
I.D. 3.874 3.857 3.905 3.935 4.000 3.880 3.851 3.791 3.731
4-1/2" O.D. 5.000 4.500 4.500 4.500 4.500
Wall 0.250 0.060 0.075 0.105 0.135
I.D. 4.500 4.380 4.351 4.291 4.231
5" O.D. 5.000 5.125 5.125 5.125 5.563 5.000 5.000 5.000 5.000 5.000
Wall 0.063 0.160 0.125 0.109 0.250 0.060 0.075 0.105 0.135 0.179
I.D. 4.875 4.805 4.875 4.907 5.063 4.880 4.851 4.791 4.731 4.641
6" O.D. 6.000 6.125 6.125 6.125 6.625 6.000 6.000 6.000 6.000 6.000
Wall 0.063 0.192 0.140 0.122 0.250 0.060 0.075 0.105 0.135 0.179
I.D. 5.874 5.741 5.845 5.881 6.125 5.880 5.851 5.791 5.731 5.641
6-5/8" O.D. 6.625 6.625 6.625 6.625 6.625
Wall 0.060 0.075 0.105 0.135 0.179
I.D. 6.505 6.476 6.416 6.356 6.266
7" O.D. 7.000 7.625 7.000 7.000 7.000 7.000 7.000 7.000
Wall 0.078 0.282 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 6.844 7.062 6.880 6.851 6.791 6.731 6.641 6.522
8" O.D. 8.000 8.125 8.125 8.125 8.625 8.000 8.000 8.000 8.000 8.000 8.000
Wall 0.094 0.271 0.200 0.170 0.313 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 7.812 7.583 7.725 7.785 8.000 7.880 7.851 7.791 7.731 7.641 7.522
8-5/8" O.D. 8.625 8.625 8.625 8.625 8.625 8.625
Wall 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 8.505 8.476 8.416 8.356 8.266 8.147
Page 5
10" O.D. 10.000 10.000 10.000 10.000 10.000 10.000
Wall 0.094 0.075 0.105 0.135 0.179 0.239
I.D. 9.812 9.851 9.791 9.731 9.641 9.522
10-3/4" O.D. 10.750 10.750 10.750 10.750 10.750
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 10.601 10.541 10.481 10.391 10.272
12" O.D. 12.000 12.000 12.000 12.000 12.000
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 11.851 11.791 11.731 11.641 11.522
12-3/4" O.D. 12.750 12.750 12.750 12.750 12.750
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 12.601 12.541 12.481 12.391 12.272
14" O.D. 14.000 14.000 14.000 14.000 14.000
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 13.851 13.791 13.731 13.641 13.522
16" O.D. 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375
I.D. 15.851 15.791 15.731 15.641 15.522 15.500 15.370 15.250
18" O.D. 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375
I.D. 17.851 17.791 17.731 17.641 17.522 17.500 17.370 17.250
20" O.D. 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438
I.D. 19.851 19.791 19.731 19.641 19.522 19.500 19.370 19.250 19.124
22" O.D. 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438
I.D. 21.851 21.791 21.731 21.641 21.522 21.500 21.370 21.250 21.124
24" O.D. 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 23.851 23.791 23.731 23.641 23.522 23.500 23.370 23.250 23.124 23.000
30" O.D. 30.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 29.851 29.791 29.731 29.641 29.522 29.500 29.370 29.250 29.124 29.000
36" O.D. 36.000 36.000 36.000 36.000 36.000 36.000 36.000 36.000 36.000 36.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 35.851 35.791 35.731 35.641 35.522 35.500 35.370 35.250 35.124 35.000
42" O.D. 42.000 42.000 42.000 42.000 42.000 42.000 42.000 42.000 42.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 41.791 41.731 41.641 41.522 41.500 41.370 41.250 41.124 41.000
48" O.D. 48.000 48.000 48.000 48.000 48.000 48.000 48.000 48.000 48.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 47.791 47.731 47.641 47.522 47.500 47.370 47.250 47.124 47.000
54" O.D. 54.000 54.000 54.000 54.000 54.000 54.000 54.000 54.000 54.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 53.791 53.731 53.641 53.522 53.500 53.370 53.250 53.124 53.000
60" O.D. 60.000 60.000 60.000 60.000 60.000 60.000 60.000 60.000 60.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 59.791 59.731 59.641 59.522 59.500 59.370 59.250 59.124 59.000
66" O.D. 66.000 66.000 66.000 66.000 66.000 66.000 66.000 66.000 66.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 65.791 65.731 65.641 65.522 65.500 65.370 65.250 65.124 65.000
72" O.D. 72.000 72.000 72.000 72.000 72.000 72.000 72.000 72.000 72.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
FloSonics, Inc. 1996
I.D. 71.791 71.731 71.641 71.522 71.500 71.370 71.250 71.124 71.000
Page 6
Common Pipe Sizes for Steel
CARBON STEEL STAINLESS STEEL
Double
Extra
Strong
Schedule 5Schedule 10Schedule 40Schedule
80
Nominal Diameter
Schedule 10Schedule 20Schedule 30Schedule 40Schedule 60Schedule 80Schedule
100
Schedule
120
Schedule
140
Schedule
160
Standard
Weight
Extra
Strong
1/2" O.D. 0.840 0.840 0.840 0.840 0.840 0.840
Wall 0.109 0.147 0.187 0.109 0.147 0.294
I.D. 0.612 0.546 0.466 0.612 0.546 0.252
3/4" O.D. 1.050 1.050 1.050 1.050 1.050 1.050
Wall 0.113 0.154 0.218 0.113 0.154 0.308
I.D. 0.824 0.742 0.614 0.824 0.742 0.434
1" O.D. 1.315 1.315 1.315 1.315 1.315 1.315 1.315 1.315 1.315 1.315
Wall 0.133 0.179 0.250 0.133 0.179 0.358 0.065 0.109 0.133 0.179
I.D. 1.049 0.957 0.815 1.049 0.957 0.559 1.185 1.097 1.049 0.957
1-1/4" O.D. 1.660 1.660 1.660 1.660 1.660 1.660 1.660 1.660 1.660 1.660
Wall 0.140 0.191 0.250 0.140 0.191 0.382 0.065 0.109 0.140 0.191
I.D. 1.380 1.278 1.160 1.380 1.278 0.896 1.530 1.442 1.380 1.278
1-1/2" O.D. 1.900 1.900 1.900 1.900 1.900 1.900 1.900 1.900 1.900 1.900
Wall 0.145 0.200 0.281 0.145 0.200 0.400 0.065 0.109 0.145 0.200
I.D. 1.610 1.500 1.338 1.610 1.500 1.100 1.770 1.682 1.610 1.500
2" O.D. 2.375 2.375 2.375 2.375 2.375 2.375 2.375 2.375 2.375 2.375
Wall 0.154 0.218 0.343 0.154 0.218 0.436 0.065 0.109 0.154 0.218
I.D. 2.067 1.939 1.689 2.067 1.939 1.503 2.245 2.157 2.067 1.939
2-1/2" O.D. 2.875 2.875 2.875 2.875 2.875 2.875 2.875 2.875 2.875 2.875
Wall 0.203 0.276 0.375 0.203 0.276 0.552 0.083 0.120 0.203 0.276
I.D. 2.469 2.323 2.125 2.469 2.323 1.771 2.709 2.635 2.469 2.323
3" O.D. 3.500 3.500 3.500 3.500 3.500 3.500 3.500 3.500 3.500 3.500
Wall 0.216 0.300 0.438 0.216 0.300 0.600 0.083 0.120 0.216 0.300
I.D. 3.067 2.900 2.624 3.068 2.900 2.300 3.334 3.260 3.068 2.900
3-1/2" O.D. 4.000 4.000 4.000 4.000 4.000 4.000 4.000 4.000 4.000
Wall 0.226 0.318 0.226 0.318 0.636 0.083 0.120 0.226 0.318
I.D. 3.548 3.364 3.548 3.364 2.728 3.834 3.760 3.548 3.364
4" O.D. 4.500 4.500 4.500 4.500 4.500 4.500 4.500 4.500 4.500 4.500 4.500
Wall 0.237 0.337 0.438 0.531 0.237 0.337 0.674 0.083 0.120 0.237 0.337
I.D. 4.026 3.826 3.626 3.438 4.026 3.826 3.152 4.334 4.260 4.026 3.826
5" O.D. 5.563 5.563 5.563 5.563 5.563 5.563 5.563 5.563 5.563 5.563 5.563
Wall 0.258 0.375 0.500 0.625 0.258 0.375 0.750 0.083 0.134 0.258 0.375
I.D. 5.047 4.813 4.563 4.313 5.047 4.813 4.063 5.397 5.295 5.047 4.813
6" O.D. 6.625 6.625 6.625 6.625 6.625 6.625 6.625 6.625 6.625 6.625 6.625
Wall 0.280 0.432 0.562 0.718 0.280 0.432 0.897 0.109 0.134 0.280 0.432
I.D. 6.065 5.761 5.501 5.189 6.065 5.761 4.897 6.407 6.357 6.065 5.761
8" O.D. 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625 8.625
Wall 0.250 0.277 0.322 0.406 0.500 0.593 0.718 0.812 0.906 0.322 0.500 0.875 0.109 0.148 0.322 0.500
I.D. 8.125 8.071 7.981 7.813 7.625 7.439 7.189 7.001 6.813 7.981 7.625 6.875 8.407 8.329 7.981 7.625
10" O.D. 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750 10.750
Wall 0.250 0.307 0.365 0.500 0.593 0.718 0.843 1.000 1.125 0.365 0.500 1.000 0.134 0.165 0.365 0.500
I.D. 10.250 10.136 10.020 9.750 9.564 9.314 9.064 8.750 8.500 10.020 9.750 8.750 10.482 10.420 10.020 9.750
12" O.D. 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750 12.750
Wall 0.250 0.330 0.406 0.562 0.687 0.843 1.000 1.125 1.312 0.375 0.500 1.000 0.156 0.180 0.375 0.500
I.D. 12.250 12.090 11.938 11.626 11.376 11.064 10.750 10.500 10.126 12.000 11.750 10.750 12.438 12.390 12.000 11.750
14" O.D. 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000 14.000
Wall 0.250 0.312 0.375 0.438 0.593 0.750 0.937 1.093 1.250 1.406 0.375 0.500 0.156 0.188
I.D. 13.500 13.375 13.250 13.124 12.814 12.500 12.126 11.814 11.500 11.188 13.250 13.000 13.688 13.624
16" O.D. 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000 16.000
Wall 0.250 0.312 0.375 0.500 0.656 0.843 1.031 1.218 1.438 1.593 0.375 0.500 0.165 0.188
I.D. 15.500 15.375 15.250 15.000 14.688 14.314 13.938 13.564 13.124 12.814 15.250 15.000 15.670 15.624
18" O.D. 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000 18.000
Wall 0.250 0.312 0.438 0.562 0.750 0.937 1.156 1.375 1.562 1.781 0.375 0.500 0.165 0.188
I.D. 17.500 17.375 17.124 16.876 16.500 16.126 15.688 15.250 14.876 14.438 17.250 17.000 17.670 17.624
20" O.D. 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000 20.000
Wall 0.250 0.375 0.500 0.593 0.812 1.031 1.281 1.500 1.750 1.968 0.375 0.500 0.188 0.218
I.D. 19.500 19.250 19.000 18.814 18.376 17.938 17.438 17.000 16.500 16.064 19.250 19.000 19.624 19.564
Page 7
22" O.D. 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000 22.000
Wall 0.250 0.375 0.500 0.594 0.812 1.031 1.281 1.500 1.750 1.969 0.375 0.500 0.188 0.218
I.D. 21.500 21.250 21.000 20.812 20.376 19.938 19.438 19.000 18.500 18.062 21.250 21.000 21.624 21.564
24" O.D. 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000 24.000
Wall 0.250 0.375 0.562 0.687 0.968 1.218 1.531 1.812 2.062 2.343 0.375 0.500 0.218 0.250
I.D. 23.500 23.250 22.875 22.626 22.064 21.564 20.938 20.376 19.876 19.314 23.250 23.000 23.564 23.500
26" O.D. 26.000 26.000 26.000 26.000
Wall 0.312 0.500 0.375 0.500
I.D. 25.376 25.000 25.250 25.000
28" O.D. 28.000 28.000 28.000 28.000 28.000
Wall 0.312 0.500 0.625 0.375 0.500
I.D. 27.376 27.000 26.750 27.250 27.000
30" O.D. 30.000 30.000 30.000 30.000 30.000 30.000 30.000 30.000
Wall 0.312 0.500 0.625 0.750 0.375 0.500 0.250 0.312
I.D. 29.376 29.000 28.750 28.500 29.250 29.000 29.500 29.376
32" O.D. 32.000 32.000 32.000 32.000 32.000 32.000
Wall 0.312 0.500 0.625 0.688 0.375 0.500
I.D. 31.376 31.000 30.750 30.624 31.250 31.000
34" O.D. 34.000 34.000 34.000 34.000 34.000 34.000
Wall 0.344 0.500 0.625 0.688 0.375 0.500
I.D. 33.312 33.000 32.750 32.624 33.250 33.000
36" O.D. 36.000 36.000 36.000 36.000 36.000 36.000
Wall 0.312 0.500 0.625 0.750 0.375 0.500
I.D. 35.312 35.000 34.750 34.500 35.250 35.000
42" O.D. 42.000 42.000 42.000 42.000 42.000
Wall 0.500 0.625 0.750 0.375 0.500
I.D. 41.000 40.750 40.500 41.250 41.000
48" O.D. 48.000 48.000
Wall 0.375 0.500
FloSonics, Inc. 1996
I.D. 47.250 47.000
Page 8
© FloSonics, Inc. 1996
1/2"
O.D.
0.625
0.625
0.625
0.840
5/8"
O.D.
0.750
0.750
0.750
3/4"
O.D.
0.875
0.875
0.875
1.050
1"
O.D.
1.125
1.125
1.125
1.315
1-1/4"
O.D.
1.375
1.375
1.375
1.660
1-1/2"
O.D.
1.625
1.625
1.625
1.900
2"
O.D.
2.125
2.125
2.125
2.375
2-1/2"
O.D.
2.500
2.625
2.625
2.625
2.875
3"
O.D.
3.000
3.125
3.125
3.125
3.500
3-1/2"
O.D.
3.625
3.625
3.625
4.000
4"
O.D.
4.000
4.125
4.125
4.125
4.500
4.000
4.000
4.000
4.000
4-1/2"
O.D.
5.000
4.500
4.500
4.500
4.500
5"
O.D.
5.000
5.125
5.125
5.125
5.563
5.000
5.000
5.000
5.000
5.000
6"
O.D.
6.000
6.125
6.125
6.125
6.625
6.000
6.000
6.000
6.000
6.000
6-5/8"
O.D.
6.625
6.625
6.625
6.625
6.625
7"
O.D.
7.000
7.625
7.000
7.000
7.000
7.000
7.000
7.000
8"
O.D.
8.000
8.125
8.125
8.125
8.625
8.000
8.000
8.000
8.000
8.000
8.000
Nominal Diameter
Wall 0.049 0.040 0.028 0.108
I.D. 0.527 0.545 0.569 0.625
Wall 0.049 0.042 0.030
I.D. 0.652 0.666 0.690
Wall 0.065 0.045 0.032 0.114
I.D. 0.745 0.785 0.811 0.822
Wall 0.065 0.050 0.035 0.127
I.D. 0.995 1.025 1.055 1.062
Wall 0.065 0.055 0.042 0.146
I.D. 1.245 1.265 1.291 1.368
Wall 0.072 0.060 0.027 0.150
I.D. 1.481 1.505 1.571 1.600
Wall 0.083 0.070 0.058 0.157
I.D. 1.959 1.985 2.009 2.062
Wall 0.050 0.095 0.080 0.065 0.188
I.D. 2.400 2.435 2.465 2.495 2.500
Wall 0.050 0.109 0.090 0.072 0.219
I.D. 2.900 2.907 2.945 2.981 3.062
ALUMINUM WELDED STEELCOPPER TUBING
Type K Type L Type M 16 Gage 14 Gage 12 Gage 10 Gage 7 Gage 3 Gage 1/4 5/16 3/8 7/16 1/2
Common Pipe Sizes for Welded Steel, Aluminum, and Copper (all dimensions in inches)
Copper &
Brass Pipe
Wall 0.120 0.100 0.083 0.250
I.D. 3.385 3.425 3.459 3.500
Wall 0.063 0.134 0.110 0.095 0.250 0.060 0.075 0.105 0.135
I.D. 3.874 3.857 3.905 3.935 4.000 3.880 3.851 3.791 3.731
Wall 0.250 0.060 0.075 0.105 0.135
I.D. 4.500 4.380 4.351 4.291 4.231
Wall 0.063 0.160 0.125 0.109 0.250 0.060 0.075 0.105 0.135 0.179
I.D. 4.875 4.805 4.875 4.907 5.063 4.880 4.851 4.791 4.731 4.641
Wall 0.063 0.192 0.140 0.122 0.250 0.060 0.075 0.105 0.135 0.179
I.D. 5.874 5.741 5.845 5.881 6.125 5.880 5.851 5.791 5.731 5.641
Wall 0.060 0.075 0.105 0.135 0.179
I.D. 6.505 6.476 6.416 6.356 6.266
Wall 0.078 0.282 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 6.844 7.062 6.880 6.851 6.791 6.731 6.641 6.522
Wall 0.094 0.271 0.200 0.170 0.313 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 7.812 7.583 7.725 7.785 8.000 7.880 7.851 7.791 7.731 7.641 7.522
Page 9
© FloSonics, Inc. 1996
8-5/8"
O.D.
8.625
8.625
8.625
8.625
8.625
8.625
10"
O.D.
10.000
10.000
10.000
10.000
10.000
10.000
10-3/4"
O.D.
10.750
10.750
10.750
10.750
10.750
12"
O.D.
12.000
12.000
12.000
12.000
12.000
12-3/4"
O.D.
12.750
12.750
12.750
12.750
12.750
14"
O.D.
14.000
14.000
14.000
14.000
14.000
16"
O.D.
16.000
16.000
16.000
16.000
16.000
16.000
16.000
16.000
18"
O.D.
18.000
18.000
18.000
18.000
18.000
18.000
18.000
18.000
20"
O.D.
20.000
20.000
20.000
20.000
20.000
20.000
20.000
20.000
20.000
22"
O.D.
22.000
22.000
22.000
22.000
22.000
22.000
22.000
22.000
22.000
24"
O.D.
24.000
24.000
24.000
24.000
24.000
24.000
24.000
24.000
24.000
24.000
30"
O.D.
30.000
30.000
30.000
30.000
30.000
30.000
30.000
30.000
30.000
30.000
36"
O.D.
36.000
36.000
36.000
36.000
36.000
36.000
36.000
36.000
36.000
36.000
42"
O.D.
42.000
42.000
42.000
42.000
42.000
42.000
42.000
42.000
42.000
48"
O.D.
48.000
48.000
48.000
48.000
48.000
48.000
48.000
48.000
48.000
54"
O.D.
54.000
54.000
54.000
54.000
54.000
54.000
54.000
54.000
54.000
60"
O.D.
60.000
60.000
60.000
60.000
60.000
60.000
60.000
60.000
60.000
Nominal Diameter
Wall 0.060 0.075 0.105 0.135 0.179 0.239
I.D. 8.505 8.476 8.416 8.356 8.266 8.147
Wall 0.094 0.075 0.105 0.135 0.179 0.239
I.D. 9.812 9.851 9.791 9.731 9.641 9.522
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 10.601 10.541 10.481 10.391 10.272
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 11.851 11.791 11.731 11.641 11.522
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 12.601 12.541 12.481 12.391 12.272
Wall 0.075 0.105 0.135 0.179 0.239
I.D. 13.851 13.791 13.731 13.641 13.522
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375
I.D. 15.851 15.791 15.731 15.641 15.522 15.500 15.370 15.250
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375
I.D. 17.851 17.791 17.731 17.641 17.522 17.500 17.370 17.250
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438
I.D. 19.851 19.791 19.731 19.641 19.522 19.500 19.370 19.250 19.124
ALUMINUM COPPER TUBING
Type K Type L Type M 16 Gage 14 Gage 12 Gage 10 Gage 7 Gage 3 Gage 1/4 5/16 3/8 7/16 1/2
Common Pipe Sizes for Welded Steel, Aluminum, and Copper (all dimensions in inches)
Copper &
Brass Pipe
WELDED STEEL
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438
I.D. 21.851 21.791 21.731 21.641 21.522 21.500 21.370 21.250 21.124
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 23.851 23.791 23.731 23.641 23.522 23.500 23.370 23.250 23.124 23.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 29.851 29.791 29.731 29.641 29.522 29.500 29.370 29.250 29.124 29.000
Wall 0.075 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 35.851 35.791 35.731 35.641 35.522 35.500 35.370 35.250 35.124 35.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 41.791 41.731 41.641 41.522 41.500 41.370 41.250 41.124 41.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 47.791 47.731 47.641 47.522 47.500 47.370 47.250 47.124 47.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 53.791 53.731 53.641 53.522 53.500 53.370 53.250 53.124 53.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 59.791 59.731 59.641 59.522 59.500 59.370 59.250 59.124 59.000
Page 10
© FloSonics, Inc.1996
66"
O.D.
66.000
66.000
66.000
66.000
66.000
66.000
66.000
66.000
66.000
72"
O.D.
72.000
72.000
72.000
72.000
72.000
72.000
72.000
72.000
72.000
Nominal Diameter
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 65.791 65.731 65.641 65.522 65.500 65.370 65.250 65.124 65.000
Wall 0.105 0.135 0.179 0.239 0.250 0.315 0.375 0.438 0.500
I.D. 71.791 71.731 71.641 71.522 71.500 71.370 71.250 71.124 71.000
ALUMINUM COPPER TUBING
Type K Type L Type M 16 Gage 14 Gage 12 Gage 10 Gage 7 Gage 3 Gage 1/4 5/16 3/8 7/16 1/2
Common Pipe Sizes for Welded Steel, Aluminum, and Copper (all dimensions in inches)
Copper &
Brass Pipe
WELDED STEEL
Page 11
© FloSonics, Inc. 1996
1/2"
O.D.
0.840
0.840
0.840
0.840
3/4"
O.D.
1.050
1.050
1.050
1.050
1"
O.D.
1.315
1.315
1.315
1.315
1.315
1.315
1-1/4"
O.D.
1.660
1.660
1.660
1.660
1.660
1.660
1-1/2"
O.D.
1.900
1.900
1.900
1.900
1.900
1.900
2"
O.D.
2.375
2.375
2.375
2.375
2.375
2.375
2-1/2"
O.D.
2.875
2.875
2.875
2.875
2.875
2.875
3"
O.D.
3.500
3.500
3.500
3.500
3.500
3.500
3.500
3-1/2"
O.D.
4.000
4.000
4.000
4.000
4.000
4.000
4"
O.D.
4.500
4.500
4.500
4.500
4.500
4.500
4.500
4.800
4.800
4.800
4.125
4.130
4.130
4.130
4.130
5"
O.D.
5.563
5.563
5.563
5.563
5.563
5.563
6"
O.D.
6.625
6.625
6.625
6.625
6.625
6.625
6.900
6.900
6.900
6.275
6.140
6.140
6.140
6.140
6.140
8"
O.D.
8.625
8.625
8.625
8.625
8.625
8.625
9.050
9.050
9.050
8.400
8.160
8.160
8.160
8.160
8.160
10"
O.D.
10.750
10.750
10.750
10.750
10.750
10.750
11.100
11.100
11.100
10.500
10.200
10.200
10.200
10.200
10.200
12"
O.D.
12.750
12.750
12.750
12.750
12.750
12.750
13.200
13.200
13.200
12.500
12.240
12.240
12.240
12.240
12.240
14"
O.D.
14.000
14.000
14.000
14.000
15.300
15.300
15.300
15.300
15"
O.D.
15.300
15.300
15.300
15.300
15.300
15.300
15.300
16"
O.D.
16.000
16.000
16.000
16.000
17.400
17.400
17.400
17.400
18"
O.D.
18.000
18.000
18.000
18.000
19.500
19.500
19.500
19.500
19.500
18.701
18.360
18.700
18.700
18.700
20"
O.D.
20.000
20.000
20.000
20.000
21.600
21.600
21.600
21.600
21.600
20.400
21"
O.D.
22.047
22.050
22.050
22.050
24"
O.D.
24.000
24.000
24.000
24.000
25.800
25.800
25.800
25.800
25.800
24.803
24.800
24.800
24.800
Nominal Diameter
Wall 0.062 0.062 0.109 0.147
I.D. 0.716 0.716 0.612 0.546
Wall 0.060 0.078 0.113 0.154
I.D. 0.930 0.894 0.824 0.742
Wall 0.052 0.060 0.063 0.097 0.133 0.179
I.D. 1.211 1.195 1.189 1.121 1.049 0.957
Wall 0.060 0.064 0.079 0.123 0.140 0.191
I.D. 1.540 1.532 1.502 1.414 1.380 1.278
Wall 0.060 0.073 0.090 0.141 0.145 0.200
I.D. 1.780 1.754 1.720 1.618 1.610 1.500
Wall 0.073 0.091 0.113 0.176 0.154 0.218
I.D. 2.229 2.193 2.149 2.023 2.067 1.939
Wall 0.088 0.110 0.137 0.213 0.203 0.276
I.D. 2.699 2.655 2.601 2.449 2.469 2.323
Wall 0.085 0.108 0.135 0.167 0.259 0.216 0.300
I.D. 3.330 3.284 3.230 3.166 2.982 3.068 2.900
Wall 0.098 0.123 0.154 0.190 0.226 0.318
I.D. 3.804 3.754 3.692 3.620 3.548 3.364
Wall 0.110 0.138 0.173 0.214 0.333 0.237 0.337 0.192 0.267 0.343 0.125 0.081 0.101 0.127 0.159
I.D. 4.280 4.224 4.154 4.072 3.384 4.026 3.826 4.416 4.266 4.114 3.875 3.968 3.928 3.876 3.812
Wall 0.136 0.171 0.214 0.265 0.258 0.375
I.D. 5.291 5.221 5.135 5.033 5.047 4.813
Wall 0.162 0.205 0.255 0.316 0.280 0.432 0.276 0.383 0.493 0.180 0.120 0.120 0.150 0.189 0.236
I.D. 6.301 6.215 6.115 5.993 6.065 5.761 6.348 6.134 5.914 5.915 5.900 5.900 5.840 5.762 5.668
Wall 0.210 0.265 0.332 0.411 0.322 0.500 0.362 0.503 0.646 0.240 0.087 0.160 0.199 0.251 0.314
I.D. 8.205 8.095 7.961 7.803 7.981 7.625 8.326 8.044 7.758 7.920 7.986 7.840 7.762 7.658 7.532
Wall 0.262 0.331 0.413 0.511 0.365 0.593 0.444 0.617 0.793 0.300 0.107 0.200 0.249 0.314 0.392
I.D. 10.226 10.088 9.924 9.728 10.020 9.564 10.212 9.866 9.514 9.900 9.986 9.800 9.702 9.572 9.416
Wall 0.311 0.392 0.490 0.606 0.406 0.687 0.528 0.733 0.943 0.360 0.131 0.240 0.299 0.377 0.471
I.D. 12.128 11.966 11.770 11.538 11.938 11.376 12.144 11.734 11.314 11.780 11.978 11.760 11.642 11.486 11.298
Wall 0.341 0.430 0.538 0.666 0.373 0.471 0.612 0.850
I.D. 13.318 13.140 12.924 12.668 14.554 14.358 14.076 13.600
Wall 0.437 0.164 0.239 0.300 0.373 0.471 0.588
I.D. 14.426 14.972 14.822 14.700 14.554 14.350 14.124
Wall 0.390 0.492 0.615 0.762 0.424 0.535 0.696 0.967
I.D. 15.220 15.016 14.770 14.476 16.552 16.330 16.008 15.466
Wall 0.439 0.554 0.692 0.857 0.476 0.600 0.780 0.929 1.083 0.536 0.200 0.367 0.456 0.575
I.D. 17.122 16.892 16.616 16.286 18.548 18.300 17.940 17.642 17.334 17.629 17.960 17.966 17.788 17.550
Wall 0.488 0.615 0.769 0.952 0.527 0.665 0.864 1.029 1.200 0.225
I.D. 19.024 18.770 18.462 18.096 20.546 20.270 19.872 19.542 19.200 19.950
Wall 0.632 0.432 0.538 0.678
I.D. 20.783 21.186 20.974 20.694
Wall 0.585 0.738 0.923 1.143 0.629 0.794 1.032 1.229 1.433 0.711 0.486 0.605 0.763
I.D. 22.830 22.524 22.154 21.714 24.542 24.212 23.736 23.342 22.934 23.381 23.828 23.590 23.274
100 125 160 200 315 1 00 psi 125 psi 100 psi 165 psi 20 0 psi 150 psi 235 psi 200 psi S ewer 100 Foot 63 80 100 125 160
SDR-41 SDR-32.5 SDR-26 S DR-21 SDR-13.5 Sch. 40 Sch. 80 DR-41 DR-32.5 DR-25 D R-25 DR-21 DR-18 DR-18 DR-14 DR-35 Head SDR-64 S DR-51 SDR-41 SDR-32.5 SDR-26
PVC IPS CLASS
SCHEDULE
PVC
Common Pipe Sizes for PVC (
all dimensions in inches)
PVC Cast Iron O.D. PVC PIP CLASS
PVC
Page 12
© FloSonics, Inc. 1996
27"
O.D.
27.953
27.950
27.950
27.950
30"
O.D.
30.000
30.000
30.000
30.000
32.000
32.000
32.000
32.000
36"
O.D.
36.000
36.000
36.000
36.000
38.300
38.300
38.300
38.300
P
Nominal Diameter
Wall 0.801 0.548 0.683 0.863
I.D. 26.351 26.854 26.584 26.224
Wall 0.732 0.923 1.154 1.428 0.780 0.985 1.280 1.524
I.D. 28.536 28.154 27.692 27.144 30.440 30.030 29.440 28.952
Wall 0.878 1.108 1.385 1.714 0.934 1.178 1.532 1.824
I.D. 34.244 33.784 33.230 32.572 36.432 35.944 35.236 34.652
100 125 160 200 315 1 00 psi 125 psi 100 psi 165 psi 20 0 psi 15 0 psi 2 35 psi 2 00 psi Sewer 1 00 Foot 63 80 100 125 160
SDR-41 SDR-32.5 SDR-26 S DR-21 SDR-13.5 Sch. 40 Sch. 80 DR-41 DR-32.5 DR-25 D R-25 DR-21 DR-18 DR-18 DR-14 DR-35 Head SDR-64 S DR-51 SDR-41 SDR-32.5 SDR-26
VC IPS CLASS SCHEDULE PVC Cast Iron O.D. PVC PIP CLASS
PVC
Common Pipe Sizes for PVC (all dimensions in inches)
PVC
Page 13
© FloSonics, Inc 1996
3"
O.D.
3.960
3.960
3.960
3.960
3.960
3.960
3.800
3.960
3.960
3.960
4"
O.D.
4.800
4.800
4.800
4.800
4.800
4.800
4.800
5.000
5.000
5.000
6"
O.D.
6.900
6.900
6.900
6.900
6.900
6.900
6.900
6.900
7.100
7.100
7.100
7.220
7.220
7.380
7.380
8"
O.D.
9.050
9.050
9.050
9.050
9.050
9.050
9.050
9.050
9.050
9.300
9.300
9.420
9.420
9.600
9.600
10"
O.D.
11.100
11.100
11.100
11.100
11.100
11.100
11.100
11.100
11.100
11.400
11.400
11.600
11.600
11.840
11.840
12"
O.D.
13.200
13.200
13.200
13.200
13.200
13.200
13.200
13.200
13.200
13.500
13.500
13.780
13.780
14.080
14.080
14"
O.D.
15.300
15.300
15.300
15.300
15.300
15.300
15.300
15.300
15.300
15.650
15.650
15.980
15.980
16.320
16.320
16"
O.D.
17.400
17.400
17.400
17.400
17.400
17.400
17.400
17.400
17.400
17.800
17.800
18.160
18.160
18.540
18.540
18"
O.D.
19.500
19.500
19.500
19.500
19.500
19.500
19.500
19.500
19.500
19.920
19.920
20.340
20.340
20.780
20.780
20"
O.D.
21.600
21.600
21.600
21.600
21.600
21.600
21.600
21.600
21.600
22.060
22.060
22.540
22.540
23.020
23.020
24"
O.D.
25.800
25.800
25.800
25.800
25.800
25.800
25.800
25.800
25.800
26.320
26.320
26.900
26.900
27.760
27.760
30"
O.D.
32.000
32.000
32.000
32.000
32.000
32.000
32.000
31.740
32.000
32.400
32.740
33.100
33.460
36"
O.D.
38.300
38.300
38.300
38.300
38.300
38.300
38.300
37.960
38.300
38.700
39.160
39.600
40.040
42"
O.D.
44.500
44.500
44.500
44.500
44.500
44.500
44.500
44.200
44.500
45.100
45.580
48"
O.D.
50.800
50.800
50.800
50.800
50.800
50.800
50.800
50.500
50.800
51.400
51.980
54"
O.D.
57.100
57.100
57.100
57.100
57.100
57.100
57.100
56.660
57.100
57.800
58.400
Nominal Diameter
Wall 0.250 0.280 0.310 0.340 0.370 0.400 0.390 0.420 0.450 0.480
I.D. 3.460 3.400 3.340 3.280 3.220 3.160 3.020 3.120 3.060 3.000
Wall 0.260 0.290 0.320 0.350 0.380 0.410 0.420 0.450 0.480 0.520
I.D. 4.280 4.220 4.160 4.100 4.040 3.980 3.960 4.100 4.040 3.960
Wall 0.250 0.280 0.310 0.340 0.370 0.400 0.430 0.440 0.480 0.510 0.550 0.580 0.610 0.650 0.690
I.D. 6.400 6.340 6.280 6.220 6.160 6.100 6.040 6.020 6.140 6.080 6.000 6.060 6.000 6.080 6.000
Wall 0.270 0.300 0.330 0.360 0.390 0.420 0.450 0.460 0.510 0.560 0.600 0.660 0.660 0.750 0.800
I.D. 8.510 8.450 8.390 8.330 8.270 8.210 8.150 8.130 8.030 8.180 8.100 8.100 8.100 8.100 8.000
Wall 0.290 0.320 0.350 0.380 0.410 0.440 0.470 0.500 0.570 0.620 0.680 0.740 0.800 0.860 0.920
I.D. 10.520 10.460 10.400 10.340 10.280 10.220 10.160 10.100 9.960 10.100 10.400 10.120 10.000 10.120 10.000
Wall 0.310 0.340 0.370 0.400 0.430 0.460 0.490 0.540 0.620 0.680 0.750 0.820 0.890 0.970 1.040
I.D. 12.580 12.520 12.460 12.400 12.340 12.280 12.220 12.120 11.960 12.140 12.000 12.140 12.000 12.140 12.000
Wall 0.330 0.360 0.390 0.420 0.450 0.480 0.510 0.570 0.660 0.740 0.820 0.900 0.990 1.070 1.160
I.D. 14.640 14.580 14.520 14.460 14.400 14.340 14.280 14.160 13.980 14.170 14.010 14.180 14.000 14.180 14.000
Wall 0.340 0.370 0.400 0.430 0.460 0.490 0.520 0.600 0.700 0.800 0.890 0.980 1.050 1.180 1.270
I.D. 16.720 16.660 16.600 16.540 16.480 16.420 16.360 16.200 16.000 16.200 16.020 16.200 16.000 16.180 16.000
Wall 0.350 0.380 0.410 0.440 0.470 0.500 0.530 0.640 0.750 0.870 0.960 1.070 1.170 1.280 1.390
I.D. 18.800 18.740 18.680 18.620 18.560 18.500 18.440 18.220 18.000 18.180 18.000 18.200 18.000 18.220 18.000
Common Pipe Sizes for Ductile Iron and Cast Iron (all dimensions in inches)
CLASS 50CLASS 51CLASS 52CLASS 53CLASS 54CLASS 55CLASS 56Class
A
Class
B
Class
C
Class
D
CAST IRONDUCTILE IRON
Class
E
Class
F
Class
G
Class
H
Wall 0.360 0.390 0.420 0.450 0.480 0.510 0.540 0.670 0.800 0.920 1.030 1.150 1.270 1.390 1.510
I.D. 20.880 20.820 20.760 20.700 20.640 20.580 20.520 20.260 20.000 20.220 20.000 20.240 20.000 20.240 20.000
Wall 0.380 0.410 0.440 0.470 0.500 0.530 0.560 0.760 0.890 1.050 1.160 1.310 1.450 1.750 1.880
I.D. 25.040 24.980 24.920 24.860 24.800 24.740 24.680 24.280 24.020 24.220 24.000 24.280 24.000 24.260 24.000
Wall 0.390 0.430 0.470 0.510 0.550 0.590 0.630 0.880 1.030 1.200 1.370 1.550 1.730
I.D. 31.220 31.140 31.060 30.980 30.900 30.820 30.740 29.980 29.940 30.000 30.000 30.000 30.000
Wall 0.430 0.480 0.530 0.580 0.630 0.680 0.730 0.990 1.150 1.360 1.580 1.800 2.020
I.D. 37.440 37.340 37.240 37.140 37.040 36.940 36.840 35.980 36.000 35.980 36.000 36.000 36.000
Wall 0.470 0.530 0.590 0.650 0.710 0.770 0.830 1.100 1.280 1.540 1.780
I.D. 43.560 43.440 43.320 43.200 43.080 42.960 42.840 42.000 41.940 42.020 42.020
Wall 0.510 0.580 0.650 0.720 0.790 0.860 0.930 1.260 1.420 1.710 1.990
I.D. 49.780 49.640 49.500 49.360 49.220 49.080 48.940 47.980 47.960 47.980 48.000
Wall 0.570 0.650 0.730 0.810 0.890 0.970 1.050 1.350 1.550 1.900 2.230
I.D. 55.960 55.800 55.640 55.480 55.320 55.160 55.000 53.960 54.000 54.000 53.940
Page 14
© FloSonics, Inc 1996
60"
O.D.
62.800
63.400
64.200
64.820
72"
O.D.
75.340
76.000
76.880
Nominal Diameter
Wall 1.390 1.670 2.000 2.380
I.D. 60.020 60.060 60.200 60.060
Wall 1.620 1.950 2.390
I.D. 72.100 72.100 72.100
Common Pipe Sizes for Ductile Iron and Cast Iron (all dimensions in inches)
DUCTILE IRON CAST IRON
CLASS 50CLASS 51CLASS 52CLASS 53CLASS 54CLASS 55CLASS 56Class
A
Class
B
Class
C
Class
D
Class
E
Class
F
Class
G
Class
H
Page 15
© FloSonics, Inc. 1996
(3/8")
(1/2")
(3/4")
1.000
O.D.
1.3150
1.3150
1.3150
1.3150
1.3150
1.3150
1.250 (1
1/4")
1.500 (1
1/2")
2.000
O.D.
2.3750
2.3750
2.3750
2.3750
2.3750
2.3750
2.500 (2
1/2")
3.000
O.D.
3.5000
3.5000
3.5000
3.5000
3.5000
3.5000
3.500 (3
1/2")
4.000
O.D.
4.5000
4.5000
4.5000
4.5000
4.5000
4.5000
4.5000
4.5000
4.500 (4
1/2")
5.000
O.D.
5.5630
5.5630
5.5630
5.5630
5.5630
5.5630
5.5630
Nominal Diameter
Sch 5 Sch 10 Sch 20 Sch 30 Sch 40 Std. Sch 60 Sch 80 E.H. Sch 100 Sch 120 Sch 140 Sch 160 Double E.H.
Common Pipe Sizes for Galvanized Steel Tubing and Pipe (all dimensions in inches)
0.375
0.500
0.750
O.D. 0.6750 0.6750 0.6750 0.6750
Wall 0.0490 0.0650 0.0910 0.1260
I.D. 0.5770 0.5450 0.4930 0.4230
O.D. 0.8400 0.8400 0.8400 0.8400
Wall 0.0490 0.0650 0.0880 0.1190
I.D. 0.7420 0.7100 0.6640 0.6020
O.D. 1.0500 1.0500 1.0500 1.0500
Wall 0.0650 0.0830 0.1130 0.1540
I.D. 0.9200 0.8840 0.8240 0.7420
Wall 0.0650 0.0830 0.1090 0.1790 0.2500 0.4000
I.D. 1.1850 1.1490 1.0970 0.9570 0.8150 0.5150
O.D. 1.6600 1.6600 1.6600 1.6600 1.6600 1.6600
Wall 0.0650 0.1090 0.1400 0.1910 0.2500 0.3820
I.D. 1.5300 1.4420 1.3800 1.2780 1.1600 0.8960
O.D. 1.9000 1.9000 1.9000 1.9000 1.9000 1.9000
Wall 0.0650 0.1090 0.1450 0.2000 0.2810 0.4000
I.D. 1.7700 1.6820 1.6100 1.5000 1.3380 1.1000
Wall 0.0650 0.1090 0.1540 0.2180 0.3430 0.4360
I.D. 2.2450 2.1570 2.0670 1.9390 1.6890 1.5030
O.D. 2.8750 2.8750 2.8750 2.8750 2.8750 2.8750
Wall 0.0830 0.1200 0.2030 0.2760 0.3750 0.5520
I.D. 2.7090 2.6350 2.4690 2.3230 2.1250 1.7710
Wall 0.0830 0.1200 0.2160 0.3000 0.4370 0.6000
I.D. 3.3340 3.2600 3.0680 2.9000 2.6260 2.3000
O.D. 4.0000 4.0000 4.0000 4.0000 4.0000
Wall 0.0830 0.1200 0.2260 0.3180 0.6360
I.D. 3.8340 3.7600 3.5480 3.3640 2.7280
Wall 0.0830 0.1200 0.2370 0.2810 0.3370 0.4370 0.5310 0.6740
I.D. 4.3340 4.2600 4.0260 3.9380 3.8260 3.6260 3.4380 3.1520
O.D. 5.0000 5.0000 5.0000
Wall 0.2470 0.3550 0.7100
I.D. 4.5060 4.2900 3.5800
Wall 0.1090 0.1340 0.2580 0.3750 0.5000 0.6250 0.7500
I.D. 5.3450 5.2950 5.0470 4.8130 4.5630 4.3130 4.0630
Page 16
© FloSonics, Inc. 1996
6.000
O.D.
6.6250
6.6250
6.6250
6.6250
6.6250
6.6250
6.6250
7.000
O.D.
7.6250
7.6250
7.6250
8.000
O.D.
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
8.6250
9.000
O.D.
9.6250
9.6250
10.000
O.D.
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
10.7500
11.000
O.D.
11.7500
11.7500
12.000
O.D.
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
12.7500
14.000
O.D.
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
14.0000
16.000
O.D.
16.0000
16.0000
16.0000
16.0000
16.0000
16.0000
16.0000
16.0000
Nominal Diameter
Wall 0.1090 0.1340 0.2800 0.4320 0.5620 0.7180 0.8640
I.D. 6.4070 6.3570 6.0650 5.7610 5.5010 5.1890 4.8970
Wall 0.3010 0.5000 0.8750
I.D. 7.0230 6.6250 5.8750
Wall 0.1090 0.1480 0.2500 0.2770 0.3220 0.4060 0.5000 0.5930 0.7180 0.8120 0.9060 0.8750
I.D. 8.4070 8.3290 8.1250 8.0710 7.9810 7.8130 7.6250 7.4390 7.1890 7.0010 6.8130 6.8750
Wall 0.3420 0.5000
I.D. 8.9410 8.6250
Wall 0.1340 0.1650 0.2500 0.3070 0.3650 0.5000 0.5930 0.5000 0.7180 0.8430 1.0000 1.1250
I.D. 10.4820 10.4200 10.2500 10.1360 10.0200 9.7500 9.5640 9.7500 9.3140 9.0640 8.7500 8.5000
Wall 0.3750 0.5000
I.D. 11.0000 10.7500
Wall 0.1650 0.1800 0.2500 0.3300 0.4060 0.3750 0.5620 0.6870 0.5000 0.8430 1.0000 1.1250 1.3120
I.D. 12.4200 12.3900 12.2500 12.0900 11.9380 12.0000 11.6260 11.3760 11.7500 11.0640 10.7500 10.5000 10.1260
Wall 0.2500 0.3120 0.3750 0.4370 0.3750 0.5930 0.7500 0.5000 0.9370 1.0930 1.2500 1.4060
I.D. 13.5000 13.3760 13.2500 13.1260 13.2500 12.8140 12.5000 13.0000 12.1260 11.8140 11.5000 11.1880
Wall 0.2500 0.3120 0.3750 0.5000 0.3750 0.6560 0.8430 0.5000
I.D. 15.5000 15.3760 15.2500 15.0000 15.2500 14.6880 14.3140 15.0000
Sch 5 Sch 10 Sch 20 Sch 30 Sch 40 Std. Sch 60 Sch 80 E.H. Sch 100 Sch 120 Sch 140 Sch 160 Double E.H.
Common Pipe Sizes for Galvanized Steel Tubing and Pipe (all dimensions in inches)
Loading...
