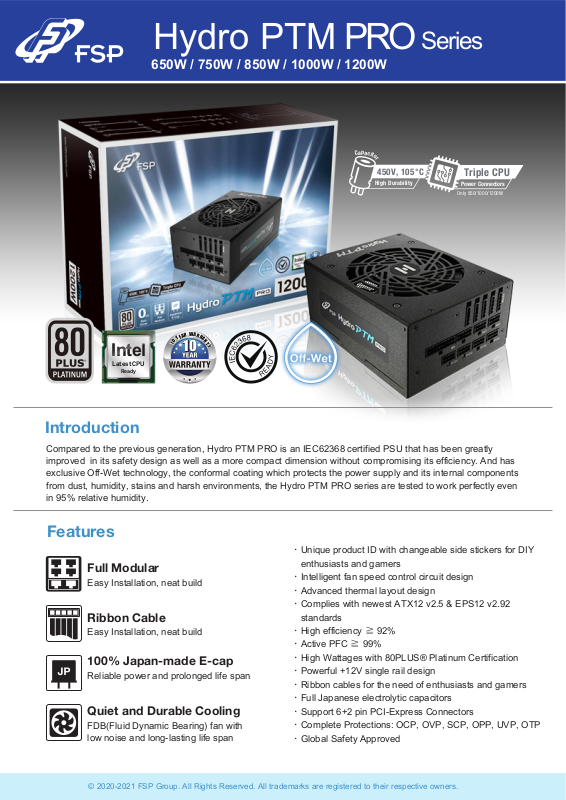

Page 1
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
p
a
a
c
C
i
t
o
r
Intel
Latest CPU
Ready
Introduction
450V, 105°C
High Durability
W
W
A
A
R
R
R
R
A
A
R
R
E
E
A
A
Y
Y
N
1010
N
T
T
Y
Y
0
0
1
1
Triple CPU
Power Connectors
Only 850/1000/1200W
Compared to the previous generation, Hydro PTM PRO is an IEC62368 certified PSU that has been greatly
improved in its safety design as well as a more compact dimension without compromising its efficiency. And has
exclusive Off-Wet technology, the conformal coating which protects the power supply and its internal components
from dust, humidity, stains and harsh environments, the Hydro PTM PRO series are tested to work perfectly even
in 95% relative humidity.
Features
•Unique product ID with changeable side stickers for DIY
Full Modular
Easy Installation, neat build
Ribbon Cable
Easy Installation, neat build
100% Japan-made E-cap
Reliable power and prolonged life span
Quiet and Durable Cooling
FDB(Fluid Dynamic Bearing) fan with
low noise and long-lasting life span
enthusiasts and gamers
•Intelligent fan speed control circuit design
•Advanced thermal layout design
•Complies with newest ATX12 v2.5 & EPS12 v2.92
standards
•High efficiency ≧ 92%
•Active PFC ≧ 99%
•High Wattages with 80PLUS® Platinum Certification
•Powerful +12V single rail design
•Ribbon cables for the need of enthusiasts and gamers
•Full Japanese electrolytic capacitors
•Support 6+2 pin PCI-Express Connectors
•Complete Protections: OCP, OVP, SCP, OPP, UVP, OTP
•Global Safety Approved
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 2
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W

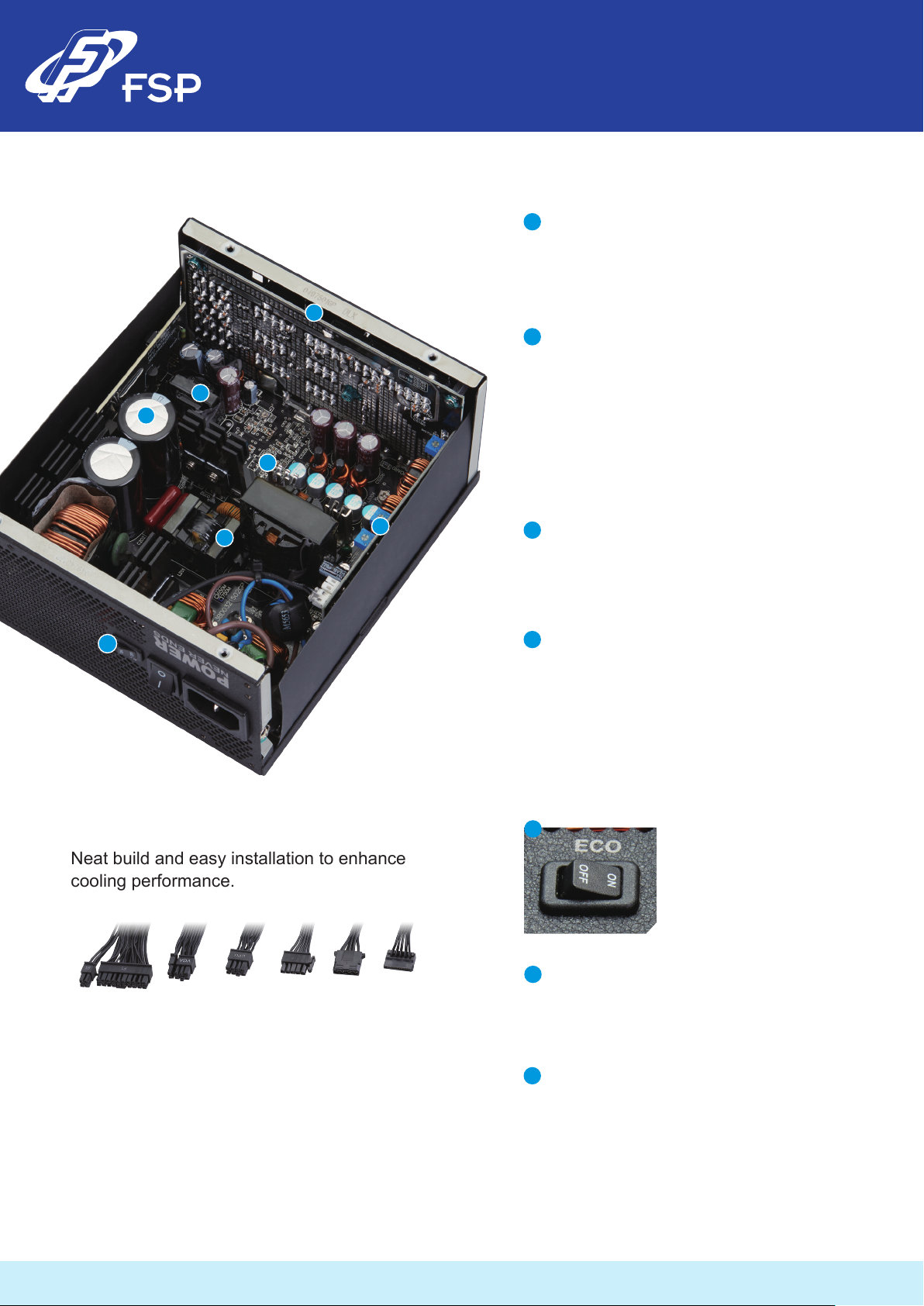

Product Overview
6
7
2
1
Server grade design
Copper bars joint mainboard and daughter
board to increase conversion efficiency.
1
Special heat sink design for 12V
2
switching circuit
A new heat dissipation design that conducts
heat through a thermal pad on the bottom of
the power supply, transforming the whole
PSU chassis into a heat sink and cooled
system airflow.
4
5
*650W/750W
Full modular design with ribbon cables
Neat build and easy installation to enhance
cooling performance.
3
3
3.3V & 5V DC-DC module design
Not only maximize total 12V rating but also
minimize the voltage regulation for all rails.
4
Off-Wet technology
The conformal coating which protects the
power supply and its internal components
from dust, humidity, stains and harsh
environments, the Hydro PTM PRO series are
tested to work perfectly even in 95% relative
humidity.
5
6
5V Standby circuit
It provides stable 3A output to enable high
conversion efficiency.
Eco semi-fanless
function
When Eco switch is on, the
fan will not operate until
the loading is over 30%.
User friendly connector allocation
To connect MB with 20+4 pin & PCI-e pin
easily, no cable mess in case.
Conformal coating from the inside out
Hydro PTM PRO is covered with conformal
coatings to guarantee reliable performance in
a harsh environment.
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
7
Reliable quality you can trust
Selected 450V, 105℃ electrolytic capacitor
provides superior reliability under intense
current operation environment.
Intelligent fan speed circuit control design
with 0dBA function
Page 3

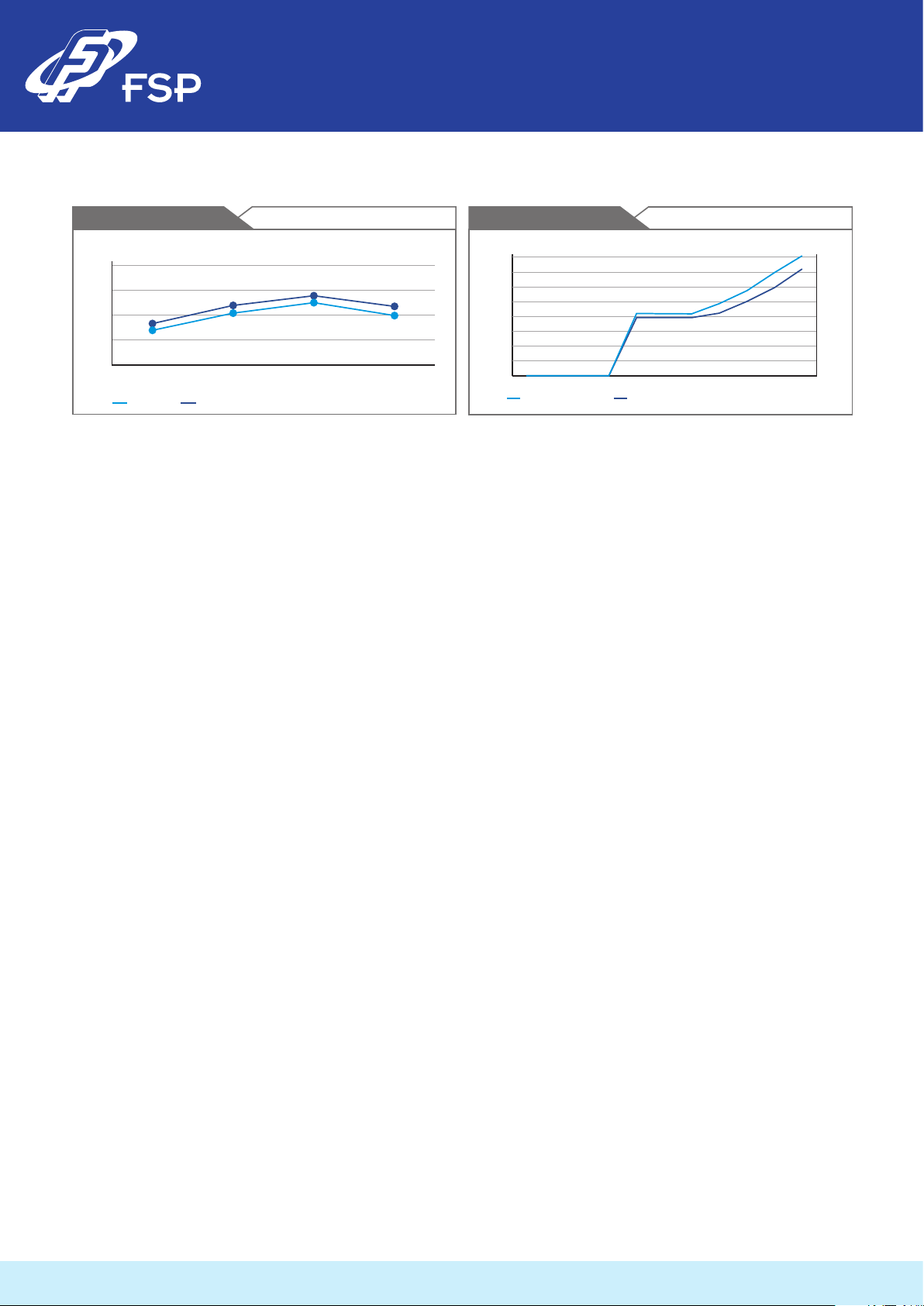

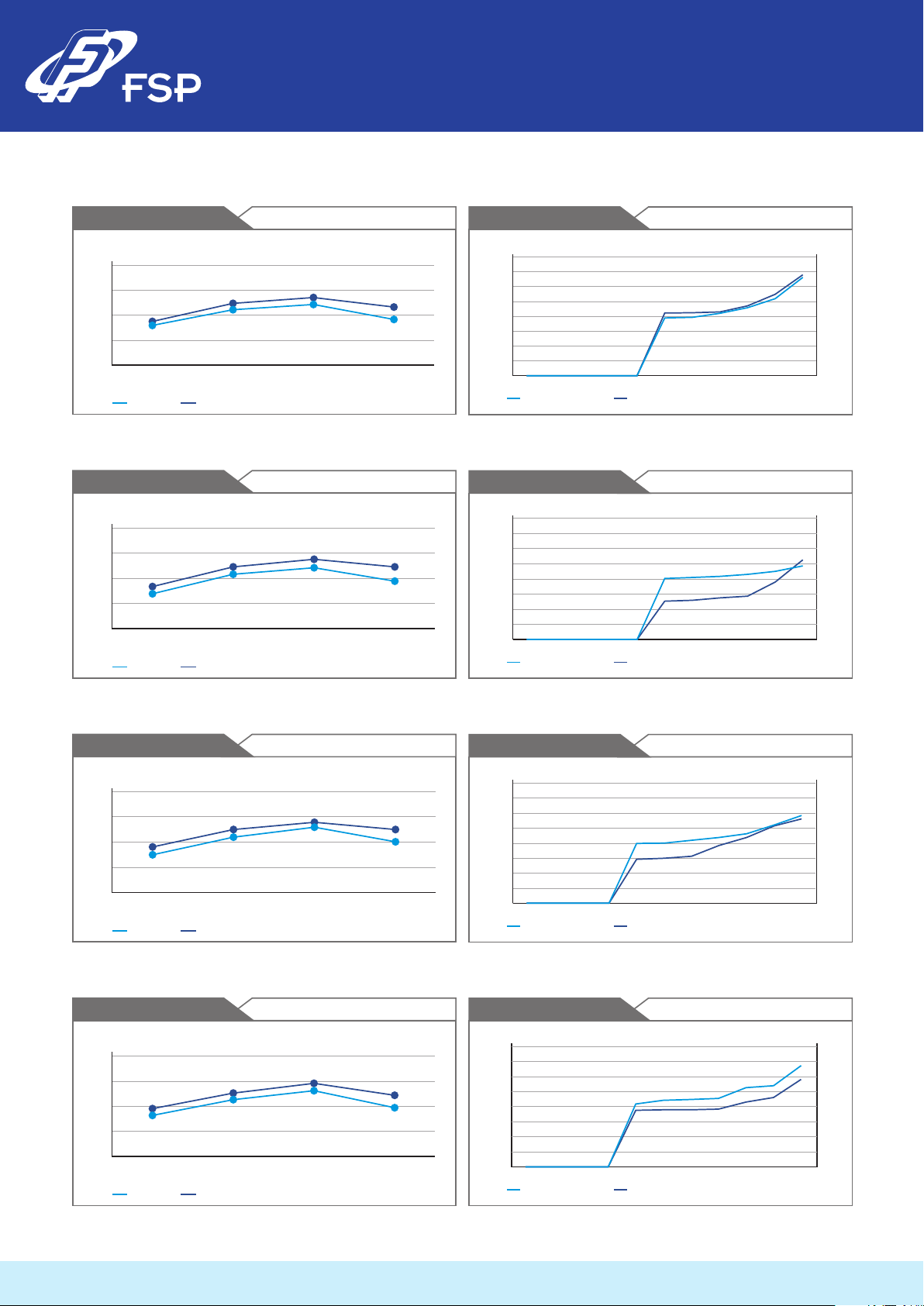

Performance
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Efficiency Hydro PTM PRO 650W
Eff(%)
100
95
90
85
80
10% 20% 50% 100%
115V ac 230V ac
Loading
Efficiency Hydro PTM PRO 750W
Eff(%)
100
95
90
85
80
10% 20% 50% 100%
115V ac 230V ac
Loading
Acoustic Noise Hydro PTM PRO 650W
RPM
1600
1400
1200
1000
800
600
400
200
0
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Fan Noise (dBA)
25°C ambient temperature & 1 meter microphone test Note: Intelligent fan will spin for 1 second and stop when PSU turns on.
Fan Speed (RPM)
dB
Loading
Acoustic Noise Hydro PTM PRO 750W
RPM
1600
1400
1200
1000
800
600
400
200
0
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Fan Noise (dBA)
25°C ambient temperature & 1 meter microphone test Note: Intelligent fan will spin for 1 second and stop when PSU turns on.
Fan Speed (RPM)
dB
Loading
35
30
25
20
15
10
5
0
35
30
25
20
15
10
5
0
Efficiency Hydro PTM PRO 850W
Eff(%)
100
95
90
85
80
10% 20% 50 % 100%
115V ac 230V ac
Loading
Efficiency Hydro PTM PRO 1000W
Eff(%)
100
95
90
85
80
10% 20% 50% 100%
115V ac 230V ac
Loading
Acoustic Noise Hydro PTM PRO 850W
RPM
1600
1400
1200
1000
800
600
400
200
0
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Fan Noise (dBA)
25°C ambient temperature & 1 meter microphone test Note: Intelligent fan will spin for 1 second and stop when PSU turns on.
Fan Speed (RPM)
dB
Loading
Acoustic Noise Hydro PTM PRO 1000W
RPM
1600
1400
1200
1000
800
600
400
200
0
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Fan Noise (dBA)
25°C ambient temperature & 1 meter microphone test Note: Intelligent fan will spin for 1 second and stop when PSU turns on.
Fan Speed (RPM)
dB
Loading
35
30
25
20
15
10
5
0
35
30
25
20
15
10
5
0
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 4
Performance
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Efficiency Hydro PTM PRO 1200W
Eff(%)
100
95
90
85
80
10% 20% 50% 100%
115V ac 230V ac
Loading
Acoustic Noise Hydro PTM PRO 1200W
RPM
1600
1400
1200
1000
800
600
400
200
0
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Fan Noise (dBA)
25°C ambient temperature & 1 meter microphone test Note: Intelligent fan will spin for 1 second and stop when PSU turns on.
Fan Speed (RPM)
dB
Loading
35
30
25
20
15
10
5
0
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 5
Rating
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
650W
750W
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
AC Input
DC Output
Max Output Current
Max Combined Power
+3.3V
20A
+3.3V
20A
100-240Vac~ 10-5A 50-60Hz
+5V
20A
120W
100-240Vac~ 10-5A 50-60Hz
+5V
20A
120W
+12V
54.17A
650W
650W
+12V
62.5A
750W
-12V
0.3A
-12V
0.3A
+5Vsb
3A
18.6W
+5Vsb
3A
18.6W
850W
1000W
Total Power
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
AC Input
DC Output
Max Output Current
750W
100-240V~ 11-5.5A 50-60Hz
200-240V~ 5.5A 50-60Hz
+3.3V
20A
120W
100-240V~ 13-6A 50-60Hz
200-240V~ 6A 50-60Hz
+3.3V
20A
+5V
20A
+5V
20A
+12V
70.83A
850W
850W
+12V
83.33A
(Not for China)
(Only for China)
-12V
0.3A
(Not for China)
(Only for China)
-12V
0.3A
+5Vsb
18.6W
+5Vsb
3A
3A
Max Combined Power
Total Power
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
120W
1000W
1000W
18.6W
Page 6
Rating
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
1200W
AC Input
DC Output
Max Output Current
Max Combined Power
Total Power
110-240V~ 14-9A 50-60Hz
200-240V~ 9A 50-60Hz
100-240V~ 15-9A 50-60Hz
+3.3V
20A
120W
+5V
20A
+12V
100A
1200W
1200W
(Not for China)
(Only for China)
(Only for Japan)
-12V
0.3A
+5Vsb
3A
18.6W
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 7

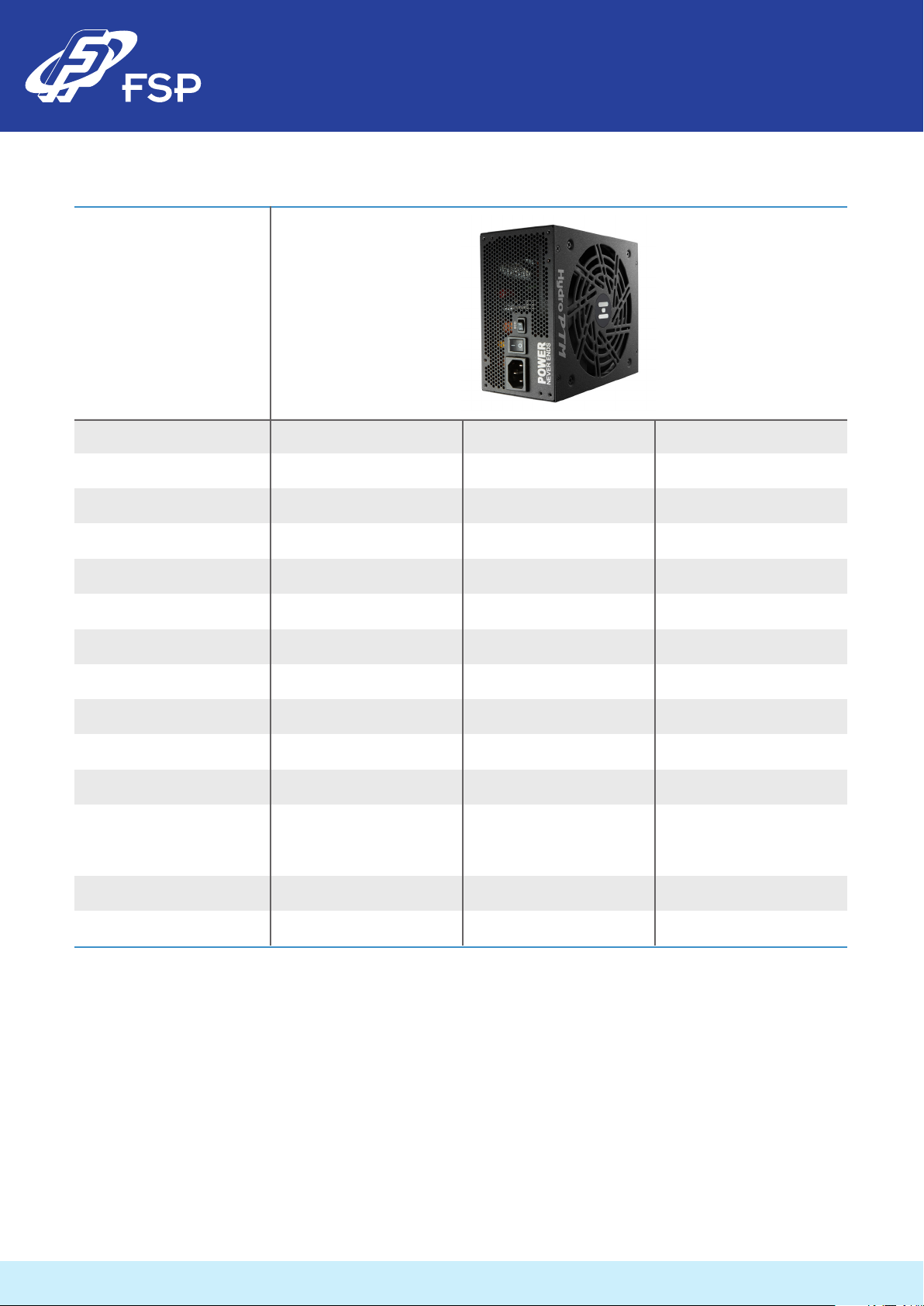

Specifications
Specifications
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Model
Type
PFC
Input Voltage
Input Current
Input Frequency
Output Capacity
Max. Output Power
Fan Type
Efficiency
MTBF
Protection
HPT2-650M
ATX
Active PFC
100V-240V
10-5A
50-60Hz
650W
650W
FDB Fan, 135mm
92%
100,000 Hrs
OCP, OVP, OPP,
SCP, OTP
HPT2-750M
ATX
Active PFC
100V-240V
10-5A
50-60Hz
750W
750W
FDB Fan, 135mm
92%
100,000 Hrs
OCP, OVP, OPP,
SCP, OTP
Weight
Dimension(L
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
×W×H)
150 x 170 x 86mm
150 x 170 x 86mm
Page 8
Specifications
Specifications
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Model
Type
PFC
Input Voltage
Input Current
Input Frequency
Output Capacity
Max. Output Power
Fan Type
Efficiency
MTBF
Protection
HPT2-850M
ATX
Active PFC
100V-240V
11-5.5A
50-60Hz
850W
850W
FDB Fan, 135mm
92%
100,000 Hrs
OCP, OVP, OPP,
SCP, OTP
HPT2-1000M
ATX
Active PFC
100V-240V
13-6A
50-60Hz
1000W
1000W
FDB Fan, 135mm
92%
100,000 Hrs
OCP, OVP, OPP,
SCP, OTP
HPT2-1200M
ATX
Active PFC
110V-240V
14-9A
50-60Hz
1200W
1200W
FDB Fan, 135mm
92%
100,000 Hrs
OCP, OVP, OPP,
SCP, OTP
Weight
Dimension(L
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
×W×H)
150 x 190 x 86mm
150 x 190 x 86mm
150 x 190 x 86mm
Page 9

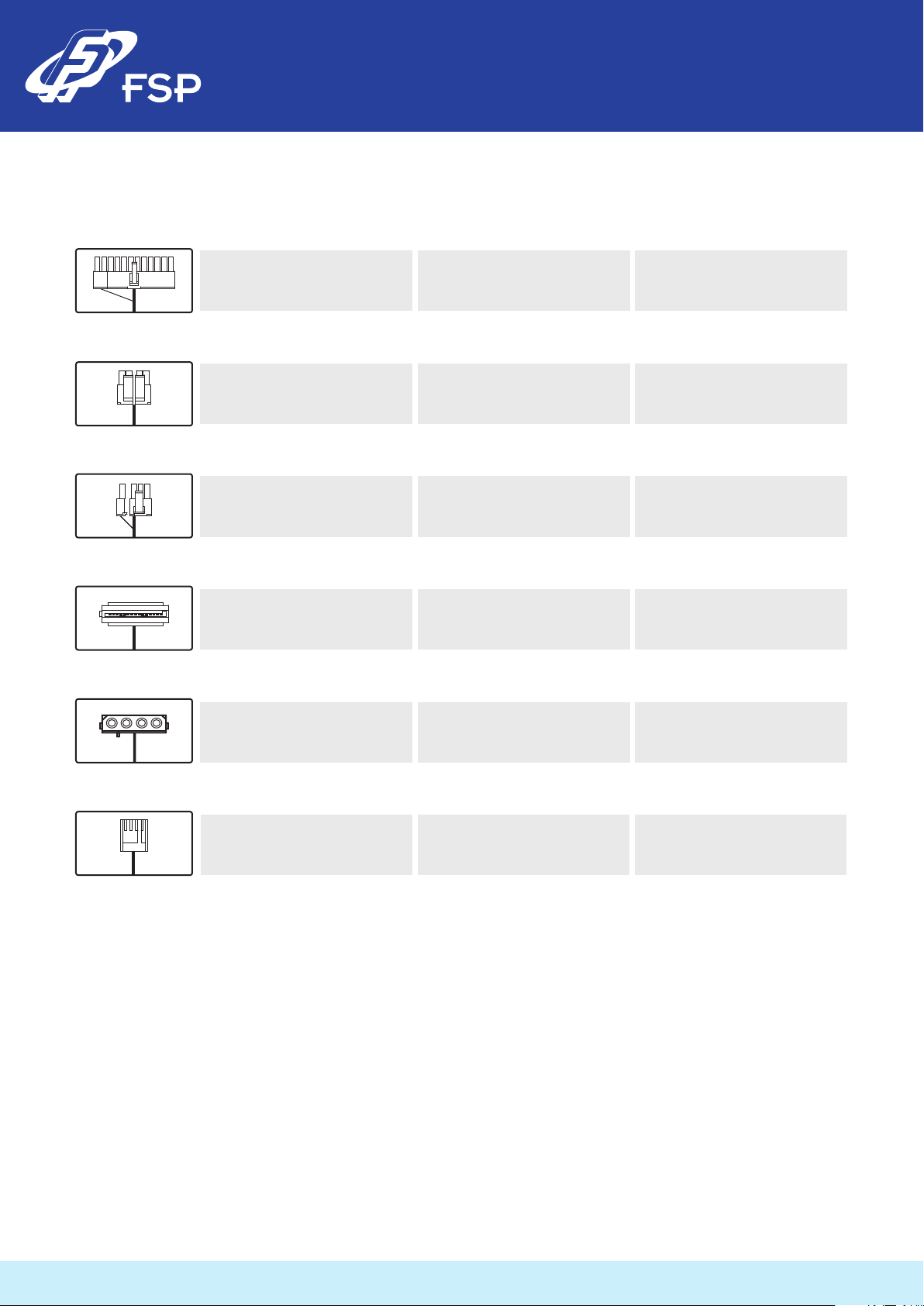

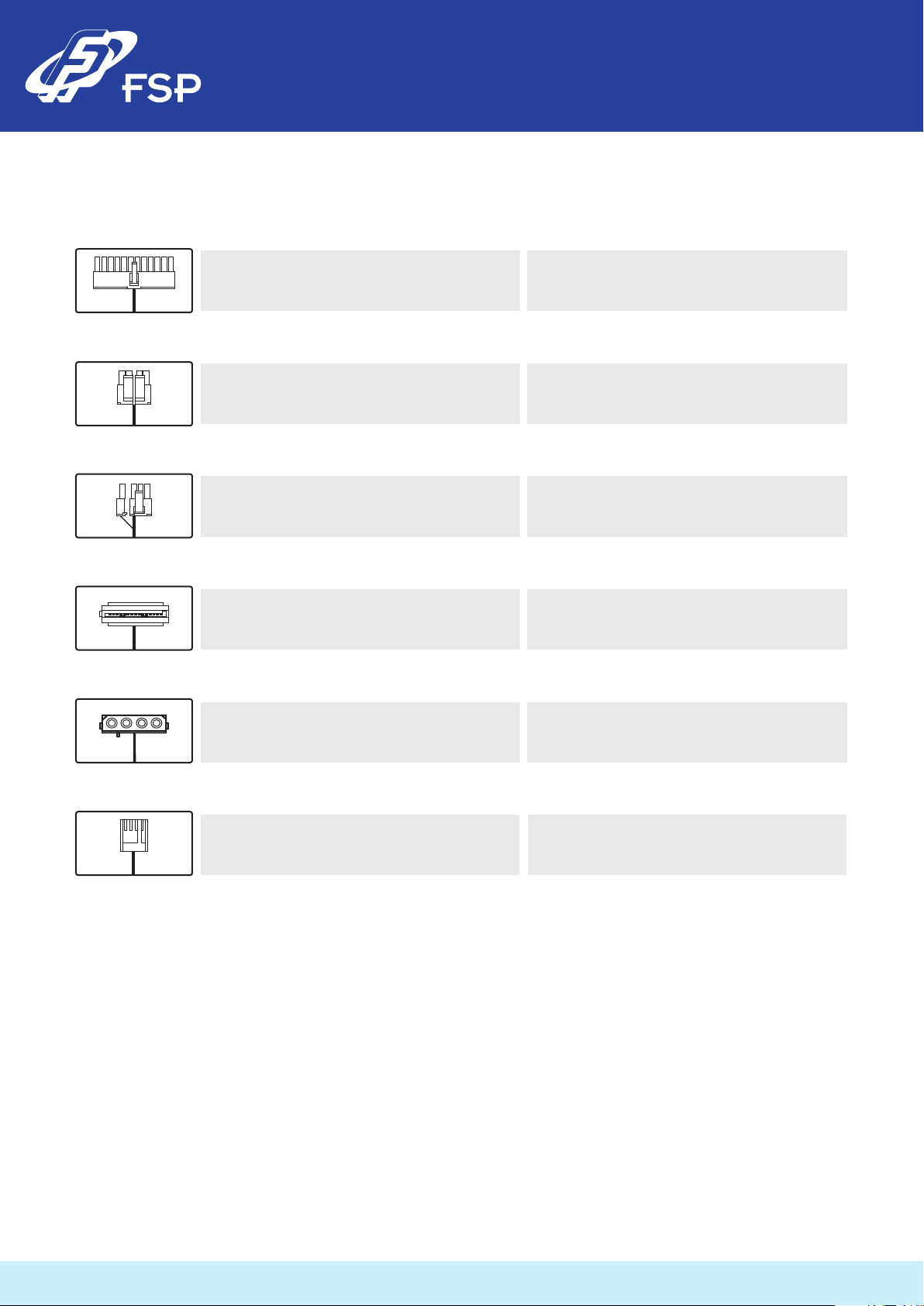

Connectors
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
20+4 PIN
4+4 PIN
6+2 PIN
SATA
650W
1
2
4
12
750W
1
2
6
14
850W
1
3
8
14
MOLEX
FLOPPY
3
1
5
1
5
1
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 10
Connectors
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
24 PIN
4+4 PIN
6+2 PIN
SATA
1000W
1
3
8
14
1200W
1
3
8
14
MOLEX
FLOPPY
5
1
5
1
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
Page 11

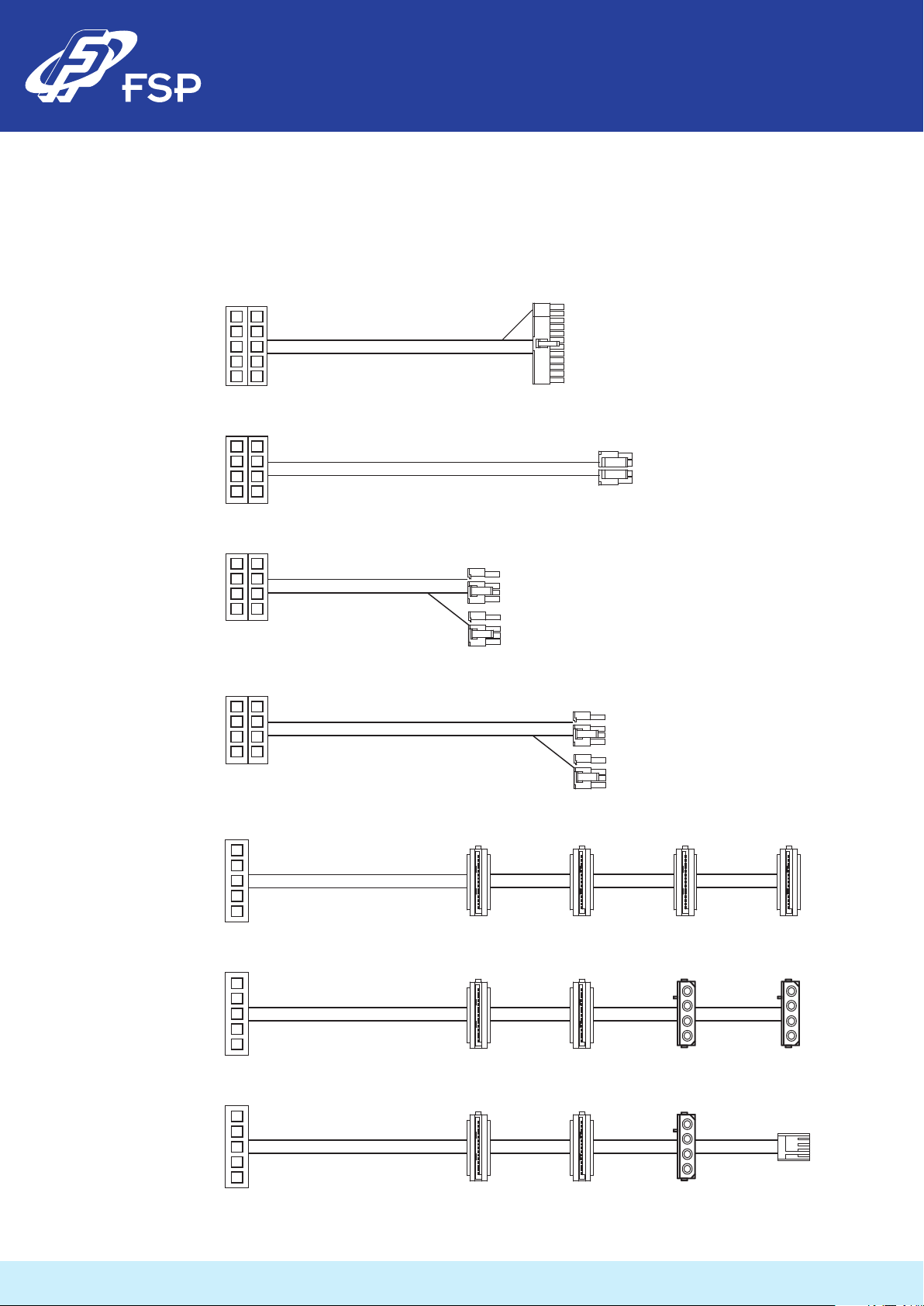

Cable Length
650W
20+4 PIN
4+4 PIN
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
600mm
700mm
X2
PCI-E 6+2 PIN
PCI-E 6+2 PIN
SATA
SATA/MOLEX
500mm
150mm
650mm
150mm
500mm 155mm 155mm 155mm
X2
500mm 155mm 155mm 100mm
SATA/MOLEX/
FLOPPY
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
500mm 155mm 155mm 155mm
Page 12

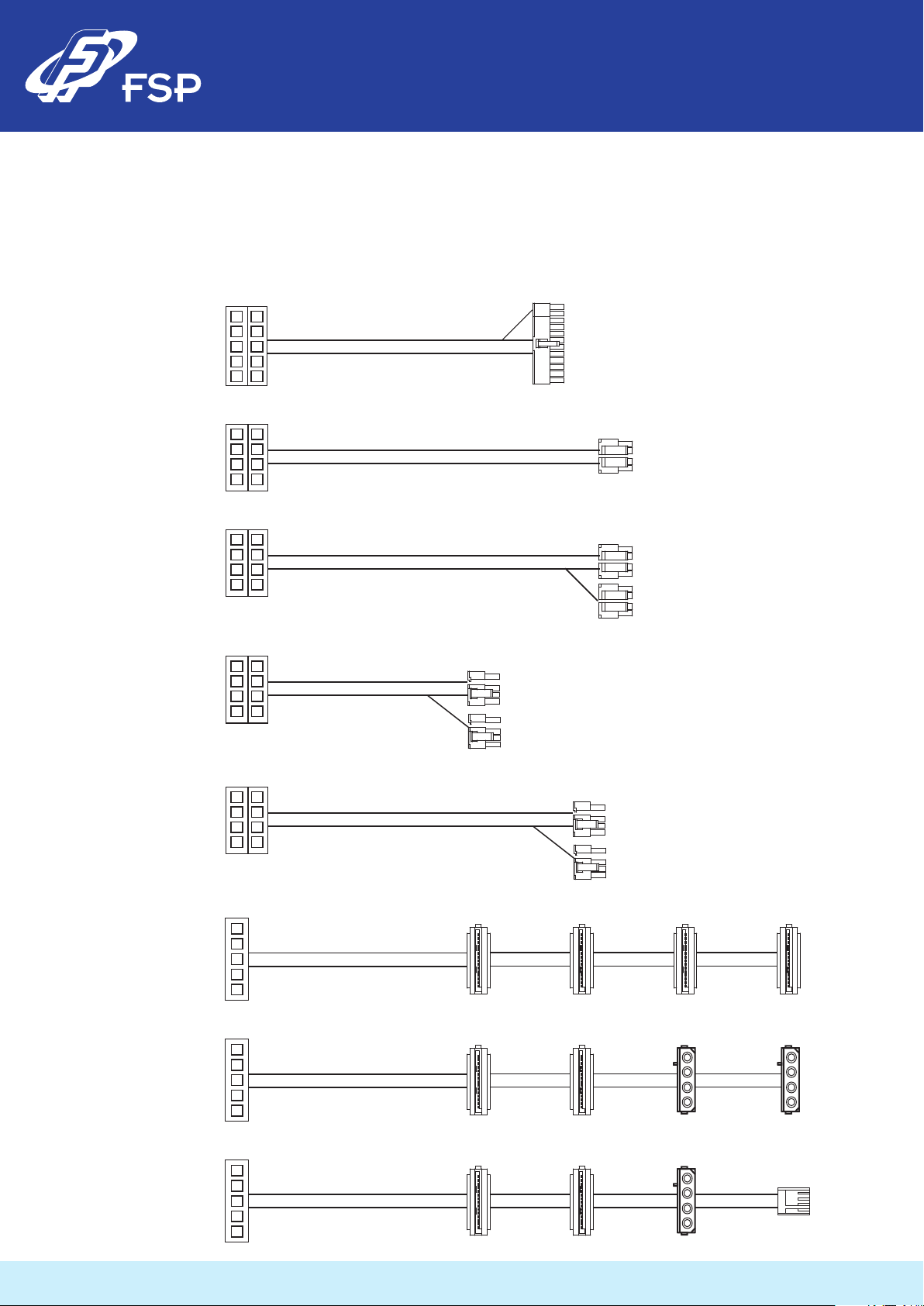

Cable Length
750W
20+4 PIN
4+4 PIN
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
600mm
700mm
X2
PCI-E 6+2 PIN
PCI-E 6+2 PIN
SATA
SATA/MOLEX
500mm
X2
150mm
650mm
150mm
500mm 155mm 155mm 155mm
X2
500mm 155mm 155mm 100mm
SATA/MOLEX/
FLOPPY
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
500mm 155mm 155mm 155mm
Page 13
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Cable Length
850W/1000W/1200W
600mm
20+4 PIN
700mm
4+4 PIN
4+4 PIN
PCI-E 6+2 PIN
PCI-E 6+2 PIN
SATA
700mm
500mm
X2
150mm
650mm
X2
150mm
500mm 155mm 155mm 155mm
X2
SATA/MOLEX
SATA/MOLEX/
FLOPPY
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
500mm 155mm 155mm 100mm
X2
500mm 155mm 155mm 155mm
Page 14
Hydro PTM PRO Series
650W / 750W / 850W / 1000W / 1200W
Package Information
Model
EAN Code
UPC Code
Shipping Dimensions
(L×W×H)
Shipping Weights
Master Pack Dimension
(L×W×H)
Master Pack Quantity
Master Pack Weight
Pallet Quantity
Country of Origin
Warranty
HPT2-650M
471322452275 8
84568501068 1
HPT2-750M
471322452276 5
84568501069 8
5 retail boxes per master package
China
10 Years
HPT2-850M
471322452277 2
84568501070 4
15.82 kg
Additional Information
Model
EAN Code
UPC Code
Shipping Dimensions
(L×W×H)
Shipping Weights
Master Pack Dimension
(L×W×H)
Master Pack Quantity
Master Pack Weight
Pallet Quantity
Country of Origin
HPT2-1000M
471322452278 9
84568501071 1
16 kg
HPT2-1200M
471322452279 6
84568501072 8
5 retail boxes per master package
16.26 kg
China
HPT2-1200M-JP
JAPAN Only
16.26 kg
Warranty
Additional Information
© 2020-2021 FSP Group. All Rights Reserved. All trademarks are registered to their respective owners.
10 Years
Loading...
