Block daigram
FS-SD58V/FS-SD78V/FS-SD98V
IC2
MW
RF/OSC
IFOUT
AMOSC OUT
IF CONT
TUIND
AM ANT
FM ANT
5
RFIN
TU1
OSC OUT
PLL
S8003 S8014
KEY MATRIX
4
IC1
FMIF/DET/MPX
AM RF/IF/DET
W8003
CN804
CD DOOR
SW
MPX
Lch
Rch
KEY1
KEY2
DOOR3
TUCK,TUDATA,TUST
J5302
AUX OUTAUX INVIDEO OUT
W8002
W5001 CN502
J5301
PRI1
PRI2
KEY1
KEY2
DOOR3
CDL,CDR,DATA
CLOCK
VOUT
E1,E2
TUNERL
TUNERR
SIGL
SIGR
TUCK,TUDATA,TUST,MFX
L,R
CN101
CN501
SIGL
SIGR
IC1501
FUNC/VOL
AMP
IC101
AHB
AHBNF
POUT
CN102
MT0,MT1
MTS,LOCK
IN2
OUT2
SIGL
SIGR
W3001
POUT
SMUTE
AHBNF
IC108
DOOR
MOTOR
DRIVER
SIGL
SIGR
FROM
EACH
REG.
IC102
HIP
AMP
IC301
POWER
AMP
W3901
CN193
FROM
EACH
REG.
+OUT1
-OUT1
+OUT2
-OUT2
CN301
W3002
FAN
CONTROL
L+,LR+,R-
J3001
SPEAKER
EACH
BLOCK
REG.
HPL
HPR
CN192
FAN
CN181
T1901
CN191
AC IN
J1901
CN105 CN106 CN104 CN103
DOOR MOTOR
CN703
VOUT
A+C,B+D
E,F,PD,LD
IC601
CN702
CN701
CD+B
W7003
RF&SERVO
CN603
3
Pick up
KSM-770ABA
SM+,SMFM+,FM-
CN605
REST
T+
TF+
F-
IC602
BTL
DRIVER
IC603
2
SBCK
SUBC
CLOCK
IPFLAG
SRDATA BCLK
LRCK BLKCK
DALRC DABCK
DADATA
AMP
TBAL,FBAL,FE,TE,RFENV
TRCRS,VDET,OFT,RFDET
TRV,TVD,ECM,ECS,KICK
TRD,FOD
STAT XRST SQCK SUBQ MCLK
DSP
MDATA MLD DMUTE CDL CDR
BDO,LDON,ARF
FANSW,POUT
FTU,MT0,MT1
MTS,BLCTL
AHB,SMUTE
TUST,MPX
TUDATA,TUCK
SAFETY,LOCK
SCD
MLD
M DATA
S TAT
XRST
SQCK
SUBQ
REST
IC701
SYSTEM
CONTROL
DMUTE
DRMUTE
MSTAT,KCMD,KCLK
IC711
CD/VCD
CONTROL
OSDATA
OSCLK
OSCS
OSOFF,MRDY,CDMRST
CN707
TXD0,RXD0
RESET
VCLK,VDATA
KEY1,KEY2,LOMUTE,DOOR3
POUT
DIMMER
DB4 DB7
ENA
RS
REM
CN704
CN802
CN711
POWER
SW
OP/CL
SW
KEY3
CDLRC,CDBCK
CDDAT,XCLK
ERROR,SBSY
SFSY,SUBDT
CD LED
CONTROL
CN706
W8005
DOOR1
CN705
W8004
DOOR2
HRDY,HREQ,SRCLK,SRDAT
MREQ,VCDRST,VCDEMP
1
CD LED
CD DOOR
SW
W7002
CN102 CN101
DADAT,DAB CK
DALRC,RCLK
HREQ
SRCLK
SRDAT
HRDY
MREQ
CN801
HPL.HPR
HP
MUTING
POWER
POUT
STAND BY
LED
HA0
HA1
HA2
DS
W/R
480RST
DTACK
JACKSW
HPMUTE
DIMMER
CONTROL
REM
IC801
REMOCON
DIMMER
RS.ENA
DB4 DB7
VCLK, VD3 VD7, VD11 VD16,VD19 VD23
VSYNL,HSYNC
IC101
XTLIN
MD0 MM15
MA0 MA9
MD0 MD15
MA0 MA9
MPEG
DECODER
VCDEMP3
DABCK3
RCLK
DADT3,DALRC3
HD03,HD13,
HD23,HD33
HD43,HD53
HD63,HD73
IC113
EEPROM
GDET
ACTINT
IC111
HOST
MICON
DIR
HD0 HD7
SA0 SA14,SD1 SD8
SR/W,SCS
DI801
LCD DISPLAY
IC102
IM ROM
IC103
4M DRAM
IC108
AMP
VSYNL,HSYNC
IC114
EEPROM
IC112
256K
SRAM
J8301
HEADPHONE OUT
CN803
W8001
ENCODER
NPAL
PAL60
FOUT1
IC105
VCO
RESET
BACK
LIGHT
IC104
DIGITAL
RGB
IC106
OSD
CVOUT
PIXCLK
HSYNC
VSYNC
VB
VG
VR
VBLK
CN103
AB CD E F G
2-1
Standard schematic diagrams
CD servo control section
5
FS-SD58V/FS-SD78V/FS-SD98VFS-SD58V/FS-SD78V/FS-SD98V
J6001
C6159
0.1
150P
C6158
MLD
0
R6056
MDATA
0
R6057
MCLK
0
R6058
470
R6060
GP1FA550TZ
6P
C6058
LRCK
SRDATA
100
100
R6215
R6214
BCLK
100
R6213
C6055
0.047
C6080
220/10
D6063
1SS355-X
22
R6068
STAT
XRST
SQCK
SUBQ
MCLK
MDATA
MLD
REST
SCD
DRMUTE
DMUTE
R6005
270K
R6006
47K
R6007
27K
R6009 R6012
56K 10K
C6019
F
E
0.0022
0.022
C6015
C6016
0.022
C6007
C6006
A+C
B+D
C6022
47/6.3
270P
C6020
180P
C6018
0.0022
560K
R6010
100K
C6017
0.022
R6008
C6001
R6080
R6081
C6021
820P
0
0
C6023
0.1
100/6.3
TBAL
FBAL
FE
TE
RFENV
TRCRS
VDET
C6202
C6053
C6154
0.022
100P
1K
R6051
XRST
1K
R6052
STAT
1K
R6202
SUBQ
1K
R6053
SQCK
1K
R6054
BLKCK
1K
R6201
150P
C6156
150P
C6157
R6013
LA6541-X
IC602
D6031
AN8806SB-W
IC601
R6015
12
120
R6014
MTZJ5.6C-T2
10
C6032
Q6001
C6002
SM-
C6097
100/6.3
1K
R6003
LDON
2SA1037AK/R/-X
D6001
1SS355-X
10/16
R6021
T-
C6096
390P
SM+
390P
F+
R6001
FM-
C6003
27
F-
FM+
3.5P
0.0047
C6098
390P
C6099
C6014
12K
C6089
390P
0.1
R6040
C6008
1K
ARF
1/50
R6145
C6010C6009
NI
0.027
100P
C6011
BDO
0.0022
C6091
1/50
R6041
100K
C6094
R6048
2.2k
R6146
R6050
0.1
NI
C6012
3.3K
R6042
0.015
C6090
R6045
R6046
R6043
R6044
C6005
330P
OFT
RFDET
C6029
C6028
0.01
R6002
2.2M
0.047
100/6.3
4.7k
R6141
0
C6031
2.2/50
R6047
3.3k
43K
3.9K
12K
68K
220/10
R6049
C6092
1.5K
TRD
KICK
FOD
ECM
ECS
TVD
TRV
D6033
1SR35-100A-T5
D6032
4
CN603
QGF1008F1-16
150K
150K
R6016
39K
39K
39K
39K
R6025
R6024
91
R6026
R6029
R6028
R6027
E
F
A+C
B+D
F-
T-
T+
F+
3
CN605
QGA2001C1-06
C6035
SM-
SM+
FM-
FM+
1K
R6031
NI
1K
R6032
1K
R6033
C6033
Q6031
2SC2060/QR/-T
10/16
2
1
FBAL
TBAL
FE
TE
RFENV
VDET
OFT
TRCRS
RFDET
BDO
LDON
ARF
1SR35-100A-T5
TRV
TVD
ECM
ECS
KICK
TRD
FOD
R6067
22
D6062
1SS355-X
C6061
470P
220/10
C6081
R6069
QQR0779-001Z
1.5M
R6061
C6063
IC603
100K
0.022
K6051
R6063
C6064
C6076
0.001
CDZE
120K
0.022
CDMG
MN35510
R6064
0.33 680
C6065
CDDGT+CDR
CD+B
C6062
R6203
0.022
AG
220
1k
K6201K6202
R6204
NQR0155-005X
NQR0155-005X
SUBC
K6203
NQR0155-005X
CDL
0
R6205
SBCK
X6051
QAX0413-001Z
C6051
12P
C6083
0.022
R6059
C6052
15P
0
R6210
0
R6209
0
R6208
C6075
0.001
C6073
220/10
1K
1K
C6072
0.0022
R6072
R6071
C6071
0.0022
270
270
R6066
R6207
C6252
NI
47
R6206
470
CLOCK
IPFLAG
TP603
NI
D6061
1SS355-X
SBCK
R6220
SUBC
DABCK
DALRC
DADATA
R6211 R6212
220 1k
0
0.022
C6251
CLOCK
IPFLAG
DALRC
DABCK
DADATA
BCLK
SRDATA
LRCK
BLKCK
QGF1008F1-15
CN711
CD Signal
Note:FS-SD58V/78V/98V LVS20056-001A
2-2
HAB C DE FG
Power supply & main circuit section
FS-SD58V/FS-SD78V/FS-SD98V
Q1101
2SD2114K/VW/-X
C1102
R1105
D1301
R1205
C1202
FANSW
FCD
BLCTL
SMUTE
LOCK
#
#
SAFETY
#
#
TUCK
C1111
C1211
MT0
MT1
MTS
LOCK
POUT
SAFETY
0.0018
0.0018
Q1301
DTA123EKA-X
D1305
MPX
TUDATA
TUST
R1311
R1111
10K
R1211
SMUTE
C1103
#
C1203
#
R1207
10K
Q1201
2SD2114K/VW/-X
C1308
10/16
1K
R1805
Q1102
2SC2412K/R/-X
R1116
2.2K
R1112
3.3K
2SC2412K/R/-X
R1212
3.3K
R1216
2.2K
D1304
AHB
FTU
FCD
MT0
MT1
MTS
BLCTL
3.3K
R1104
C1110
0.001
R1103
10K
100/16
C1924
BD3861FS-X
D1915D1916
R5106
R5206R5207
2SD2114K/VW/-X
IC501
Q1914
2SA1037AK/R/-X
R1930
3.9K
3.9K
R5105
Q5201
1K
47K
R5205
47K
C5108
C5208
C5110
C5109
C5107
C5210
C5209
C5207
R1931
39
D1914
MTZJ3.9B-T2
Q1915
2SC2412K/R/-X
4.7/50
C1923
C5205
10/16
0.0033
0.0033
0.15
0.15
22/16
0.15
0.15
22/16
C5105
10/16
27K
R1929
C5104
C5204
R5110
R5210
1.2K
51K
R1928
R1301
FTU
10/35
10/35
3.3K
3.3K
R1203
10/16
10K
C1210
C1301
AHB
0.001
CN105
QGF1201F3-20
3.3K
R1204
5
TUCK
TUDATA
TUST
MPX
CN101
R5107
2SD2114K/VW/-X
C5301
100/16
1.5
R5108
2.2K
R5208
2.2K
4.7/50
4.7/50
4.7/50
4.7/50
4.7/50
4.7/50
47/35
QGF1201F3-08
CN501
QGF1201F3-08
1K
1K
Q5101
4
LF511
1.2K
R5111
QQR0590-001
C5106 C5206
J5302
QNS0047-001
CN502
QGA2001C1-04
0.0056 0.0056
3
W5001
J5301
QNS0047-001
0.01
C5307
2
J5303
QNN0017-002
68P
C5305
C5309
0.01
D5301
QQR0797-002
MTZJ6.8C-J1
D5303
D5304
C5111
LF501
LF521
1.2K
R5211
QQR0590-001
C5212
DTA114EKA-X
1/50
R5103
R5203
R5102
0.001
Q5301
R5301
68K
5.6K
R5212
C5102
22K
C5202
C5103
C5203
3K
3K
C5101
C5201
68K
R5202
5.6K
R5112
C5112
0.001
C5303
0.01
C5308
D5302
K5301
QQR0779-001Z
R5101
22K
R5201
22K
150P
150P
C5211
C5302
C5311
150P
C5304
C5312
470/10
150P
100K
R5302
R5305
Q1202
POUT
10
FANSW
R1106
R1206
R1804
#
#
C1802
10
47/25 470
C1302 R1302
100/25
470
470
R1313
R1312
R1108R1107
#15K
C1104
#
C1204
#
R1208
#15K
R1801
R1807
R1808
Q1801
DTC143EKA-X
C1107
4.7/50
IC102
C1207
4.7/50
VCD5V
R1109
C1105
C1205
R1209
IC108
TA8409F-W
BA15218F-W
R1215
470
K1801
QQR0779-001Z
R1115
470
15K
15K
47/16
0.0056
47/16
C1209
470
470
470
R1806
18K
C1109
0.0056
150P
R1310
1K
C1803
1.5
CN106
QGA2501C1-02
R1110
#
R1210
#
R1802R1803
47K
C1108
C1208
C1307
10/16
Q1302
DTA123EKA-X
IC101
NJM4580D-D
15K
150P
1K
R1303D1302
R1114
R1214
1K
MTZJ5.1A-T2
D1801
L1801
C1801
1K
R1113
R1213
C1106
22/35
C1206
22/35
C1303
22/16
QQL25CK-221Z
56K56K
DSK10C-T1
10/25
R1307
10K
R1308
D1907
9.1K
C1305
47/16
C1306
D1922
MTZJ8.2B
R1304
#
C1304
1/50
R1305
R1306
#
D1303
Q1907
2SD2144S/VW/-T
C1915
100/16
R1309
10
100/25
QGF1201F3-09
CN104
120K
1K
R1920
D1906
CN102
QGA2501C1-06
47/50
C1914
MTZJ11A-T2
D1905
R1912
R1913
2.7K
560 MTZJ10A-T2
R1937
W3001
0.01
C1913
2SC2412K/R/-X
D1921
47/25
5.6K
C1918
R1914
470
C1912
220P
Q1903
R1945
MTZJ6.8A
D1909
#
C1925
2.2K
C1931
C1917
MTZJ6.8B-T2
R1935
2.7K
150
R1936
R3101
#
R3201
#
R1910
L1901
100/25
0.01
D1908
CN103
QGB1216J1-08S
R1911
470
2SC2412K/R/-X
4.7K
RB160L-40-X
D1923
C1916
220P
R1946
2.2K
C3101
10/35
C3201
#
R3102
Q3101 Q3201
Q1901
Q1905
R1915R1916R1917
8.2K1K1.2K
DTC144TKA-X
1.2K
1.2K
R1907
R1908
Q1916
2SA934/QR/-T
100
12K150P
R1940
Q1908
2SA1359/OY/
Q1910
2SC2412K/R/-X
330
1.5K
R1934
R1932
IC191
2.2K
C1921
C1922
D1913
10/25
MTZJ6.8B-T2
10/35
#
R3202
DTA144TKA-X
Q1906
R1939
2SC2785/FE/
D1919
R1923
UPC78L05J-T
0.1
22K
Q1917
MTZJ5.6C
Q3301
DTA143TKA-X
R3107
2.2K
R3207
2.2K
2SD2114K/VW/-X 2SD2114K/VW/-X
2SA1359/OY/
Q1902
1.2K
1.2K
R1909
R1938
QQL28AK-101
R1941
C1930
Q1909
2SC2412K/R/-X
R1933
680
R1924
#
C3102
R1902
R1903
R1904
2SA1037AK/R/-X
D1904
CP191
ICP-N15-T
Q1918
2SC2412K/R/-X
4.7
4.7
R1922
#
C3202
Q1904
MTZJ5.6C
10/16
C3301
1
1
1
R1918
R1919
R1947
2.2K
MTZJ10A-T2
D1912
15K5.1K
D1918
0.1
C3204
2.2
R3204
22/25
C1920
0.1
C3203
2.2
R3203
R1905R1906
D1903
1501K
Q1922
R1926
10K
R1927
0.0015
#
C3302
C3303
DTC143EKA-X
Q1912
12K10/16
D1911
C1919
IC301
LA4905
220/25
C3313
MTZJ6.8A
1/50
C3304
QGA2501C1-07
QSK0116-001
0.01
C1928
D1910
6A10E2
2SA1175/FE/-T
560
R1925
W3901
CN193
RY191
R1921
Q1913
2SC2412K/R/-X
0.1
C3103
2.2
R3103
0.1
C3104
2.2
R3104
D1917
4.7
C3306
R3303
0.01
C1929
C1927
33/16#10K
C3308
0.01
C3309
C1910
CN301
QGA2501F1-04
22K
22K
22K
22K
R3105
R3205
R3106
R3206
C3310
1/50
1/50
6.8K
6.8K
0.047
0.047
C3312
C3311
R3304
R3305
D3302
D3303
D1901 D1902
D5SBA20-S1 D3SBA20-S1
C1903 C1904 C1905
0.1 0.1 0.1
C1902
C1901
0.1
0.1 0.1 0.1
8200/25
Q1921
DTC143EKA-X
Q1920
2SA1037AK/R/-X
R1944
C1926
5.6K
0.01
C1911
10/16
C1932
W3002
C1906
C1907 C1908
6800/25
QGA7901C1-02
CN191
VMZ0126-003
QGA7901C1-04
0.1
S1901
QQR0799-001
LF191
QQR1145-001
CN192
QGA3901C1-04
EP131
QNZ0136-001Z
QGA2001C1-02
QNC0030-001
QNC0030-001
J3001
QNB0092-001
CN181
J1901
J1901
Tuner signal
1
CD signal
Main signal
Note:LVS100911
Parts are safety assurance parts.
When replacing those parts make
FS-SD58V/78V/98V LVS10091-001A
sure to use the specified one.
AB CD E F G
2-3
FS-SD58V/FS-SD78V/FS-SD98VFS-SD58V/FS-SD78V/FS-SD98V

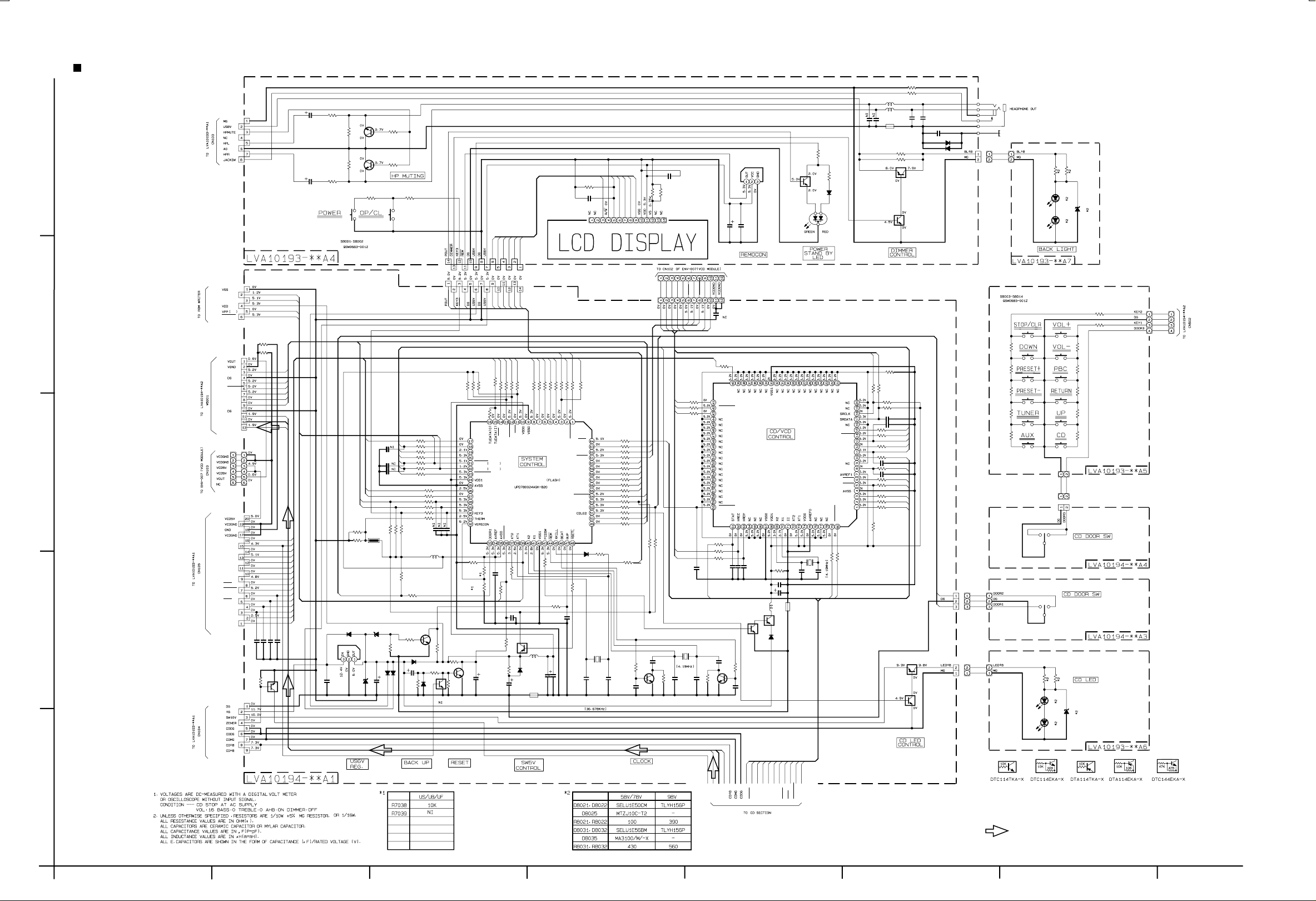

System control section
2.2K
R8302
2.2K
R8301
L8101
QQL231K-470Y
L8201
QQL231K-470Y
2.2K2.2K
R8102R8202
S8002
Q8101C8101
2SD2114K/VW/-X100/10
Q8201
2SD2114K/VW/-X
R8103
2.7K
R8203
2.7K
S8001
R8001R8002
1K12K
CN802
QGB1216K1-14S
0.01
0.01
K8301
C8202
560
NI
Q8003
DTA114EKA-X
C8005
C8102
D8004
0.01
1SS133-T2
1SS133-T2
CN803
QGA2001C1-02
QQR0779-001Z
C8203
C8103
Q8002
DTC114EKA-X
R8005
R8006
330
Q8001
DTC114TKA-X
R8003
330
R8004
D8002
D8001
SPR-39MVWF
1SS133-T2
IC801
GP1U271X
NI
R8010
100P
C8004
DI801
QLD0120-001
DB7
DB6
DB5
DB4
ENA
RS
DB6
DB5
DB4
ENA
RS
C8003
0.022
R8007
4.3K
NI
R8008
DB7
100/10
C8002
0.01
C8001
R8101
22
5
CN801
QGB1216K1-08S
C8201
100/10
R8201
22
J8301
QNS0162-001
W8006D8003
R8022
W8001
R8021
D8021D8022
D8025
TXD0
RXD0
NI
CN707
CN703
CN702
QGF1201F3-20
CN701
QGF1201F3-09
IC
RESET
KEY2
KEY1
LOMUTE
DOOR3
VCLK
VDATA
QGA2001F1-13
CDL
AG
CDR
W7003
FANSW
POUT
FTU
FCD
MT0
MT1
MTS
BLCTL
AHB
SMUTE
TUST
MPX
TUDATA
TUCK
SAFETY
LOCK
NININI
C7116
R6500
R7301
NI
0
R7302
2.2K
R7116
1K
R7117
C7117
C7120
C7121
D7009
MTZJ8.2B-T2
TH701
D7007
MTZJ5.1C-T2
100/16
C7013
10K
R7126
QAD0015-103Z
33K
R7052
D7005
1SS133-T2
R7076
15K
R7077
12K
DOOR1
D7008
0.1
C7014
1SS133-T2
IC702
KIA78S06P-T
NI
C7115
C7113
C7112
2.7K
DTD123TK-X
Q6500
10K
R7128
R7133
R7051
D7004
1SS133-T2
10K
R7118
R7119
R7120
R7121
R7122
R7123
R7124
R7125
R7127
R7129
R7131
10K
R7130
R7132
Q7006
2SC2412K/R/-X
47K
D7003
C7020
4.7/50
R7044
2.2K
2.2K
1K
2.2K
2.2K
2.2K
2.2K
2.2K
1K
QQL01BK-100Z
10K
1SS133-T2
10K
L7002
R7043
D7006
4
3
2
2.2K
2.2K
C7125
1SS355-X
Q7005
100K
R7050
10K
C7127
DIMMER
C7129
R7041
10K
R7042
2SC2412K/R/-X
10K
Q7004
REM
DB7
10K
10K
10K
TUDATA
1K
R7310
R7311
R7312
R7115
0
R7114
TUCK
MSTAT
KCMD
KCLK
OSOFF
RXD0
TXD0MRDY
CDMRST
SAFETY
LOCK
KEY1
KEY2
R7074
10K
0.1
10K
R7038
C7011
NI
R7039
2.2/50
C7019
CN704
QGB1216J1-14S
DB6
DB5
DB4
ENA
RS
10K
R7113
MPX
R7340
R7040
2.2K
R7112
TUST
RESET
NI
1K
R7005
2.2K
2.2K
R7111
R7110
AHB
SMUTE
UPD78F0034AGK
2.2K
R7045
QQL01BK-100Z
330
C7012
QEZ0229-479Z
K7001
IC701
IC
C7018
0.01
DTA114TKA-X
L7001
D7002
2.2K
2.2K
R7108
R7109
BLCTL
Q7003
1SS355-X
QQR0779-001Z
2.2K
2.2K1K2.2K
2.2K
2.2K
R7107
MTS
R7046
R7049
100/10
C7010
1K
R7102
R7103
R7104
R7105
R7106
R7101
FTU
MT0
MT1
POUT
DIMMER
FANSW
LOMUTE
2.2K
1K
0.01
C7009
SCD
OSDATA
OSCLK
OSCS
DB7
DB6
DB5
DB4
ENA
RS
DOOR3
DOOR2
VCLK
VDATA
D7001
1SS355-X
2.2K
R7053
0.01
C7022
18P
C7002
X7001
QAX0401-001
R7048
R7151
R7150
R7149
R7148
R7147
R7146
R7145
R7144
R7143
R7142
R7141
R7139
R7137
R7136
R7135
R7134
1K
R7152
18P
C7001
HREQ
SRCLK
2.2K
1K
1K
1K
2.2K
2.2K
2.2K
2.2K
470
2.2K
2.2K
10K
10K
1K
2.2K
2.2K
10K
10K
R7140
R7138
2.2K
REM
36P
C7004
10K
R7004
8.2K
0.001
C7008
R7002
Q7002 Q7001X7002
2SC2814/4-5/-X 2SC2814/4-5/-XQAX0410-001
SRDAT
20P
C7006
HRDY
HREQ
HRDY
R7218
R7219
R7220
MREQ
OSCLK
C7231
OSCS
0.01
22P
C7005
1K
1K
1K
OSDATA
VCDRST
STAT
8.2K
R7001
VCDEMP
R7221
R7222
R7223
C7003
C7301
R7217
1K
MREQ
VCDRST
VCDEMP
CDMRST
W7002
100
R8057
100
R8051
2.7K3.3K5.6K12K39K
SRDAT
SRCLK
R7216
10K
1K10K
1K
FCD
MRDY
OSOFF
KCLK
22P
C7242
DMUTE
2.2K
R7224
MSTAT
KCMD
SQCK
SUBQ
XRST
REST
MCLK
MDATA
DRMUTE
2.2K
R7225
MLD
IC711
UPD780053GC-031
1K
1K
1K
100P
100P
C7221
C7222
39P
10K
R7003
C7007
0.001
100P
C7223
Q7202
DTA114EKA-X
Q7201
C7252
C7251
DTC114EKA-X
R7251
22K
L7201
QQL01BK-100Z
D7201
1SS133-T2
C7241
0.01
100/10
K7201
QQR0779-001Z
20P
QAX0410-001
X7201
R7215R7205
C7230
R7213
R7214
R7212
C7213
22P
R7211
R7210
R7209
R7208
C7208
R7207
C7207
R7206
R7204
R7203
R7202
R7201
DTC114EKA-X
Q7007
22K
22K
100P
1K
1K
1K
1K
22P
1K
100P
1K
2.2K
1K
1K
1K
Q7008
DTA114EKA-X
DOOR2
DOOR1
CN705CN706
QGA2001F1-03QGA2001F1-02
R8058R8059R8060R8061R8062
W8004W8005
S8003S8009
S8004
S8010
S8005
S8011
S8006
S8012
S8013 S8007
S8014
S8008
W8003
S8022
QSW0851-001
S8021
QSW0851-001
R8032
R8031
D8031D8032
2.7K3.3K5.6K12K39K
R8052R8053R8054R8055R8056
CN804
QGA2001F1-02
D8035
W8002
1
Note:FS-SD58V/78V/98V LVS10092-001A
2-4
CDZE
AG
CDL
STAT
XRST
CDR
SQCK
SUBQ
MCLK
MDATA
MLD
REST
SCD
DRMUTE
DMUTE
CD signal
HAB C DE FG
FS-SD58V/FS-SD78V/FS-SD98V
Tuner section
C14
J1
5
QNB0014-001
4
3
2
0.01
D1
D2
D3
D4
C9
0.001
C2
0.001
L1
QQR0796-001
QAU0097-001
C6
0.001
C91
TU1
R12
1K
82
R2
10/16
0.0470.022
C5
C3C1
R1
1K
0.01
R69
0.047
CF1
QAX0419-001
R54
4.7K
C71
R43
R55
LC72136N
1K
0.0039
3.3/50
R56
3.3K
C70
1.8K
R52
1K
R44
0.001
C35
C69
2.2/50
4.7K
1K
R45
R57
C32
0.001
R66
2.2K
0.001
0.001
100/10
2.2K
L4
C63
QQL231K-221Y
C61
12P
X1
C62
12P
R68
R46
C65
C72
QAX0402-001
22K
47K
C60
IC2
1K
C4
0.01
DTA114YS
330
R20
220K
R21
R22
330
Q6
10P
100K
C21
0.047
R13
C12
27
R23
Q1
CF2
QAX0419-001
T1
QQR0793-001
R36
TA2057N
0.047
C13
0.047
C34
47K
3.3/50
10K
47K
R29
R31
R30
15P
1K
R48
C41
0.1/50
R27
22K 10K
C42
CF4
QAX0409-001
0.47/50
R38
3.9K
C49
0.018
R39
3.9K
C50
0.018
R42
1K
Q7
33K
R34
Q8
33K
R35
C51
C52
4.7/50
4.7/50
0.047
C37
10K
R37
4.7K
IC1
CF3
R24
270
C39
C30
47/16
QAX0418-001
47K
R32
C44
220P
100/10
C33
10/16
C36
R25
0.022
C46
0.01
C45
C47
C40
0.01
C67
NI
C68
NI
C66
150P
1
Tuner signal
Note:LVS200581
FS-SD58V/78V/98V:US/UB/UF
AB CD E F G
2-5
FS-SD58V/FS-SD78V/FS-SD98VFS-SD58V/FS-SD78V/FS-SD98V
VCD section
VD20
VD23
VD22
VD21
VD19
VD16
VD15
VD14
VD13
VD12
VD11
VD7
VD3
VD4
VD5
SA14
SA13
SA12
SA11
SA10
SA9
SA8
SD8
SD7
SD6
SD5
SD4
SD3
SD2
SD1
C107
0.1
IC108
TC7SH04FU
C115
0.1
R103
10K
MD0
MD1
DALRC3
DADAT3
RCLK
DABCK3
VCDEMP3
SCS
VD6
MD14
MD13
MD10
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
MA9
C106
0.1
C105
0.1
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
MD2
MD3
MD4
MD5
MD7
MD6
IC114IC113
HD74HCT245FPHD74HCT244FP
DIR
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
SA14
SA12
SA7
SA6
SA5
SA4
SA3
SA2
SA1
SA0
SD1
SD2
SD3
C116
0.1
IC112
TC55257DFL85L
HD73
HD63
HD53
HD43
HD33
HD23
HD13
HD03
MA7 MD11
MA6
MA5
MA4
MA3
MA2
MA1
MA0
MD0
MD1
MD2
MD0
C112
MD1
0.1
MD2
MD3
MD4
C113
MD5
0.1
MD6
MD7
MA0
MA1
MA2
MA3
R104
X101
NAX0150-001X
C122
TC101
NAT3111-200X
C102
0.1
SR/W
SA13
SA8
SA9
SA11
SOE
SA10
SCS
SD8
SD7
SD6
SD5
SD4
IC102
LH531HEG
IC103
HM514260CJ-7
180
R198
1M
15P
3.9K
R118
VCD/G
10K
3.9K
R129
R119
PALCDG
10K
R128
0.1
C125
IC105
BU2173F
R115
C111
0
MD15
MD12
MA8
MA9
MD9
MD8
MD7
MD6
MD5
MD4
MD3
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
MA8
MA7
MA6
MA5
MA4
0.1
R116
VD23
VD11
VD12
VD13
N/PAL
C136
2700P
R113
VSYNC
HSYNC
1K
PIXCLK
0.1
C131
R147 R148C143
470 1.5K1800P
C144D142 R149
1800P1SS355 1.5K
R109 C168 C170
RESET
C127
0.1
75 470P 470P
IC106
UPD6461GS-635
R196
120
220
R135
C198
0.1
C124
C128
VCLK
100/6.3
VSYNC
HSYNC
OSC1
PIXCLK
0.1
R194
0
C123
0.1
L102
2.7u
C162
100P
VCD/G
C141R141
4700P75
D141
UDZ4.7B
VD22
VBLK
R156
390
Q141
2SC2412K/RS/
VD21
R143
C135
C159
0.001
VD7
VD14
VD15
VD3
VD4
VD5
VD6
VD20
VD19
VD16
IC104
BU1424K
R107
1.2K
0.1
ENCRST
Q101
DTA114EKA
R142
5.6K
VB
VG
VR
VBLK
R144
R145
R146
R155
VB
VG
VR
VCLK
PAL60
C134
0.1
C133
0.1
RSTB
IC107
PQ20VZ11
R111 R112
C151
1.8K 1.1K
0.1
C152
22/6.3
K103
C156C157
C158
0.1
270
22/6.322/6.3
K101
C154
100/6.3
NQR0227-004XNQR0227-004X
C155
0.1
C153
0.1
D+5V
A+5V
C.V-OUT
CN103
QGA2001F2-06X
W7003
C142
HSYNC
VCLK
VSYNC
5
ERROR
CDLRC
CDDAT
CDBCK
DALRC3
DADAT3
DABCK3
XCLK
SBSY
SFSY
VCDEMP3
SUBDT
RCLK3
C110
4
CN101CN102
QGF1016F2-15WQGA2001F2-12X
3
(CN711)
SBSY
CDLRC
CDBCK
CDDAT
GND
DADAT
DABCK
DALRC
XCLK
ERROR
SFSY
SUBDT
RCLK
HREQ
SRCLK
SRDAT
HRDY
MREQ
R191
R192
R193
C191
100P
82
82
82
0.1
HA0
HA1
HA2
R123
R121
R122
R125
DS
W/R
DTACK
HD03
HD13
C103
0.1
R102
47K
1K
DALRC
1K
DADAT
RCLK3
1K
DABCK
1K
VCDEMP
R195
W7002
2
1
RESET
VCDEMP
GND
DIR
N/PAL
ENCRST
W/R
HAO
HA1
HA2
DS
MREQ
PALCDG
VCD/G
HRDY
SRDAT
MN171601AK8J2
SRCLK
HREQ
IC111
OSC1
C101
0.1
HD23
HD33
RESET
HD43
PAL60
HD53
SR/W
IC101
CL480-F1
HD63
HD73
C181
0.1
R124
1K
Note:/d3/u/houki/s/ENV007.001
UX-V50/FS-SD58V/78V/98V-VCD
Note:/s/R/LVS20007-001A ENV-007
SA0
SA1
SA2
SA3
SA4
SA5
SA6
HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
SA7
2-6

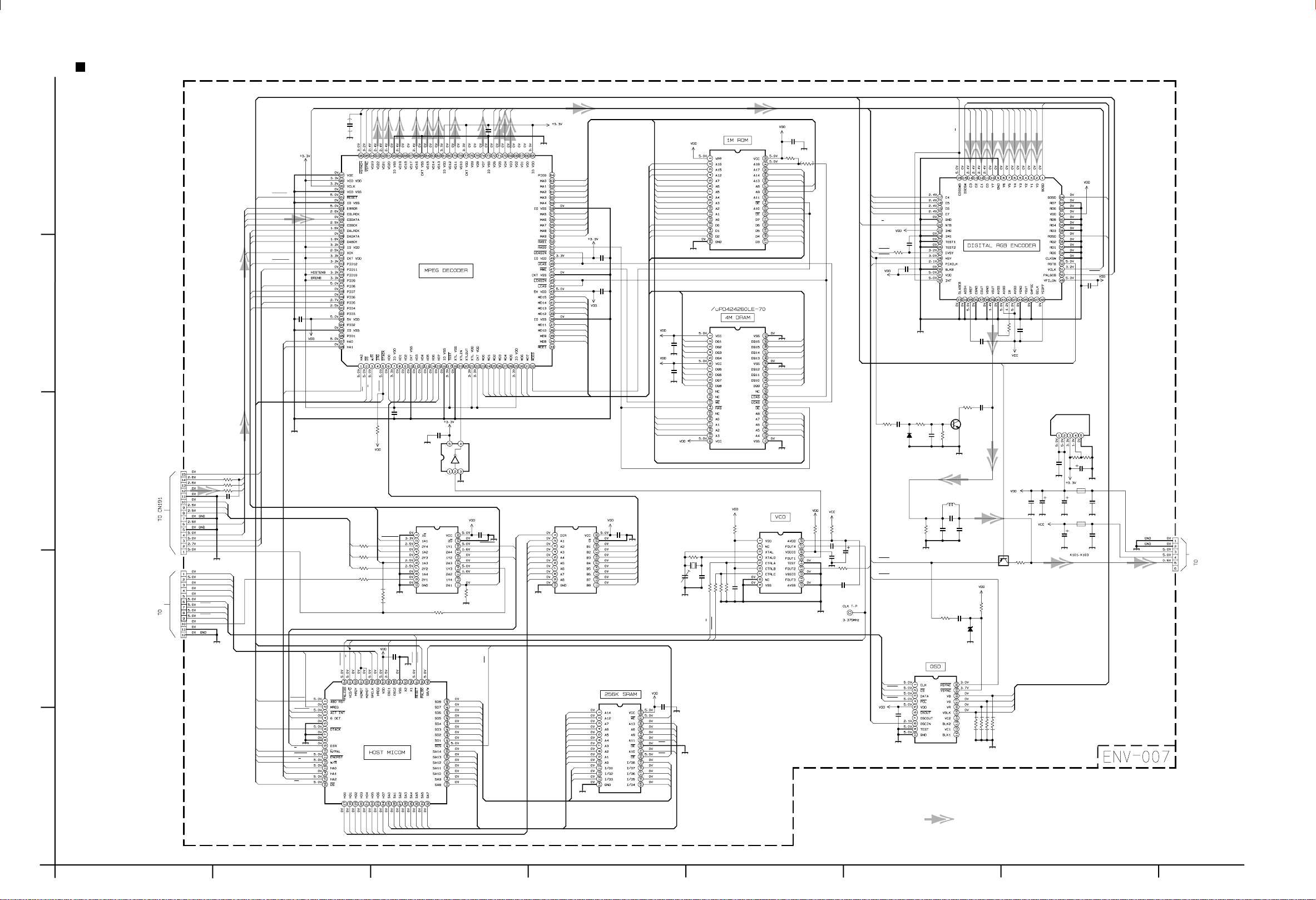

VCD DATA SIGNAL
HAB C DE FG

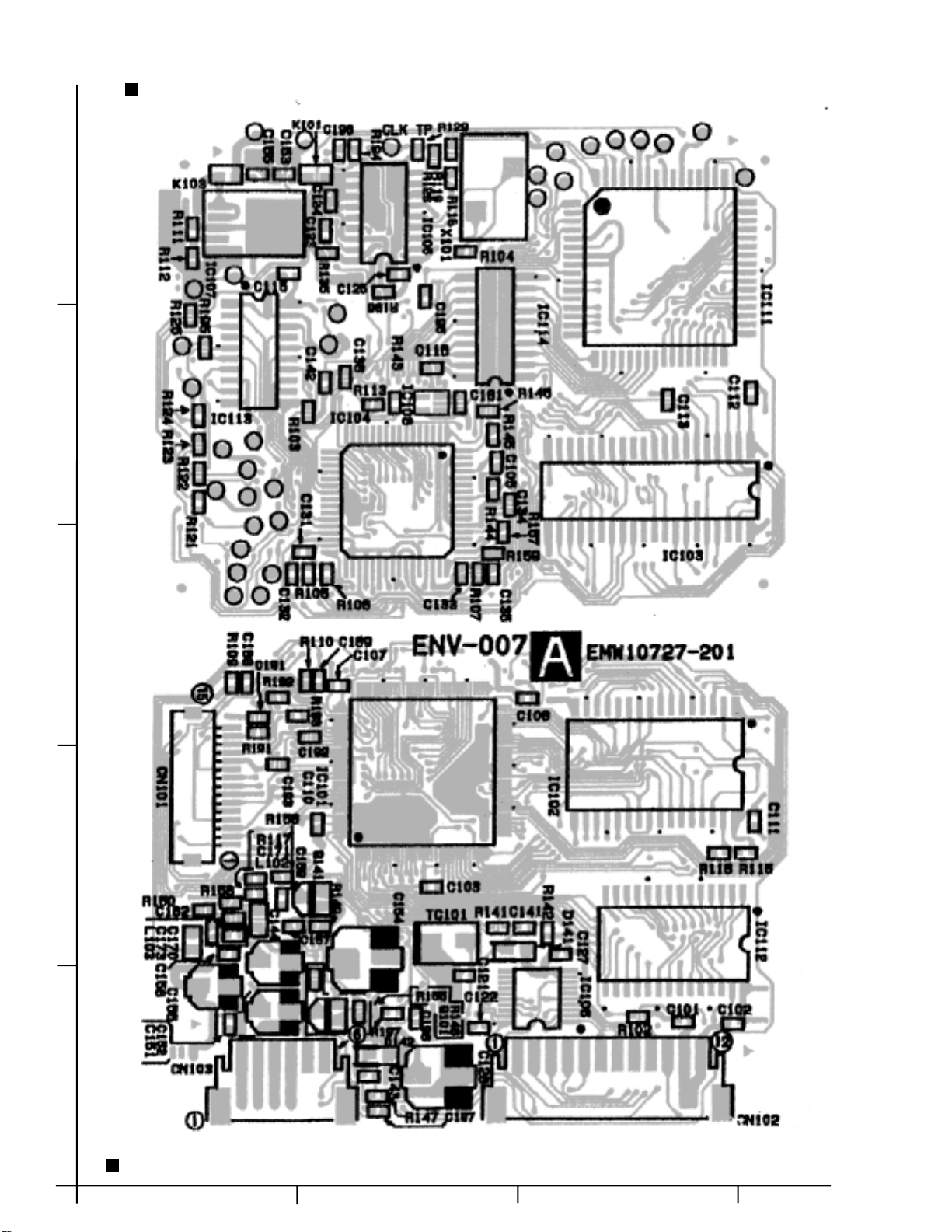

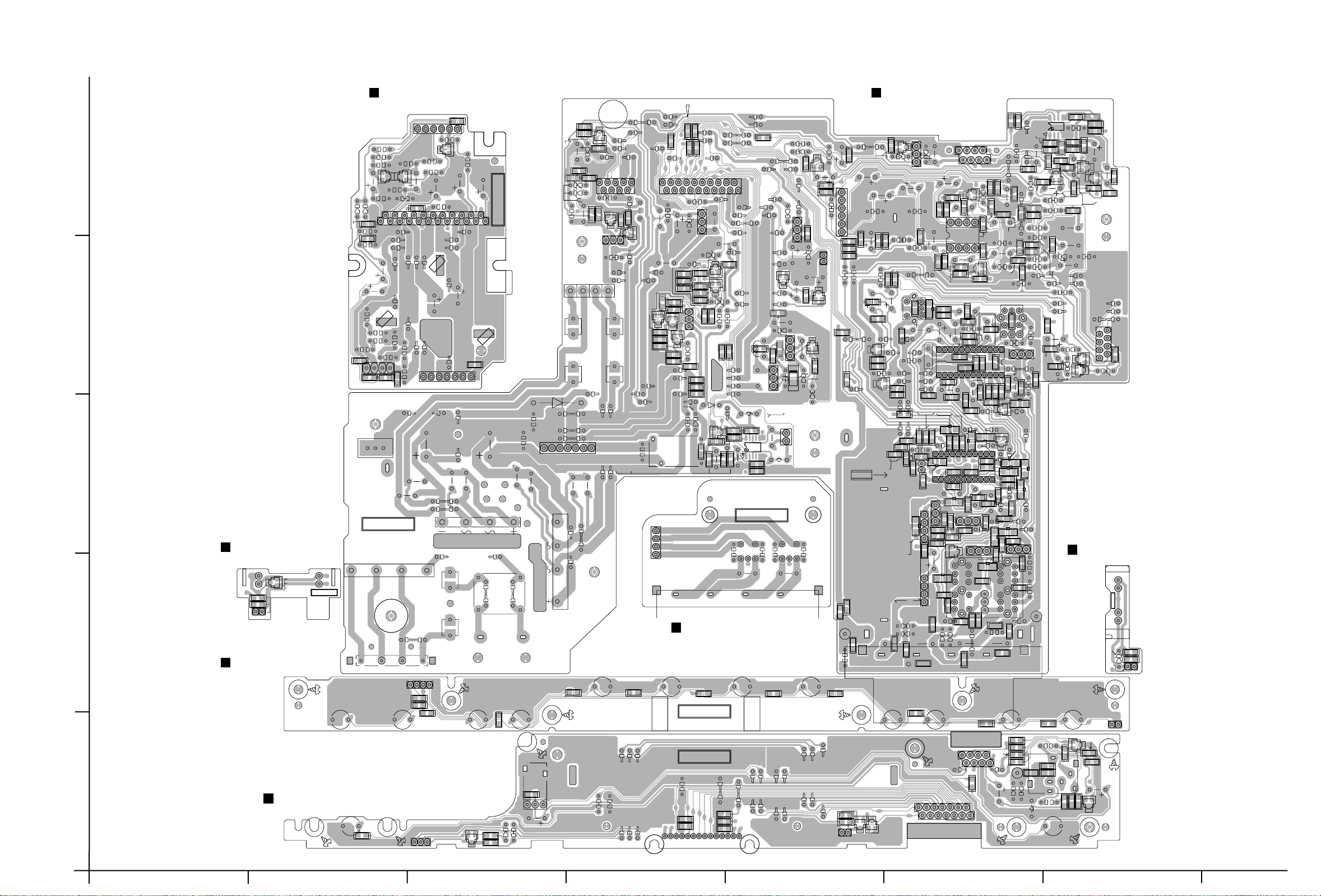

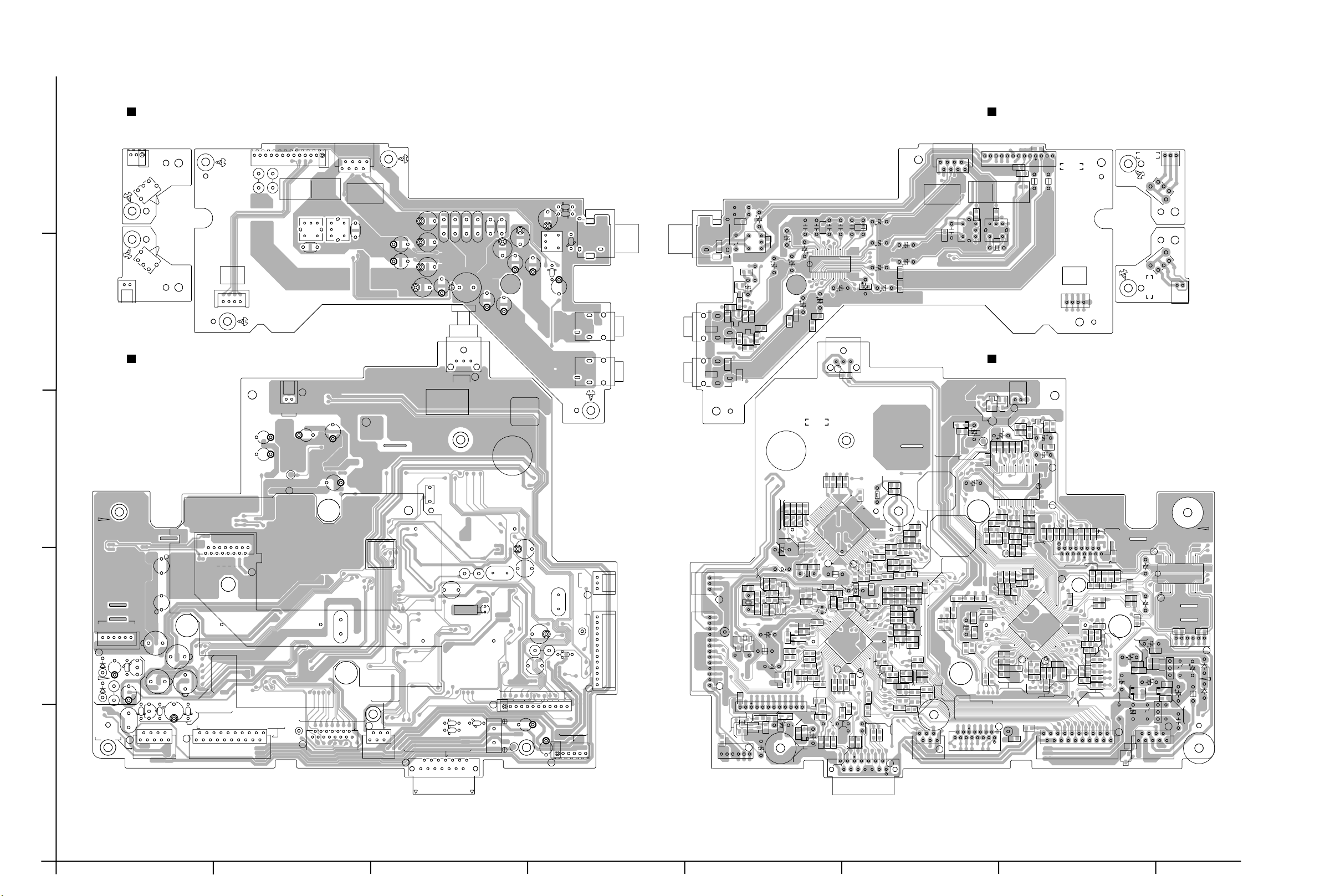

Printed circuit boards
5
4
3
LCD lamp board
2
Switch board
1
Note:10193.001a/ FS-SD58V/78V/98V
AB CD E F G
R8032
R8031
D8035
W8005
D8031
LCD board
C3101
C3102
D3302
D3303
R3304
R3305
C3311
C3310
C3104
R3104
R3103
C3103
R3105
CN301
R3106
EP131
CN191
D8032
S1901
S8003 S8004
S8002
R8002
Power IC board Main board
B1012
B1016
RY191
J3001
R1902
R1903
C1922
B1013
R1905
D1917
B1015
Q1904
D1913
OUT
D1904
D1903
C1929
IN
B
Q1901
B1014
R1913
R1904
D1801
B1003
R1914
Q1801
IC191
C1921
C1914
B1018
R1918
R1919
R1917
R1916
D1905
B1019
R1803
R1939
20
B1017
R1915
C1913
R1912
L1801
C1802
L1901
CP191
R1926
Q1906
Q1905
R1945
C1931
Q1921
D1921
R1806
IC108
Speaker jack board
R8057 R8058 R8059
C8003
R8007
DI801
R8008
B
D1305
D1907
E
Q1907
B
C1915
C1933
E
R1941
Q1917
B
E
C1930
A
B
Q1916
D1923
D1920
R1802
CN106
C1803
K1801
R1805
R1804
LF311LF321
C3105C3205
B1009
B1010
R1940
R1311
R1920
C1932
R1944
Q1918
D1906
CN181
D1919
D1918
Q1920
R1947
R8006
Q1301
R1302
R1312
R1313
CN102
C91
C1919
C1308
C15
WR1
R8005
CN803
R1927
6
1
R42
IC2
1
22
C16
C7
Q8003
D1911
R1925
Q1913
C1206
R39
C50
R1304
Q8
C1304
C
11
12
C1106
R34
Q7
C
R69
Q8002
E
D1912
C1920
Q1912
C1105
R1207
R1209
R1305
R1306
B1006
D1303
B1008
L10
R35
E
B
E
B
R84
R68
R46
L4
C65
D1
D2
R3
S8011 S8012 S8013 S8014
B1007
R27
C1302
R1108
R1109
R75
C41
13
CF4
12
R38
C49
R30
C67
C68
C66
C63
C62
X1
R52
C61
C60
CF1
B134
R20
C4
R1
C1
B120
R11
C6
R99
C9
C19
R8060
C3312
C3309
C3204
R3206
Q3101
C3202
C3302
W8002
R3107
R3101
R3102
Q3201
R8051
R8052
R3202
R3204
C1906
R3203
R3205
C1908
C3203
D8001
W3001
R3207
R8053
C3201
C1911
IC301
HVCC
R3201
C3313
B1021
Q3301
R3303
C3306
C3308
C3301
C3303
C3304
LVCC
W3901
LVCC
C1905
Z1901Z1902
C3320
PGPGAG
C1907
S8005 S8006
Q8001
R8004
C1910
LF191
D1902
J1901
R8054
R8003
C1902
C1927
C1904
IC801
D8002
HVCC
14
R1924
R1946
C1918
D1908
C1917
CN192
4
D1910
17
C1926
CN193
C1901
D1901
R8055
C8001
C8002
Q1922
R1937
R1935
C1925
D1909
R1936
1
D1922
Z1906
Z1905
C1903
CN104
Q1910
R1933
Z1904
Z1903
R1932
BE
1
C1912
R1801
C1801
R1807
R1808
R8056
Q1908
C1916
R1934
S8007 S8008 S8009 S8010
9
Q1909
R1910
R1911
Q1902Q1903
R1938
R1907
R1908
C1928
R1923
R1909
R1906
1
CN105
R1922
R1921
R8010
C8004
R1106
R1107
B137
C42
B114
C5
D4
CN802
C1205
C40
C47
R43
E
R74
C46
C3
Q2
R10
CN801
CN103
R1208
C53
C37
C44
R31
C33
R29
R44
B109
B
1
R1206
C1204
Q1201
IC101
R1210
C1104
R1111
R26
C43
R32
C45
C35
C36
R48
R45
B111
C34
B110
R65
C72
R60
C69
R56
R55
B115
C70
R21
B
E
Q1
R22
R2
Q4
C
E
R12
B119
C21
C13
C12
R13
D3
R98
C2
R8061 R8062
R8001
FS-SD58V/FS-SD78V/FS-SD98V
R1115
C1109
R1215
C1209
C1208
R1216
C1305
8
B1005
B1002
D1301
C1301
C1203
R1204
R1211
R1110
C1103
Q1101
R1104
T1
R24
CF3
R25
24
IC1
C18
1
C55
BE
Q6
C
C71
R57
C95
R23
B118
B
B
R16
C17
C8
L11
R8302
R8301
W8006
C8201
C31
C14
R1309
C1211
C1111
C30
R61
C11
D8003
R1303
R54
B117
R1301
C39
R15
D8004
D1304
C1210
R1203
B131
R8203
R8103
B1004
Q1302
R1310
R1105
C92
R1928
C1924
CF2
R1929
R1930
D1916
C1923
C93
R36
R37
B132
B112
B113
R66
C32
B133
Q3
E
L12
WR2
L8101
C8102
C8005
C8202
L8201
K8301
S8001
C1108
R1307
IC102
R1213
R1214
R1308
Q1202
R1212
C1307
R1116
R1205
R1217
C1202
C1102
D1302
C1303
R1103
C1110
D1915
Q1914
Q1915
Lamp board
Q8101
C8103
R8102
R8101
C8101
R8201
Q8201
R8202
C8203
R1113
R1114
C1306
C1107
Q1102
R1117
R1112
C1207
1
CN101
R1931
8
D1914
D8021D8022
R8021
R8022
D8025
W8001
W8003
2-7
FS-SD58V/FS-SD78V/FS-SD98VFS-SD58V/FS-SD78V/FS-SD98V
Line board(foward side)
R7122
R7121
R7120
C5102
C5202
R7211
R7210
C7208
C7207
C7117
R7074
R7119
R7118
R7124
R7123
C7121
C7120
C7213
C7230
C7116
C7112
CN707
R7208
R7207
C6021
R6012
R7214
R7212
C6023
R6081
R5112
R6002
R7215
C6017
R6212
C6012
R7213
R6010
C7129
C7127
C7125
K6202
C6251
C7115
C7113
CN501
C6011
R6008
C6018
K6203
R6021
C6010
C6020
R6009
C6019
C5106
D6001
C6014
C6009
C6006
C6007
C6015
R6007
C6016
R6005
R6080
R7129 R7130
R7127 R7128
R7125 R7126
K6201
R6211
X6051
R6204
R7311
R7310
W8004
5
S8021
K5301
S8022
CN804
CN502
4
CD servo board(foward side)
C6002
3
C6091C6092
C6022
CN603
2
C6031
C6081
CN605
C6080
C7014
CN701 CN702
C6073
D7008
IC702
D6032 D6033
D7009
C6033
K6051
C7013
D6031
C6032
D7003
Q6031
K5302
TP603
C6008
W5001
LF521
CN706
CN711
C5206
LF511
CN501
C6029
C6001
X6051
C5106
CN707
C5102
C5202
C5203
C5107
C5103
C5207
CN704
D7005
D7004
J6001
TH701
C5209
C5301
C5210
C5302
L7002
K7201
C5109
D7007
C5110
C7012
X7001
C5208
C5104
X7201
C5201
C5108
C5101
L7001
C7010
K7001
C5204
C5205
C7020
C5304
C7251
L7201
LF501
C5105
D5302
X7002
C7019
W7002
D7201
D5304
D5301
TW701
D5303
C5303
J5301
J5302
J5303
W7003
CN705
CN703
CN705
CN703
J5301 J5302
C5307
J5303
C5308
R7041
C5305
Q7005
R7302
Q7004
C5111
R7043
R7042
C7005
C7006
W7003
X7002
R7044
C7301
R5301
D7006
D5301
Q7202
D7201
C5211
R7004
R7003
Q7201
W7002
C7004
LF501
Q5301
R5107
C7251
C7003
C7019
K7001
C5303
C5112
C5212
C7223
R7223
C7252
R7251
C7010
L7001
D5303
D5304
C5309
D5302
C7008
C7007
C7222
R7222
C5105
Q5101
R7002
R5108
C7221
R7221
L7201
R7001
R7049
C7022
R5302
R5106
Q7003
R5207
R5208
R5105
C7231
C5204
Q5201
Q7001
R7048
C5304
R5205
C5205
R5101
R5206
R7053
Q7002
R7045
R7138
R5102
C7241
C7020
C5101
R7005
C5104
R7140
D7002
C7002
X7001
C7012
C5108
R5201
C7242
C7001
R7134
X7201
D7001
R7040
C7009
C5201
R7152
R7141
R7038
R7046
D7007
C5208
J6001
R7135
R7136
R7052
R5110
R5202
R7137
R7139
R7220
R7050
Q7006
R7051
R7142
C7011
R7148
C5110
C6159
C5302
R7219
K7201
L7002
C7018
R7143
R7146
IC501
R7218
R7149
R7144
R7147
C5109
R7217
R7145
C5210
R7132
R7150
R5210
C5301
R7216
R7201 R7202
R7151
R5305
R7224
R7205
C5209
R7340
R7039
R7113
R7102
TH701
R7112
R7312
C5207
C5107
C5103
R7076
R7114
R7209
R7101
R7103
C5203
R7133
R7131
R7203
R7104
R7077
CN704
R7115
D7005
D7004
R7204
R7116
R5103
R5203
R7206
R7117
Line board(reverse side)
C5310
R5111
LF511
LF521
C5312
C5311
R5212
R5211
C5206
K5302
W5001
K5301
CN502
CD servo board(reverse side)
CN706
Q7008
C6003
C6063
C6252
R6001
R6069
C6075
R6064
R7301
R6003
C6064
Q6001
R6028
C6061
R6061
R6210
R6209
R6208
IC601
R6026
CN603
R6014
R6015
C6002
R6013
C6022
R6024
C6055
R6213
R6214
R6215
R6025
R6141
C6058
R6016
R6041
R6060
C6090
R6049
C6089
R6050
R6047 R6048
R6043
R6044
C6154C6156
C6157
C6158
R6054
R6201
R6056
R6057
R6058
R6052
CN702
C6096
R6202
D6061
R6066
R6029
R6046
R6045
C6202
R6053
C6001
R6006
Q7007
C6029
C6008
C6028
C6005
R7225
R6063
C6065
R6203
C6062
R6059
C6051
C6083
C6052
R6205
R6206
R6207
R6071
R6072
C6072
R7111
C6071
R7110
R7109
R7107R7108
R7105R7106
TP603
CN711
C6053
R6027
D7003
R6051
C6073
C6098
R6500
R6067
C6081
C7013
S8022
D6062
Q6500
R6042
R6033
C6091
R6032
R6040
D7009
S8021
R6031
C6080
C6092
CN804
C6031
IC702
C6097
CN701
C6094
W8004
D7008
IC602
Q6031
C7014
CN605
C6032
R6068
D6063
C6076
D6031
C6033
K6051
C6099
D6032 D6033
1
Note:lvb10194.001a/FS-SD58V/78V/98V
2-8
HAB C DE FG
FS-SD58V/FS-SD78V/FS-SD98V
VCD board(reverse side)
5
4
3
2
1
VCD board(foward side)
AB C
2-9
FS-SD58V/FS-SD78V/FS-SD98V
< MEMO >
2-10
Loading...
