Frymaster PMJ135 Parts List

Download

MJ35

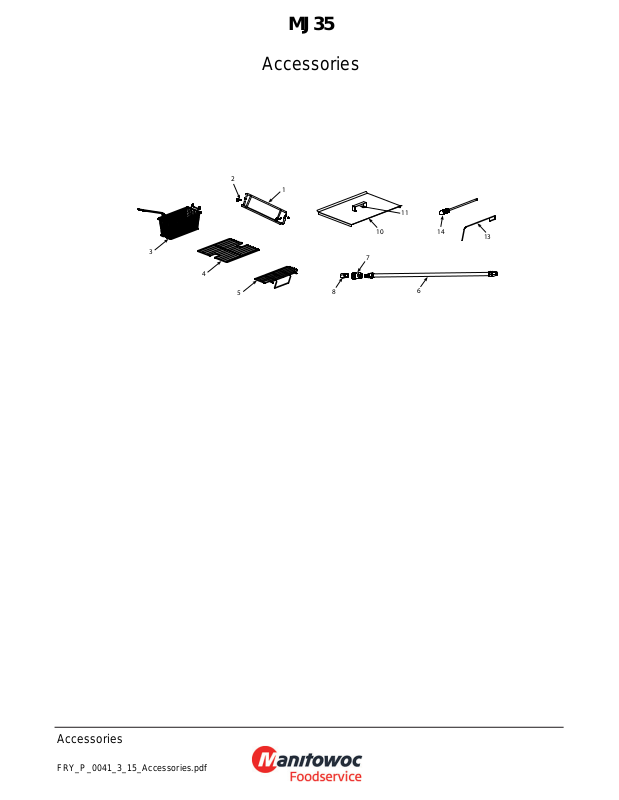

Accessories

FRY_P_0041_3_15_Accessories.pdf

MJ35

Accessories

# PART # DESCRIPTION QTY Note

1 8102793 Hanger, Wireform Basket 1 1a 1062186 Basket Hanger, Burger King® 1 1b 8234447 Basket Hanger, Buffalo Wild Wings® and Jack in the Box® 1 1c 8231462 Basket Hanger, Checkers® 1 1d 1062185 Basket Hanger, Checkers®, Bracket 1 2 8090171 Thumbscrew, 0.25-20 x 1.375-inch 1 2a 8090921 Spacer, Basket Hanger 1 2b 8030099 Basket, Full Size 1 3 8030271 Basket, Twin Size 1 3a 8030190 Basket, Twin, Buffalo Wild Wings® 1 3b 8030357 Basket, Triple 1 4 8030132 Rack, Full-Vat Basket Support 1 5 8030133 Rack, Dual-Vat Basket Support 1 5a 8030032 Basket Support Rack, J2X 1 5b 8030136 Basket Support Screen, Full Vat 1 5c 8030037 Basket rack, fine mesh GF14 1 6 8100088 Gas Line, 1-Inch Dormont Flexible, 36-Inch 1 6a 8100084 Hose, Flexible Gas, 0.75-inch x 48-inch 1 7 8100073 Coupling, Gas Line Female Quick Disconnect 1-inch 1 8 8100074 Quick-Disconnect Fitting, 1-Inch Male 1 9 8030188 Sediment tray, GF14 1 9a 8030103 Valve, Manual Gas Shut Off 0.75” 1 9b 8030107 Sediment Trays (Full-Vat) 1 9c 8030108 Sediment Trays (Left Dual-Vat) 1 10 8065518 Cover, Frypot, Full Vat 1 10a 8063232 Cover, Frypot, Dual Vat 1 11 8260993SP Handle Kit, Frypot Cover 1 12 8261351 Nut Retainer, 0.25-20 Std. Fluecap 10 [1] 13 8030197 Fryer’s Friend 1 14 8030209 Brush, Frypot 1 15 8030278 L-shaped Brush 1 16 8233660 Crumb Scoop 1 17 8235936 Splash Guard, Right 1 18 8235937 Splash Guard, Left 1 19 OPT32686 Foodwarmer 1 [2] 19a 8066988SP Foodwarmer Kit 1 20 1064786 Spreader Storage Pan 1 21 9103557 Fryer’s Friend 27” 1 [3] 22 8261017 Screw Kit, Flue Deflector 1 [3] 23 KIT3647 Applebee’s® Heat Lamp 1 [4]

PART NOTES:

[1] - for use on standard fluecap [2] - with scoop pan [3] - See Section 2.6 for more information and associated items [4] - available as OPT33030 for MJ 45 only

Accessories

FRY_P_0041_3_15_Accessories.pdf

4, 15

5, 15

8, 12, 15, 22

10, 16, 26

11, 13, 19, 24

11, 13, 25

14, 23

14, 20, 25

MJ35

Basket Lift and Associated Parts

RESOURCE NOTES:

Assemblies 1061807SP (100-120V) and 1061810 (230/240/250V) do not include Items 1, 2, 3, 9, or 17. These items must be ordered separately.

For 100-120V units, each individual resistor (8072661) may be replaced or the entire resistor assembly (8068530SP) may be replaced.

For 208-250V units, the entire resistor assembly (1062771 or 8069185) must be replaced. Wiring has been omitted for clarity.

Basket Lift and Associated Parts

FRY_P_0041_3_15_Basket Lift and Associated Parts.pdf

MJ35

Basket Lift and Associated Parts

# PART # DESCRIPTION QTY Note

1 9104776 Cover, Modular Basket Lift Rear S/S 1 1a 9004776 Cover, Modular Basket Lift Rear S/S 1 [1] 1b 8261991 Cover, Kit S/S Modular Basket Lift with screws 1 [2] 2 8237062 Basket Lift Arm, Left 1 3 8237064 Basket Lift Arm, Right 1 4 9018499 Chassis, Left Basket Lift 1 5 9028499 Chassis, Right Basket Lift 1 6 2002942 Mount, Modular Basket Lift 1 7 8090082 Ring, Bushing Retainer 1 8 8261361 Screw, 2-32 X 1-inch Slotted Truss Head 25 9 8090127 Screw, 0.25-20 X 0.5-inch Slotted Round Head 1 10 8090186 Lock Washer w/External Teeth, #8 1 11 8261366 Nut, 4-40 Keps Hex 25 12 8090247 Nut, 8-32 Keps Hex 1 13 8261359 Screw, 4-40 x 0.75-inch Slotted Round Head 25 14 8261371 Screw, 8 x 0.5-inch Hex Head ZP 25 15 8261374 Screw, 10 x 0.5-inch Hex Head 25 16 8090503 Screw, 8-32 X 0.5-inch Slotted Truss Head 1 17 8100172 Plug, 0.625-inch Stainless Steel Hole 1 18 8101012 Rod, Basket Lift 1 19 8120442 Insulation, Microswitch 1 20 8130035 Bushing , Oiltite .640 I.D. 1 21 8160033 Tie Wrap, Screw Mount 1 22 9005529 Gusset, Basket Lift Motor 1 23 8072513 Capacitor, 12.5 Fd 330VAC 1 24 8072572 Microswitch 1 25 8068530SP Resistor Assy, 100-120V Modular Basket Lift 1 25a 1062771 Resistor Assembly, CE, 208-250V Modular Basket Lift 1 26 8065964SP Motor Assy, 208-240VAC Modular Basket Lift 1 26a 8101013 Gear, Modular Basket Lift 1 26b 8090504 Set Screw, 6-32 x .185 1 26c 8100973 Gear Motor Assembly, Woodruff Key 1 27 8069257SP Roller Assembly, Basket Lift 1 28 1061807SP Basket Lift Assemblies, 100-120V w/o Relay 1 [3] 28a 1061810SP Basket Lift Assemblies, 202-250V w/o Relay 1 28b KIT6421 Basket Lift Assemblies, Complete 120V Basket Lift Assembly

for FPP35/45

28c KIT7193 Basket Lift Assemblies, Complete 230V Basket Lift Assembly

for FPP35/45

28d KIT7413 Basket Lift Assemblies, Complete 230V Basket Lift Assembly

for PMJ35 29 8073699 Basket Lift Power, Non-CE/CE68” 1 30 8241476 Tray, Drip Left 1 31 8241477 Tray, Drip Right 1 32 2008862 Drip Plate/Shield 1

1 1 1

Basket Lift and Associated Parts

FRY_P_0041_3_15_Basket Lift and Associated Parts.pdf

MJ35

Basket Lift and Associated Parts

# PART # DESCRIPTION QTY Note

PART NOTES:

[1] - CRS cover [2] - with 12 screws [3] - without relay

Basket Lift and Associated Parts

FRY_P_0041_3_15_Basket Lift and Associated Parts.pdf

11a

12a

MJ35

Cabinetry - FPP, FMP Model Cabinetry

FRY_P_0041_3_15_Cabinetry - FPP, FMP Model Cabinetry.pdf

MJ35

Cabinetry - FPP, FMP Model Cabinetry

# PART # DESCRIPTION QTY Note

1 1069088 Cabinet Assemblies, Two Station Fryer, Stainless 1 1a 1069089 Cabinet Assemblies, Two Station Fryer, Cold Rolled Steel 1 1b 1069090 Cabinet Assemblies, Three Station Fryer, Stainless 1 1c 1069091 Cabinet Assemblies, Three Station Fryer, Cold Rolled Steel 1 1d 1069092 Cabinet Assemblies, Four Station Fryer, Stainless 1 1e 1069093 Cabinet Assemblies, Four Station Fryer, Cold Rolled Steel 1 1f 1069094 Cabinet Assemblies, Five Station Fryer, Stainless 1 1g 1069095 Cabinet Assemblies, Five Station Fryer, Cold Rolled Steel 1 1h 1064525 Cabinet Assemblies, Applebee’s® Dump Station 1 2 1063785 Base Assemblies, Two Station Fryer 1 2a 1064019 Base Assemblies, Three Station Fryer 1 2b 1064020 Base Assemblies, Four Station Fryer 1 2c 1064021 Base Assemblies, Five Station Fryer 1 3 9007730 Brace, Top Cabinet, Two Station Fryer 1 3a 9009430 Brace, Top Cabinet, Three Station Fryer 1 3b 9009318 Brace, Top Cabinet, Four Station Fryer 1 3c 2005474 Brace, Top Cabinet, Five Station Fryer 1 4 2006901 Back Panels, Upper 1 4a 2006906 Back Panels, Upper 1 4b 2106608 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064036. 1064038. 1064039.

4c 2106895 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064037, 1064039. 5 2006905 Back Panels, Lower (Use with cabinet assemblies.), Use with

1064036, 1064038, 1064039, 1064051, 1064053. 5a 2006908 Back, Lower Cabinet, Aluminized 1 5b 2106897 Back, Lower Cabinet, Stainless Steel 1 5c 2106874 Back Panels, Lower (Use with cabinet assemblies.), Use with

1064037, 1064039, 1064052. 5d 2008567 Back Panels, Lower, Use with 1064525 1 [1] 6 2116893 Side, Left, painted 1 6a 2016917 Side, left, stainless 1 6b 2116933 Side, Left Cabinet, Stainless Steel with hole 1 6c 2016934 Side, Left Cabinet, Stainless Steel with hole (Cold Rolled

Steel) 7 2126893 Side, Right, painted 1 7a 2026917 Side, right, stainless 1 7b 2126933 Side, Right Cabinet, Stainless Steel with hole 1 7c 2026934 Side, Right Cabinet, Stainless Steel with hole 1 [2] 8 2200927 Air/Heat Shield, 31” 1 8a 2200928 Air/Heat Shield, 15.5” 1 9 2006908 Back, Lower Cabinet, Aluminized 1 [3] 9a 2106897 Back, Lower Cabinet, Stainless Steel 1 [3] 10 2002235 Bracket, Component Box 1 11 2001953 Brace, Front Cabinet 1 11a 2006057 Brace, Cabinet Cross 1 12 2006062 Support, Cabinet upper Rear 1 12a 2006310 Support, Rear Pan Rail 1

1 1 1

Cabinetry - FPP, FMP Model Cabinetry

FRY_P_0041_3_15_Cabinetry - FPP, FMP Model Cabinetry.pdf

MJ35

Cabinetry - FPP, FMP Model Cabinetry

# PART # DESCRIPTION QTY Note

13 2006346 Gusset, Rear Cabinet 1 14 2006486 Brace, Front Cross 1 15 2006892 Post, Front Door Long 1 16 2006894 Post, Rear Cabinet Long 1 17 2006911 Post, Front Cabinet Long 1 18 8261389 Screw, 0.25-20 x 0.75-inch Hex Head ZP 10 19 9107443 Top Connecting Strip 1 20 9106650 Channel, Top Connecting Strip 1 21 8231885 Connecting Strip, Frypot 1 22 9104617 Connecting Strip, blunt point, 0.5” sides, 20.70” long 1 [4] 23 8261374 Screw, 10 x 0.5-inch Hex Head 25 24 8090417 Nut Flange 0.25-inch 0.25-20 Serr 1 25 8234727 Hinge Assembly, Left Upper 1 26 8234728 Hinge Assembly, Right Upper 1 27 8234745 Hinge Assembly, Left Lower 1 28 8234746 Hinge Assembly, Right Lower 1 29 2204180 Rail Assembly, Left 1 [5] 29a 8090495 Nut, 0.25-inch - 20 Press 1 30 1069083 Rail Assembly, Right 1 [6] 31 2224183 Rail, RH Filter Pan Retaining 1 32 2214483 Rail, LH Filter Pan Retaining 1 33 2204182 Rail, Slide 1 34 2006935 Stop, Filter Rail 1 35 9007326 Divider 1 36 KIT0293 Joiner Kit, Applesbee’s® Dump Station 1 37 2109291 Top Connecting Strip, Fryer-to-Fryer 1 38 8090193 Washer, Flat 0.25 Nylon 1 39 8102346 Magnet, Door 1

PART NOTES:

[1] - Applebee’s® Dump Station [2] - Cold Rolled Steel [3] - three and five station fryers [4] - Applebee’s Fryer to Filter [5] - (nut separate) [6] - (nut included)

Cabinetry - FPP, FMP Model Cabinetry

FRY_P_0041_3_15_Cabinetry - FPP, FMP Model Cabinetry.pdf

MJ35

Cabinetry - PMJ (Non-filter) Model Cabinetry

FRY_P_0041_3_15_Cabinetry - PMJ (Non-filter) Model Cabinetry.pdf

MJ35

Cabinetry - PMJ (Non-filter) Model Cabinetry

# PART # DESCRIPTION QTY Note

1 1064028 Cabinet Assemblies, Single Station Fryer, Stainless 1 1a 1064030 Cabinet Assemblies, Single Station Fryer, Cold Rolled Steel 1 1b 8066741 Cabinet Assemblies, Single Station Fryer, Cold Rolled Steel

(Garland) 1c 1064036 Cabinet Assemblies, Two Station Fryer, Stainless 1 1d 1064051 Cabinet Assemblies, Two Station Fryer, Cold Rolled Steel 1 1e 1064037 Cabinet Assemblies, Three Station Fryer, Stainless 1 1f 1064052 Cabinet Assemblies, Three Station Fryer, Cold Rolled Steel 1 1g 1064038 Cabinet Assemblies, Four Station Fryer, Stainless 1 1h 1064053 Cabinet Assemblies, Four Station Fryer, Cold Rolled Steel 1 1i 1064039 Cabinet Assemblies, Five Station Fryer, Stainless 1 1j 1064054 Cabinet Assemblies, Five Station Fryer, Cold Rolled Steel 1 1k 1064525 Cabinet Assemblies, Applebee’s® Dump Station 1 2 1065440 Base Assemblies, Single Station Fryer 1 2a 1064040 Base Assemblies, Two Station Fryer 1 2b 1064041 Base Assemblies, Three Station Fryer 1 2c 1064042 Base Assemblies, Four Station Fryer 1 2d 1064043 Base Assemblies, Five Station Fryer 1 3 2006903 Back GF14 1 3a 2006904 Back GF40 1 3b 2106817 Back Panels, Single, Use with 1064028. 1 3c 2106818 Back Panels, Single, Use with 1064028. 1 3d 2005867 Back Panels, Single, Use with 1054525 1 [1] 4 2006901 Back Panels, Upper 1 [2] 4a 2006902 Back Panels, Upper 1 [3] 4b 2006906 Back Panels, Upper 1 [4] 4c 2006907 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064052, 1064037. 4d 2106608 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064036. 1064038. 1064039.

4e 2106895 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064037, 1064039. 4f 2106896 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064037.

4g 2106650 Back Panels, Upper (Use with cabinet assemblies.), Use with

1064036, 1064038. 5 2006905 Back Panels, Lower (Use with cabinet assemblies.), Use with

1064036, 1064038, 1064039, 1064051, 1064053. 5a 2006908 Back, Lower Cabinet, Aluminized 1 5b 2106874 Back Panels, Lower (Use with cabinet assemblies.), Use with

1064037, 1064039, 1064052. 5c 2106897 Back, Lower Cabinet, Stainless Steel 1 6 9004813 Brace, Cabinet Top Single 1 6a 9007730 Brace, Top Cabinet, Two Station Fryer 1 6b 9009430 Brace, Top Cabinet, Three Station Fryer 1 6c 9009318 Brace, Top Cabinet, Four Station Fryer 1 6d 2005474 Brace, Top Cabinet, Five Station Fryer 1 7 2116893 Side, Left, painted 1 7a 2016917 Side, left, stainless 1

1 1 1 1 1 1

Cabinetry - PMJ (Non-filter) Model Cabinetry

FRY_P_0041_3_15_Cabinetry - PMJ (Non-filter) Model Cabinetry.pdf

MJ35

Cabinetry - PMJ (Non-filter) Model Cabinetry

# PART # DESCRIPTION QTY Note

7b 2116933 Side, Left Cabinet, Stainless Steel with hole 1 7c 2016934 Side, Left Cabinet, Stainless Steel with hole (Cold Rolled

Steel) 8 2126893 Side, Right, painted 1 8a 2026917 Side, right, stainless 1 8b 2126933 Side, Right Cabinet, Stainless Steel with hole 1 8c 2026934 Side, Right Cabinet, Stainless Steel with hole 1 9 2006908 Back, Lower Cabinet, Aluminized 1 9a 2106897 Back, Lower Cabinet, Stainless Steel 1 10 2002235 Bracket, Component Box 1 11 2001953 Brace, Front Cabinet 1 12 2006057 Brace, Cabinet Cross 1 13 2006062 Support, Cabinet upper Rear 1 14 2006346 Gusset, Rear Cabinet 1 15 2006486 Brace, Front Cross 1 16 2006894 Post, Rear Cabinet Long 1 17 2006911 Post, Front Cabinet Long 1 18 8261374 Screw, 10 x 0.5-inch Hex Head 25 19 8234727 Hinge Assembly, Left Upper 1 20 8234728 Hinge Assembly, Right Upper 1 21 8234745 Hinge Assembly, Left Lower 1 21a 8234713 Hinge Assembly, Left Lower 1 [6] 22 8234746 Hinge Assembly, Right Lower 1 23 9007326 Divider 1 24 KIT0293 Joiner Kit, Applesbee’s® Dump Station 1 25 8101105 Magnet, Door 1 26 8090193 Washer, Flat 0.25 Nylon 1

PART NOTES:

[1] - Applebee’s® [2] - Use with cabinet assemblies, Use with 1064036, 1064038, 1064039, 1064051, 1064053. [3] - Use with cabinet assemblies, Use with 1064036, 1064051, 1064053. [4] - Use with cabinet assemblies, Use with 1064037, 1064039, 1064052. [5] - Cold Rolled Steel [6] - on single fryers

1 [5]

Cabinetry - PMJ (Non-filter) Model Cabinetry

FRY_P_0041_3_15_Cabinetry - PMJ (Non-filter) Model Cabinetry.pdf

MJ35

Casters, Legs, and Associated Hardware

FRY_P_0041_3_15_Casters, Legs, and Associated Hardware.pdf

MJ35

Casters, Legs, and Associated Hardware

# PART # DESCRIPTION QTY Note

1 8103169 Leg 4 1a 8103168 Leg, Individual 1 2 8261095 Anchor Strap Kit 1 3 8100357 Caster, 5” 1 [1] 3a 8261118 Caster, 5” Swivel w/Brake 1 4 8100356 Caster, 5” 1 [2] 4a 8261117 Caster, 5” Swivel w/o Brake 1 5 8100378 Caster, Stationary- 5” Rigid 1 6 8100651 Caster w/Brake –FootPrint II 1 6a 8261130 Caster, 3” Swivel w/Brake 1 7 8100750 Caster, 90° rigid 1 [3] 8 8260900 Kit, Chain Restraint 1 9 8261113 Caster Fastener Kit 1 [4]

PART NOTES:

[1] - with brake [2] - without brake [3] - PMJ units [4] - one per caster or leg

Casters, Legs, and Associated Hardware

FRY_P_0041_3_15_Casters, Legs, and Associated Hardware.pdf

MJ35

Component Boxes

FRY_P_0041_3_15_Component Boxes.pdf

MJ35

Component Boxes

# PART # DESCRIPTION QTY Note

1 8070670 Relay, 24V DPDT 1 2 8070833 Relay, DPDT 5A 12VDC Latch 1 2a 8070834 Relay, SPDT 15A 12VDC Basket Lift 1 3 2007176 Bracket, Relay 1 4 8102243 Spring, Relay Retaining 1 5 8160217 Insulation, Terminal Block Paper 1 6 8101164 Block, One-Piece Screwless Terminal 1 7 8101168 Terminal, Block Screwless End 1 [1] 8 8261337 Tab, 0.25-inch Terminal 5 9 8065857 Interface Board, Electronic Ignition 1 10 8262425 Interface Board, Pilot Ignition 1 11 8261546 Melt Cycle Timer Kit 1 12 8100045 Bushing, .875 Dia. Hole 0.6875” 1 13 8070800 Transformer, 100-120V/24V 50VA Filter and MIB 1 13a 8072176 Transformer, 100-120V V/F Dual Voltage 1 13b 8070680 Transformer, 208V, 50/60Hz –24V 20VA 1 13c 8071999 Transformer (for use in MH152 and BIH252/352/452/552

units), 208-240/24/12VAC (used in CE and most export units)

Dual Voltage 14 8075244 Ignition Module, Fenwal 1 15 8262898 Kit to replace Honeywell module with Fenwal 8075244 1 16 8065879SP Cable Assembly, Ignition Module, Interface Board to Module 1 17 8065830SP Cable, Ignition, with Ceramic Cover 1 17a 8073483 Ignition Cable w/ Rajah (with 90º connector), Cable, H52

Ignition 21” (non fused ignition modules) 17b 8261721 Ignition Cable w/ Rajah (with 90º connector) (non fused

ignition modules) 18 8074375 Connector, Rajah 1 19 8071928 Flame Sensor Electrode 1 20 WIR0165 Component Shield (Std.) Wiring 1 20a 208250 Component Shield (Std.) Wiring (FV, Export only) 1 21 8090349 Spacer, 4mm X 6mm Aluminum 1 22 8261346 Spacer, Ignition Module 10 23 WIR0148 Component Shield (with Mechanical Timer) Wiring 1 23a WIR0161 Component Shield (with Melt Cycle) Wiring (DV) 1 23b WIR0164 Component Shield (with Melt Cycle) Wiring 1 [3] 23c WIR0160 Component Shield Wiring (DV) 1 23d WIR0163 Component Shield Wiring (FV) 1 23e WIR0162 Component Shield Wiring (FV, DV) 1 24 WIR0258 Wiring, Component Shield 1 25 WIR0329 Component Shield Drainswitch Wiring 1 [4] 26 WIR0349 Microswitch Wiring (DV) 1 26a WIR0350 Microswitch Wiring (DV) 1

PART NOTES:

[1] - 230V, 50 Hz Filter Magic [2] - used with MJ45 ignition cable kit [3] - FV, 240V and below

1 1 [2]

Component Boxes

FRY_P_0041_3_15_Component Boxes.pdf

MJ35

Component Boxes

# PART # DESCRIPTION QTY Note

[4] - DV/FV

Component Boxes

FRY_P_0041_3_15_Component Boxes.pdf

7, 12, 17

8, 13, 189, 14, 19

10, 15, 20

11, 16, 22

3031

MJ35

Control Panel Assemblies, Flue Caps, and Related Items

FRY_P_0041_3_15_Control Panel Assemblies, Flue Caps, and Related Items.pdf

MJ35

Control Panel Assemblies, Flue Caps, and Related Items

# PART # DESCRIPTION QTY Note

1 1081550 Control Panel Assemblies, Single Station Fryer 1 2 1081551 Control Panel Assemblies, Two Station Fryer 1 3 1081552 Control Panel Assemblies, Three Station Fryer 1 4 1081553 Control Panel Assemblies, Four Station Fryer 1 5 1081554 Control Panel Assemblies, Five Station Fryer 1 6 1064535 Control Panel Assemblies, Applebee’s® Control Panel 1 7 2106812 Flue Caps, PMJ 45, Single Station Fryer 1 8 1064012 Flue Caps, PMJ 45, Two Station Fryer 1 9 1064013 Flue Caps, PMJ 45, Three Station Fryer 1 10 1064014 Flue Caps, PMJ 45, Four Station Fryer 1 11 1064015 Flue Caps, PMJ 45, Five Station Fryer 1 12 2106811 Flue Caps, PMJ 35, Single Station Fryer 1 13 1064008 Flue Caps, PMJ 35, Two Station Fryer 1 14 1064009 Flue Caps, PMJ 35, Three Station Fryer 1 15 1064010 Flue Caps, PMJ 35, Four Station Fryer 1 16 1064011 Flue Caps, PMJ 35, Five Station Fryer 1 17 1064184 Burger King/Checkers, Two Station Fryer 1 17a 1064188 Burger King/Checkers, Two Station Fryer (with buttons) 1 18 1064185 Burger King/Checkers, Three Station Fryer 1 18a 1064189 Burger King/Checkers, Three Station Fryer (with buttons) 1 19 1064186 Burger King/Checkers, Four Station Fryer 1 19a 1064190 Burger King/Checkers, Four Station Fryer (with buttons) 1 20 1064187 Burger King/Checkers, Five Station Fryer 1 20a 1064191 Burger King/Checkers, Five Station Fryer (with buttons) 1 21 8241440 Applebee’s® Dump Station Flue Cap 1 22 9103557 Fryer’s Friend 27” 1 22a 9103207 Deflector, Flue, 3 holes 1 23 9003933 Heat Shield, Flue 1 24 8261017 Screw Kit, Flue Deflector 1 25 9004253 Strip, Fluecap Retainer 1 26 2006584 Support, Flue Cap 1 27 2200810 Flue Guard, Panda Express 1 28 8241409 Top Cap, Single Station Fryer 1 29 8241410 Top Cap, Two Station Fryer 1 30 8234940 Top Cap, Three Station Fryer 1 31 8234941 Top Cap, Four Station Fryer 1 32 8234942 Top Cap, Five Station Fryer 1 33 8234990 Top Cap, Applebee’s® Top Cap 1 34 1064050 Control Panel Assembly with Thermostat Access Door (MJ

35), Complete, with Toggle Switch

35 1064049 Control Panel Assembly with Thermostat Access Door (MJ

35), Complete, without Toggle Switch 36 1064386SP Toggle switch 1 37 8241394 Thermostat Access Door (MJ 35), Switch Guard 1 38 2106930 Thermostat Access Door (MJ 35), Door Panel 1 39 2108289 Thermostat Access Door (MJ 35), Frame, with Toggle 1 40 2106832 Thermostat Access Door (MJ 35), Frame, without Toggle 1

1 1

Control Panel Assemblies, Flue Caps, and Related Items

FRY_P_0041_3_15_Control Panel Assemblies, Flue Caps, and Related Items.pdf

MJ35

Control Panel Assemblies, Flue Caps, and Related Items

# PART # DESCRIPTION QTY Note

41 1064235SP Control Panel, MV with Mechanical Timer 1 [1] 42 2107026 Controller Bezel, Blank Bezel, 2-vat unit 1 [1] 43 2106946 Control Panel, with toggle swtch holes 1 [2] 44 2108686 Control Panel, without toggle switch holes 1 [2] 45 8262626 Carl’s Jr. Risers, Flue Cap, Single 1 46 8262627 Carl’s Jr. Risers, Flue Cap, 2-vat 1 47 8262628 Carl’s Jr. Risers, Flue Cap, 3-vat 1 48 8262629 Carl’s Jr. Risers, Flue Cap, 4-vat 1 49 8090171PK Thumbscrew 1 50 8261351 Nut Retainer, 0.25-20 Std. Fluecap 1 [3]

PART NOTES:

[1] - FPP [2] - PMJ [3] - for use on standard fluecap

Control Panel Assemblies, Flue Caps, and Related Items

FRY_P_0041_3_15_Control Panel Assemblies, Flue Caps, and Related Items.pdf

345

SOLID STATE

MJ35

Controller Assemblies

FRY_P_0041_3_15_Controller Assemblies.pdf

MJ35

Controller Assemblies

# PART # DESCRIPTION QTY Note

1 8232327 Computer Magic III.5, Full-vat 1 1a 8262328 Computer Magic III.5, Full-vat (CE) 1 1b 8262390 Computer Magic III.5, Dual-vat 1 1c 8262391 Computer Magic III.5, Dual-vat (CE) 1 1d 1067248 Computer Magic III.5, On-hood Remote Computer (FV, MJ

45) 1e 8262280 Computer Magic III.5, In-hood Remote Computer (FV, MJ 45) 1 2 8262409 Buffalo Wild Wings® Computer, Red 1 2a 8074642 Buffalo Wild Wings® Computer, Red (overlay) 1 2b 8262408 Buffalo Wild Wings® Computer, White 1 2c 8074644 Buffalo Wild Wings® Computer, White (overlay) 1 2d 8262449 Buffalo Wild Wings® Computer, Violet 1 2e 8074643 Buffalo Wild Wings® Computer, Violet (overlay) 1 3 8262393 Basket Lift Timer, Full-vat 1 3a 1064172 Basket Lift Timer, Full-vat (CE) 1 3b 1064171 Basket Lift Timer, Dual-vat 1 3c 1064173 Basket Lift Timer, Dual-vat (CE) 1 4 8262394 Digital Controller, Full-vat 1 4a 1064176 Digital Controller, Full-vat (CE) 1 4b 1064175 Digital Controller, Dual-vat (CE) 1 4c 1064175 Digital Controller, Dual-vat (CE) 1 5 1063375 Solid State (Analog Controller), Dual-vat 1 5a 1063369 Solid State (Analog Controller), Full-vat 1 5b 8070847 Solid State (Analog Controller), Full-vat (overlay) 1 5c 8100387 Knob 1 6 2105046 Bezel, One-Controller 1 6a 2307091 Controller Bezel, Computer, Single Station Tab Mount (for

Screw Mount 09/08) 6b 2105819 Bezel, Two –Controller 1 6c 2307092 Controller Bezel, Computer, Two Station Tab Mount (for

Screw Mount 09/08) 6d 2106698 Bezel, Three-Controller 1 6e 2307093 Controller Bezel, Computer, Three Station Tab Mount (for

Screw Mount 09/08) 7 2106960 Controller Bezel, No Computer, Single Station Fryer 1 7a 2106961 Controller Bezel, No Computer, Two Station Fryer 1 7b 2106962 Controller Bezel, No Computer, Three Station Fryer 1 7c 2106766 Controller Bezel, No Computer, Applebee’s® Spreader 1 8 2107002 Controller Bezel, Blank Bezel, Single 1 8a 2108578 Controller Bezel, Blank Bezel, Single (Applebee’s® spreader) 1 8b 2107026 Controller Bezel, Blank Bezel, 2-vat unit 1 9 8063660 Sound Device, High Output for M100B 1 9a 8103141 Sound Device, Universal SMT 1 10 8064797 Buzzer 1 11 8062071 Cable, Computer/Controller to Interface Board 1 11a 8074199 Cable, 20-pin Controller to 15-pin Interface Board – SMT for

fryer’s with CM 3.5 controller. 11b 8074397 Controller Harness, SMT 1

Controller Assemblies

FRY_P_0041_3_15_Controller Assemblies.pdf

MJ35

Controller Assemblies

# PART # DESCRIPTION QTY Note

12 8062079SP Wiring Harness, Basket Lift Motor (6-pin female w/7 wires) 1 13 8068555SP Wire Assemblies**, For 202-250V Modular Basket Lift w/6-

Pin Connector 14 1061822SP For 100-120V Modular Basket Lift 1 15 1061804SP For 208-250V Modular Basket Lift 1 16 8064798SP Basket Lift Power, Non-CE (6-pin male w/6 wires; connects

to 8062079SP or 8068555SP) 17 8066708SP Basket Lift Power, CE (6-pin male plus 8064798) 1 18 8073699 Basket Lift Power, Non-CE/CE68” 1 [1] 19 8069777SP Thermostat Control Universal (control panel-end

connections) 20 8069778SP Thermostat Control Universal (component shield-end

connections) 21 8069779SP Basket Lift Universal (control panel-end connections) 1 22 8069780SP Basket Lift Universal (basket lift-end connections) 1 23 8069781SP Wiring Bundle, Component Shield to Controller and Fryer

Components (21-wire bundle) 24 8261560 Kit, 45 Series Wiring 1 [2] 25 8063549SP Interface Board 1 [3] 26 8066705SP CE Non-Direct Wiring Power Supply 1 [4] 27 8064214SP Fryer to Fryer Drain Safety Switch (2-pin male w/two wires

and 2-pin female w/two wires) 28 8064215SP Fryer to Filter Drain Safety Switch (2-pin male w/two wires

and 2-pin female w/two wires) 29 8062071 Cable, Computer/Controller to Interface Board 1 30 8063383 Remote Computer/Controller to Interface Board Cable, 15.0

feet (4.6m) 31 8063388 Harness, Main 20’ Remote N Pot 15-pin Computer to

Interface Board 32 8064318 Remote Computer/Controller to Interface Board Cable, 30.0

feet (9.1m) 33 8063528 Harness, Main 7.5’ BK 15-pin Computer to Interface Board 1 34 8063529 Remote Computer/Controller Cable Assemblies, 8.5 feet

(2.6m) 35 8063530 Remote Computer/Controller Cable Assemblies, 10.5 feet

(3.2m) 36 8063531 Remote Computer/Controller Cable Assemblies, 12.6 feet

(3.8m) 37 8068350 Remote Computer/Controller Cable Assemblies w/Junction

Box and Mounting Bracket, One Computer/Controller 38 8068349 Remote Computer/Controller Cable Assemblies w/Junction

Box and Mounting Bracket, Two Computers/Controllers 39 8068348 Remote Computer/Controller Cable Assemblies w/Junction

Box and Mounting Bracket, Three Computers/Controllers 40 8068351 Remote Computer/Controller Cable Assemblies w/Junction

Box and Mounting Bracket, Four Computers/Controllers

PART NOTES:

[1] - 12-pin male w/6 wires, connects to 1061822SP or 1061804SP [2] - contains 8069777SP through 8069781SP [3] - interface board to fryer components; 12-pin male w/5 wires [4] - power cords joined in junction box

1 1

1 1 1

1 1 1 1 1 1 1

Controller Assemblies

FRY_P_0041_3_15_Controller Assemblies.pdf

MJ35

Door Assembly

FRY_P_0041_3_15_Door Assembly.pdf

MJ35

Door Assembly

# PART # DESCRIPTION QTY Note

1 1063965 Door Assembly 1 2 2304960 Handle, Eurolook Door 1 3 2106739 Pin, Door Hinge 1 4 8090266 Screw, 10 x 0.5-inch Phillips Head ZP 1 5 8261343 Two and Three Station Fryers, Spring, Door Pin Hinge 1 6 2324707 Hinge, Lower, Right 1 6a 2314707 Hinge, Lower, Left 1 7 8102346 Magnet, Door 1 [1] 8 1063931 Door, Applebee’s® Filter/Dump Station 1

PART NOTES:

[1] - white

Door Assembly

FRY_P_0041_3_15_Door Assembly.pdf

MJ35

Drain System Components - Drain Tube System

FRY_P_0041_3_15_Drain System Components - Drain Tube System.pdf

MJ35

Drain System Components - Drain Tube System

# PART # DESCRIPTION QTY Note

1 8234625 Drain Tube, Short Full-Vat Left Open/Right End Closed 1 1a 8234624 Drain Tube, Left/Right End Short, Dual-Vat 3” 1 2 8234643 Drain Tube, Full-Vat, Short, Open Both Ends 1 2a 8234642 Drain Tube, Left/Right Open Short, Dual-Vat 3” 1 3 8234639 Drain Tube, Long Full-Vat Left Open/Right End Closed 1 3a 8234638 Drain Tube, Right End Long, Dual-Vat 3” 1 4 8234641 Drain Tube, Long Full-Vat Open Both Ends 1 4a 8234640 Drain Tube, Left/Right Open Long, Dual-Vat 3” 1 5 2006473 Drain Tubes, Spreader, Open Long 1 5a 2006474 Drain Tubes, Spreader, Open Short 1 6 8234740 Drain Outlet, Both Ends Open 1 6a 8234741 Drain Outlet, One End Closed 1 7 8160729 Sleeve, Drain Connector 1 8 8090969 Clamp 3” 1 9 8072484 Valve, 0.25-inch Solenoid 1 10 8110932 Vent Tube, Teflon 0.375” OD Bulk 1 11 8101372 Elbow, 90º Vent Tube 1 12 8111071 Tube, 0.25-inch OD Teflon Manifold Vent 1 13 8102493 Elbow, 90° 0.125-inch NPT x 0.25-inch Quick Connect 1 14 8102492 Fitting, Quick-Connect Straight 1 15 8160630 Cap, Vinyl Black 1 16 8090047 Nut, Cap- 0.25-20 High Profile S/S 1 17 KIT6214 Round Drain Boot Kit 1 [1]

PART NOTES:

[1] - includes 2 clamps and 1 boot

Drain System Components - Drain Tube System

FRY_P_0041_3_15_Drain System Components - Drain Tube System.pdf

MJ35

Drain System Components - Drain Valves, FPPFMP Models

FRY_P_0041_3_15_Drain System Components - Drain Valves, FPPFMP Models.pdf

MJ35

Drain System Components - Drain Valves, FPPFMP Models

# PART # DESCRIPTION QTY Note

1 1063760 Drain Valve Assemblies, Full-vat 1 2 1063999 Drain Valve Assemblies, Dual-vat, Left 1 3 1064000 Drain Valve Assemblies, Dual-vat, Right 1 4 8101018 Drain Valve, 1.25”, LeftDrain Valves, Full-vat, 1.25-inch Drain

Valve 5 8101114 Drain Valves, Dual-vat, 1-inch Drain Valve 1 6 8072103 MicroswitchDrain Safety Switch, Microswitch 1 7 8160220 Insulation, MicroswitchDrain Safety Switch, Insulation 1 8 9012348 Cover, Dual-Vat Left Drain Safety SwitchDrain Safety Switch,

Cover 9 8068137 Bracket Assembly, Full-Vat Drain Safety SwitchDrain Safety

Switch, Bracket, Full-vat 10 1062671 Bracket Assembly, Dual-Vat Left Drain Safety SwitchDrain

Safety Switch, Bracket, Dual-vat, Left 11 1062672 Bracket Assembly, Dual-Vat Right Drain Safety SwitchDrain

Safety Switch, Bracket, Dual-vat, Right 12 2006496 Support, Drain Tube 1 13 9002936 Retainer Nut (FV) 1 13a 9002934 Retainer, Dual-Vat Drain Valve NutRetainer Nut (DV) 1 14 8090540 Nut, Lock 0.5-inch-13 Hex 2-Way ZPNut, 2-way Lock (FV) 1 15 8090539 Nut, 0.375-16 2-Way LockNut, 2-way Lock (DV) 1 16 8260237 25Nut, 4-40 Keps Hex with External Tooth 25 17 8241602 Handle, Valve, Full-vat 1 18 8241637 Handle, Valve, Dual-vat, Left 1 19 8241636 Handle, Valve, Dual-vat, Right 1 20 8160639 Cap, Vinyl RedSleeve, Handle 1 21 8160135 O-ring 1 22 8101165 Washer, Teflon Drain ValveWasher, Teflon 1 23 8090196 Washer, 0.375-inch SAE FlatWasher, Flat 1

1 1 1 1

Drain System Components - Drain Valves, FPPFMP Models

FRY_P_0041_3_15_Drain System Components - Drain Valves, FPPFMP Models.pdf

MJ35

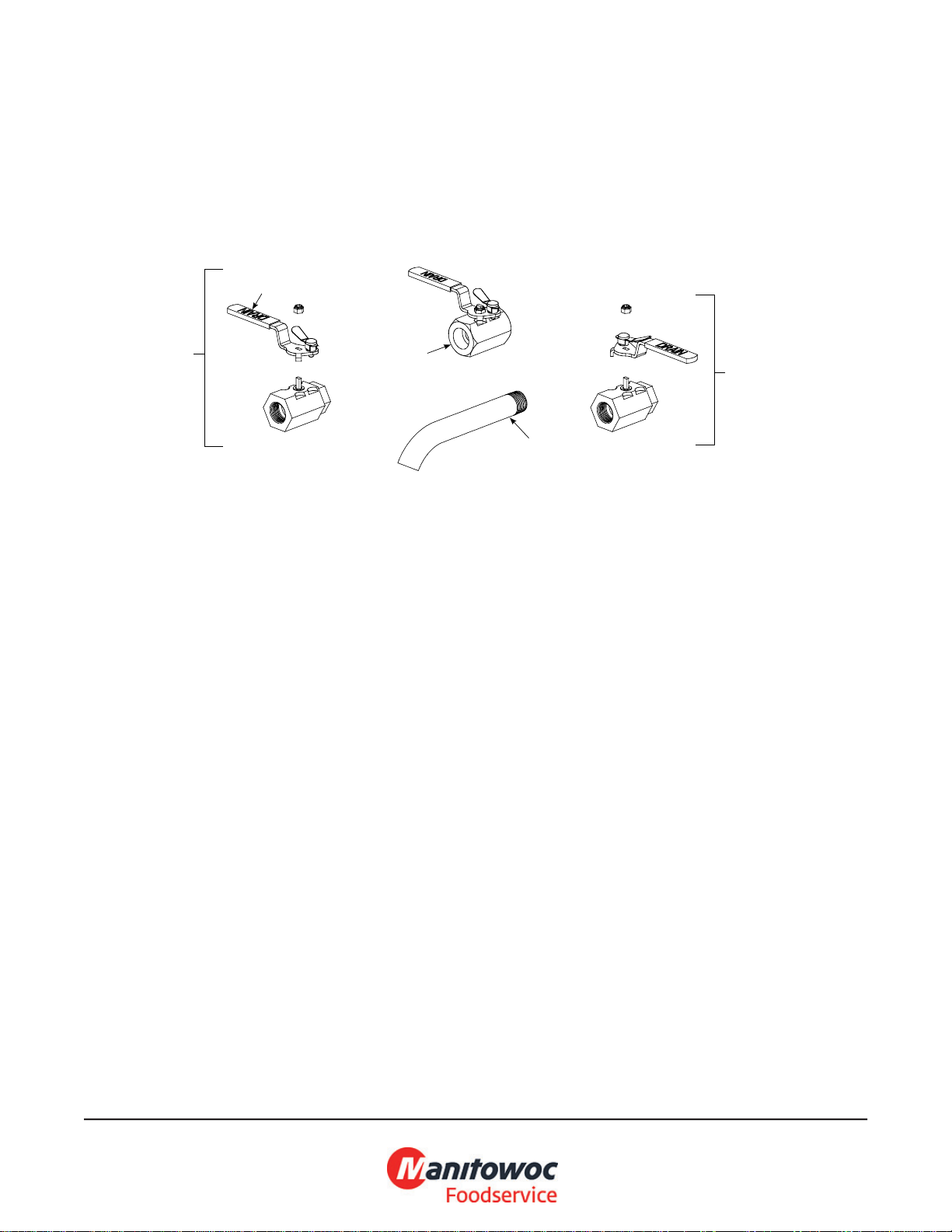

Drain System Components - Drain Valves, PMJ Models

FRY_P_0041_3_15_Drain System Components - Drain Valves, PMJ Models.pdf

MJ35

Drain System Components - Drain Valves, PMJ Models

# PART # DESCRIPTION QTY Note

1 8101569 Valve, 1.25-inch, Non-filter, Full-vat DrainValve, 1.25-inch,

Non-filter, Full-vat Drain 2 8067915SP Valve, 1-inch, Non-filter, Dual-vat, Left DrainValve, 1-inch,

Non-filter, Dual-vat, Left Drain 3 8067916SP Valve, 1-inch, Non-filter, Dual-vat, Right DrainValve, 1-inch,

Non-filter, Dual-vat, Right Drain 3a 8101338 Valve, 1-inch, Universal BallValve, 1-inch, Universal Ball 1 4 8069062 Handle, LeftHandle, Left 1 4a 8069064 Handle, RightHandle, Right 1 5 8121226SP Drain Extension, 1.25-inch, Full-vatDrain Extension, 1.25-

inch, Full-vat 5a 8121227 Drain Extension, 1-inch, Dual-vatDrain Extension, 1-inch,

Dual-vat 6 8101427 Handle, Drain ValveHandle, Drain Valve 1 7 8101568 Handle, Drain ValveHandle, Drain Valve 1 8 8160211 Sleeve, HandleSleeve, Handle 1

PART NOTES:

[1] - with handle

1 [1] 1 1

1 1

Drain System Components - Drain Valves, PMJ Models

FRY_P_0041_3_15_Drain System Components - Drain Valves, PMJ Models.pdf

5 5

8 8

1111

16 16

MJ35

Filter Boxes

FRY_P_0041_3_15_Filter Boxes.pdf

MJ35

Filter Boxes

# PART # DESCRIPTION QTY Note

1 1063981 Complete Box Assemblies, 120V 1 1a 1063988 Complete Box Assemblies, 208-250V 1 1b 1063989 Complete Box Assemblies, 208-240V 1 2 2006836 Components, Filter Box 1 3 2006837 Components, Lid 1 4 2006838 Components, Mount 1 5 8067494 Plug Assembly, FPIII Non-Reversing 1 5a 8101421 Harness, Control Circuit 1 [1] 6 8068021 Plug Assembly, Filter Box 1 7 8070012 Relay, Filter 18A 24VAC 1 8 8070141 Components, Connector, 0.375” Right Angle 1 9 8070800 Transformer, 100-120V/24V 50VA Filter and MIB 1 9a 8070680 Transformer, 208V, 50/60Hz –24V 20VA 1 9b 8071999 Transformer (for use in MH152 and BIH252/352/452/552

units), 208-240/24/12VAC (used in CE and most export units)

Dual Voltage 10 8101164 Block, One-Piece Screwless Terminal 1 11 8121704 Conduit, Flex 0.375” x 13.5” 1 12 8120636 Conduit, Flex 0.375” x 15” 1 13 8160217 Insulation, Terminal Block Paper 1 14 8261366 Nut, 4-40 Keps Hex 25 15 8261359 Screw, 4-40 x 0.75-inch Slotted Round Head 25 16 8090360 Screw, 8 x 0.375-inch Hex Washer Slot Head 1 17 8101421 Harness, Control Circuit 1

PART NOTES:

[1] - to Control Circuits

Filter Boxes

FRY_P_0041_3_15_Filter Boxes.pdf

MJ35

Filter Pan Assembly

FRY_P_0041_3_15_Filter Pan Assembly.pdf

MJ35

Filter Pan Assembly

# PART # DESCRIPTION QTY Note

1 1080184SP Filter Pan No Rollers July 2008 1 1a 1063796SP Filter Pan With Rollers July 2008 1 2 8103161 Crumb Tray 1 3 8130568 Plug, 0.125” SS NPT, Sq-Head 1 4 8261372 Nut Grip 0.25-inch 0.25-20 Hex NP 10 5 8261392 O-Ring 1 6 8102198 Roller, Filter Pan and Rail 1 7 8091025 Nylon Slides 1 8 8262603 Rail Set, Filter Pan Rail 1 9 8261979 Filter Pan Roller Kit 1 10 8090191 Washer, Lock 0.25 Spring ZP 1 11 8122024 SanaGrid Filter Screen, Standard Size Filter Pan 1 12 8103760 Ring, Hold Down 1 [1] 13 8236412 Lid, Filter Pan, FPP 1 [2] 13a 8235334 Lid, Filter Pan, FMPH 1 14 8235294 Splash Shield 1 [2] 15 1065141 Bracket, Burner Heat Shield Mounting 1 [3] 16 8090173 Clip, Tinnerman 1 [4] 17 2009732 Lip, Suction Fitting 1 [4] 18 2009715 Brace, Drain Spout 1 [5] 19 8261371 Screw, 8 x 0.5-inch Hex Head ZP 25 20 8090785 Screw, #14 x 0.75-inch Slotted Hex Washer Head 1 21 2006310 Support, Rear Pan Rail 1 22 8090743 Screw, 4-40 x 1 Pan Head, Stainless Steel 1 23 8030170 Filter Paper, 16.5” x 25.75” 1 [6] 23a 8030002 Powder, Filter 1 [7] 24 8102800 Carl’s Jr. Filter Leaf 1 25 8160757 O-ring, Optional Filter Leaf 1

PART NOTES:

[1] - 8102910, FMP, see also Lid, Filter Pan, FPP [2] - included in kit 8262109, 8262110, and 8262111 [3] - MJ35 [4] - included in kits 8262109, 8262110, and 8262111 [5] - included in kits 8262110 and 8262111 [6] - box of 100 sheets [7] - box of 80 individual packs

Filter Pan Assembly

FRY_P_0041_3_15_Filter Pan Assembly.pdf

11, 12

MJ35

Frypot Cabinetry - PMJ35 Frypot Cabinetry

FRY_P_0041_3_15_Frypot Cabinetry - PMJ35 Frypot Cabinetry.pdf

MJ35

Frypot Cabinetry - PMJ35 Frypot Cabinetry

# PART # DESCRIPTION QTY Note

1 1068274SP Flue Assembly, MJ35 1 2 9003267 Flue Deflector Box Assembly 1 3 8064168SP Combustion Chamber, Front 1 4 8064168 Front Baffle Assembly (Front Flush Full-vat) 1 5 8090409 Screw, #10 X 0.5-inch Round Head One-way Security 1 6 8100647 Holder, Security Screw 1 7 1080442 Cover with Sight-glass, Pilot Light 1 7a 9001090 Cover, Pilot Viewport 1 8 9006204 Combustion Chamber, Side 1 9 8260861 Insulation kit 1 9a 8120134 Insulation, Frypot Upper Side 1 9b 8160658 Insulation, Frypot Lower Back (Singles) 1 9c 8160656 Insulation, back 1 10 8261374 Screw, 10 x 0.5-inch Hex Head 1 11 8090173 Clip, Tinnerman 1 12 8090170 Screw, #14 X 0.75-inch Slotted Pan Head 1 13 2100681 Probe Guard 1 14 2200927 Air/Heat Shield, 31” 1 14a 2200928 Air/Heat Shield, 15.5” 1

Frypot Cabinetry - PMJ35 Frypot Cabinetry

FRY_P_0041_3_15_Frypot Cabinetry - PMJ35 Frypot Cabinetry.pdf

11, 12

MJ35

Frypot Cabinetry - PMJ45 Frypot Cabinetry

FRY_P_0041_3_15_Frypot Cabinetry - PMJ45 Frypot Cabinetry.pdf

MJ35

Frypot Cabinetry - PMJ45 Frypot Cabinetry

# PART # DESCRIPTION QTY Note

1 8065778SP Box Assembly, Flue Deflector 1 2 8261374 Screw, 10 x 0.5-inch Hex Head 1 3 8065567SP Flue Assembly with Insulation, Complete 1 4 8061095SP Front Baffle Assembly 1 4a 1065874 Front Baffle Assembly (Front Flush Full-vat) 1 4b 1065892 Front Baffle Assembly (Front Flush Dual-vat) 1 5 8090409 Screw, #10 X 0.5-inch Round Head One-way Security 1 6 8100647 Holder, Security Screw 1 7 1080442 Cover with Sight-glass, Pilot Light 1 7a 9001090 Cover, Pilot Viewport 1 8 8065566SP Rear Combustion Chamber Panel Assembly 1 9 8061097 Side Combustion Chamber Panel Assembly 1 10 8260861 Insulation kit 1 11 8090173 Clip, Tinnerman 1 12 8090170 Screw, #14 X 0.75-inch Slotted Pan Head 1 13 2100681 Probe Guard 1 14 8160698 Insulation, Kaowool Blanket (Front Flush) 1 15 2200927 Air/Heat Shield, 31” 1 15a 2200928 Air/Heat Shield, 15.5” 1 16 8130463 Plug, 0.5” NPT 1

Frypot Cabinetry - PMJ45 Frypot Cabinetry

FRY_P_0041_3_15_Frypot Cabinetry - PMJ45 Frypot Cabinetry.pdf

MJ35

Frypots

FRY_P_0041_3_15_Frypots.pdf

MJ35

Frypots

# PART # DESCRIPTION QTY Note

1 1064115SP PMJ 35, Full-vat, Stainless Steel, (Power Shower) 1 1a 1069776 PMJ 35, Full-vat, Stainless Steel, Single Non-filter For

XMJ135V 1b 8234492SP PMJ 35, Full-vat, Stainless Steel (Pre-Pro MJ35) 1 2 1068362SP PMJ 35, Full-vat, Stainless Steel (Front Flush) Service Part 1 2a 1067671SP PMJ 35, Full-vat, Stainless Steel (Power Shower) Export 1 2b 1069727SP PMJ 35, Full-vat, Stainless Steel (PMJ) Non-Filter Service

Part 2c 1068363SP PMJ 35, Full-vat, Stainless Steel (Domestic, Power Shower)

Service Part 3 1062547SP PMJ 45, Full-vat, Stainless Steel (Power Shower) Service

Part FP47 only 4 1062545SP PMJ 45, Dual-vat, Stainless Steel FP47 1 5 1065868SP PMJ 45, Full-vat, Stainless Steel (Front Flush) Service Part

FPP45 6 1065869 PMJ 45, Dual-vat, Stainless Steel (Front Flush) 1 7 1067681SP PMJ 45, Full-vat, Stainless Steel (Power Shower) Service

Part FPP45 8 1067740 PMJ 45, Dual-vat, Stainless Steel (CE) 1

1 1 1

Frypots

FRY_P_0041_3_15_Frypots.pdf

MJ35

Gas Valves and Burners - PMJ35 Gas Valves and Burners

RESOURCE NOTES:

This style of burner heat shield is only used with the burner manifold above the filter unit. All others use 8230574. See Item 7 in the parts list on the next page.

Red dot indicates propane/butane pilot assembly; green dot indicates manufactured gas; no dot indicates natural gas.

Gas Valves and Burners - PMJ35 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ35 Gas Valves and Burners.pdf

MJ35

Gas Valves and Burners - PMJ35 Gas Valves and Burners

# PART # DESCRIPTION QTY Note

1 2301178 Deflector, Side, J2X 1 2 2301180 Deflector, Rear, J2X 1 3 8261155 Ignitor Kit, Optional Piezo 1 3a 8101001 Trigger, Piezo Ignitor 1 3b 8071906 Ignitor Kit, Optional Piezo, Electrode Assembly 1 4 8101862 Burner Manifold, J2X 1 4a 1065075SP Targets 1 5 8261353 Orifices (for high altitude and special gasses contact

Frymaster), 1.7 mm, Natural Gas 5a 8261354 GF 14, Propane 1.05 mm (Altitude 0-1999 feet (0-609

meters)) 5b 8100407 Orifices (for high altitude and special gasses, contact

Frymaster), 2.15 mm, Manufactured Gas 5c 8121203 Orifices (for high altitude and special gasses, contact

Frymaster), 1.00 mm, Butane Gas 6 8101830 Natural Gas w/.024-inch Right Angle Orifice 1 6a 1061908SP Pilot Assemblies, Non-CE, Natural Gas with Thermopile

(Twin Spade Terminals, 35) 6b 1061909SP Pilot Assemblies, Non-CE, Pro./But. Gas with Thermopile

(Twin Spade Terminals) 6c 8100426 Pilot, Natural Gas 1 6d 8100427 Pilot, Propane Gas 1 6e 8068688SP Pilot Assemblies, CE and Export, Natural Gas with

Thermocouple (Co-axial Lead) 6f 1069570 Pilot Assemblies, CE and Export, Natural Gas with

Thermocouple Australia (Co-axial Lead) 6g 1061911 Pilot Assemblies, CE and Export, Natural Gas, Australian

(Co-axial Lead) 6h 8102071 Pilot Assembly Pilot Assembly, Natural 1 6i 8068689SP Pilot Assemblies, CE and Export, Pro./But. Gas with

Thermocouple 6j 1069571 Pilot Assemblies, CE and Export, Pro./But. Gas with

Thermocouple, Australia 6k 1061912 Pilot Assemblies, CE and Export, Pro./But. Gas, Australian 1 6l 8102070 Pilot Assembly (Includes bracket, hood, and thermopile),

Propane Gas 7 8235295 Burner Heat Shield Assemblies, Filter Burner Position, Left 1 7a 8235296 Burner Heat Shield Assemblies, Filter Burner Position, Right 1 7b 2109729 Bracket 1 7c 8230574 Shield, Open Burner Heat 1 7d 9300075 Bracket 1 7e 8262109 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid 1 7f 8262110 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid, LH

Spreader 7g 8262111 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid, RH

Spreader 8 8102007 Thermopile/Thermocouple, Pilot, Natural Gas, Honeywell 1 8a 8102022 Thermopile/Thermocouple, Pilot, LP Gas, Honeywell 1 8b 8073485 Thermopile 1 8c 8101873 Pilot, Powerpile 1 9 8100705 Gas Line, Pilot Supply - 0.25 x 20” 1

10 10 1 1

1 1

1 1 1

1 1

Gas Valves and Burners - PMJ35 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ35 Gas Valves and Burners.pdf

MJ35

Gas Valves and Burners - PMJ35 Gas Valves and Burners

# PART # DESCRIPTION QTY Note

9a 8120278 Tube, Pilot Gas 1 10 8071603 Valve, Honeywell Millivolt Gas, Natural 1 10a 8074137 Gas Valves, Non-CE (see Note 1 below), mV Natural,

Australia 10b 8071604 Valve, Honeywell Millivolt Gas, Propane 1 10c 8073294 Gas Valves, Non-CE (see Note 1 below), 24V Natural Gas 1 10d 8070025 Gas Valves, Non-CE (see Note 1 below), 24V Natural Gas

(for 240V) 10e 8073295 Gas Valves, Non-CE (see Note 1 below), 24V Propane Gas 1 10f 8070759 Gas Valves, Non-CE (see Note 1 below), 24V Propane Gas

(for 240V) 10g 8100786 Gas Valves, Non-CE (see Note 1 below), E. I. Natural 1 10h 8100787 Gas Valves, Non-CE (see Note 1 below), E. I. Propane 1 11 8100691 Tube, 0.125-inch Vent 1 12 8261964 Gas Valve Conversion Kits (with Honeywell Pilots), Non-CE

Natural to Propane 12a 8261965 Gas Valve Conversion Kits (with Honeywell Pilots), Non-CE

Propane to Natural

PART NOTES:

[1] - Requires kit 8071846 to use Propane

1 [1]

1 1

Gas Valves and Burners - PMJ35 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ35 Gas Valves and Burners.pdf

MJ35

Gas Valves and Burners - PMJ45 Gas Valves and Burners

RESOURCE NOTES:

A gas valve capacitor (P/N 8064781) is required on gas valves used on units with hermostat controllers. An adapter kit (P/N 8121256SP) is required to connect the high limit thermostat to Item 12. This style of burner heat shield is only used with the burner manifold above the filter unit. All others use 8230574. Red dot indicates propane/butane pilot assembly; green dot indicates manufactured gas; no dot indicates natural gas.

Gas Valves and Burners - PMJ45 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ45 Gas Valves and Burners.pdf

MJ35

Gas Valves and Burners - PMJ45 Gas Valves and Burners

# PART # DESCRIPTION QTY Note

1 2301177 Deflector, side, GF40 1 2 2301206 Deflector, rear, GF40 1 3 8261155 Ignitor Kit, Optional Piezo 1 4 8102710 Burner Manifold, FV 1 4a 8102708 Burner Manifold, DV, Left Side 1 4b 8102709 Burner Manifold, DV, Right Side 1 5 8100691 Tube, 0.125-inch Vent 1 5a 8101166 Vent Tube CE 1 6 8261357 Orifice, 1.45 mm (for natural gas, 0-1999 feet/0-609 meters) 10 6a 8261387 Orifice, 0.86 mm (for Propane gas, 0-1999 feet/0-609 meters) 10 6b 8100407 Orifices (for high altitude and special gasses, contact

Frymaster), 2.15 mm, Manufactured Gas 6c 8121203 Orifices (for high altitude and special gasses, contact

Frymaster), 1.00 mm, Butane Gas 7 8101873 Pilot, Powerpile 1 7a 8073485 Thermopile 1 7b 1061909SP Pilot Assemblies, Non-CE, Pro./But. Gas with Thermopile

(Twin Spade Terminals) 7c 8068688SP Pilot Assemblies, CE and Export, Natural Gas with

Thermocouple (Co-axial Lead) 7d 1069570 Pilot Assemblies, CE and Export, Natural Gas with

Thermocouple Australia (Co-axial Lead) 7e 1061911 Pilot Assemblies, CE and Export, Natural Gas, Australian

(Co-axial Lead) 7f 8102071 Pilot Assembly Pilot Assembly, Natural 1 7g 8068689SP Pilot Assemblies, CE and Export, Pro./But. Gas with

Thermocouple 7h 1069571 Pilot Assemblies, CE and Export, Pro./But. Gas with

Thermocouple, Australia 7i 1061912 Pilot Assemblies, CE and Export, Pro./But. Gas, Australian 1 [1] 7j 8102070 Pilot Assembly (Includes bracket, hood, and thermopile),

Propane Gas 8 8235295 Burner Heat Shield Assemblies, Filter Burner Position, Left 1 [2] 8a 8235296 Burner Heat Shield Assemblies, Filter Burner Position, Right 1 [2] 8b 2109729 Bracket 1 8c 8230574 Shield, Open Burner Heat 1 [3] 8d 9300075 Bracket 1 8e 8262109 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid 1 [4] 8f 8262110 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid, LH

Spreader 8g 8262111 Burner Heat Shield Assemblies, Kit, Retrofit Filter Lid, RH

Spreader 9 8102007 Thermopile/Thermocouple, Pilot, Natural Gas, Honeywell 1 9a 8102022 Thermopile/Thermocouple, Pilot, LP Gas, Honeywell 1 9b 8073485 Thermopile 1 [6] 9c 8101873 Pilot, Powerpile 1 [7] 9d 8103442 Thermopile/Thermocouple, Thermocouple Assembly 1 [8] 9e 8261527 Thermopile/Thermocouple, Kit, Thermocouple with Adapter 1 [9] 9f 8101723 Thermopile/Thermocouple, Thermocouple Adapter 1 [9] 10 8100705 Gas Line, Pilot Supply - 0.25 x 20” 1

1 1

1 1 1 1

1 [1] 1 [1]

1 [5] 1 [5]

Gas Valves and Burners - PMJ45 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ45 Gas Valves and Burners.pdf

MJ35

Gas Valves and Burners - PMJ45 Gas Valves and Burners

# PART # DESCRIPTION QTY Note

10a 8120278 Tube, Pilot Gas 1 [10] 11 8071603 Valve, Honeywell Millivolt Gas, Natural 1 11a 8074137 Gas Valves, Non-CE (see Note 1 below), mV Natural,

Australia 11b 8071604 Valve, Honeywell Millivolt Gas, Propane 1 11c 8073294 Gas Valves, Non-CE (see Note 1 below), 24V Natural Gas 1 11d 8070025 Gas Valves, Non-CE (see Note 1 below), 24V Natural Gas

(for 240V) 11e 8073295 Gas Valves, Non-CE (see Note 1 below), 24V Propane Gas 1 11f 8070759 Gas Valves, Non-CE (see Note 1 below), 24V Propane Gas

(for 240V) 11g 8100786 Gas Valves, Non-CE (see Note 1 below), E. I. Natural 1 11h 8100787 Gas Valves, Non-CE (see Note 1 below), E. I. Propane 1 12 8066710 Gas Valves, CE, 24V Natural Gas (see Note 2 below) 1 12a 8066711 Gas Valves, CE, 24V Propane Gas 1 [11] 12b 8067101 Gas Valves, CE, mV Natural Gas 1 12c 8067102 Gas Valves, CE, mV Propane Gas 1 13 8065895 Mount Assembly (Ignitor, Electrode/Flame Sensor, Mount

Plate), Natural Gas, Right 13a 8065896 Mount Assembly (Ignitor, Electrode/Flame Sensor, Mount

Plate), Natural Gas, Left 13b 8065897 Mount Assembly (Ignitor, Electrode/Flame Sensor, Mount

Plate), Pro./But. Gas, Right 13c 8065894 Mount Assembly (Ignitor, Electrode/Flame Sensor, Mount

Plate), Pro./But. Gas, Left 14 8064781 Capacitor 1 15 8101183 Tee, 0.25” Brass Compression 1 16 8262554 Millivolt Switch 1 17 2008464 Bracket, Gas Line/Manifold Support 1 18 8261143 Conversion Kit, Natural to Propane 1 18a 8261144 Conversion Kit, Propane to Natural 1 18b 8261200 Gas Valve Conversion Kits, CE Natural to Propane 1 18c 8261201 Gas Valve Conversion Kits, CE Propane to Natural 1

PART NOTES:

[1] - (Co-axial Lead) [2] - (includes item 8b) [3] - (includes item 8d) [4] - (includes items 8 and 8a) [5] - (includes item 8) [6] - (for use with items 9 & 9a) [7] - (Non-CE Pilot Assemblies) [8] - (CE) [9] - (CE Pilot Assemblies) [10] - Use with Hong Kong export units only [11] - see Note 2 below

1 1 1 1

Gas Valves and Burners - PMJ45 Gas Valves and Burners

FRY_P_0041_3_15_Gas Valves and Burners - PMJ45 Gas Valves and Burners.pdf

1 1

2 2

3 3

5 5

LEFT

806-5895 - Natural

806-5897 - Propane

RIGHT

806-5894 - Natural

806-5896 - Propane

MJ35

Ignitors

FRY_P_0041_3_15_Ignitors.pdf

MJ35

Ignitors

# PART # DESCRIPTION QTY Note

1 8071928 Flame Sensor Electrode 1 2 9102077 Pilot Mount 1 3 8090121 Screw, 10-32 x 0.5” Hex Head 1 4 8090500 Screw, 10 x 0.5-inch Hex Washer Head 410 SS 1 5 9102078 Plate, Pilot, Left 1 5a 9102079 Plate, Pilot, Right 1 6 9102080 Heat Shield 1 7 8071707 Ignitor, Natural 1 7a 8071708 Ignitor, Propane 1

Ignitors

FRY_P_0041_3_15_Ignitors.pdf

MJ35

Oil Return Assembly

FRY_P_0041_3_15_Oil Return Assembly.pdf

MJ35

Oil Return Assembly

# PART # DESCRIPTION QTY Note

1 1064002 Valve Assembly, Full-vat 1 2 1064003 Valve Assembly, Dual-vat 1 3 8072484 Valve, 0.25-inch Solenoid 1 4 8101003 Valve, 180º 3-way Ball 1 5 8101372 Elbow, 90º Vent Tube 1 6 8101668 Adaptor, Male 0.625” OD x 0.5” 1 7 8101669 Adaptor, Female 0.875-inch OD x 0.5-inch 1 8 8101680 Flexline, 0.625” OD x 6.50” 1 9 8102791 Manifold, Oil Return 1 10 8130156 Plug, 0.5-inch NPT Pipe 1 11 8130165 Elbow, 0.5-inch X 90° NPT Street 1 12 8130469 Cap, 0.5-inch NPT Pipe 1 13 8160644 Oil Return Handle, Grip 1

Oil Return Assembly

FRY_P_0041_3_15_Oil Return Assembly.pdf

29d

29f

11a

11c

29b

29c

29d

29e

29h

MJ35

Oil Return Components

FRY_P_0041_3_15_Oil Return Components.pdf

MJ35

Oil Return Components

# PART # DESCRIPTION QTY Note

1 1064002SP Handle Assemblies, Oil Return Valve, FV Oil Return

Assembly, MJ45 1a 1064003SP Handle Assemblies, Oil Return Valve, DV Oil Return

Assembly, MJ45 1b 1069265SP Handle Assemblies, Oil Return Valve, FV Oil Return

Assembly, MJ 35 2 8261712 Motor and Gasket Kit, 115V 50/60 Hz 1 2a 8261756 Motor and Gasket Kit, 208V 50/60 Hz 1 2b 8261270 Motor and Gasket Kit, 220-240V 50/60 Hz 1 2c 8261755 Motor and Gasket Kit, 250V 50/60 Hz 1 3 8261264 Pump and Gasket Kit, Viking 4 GPM 1 4 1063987 Filter Return Manifold 1 [1] 4a 8130251 Nipple, 0.5” x 4.5” NPT BM Pipe 1 4b 8234739 Filter Return Manifold, Bracket, Suction Nipple 1 5 1063986 Filter Suction Manifold 1 [1] 5a 8130247 Nipple, 0.5 x 3.5” NPT BM 1 5b 8234737 Filter Suction Manifold, Bracket, Suction Nipple 1 5c 8101668 Adaptor, Male 0.625” OD x 0.5” 1 5d 8101339 Filter Suction Manifold, Flexline, 4.5” 1 6 8101669 Adaptor, Female 0.875-inch OD x 0.5-inch 1 7 8101680 Flexline, 0.625” OD x 6.50” 1 8 8101160 Flexline, 3.0-inch Oil Return 1 9 8130062 Elbow, 0.5” BM x 90° 1 10 8130165 Elbow, 0.5-inch X 90° NPT Street 1 11 8072104 Microswitch 1 [2] 11a 2009065 Oil Return Handle, Handle (MJ45) 1 [2] 11b 2204357 Oil Return Handle, Handle (MJ35) 1 [2] 11c 8160644 Oil Return Handle, Grip 1 [2] 12 8110746 Aluminum Tape – 50 yard roll 1 [3] 13 8110861 Foam Insulation – by the foot 1 [4] 14 8071472 Heater Tape 120V 40w 56” 1 [5] 15 8071473 Heater Strip Assembly, 240V, 70W 56” 1 [6] 16 8068065 Heater Tape, 100V, 25W, 18” 1 16a 8065933 Heater Tape, 120V, 25W, 18” 1 16b 8069245 Heater Tape, 120V, 25W, 36” 1 16c 8066731 Heater Tape, 120V, 40W, 56” 1 16d 8065934 Heater Tape, 208/240V, 25W, 18” 1 16e 1065768 Heater Tape, 250V, 25W, 18” 1 16f 1065849 Heater Tape, 250V, 45W, 36” 1 16g 8066733 Heater Tape, 250V, 70W, 56” 1 16h 1065011 Heater Tape, Extension Harness 1 16i 8262100 Heater Tape, Kit, Retrofit 120V Heater 1 17 8234743 Connector, Female Suction 1 18 8130156 Plug, 0.5-inch NPT Pipe 1 19 8101003 Valve, 180º 3-way Ball 1 20 8072484 Valve, 0.25-inch Solenoid 1 21 8110932 Vent Tube, Teflon 0.375” OD Bulk 1

1 1 1

Oil Return Components

FRY_P_0041_3_15_Oil Return Components.pdf

MJ35

Oil Return Components

# PART # DESCRIPTION QTY Note

22 8130275 Nipple, 0.5-inch x 9-inch 1 23 8130087 Nipple, 0.5-inch NPT x 1.5-inch (3.8 cm) 1 24 8130460 Nipple, 0.5-inch X 3.0-inch NPT 1 25 8160093 Gasket, Pump/Motor 1 26 8160220 Insulation, Microswitch 1 [2] 27 9002110 Cover, Oil Return Microswitch 1 [2] 28 8068342 Support, Oil Return Valve 1 [2] 29 8069385 Support, Microswitch Mount, Full-vat 1 [2] 29a 9002112 Support, Microswitch Mount, Dual-vat 1 [2] 29b 8261376 Nut, 10-32 Keps Hex 10 [2] 29c 8261366 Nut, 4-40 Keps Hex 25 [2] 29d 8090194 Washer, Flat 0.3125 ZP 1 [2] 29e 8090056 Nut, 0.3125 – 24, Hex Head, Nylon Lock 1 [2] 29f 8090514 Capscrew, 0.3125-inch-18 NC Hex 1 [2] 29g WIR0220 Support, Microswitch Mount, Pump Wiring Assembly 1 [2] 29h 8261359 Screw, 4-40 x 0.75-inch Slotted Round Head 25 [2] 30 8262118 Heater Tape Retrofit, Kit, 100 VAC 1 30a 8262119 Heater Tape Retrofit, Kit, 120 VAC 1 30b 8262120 Heater Tape Retrofit, Kit, 220/240 VAC 1 30c 8262121 Heater Tape Retrofit, Kit, 250 VAC 1

PART NOTES:

[1] - see additional components below [2] - included with Item 1 [3] - 150’ roll [4] - sold by the foot [5] - for 120V fryers [6] - for 208-240V fryers

Oil Return Components

FRY_P_0041_3_15_Oil Return Components.pdf

2 5

MJ35

Thermostats and Timers

FRY_P_0041_3_15_Thermostats and Timers.pdf

MJ35

Thermostats and Timers

# PART # DESCRIPTION QTY Note

1 8060183 Operating Thermostat Assembly, Fenwall, With Two Blue

Insulated Push-on Terminals, 4” (MJ35 & 45, Non-CE) 2 8065816 Operating Thermostat Assembly, Fenwall, With One Wire

Push-on, One Fork Terminal, 3” (MJ35, Non-CE) 3 8067972 Operating thermostat 1 4 1067036 Operating Thermostat Assembly, Fenwall, With One Wire

Push-on, One Fork Terminal, 4” (MJ45, CE) 5 8069617 Operating Thermostat Assembly, Fenwall, With One Blue

Insulated Push-on, One Fork Terminal, 4” (MJ35 & 45, CE) 6 8060087SP Operating Thermostat Assembly, Fenwall, Thermostat Dial

Plate Assembly 7 8261177 Thermostat, High-Limit 425°F/218°C 1 8 8067550 High-Limit Thermostat, 218°C High-limit (CE) 1 [1] 9 8100999 Flex Shaft, Control Panel Mount Assembly, 9.25” overall 1 10 8100345 Shaft, 7.25” Thermostat Flexible Extension 1 11 8101651 Shaft, 5.50” Thermostat Flexible Extension 1 12 8100276 Shaft, 2.25” Thermostat Flexible Extension 1 13 9002071 Mounting Bracket 1 14 8262698 Timers, Basket Lift, 15-minute Electronic Timer, Single 1 15 8262699 Timers, Basket Lift, 15-minute Electronic Timer, Multi-vat

System 16 8100585 Timers, Basket Lift, 15-minute Mechanical Timer 1 17 9101551 Timers, Basket Lift, 15-minute Mechanical Timer Bezel 1 18 8100387 Knob 1 19 8261395 Plug Button 10 20 8101287 Knob, 15-minute Mechanical Timer 1 21 8100110 Thermostat Knob 1 22 8100334 Knob, with Skirt 1 23 8100388 Knob, 1” Black 1 24 8261575 Kit, Retrofit 5-minute Timer 1 25 8074134 Butterfly/Envelope Adapter 1 [2] 26 1064386SP Toggle switch 1 27 8064206 Probe Assembly, Temperature 1 28 2100681 Probe Guard 1

PART NOTES:

[1] - includes adapter for gas valve hookup [2] - CE; included in 8103442

1 1

1 1 1

Thermostats and Timers

FRY_P_0041_3_15_Thermostats and Timers.pdf

11 12

MJ35

Wiring Harnesses, Pin Terminals, and Power Cords

FRY_P_0041_3_15_Wiring Harnesses, Pin Terminals, and Power Cords.pdf

MJ35

Wiring Harnesses, Pin Terminals, and Power Cords

# PART # DESCRIPTION QTY Note

1 8071068 2-Pin Female 1 2 8070158 6-Pin Female 1 3 8070156 9-Pin Female 1 4 8070159 12-Pin Female 1 5 8070875 15-Pin Female 1 6 8071067 2-Pin Male 1 7 8070157 6-Pin Male 1 8 8070155 9-Pin Male 1 9 8070160 12-Pin Male 1 10 8070804 15-Pin Male 1 11 8261332 Terminal, Female Disconnect Pin 25 12 8261333 Terminal, Male Split Pin 25 13 8072518 Plug, Mate-N-Lock 1 [1] 14 8261331 Terminal, M&L Female Split Pin 25 15 8261336 Terminal, M&L Male Split Pin 25 16 8070154 Power Cord, 120V w/Grounding Plug 1 [2]

PART NOTES:

[1] - Dummy Pin [2] - Power Cord

Wiring Harnesses, Pin Terminals, and Power Cords

FRY_P_0041_3_15_Wiring Harnesses, Pin Terminals, and Power Cords.pdf

Frymaster PMJ135 Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual

Accessories

Basket Lift and Associated Parts

Cabinetry - FPP, FMP Model Cabinetry

Cabinetry - PMJ (Non-filter) Model Cabinetry

Casters, Legs, and Associated Hardware

Component Boxes

Control Panel Assemblies, Flue Caps, and Related Items

Controller Assemblies

Door Assembly

Drain System Components - Drain Tube System

Drain System Components - Drain Valves, FPPFMP Models

Drain System Components - Drain Valves, PMJ Models

Filter Boxes

Filter Pan Assembly

Frypot Cabinetry - PMJ35 Frypot Cabinetry

Frypot Cabinetry - PMJ45 Frypot Cabinetry

Frypots

Gas Valves and Burners - PMJ35 Gas Valves and Burners

Gas Valves and Burners - PMJ45 Gas Valves and Burners

Ignitors

Oil Return Assembly

Oil Return Components

Thermostats and Timers

Wiring Harnesses, Pin Terminals, and Power Cords
