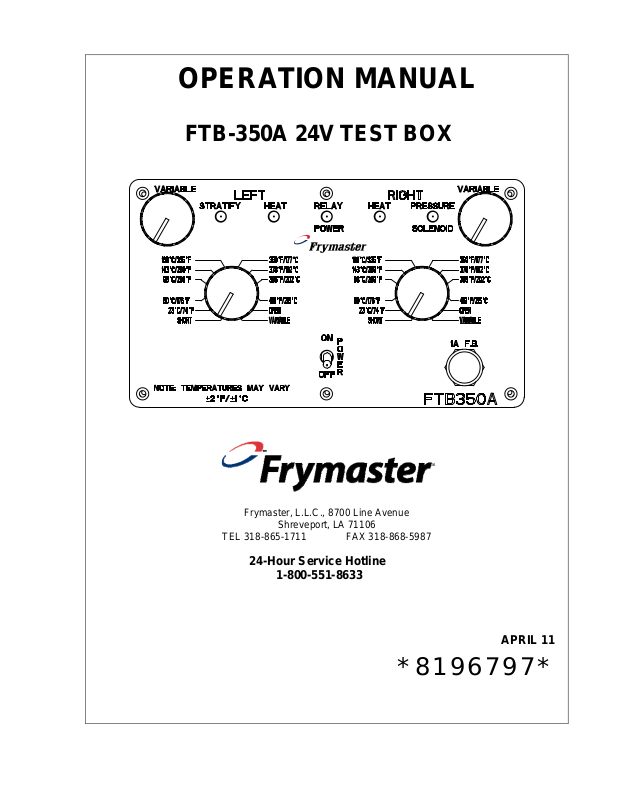

OPERATION MANUAL

FTB-350A 24V TEST BOX

Frymaster, L.L.C., 8700 Line Avenue

Shreveport, LA 71106

TEL [phone] FAX [phone]

24-Hour Service Hotline

1-800-551-8633

APRIL 11

*8196797*

TABLE OF CONTENTS

Page #
INTRODUCTION 3
PARTS ORDERING 3
PARTS LIST 4
CONTROL PANEL DIAGRAM 5

F3000 TEST PROCEDURE Legacy Fryers 6
F3000 TEST PROCEDURE HP580/590 Electric 8
F3000 TEST PROCEDURE HP690 Gas 9
F3000 TEST PROCEDURE Pitco Fryers 12

2

INTRODUCTION

The FTB-350A Test Box is a tester designed to test the F3000 Frymaster cooking
controller for correct operating and controlling functions.

WARNING: This test box should not be hooked up to 12V controllers.
PARTS ORDERING

Parts orders must be placed directly with your local Factory Authorized Servicer. If
you do not have a Factory Authorized Servicer list, please contact Frymaster
Service Department at 1-800-551-8633 or 1-318-865-1711.

To speed up your order, the following information is required:
Model Number: __________________

Part Number: __________________
Quantity Required: __________________

NOTE: RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE
USE. ADDITIONAL COPIES MAY BE OBTAINED FROM YOUR FACTORY
AUTHORIZED SERVICER.

3

2

1

3

PARTS LIST

Item Part Number Description

826-2978

1 108-3342 Test Box FTB-350A 120V/24V Domestic
2 108-3345 Transformer Assembly 120V/24V Domestic
3 807-5285 Cable Assembly, F3000 Cable

Kit, FTB350A, 120V/24V F3000 Test Box (Includes cable and
transformer assembly.)

4

TOP

CONTROL PANEL

1. Stratify Indicator
On during stratify on HP
fryers.

2. Left Heat Indicator
ON When Heating

3. Power On Indicator
Power to Fryer Relays &
Controller

4. Right Heat Indicator
ON When Heating

5. Pressure Solenoid Indicator
On when pressure solenoid
is activated on HP fryers.

6. Left Probe/Thermistor Switch
Simulates Temperature

NOTE: For power other than 120VAC 60Hz, use 240V transformer.

7. Right Probe/Thermistor Switch
Simulates Temperature

8. Left Variable Control

9. Right Variable Control

10. ON/OFF Switch
Power To FTB-350A Test Unit

11. HP690 Power Switch
Power to FTB-350A Test Unit and
controller when set to HP690.

12. HP690 Alarm Switch
Simulates Alarm Signal Input

5
