Frymaster FQG30U Operators Manual

Your Growth Is Our Goal

FilterQuick™ FQG30U easyTouch®

Gas Fryer

Parts Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.



*8197478*

Part Number: FRY_P_8197478 06/2019





NOTICE

IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER
EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY
FROM FRYMASTER DEAN, OR ANY OF ITS FACTORY AUTHORIZED SERVICERS, AND/OR THE
PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL
BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY
CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR
INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART
AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICER.





FQG30U easyTouch® FILTERQUICK™ SERIES GAS FRYERS

PARTS MANUAL

TABLE OF CONTENTS

CHAPTER 1: Parts List

1.1 Accessories .......................................................................................................................................... 1-1

1.2 Doors, Sides, Flue Caps, Top Caps and Casters .............................................................................. 1-2

1.3 Control Panel Frame Assemblies ...................................................................................................... 1-3

1.4 Drain Valves and Associated Parts ................................................................................................... 1-4

1.5 Electronics and Electrical Components ........................................................................................... 1-5

1.5.1 Component Boxes and Associated Parts ....................................................................... 1-5

1.5.2 Transformer Boxes ............................................................................................................ 1-6

1.5.3 FIB (Filter Interface Board) Auto Top Off / Filter Box Components ............................ 1-8

1.5.4 VIB (Valve Interface Board) Components ....................................................................... 1-9

1.5.5 Power Reset Switch and USB Connector ........................................................................ 1-9

1.6 Wiring ................................................................................................................................................. 1-10

1.6.1 Wiring Harness Full Vat - SIB to Rear of Component Box Fryer w/out OIB ............. 1-10

1.6.2 Wiring Harness Full Vat - SIB to Rear of Component Box Fryer w OIB ..................... 1-11

1.6.3 Wiring Harness Dual Vat - SIB to Rear of Component Box w/out OIB ..................... 1-12

1.6.4 Wiring Harness Dual Vat - SIB to Rear of Component Box w OIB ............................. 1-13

1.6.5 Ignition Wiring Harness Full Vat – Control Box to Components ............................... 1-14

1.6.6 Ignition Wiring Harness Dual Vat – Control Box to Components ............................. 1-15

1.6.7 FIB Wiring Harness .......................................................................................................... 1-16

1.6.8 Miscellaneous Wiring Harnesses and Cord Sets ......................................................... 1-16

1.7 Frypots and Associated Components ............................................................................................ 1-17

1.7.1 Full-Vat Frypot Components .......................................................................................... 1-17

1.7.2 Dual-Vat Frypot Components ........................................................................................ 1-19

1.7.3 Frypot Assemblies and Associated Parts ...................................................................... 1-21

1.8 Oil Return Manifolds ........................................................................................................................ 1-22

1.9 Gas Supply and Combustion System Components ..................................................................... 1-22

1.10 Gas Valves and Associated Components ...................................................................................... 1-24

1.11 Filtration System Components ....................................................................................................... 1-26

1.12 ATO (Automatic Top-Off) Components .......................................................................................... 1-28

1.12.1 JIB Cradle, JIB Box, JIB Cap Assemblies ......................................................................... 1-28

1.12.2 ATO Pump Assembly Non-Bulk ..................................................................................... 1-29

1.12.3 ATO Pump Assembly Bulk .............................................................................................. 1-30

1.12.4 Shortening Melting Unit.................................................................................................. 1-31

1.13 Bulk Oil System Components ......................................................................................................... 1-32

1.13.1 Bulk Oil Dispose Waste Valve ......................................................................................... 1-32

1.13.2 Bulk Oil Manifold and Accessories ................................................................................ 1-33

1.14 Basket Lift Assembly and Associated Parts ................................................................................... 1-35

1.15 Oil Quality Sensor (OQS) and Associated Parts ............................................................................ 1-37

1.16 FilterQuick™ FQG30-T Series Simplified Wiring ............................................................................ 1-38

iii

FQG30U easyTouch® FILTERQUICK™ SERIES GAS FRYERS

PARTS LIST

1.1 Accessories

ITEM PART # COMPONENT

1 8030429 Brush, Frypot
2 8030388 Fryers Friend
3 1086156 Connecting Strip, Frypot
4 2307495 Hanger, Basket Two Station (use two for a Four Station fryer)

2307497 Hanger, Basket Three Station
5 8238898 Cover, Frypot, Dual Vat
6 8238897 Cover, Frypot, Full Vat
7 8030372 Basket Support Rack, Dual Vat
8 8030375 Basket Support Rack, Full Vat
* 8030136 Basket Support Screen, Full Vat (screen w/handle used in place of Item 8)
9 8100478 Gas Line, 1-Inch Dormont Flexible

8061698SP 36-Inch (for gas line only (w/o Items 10 and 11), use 8100088)

8061699 48-Inch (for gas line only (w/o Items 10 and 11), use 8100085)

10 8100074 Quick-Disconnect Fitting, 1-Inch Male
11 8100073 Quick-Disconnect Fitting, 1-Inch Female

8103745 Quick Disconnect Fittings, ¾” set (includes male and female connectors)

12 8260900 Kit, Chain Restraint

* 8261095 Kit, Anchor Strap

13 8261045 Bushing, Flexible Gas Line (8130032)
14 8030099 Basket, Full Size
15 8030271 Basket, Twin Size
16 8030511 Tray, Sediment GL30

* 8030002 Powder, Filter (80- 1-Cup Applications)
* 8030445 Pack, 100-Sheet Filter Paper 16.5 X 25.5

* Not illustrated.

1-1

1.2 Doors, Sides, Flue Caps, Top Caps and Casters

ITEM PART # COMPONENT

1 2611424 Side, Cabinet Left
2 2621424 Side, Cabinet Right
3 8101105 Magnet, Door (vertical) (use 8102346 for horizontal over filter pan)
4 1064397 Door, Left or Right (Left shown – move handle to bottom for right) (use 1080915

for Door w/ Manual Holder)
5 2304960 Handle, Eurolook Door
6 1064067 Pin Assembly, Door
* 8100275 Spring, Door Pin
* 8090970 Retaining Ring
* 2307192 Hinge, Door Lower
7 8100327 Caster without Brake
8 8100944 Caster with Brake
9 Flue Cap-Stainless Steel

8239440 Two Station Fryer
8239447 Three Station Fryer
8239448 Four Station Fryer
N/A Five Station Fryer

10 Top Cap

1086158 Two Station Fryer
1086159 Three Station Fryer
1086160 Four Station Fryer
1086161 Five Station Fryer

* Not illustrated.

1-2

1.3 Control Panel Frame Assemblies

ITEM PART # COMPONENT

1 1087710 Frame Assembly, Control 2-Battery

1087711 Frame Assembly, Control 3-Battery

1087712 Frame Assembly, Control 4-Battery
2 1087744 Bezel Assembly, Control FQ4000
3 2602083 Bezel, Single Touchscreen FQ
4 8104898 Guide, Controller Adjustable Guard
5 8104899 Bar, Guard (Touch Screen Protection)
6 8104714 Plate, Outside Tightening
7 8090047 Nut, Cap ¼-20

1-3

1.4 Drain Tube Sections and Associated Parts

ITEM PART # COMPONENT

1 1085906 Drain Tube, Dump Left Closed/Right End Open (Use 1085915 for Bulk)
2 1085904 Drain Tube, Dump Full-Vat Left Closed/Right End Open (Use 1085911 for Bulk)
3 1085917 Drain Tube, Dump Dual-Vat Left Closed/Right End Open (Use 1085916 for Bulk)
4 1085905 Drain Tube, Dump Full-Vat Left Closed/Right End Closed (Use 1085914 for Bulk)
5 1085919 Drain Tube, Dump Dual-Vat Left Closed/Right End Closed (Use 1085918 for Bulk)
6 8237322 Drain Tube, Full-Vat Left and Right Open
7 8237324 Drain Tube, Dual-Vat Left and Right Open
8 8103550 Drain Tube, Short, Open Both Ends

9 8103551 Drain Tube, Long, Open Both Ends
10 8238812 Drain Tube, Full -Vat Left and Right Open
11 8238813 Drain Tube, Dual-Vat Left and Right Open
12 8237330 Drain Tube, Full-Vat Left Open/Right End Closed
13 8237331 Drain Tube, Dual-Vat Left Open/Right End Closed
14 8237329 Drain Tube, Full-Vat Left Open/Right End Closed
15 8237326 Drain Tube, Dual-Vat Left Open/Right End Closed
16 8237328 Drain Tube, Full-Vat Left and Right Open 15.31”

8238791 Drain Tube, Full-Vat Left and Right Open 18.95”

17 8237327 Drain Tube, Dual-Vat Left and Right Open 15.31”

8238814 Drain Tube, Dual-Vat Left and Right Open 18.95”
18 8091095 Clamp
19 8160630 Vinyl Cap
20 8237480 Guard, Filter Lid Splash 2 battery

8237915 Guard, Filter Lid Splash 3, 4 and 5 battery
21 8104353 Valve, Drain 1¼” NPT

* Not illustrated.

1-4

1.5 Electronics and Electrical Components

1.5.1 Component Boxes and Associated Components

ITEM PART # COMPONENT

√ 1 1087515SP Controller, FQ4000 Burger King/General Market
√ 1087847SP Controller, FQ4000 Taco Bell
√ 1087769SP Controller, FQ4000 Arby’s
√ 2 8075949 Module, Ignition Single Spark Fenwal
√ 8076382 Module, Ignition Single Spark Fenwal FV (Left) / DV Australia 3 sec
√ 8076383 Module, Ignition Single Spark Fenwal FV (Right) Australia 4 sec
√ * 8076366 Harness, Ignition Module Fenwal FV (rear of component box to components)
√ * 8076367 Harness, Ignition Module Fenwal DV (rear of component box to components)

3 1087218 Plate, Assy Fenwal Module Mounting
4 8242482 Cover, Fenwal Ignition Module

√ 5 8075614 Cable, Ignition 12-inch
√ 6 1085979 Board, Interface SIB (Smart Interface Board)
√ 7 8071321 Fuse Holder
√ 8 8075570 Fuse 3.5A 250V
√ 9 8071683 Relay, Blower 12VDC

10 8071926 Bushing, .875 Split

√ 11 8074812 Relay Board, 7-second Time Delay 120V (U.S., Canadian and Mexico units)

8074934 Relay Board, 7-second Time Delay 220V, 230V, 240V and 250V units (Intl units)
8075731 Relay Board, 7-second Time Delay 100V (Japan)

√ 12 8075623 Relay, 24VDC SPDT OIB (Oil Is Back) Sensor

* 8075829 Speaker 4 ohm
* 8072659 Switch, Momentary (Power Reset, only in far-left component box prior to 12/6/2017)

√ * 8104320 Lanyard, Controller Restraint

* 8101164 Block, One-Piece Screwless Terminal
* 8160217 Insulation, Terminal Block Paper
See Wiring Diagrams in FQG30-T Service Manual for cable locations
* 8075553 Cable, P-Bus Left SIB (J9) to Right SIB (J9)
* 8075555 Cable, P-Bus w/ power Right SIB (J10) to VIB (Valve Interface Board) (J2)
* 8075551 Cable, C-Bus Right SIB (J7) to FIB (Filtration Interface Board) (J3)
* 8075549 Cable, C-Bus Right SIB (J7) to Right SIB (J8) (Connects component boxes together)
* 8076106 Adapter, RJ11 CAN SIB (J8) to Legacy 6-pin CAN (Micro Mate & Lock) (connects OQS sensor to SIB 5”)
* 8074552 Terminator, CAN (ONLY used on OQS harness Y- adaptor)
* 8075632 Terminator, CAN End Communication RJ11 (used in SIB J8 if OQS is NOT installed)
* 8076243 Harness, Wire SIB to Components FV (without OIB)
* 8076244 Harness, Wire SIB to Components DV (without OIB)
* 8076364 Harness, Wire SIB to Components FV (with OIB)
* 8076365 Harness, Wire SIB to Components DV (with OIB)

* Not illustrated. √ Recommended parts.

1-5

1.5.2 Transformer Boxes

ITEM PART # COMPONENT

Box Assembly, Transformer
A 1088351 230/430 (430 has added cord set 1087810)
B 1088367 230/430 CE Export (430-T has added cord set 1088370)
C 1088352 330 (530 has added cord set 1088353)
D 1088368 330 CE Export (530 has added cord set 1088371)
E 1087813 430/530 Non-CE 208/220/230/240V

F 1088369 430/530 CE Export 100V/120V (530-T CE has added cord set 1088371)

√ 1 8075362 Transformer, 115-240V 80VA 24VAC
√ 2 8070800 Transformer, 120V/24V 50VA Filter
√ 3 8072180 Transformer, 120V/24V 50VA Filter
√ 4 8071022 Transformer, 220/240V 75VA
√ Recommended parts.

1-6

1.5.2 Transformer Boxes cont.

ITEM PART # COMPONENT

5 2401696 Cover, 430/530 Transformer Box (Small)

√ 6 8075802 Relay, DPDT 30A 120VAC (Control Reset Button) (used for control power reset in

domestic units)

√ 7 8074770 Relay, DPDT 20A 240V (Control Reset Button) (used for control power reset in

international units)

√ 8 8074482 Relay, Filter Pump 30A 24VDC DPDT

9 2203191 Cover, 230/330 Transformer Box (Large)
10 8239461 Box, 430/530 Transformer (Small)
11 8239437 Box, Transformer/Filter (Large)
12 8076428 Filter, 250V 16A EMI Power Line
13 8070070 Terminal, Ground Lug
14 1088229 Harness, Reset Relay
15 1085662 Harness Assembly, Cord set Female
16 1087727 Harness, ATO/Filter Control
17 1087726 Harness, Filter Pump Motor Non-CE and CE Export
18 1088228 Harness, Transformer Vat #1 230/330 Non-CE
19 1087729 Harness, Transformer Vat #2 230/330 Non-CE
20 1087730 Harness, Transformer Vat #3 330 Non-CE
21 1087812 Harness, Transformer Vat #4/5 430/530 Non-CE
22 1087811 Harness, Transformer Vat #4#5 430/530 Non-CE
23 1088373 Harness, Transformer Vat #2 230/330 CE Export
24 1088372 Harness, Transformer Vat #1 230/330 CE Export
25 1088374 Harness, Transformer Vat #3 330 CE Export
26 1088375 Harness, Transformer Vat #4/5 430/530 CE Export
27 1088376 Harness, Transformer Vat #4/5 430/530 CE Export
* 1086452 Harness Assembly Transformer to Ground with 3-wire Snap CE Export
* WIR1198 Wire Assembly, 430/530 Transformer Box (used in Item E)
* WIR1223 Wire Assembly, 230/430 Transformer/Filter Box (used in Item A)
* WIR1224 Wire Assembly, LOV-T Dom/Filter Box (used in Item B)
* WIR1234 Wire Assembly, FQ4000 Transformer Box CE (used in Item C and D)

* WIR1235 Wire Assembly, FQ430/530 Transformer Box CE (used in Item F)

* Not illustrated
√ Recommended parts.

1-7

1.5.3 FIB (Filter Interface Board) Auto Top Off / Filter Box Components

15

9

56

10 11

12

7

8

3

12

4

13

14

16

17

ITEM PART # COMPONENT

1087716 Box Assembly, ATO/FIB Filter

√ 1 1087513SP Board, FIB w/ Software General Market / Burger King

1087535SP Board, FIB w/ Software Taco Bell

√ 2 8075855 Power Supply, 24VDC 130W ATO, Actuators, Filter Pump, Top Off Pump
√ 3 8075974 Power Supply, 24VDC, 15W for KCCM SUI board

* 1087247 Holder Assembly, Fuse with Leads (used with the KCCM SUI Board)

√ 4 8076148 PCB, Assy FQ4000 KCCM/SUI
√ 5 8075570 Fuse, 250VAC 3.5A Fast Acting

6 8071321 Holder, Fuse
7 8160217 Insulation, Terminal Block Paper
8 8101164 Block, One-Piece Screwless Terminal
9 8076240 Harness, Bulk Oil/ATO/FIB (J1 (30-pin) FIB to illustrated connectors inside FIB Box)
10 8075967 Coupler, 8PBC to 8PBC
11 8075970 Cap, Dust
12 8075975 Antenna
13 8076225 Cable, U. FL to RP-SMA Bulkhead (attaches to Item 4)
14 8075969 Cable, USB Receptacle Mount (USB end attaches to Item 4)
15 8071926 Bushing, .875 Split
16 1087715 Box, Assembly
17 2401658 Cover, ATO/Filter Box
See Wiring Diagrams in FQG30-T Service Manual for cable locations
* 8075632 Terminator, CAN End Communication RJ11 (FIB J4)
* 8075977 Cable, RJ45 Cat5E 7.87” (From Item 10 to Item 4)
* 8076242 Harness, KCCM SUI Communication/Power (RJ45 item #4 to J4 FIB and to item #3)
* 8076241 Harness, Power Supply (From item #2 to Item 8)
* 8075551 Cable, C-Bus Right SIB (J7) to FIB (Filtration Interface Board) (J3)
* 8075810 Cable, FIB to VIB Actuator Power (used from FIB item #1 (J2) to VIB (J4) and from

VIB (J3) to VIB (J4)

* Not illustrated √ Recommended parts.

1-8

1.5.4 VIB (Valve Interface Board) Components

ITEM PART # COMPONENT

√ 1087537 VIB Board Assembly Taco Bell

1 8242346 Cover, VIB Board Housing
2 8161015 Gasket, Actuator Power VIB
3 8161013 Gasket, 20 pin VIB Connector
4 8161014 Gasket, P-Bus VIB Connector
5 1087534SP Board, VIB with SW
6 8160820 Seal, Linear Actuator Board
7 1087280 Panel, Assy VIB Box Bottom Stud

√ Recommended parts.

1.5.5 Power Reset Switch and USB Connector

ITEM PART # COMPONENT

1087802 Bracket Assy, USB Mounting FQ4000 Gas
1 8072659 Switch
2 8074989 Bezel, USB Port
3 2207520 Plate, Backing USB Bezel
4 8074990 Cable, USB

1-9

1.6 Wiring

1.6.1 Wiring Harness Full Vat - SIB to Rear of Component Box (Fryer w/out OIB)

ITEM PART # COMPONENT

8076243 Harness, Controls FQ4000 Gas Full Vat

See the FQG30-T Service Manual for wiring diagram.

1-10

1.6.2 Wiring Harness Full Vat - SIB to Rear of Component Box (Fryer with OIB)

ITEM PART # COMPONENT

See the FQG30-T Service Manual for wiring diagram.

8076364 Harness, Controls LOV-T Gas Full Vat

1-11

1.6.3 Wiring Harness Dual Vat - SIB to Rear of Component Box (Fryer w/out OIB)

LEFT SIB J1

CONNECTOR

RIGHT SIB J1

CONNECTOR

J4 CONNECTOR

REAR CONTROL BOX

RIGHT SIB J2

CONNECTOR

LEFT SIB J2

CONNECTOR

ITEM PART # COMPONENT

See the FQG30-T Service Manual for wiring diagram.

8076244 Harness, Controls FQ4000 Gas Dual Vat

J3 CONNECTOR

REAR CONTROL BOX

1-12

1.6.4 Wiring Harness Dual Vat - SIB to Rear of Component Box (Fryer with OIB)

LEFT SIB J1

CONNECTOR

RIGHT SIB J1

CONNECTOR

J4 CONNECTOR

REAR CONTROL BOX

RIGHT SIB J2

CONNECTOR

LEFT SIB J2

CONNECTOR

ITEM PART # COMPONENT

8076365 Harness, Controls LOV-T Gas Dual Vat

See the FQG30-T Service Manual for wiring diagram.

J3 CONNECTOR

REAR CONTROL BOX

1-13

1.6.5 Ignition Wiring Harness Full Vat – Control Box to Components

1 – Non-CE without OIB

2 – Non-CE with OIB

3 – CE with OIB

4 – Australia with OIB

ITEM PART # COMPONENT

1
2
3
4

8076247 Harness, Ignition/Controls Wiring Gas Full Vat Non-CE without OIB

8076366 Harness, Ignition/Controls Wiring Gas Full Vat Non-CE with OIB
8076377 Harness, Ignition/Controls Wiring Gas Full Vat CE with OIB
8076429 Harness, Ignition/Controls Wiring Gas Full Vat Australia with OIB

NOTE: See the FQG30-T Service Manual for wiring diagrams.

1-14

1.6.6 Ignition Wiring Harness Dual Vat – Control Box to Components

1 – Non-CE without OIB

2 – Non-CE with OIB

3 – CE with OIB

4 – Australia with OIB

ITEM PART # COMPONENT

1
2
3
4

NOTE: See the FQG30-T Service Manual for wiring diagrams.

8076248 Harness, Ignition/Controls Wiring Gas Dual Vat Non-CE without OIB

8076367 Harness, Ignition/Controls Wiring Gas Dual Vat Non-CE with OIB

8076368 Harness, Ignition/Controls Wiring Gas Dual Vat CE with OIB
8076430 Harness, Ignition/Controls Wiring Gas Dual Vat Australia with OIB

1-15

1.6.7 FIB Box Wiring Harness

ITEM PART # COMPONENT

1 8076240 Harness, Bulk Oil, Topoff /FIB

1.6.8 Miscellaneous Wiring Harnesses and Cord Sets

PART # COMPONENT

8076245 Harness, Vat AC Power 60” (J4 (12-pin) Rear Control Box - C1 (6-pin) Transformer Box)

8076249

Harness, Filter/ATO Power/Control 24” (C5 (6-pin) Rear FIB Box - C5 (6-pin) Transformer
Box)

8076246 Harness, Basketlift 72” (J4 Rear Control Box – 12-pin Basketlift)
8069678SP Plug Assembly, CE Gas Valve
8067742SP Cord set, 120V Fryer and Motor with Ring Terminals 68”

1060516 Cord set, 220-250V Non-CE/Export Fryer and Motor with Ring Terminals 68”

NOTE: See the FQG30-T Service Manual for wiring diagrams.

1-16

1.7 Frypots and Associated Components

1.7.1 Full-Vat Frypot Components

NOTE: All insulation and

gaskets can be ordered in

a single kit, P/N 826-2595. Kit 826-2592 contains the

insulation and gaskets re-

quired when replacing

burners.

1-17

1.7.1 Full-Vat Frypot Components cont.

ITEM PART # COMPONENT

1081752SP Frypot Assembly Full-Vat (NAT/PRO)
8262595 Insulation Kit, Complete Full-Vat

8262592 Insulation Kit, Burner Full-Vat
1 1080925 Flue Assembly, Full-Vat
2 8238175 Back, Lower Full-Vat Combustion Chamber
3 2206529 Retainer, Full-Vat Upper Insulation (modified from shown, now one piece)
4 2207834 Retainer, Outer Frypot
5 2306960 Plate, FV Collector Mounting
6 2202851 Brace, FV Rear Insulation
7 2202920 Brace, Foam Deck Insulation

√ 8 8103435 Burner, Universal Replacement

9 8120356 Insulation, Burner Sight Glass

10 8160900 Insulation, Burner
11 8120706 Insulation, Upper Burner Rail
12 8121029 Insulation, Combustion Chamber Side
13 8140048SP Glass, Burner Sight
14 8160837 Insulation, FV Rear Lower
15 8160731 Insulation, FV LH/RH Front Seal
16 8160976 Insulation, FV Lower Inner Front
17 8160733 Insulation, FV Front Upper
18 8160978 Insulation, FV Outer Front
19 8160746 Insulation, Foam Deck
20 8238932 Frypot, FV GL30
21 8238193 Retainer, FV LH Upper Burner
22 8238194 Retainer, FV RH Upper Burner
23 8238571 Retainer, FV Front Combustion Insulation
24 8238574 Plenum, Full-Vat (use 8238590 for CE units and for Export Non-CE units)
25 8242164 Front Upper Seal Weldment, FV LH
26 8242165 Front Upper Seal Weldment, FV RH
27 9001031 Retainer, Burner Sight Glass
28 9300818 Bracket, Flue to Pot
29 9004253 Strip, Fluecap Retainer
30 9001049 Retainer, Plenum Gasket
31 8160057 Gasket, Plenum

* 8160981 Gasket, Ignitor
* 8161122 Seal, Frypot Plenum Mounting
* 8090390 Elbow, 90° Male 1/8” to 3/16” (used with Pressure Switches)
* 8161049 Gasket, Plenum/Blower (used between plenum and blower)
* 9102474 Pot-to-Pot Gap Clip

* Not illustrated.
√ Recommended parts.

1-18

1.7.2 Dual-Vat Frypot Components

1

4

21

14

5

7

29

20

2

10

12

8

11

15

30

27

16

13

9

25

28

34

18

12

22

23

26

8

31

24

32

4

19

NOTE: All insulation and

gaskets can be ordered

in a single kit, P/N 826-

2596. Kit 826-2593 contains the

insulation and gaskets

required when replacing

burners.

6

17

3

33

1-19

1.7.2 Dual-Vat Frypot Components cont.

ITEM PART # COMPONENT

* 1081753SP Frypot Assembly Dual-Vat (NAT/PRO)
* 8262596 Insulation Kit, Complete Dual-Vat

√ * 8262593 Insulation Kit, Burner Dual-Vat

1 1080926 Flue Assembly, Dual-Vat
2 1067960 Plate Assembly, Dual-Vat Collector
3 2206530 Retainer, Dual-Vat Upper Insulation
4 2207835 Retainer, Dual-Vat Outer Frypot
5 8238176 Back, Dual-Vat Lower Combustion Chamber
6 2202920 Brace, Foam Deck Insulation
7 2202972 Brace, Dual-Vat Rear Insulation

√ 8 8103435 Burner, Universal Replacement

9 8120356 Insulation, Burner Sight Glass

10 8160900 Insulation, Burner
11 8120706 Insulation, Upper Burner Rail
12 8121029 Insulation, Combustion Chamber Side
13 8140048SP Glass, Burner Sight
14 8160838 Insulation, Dual-Vat Rear Lower
15 8160741 Insulation, Dual-Vat LH/RH Front Seal
16 8160977 Insulation, Dual-Vat Lower Inner Front
17 8160743 Insulation, Dual-Vat Front Upper
18 8160979 Insulation, Dual-Vat Outer Front
19 8160746 Insulation, Foam Deck
20 8120688 Insulation, Flue Collection
21 8238196 Retainer, Dual-Vat RH Upper Burner
22 8238195 Retainer, Dual-Vat LH Upper Burner
23 8238578 Retainer, Dual-Vat Front Insulation
24 8238576 Retainer, Dual-Vat Outer Front
25 8241796 Riser W/A Dual-Vat Pot
26 8242166 Dual-Vat LH Upper W/A Seal
27 8242167 Dual-Vat RH Upper W/A Seal
28 9001031 Retainer, Sight Glass
29 9300818 Bracket, Flue to Pot
30 9004253 Strip, Fluecap Retainer
31 9001049 Retainer, Plenum Gasket
32 8160057 Gasket, Plenum

* 8160981 Gasket, Ignitor

33 8238573 Plenum, Dual-Vat (use 8238589 for CE units and for Export Non-CE units)

* 8161049 Gasket, Plenum/Blower (used between plenum and blower)
* 8161122 Seal, Frypot Plenum Mounting
* 8090390 Elbow, 90° Male 1/8” to 3/16” (used with Pressure Switches)

34 8238942 Frypot, Dual-Vat GL30

* 9102474 Pot-to-Pot Gap Clip

* Not illustrated.
√ Recommended parts.

1-20

1.7.3 Frypot Assemblies and Associated Parts

Full Vat Dual Vat

ITEM PART # COMPONENT

1 1081752SP Frypot Assembly, Full-Vat Natural/Propane
2 1081753SP Frypot Assembly, Dual-Vat Natural/Propane

√ 3 8075809 Actuator, Rotary 24VDC (#1) Blue
√ 4 8075808 Actuator, Rotary 24VDC (#2) Black
√ 5 8104353 Valve, 1¼” NPT Drain
√ 6 8103754 Valve, ½” NPT Return

7 8130062 Elbow, ½” 90
8 8101668 Adaptor, Male ⅝” OD x ½”
9 8101055 Flexline, ⅝” OD x 11.50” Long

√ 10 8263286 Probe, ATO (Topoff) RTD Kit
√ 11 8263287 Probe, VIB (Auto Filtration) RTD Kit

* 8130617 Fitting, 3/16” CC x ¼” (Compression fitting used in probe kits)
* 8158000 Loctite 567, Tube 6 ML

√ 12 8263285 Probe, Temperature Cooking Kit
√ 13 8076384 Sensor Assy, Oil 120V (only in units with optional OIB sensor)

8076385 Sensor Assy, Oil 220V International (only in units with optional OIB sensor)
8076386 Sensor Assy, Oil 230V International (only in units with optional OIB sensor)
8076387 Sensor Assy, Oil 240V/250V International (only in units w/optional OIB sensor)

√ 14 8261177 Thermostat Assembly, HE High-Limit 425F/218C Kit
√ 15 8130022 Nipple, ½” x Close NPT

* Not illustrated.
√ Recommended parts.

1-21

1.8 Oil Return Manifolds

ITEM PART # COMPONENT

1
2
3
4

8103872
8103871

8103873

8104138

Manifold, Two-Station Fryer
Manifold, Three-Station Fryer
Manifold, Four-Station Fryer
Manifold, Five-Station Fryer

* 8130907 Cap, 15/16” Valve

* Not illustrated

1.9 Gas Supply and Combustion System Components

See pages 1-16 through 1-20
for burners and burner insu­lation part numbers.

1-22

See Page 1-24 and 1-25 for details of
gas valves and related components.

1.9 Gas Supply and Combustion System Components cont.

ITEM PART # COMPONENT

√ 1 Ignitor

8263549 Natural Gas (G20, G25) (includes gasket 8160981, which may be ordered separately

and enrichment tubes)

8263552 Propane (G30, G31) (includes gasket 8160981, which may be ordered separately

and enrichment tubes)

√ 2 Blower Assembly, Combustion Air (includes harness and Item 3)

1062997SP 115V 50/60 Hz (Right)
1062999SP 100V 50/60 Hz (Right)
1083307SP 220V 60 Hz (Right)
1062998SP 208-240V 50/60 Hz (Right) Non-CE International
1088421SP 230V 50Hz CE FV Australia
1088422SP 230V 50Hz (Right) CE DV Australia
1063001SP 230V 50/60 Hz CE (Right) CE (Wide Body)
* 8161049 Gasket, Plenum/Blower (used between plenum and blower)
3 8160554 Cover, Blower Motor (component of all blowers listed above)
* 8068806SP Harness Assembly, Blower Motor (component of all blowers listed above)

√ 4 1083346 Switch, Air Pressure Assembly FV (8122226 switch alone) CE and Export
√ 1081455SP Switch, Air Pressure Assembly DV (8122141 switch alone) CE and Export
√ 1083542 Switch, Air Pressure Assembly FV (8122226 switch alone) Australia
√ 1083541 Switch, Air Pressure Assembly DV (8122141 switch alone) Australia

Gas Conversion Kits
* 8262965 Conversion Kit, Natural Gas FV (G20, G25) to Propane/Butane (G30, G31) Non-CE
* 8262966 Conversion Kit, Natural Gas DV (G20, G25) to Propane/Butane (G30, G31) Non-CE
* 8262967 Conversion Kit, Propane/Butane FV (G30, G31) to Natural Gas (G20, G25) Non-CE
* 8262968 Conversion Kit, Propane/Butane DV (G30, G31) to Natural Gas (G20, G25) Non-CE
* 8262969 Conversion Kit, Nat Gas FV (G20, G25) to Prop/Butane (G30, G31) Aust Non-CE
* 8262970 Conversion Kit, Nat Gas DV (G20, G25) to Prop/Butane (G30, G31) Aust Non-CE
* 8262971 Conversion Kit, Prop/But FV (G30, G31) to Natural Gas (G20, G25) Aust Non-CE
* 8262972 Conversion Kit, Prop/But DV (G30, G31) to Natural Gas (G20, G25) Aust Non-CE
* 8262975 Conversion Kit, Nat Gas (G20, G25) to Prop/Butane (G30, G31) CE
* 8262976 Conversion Kit, Prop/Butane (G30, G31) to Natural Gas (G20, G25) CE

* Not illustrated.
√ Recommended parts.

1-23

1.10 Gas Valves and Associated Components

1-24

1.10 Gas Valves and Associated Components cont.

ITEM PART # COMPONENT

Gas Conversion Kits
8262969 Natural to Propane (LP) Full Vat
8262970 Natural to Propane (LP) Dual Vat
8262971 Propane (LP) to Natural Full Vat
8262972 Propane (LP) to Natural Dual Vat

√ 1 Valve, Non-CE Gas

8261122 Natural Gas (G20, G25) 3.2WC
8261123 Propane Gas (G30, G31)
8263296 Kit Natural Gas Full Vat w/ flexlines and hardware
8263297 Kit Natural Gas Dual Vat w/ flexlines and hardware
8263298 Kit, Propane Gas Full Vat w/ flexlines and hardware
8263299 Kit, Propane Gas Dual Vat w/ flexlines and hardware

√ 2 8101715 Valve, CE Gas (G20, G25, G30, G31)

3 8101041 Accessory Kit (contains parts to adapt Item 2 to specific fryer configuration)
4 8100691 Tube, ⅛-inch Vent
5 8103147 Bushing, ¾-inch OD x ½-inch ID NPT Flush
6 8101355 Gas Line, ⅜-inch OD X 15-inch SS Flexible
7 8101354 Gas Line, ⅜-inch OD X 12-inch SS Flexible (use 8101353 for 9” for some DV pots)
8 8130449 Tee, ¼ -inch NPT Brass
9 8130301 Tee, ¼-inch Male NPT to ⅜-inch Tube
10 8130302 Elbow, ¼-inch Male NPT to ⅜-inch Tube 90° (used on DV valve)
11 8130304 Bushing, ½-inch NPT to ¼-inch NPT Flush Reducing
12 Orifice, Burner
8103977 1.88mm 75% Butane/25% Butane (Standard Elevation)
8103865 1.95mm Propane/Butane (G30, G31)
8103860 2.05 mm Propane/Butane (G30, G31) (0-4999 Ft, 0-1524 M)
8103863 2.10 mm Propane/Butane (G30, G31) (5000-6999 Ft, 1525-2133 M)
8103867 2.84mm Natural Gas (G20, G25) Australia Only DV
8103866 2.92mm Natural Gas (G20, G25) Australia Only FV
8103864 3.18 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524 M) CE
8103861 3.26 mm Natural Gas (G20, G25) (0-4999 Ft, 0-1524 M)
8103862 3.40 mm Natural Gas (G20, G25) (5000-6999 Ft, 1525-2133 M)
13 8130378 Fitting, ⅛-inch NPT Cross
14 8130340 Adapter, ⅛-inch NPT to ⅛-inch Tube
15 8104238 Tube, ⅛-inch OD X 5.40-inch Enrichment FV
8104239 Tube, ⅛-inch OD X 4.80-inch Enrichment DV
16 8101176 Tap, ⅛-inch NPT Pressure
17 8130377 Tee, ⅛-inch NPT Female
18 8130354 Elbow, ⅛-inch NPT X ⅛-inch Tube Compression
19 8130016 Nipple, ⅛-inch NPT X Close
20 8101006 Bushing, ¼-inch NPT to ⅛-inch NPT Reducing
21 8130495 Tee, ¼-inch Male NPT to Female NPT
22 8101025 Connector, ¼-inch Male NPT to ⅜-inch Tube
23 8101026 Tee, ¼-inch Male NPT to Female NPT Street
24 8130700 Nipple, ¼-inch NPT x 3-inch

√ Recommended parts.

1-25

1.11 Filtration System Components

Pump plumbing may
differ somewhat
from illustration de­pending on configu­ration and date of
manufacture.

ITEM PART # COMPONENT

1 8238786 Lid, Filter Pan
2 8238626 Crumb Tray
3 8103289 Hold-Down Ring 10.95” x 19.10”
4 8122025 Sana Grid Filter Screen
5 1087700SP Pan, Filter Assembly with casters (use 1088399SP for solid shortening)
TBD Pan, Filter Pan with casters (Only for use with Filter Leaf)

√ 5a 8263288 O-Ring (Pkg. of 6; used with Item 5)

5b 8130989 Plug, ⅛” Socket Head Pipe (used with Item 5)
5c 8238335 Screen, Suction Line Filter
6 8239429 Suction Tube
7 8103007 Magnet, Pull Ring

* Not illustrated.
√ Recommended parts

1-26

1.11 Filtration System Components cont.

ITEM PART # COMPONENT

8 1085626 Assembly, Filter Pan Switch

√ * 1065876SP Sensor, Magnet

9 2318372 Rail, Upper
9a 2308373 Rail, Lower
10 8238030 Support, Left Filter Pan
11 2208368 Support, Right Filter Pan (use 1082872 for 2-Battery)

√ 12 Motor and Gasket Kit

8261785 100V 50/60 Hz
8261712 115V 50/60 Hz
8261756 208V 50/60 Hz
8261270 220-240V 50/60 Hz
8261755 250V 50/60 Hz

√ 13 8263191 Pump and Gasket Kit, 4 GPM

8160093 Gasket, Pump/Motor
* 8091062 Cap Screw, 5/16”-18 4.00” NC Hex (Connects pump to motor) (use 8090194 washer)
14 8130062 Elbow, ½” 90° BM
15 8101668 Adapter, ⅝” to ½” NPT Male
16 8101067 Flexline, ⅝” OD x 8.50-inches long Oil Return
17 8101369 Flexline, 17.50-inch Oil Return
18 8130087 Nipple, ½” x 1.50-inch NPT BM
19 8130298 Nipple, ½” x 2.00-inch NPT BM
20 8104878 Check Valve ½” NPT 1 PSI
21 2206191 Brace, Pump Motor
22 8104137 Caster, 2.00-inch
23 8130331 Elbow, ½” NPT with Side Outlet BM (Non-Bulk - use item #14 in this location)
24 8103738 Adapter, Check Valve Close
25 8101669 Adapter, Female ⅝” OD x ½”
26 TBD Leaf Assy, Filter (Only for use with Filter Pan TBD)
27 2401086 Wrench, Pre-Filter Cap
28 8104167 Lanyard, Filter Screen Wrench
* 8071105 Heater Strip Assembly, 100-120V 25W 18”
* 8071098 Heater Strip Assembly, 208-250V 25W 18”

* Not illustrated. √ Recommended parts.

1-27

1.12 ATO (Auto Top-Off) Components

1.12.1 JIB Cradle, JIB Box, JIB Cap Assemblies

ITEM PART # COMPONENT

1 2600197 Cradle, JIB Gas
* 8090402 Screw, Thumb ¼-20 x ½”
2 8242298 Box, JIB
3 1082005SP Cap, JIB Assembly (use 1082047 for Intl BIB)
4 1082001 Cap, JIB (use 1082002 for Intl. BIB)
5 8160870 Clamp
6 8103823 Hose, JIB

7 8237738 Tip Assembly, JIB Suction Hose
8 1086895 Box Assembly, JIB w/ Handle and Casters
9 8100180 Handle
10 8239145 Box, W/A JIB w/ handle
11 8122337 Caster, 2”

* Not illustrated. √ Recommended parts.

1-28

1.12.2 ATO Pump Assembly Non-Bulk

Semi/Solid Shortening

Liquid Shortening

See page 1-28 for JIB or
BIB hose that connects
here.

See page 1-31 for solid
shortening inlet plumbing

ITEM PART # COMPONENT

1087705 Pump, Assy FQG230 ATO, (use 1087706 for FQG330 or larger ATO)

√ 1 1084372 Pump, Shurflo 24VAC (use 1085673 for CE)

2 8103263 Flexline, ½” OD x 36-inch (use 8103375 17-inch for 2-battery) (Out to top off

manifold)

3 8101369 Flexline, ⅝” OD x 17.50-inch (use 8101069 29.50-inch for 2-battery)
4 1083403 Fitting, Shurflo Pump with female end (includes O-rings)
5 1082054 Fitting, Shurflo Pump with male end (includes O-rings)
6 8160782 O-Ring, Viton #111
7 8130940 Elbow, ¼” NPT x ⅜” Flare
8 8130062 Elbow, ½” 90° BM
9 8101668 Adapter, ⅝” to ½” NPT Male

10 8101669 Adapter, Female ⅝” OD x ½”

√ Recommended parts.

1-29

1.12.3 ATO Pump Assembly Bulk

TO OIL RETURN

MANIFOLD

Item 2 connects to a

4

2

check valve before
going into the oil
return manifold

.

1

3

TO BULK OIL MANIFOLD (TO FILL POT)

IN FROM BULK

OIL FILL

COUPLING

18

17

18

14

12

16

20

TO/FROM JIB

19

8

14

21

5

15

14

11

9

7

10

6

INSTALL
O-RINGS
HERE

11

22

23

13

12

ITEM PART # COMPONENT

1087704 Pump, Assy FQG230 Bulk ATO (use 1087702 for FQ330 bulk oil ATO)

√ 1 1084372 Pump, Shurflo 24VAC (use 1085673 for CE)

2 8103263 Flexline, ½” OD x 36-inch (Out to oil check valve and to return manifold) 3, 4 and

5 vats.
8103375 Flexline, ½” OD x 17-inch (Out to oil check valve and to return manifold) 2 vat
* 8100667 Check valve, ½ NPT 1 PSI
3 8101055 Flexline, ⅝” OD x 11.50-inch (Inlet to Top Off Pump)
4 8101369 Flexline, ⅝” OD x 17.50-inch
5 1066830 Solenoid
6 8130940 Elbow, ¼” NPT x ⅜ Flare
7 1083403 Fitting, Shurflo Pump with female end (includes O-rings)
8 8130530 Tee, Reducing ½” x ¼” x ½” (JIB hose connects here)
9 1082054 Fitting, Shurflo Pump with male end (includes O-rings)
10 8160782 O-Ring, Viton #111
11 8130062 Elbow, ½” 90° BM
12 8130165 Elbow, Street ½” x ½” NPT 90° BM
13 8130304 Bushing, BM Flush
14 8101668 Adaptor, Male ⅝” OD x ½”
15 8130838 Nipple, ¼” NPT BM Close
16 8130003 Tee, ½” x ½” x ½” BM
17 8103583 Check Valve ½” NPT 4 PSI
18 8103738 Adapter, Check Valve Close NPT
19 8101669 Adapter, Female ⅞” OD x ½”
20 8130022 Nipple, ½” x Close NPT BM

21 8130537 Nipple, ¼” x 2.00” NPT

22 1069206 Assembly, JIB Reset Button Bracket
23 8074678 Switch, Momentary JIB Reset

* Not illustrated. √ Recommended parts.

1-30

1.12.4 Shortening Melting Unit

ITEM PART # COMPONENT

1084497SP Assy, Heated Shortening 120V (use 1084493 240V) (use 1085585 100V)
1 1084496 Box Assy, Heated Shortening 120V (use 1084492 240V) (use 1085584 100V)
2 1083774 Assembly, Solid Shortening Lid
3 8103957 Pan, Heated Shortening
4 8075321 Strips, Hot Box Heater with controller 120V
8075268 Strips, Hot Box Heater with controller 240V
8075732 Strips, Hot Box Heater with controller 100V
5 8100180 Handle

√

6 8261392 O-Ring (Pkg. of 5)

7 8130568 Plug, ⅛” Socket Head Pipe
8 8238319 Bracket W/A, Shortening Suction 3 battery
9 8101669 Adaptor, Female ⅞” OD x ½”
10 8101055 Flexline, ⅝” OD x 11.5-inch
11 8160782 O-Ring, Viton #111
12 8130908 Adapter, ½” NPT 90°
13 1082054 Fitting, Shurflo Pump with male end (includes O-rings)
14 8071321 Holder, Fuse

√ * 8071555 Fuse 5 Amp 240V
√ * 8072799 Fuse 10 Amp 120V

15 8074036 Switch
* 8071105 Heater Strip Assembly, 120V, 25W 18”
* 8071420 Heater Strip Assembly, 120V, 25W 36”
* 8071472 Heater Strip Assembly, 120V, 40W 56”
* 8071098 Heater Strip Assembly, 240V, 25W 18”
* 8071419 Heater Strip Assembly, 240V, 45W 36”
* 8071473 Heater Strip Assembly, 240V, 70W 56”
* 8071915 Heater Strip Assembly, 100V, 25W 18”
* 8071917 Heater Strip Assembly, 100V, 40W 56”

* Not illustrated. √ Recommended parts.

1-31

1.13 Bulk Oil System Components

1.13.1 Bulk Oil Dispose Waste Valve

ITEM PART # COMPONENT

1086009 Valve, Bulk Dispose Waste FQ
1 1086008 Bracket, FQ Bulk Waste Valve
2 2205899 Handle, Bulk Waste Valve
3 8074936 Microswitch, Gold Sealed
4 8100278 Valve, ½” Ball
5 9002935 Retainer, Nut Return Valve
6 9012348 Cover, DV Safety Switch
7 9022348 Cover, DV Safety Switch
8 8160220 Insulation, RF Switch

1-32

1.13.2 Bulk Oil Manifold and Accessories

1-33

1.13.2 Bulk Oil Manifold and Accessories cont.

ITEM PART # COMPONENT

1 8103531 Valve, Check 20PSI

2 1086009 Valve, Bulk Waste Assembly (see page 1-28 for parts)
3 8101669 Adaptor, Male ⅝” OD x ½”
4 8076105 Harness, Dispose/Pan SW/Bulk
5 8101668 Adaptor, Male ⅝” OD x ½”
6 8101057 Flexline, ⅝” OD x 13-inches long
7 8101055 Flexline, ⅝” OD x 11.50-inches long
8 8101067 Flexline, ⅝” OD x 8.50-inches long
9 8130022 Nipple, ½” x Close NPT BM

10 8130251 Nipple, ½” x 4.50-inches NPT BM (not shown in illustration – connects be-

tween item 17 and item 3)

11 8130087 Nipple, ½” x 1.50-inch NPT BM
12 8103270 Fitting, ⅜” Flare x ¼” NPT
13 8130003 Tee, ½” x ½” x ½” BM
14 8103738 Adaptor, Check Valve Close Nipple
15 8130304 Bushing, ½” x ¼”
16 8103160 Adaptor, ½” NPT x 15/16”
17 8130062 Elbow, ½” BM 90°
18 8100667 Valve, Check ½” NPT 1 PSI Bulk Manifold
19 8237838 Bracket W/A, Gas Bulk Fresh Oil
20 8130298 Nipple, ½” x 2-inches NPT BM
21 8238827 Bracket W/A, FQ Gas Bulk Dispose

1080686SP Handle and Lock Assy, Gas Bulk
22 8090657 Clip, Clevis Right Rod End
23 2205656 Brace, Bulk Handle
24 2205657 Cover, Bulk Handle
25 8237208 Handle, Gas Bulk Waste Pull
26 8103587 Lock, Bulk Waste Handle (includes keys)
27 8130342 Elbow, Street 45° ½” NPT
28 8130463 Plug, ½” NPT

1-34

1.14 Basket Lift Assembly and Associated Parts

1-35

1.14 Basket Lift Assy and Associated Parts cont.

ITEM PART # COMPONENT

Basket Lift Assemblies (see Note 1 in illustration)

A 1087794SP Basket Lift Assy, 100-120VAC Reversing (Items 1-20) shown Use 8263479 for kit

that includes items 1-29.

B 1088010SP Basket Lift Assy, 100-120VAC Non-Reversing (Items 1-20) partially shown

TBD Basket Lift Assy, 200-220VAC w/Relay (Items 1-20) shown

* TBD Basket Lift Assy, 230-250VAC w/Relay (Items 1-20) not shown
1 1084181SP Motor Assy, 100-120VAC Modular Basket Lift

1085031SP Motor Assy, 208-250VAC Modular Basket Lift

2 4060070 PCB Assy, Basket Lift Reversing (only in 1087794 assembly)
3 8072513 Capacitor, 12.5 μFd 330VAC
4 8072572 Microswitch
5 8120442 Insulation, Microswitch
6 Resistor Assy

8068530SP 100-120V Modular Basket Lift (see Note 2 in illustration)
1062770SP 208-220VAC Modular Basket Lift

* 1062771SP 230-250VAC Modular Basket Lift
7 8103141 Sound Device
8 8104855 Rod, Modular BL w/Pin TB (use 8101012 for non-reversing)

9 8130035 Bushing, Bronze
10 8090082 Ring, Bushing Retainer
11 8090810 Clamp, Nylon
12 2209678 Gusset, Basket Lift Motor
13 2410330 Chassis, Left Basket Lift (use 2411379 for non-reversing)
14 2420330 Chassis, Right Basket Lift (use 2421379 for non-reversing)
15 2201415 Plate, Basket Lift Harness
16 8071683 Relay, 12VDC
17 8160862 Tape, 3M VHB 1.00 X 2.00
18 8090129 Screw, 1/4-20 X 5/8 Slotted Round Head
19 1087776 Harness, Reversing Modular BL
20 1087775 Harness, Reverse BL 4-Pin Connector

* WIR1197 Wire Assy, Basket Lift Reverse 100-120VAC

* WIR0166 Wire Assy, Basket Lift Reverse 200-250VAC (used in non-reverse also)
21 1087768 Guide, B/L Arm
22 2401693 Shield, Rear Modular B/L Cover
23 2401694 Cover, FQ4000 Modular B/L (use 2601846 non-reversing)
24 2601474 Cover, Basket Hanger Rivet B/L
25 8090047 Nut, Cap ¼” -20
26 8104852 Pin, ¼” X 1-5/16” Quick Release
27 8104854 Lanyard, w/Ring
28 8239432 Arm, Left Basket Lift Taco Bell (use 8239435 for General Market) (use 8239462

for Arby’s)

29 8239433 Arm, Right Basket Lift Taco Bell (use 8239436 for General Market) (use

8239497 for Arby’s)

* Not illustrated.

1-36

1.15 Oil Quality Sensor (OQS) and Associated Parts

2

7

1

8

2

3

6

4

5

ITEM PART # COMPONENT

8263494 Kit, OQS FilterQuick Gas 2-5 Battery (Kit to add to existing FilterQuick-T

FQG30-T Gas Fryers)

1 8263292 Sensor, FilterQuick OQS Replacement
2 8101369 Flexline, ⅝” OD x 17.50-inch
3 2401385 Retainer, OQS Sensor FQ
4 2401386 Brace, OQS Sensor Mount
5 2401438 Mount, OQS Sensor FQ
6 8122524 Insulation
7 8104167 Lanyard, In-Line Filter
8 2401086 Wrench, Pre-Filter Cap

1-37

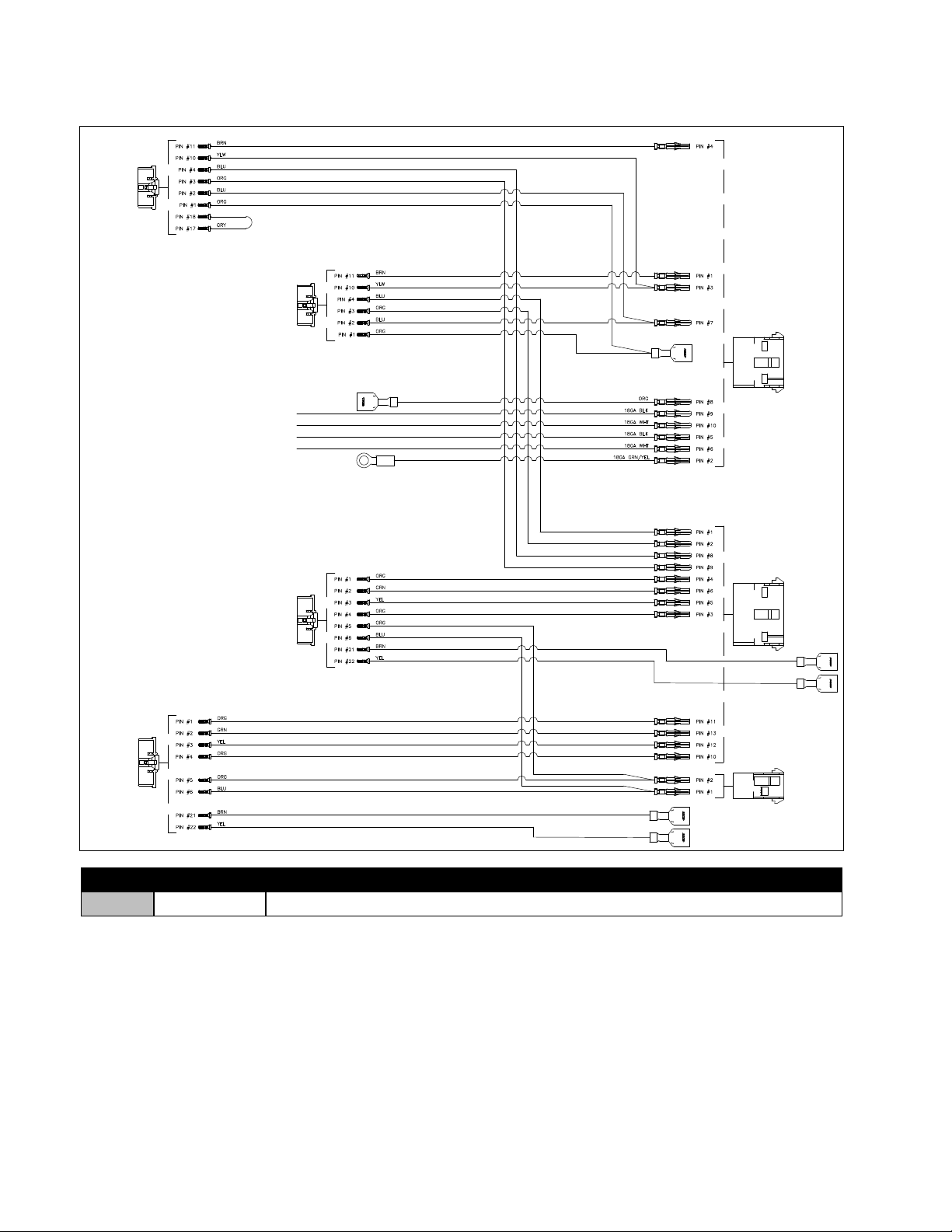

1.16 FilterQuick™ FQG30-T Series Simplified Wiring

1-38

8700LINEAVENUE,SHREVEPORT,LA71106‐6800

FRYMASTER





EMAIL:[e-mail]

WWW.FRYMASTER.COM

800‐551‐8633
318‐865‐1711

WWW.WELBILT.COM

*8197423*



Welbiltprovidestheworld’stopchefs,andpremierchainoperatorsorgrowingindependentswithindustryleadingequipmentandsolutions.
Ourcutting‐edgedesignsandleanmanufacturingtacticsarepoweredbydeepknowledge,operatorinsights,andculinaryexpertise.
AllofourproductsarebackedbyKitchenCare®–ouraftermarket,repair,andparts

CLEVELAND
CONVOTHERM®

©2019 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice.

Part Number FRY_P_8197478 06/2019



DELFIELD®
FITKITCHEN™



FRYMASTER®
GARLAND



KOLPAK®
LINCOLN

service.



MANITOWOC®
MERCO®



MERRYCHEF®
MULTIPLEX®
