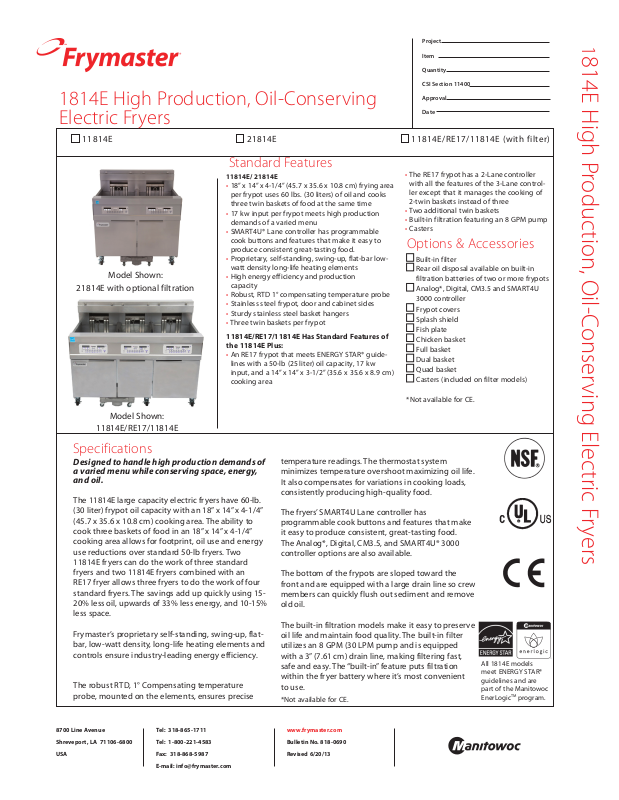

Frymaster 21814E User Manual

Project

Item

Quantity

CSI Section 11400

1814E High Production, Oil-Conserving

Approval

Date

Electric Fryers

11814E 21814E 11814E/RE17/11814E (with filter)

1814E High Production, Oil-Conserving Electric Fryers

Standard Features

11814E/ 21814E

• 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) frying area

per frypot uses 60 lbs. (30 liters) of oil and cooks
three twin baskets of food at the same time

• 17 kw input per frypot meets high production

demands of a varied menu

• SMART4U® Lane controller has programmable

cook buttons and features that make it easy to
produce consistent great-tasting food.

• Proprietary, self-standing, swing-up, flat-bar low-

Model Shown:

21814E with optional filtration

watt density long-life heating elements

• High energy efficiency and production

capacity

• Robust, RTD 1° compensating temperature probe

• Stainless steel frypot, door and cabinet sides

• Sturdy stainless steel basket hangers

• Three twin baskets per frypot

11814E/RE17/11814E Has Standard Features of
the 11814E Plus:

• An RE17 frypot that meets ENERGY STAR® guide-

lines with a 50-lb (25 liter) oil capacity, 17 kw
input, and a 14” x 14” x 3-1/2” (35.6 x 35.6 x 8.9 cm)
cooking area

Model Shown:

11814E/RE17/11814E

Specifications

Designed to handle high production demands of
a varied menu while conserving space, energy,
and oil.

The 11814E large capacity electric fryers have 60-lb.
(30 liter) frypot oil capacity with an 18” x 14” x 4-1/4”
(45.7 x 35.6 x 10.8 cm) cooking area. The ability to
cook three baskets of food in an 18” x 14” x 4-1/4”
cooking area allows for footprint, oil use and energy
use reductions over standard 50-lb fryers. Two
11814E fryers can do the work of three standard
fryers and two 11814E fryers combined with an
RE17 fryer allows three fryers to do the work of four
standard fryers. The savings add up quickly using 15­20% less oil, upwards of 33% less energy, and 10-15%
less space.

Frymaster’s proprietary self-standing, swing-up, flat­bar, low-watt density, long-life heating elements and
controls ensure industry-leading energy efficiency.

The robust RTD, 1° Compensating temperature
probe, mounted on the elements, ensures precise

• The RE17 frypot has a 2-Lane controller

with all the features of the 3-Lane control­ler except that it manages the cooking of
2-twin baskets instead of three

• Two additional twin baskets

• Built-in filtration featuring an 8 GPM pump

• Casters

Options & Accessories

Built-in filter

Rear oil disposal available on built-in

filtration batteries of two or more frypots

Analog*, Digital, CM3.5 and SMART4U

3000 controller

Frypot covers
Splash shield
Fish plate
Chicken basket
Full basket
Dual basket
Quad basket
Casters (included on filter models)

*Not available for CE.

temperature readings. The thermostat system
minimizes temperature overshoot maximizing oil life.
It also compensates for variations in cooking loads,
consistently producing high-quality food.

The fryers’ SMART4U Lane controller has
programmable cook buttons and features that make
it easy to produce consistent, great-tasting food.
The Analog*, Digital, CM3.5, and SMART4U® 3000
controller options are also available.

The bottom of the frypots are sloped toward the
front and are equipped with a large drain line so crew
members can quickly flush out sediment and remove
old oil.

The built-in filtration models make it easy to preserve
oil life and maintain food quality. The built-in filter
utilizes an 8 GPM (30 LPM pump and is equipped
with a 3” (7.61 cm) drain line, making filtering fast,
safe and easy. The “built-in” feature puts filtration
within the fryer battery where it’s most convenient
to use.

*Not available for CE.

All 1814E models
meet ENERGY STAR®
guidelines and are
part of the Manitowoc

TM

EnerLogic

program.

8700 Line Avenue

Shreveport, LA 71106-6800

USA

Tel: [phone]

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

www.frymaster.com

Bulletin No. 818-0690

Revised 6/20/13

2.3

[59]

CORD

LOCATION

15.0

[381]

CORD LOCATION

(73.7)

52-1/2”
(133.4)

65-1/2”
(166.4)

D

42”

(106.7)

42”

(106.7)

42”

(106.7)

H

55”

(139.7)

55”

(139.7)

55”

(139.7)

DIMENSIONS

FILTER PAN

MODEL NO.

11814E

21814E

11814E/RE17/11814E
(w/filter)

FRONT VIEW

OIL

CAPACITY

60 lbs.

(30 liters)

60 lbs.

(30 liters)

each frypot

11814E

60 lbs.

(30 liters)

each frypot

RE17

50 lbs.

(25 liters)

2.3

[59]

CORD

LOCATION

21.8

TOP VIEW

56.2

[1428]

BASKET
HANGER

36.0

[914]

3" ADJ. SWIVEL CASTERS
FRONT AND REAR

DRAIN
HEIGHT

11.5

[293]

OVERALL SIZE cm

WIDTH DEPTH HEIGHT WEIGHT CLASS CU. FT. DIMENSIONS cm

20”

(50.8)

40”

(101.6)

56-1/4”

(142.8 cm)

30-7/8

(78.4)

30-7/8

(78.4)

30-7/8

(78.4)

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

CORD LOCATION

DRAIN

HEIGHT

14-5/8”

(37.2 cm)

11-1/2”

(29.2 cm)

11-1/2”

(29.2 cm)

[554]

SIDE VIEW

30.8

[783]

6.4

[163]

w/o filter

255 lbs.

(116 kg)

w/filter
390 lbs.

(177 kg)

w/o filter

510 lbs.

(231 kg)

645 lbs.

(293 kg)

907 lbs.

(411 kg)

REAR VIEW

45.3

[1150]

6.4

[162]

SHIPPING INFORMATION

85 39.6W29”

77.5 70.2

77.5 88.6

POWER REQUIREMENTS

BASIC DOMESTIC

11814E 17

RE17 17

BASIC EXPORT

11814E 17

RE17 17

*3 PH/3 Wire/Plus Ground Wire

HOW TO SPECIFY

11814E** One Frymaster 60-lb (30 liter) oil capacity electric fryer with 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) cooking area and SMART4U lane controller.
21814E** Two Frymaster 60-lb (30 liter) oil capacity electric fryers with 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) cooking areas, SMART4U lane controllers.
11814E/RE17/11814E Two Frymaster 60-lb (30 liter) oil capacity electric fryers with 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm)) cooking areas, one Frymaster 50-lb oil capacity

**Add built-in filtration for filter models.

8700 Line Avenue

Shreveport, LA 71106-6800

USA

kw ELEMENTS/FRYPOT CONTROLS/

VOLTAGE 3 PHASE*

208V

240V
480V

208V

240V
480V

220V/380V
230V/400V
240V/415V

220V/380V
230V/400V
240V/415V

electric fryer with 14” x 14” x 3-1/2” (35.6 x 35.6 x 8.9 cm) cooking area, SMART4U lane controllers and built-in ltration.

Tel: [phone]

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

48 A

41 A
21 A

48 A

41 A
21 A

26 A
25 A
24 A

26 A
25 A
24 A

FRYPOT

1 A
1 A

120 V 1 A

1 A
1 A

120V 1 A

1 A
1 A
1 A

1 A
1 A
1 A

FILTER

5 A
4 A

120V 8 A

5 A
4 A

120V 8 A

4 A
4 A
4 A

4 A
4 A
4 A

www.frymaster.com

Bulletin No. 818-0690

Revised 6/20/13

Litho in U.S.A. ©Frymaster

NOTES

• Cord is provided with exception of items in red (see

chart on left).

• Plug is optional on all units shipped with a cord.

Canada is an exception; and cords, where available,
must have a plug attached.

• All 480 volt models are provided with a separate 120

volt cord and plug for lter pump and/or controller.

CLEARANCE INFORMATION

A minimum of 24” (61 cm) should be provided at the
front of the unit for servicing and proper operation, 6”
(15.2 cm) between the sides and rear of the fryer to any
combustible material.

1814E High Production, Oil-Conserving Electric Fryers

Model #_______________

CSI Section 11400

We reserve the right to change specications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
Check www.frymaster.com for updates.
