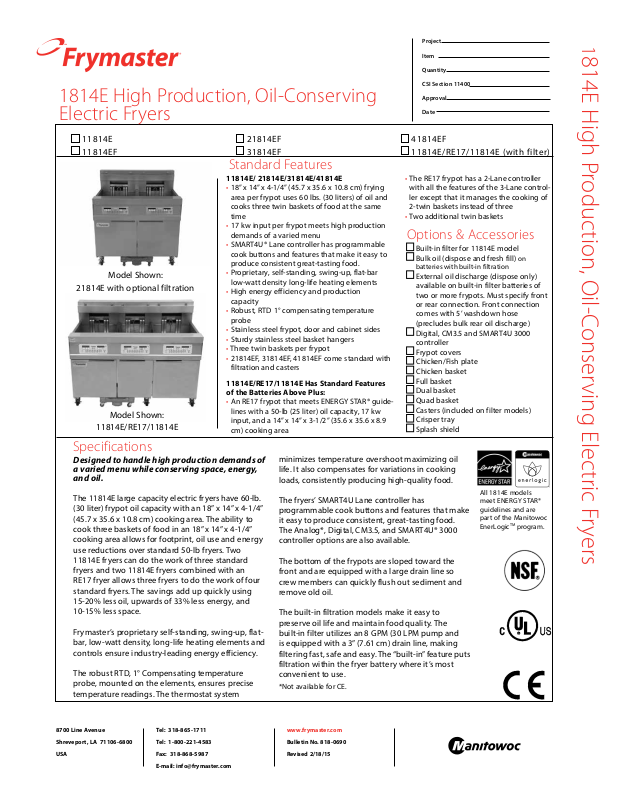

Frymaster 41814EF, 11814ERE1711814E Specifications

1814E High Production, Oil-Conserving
Electric Fryers

Project

Item

Quantity

CSI Section 11400

Approval

Date

1814E High Production, Oil-Conserving Electric Fryers

11814E
11814EF

Model Shown:

21814E with optional filtration

Model Shown:

11814E/RE17/11814E

21814EF
31814EF

Standard Features

11814E/ 21814E/31814E/41814E

• 18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) frying

area per frypot uses 60 lbs. (30 liters) of oil and
cooks three twin baskets of food at the same
time

• 17 kw input per frypot meets high production

demands of a varied menu

• SMART4U® Lane controller has programmable

cook buttons and features that make it easy to
produce consistent great-tasting food.

• Proprietary, self-standing, swing-up, flat-bar

low-watt density long-life heating elements

• High energy efficiency and production

capacity

• Robust, RTD 1° compensating temperature

probe

• Stainless steel frypot, door and cabinet sides

• Sturdy stainless steel basket hangers

• Three twin baskets per frypot

• 21814EF, 31814EF, 41814EF come standard with

filtration and casters

11814E/RE17/11814E Has Standard Features
of the Batteries Above Plus:

• An RE17 frypot that meets ENERGY STAR® guide

lines with a 50-lb (25 liter) oil capacity, 17 kw
input, and a 14” x 14” x 3-1/2” (35.6 x 35.6 x 8.9
cm) cooking area

41814EF
11814E/RE17/11814E (with filter)

• The RE17 frypot has a 2-Lane controller

with all the features of the 3-Lane control­ler except that it manages the cooking of
2-twin baskets instead of three

• Two additional twin baskets

Options & Accessories

Built-in filter for 11814E model
Bulk oil (dispose and fresh fill) on

batteries with built-in filtration

External oil discharge (dispose only)

available on built-in filter batteries of
two or more frypots. Must specify front
or rear connection. Front connection
comes with 5’ washdown hose
(precludes bulk rear oil discharge)

Digital, CM3.5 and SMART4U 3000

controller
Frypot covers
Chicken/Fish plate
Chicken basket
Full basket
Dual basket
Quad basket

­ Casters (included on filter models)

Crisper tray
Splash shield

Specifications

Designed to handle high production demands of
a varied menu while conserving space, energy,
and oil.

The 11814E large capacity electric fryers have 60-lb.
(30 liter) frypot oil capacity with an 18” x 14” x 4-1/4”
(45.7 x 35.6 x 10.8 cm) cooking area. The ability to
cook three baskets of food in an 18” x 14” x 4-1/4”
cooking area allows for footprint, oil use and energy
use reductions over standard 50-lb fryers. Two
11814E fryers can do the work of three standard
fryers and two 11814E fryers combined with an
RE17 fryer allows three fryers to do the work of four
standard fryers. The savings add up quickly using
15-20% less oil, upwards of 33% less energy, and
10-15% less space.

Frymaster’s proprietary self-standing, swing-up, flat­bar, low-watt density, long-life heating elements and
controls ensure industry-leading energy efficiency.

The robust RTD, 1° Compensating temperature
probe, mounted on the elements, ensures precise
temperature readings. The thermostat system

8700 Line Avenue

Shreveport, LA 71106-6800

USA

Tel: [phone]

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

minimizes temperature overshoot maximizing oil
life. It also compensates for variations in cooking
loads, consistently producing high-quality food.

The fryers’ SMART4U Lane controller has
programmable cook buttons and features that make
it easy to produce consistent, great-tasting food.
The Analog*, Digital, CM3.5, and SMART4U® 3000
controller options are also available.

The bottom of the frypots are sloped toward the
front and are equipped with a large drain line so
crew members can quickly flush out sediment and
remove old oil.

The built-in filtration models make it easy to
preserve oil life and maintain food quality. The
built-in filter utilizes an 8 GPM (30 LPM pump and
is equipped with a 3” (7.61 cm) drain line, making
filtering fast, safe and easy. The “built-in” feature puts
filtration within the fryer battery where it’s most
convenient to use.

*Not available for CE.

www.frymaster.com

Bulletin No. 818-0690

Revised 2/18/15

All 1814E models
meet ENERGY STAR®
guidelines and are
part of the Manitowoc

TM

EnerLogic

program.

1814E High Production, Oil-Conserving Electric Fryers

DIMENSIONS

MODEL NO. OIL CAPACITY

11814E/
11814EF

21814EF

31814EF

41814EF

11814E/
RE17/11814E
(w/filter)

POWER REQUIREMENTS

Model #_______________

CSI Section 11400

BASIC DOMESTIC

11814E 17

RE17 17

BASIC EXPORT

11814E 17

RE17 17

*3 PH/3 Wire/Plus Ground Wire

8700 Line Avenue

Shreveport, LA 71106-6800

USA

TOP VIEW

56.2

[1428]

FILTER PAN

FRONT VIEW

OVERALL SIZE (cm)

WIDTH DEPTH HEIGHT WEIGHT CLASS CU. FT. DIMENSIONS (cm)

60 lbs.

(30 liters)

60 lbs.

(30 liters)

each frypot

60 lbs.

(30 liters)

each frypot

60 lbs.

(30 liters)

each frypot

11814E

60 lbs. (30 liters)

each frypot

RE17

50 lbs. (25 liters)

kw ELEMENTS/FRYPOT CONTROLS/

VOLTAGE 3 PHASE*

208V

240V
480V

208V

240V
480V

220V/380V
230V/400V
240V/415V

220V/380V
230V/400V
240V/415V

20”

(50.8)

40”

(101.6)

60”

(152.4)

80”

(203.2)

56-1/4”

(142.8 cm)

48 A

41 A
21 A

48 A

41 A
21 A

26 A
25 A
24 A

26 A
25 A
24 A

30-7/8

(78.4)

30-7/8

(78.4)

30-7/8

(78.4)

30-7/8

(78.4)

30-7/8

(78.4)

FRYPOT

120 V 1 A

120V 1 A

Tel: [phone]

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

1 A
1 A

1 A
1 A

1 A
1 A
1 A

1 A
1 A
1 A

BASKET
HANGER

3" ADJ. SWIVEL CASTERS
FRONT AND REAR

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

45-3/8”

(114.9 cm)

FILTER

5 A
4 A

120V 8 A

5 A
4 A

120V 8 A

4 A
4 A
4 A

4 A
4 A
4 A

2.3

[59]

CORD

2.3

[59]

CORD

LOCATION

36.0

[914]

DRAIN

HEIGHT

14-5/8”

(37.2 cm)

11-1/2”

(29.2 cm)

11-1/2”

(29.2 cm)

11-1/2”

(29.2 cm)

11-1/2”

(29.2 cm)

DRAIN
HEIGHT

11.5

[293]

21.8

[554]

CORD LOCATION

30.8

[783]

[163]

SIDE VIEW

w/o filter

255 lbs. (116 kg)

w/filter

390 lbs. (177 kg)

w/filter

645 lbs. (293 kg)

w/filter

900 lbs. (408 kg)

w/filter

1,155 lbs. (524 kg)

w/filter
907 lbs.

(411 kg)

REAR VIEW

6.4

45.3

[1150]

6.4

[162]

SHIPPING INFORMATION

85 39.7W29”

77.5 68.3

77.5 88.2

77.5 111

77.5 88.2

LOCATION

15.0

[381]

CORD LOCATION

(73.7)

53”

(134.6)

66”

(167.6)

83”

(209.5)

66”

(167.6)

NOTES

• Cord is provided with exception of items in red (see chart on left).

• Plug is optional on all units shipped with a cord. Canada is an exception; and cords,
where available, must have a plug attached.

• All 480 volt models are provided with a separate 120 volt cord and plug for lter
pump and/or controller.

CLEARANCE INFORMATION

A minimum of 24” (61 cm) should be provided at the front of the unit for servicing
and proper operation, 6” (15.2 cm) between the sides and rear of the fryer to any
combustible material.

HOW TO SPECIFY

The following descriptions will assist with ordering the features desired for this
equipment.
**11814E*** One Frymaster 60-lb (30 liter) oil capacity electric fryer with

11814E/RE17 /11814E Two Frymaster 60-lb (30 liter) oil capacity electric fryers with

**Indicates number of frypots (1, 2, 3 or 4)
***Add built-in filtration for filter models.

18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm) cooking area and
SMART4U lane controller.

18” x 14” x 4-1/4” (45.7 x 35.6 x 10.8 cm)) cooking areas, one
Frymaster 50-lb oil capacity electric fryer with 14” x 14” x 3-1/2”
(35.6 x 35.6 x 8.9 cm) cooking area, SMART4U lane controllers
and built-in ltration.

www.frymaster.com

Bulletin No. 818-0690

Revised 2/18/15

Litho in U.S.A. ©Frymaster

D

43”

(109)

42”

(106.7)

42”

(106.7)

42”

(106.7)

42”

(106.7)

H

55”

(139.7)

53”

(134.6)

55”

(139.7)

55”

(139.7)

55”

(139.7)

We reserve the right to change specications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
Check www.frymaster.com for updates.
