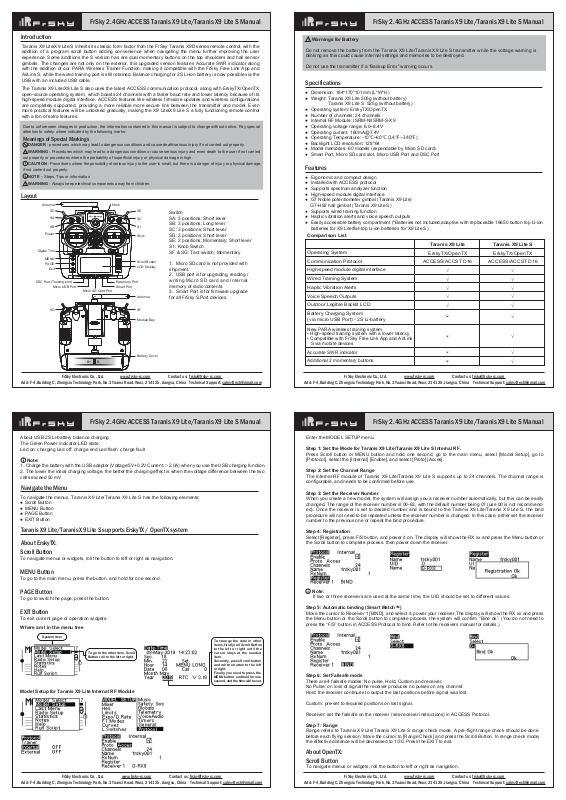

Introduction

Taranis X9 Lite/X9 Lite S inherits its classic form factor from the FrSky Taranis X9D series remote control, with the
addition of a program scroll button adding convenience when navigating the menu further improving the user
experience. Some additions the S version has are dual momentary buttons on the top shoulders and hall sensor

gimbals. The changes are not only on the exterior, this upgraded version features Accurate SWR indicator along
with the addition of our PARA Wireless Trainer Function, making it compatible with the FrSky Free Link App and

AirLink S, while the wired training port is still retained. Balance charging for 2S Li-ion battery is now possible via the
USB with an included USB cable.

The Taranis X9 Lite/X9 Lite S also uses the latest ACCESS communication protocol, along with ErskyTX/OpenTX
open-source operating system, which boasts 24 channels with a faster baud rate and lower latency because of its

high-speed module digital interface. ACCESS features like wireless firmware updates and wireless configurations
are completely supported, providing a more reliable more secure link between the transmitter and model. Even
more practical features will be unlocked gradually, making the X9 Lite/X9 Lite S a fully functioning remote control
with a ton of extra features.

Due to unforeseen changes in production, the information contained in this manual is subject to change without notice. Pay spec ial
attention to safety where indicated by the following marks:

Meanings of Special Markings

DANGER - procedures which may lead to dangerous conditions and cause death/serious injury if not carried out properly.

WARNING - Procedures which may lead to a dangerous condition or cause serious injury and even death to the user if not carried
out properly or procedures where the probability of superficial injury or physical damage is high.

CAUTION - Procedures where the possibility of serious injury to the user is small, but there is a danger of injury or physical damage,
if not carried out properly.

NOTE – Steps, Tips or information

WARNING - Always keep electrical components away from children.

Layout

Antenna

SD SE

SA

SB

Power

Digital Trim

MENU

PAGE

Exit

Micro USB Port

Micro SD Card Port

B+ B-

Hook

Earphone PortDSC Port (Training port)
Smart Port

SC

S1

Stick

Scroll Button

LCD Display

Antenna

SFSG

Module Bay

Battery Cover

Switch
SA: 3 positions; Short lever
SB: 3 positions; Long lever
SC: 3 positions; Short lever
SD: 2 positions; Short lever
SE: 2 positions; Momentary; Short lever
S1: Knob Switch
SF & SG: Tact switch; Momentary

1. Micro SD card is not provided with
shipment.

2. USB port is for upgrading, reading /
writing Micro SD card and internal
memory of radio contents.

3. Smart Port is for firmware upgrade
for all FrSky S.Port devices.

Warnings for Battery

Do not remove the battery from the Taranis X9 Lite/Taranis X9 Lite S transmitter while the voltage warning is
blinking as this could cause internal settings and memories to be destroyed.

Do not use the transmitter if a “Backup Error” warning occurs.

Specifications

● Dimension: 184*170*101mm (L*W*H)

● Weight: Taranis X9 Lite 505g (without battery)

Taranis X9 Lite S 525g (without battery)

● Operating system: ErskyTX/OpenTX

● Number of channels: 24 channels

● Internal RF Module: ISRM-N/ISRM-S-X9

● Operating voltage range: 6.0~8.4V

● Operating current: 160mA@7.4V

● Operating Temperature: -10℃~60℃ (14℉~140℉)

● Backlight LCD resolution: 128*64

● Model memories: 60 models (expandable by Micro SD card)

● Smart Port, Micro SD card slot, Micro USB Port and DSC Port

Features

●

Ergonomic and compact design

● Installed with ACCESS protocol

● Supports spectrum analyzer function

● High-speed module digital interface

● G7 Noble potentiometer gimbal
G7-H92 hall gimbal

(Taranis X9 Lite S)

● Supports wired training function

● Haptic vibration alerts and voice speech outputs

● Easily accessible battery compartment (*Batteries not included,adaptive with replaceable 18650 button top Li-ion

batteries for X9 Lite/flat-top Li-ion batteries for X9 Lite S)

Comparison List

Operating System

Communication Protocol

High-speed module digital interface

Wired Training System

Haptic Vibration Alerts

Voice Speech Outputs

Outdoor Legible Backlit LCD

Battery Charging System
(via micro USB Port) - 2S Li-battery

New PARA wireless training system

• High-speed training system with a lower latency

• Compatible with FrSky Free Link App and AirLink

S via mobile devices

Accurate SWR indicator

Additional 2 momentary buttons

(Taranis X9 Lite)

Taranis X9 Lite

ErskyTX/OpenTX

ACCESS/ACCST D16

√

√

√

√

√

×

×

×

Taranis X9 Lite S

ErskyTX/OpenTX

ACCESS/ACCST D16

√

√

√

√

√

√

√

√×

√

FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [e-mail]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [e-mail]

About USB 2S Li-battery balance charging :
The Green Power indicator LED state:
Led on: charging Led off: charge end Led flash: charge fault

Note:

1. Charge the battery with the USB adapter (Voltage:5V+0.2V Current:＞2.0A) when you use the USB charging function.

2. The lower the initial charging voltage, the better the charging effect is when the voltage difference between the two

cells exceed 50 mV

Navigate the Menu

To navigate the menus,

● Scroll Button

● MENU Button

● PAGE Button

● EXIT Button

Taranis X9 Lite/Taranis X9 Lite S

has the following elements:

Taranis X9 Lite/Taranis X9 Lite S supports ErskyTX / OpenTX system

About ErskyTX:
Scroll Button

To navigate menus or widgets, roll the button to left or right as navigation.

MENU Button

To go to the main menu, press the button, and hold for one second.

PAGE Button

To go to switch the page, press the button.

EXIT Button

To exit current page or operation widgets.

Where am I in the menu tree

System item

To go to the other item, Scroll
Button roll to the left or right.

Model Setup for Taranis X9 Lite Internal RF Module

FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [e-mail]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [e-mail]

To change the data in other
items, firstly roll Scroll Button
to the left or right until the
cursor stays at the needed
item.
Secondly, press Scroll button
and roll the button to the left
or right.
Finally, you need to press the
MENU button and hold for one
second, and the time will be set.

FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [e-mail]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [e-mail]

FrSky 2.4GHz ACCESS Taranis X9 Lite/Taranis X9 Lite S Manual FrSky 2.4GHz ACCESS Taranis X9 Lite/Taranis X9 Lite S Manual

Enter the MODEL SETUP menu.

Step 1: Set the Mode for Taranis X9 Lite/Taranis X9 Lite S Internal RF.

Press Scroll button or MENU button and hold one second, go to the main menu, select [Model Setup], go to
[Protocol], select the [Internal] [Enable], and select [Proto] [Acces].

Step 2: Set the Channel Range

The Internal RF module of Taranis X9 Lite/Taranis X9 Lite S supports up to 24 channels. The channel range is
configurable, and needs to be confirmed before use.

Step 3: Set the Receiver Number

When you create a new model, the system will assign you a receiver number automatically, but this can be easily
changed. The range of the receiver number is 00-63, with the default number being 01 (use 00 is not recommend­ed). Once the receiver is set to desired number and is bound to the Taranis X9 Lite/Taranis X9 Lite S, the bind
procedure will not need to be repeated unless the receiver number is changed. In this case, either set the receiver

number to the previous one or repeat the bind procedure.

Step 4: Registration

Select [Register], press F/S button, and power it on, The display will show the RX xx and press the Menu button or

the Scroll button to complete process. then power down the receiver.

Note:

If two or three receivers are used at the same time, the UID should be set to different values.

Step 5: Automatic binding (Smart Match )

Move the cursor to Receiver 1 [BIND], and select it, power your receiver,The display will show the RX xx and press

the Menu button or the Scroll button to complete process. the system will confirm “Bind ok”. (You do not need to

press the “F/S” button in ACCESS Protocol to bind. Refer to the receivers manual for details.)

Step 6: Set Failsafe mode

There are 4 failsafe modes: No pulse, Hold, Custom and receiver.

No Pulse: on loss of signal the receiver produces no pulses on any channel.
Hold: the receiver continues to output the last positions before signal was lost.

Custom: pre-set to required positions on lost signal.

Receiver: set the failsafe on the receiver (see receiver instructions) in ACCESS Protocol.

Step 7: Range

Range refers to Taranis X9 Lite/Taranis X9 Lite S range check mode. A pre-flight range check should be done
before each flying session. Move the cursor to [Range Check] and press the Scroll Button. In range check mode,
the effective distance will be decreased to 1/30. Press the EXIT to exit.

About OpenTX:

Scroll Button

To navigate menus or widgets, roll the button to left or right as navigation.

FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [e-mail]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [e-mail]

TM
