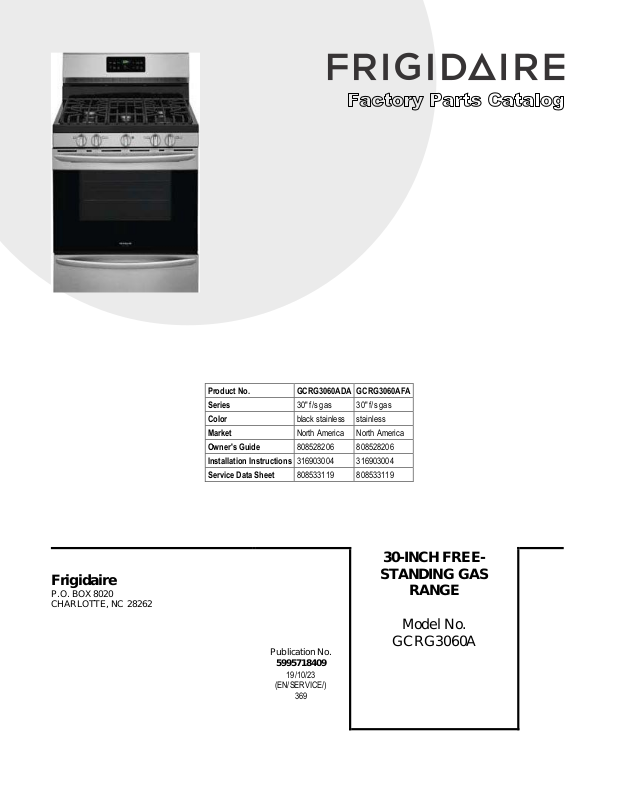

Page 1
GCRG3060AF.jpg CGRG3060ADA.wmf BLGGF3046TDA.wmf VFGGF3059TFE.wmf
TFGGF3047TFB.wmf DFGGF3036TFA.wmf
Product No.
GCRG3060ADA
GCRG3060AFA
Series
30" f/s gas
30" f/s gas
Color
black stainless
stainless
Market
North America
North America
Owner's Guide
808528206
808528206
Installation Instructions
316903004
316903004
Service Data Sheet
808533119
808533119
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995718409
19/10/23
(EN/SERVICE/)
369
30-INCH FREE-
STANDING GAS
RANGE
Model No.
GCRG3060A
Page 2
Publication No: 5995718409 GCRG3060A
BACKGUARD
10/19 2
Page 3
GCRG3060A Publication No: 5995718409
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316281802 A B Shield, backguard, rear wall
2 5304508980 A B Shield, backguard, inner
15 5304493644 A B Cap, end, black, RH
15A 5304493646 A B Cap, end, black, LH
19 5304509142 A - Panel, backguard, black stainless
19 5304509890 - B Panel, backguard, stainless
20 # 5304523299 A B Control, electronic, voltron
35 316354300 A B Shield, heat, knob
36 5304509240 A - Knob, top valve, black stainless
36 5304509929 - B Knob, top valve, stainless
40 316606127 A - Panel-manifold, black stainless
40 316606126 - B Panel-manifold, stainless
42 808754601 A B Deflector, backguard
56 316230708 A B Shield, backguard, inner
97 # 5304516862 A B Board, pc, oven relay
* # 5304523296 A B Harness, communication
* # 5304522013 A B Harness, OVC3
* 316457000 A B Retainer, wire, p-lock, stick on
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 3 10/19
* Non-Illustrated Parts
Page 4
Publication No: 5995718409 GCRG3060A
BURNER
10/19 4
Page 5
GCRG3060A Publication No: 5995718409
BURNER
POS. NO PART NO. DESCRIPTION
1 # 5304513540 A B Manifold, pipe
2 # 5304506550 A B Valve, top burner, white stem, 1500BTU
2A # 5304506547 A B Valve, top burner, black stem, 500BTU
2B # 5304506549 A B Valve, top burner, blue stem, 1125BTU
2C # 5304506548 A B Valve, top burner, green stem, 850BTU
2D # 5304506551 A B Valve, top burner, pink stem, 2500BTU
* 316215600 A B Screw, valve mtg., 1/4 - 20
3 # 5304522037 A B Harness, ignition
8 # 808608804 A B Spark Module
8* 316001003 A B Screw, ground wire
8* 5304505563 A B Wire, ground, spark module, w/connector
10 # 316438401 A B Burner, sealed, 17K
10A# 316438201 A B Burner, sealed, 5K
10B# 316438601 A B Burner, sealed, 14/12K
10C# 316558301 A B Burner, sealed, 9.5K
10D# 316559301 A B Burner, sealed, 9.5K, oval
11 # 316536625 A B Ignitor/orifice assy .,, top burner, right front, 18K, w/tube & holder
11A# 316536610 A B Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube
11B# 316536616 A B Ignitor/orifice assy., top burner, left rear, 14K, w/holder, tube
11C# 316536602 A B Ignitor/orifice assy., top burner, left front, 9.5K, w/holder, tube
11D# 316536623 A B Ignitor/orifice assy., top burner, center, 9.5K, w/holder & tube
12 316540900 A B Screw, burner, head mtg, (8)
13 316489101 A B Tube-manifold supply
14 # 316091711 A B Regulator, pressure
14* 316021104 A B Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt
15 316091600 A B Bracket, regulator
16 5304507348 A B Tube, valve-regulator, 3/8
17 # 316031501 A B Valve, safety
17* 316498100 A B Shield, wire, safety valve
18 # 316404400 A B Burner, oven
19 # 5304506545 A B Ignitor, broiler
19* 316401500 A B Cover, broil Ignitor
20 5304519024 A B Baffle, oven burner
21 5303013272 A B Nut, hex head sems
22 5304507768 A B Tube, valve-mixer, 3/8
23 # 316404302 A B Burner, broiler
24 # 5304516894 A B Elbow, mixer
* 297174300 A B Screw, self pierce, #8, 18x.63
25 5304497666 A B Baffle, broiler
26 # 5304508786 A B Ignitor, bake
37 316240600 A B Screw, assy mtg, (8), ignitor/orifice
44 # 316527510 A B Orifice, top burner, 18K
44A# 316527504 A B Orifice, burner, 5K
44B# 316527511 A B Orifice, burner, 14K
44C# 316527500 A B Orifice, burner, 9.5K
47 # GRLP4 - - LP Conversion Kit, w/instructions, Optional, accessory
* # 5304494425 A B Harness, ignitor module
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 5 10/19
* Non-Illustrated Parts
Page 6
Publication No: 5995718409 GCRG3060A
BODY
10/19 6
Page 7
GCRG3060A Publication No: 5995718409

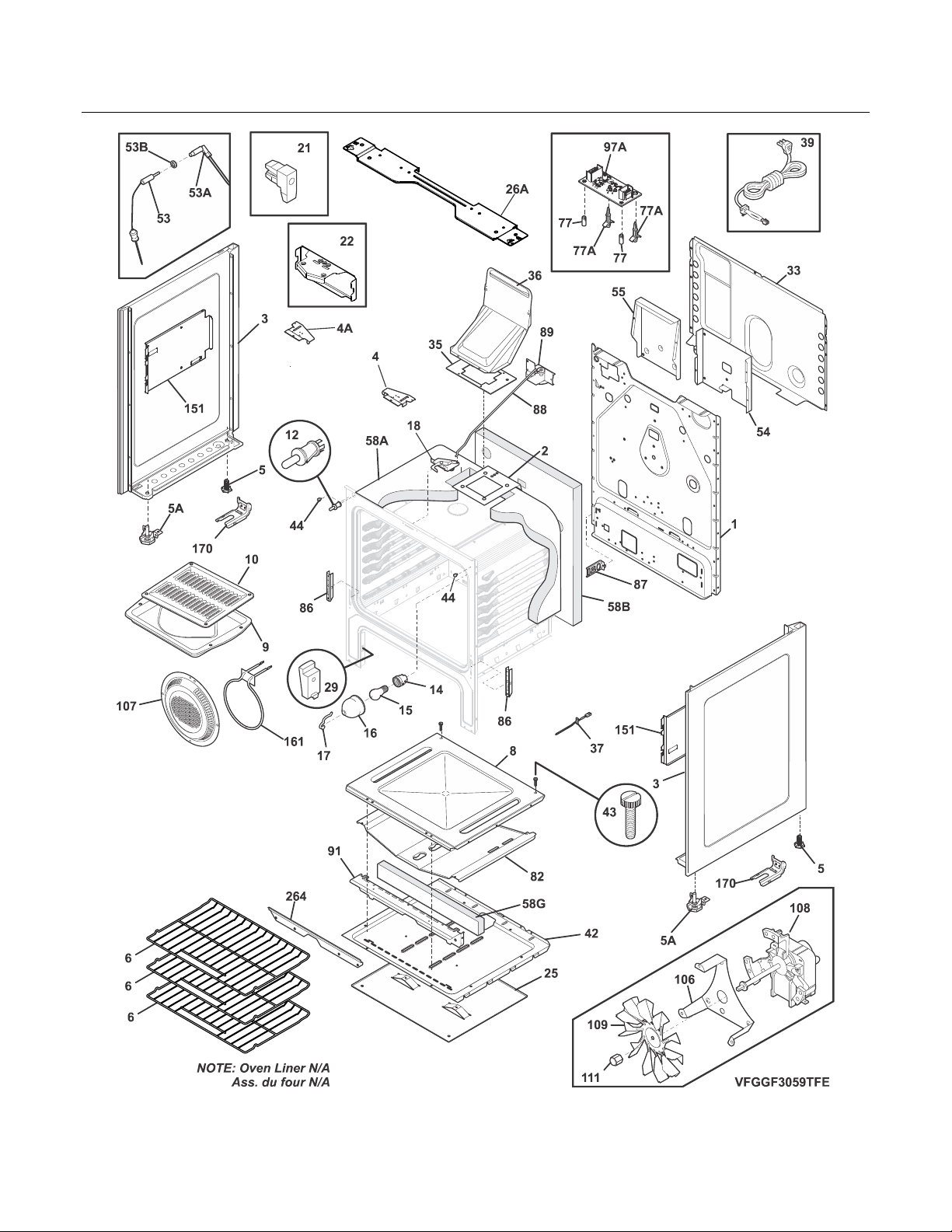

BODY
POS. NO PART NO. DESCRIPTION
1 316401608 A B Back, main
* 316089500 A B Screw, 10-16 x .486
2 316437100 A B Brace, oven top
3 316400136 A B Panel, bodyside, black, RH
3 316400137 A B Panel, bodyside, black, LH
4 316605400 A B Bracket-maintop, RH
4A 316605401 A B Bracket-maintop, LH
5 316272900 A B Screw, leveling, plastic, rear, (2)
5A 5304509869 A B Leveling Leg Assy, metal, front, (2), bracket & leg
* 316021132 A B Screw, 8-18 X 11/16, black, (3)
6 316498003 A B Rack, oven
8 316400603 A B Panel, oven bottom
9 316081900 - - Pan, broilerOPTIONAL ACCESS0RY
10 316082000 - - Insert, broiler panOPTIONAL ACCESS0RY
12 316445500 A B Switch, oven light, door frame
14 316116400 A B Receptacle, oven light
15 316538901 A B Lamp, oven light
16 318406100 A B Lens, oven light, glass
17 316087500 A B Retainer, lens
18 # 316405800 A B Latch Assembly, oven door
* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black, 44*
21 316408000 A B Clip, bodyside
22 316286300 A B Bracket-bodyside, (2)
25 316406200 A B Shield, heat, lower
26A 316498200 A B Bracket-support, chassis, aluminum
33 316402500 A B Shield, rear wall
35 316542102 A B Gasket-flue
36 316208901 A B Flue
37 # 316490000 A B Probe, oven temp
39 # 5304509199 A B Cord, electric power, black
* 316001003 A B Screw, ground wire
* 316418901 A B Screw, trilobe, 10-32 x 5/16", black
42 316400700 A B Shield, wool, lower
43 3131732 A B Screw, 8-18 x 1.438, oven bottom
44 316517600 A B Bumper, front, main
53 # 5304516490 A B Probe, meat, black
53A# 5304516901 A B Receptacle, meat probe
53B 316247700 A B Nut, mounting
53B* 316534100 A B Washer, flat, meat probe
54 5304512756 A B Sheild, igniter heat
* 316260800 A B Screw-shoulder, w/shoulder, #8-18 x 1/2"
55 5304510473 A B Shield, flue
58A 316403700 A B Insulation, oven wrapper
58B 316403600 A B Insulation, oven back
58G 08067973 A B Insulation, main front
77 316247900 A B Spacer, power board
* 5303289910 A B Screw, truss sqdr, 8A x 1", 62*
77A 316114100 A B Spacer
82 316400801 A B Shield, bake burner
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 7 10/19
* Non-Illustrated Parts
Page 8
Publication No: 5995718409 GCRG3060A
BODY
10/19 8
Page 9
GCRG3060A Publication No: 5995718409
BODY
POS. NO PART NO. DESCRIPTION
82* 316432800 A B Clip, wire
86 316508600 A B Receptacle, hinge, (2)
86* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
87 316401202 A B Bracket, harness
88 316232702 A B Rod, auto latch
89 # 316464300 A B Motor-latch
91 807219501 A B Shield, burner, front
97A# 5304509920 A B Circuit Board, AC detect, OVC1
106 316404100 A B Bracket, motor mtg.
107 316026701 A B Cover, fan
108# 316256900 A B Motor-fan
109 318398302 A B Fan Blade
111 316136600 A B Nut, fan retainer
151 5304518926 A B Shield, heat, bodyside, (2)
161# 5304518014 A B Element, convection, 900W
170 316112005 A B Anti Tip Kit, assy, w/template
170* 316107200 A B Bracket, anti-tip
170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt
170* 316541700 A B Template, anti-tip
264 316404700 A B Bracket, air dam
* # 5304522038 A B Harness, main
* 297174300 A B Screw, self pierce, #8, 18x.63
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316279600 A B Screw, bracket, stiffener, (4)
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 9 10/19
* Non-Illustrated Parts
Page 10
Publication No: 5995718409 GCRG3060A
TOP/DRAWER
10/19 10
Page 11
GCRG3060A Publication No: 5995718409

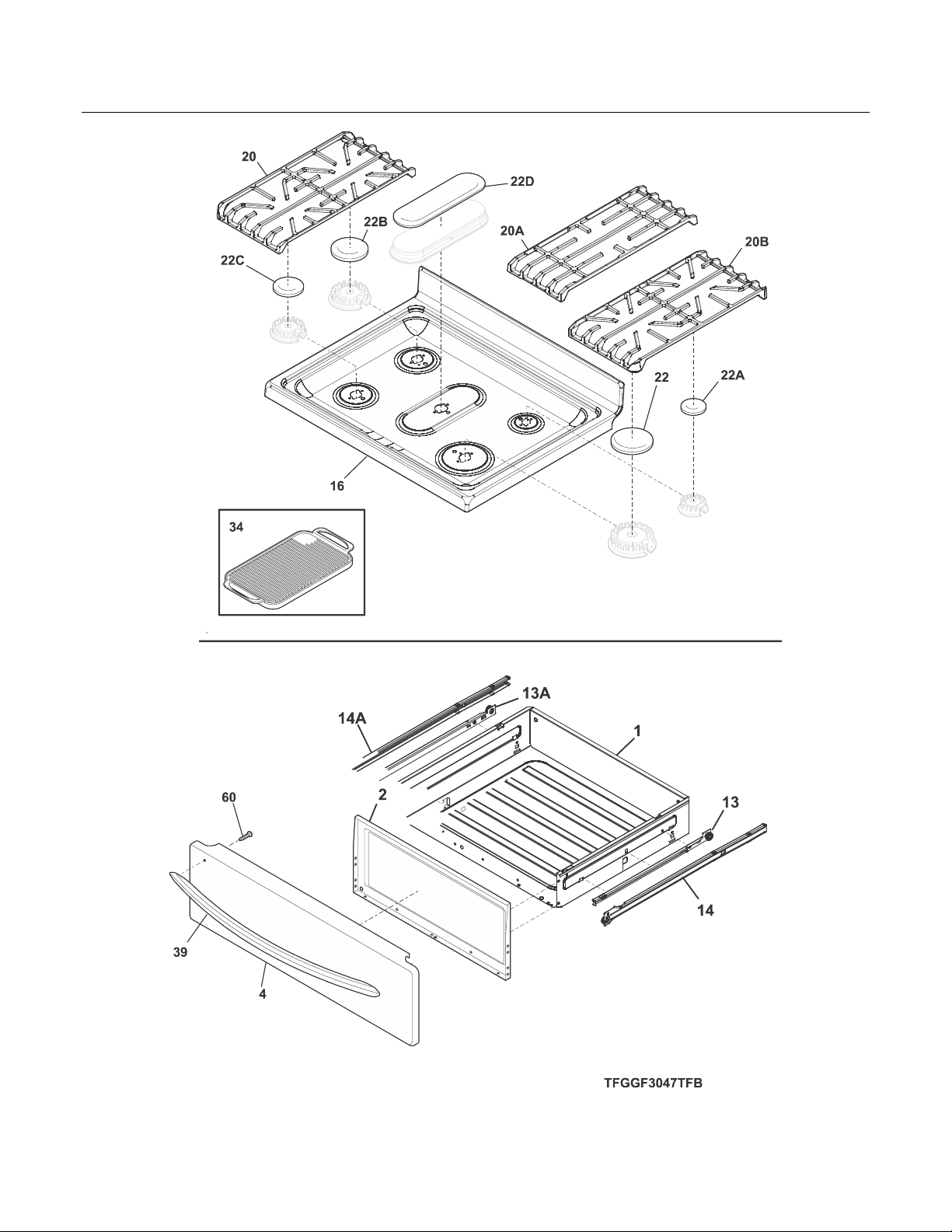

TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316408706 A B Drawer, utility
2 5304511880 A B Liner, drawer
4 5304517133 A - Panel, drawer, black stainless
4 5304517477 - B Panel, drawer, stainless
11 5304517906 A B Bracket, rear support, (2)
13 5304517905 A B Glide, drawer, black, RH inner
13A 5304517903 A B Glide, drawer, black, LH inner
14 5304517904 A B Glide, drawer, black, RH outer
14A 5304517902 A B Glide, drawer, black, LH outer
16 316610014 A B Main Top, black
20 808754701 A B Grate, black, LH
20A 808754801 A B Grate, black, center
20B 808754702 A B Grate, black, RH
22 316262104 A B Cap, 17K burner, black
22A 316261704 A B Cap, 5K burner, matte, black
22B 316262004 A B Cap, 14K burner, matte, black
22C 316261804 A B Cap, 9.5K burner, matte, black
22D 316559604 A B Cap, 9.5K burner, black, oval
34 5304495353 A B Griddle
39 316554009 A - Handle, door/drawer, black stainless, w/spacers
39 316554008 - B Handle, door/drawer, stainless
60 5303288572 A B Screw-handle mtg
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B Screw, 8-18 x 0.5, chrome
* 316089500 A B Screw, 10-16 x .486
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 11 10/19
* Non-Illustrated Parts
Page 12
Publication No: 5995718409 GCRG3060A
DOOR
10/19 12
Page 13
GCRG3060A Publication No: 5995718409

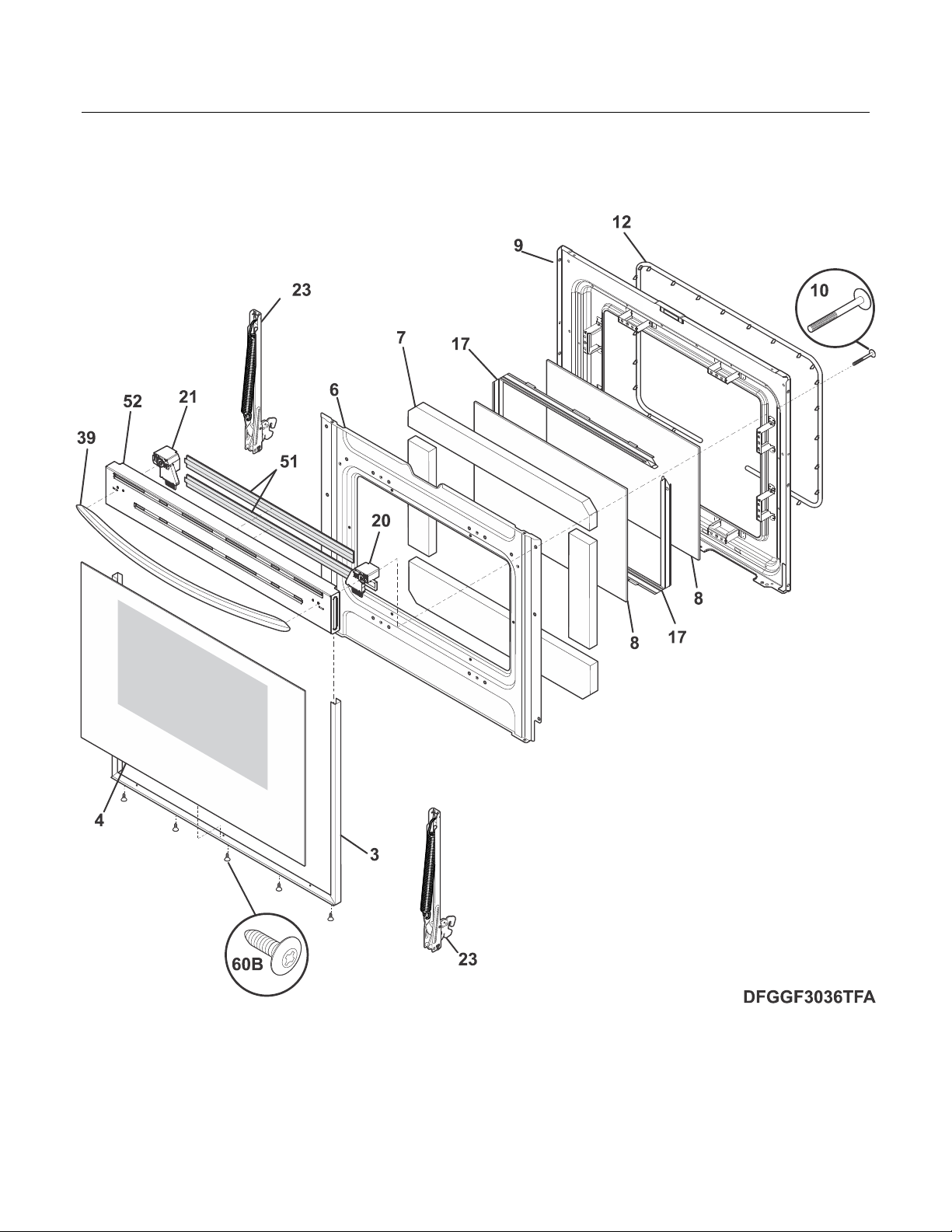

DOOR
POS. NO PART NO. DESCRIPTION
3 5303935378 A B Trim kit-door, 3 sided, black, w/tape
4 316355501 A B Glass Assembly, door, black, outer, w/foil
6 316402315 A B Shield, wool
7 316403900 A B Insulation, oven door
8 316117502 A B Glass, oven door, heat barrier, inner, HRC2
9 316423814 A B Liner, oven door
10 316513301 A - Screw, handle mtg, 10-24 x 2.188, (2)
10 316439505 - B Screw, handle mtg., #10-24 x 2, (2)
12 5304498835 A B Seal, oven door
17 5304504811 A B Spacer, glass
20 316353004 A B Spacer, door, RH
20A 316353005 A B Spacer, door, LH
23 5304521043 A B Hinge, door, orange, dual spring
23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black
39 316554009 A - Handle, door/drawer, black stainless, w/spacers
39 316554008 - B Handle, door/drawer, stainless
39* 5303288572 A B Screw-handle mtg
51 316355300 A B Insulation, door, top cap
52 5304516889 A - Trim, door cap, black stainless, upper
52 5304518010 - B Cap, door trim, stainless
60B 316021109 A B Screw, 8-18 x 0.5, chrome
* 316483102 A B Label, anti-tip
* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome
Model Index: A GCRG3060A (GCRG3060ADA)
B GCRG3060A (GCRG3060AFA)
# Functional Parts 13 10/19
* Non-Illustrated Parts
