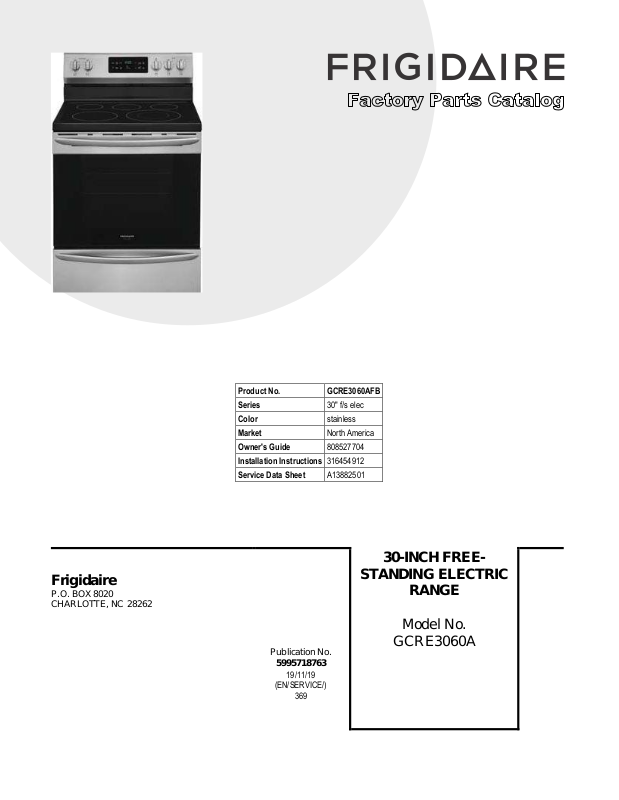

Page 1
GCRE3060AF.jpg CGRE3060ADA.wmf VGCRE3060ADA.wmf TFGEF3032RFF.wmf
DLGEF3046TDA.wmf
Product No.
GCRE3060AFB
Series
30" f/s elec
Color
stainless
Market
North America
Owner's Guide
808527704
Installation Instructions
316454912
Service Data Sheet
A13882501
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995718763
19/11/19
(EN/SERVICE/)
369
30-INCH FREE-
STANDING ELECTRIC
RANGE
Model No.
GCRE3060A
Page 2
Publication No: 5995718763 GCRE3060AFB
BACKGUARD
11/19 2
Page 3
GCRE3060AFB Publication No: 5995718763
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316281802 Shield, backguard, rear wall
13A# 5304522964 Switch, infinite, warmer
14 316022500 Light/Lamp, indicator, black, 125 V
15 5304493644 Cap, end, black, RH
15A 5304493646 Cap, end, black, LH
19 5304509891 Panel, backguard, stainless
20 # 5304523298 Control, electronic, voltron
28 316528700 Insulation, manifold panel
30 316577600 Plug, button, oval, harness
31 5304509889 Knob, stainless
46 316557300 Lens-light/lamp, indicator, clear
54 # 316436000 Switch, infinite, small element
54A# 5304522918 Switch, infinite, Radiant dual
54B# 807004702 Switch, triple, infinite
56 316234045 Shield, backguard, black, inner
57 808950202 Shield, steam
69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg
97 # 5304516862 Board, pc, oven relay
* # 5304522011 Harness, communication
* # 5304523297 Harness, electrical
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 Screw, 8-18 x 0.5, chrome
* 316089500 Screw, 10-16 x .486
* 5303289910 Screw, truss sqdr, 8A x 1", 62*
# Functional Parts 3 11/19
* Non-Illustrated Parts
Page 4
Publication No: 5995718763 GCRE3060AFB
BODY
11/19 4
Page 5
GCRE3060AFB Publication No: 5995718763
BODY
POS. NO PART NO. DESCRIPTION
1 316401805 Panel, main back
* 316418901 Screw, trilobe, 10-32 x 5/16", black
3 316400136 Panel, bodyside, black, RH
3 316400137 Panel, bodyside, black, LH
5 316272900 Screw, leveling, plastic, rear, (2)
5A 5304509869 Leveling Leg Assy, metal, front, (2), bracket & leg
6 316498003 Rack, oven
6B 316496205 Rack, oven
8 316505601 Panel, oven bottom
8A 316505701 Base, bake element
8B 316506000 Bracket, support, oven bottom, (2)
8C 316505801 Support, element
9 316081900 Pan, broilerOPTIONAL ACCESS0RY
10 316082000 Insert, broiler panOPTIONAL ACCESS0RY
12 316445500 Switch, oven light, door frame
14 316116400 Receptacle, oven light
15 316538901 Lamp, oven light
16 318406100 Lens, oven light, glass
17 316087500 Retainer, lens
18 # 316405800 Latch Assembly, oven door
21 316408000 Clip, bodyside
22 316286300 Bracket-bodyside, (2)
* 316279600 Screw, bracket, stiffener, (4)
25 316406200 Shield, heat, lower
30 5304511083 Counterweight, concrete block
31 5304511084 Bracket, concrete block
37 # 316490000 Probe, oven temp
42 316400701 Shield, wool, lower
43 316282700 Screw, w/washer, 8-18
44 316517600 Bumper, front, main
* 5303285179 Screw, wafer head, 8-32T x 0.500, black, 44*
45 316234100 Shield, wire, vent tube
53 # 5304516490 Probe, meat, black
53A# 5304516901 Receptacle, meat probe
53B 316247700 Nut, mounting
53B* 316534100 Washer, flat, meat probe
57 316283600 Cover, access
58A 316406601 Insulation, oven wrapper
58B 316406503 Insulation, oven back
58C 316509600 Insulation, lower shield
58D 316509700 Insulation, oven bottom
59 316208401 Vent Tube, assembly, w/catalyst
59* 316247300 Catalyst, oven vent, ceramic
59A 316208304 Tube, oven vent, upper
62 # 5303935271 Terminal Block Kit
62* 316001003 Screw, ground wire
62* 316205500 Nut, hex flange, 3/8 10-32
62* 316542203 Insulator
63 316542600 Plate, grounding strap
66 # 316203301 Element, broil
67 # 316505500 Element, bake, 3000W
# Functional Parts 5 11/19
* Non-Illustrated Parts
Page 6
Publication No: 5995718763 GCRE3060AFB

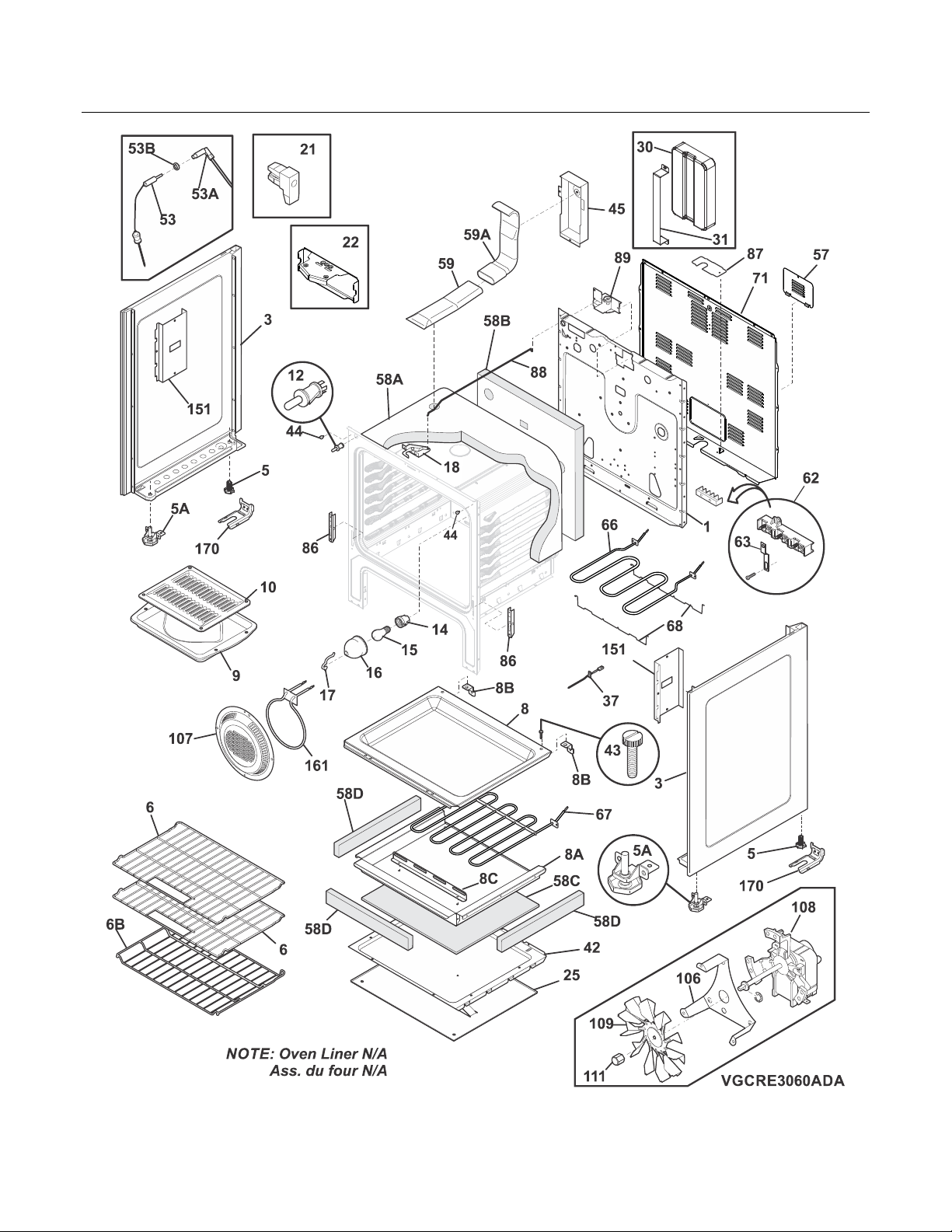

BODY
11/19 6
Page 7
GCRE3060AFB Publication No: 5995718763
BODY
POS. NO PART NO. DESCRIPTION
68 316404002 Support, element, broil
71 316283204 Shield, rear wall
86 316508600 Receptacle, hinge, (2)
* 316418900 Screw, sims lp, #8-32 x 5/16", black
87 316081200 Bracket, cable mtg
88 316203500 Rod, auto latch
89 # 316464300 Motor-latch
106 316404100 Bracket, motor mtg.
107 316026701 Cover, fan
108# 316256100 Motor-fan
109 318398302 Fan Blade
111 316136600 Nut, fan retainer
151 316404601 Shield, bodyside
161# 5304518014 Element, convection, 900W
170 316112005 Anti Tip Kit, assy, w/template
170* 316107200 Bracket, anti-tip
170* 316116000 Screw, concrete, 1.75", anti-tip brkt
170* 316541700 Template, anti-tip
* # 5304522012 Harness, main
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 Screw, 8-18 x 0.5, chrome
* 316089500 Screw, 10-16 x .486
* 5303289910 Screw, truss sqdr, 8A x 1", 62*
# Functional Parts 7 11/19
* Non-Illustrated Parts
Page 8
Publication No: 5995718763 GCRE3060AFB

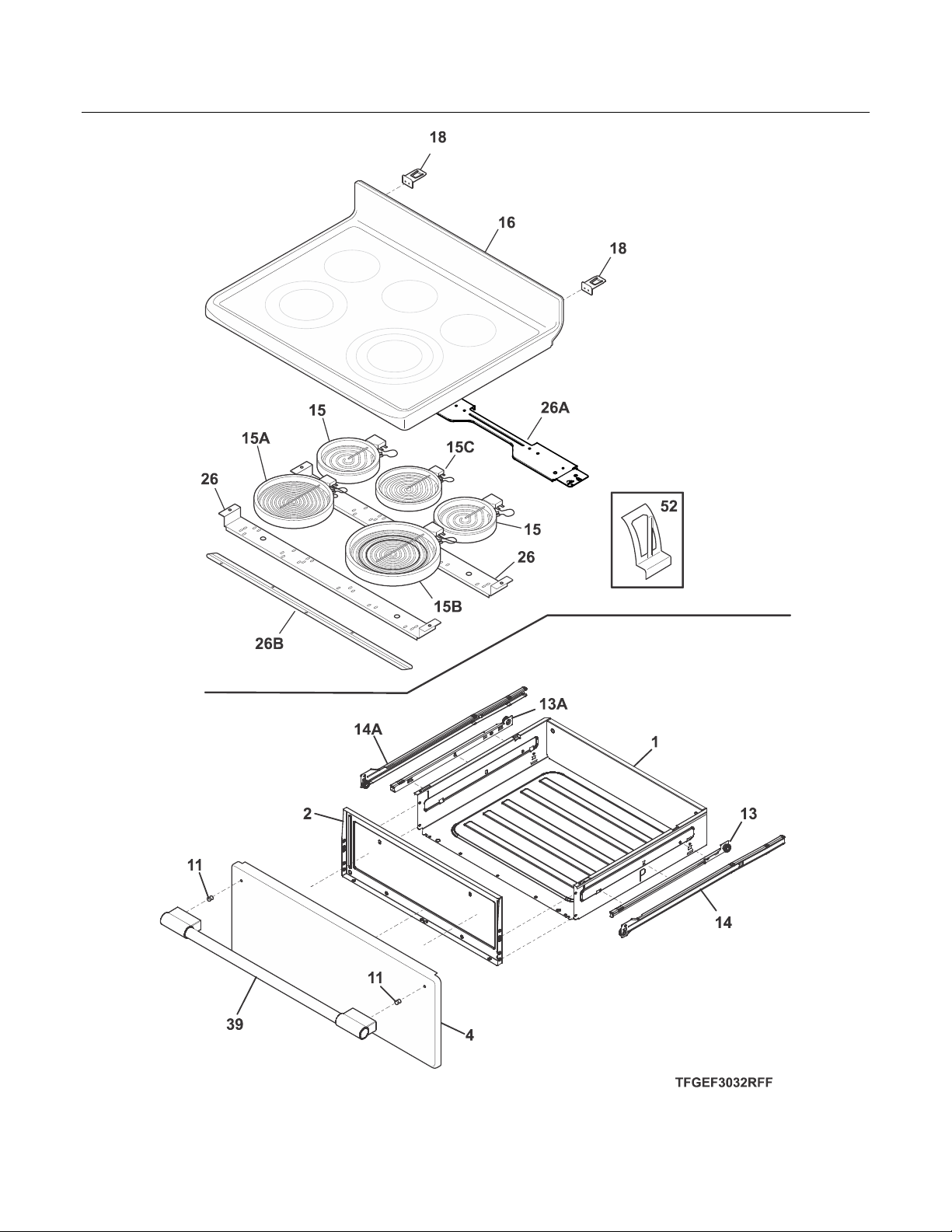

TOP/DRAWER
11/19 8
Page 9
GCRE3060AFB Publication No: 5995718763
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316408706 Drawer, utility
2 5304511827 Liner, drawer
4 5304518011 Panel, drawer, stainless
11 5304517906 Bracket, rear support, (2)
13 5304517905 Glide, drawer, black, RH inner
13A 5304517903 Glide, drawer, black, LH inner
14 5304517904 Glide, drawer, black, RH outer
14A 5304517902 Glide, drawer, black, LH outer
15 # 318178110 Element, surface, 6", 1200, (2), radiant
15A# 316282000 Element, dual, 9"/6", surface, 3000W, quick boil
15B# 318297810 Element, triple, 1200/2000/3000W, 6"/9"/12"
15C# 316289800 Element, surface, warmer, 100 W
16 5304513155 Smoothtop, assembly, black
18 316580800 Bracket-hinge, main top
23* 316418900 Screw, sims lp, #8-32 x 5/16", black
26 5304512926 Channel, element support
26A 316498200 Bracket-support, chassis, aluminum
26B 316607600 Bracket, chassis support, front
39 316554008 Handle, door/drawer, stainless
* 5303288572 Screw-handle mtg
43 5303285179 Screw, wafer head, 8-32T x 0.500, black, 44*
52 316461700 Clip, element mtg
52* 5308014215 Screw, 6-20 x 0.312
60 316439500 Screw, handle mtg., 10-24 x 1.75", (2)
62* 316001003 Screw, ground wire
* # 5304522952 Harness, surface
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021109 Screw, 8-18 x 0.5, chrome
* 316089500 Screw, 10-16 x .486
* 316418901 Screw, trilobe, 10-32 x 5/16", black
# Functional Parts 9 11/19
* Non-Illustrated Parts
Page 10
Publication No: 5995718763 GCRE3060AFB

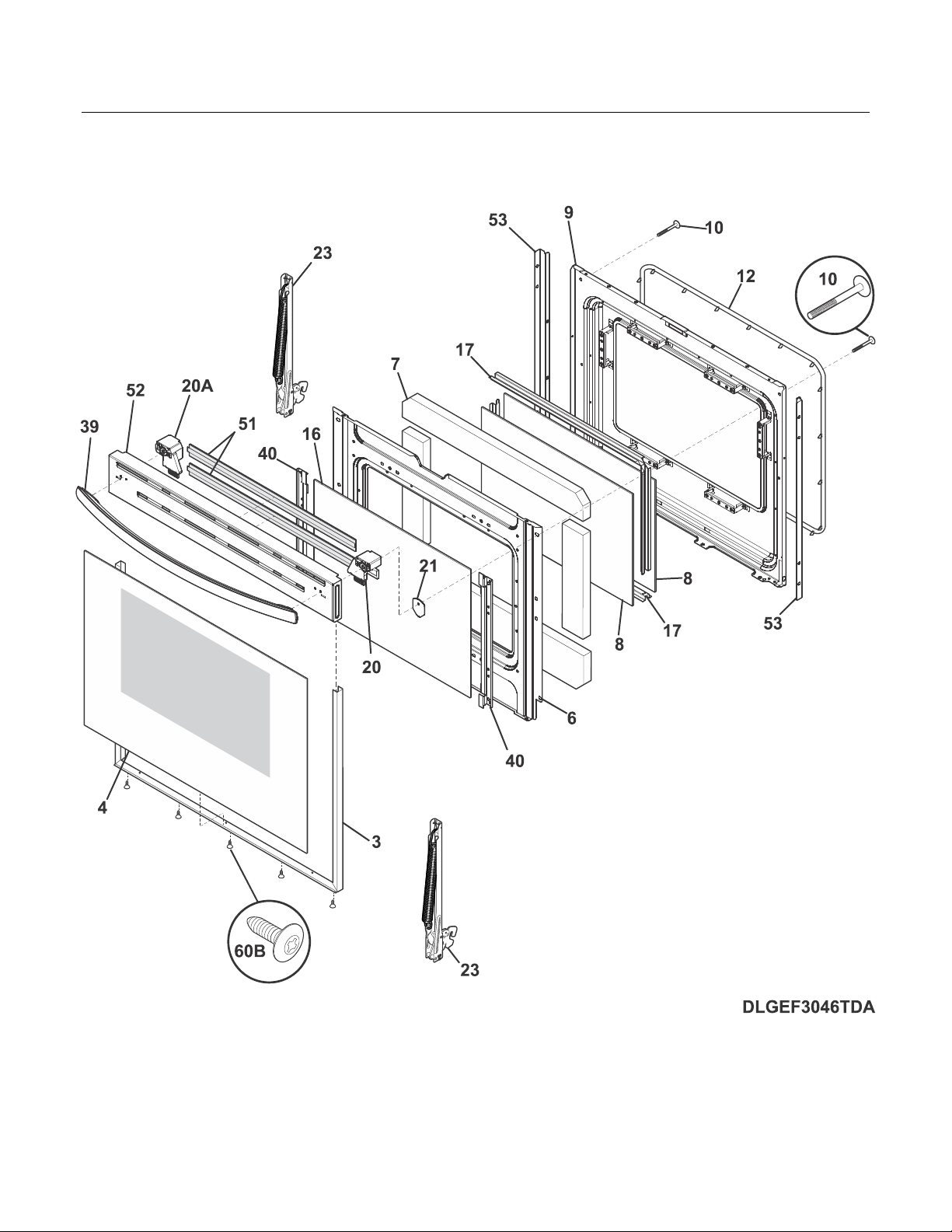

DOOR
11/19 10
Page 11
GCRE3060AFB Publication No: 5995718763
DOOR
POS. NO PART NO. DESCRIPTION
3 5303935377 Trim kit-door, 3 sided, black, w/tape
4 316355601 Glass, door, black, w/foil
6 316406312 Shield-wool
7 316405600 Insulation, oven door
8 316117502 Glass, oven door, heat barrier, inner, HRC2
9 316423715 Liner, oven door
10 316439505 Screw, handle mtg., #10-24 x 2, (2)
12 316405000 Seal, oven door
16 316552801 Glass, door, airwash
17 5304504811 Spacer, glass
20 316353004 Spacer, door, RH
20A 316353005 Spacer, door, LH
21 316533801 Plate, distribution, load
23 5304522696 Hinge, door, dual spring
23* 316418900 Screw, sims lp, #8-32 x 5/16", black
39 316554008 Handle, door/drawer, stainless
39* 5303288572 Screw-handle mtg
40 316552401 Bracket, airwash glass, (2)
51 316355300 Insulation, door, top cap
52 5304518010 Cap, door trim, stainless
60B 316021109 Screw, 8-18 x 0.5, chrome
* 316483102 Label, anti-tip
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 5303285179 Screw, wafer head, 8-32T x 0.500, black, 44*
# Functional Parts 11 11/19
* Non-Illustrated Parts
